Audio System (w/o LEXUS Navigation System w/Accessory Meter Assembly): Notes

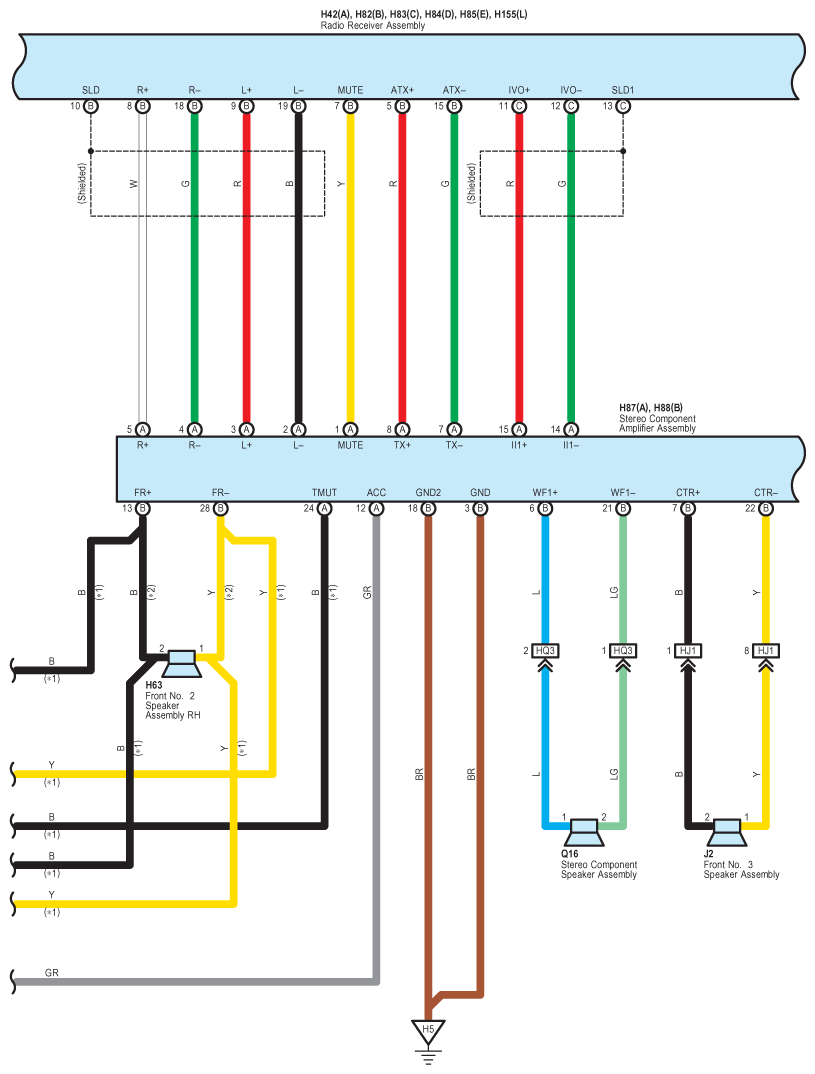

Fig 1: Audio System (W/O Lexus Navigation System W/ Accessory Meter Assembly) - Circuit Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

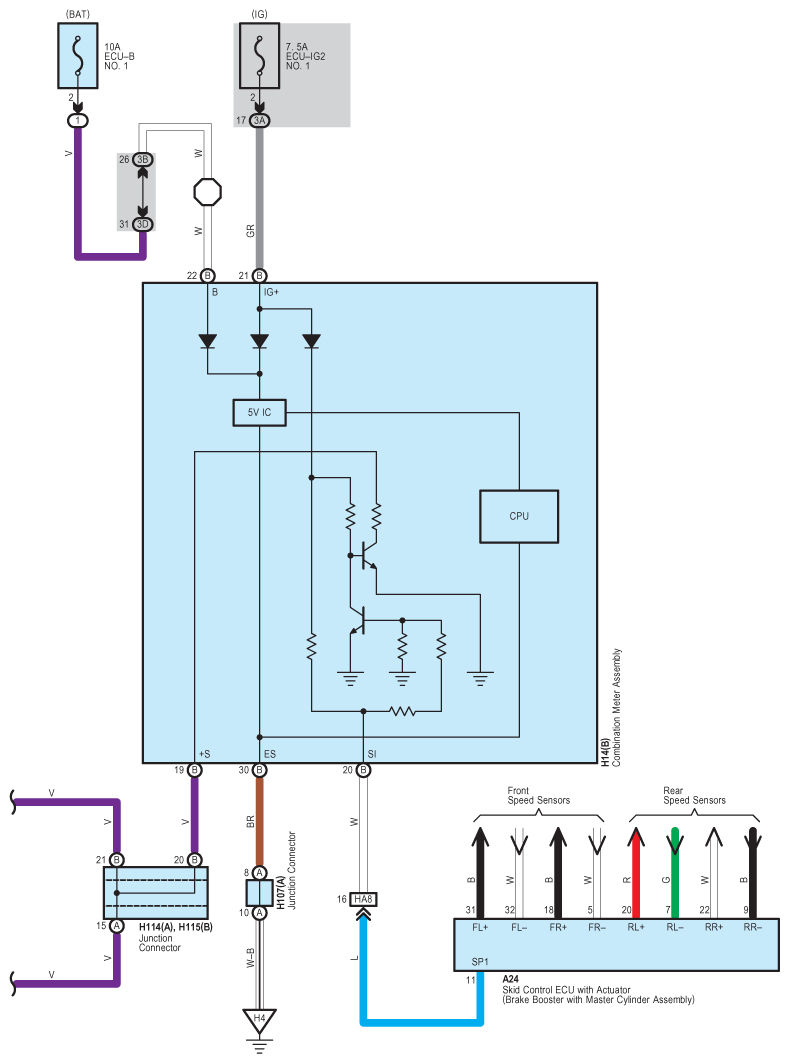

Fig 2: Audio System (W/O Lexus Navigation System W/ Accessory Meter Assembly) - Circuit Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

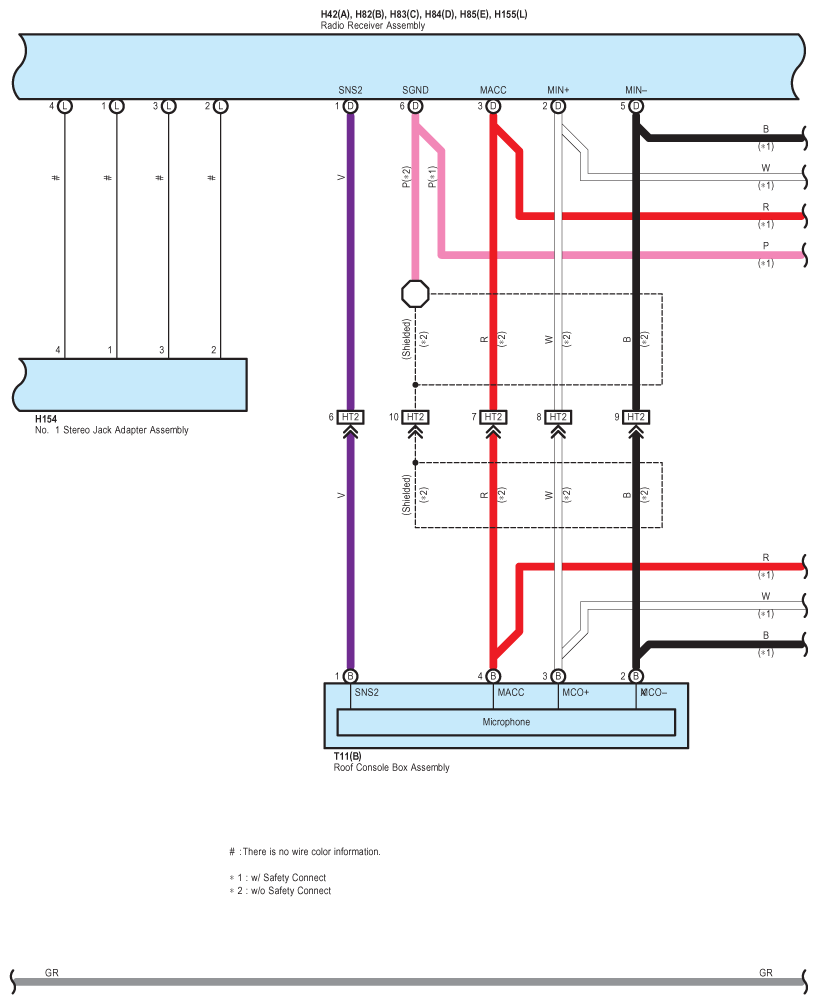

Fig 3: Audio System (W/O Lexus Navigation System W/ Accessory Meter Assembly) - Circuit Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

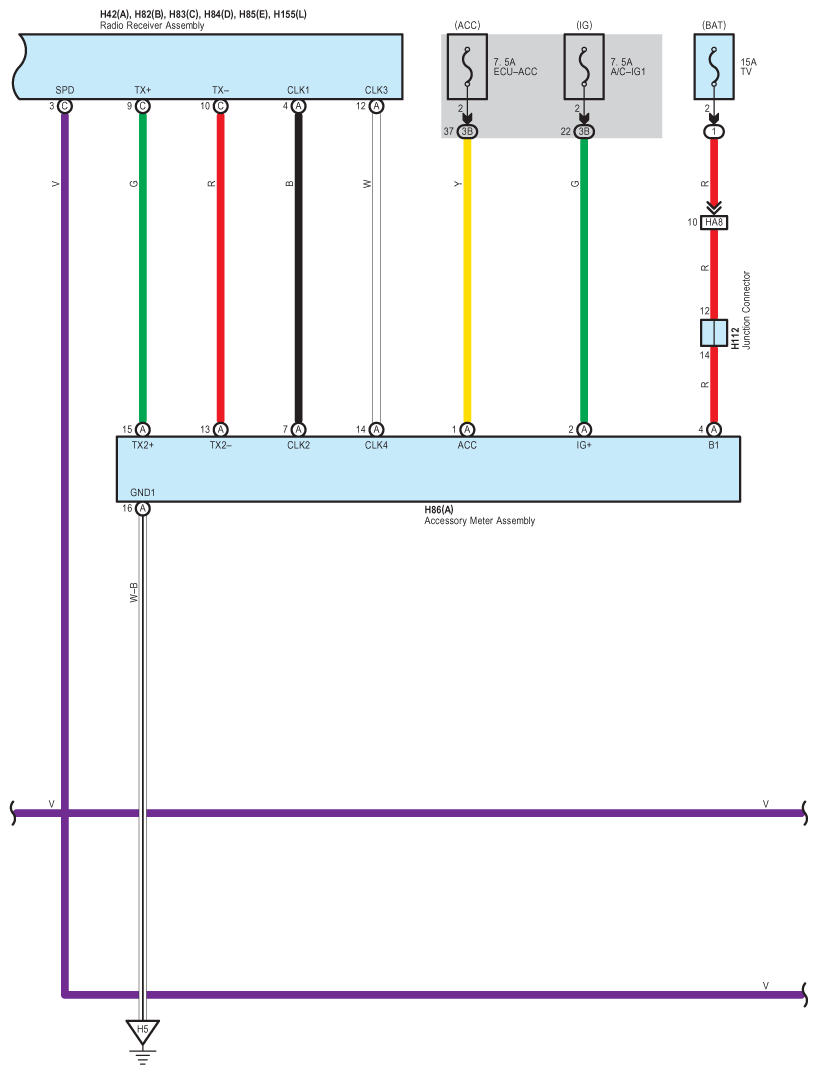

Fig 4: Audio System (W/O Lexus Navigation System W/ Accessory Meter Assembly) - Circuit Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

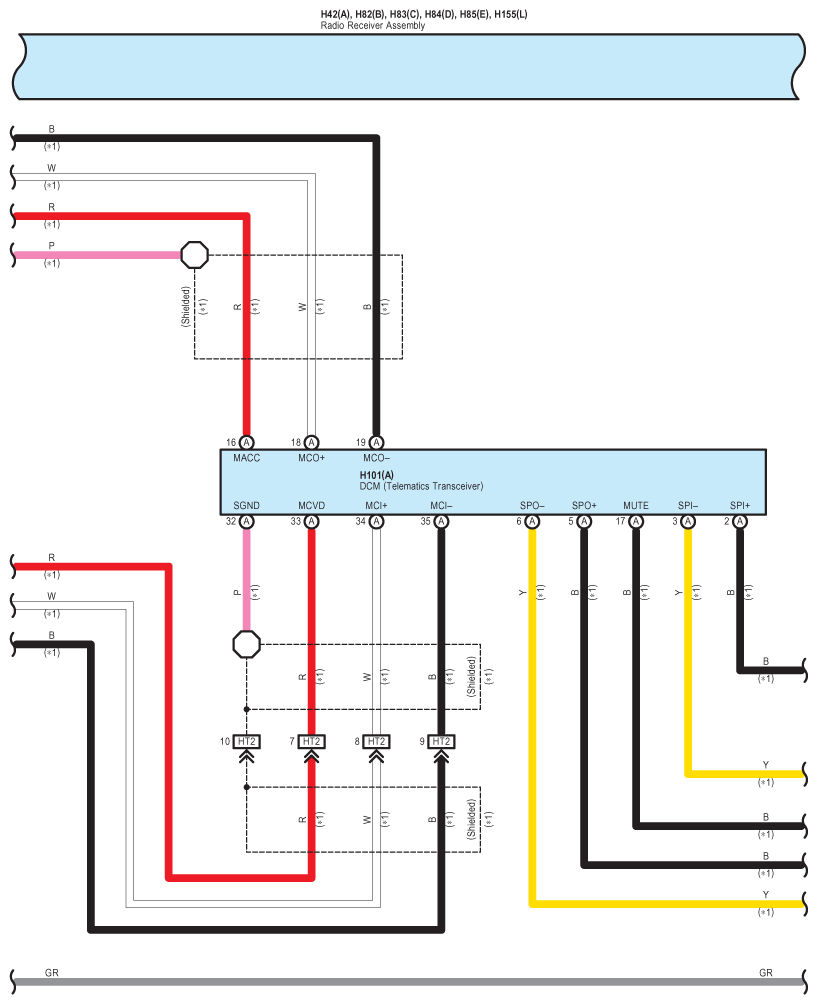

Fig 5: Audio System (W/O Lexus Navigation System W/ Accessory Meter Assembly) - Circuit Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

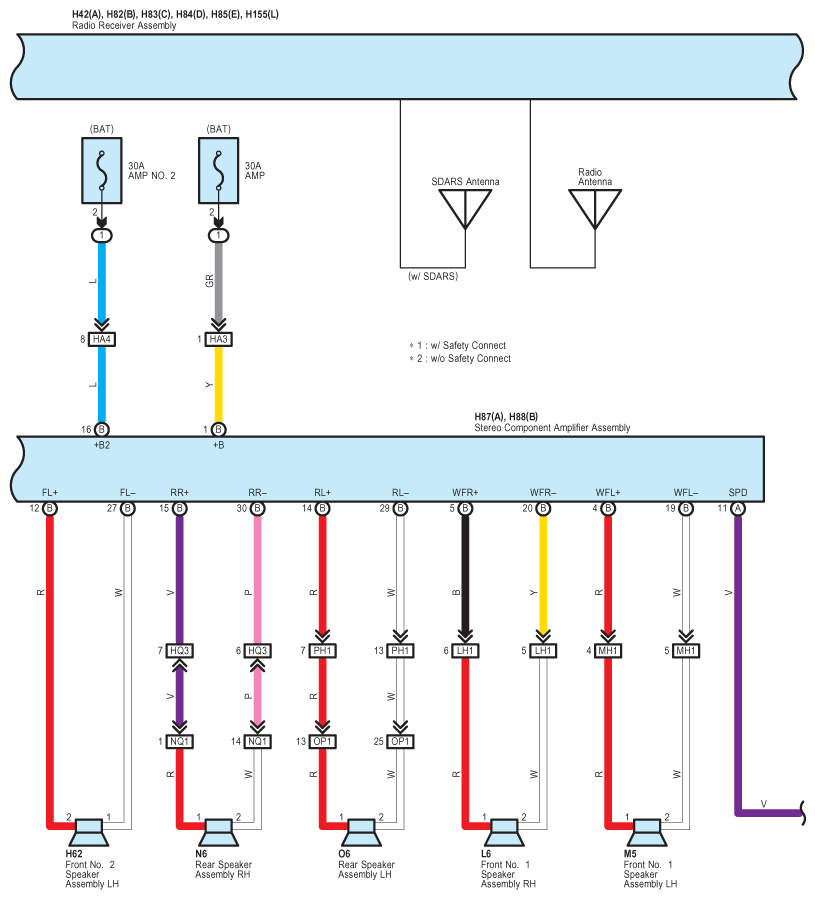

Fig 6: Audio System (W/O Lexus Navigation System W/ Accessory Meter Assembly) - Circuit Diagram (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

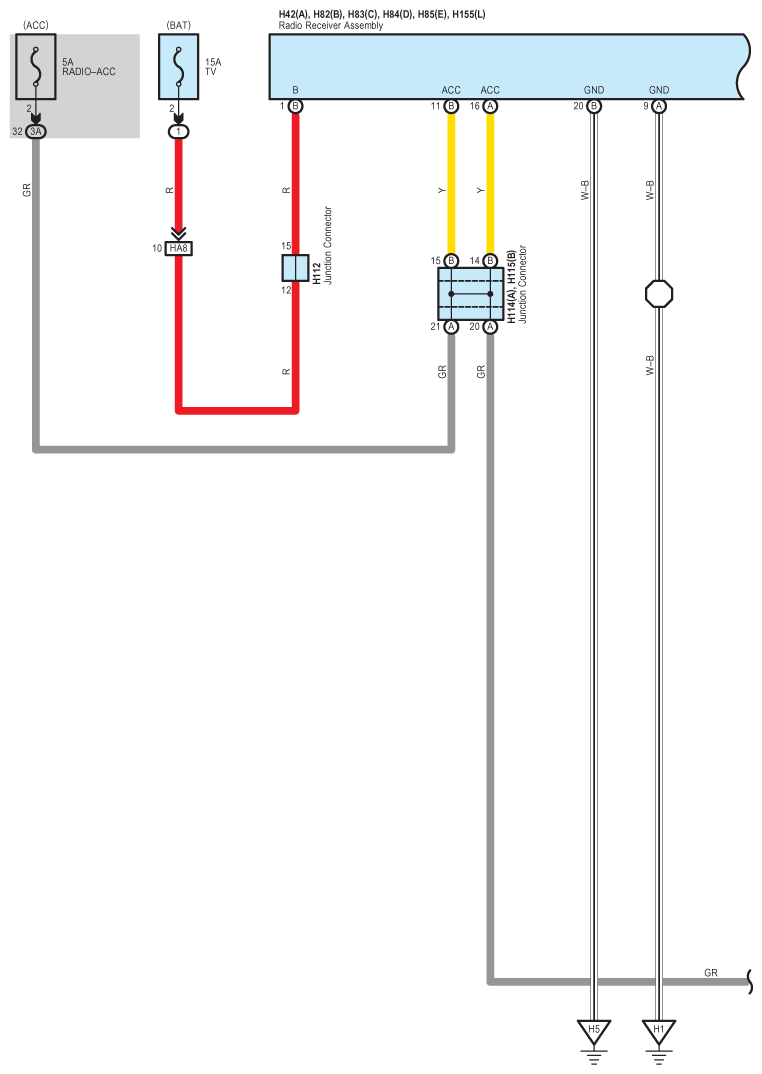

Fig 7: Audio System (W/O Lexus Navigation System W/ Accessory Meter Assembly) - Circuit Diagram (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

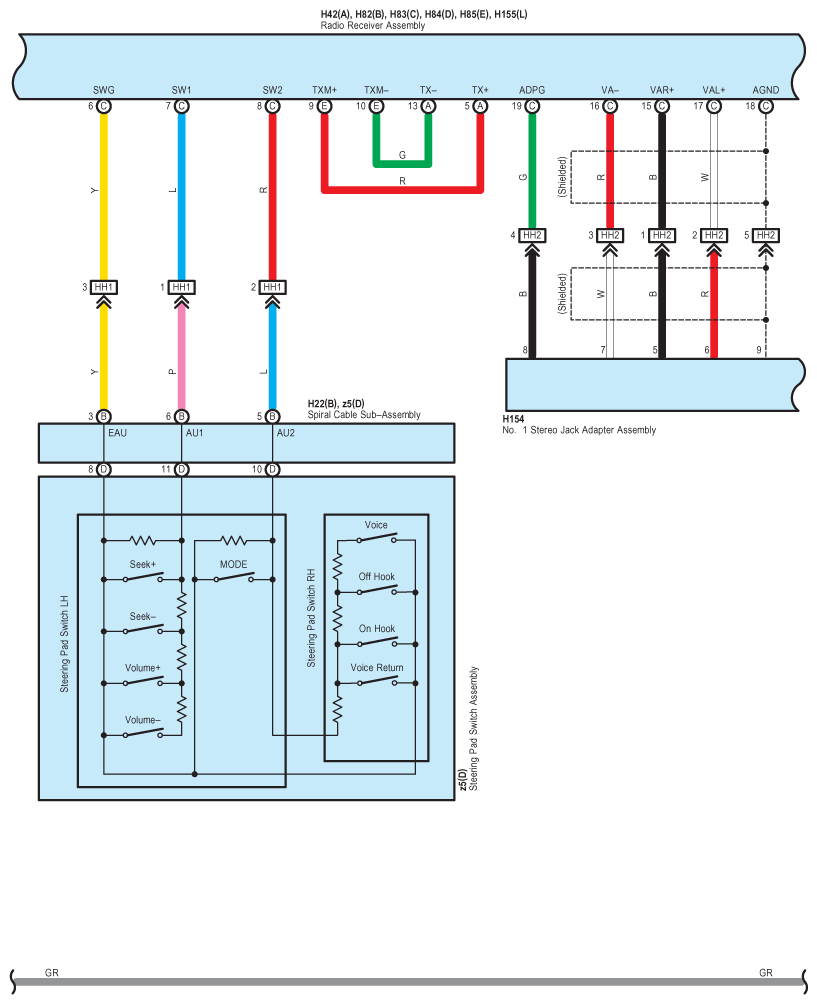

Fig 8: Audio System (W/O Lexus Navigation System W/ Accessory Meter Assembly) - Circuit Diagram (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
