Cooling Fan: Notes

Fig 1: Cooling Fan - Circuit Diagram (1 Of 2)
G08953893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

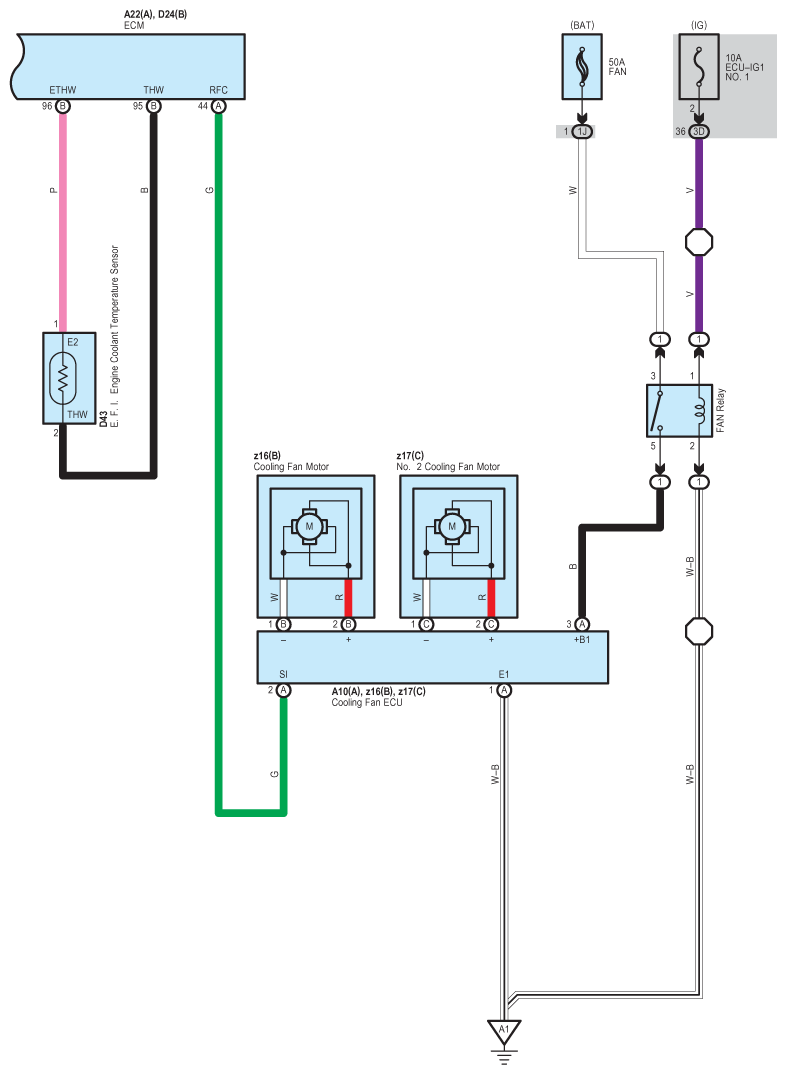

Fig 2: Cooling Fan - Circuit Diagram (2 Of 2)
G08953894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
