OEM System Circuits: Headlight: Notes

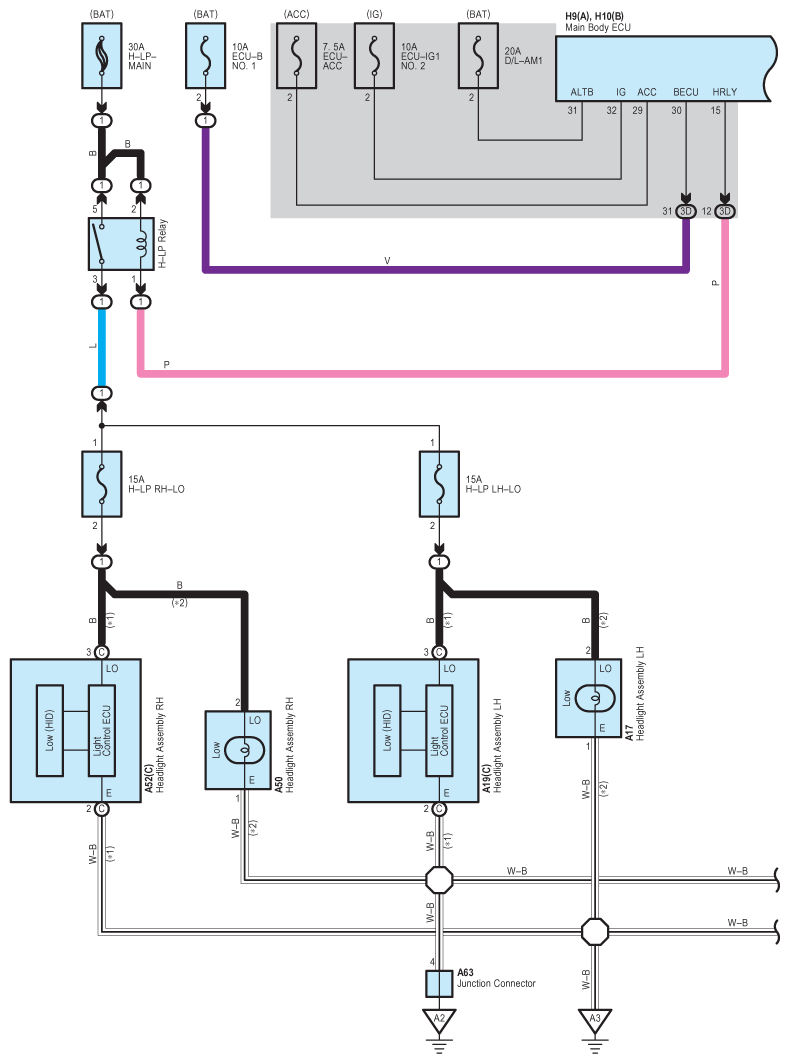

Fig 1: Headlight - Circuit Diagram (1 Of 6)

G08953651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

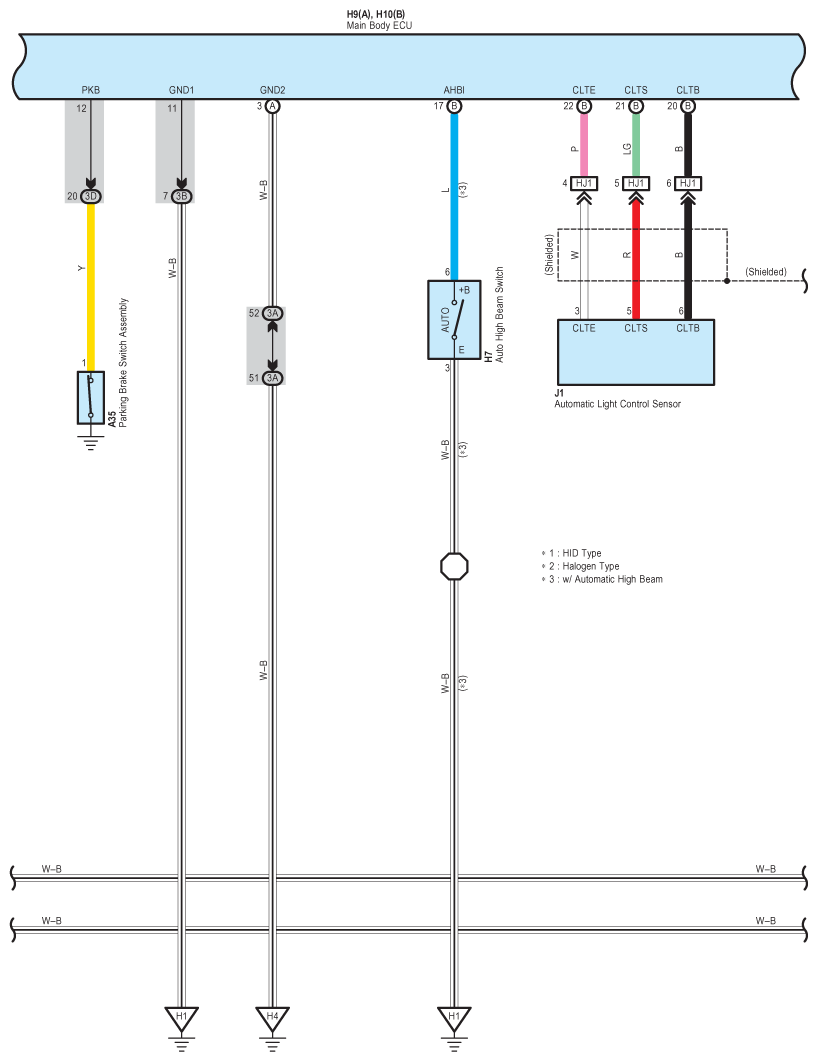

Fig 2: Headlight - Circuit Diagram (2 Of 6)

G08953652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

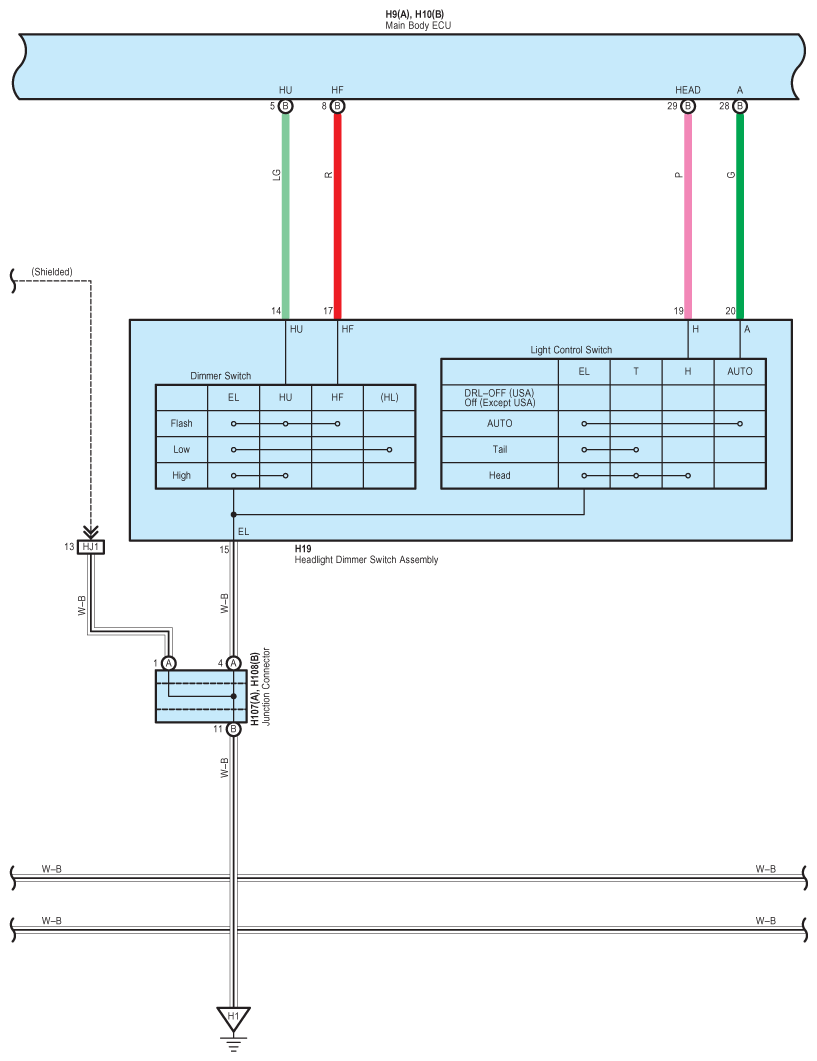

Fig 3: Headlight - Circuit Diagram (3 Of 6)

G08953653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

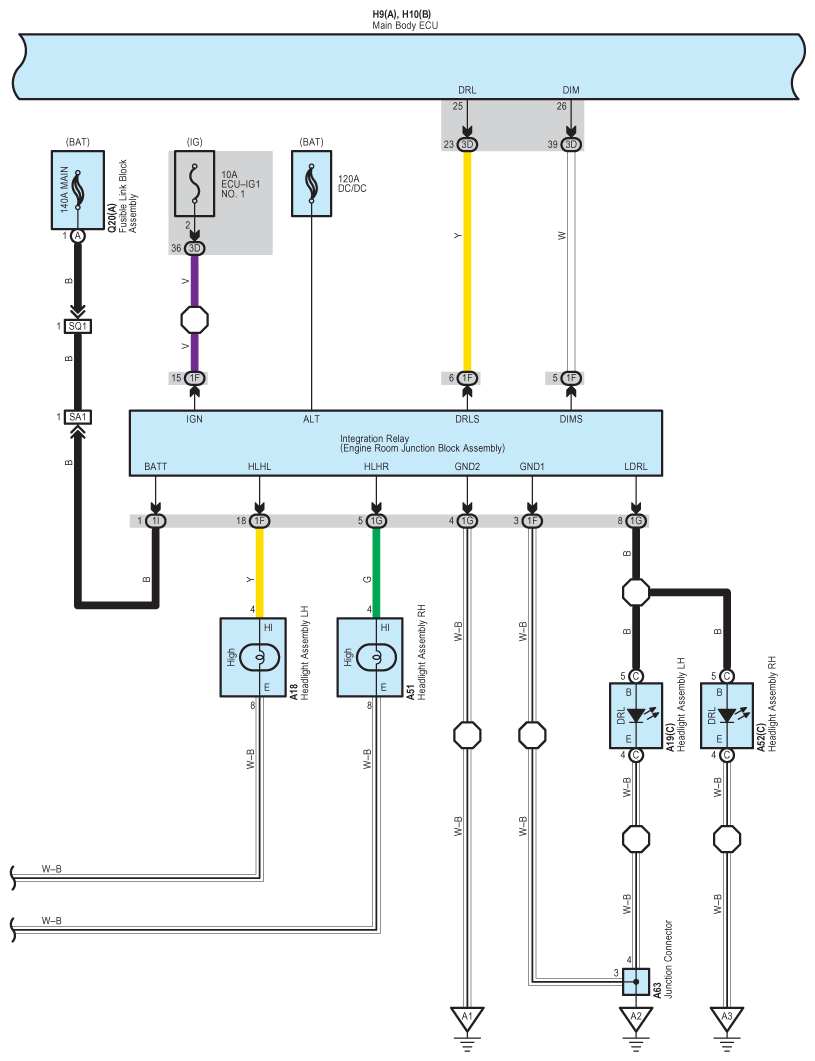

Fig 4: Headlight - Circuit Diagram (4 Of 6)

G08953654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

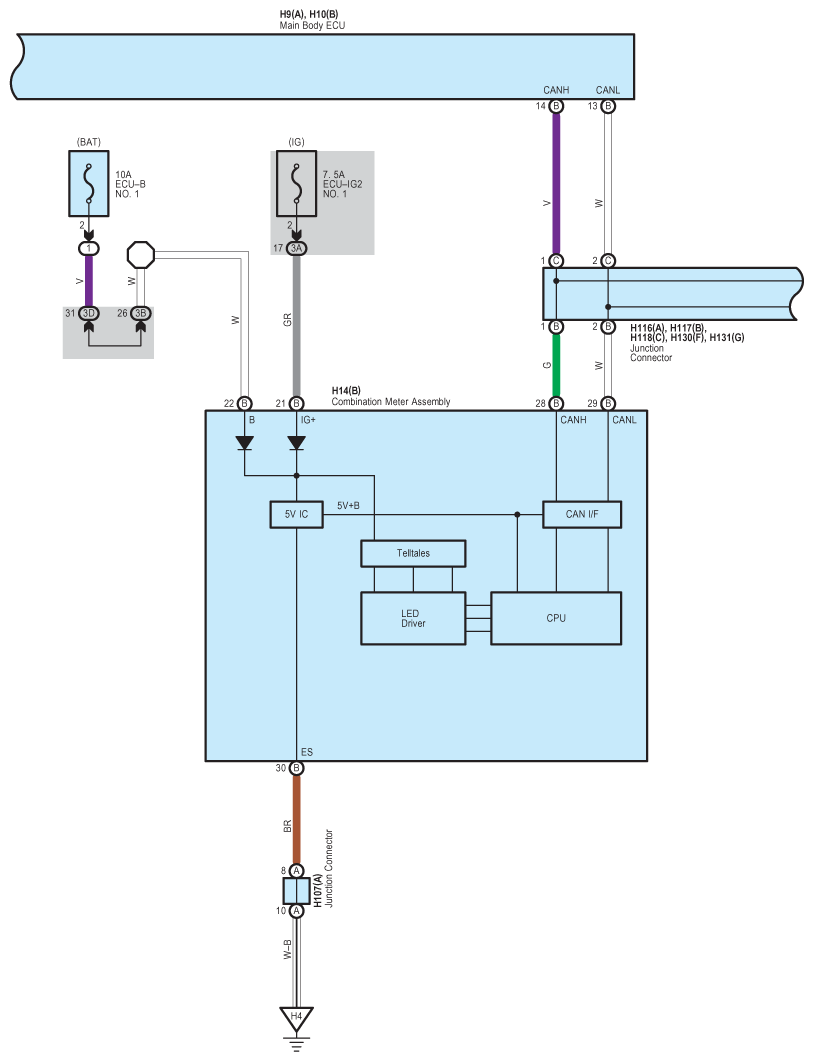

Fig 5: Headlight - Circuit Diagram (5 Of 6)

G08953655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

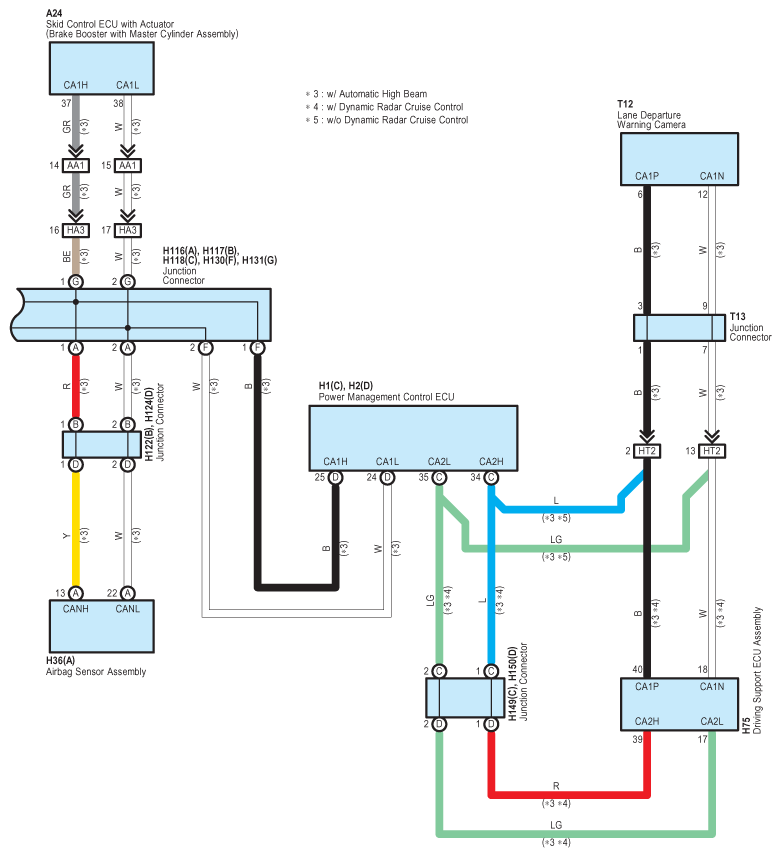

Fig 6: Headlight - Circuit Diagram (6 Of 6)

G08953656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
