Illumination and Taillight: Notes

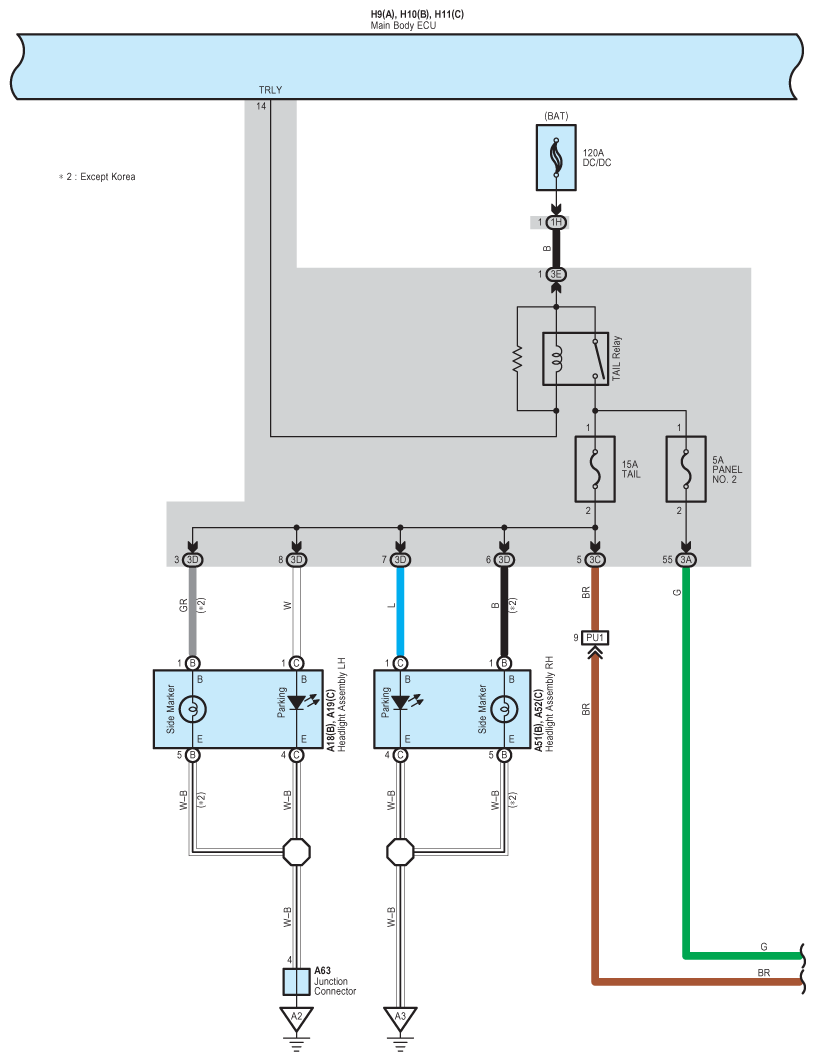

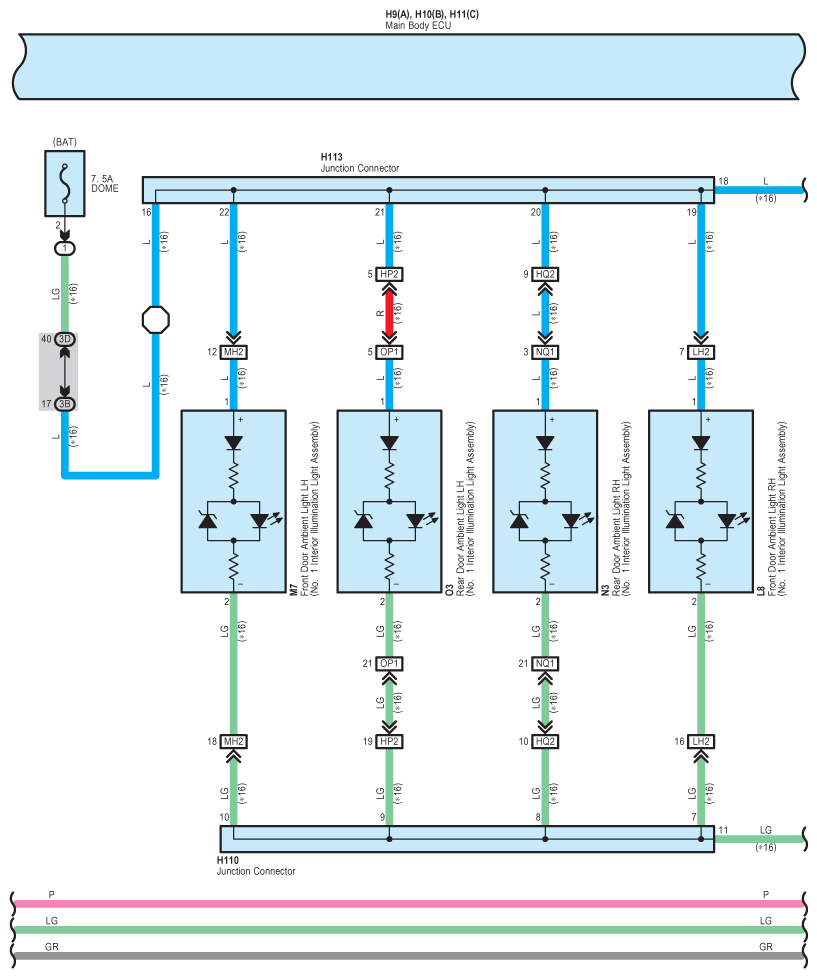

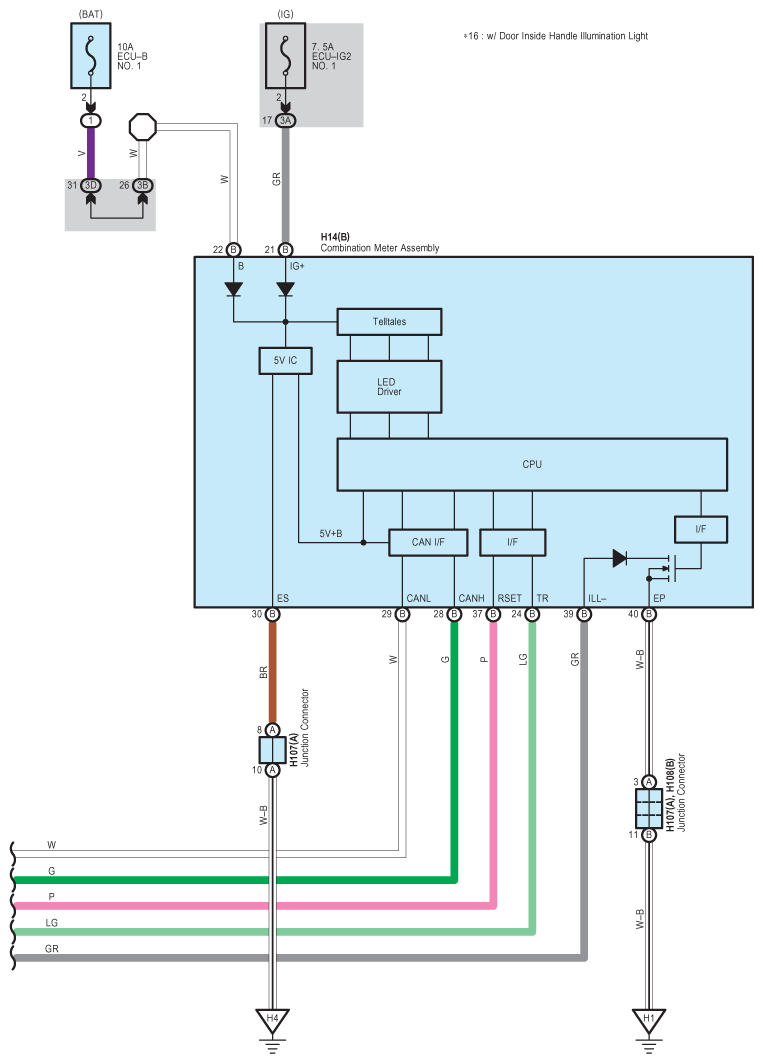

Fig 1: Illumination And Taillight - Circuit Diagram (1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

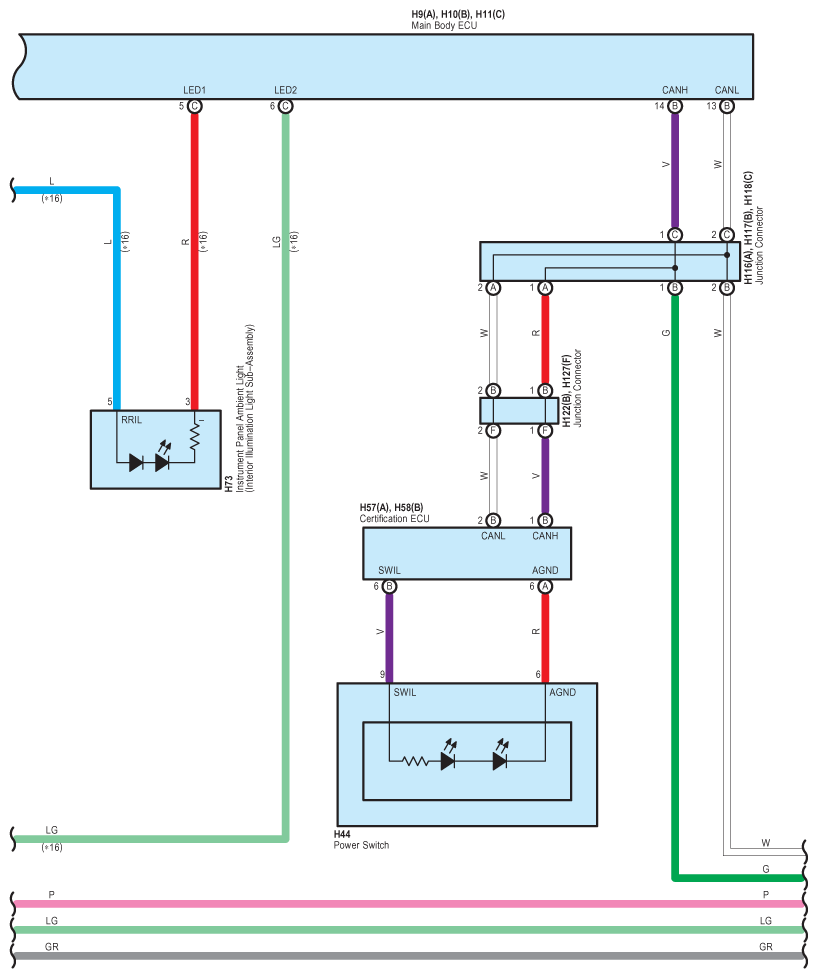

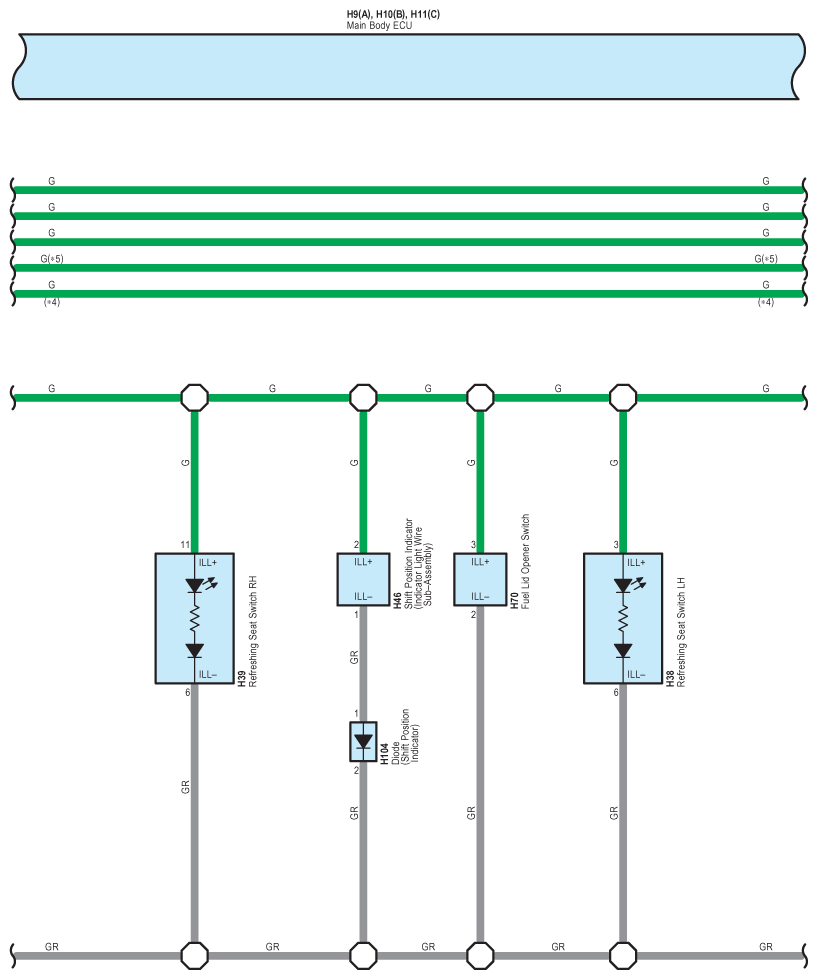

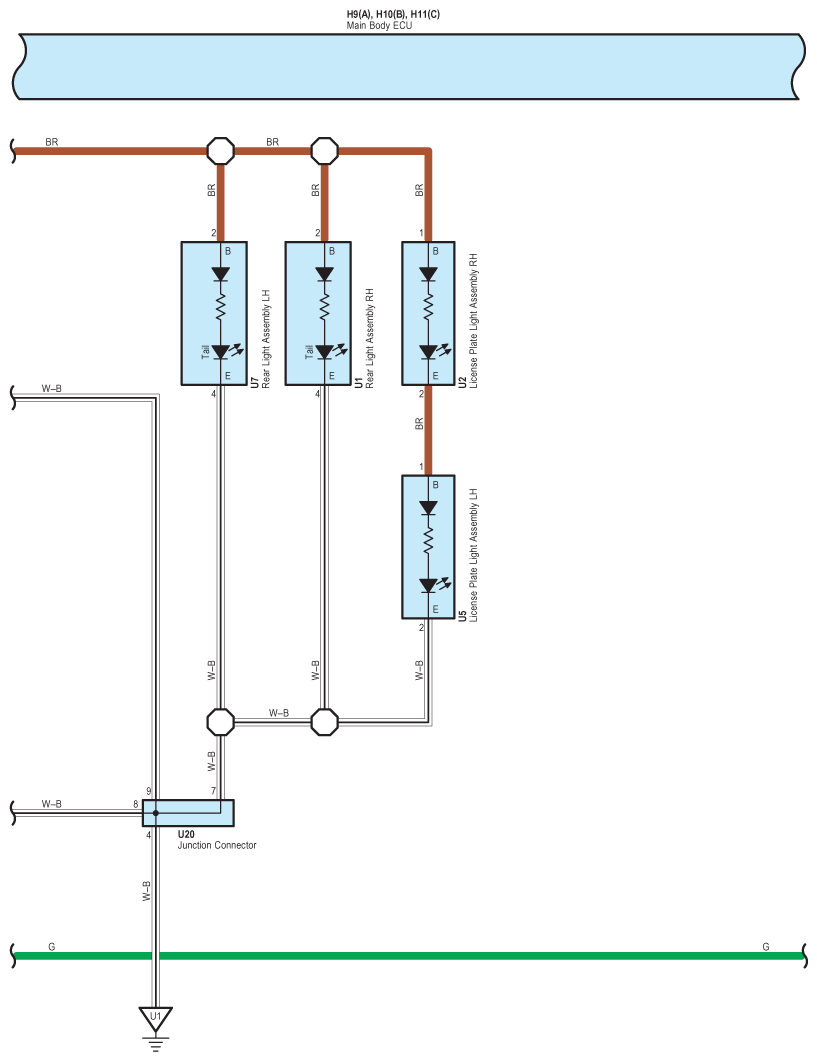

Fig 2: Illumination And Taillight - Circuit Diagram (2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

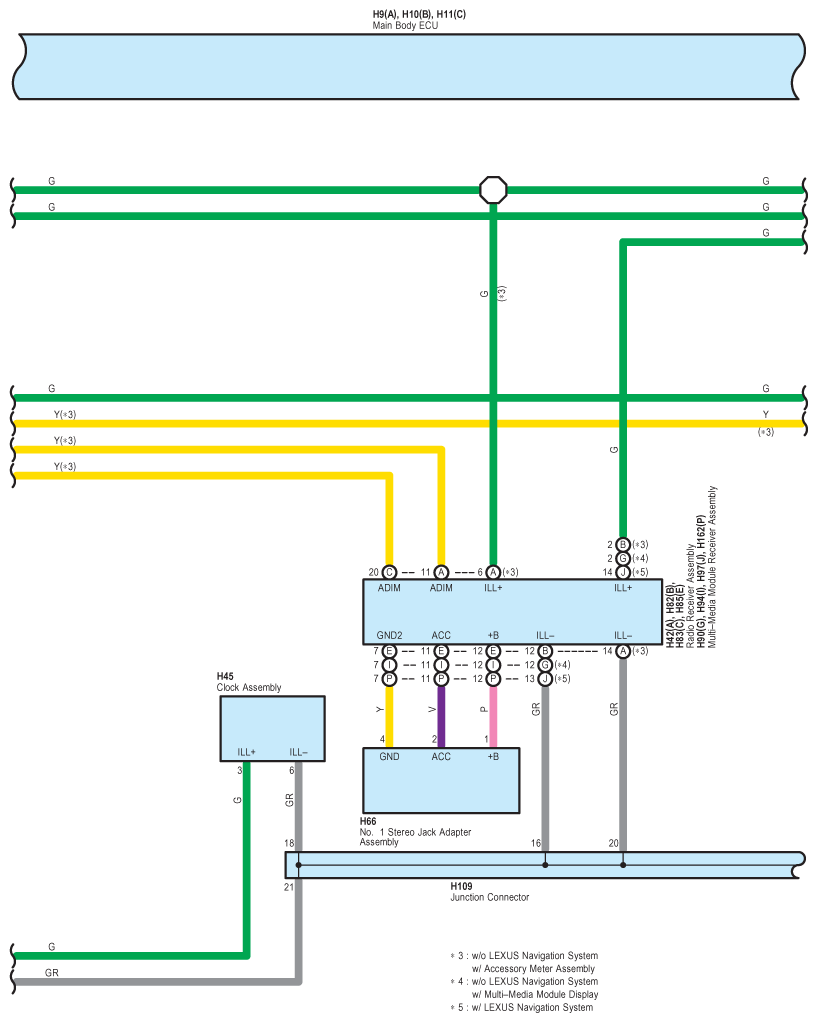

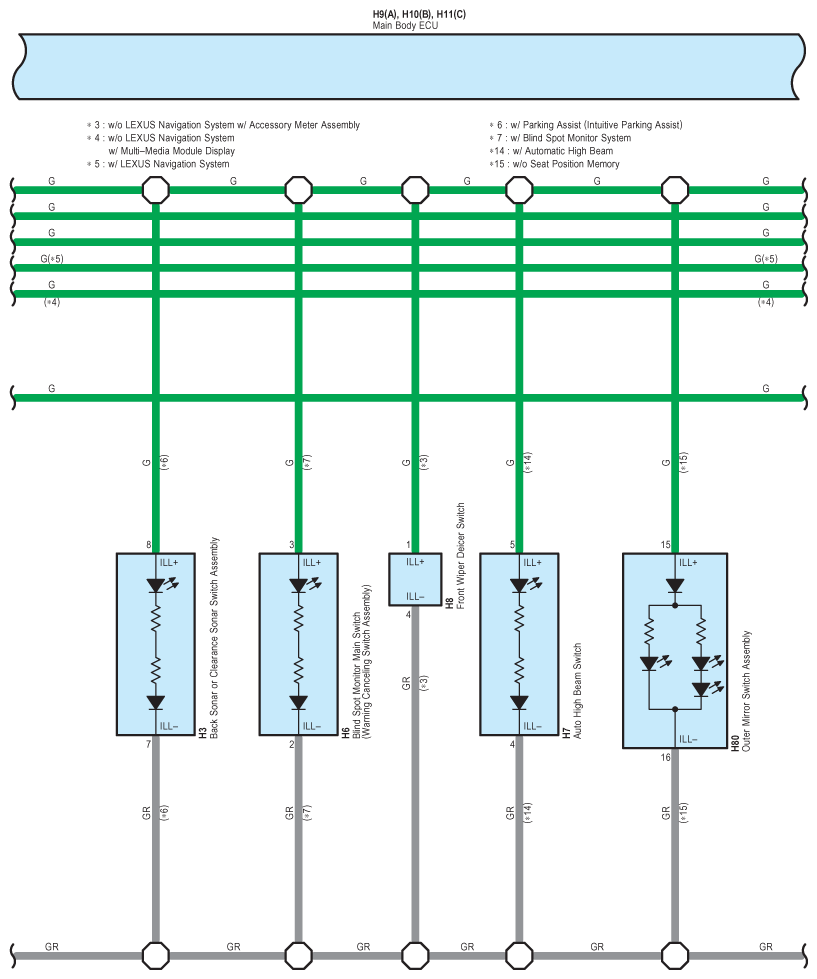

Fig 3: Illumination And Taillight - Circuit Diagram (3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

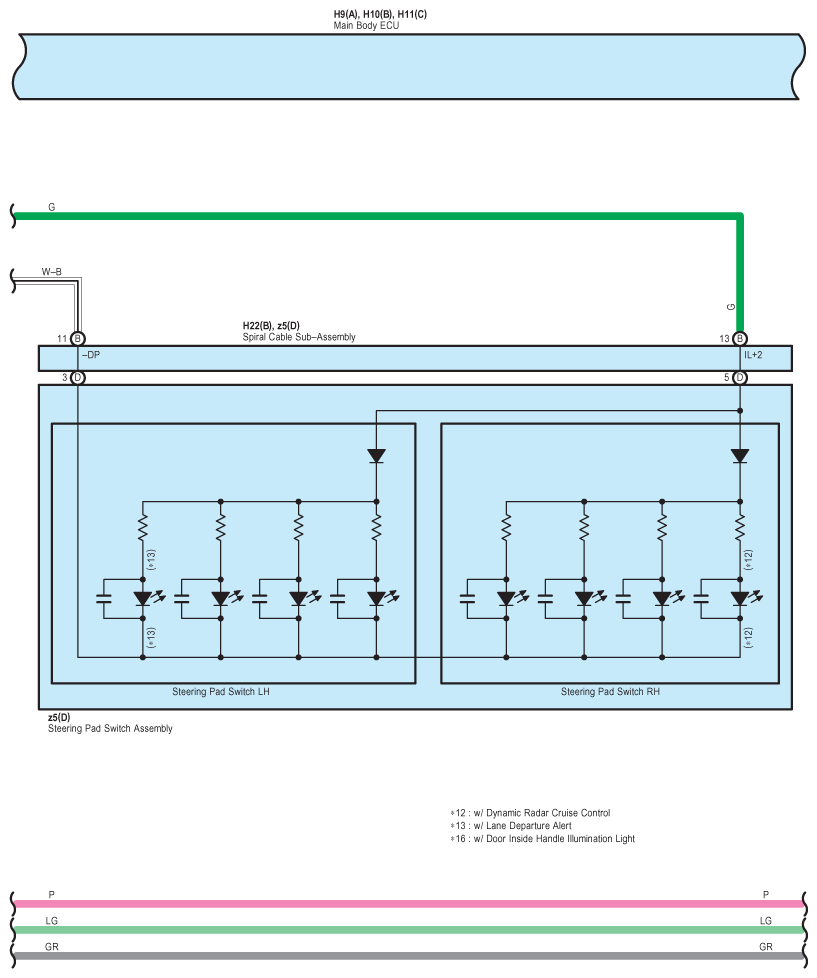

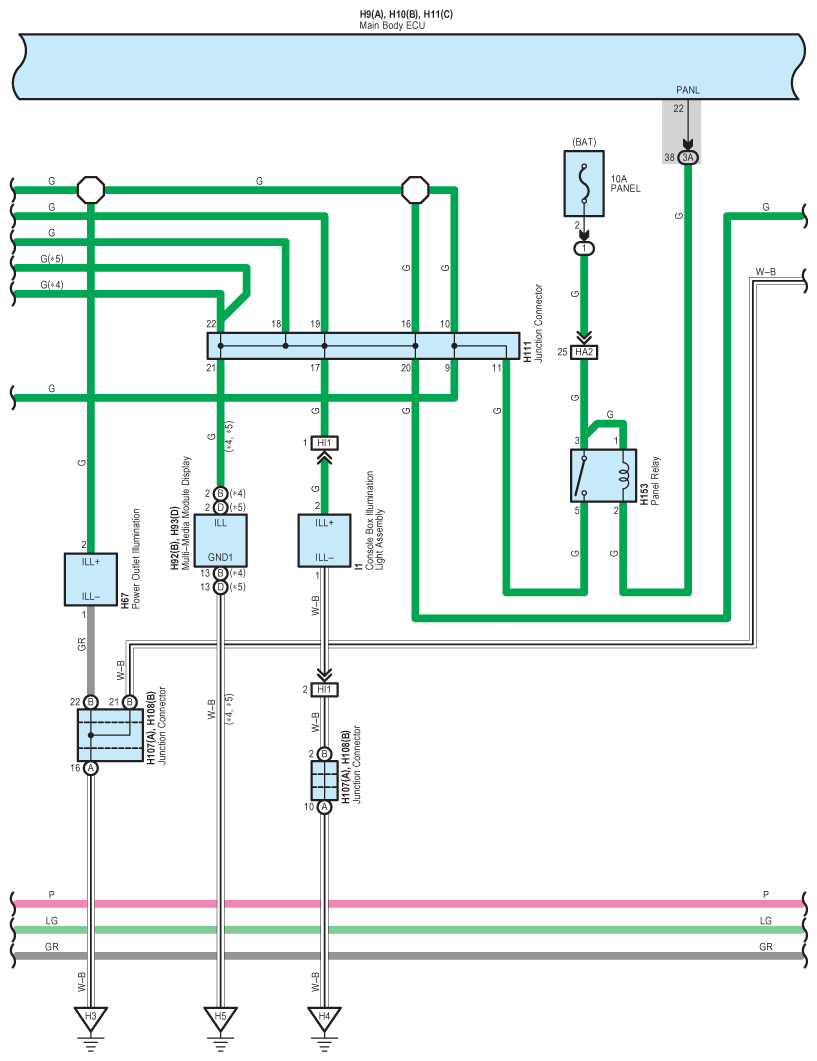

Fig 4: Illumination And Taillight - Circuit Diagram (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

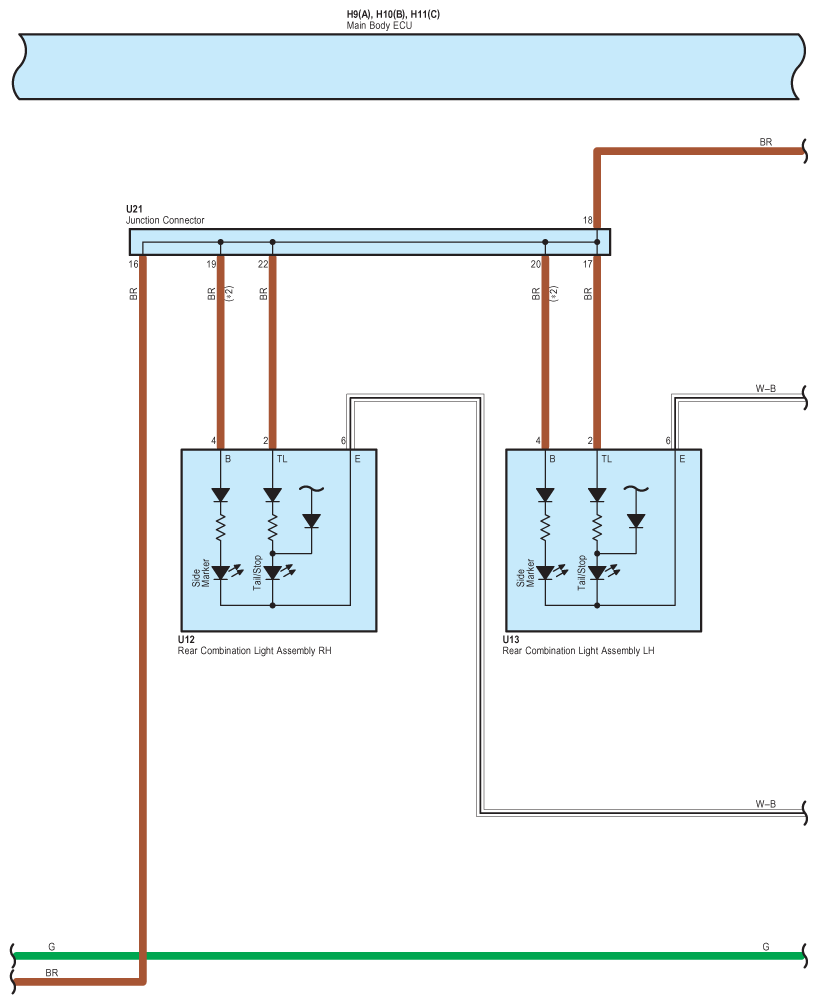

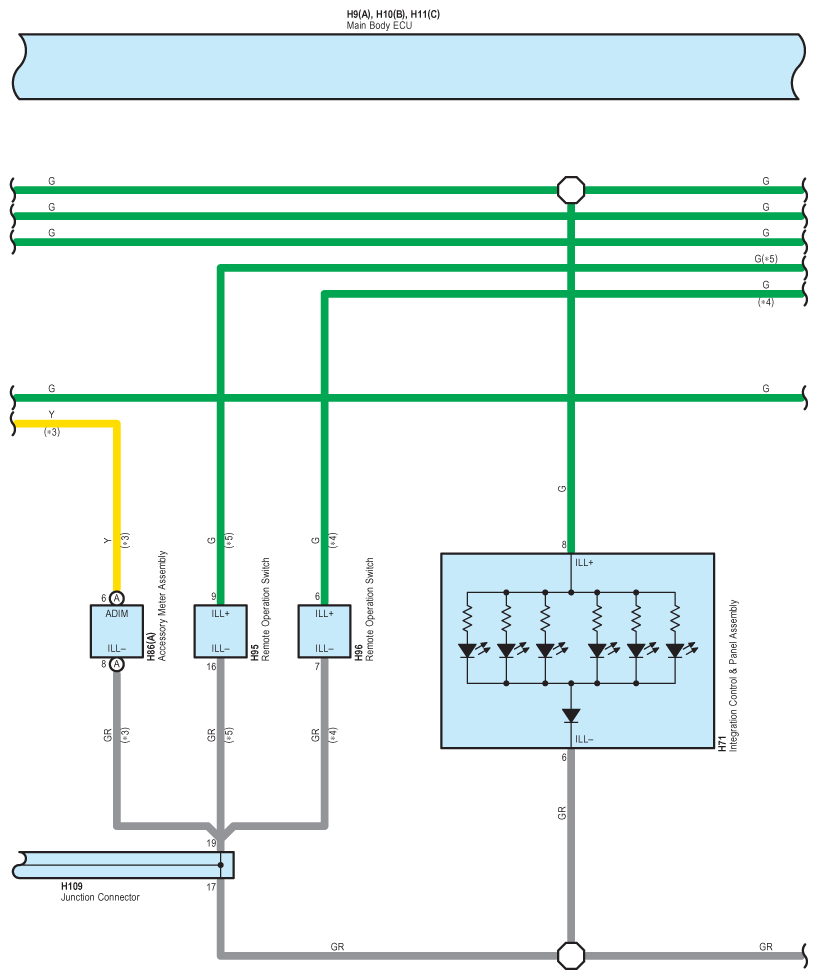

Fig 5: Illumination And Taillight - Circuit Diagram (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

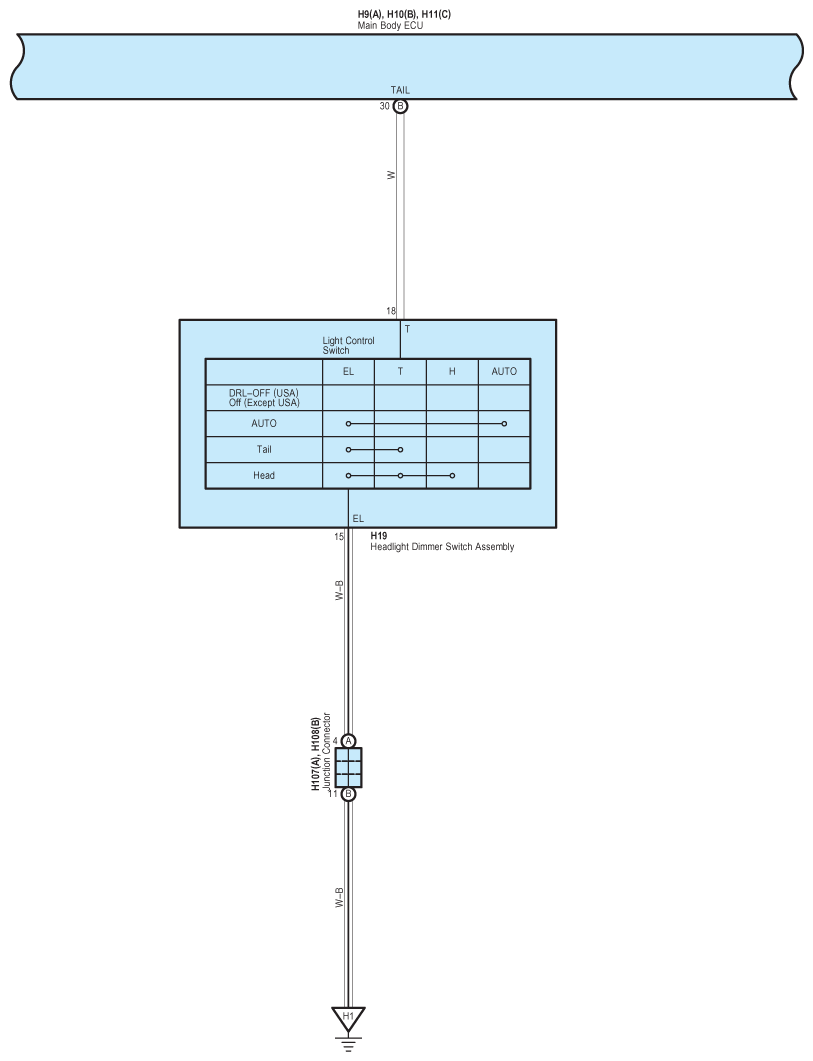

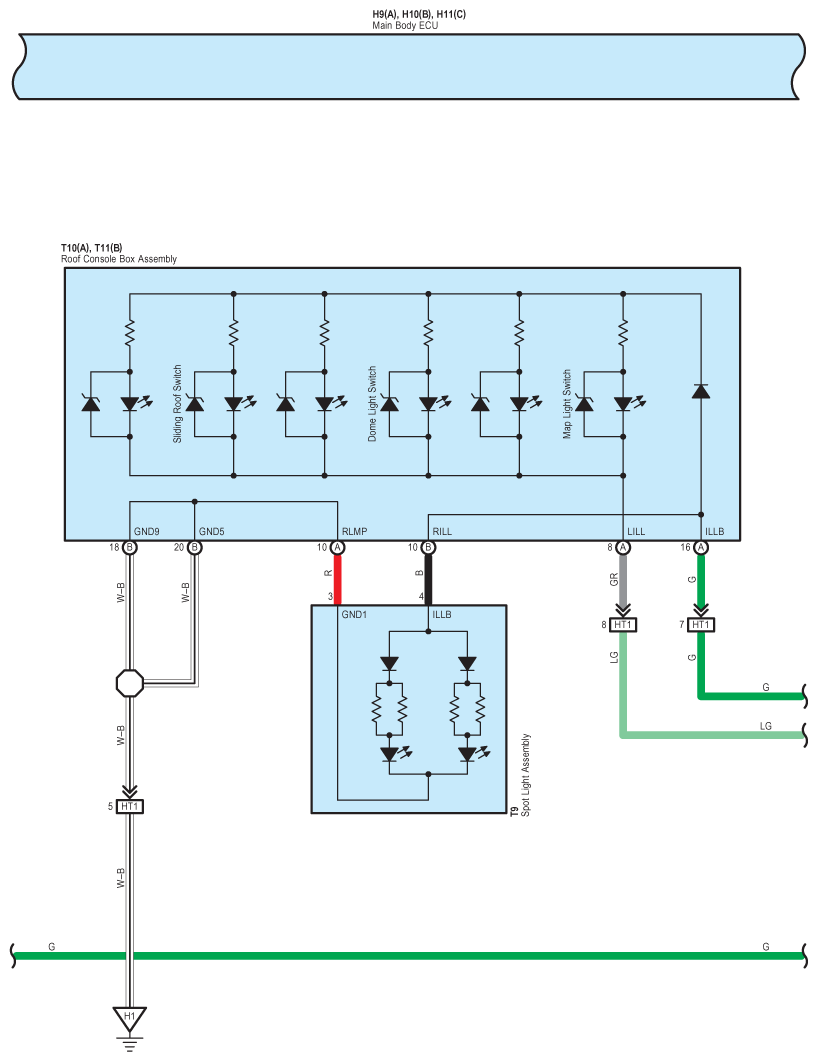

Fig 6: Illumination And Taillight - Circuit Diagram (6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

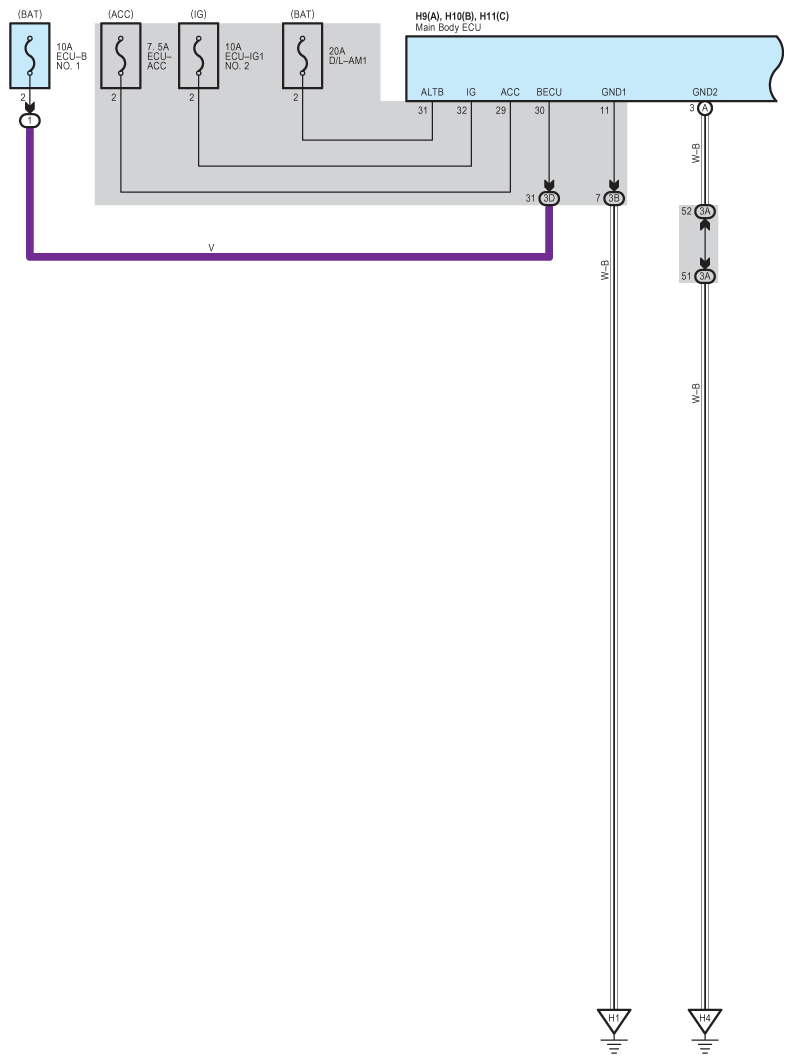

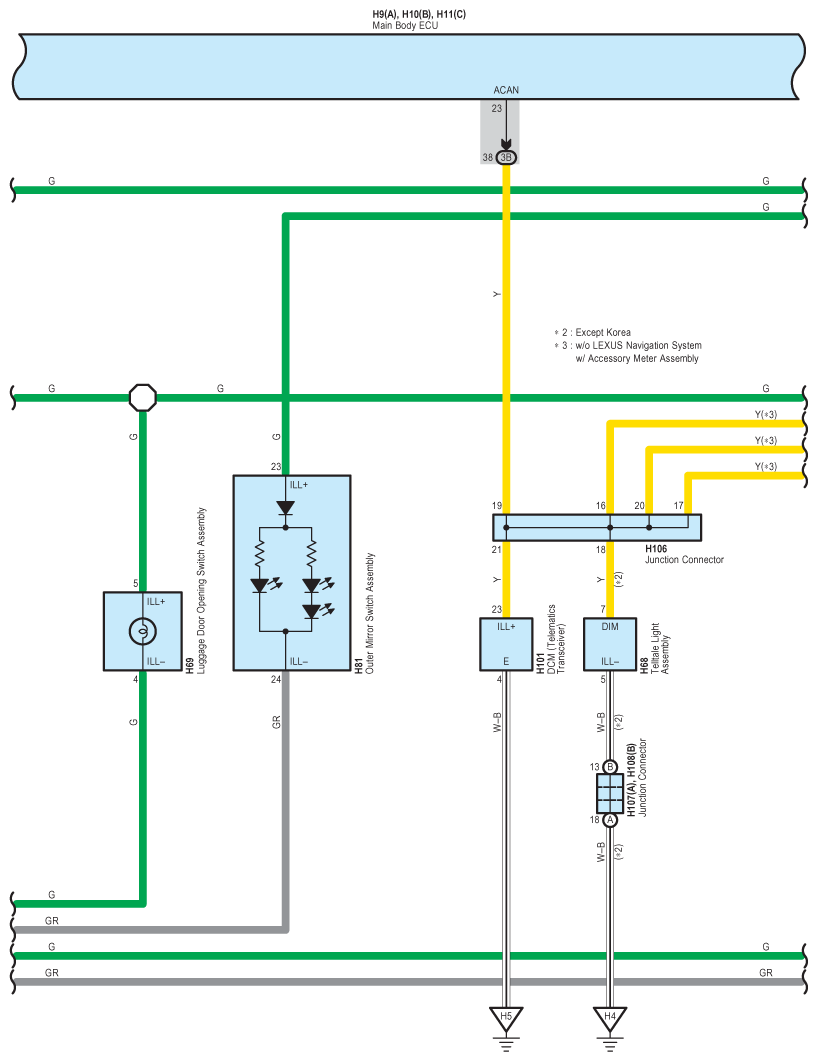

Fig 7: Illumination And Taillight - Circuit Diagram (7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

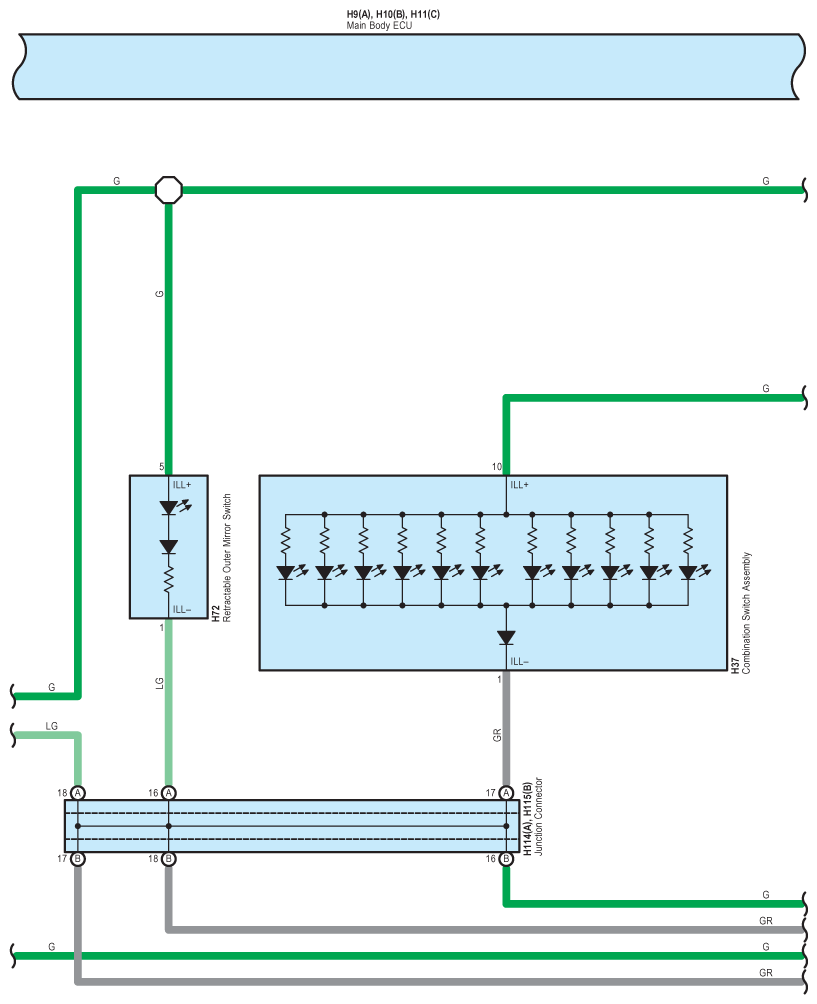

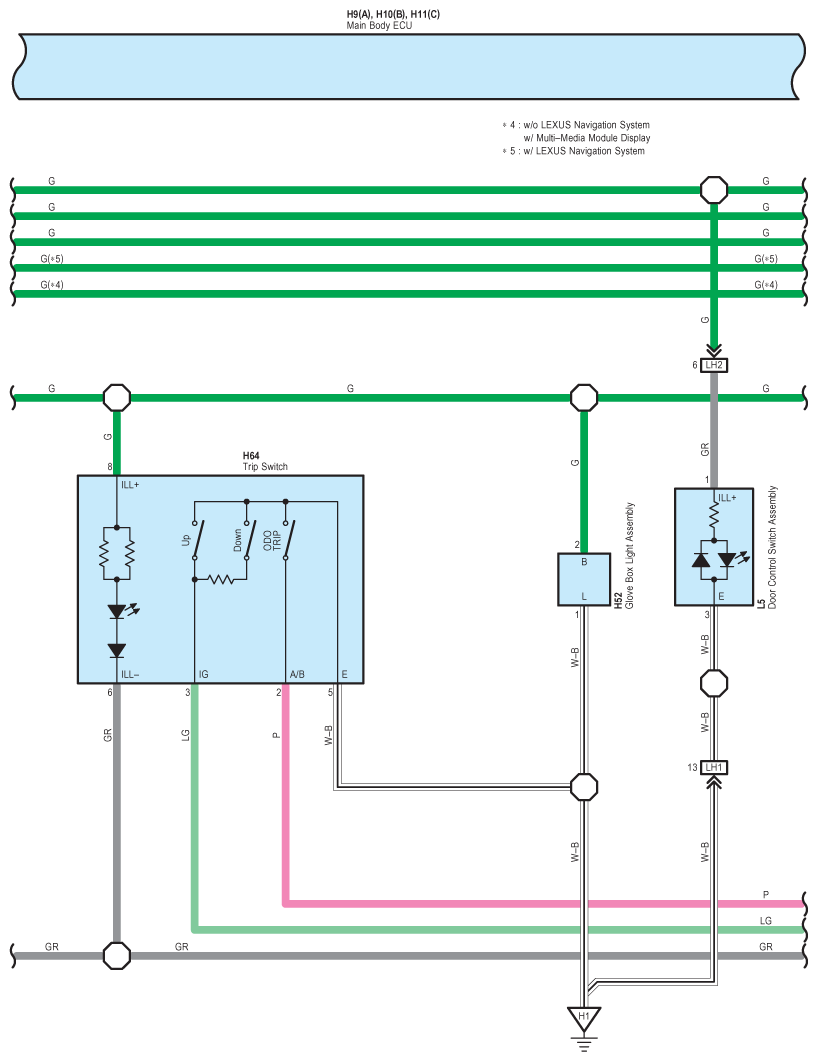

Fig 8: Illumination And Taillight - Circuit Diagram (8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Illumination And Taillight - Circuit Diagram (9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Illumination And Taillight - Circuit Diagram (10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Illumination And Taillight - Circuit Diagram (11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Illumination And Taillight - Circuit Diagram (12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Illumination And Taillight - Circuit Diagram (13 Of 18)

Fig 14: Illumination And Taillight - Circuit Diagram (14 Of 18)

Fig 15: Illumination And Taillight - Circuit Diagram (15 Of 18)

Fig 16: Illumination And Taillight - Circuit Diagram (16 Of 18)

Fig 17: Illumination And Taillight - Circuit Diagram (17 Of 18)

Fig 18: Illumination And Taillight - Circuit Diagram (18 Of 18)
