Lane Departure Alert: Notes

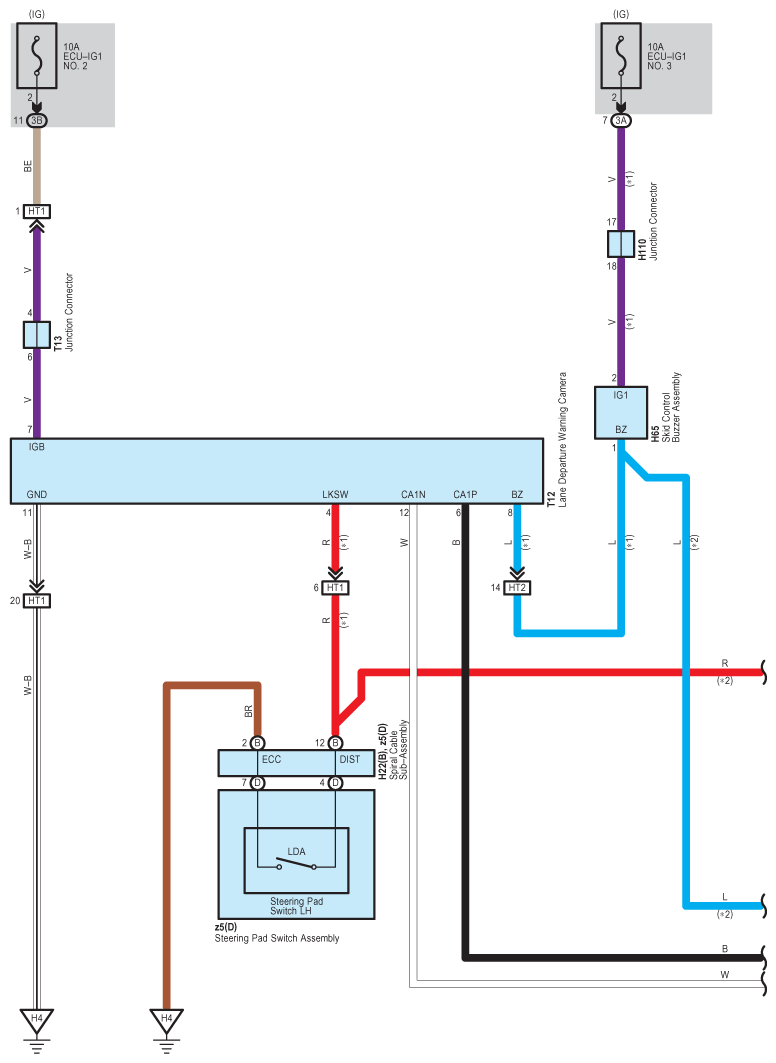

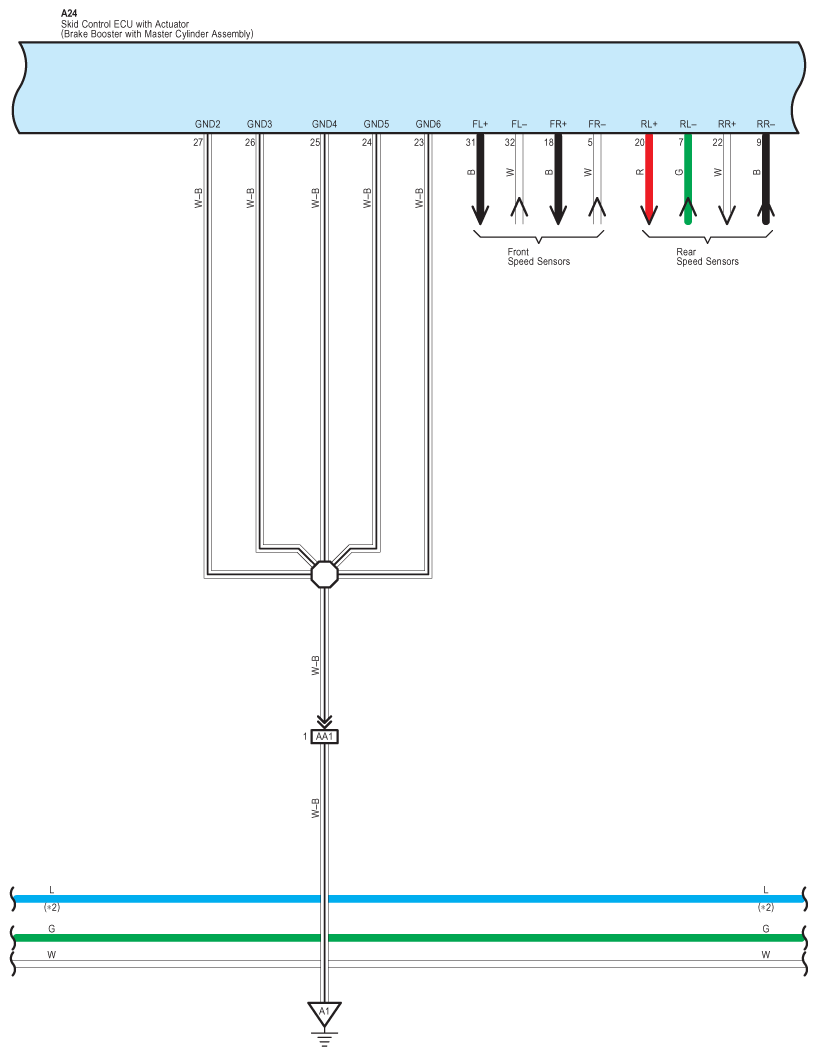

Fig 1: Lane Departure Alert - Circuit Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

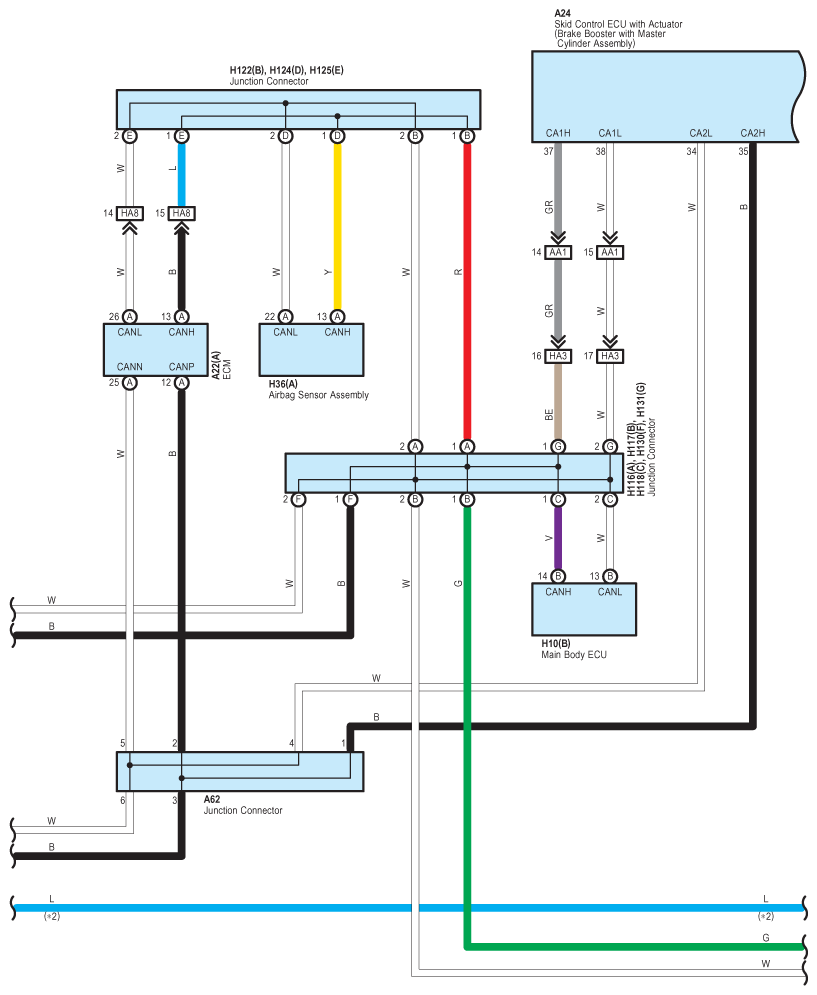

Fig 2: Lane Departure Alert - Circuit Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

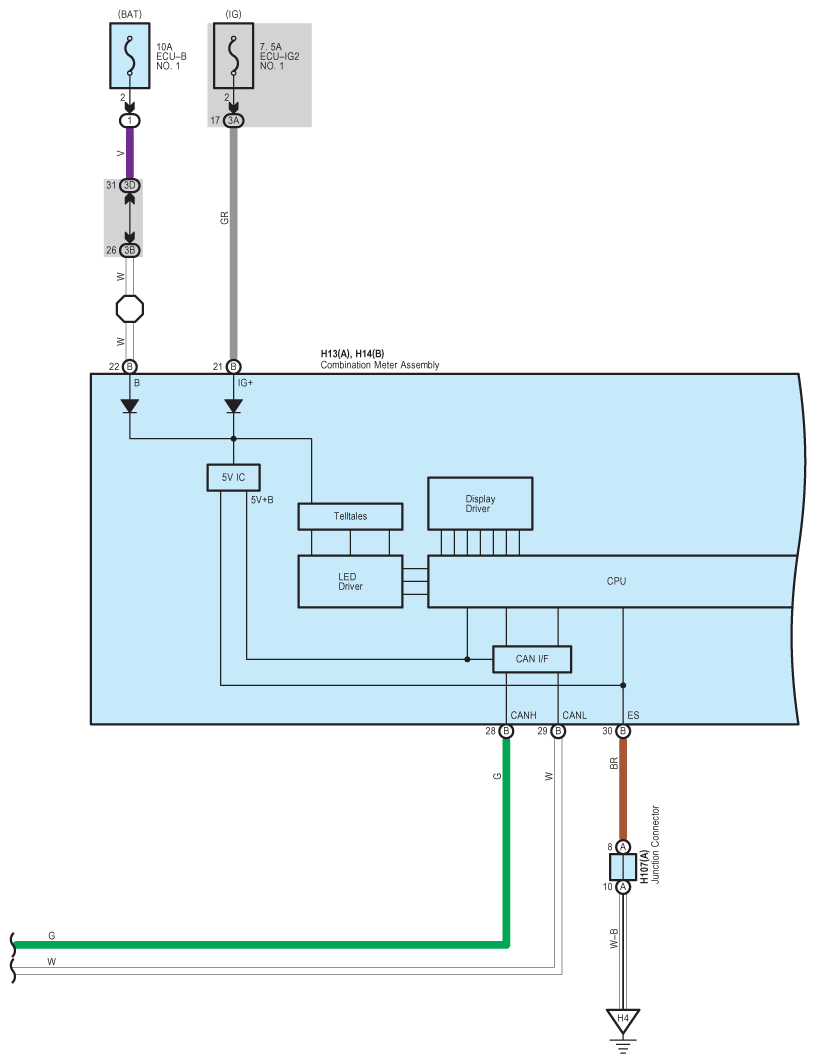

Fig 3: Lane Departure Alert - Circuit Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

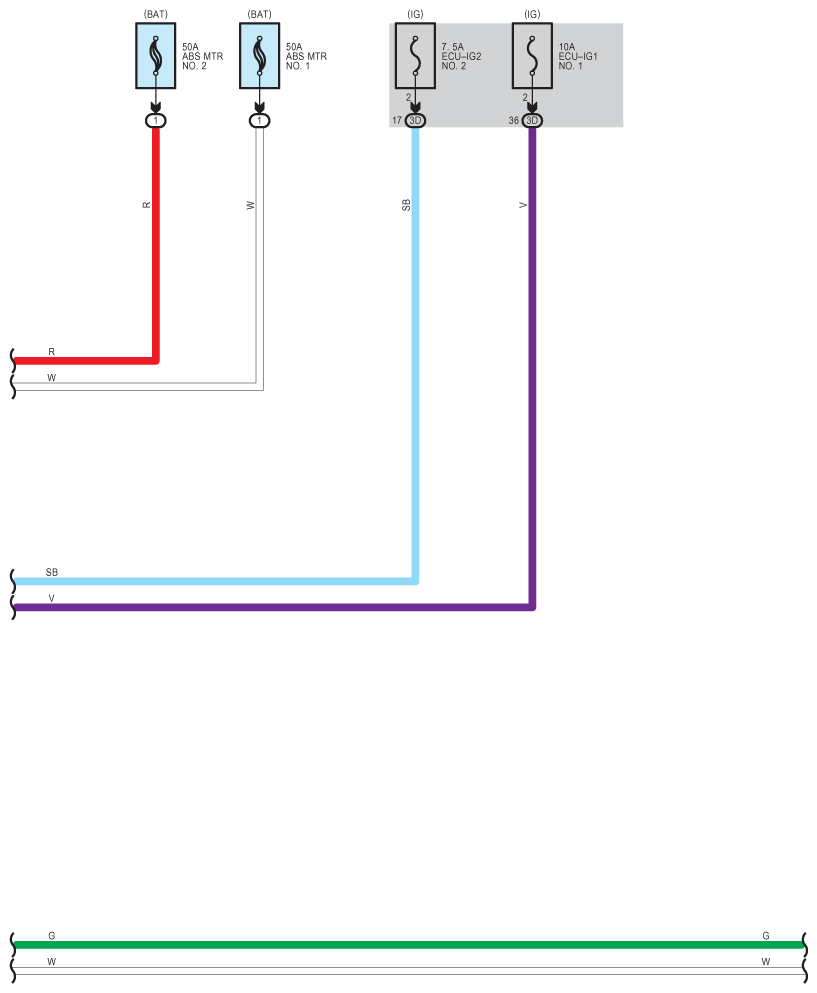

Fig 4: Lane Departure Alert - Circuit Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

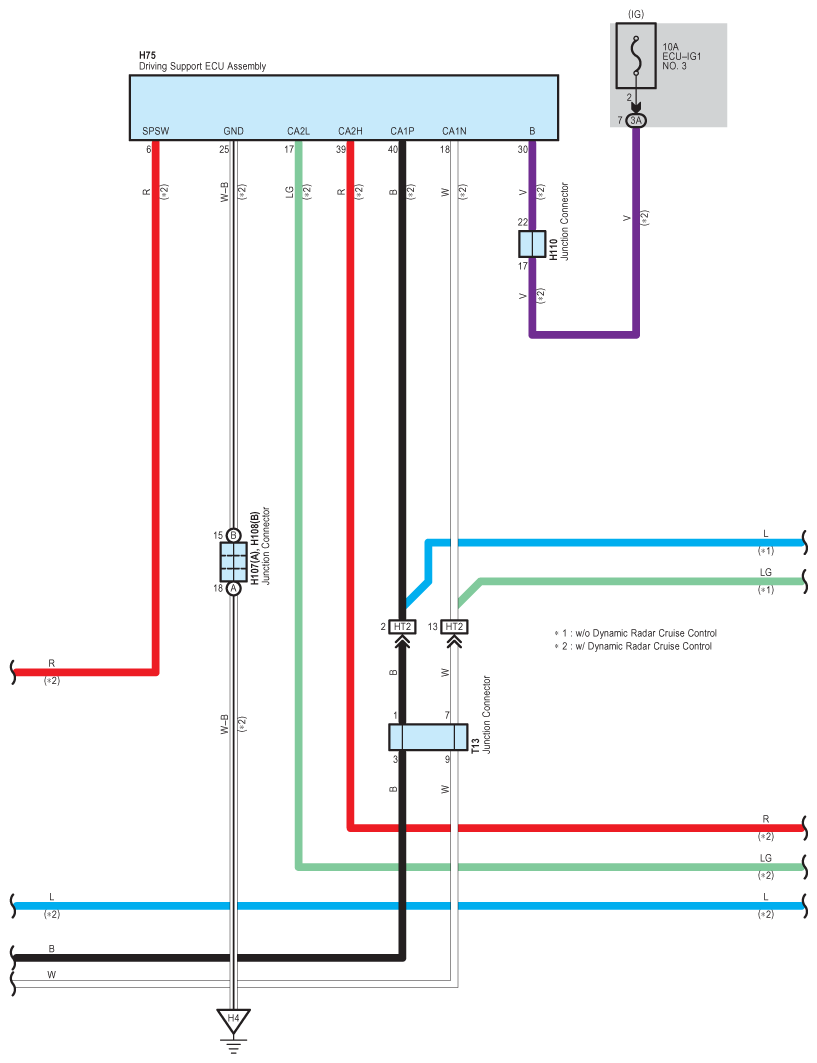

Fig 5: Lane Departure Alert - Circuit Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

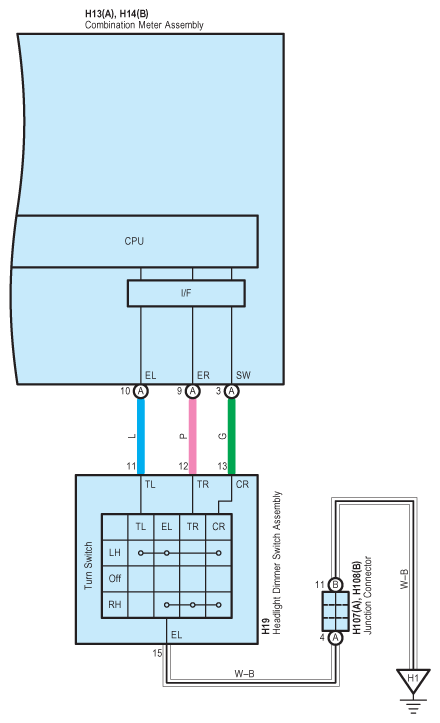

Fig 6: Lane Departure Alert - Circuit Diagram (6 Of 9)

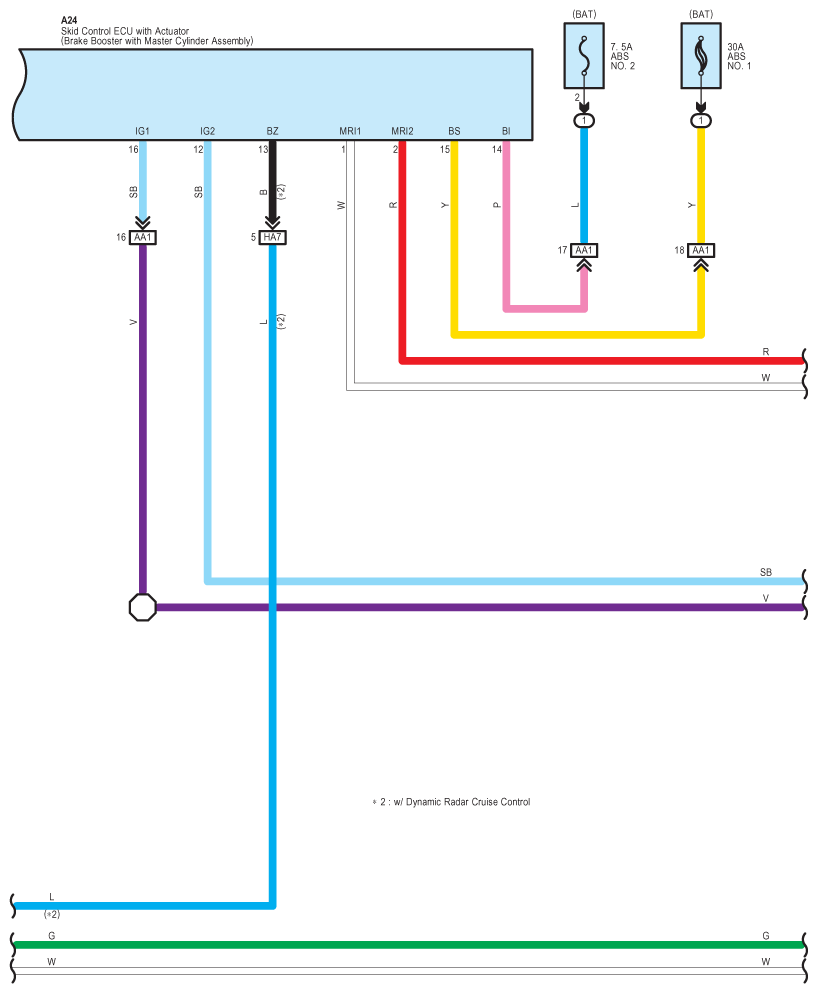

Fig 7: Lane Departure Alert - Circuit Diagram (7 Of 9)

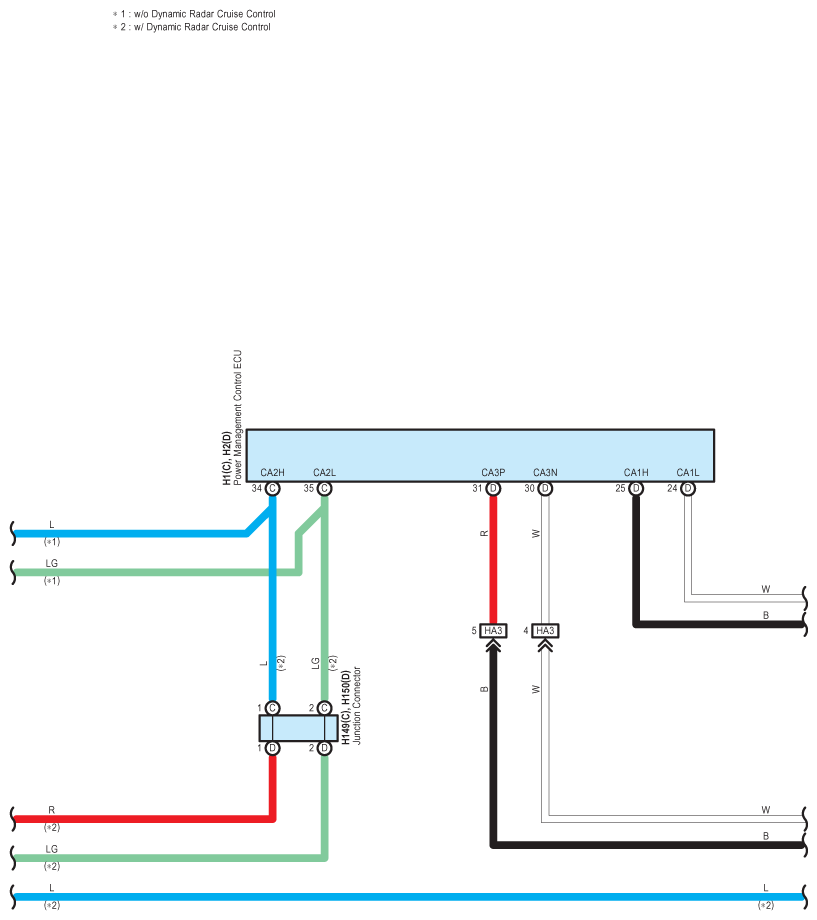

Fig 8: Lane Departure Alert - Circuit Diagram (8 Of 9)

Fig 9: Lane Departure Alert - Circuit Diagram (9 Of 9)
