Light Reminder: Notes

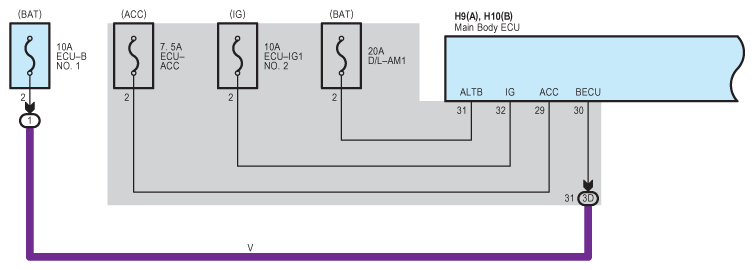

Fig 1: Light Reminder - Circuit Diagram (1 Of 3)
G08953704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

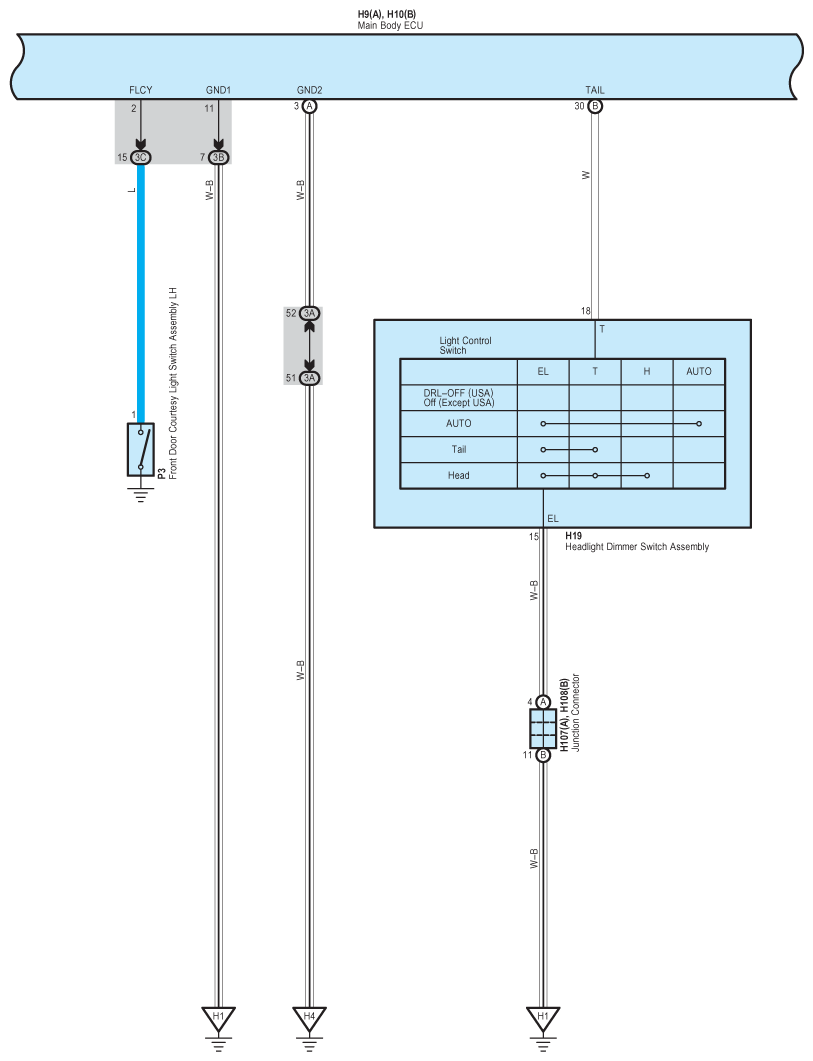

Fig 2: Light Reminder - Circuit Diagram (2 Of 3)
G08953705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

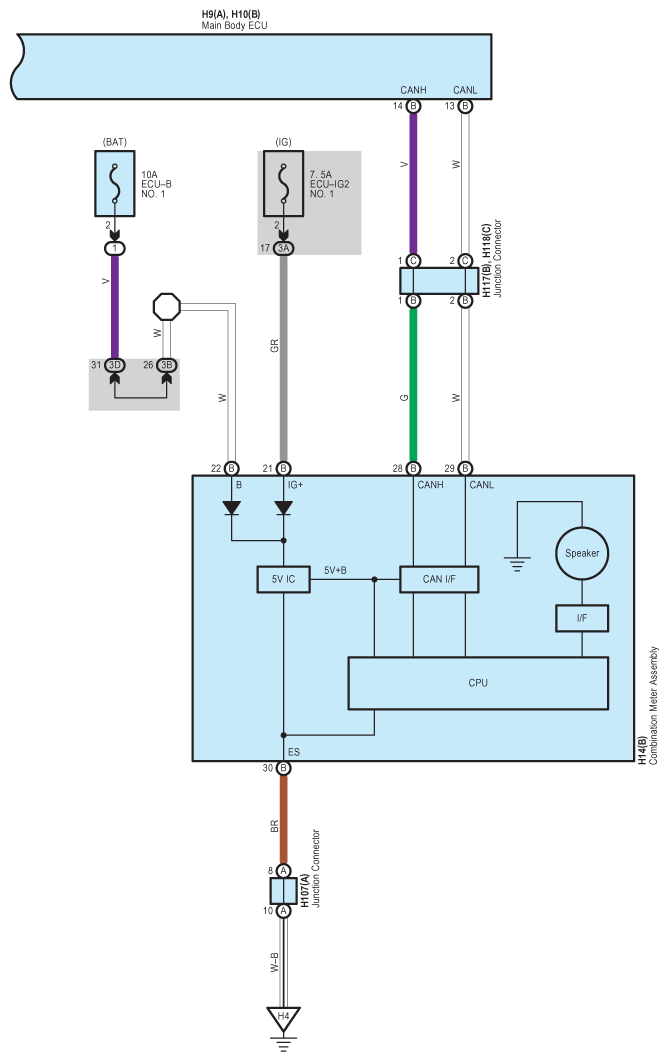

Fig 3: Light Reminder - Circuit Diagram (3 Of 3)
G08953706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
