Rear Sunshade: Notes

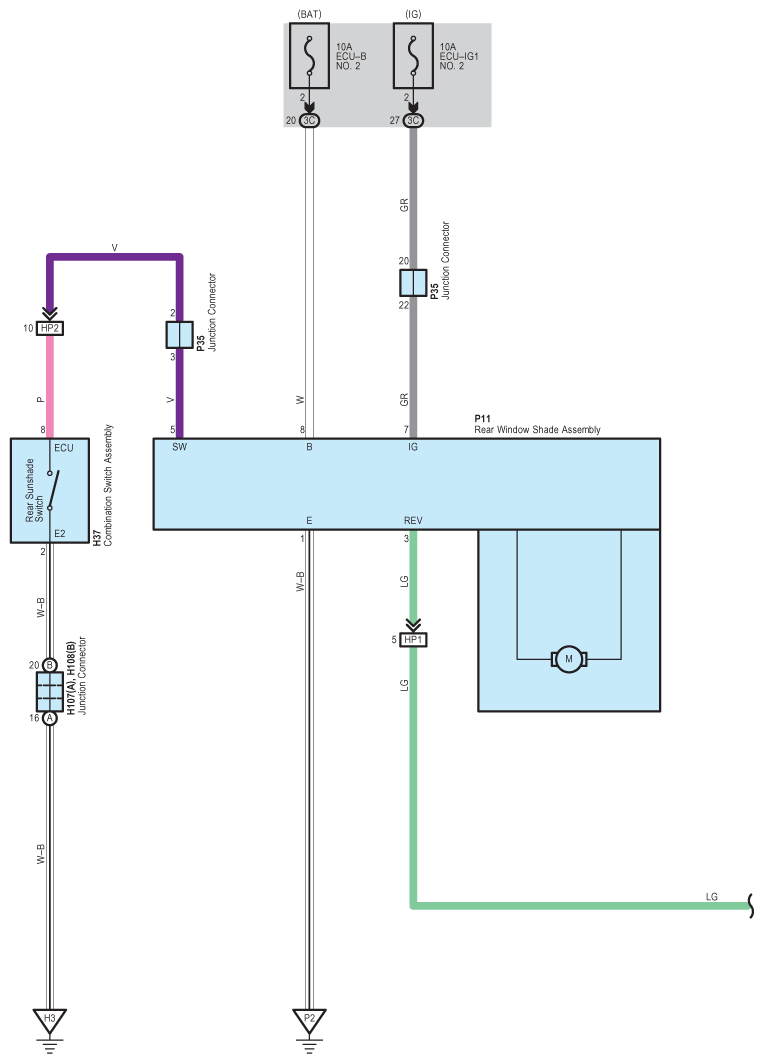

Fig 1: Rear Sunshade - Circuit Diagram (1 Of 4)
G08953826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

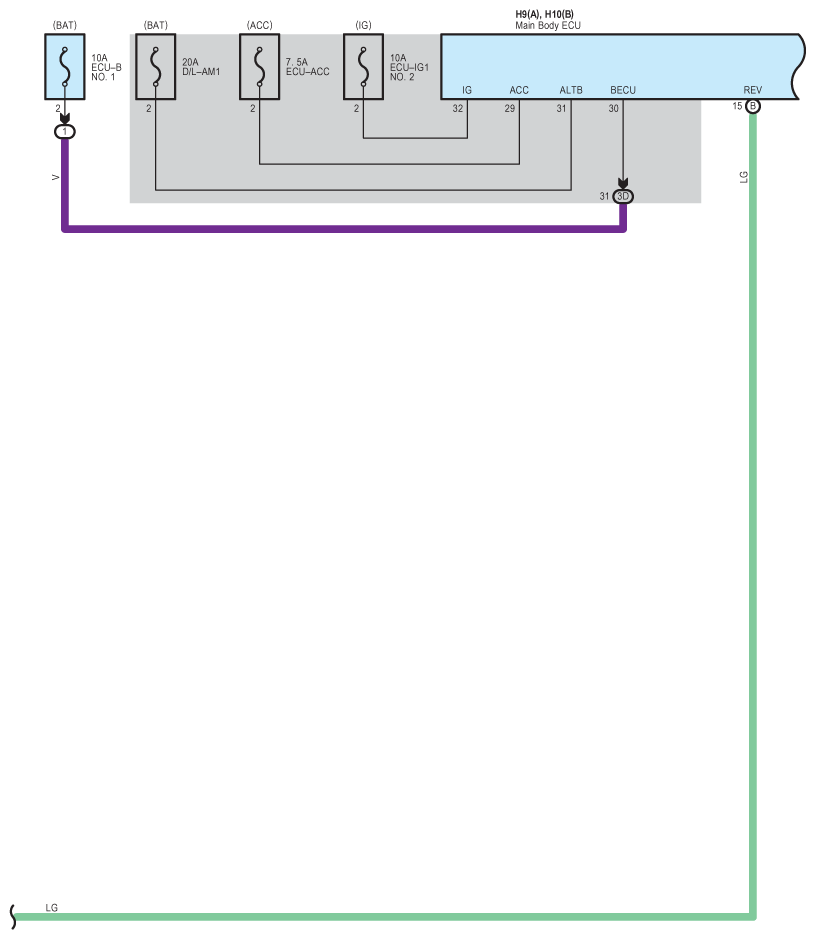

Fig 2: Rear Sunshade - Circuit Diagram (2 Of 4)
G08953827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Rear Sunshade - Circuit Diagram (3 Of 4)
G08953828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

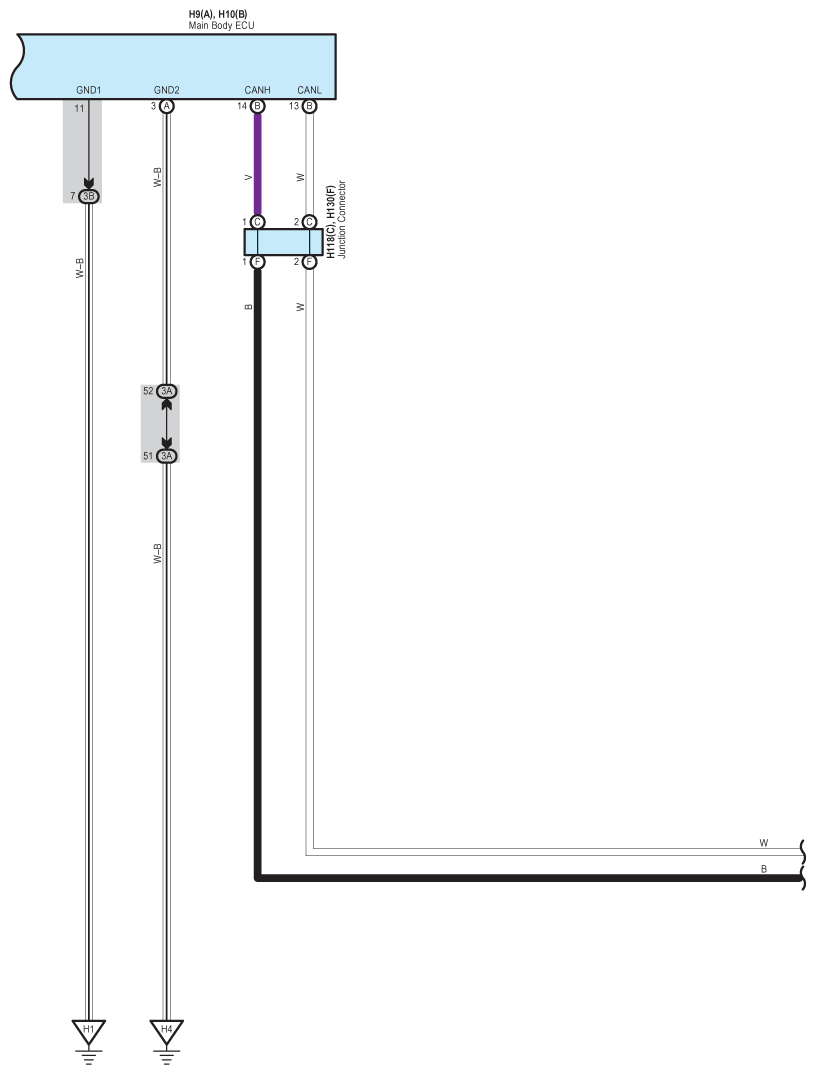

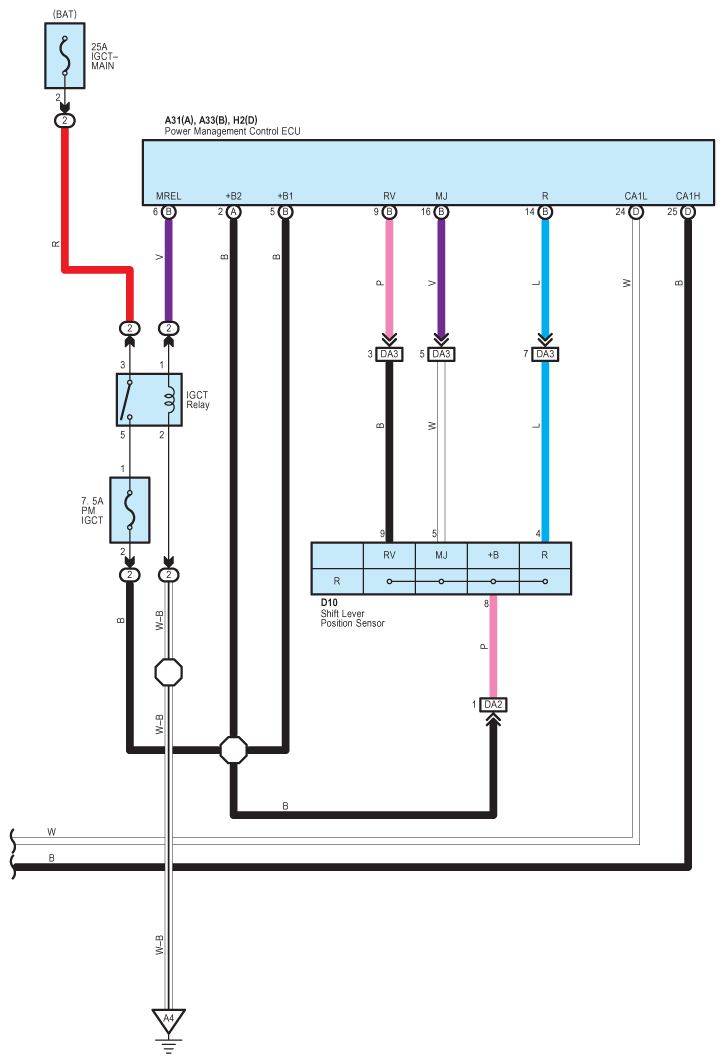

Fig 4: Rear Sunshade - Circuit Diagram (4 Of 4)
G08953829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
