Headlight Cleaner: Overview

Fig 1: Headlight Cleaner - Circuit Diagram (1 Of 2)
G08948324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

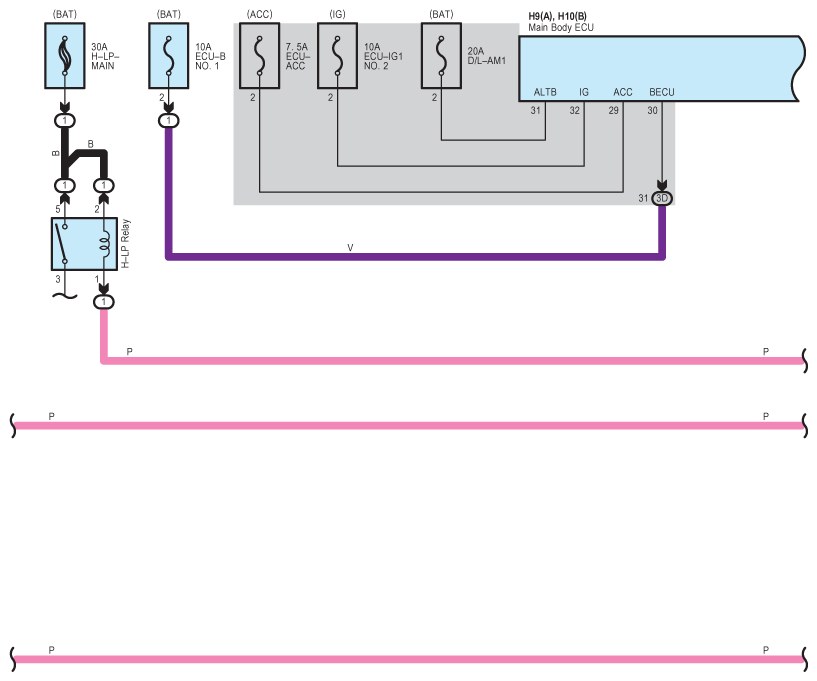

Fig 2: Headlight Cleaner - Circuit Diagram (2 Of 2)
G08948325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
