Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control: Notes

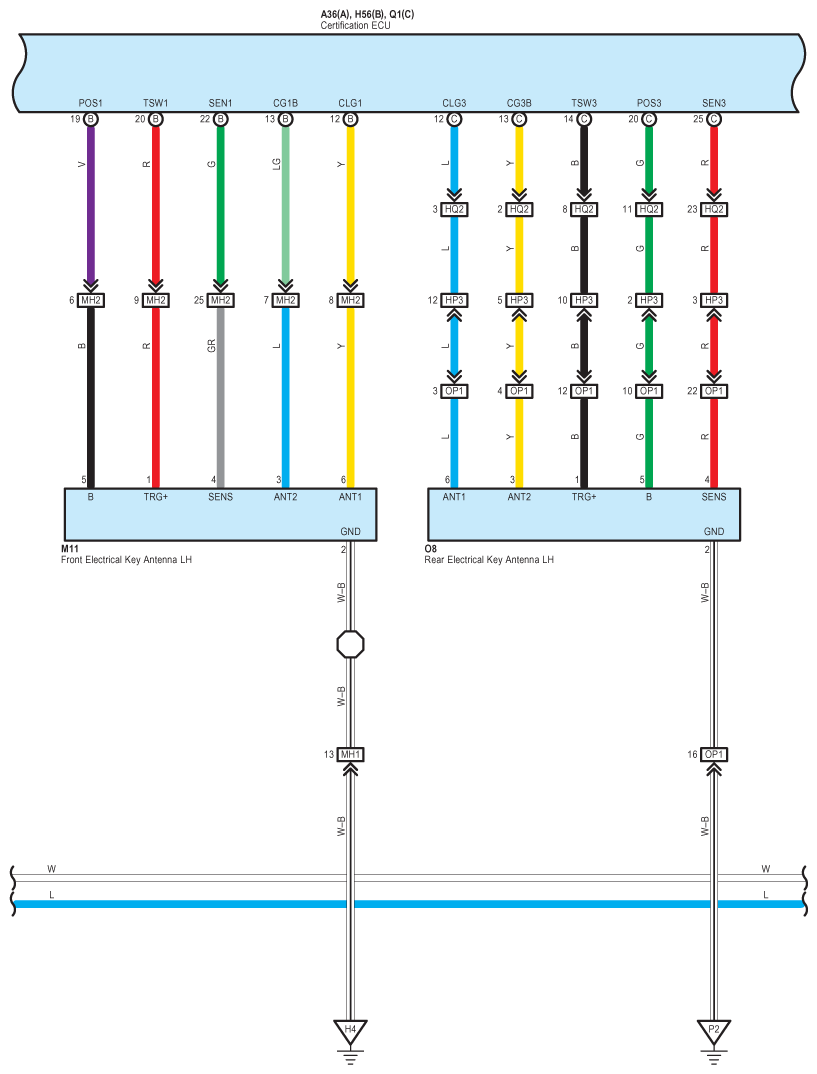

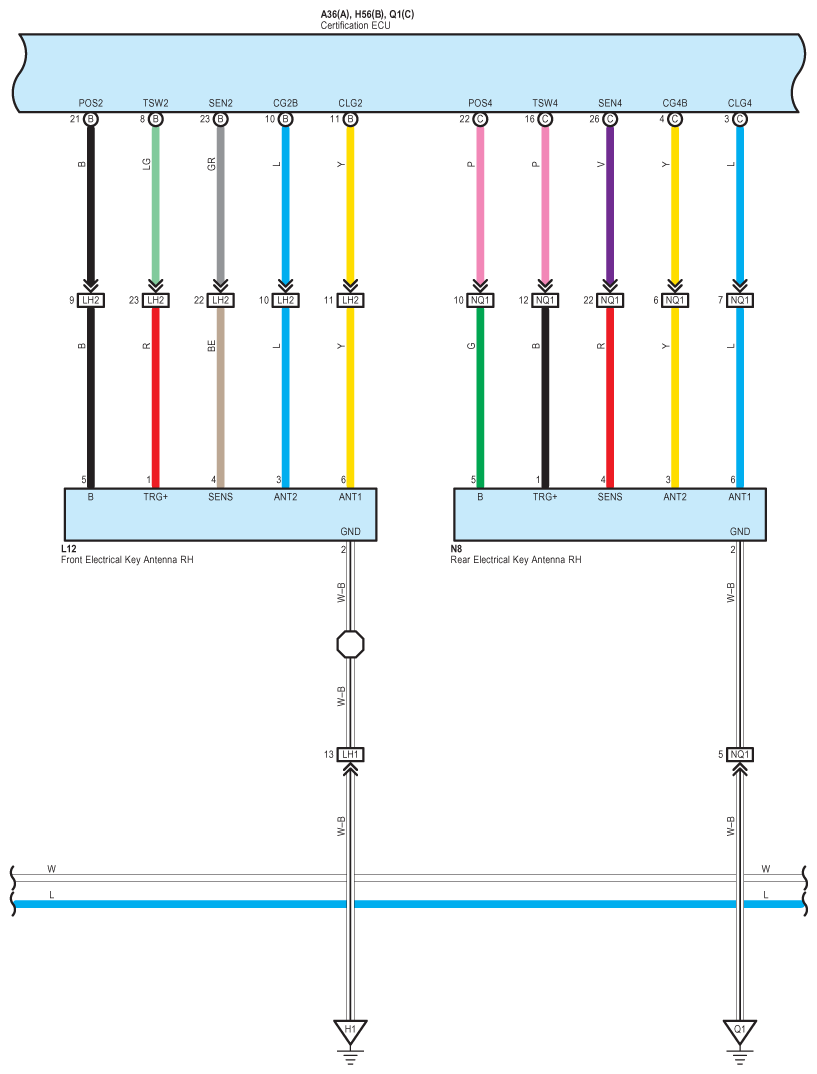

Fig 1: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (1 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

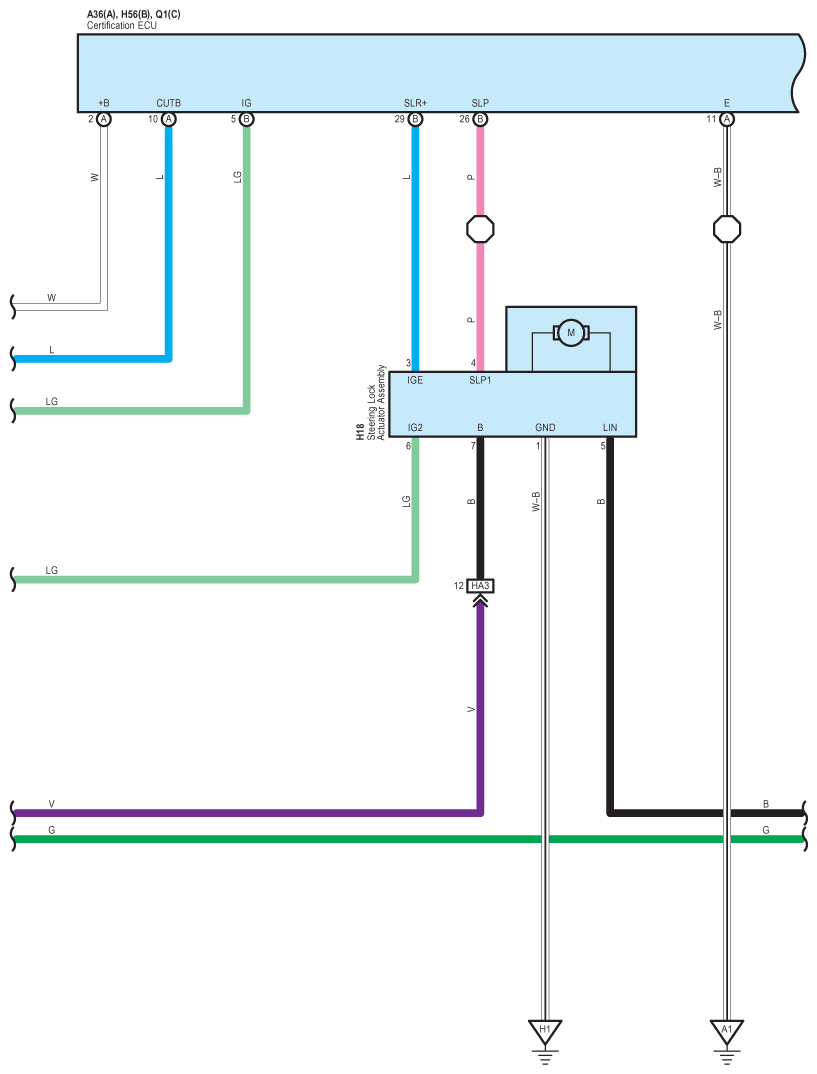

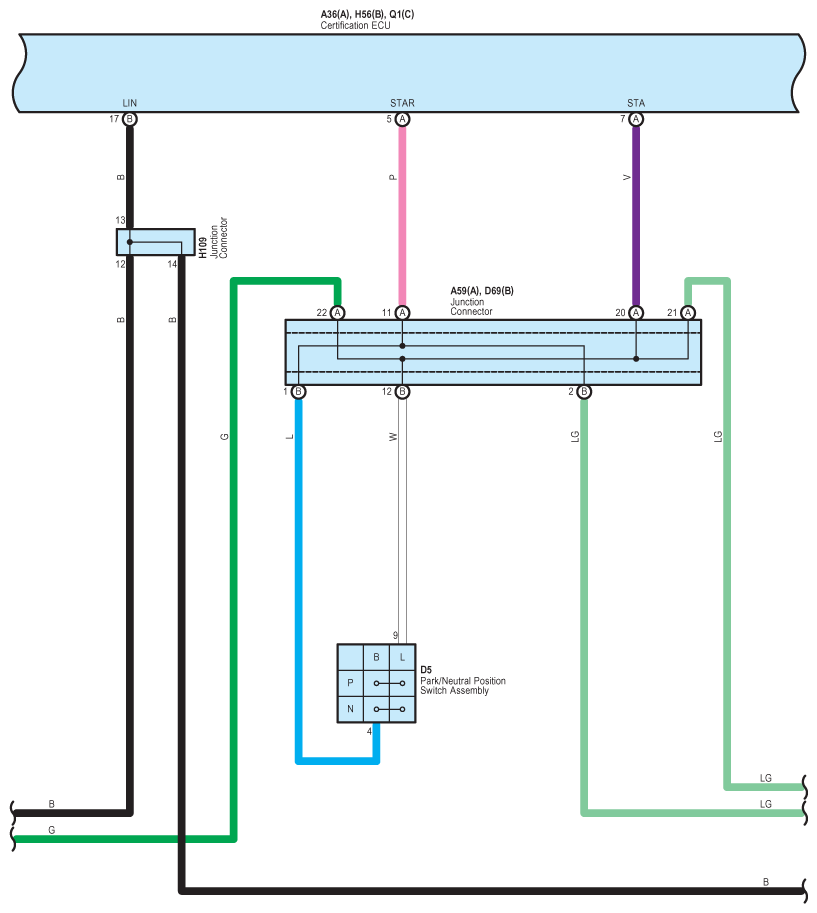

Fig 2: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (2 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

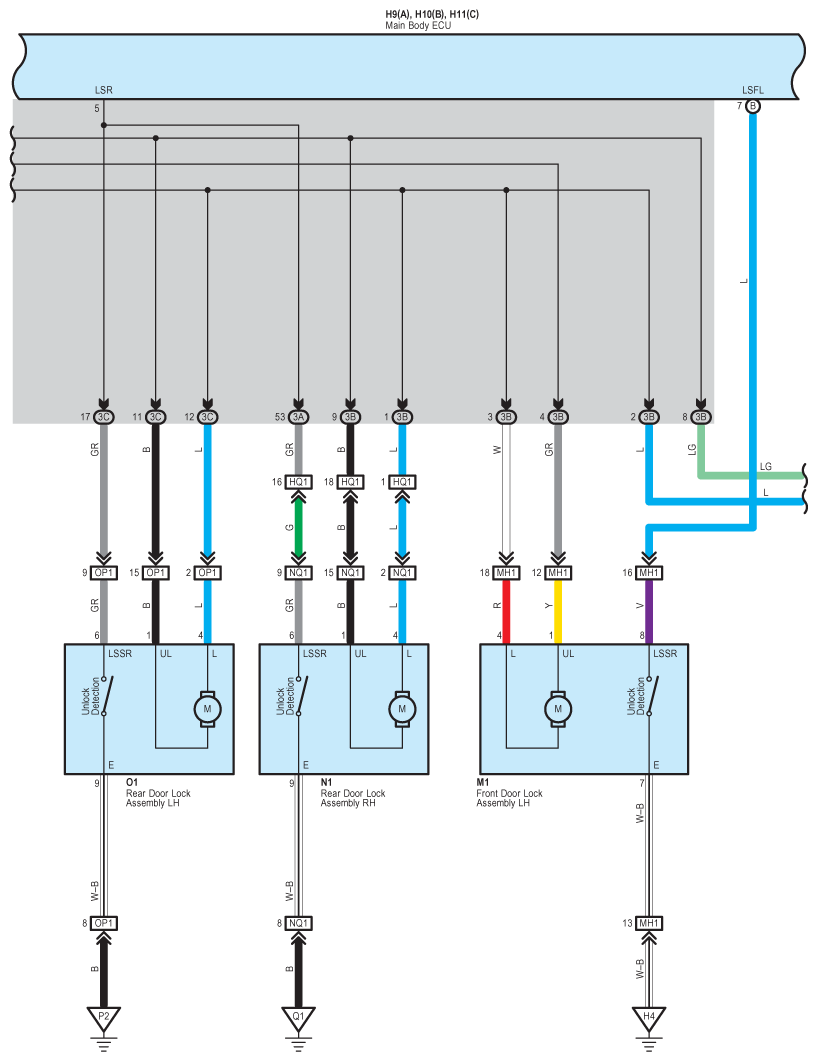

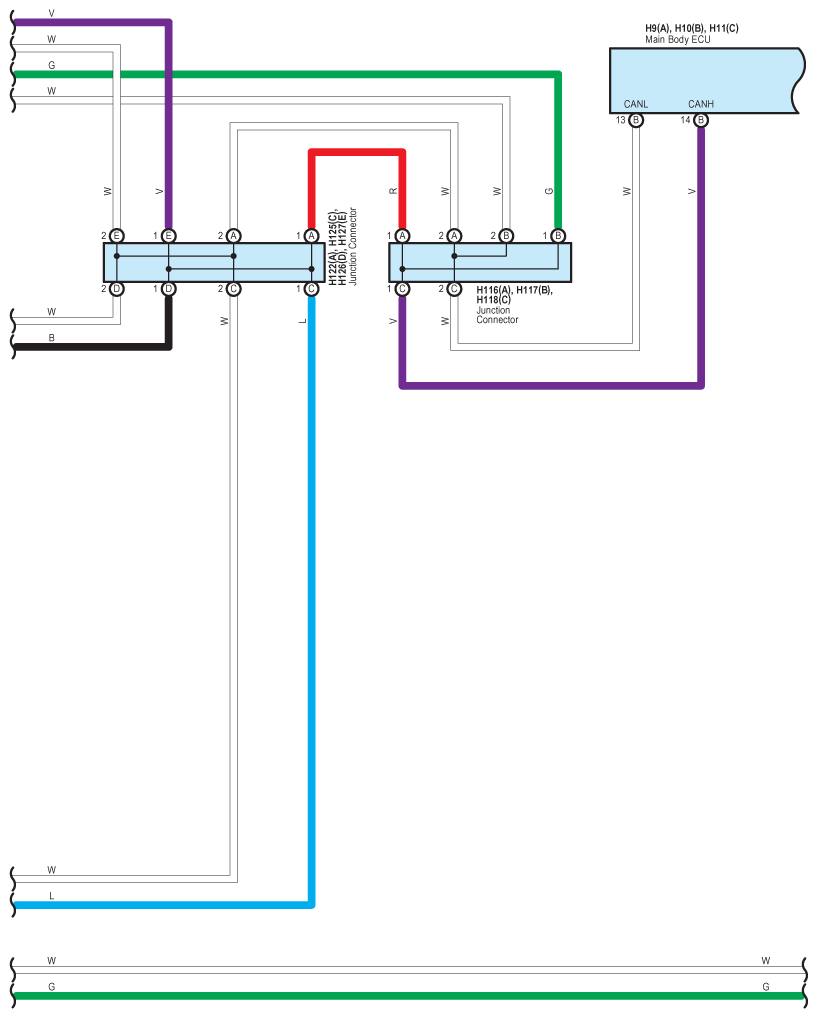

Fig 3: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (3 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

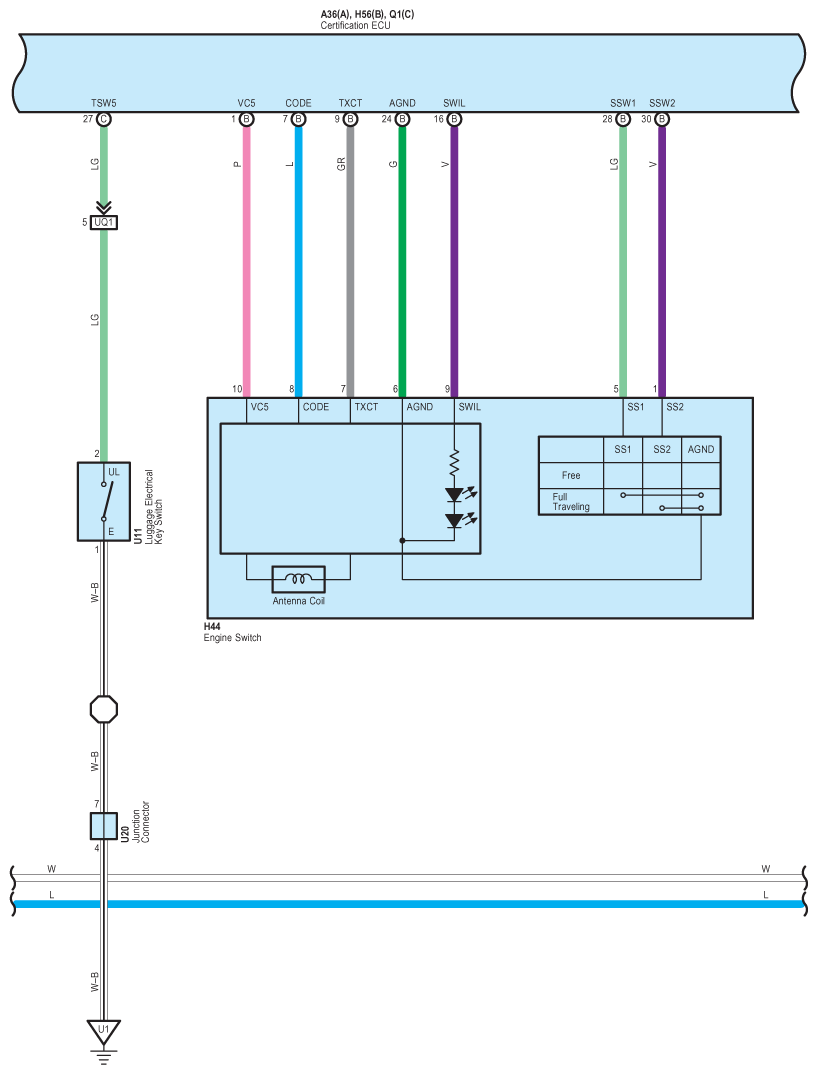

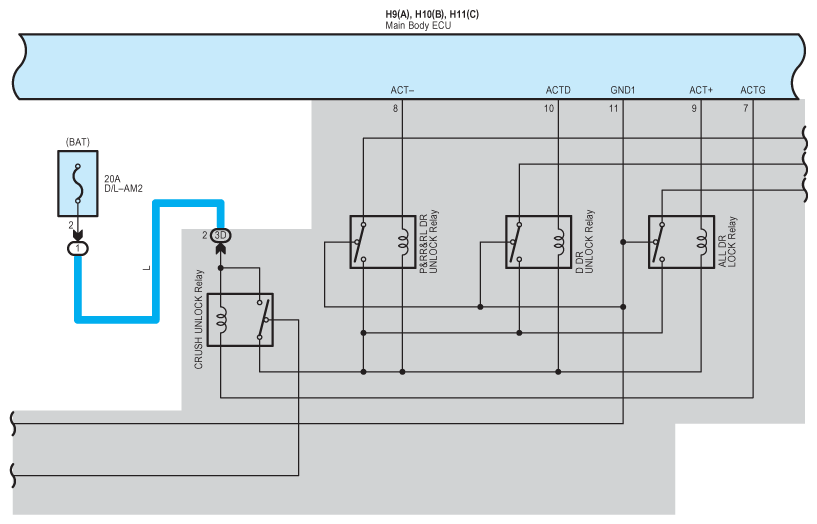

Fig 4: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (4 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

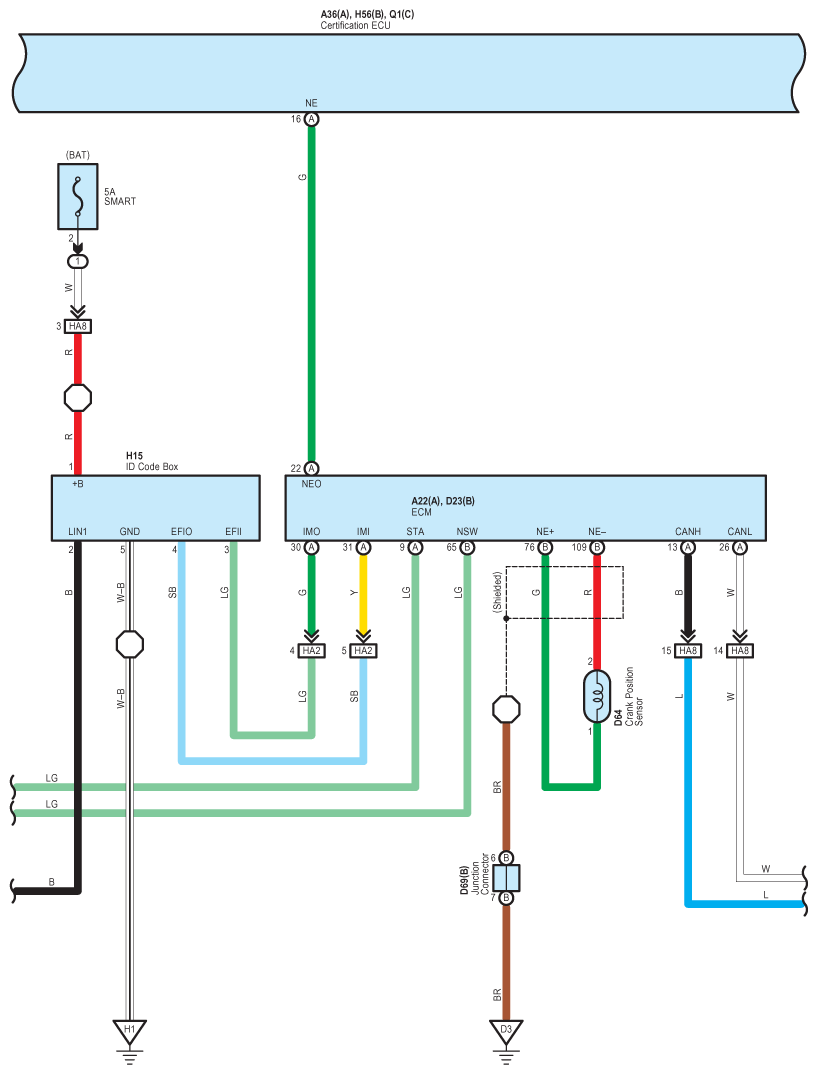

Fig 5: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (5 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

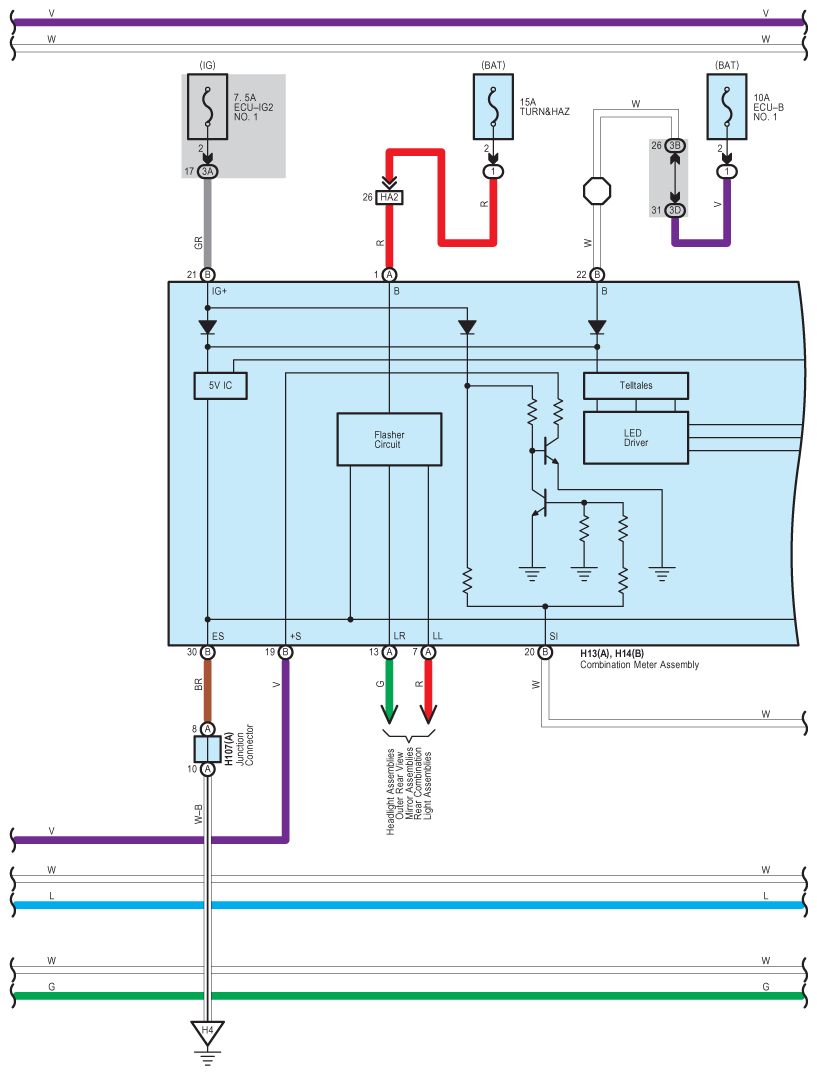

Fig 6: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (6 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

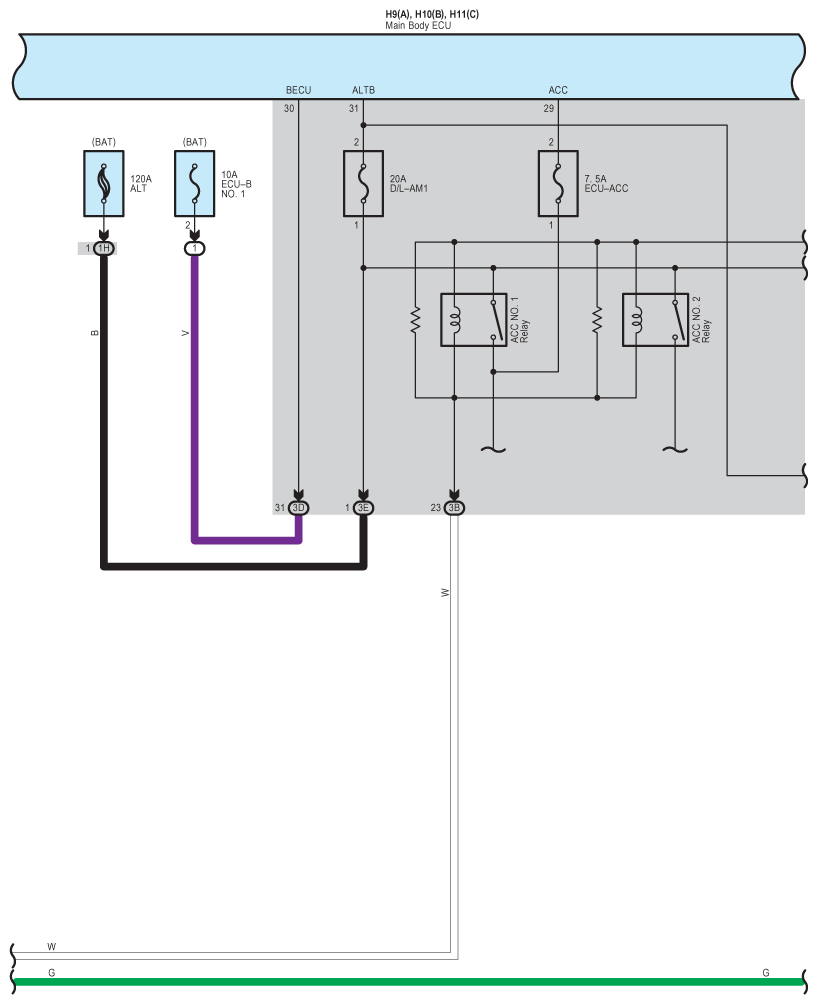

Fig 7: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (7 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

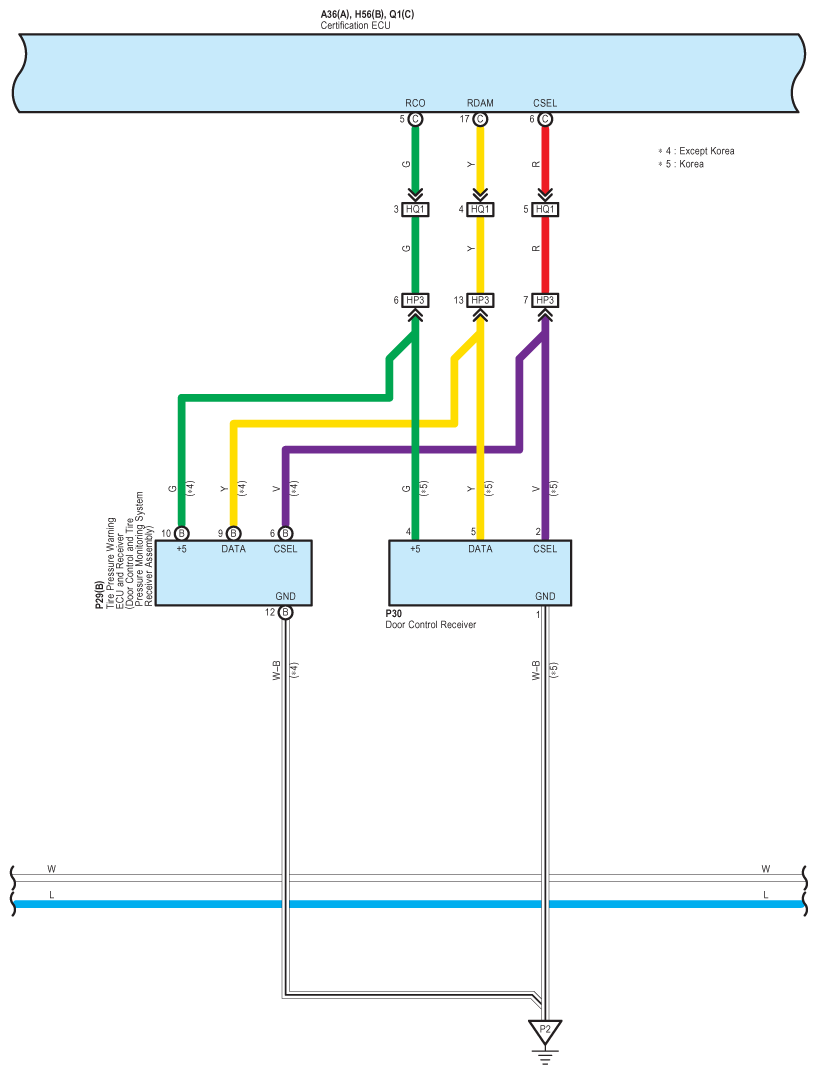

Fig 8: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (8 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

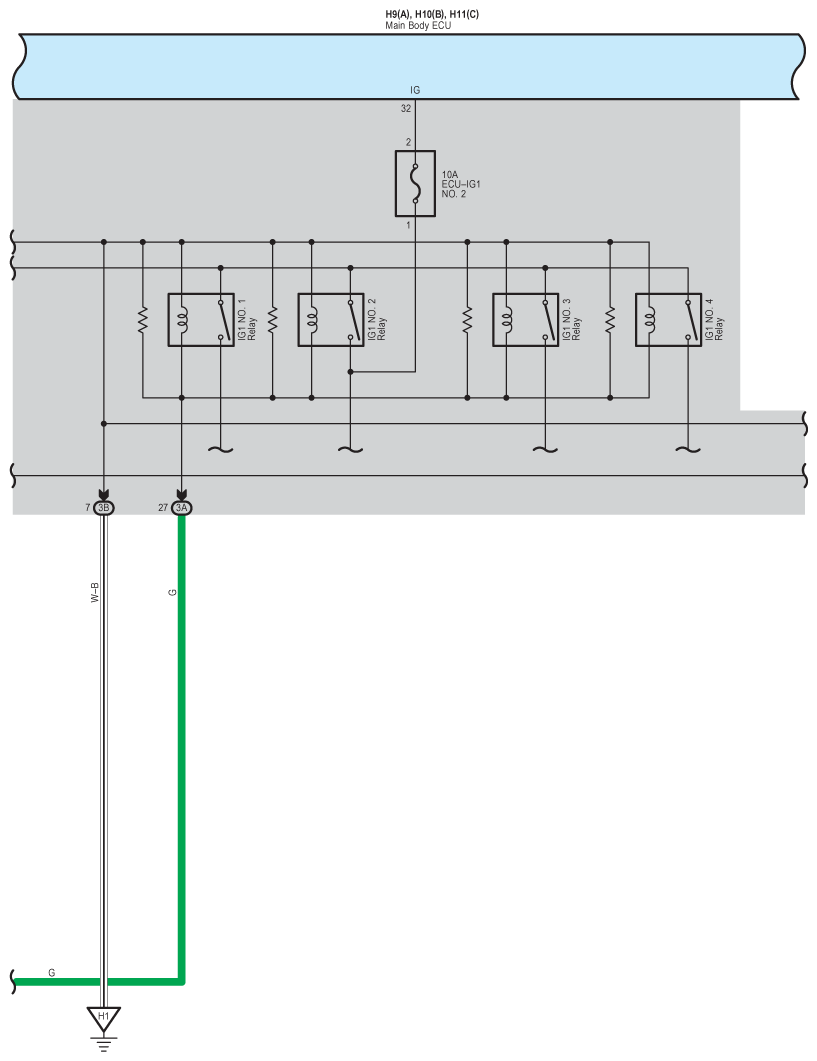

Fig 9: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (9 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

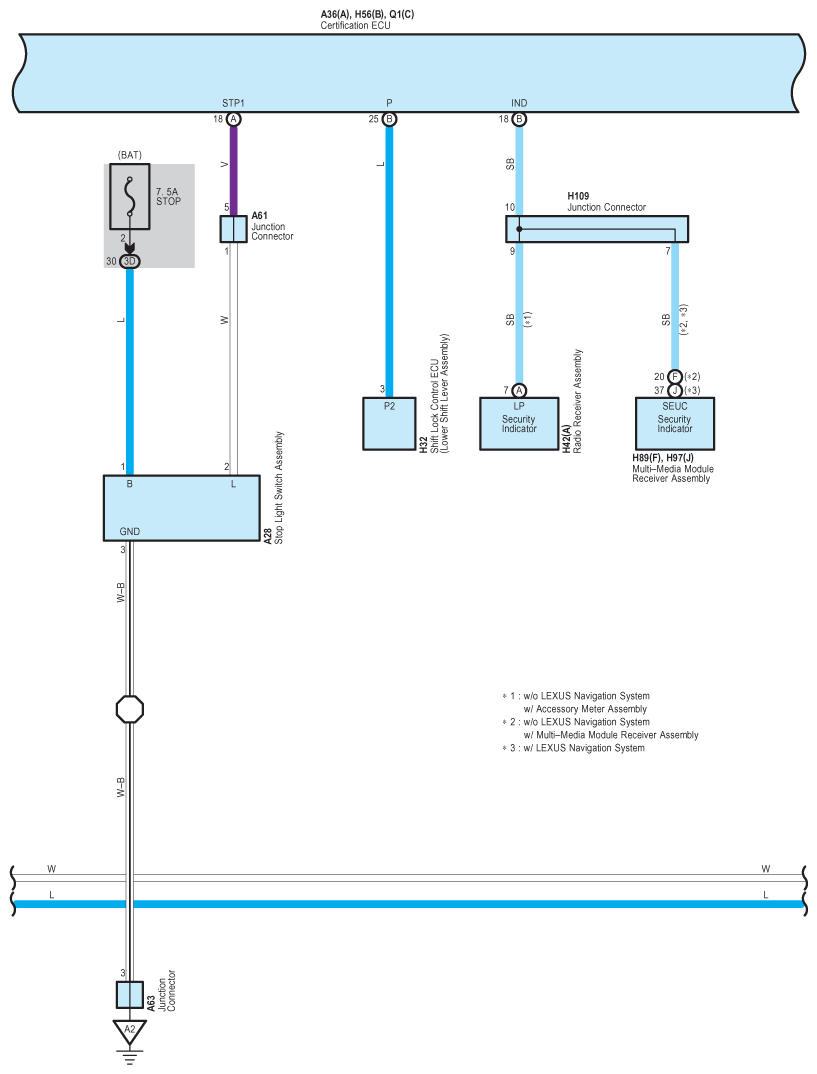

Fig 10: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (10 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

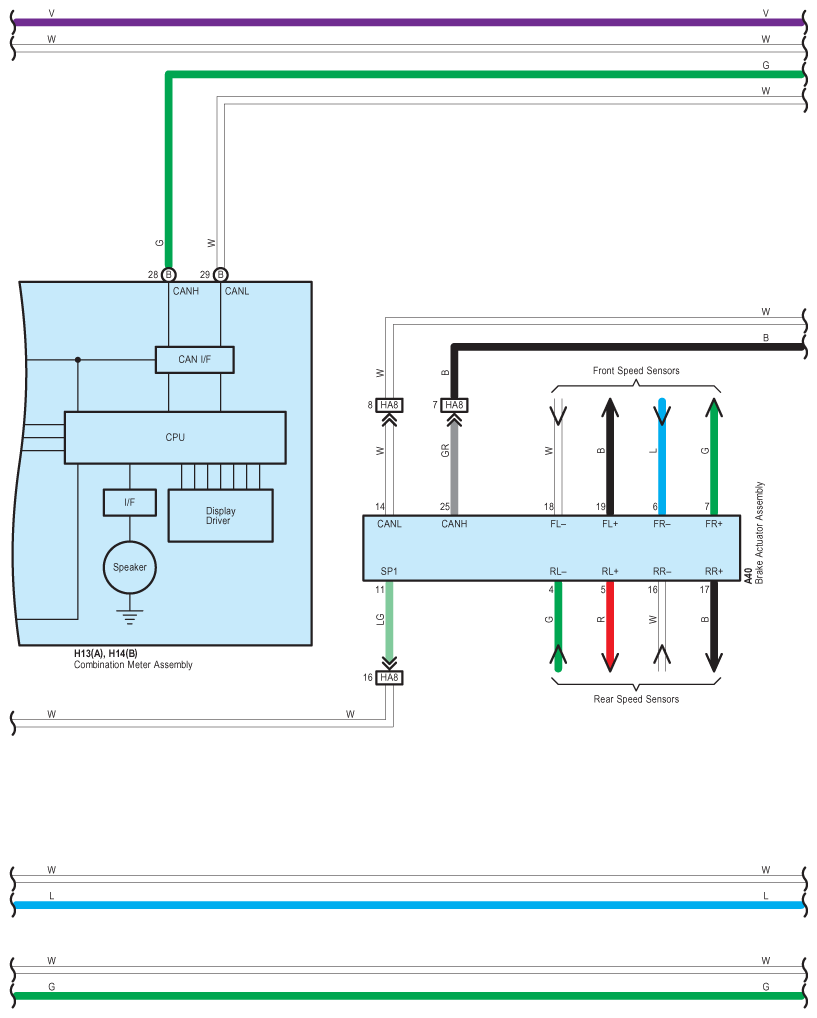

Fig 11: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (11 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

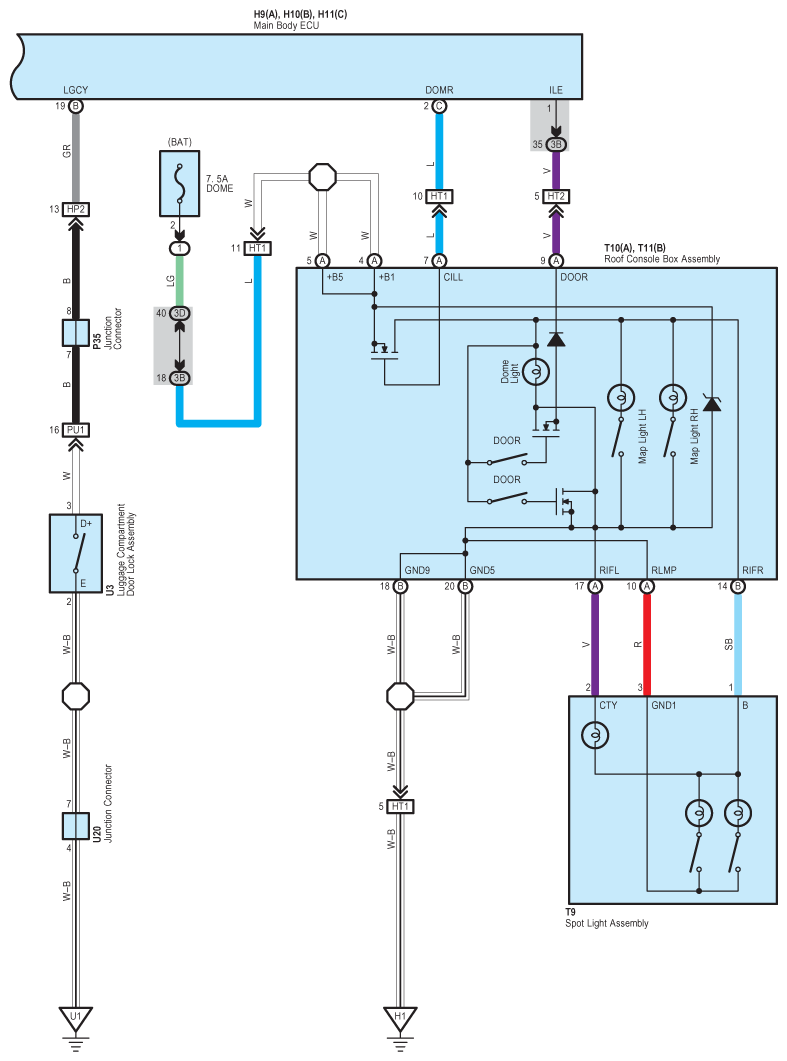

Fig 12: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (12 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

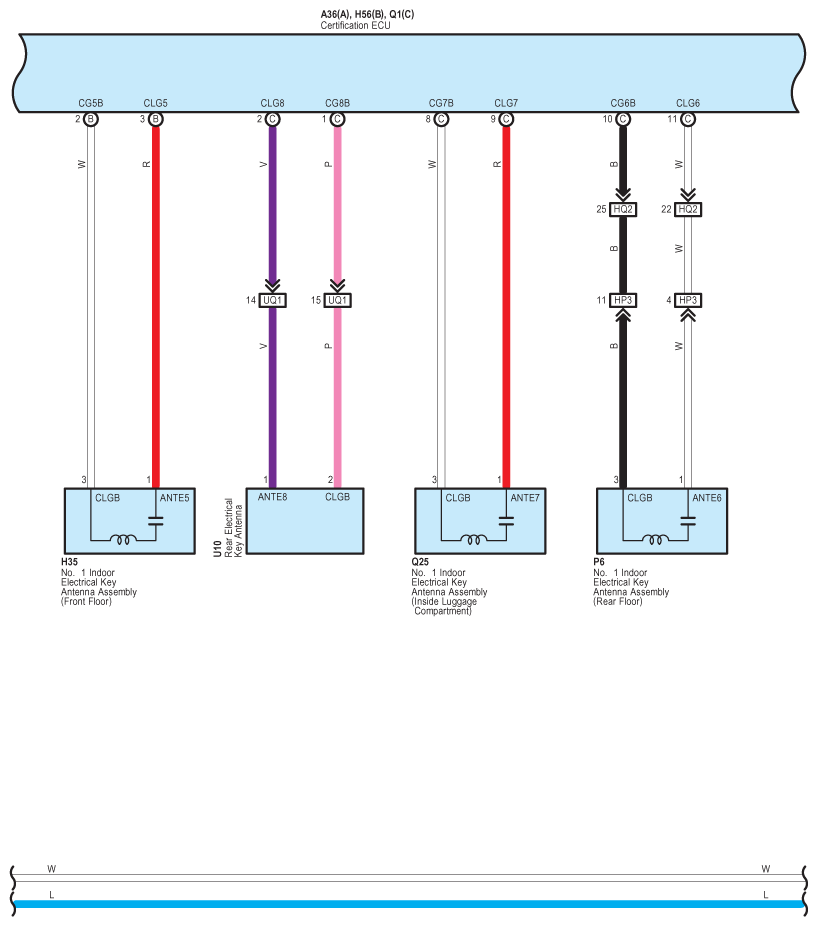

Fig 13: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (13 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

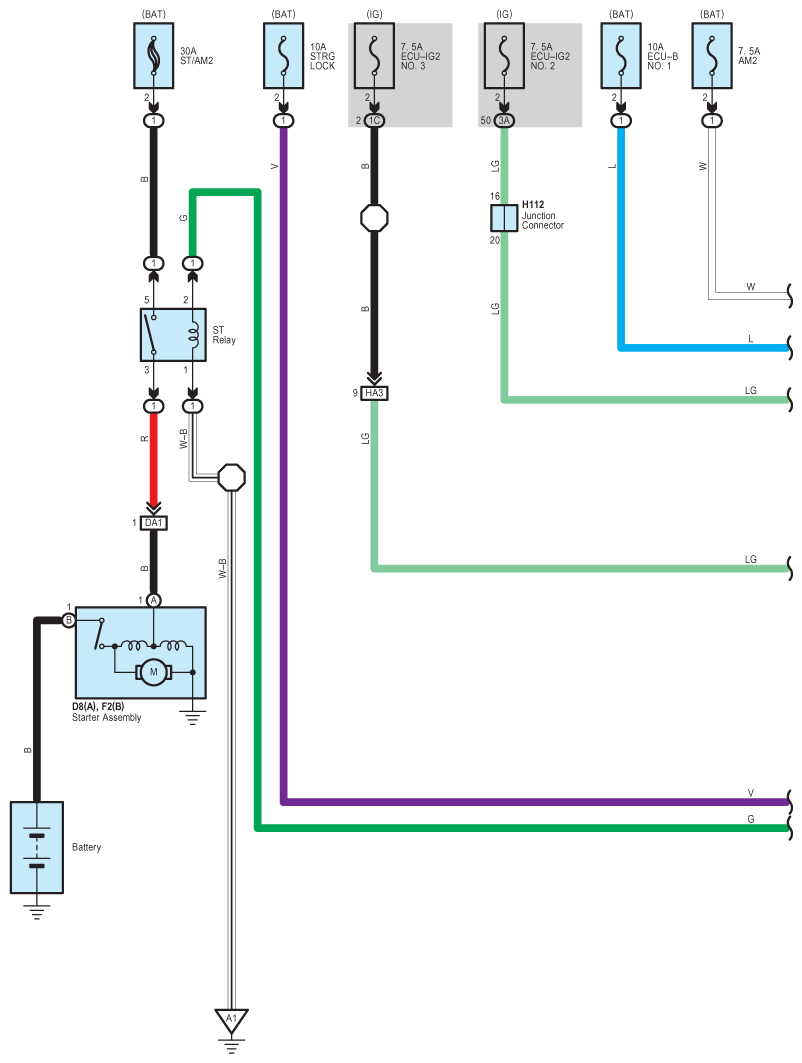

Fig 14: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (14 Of 20)

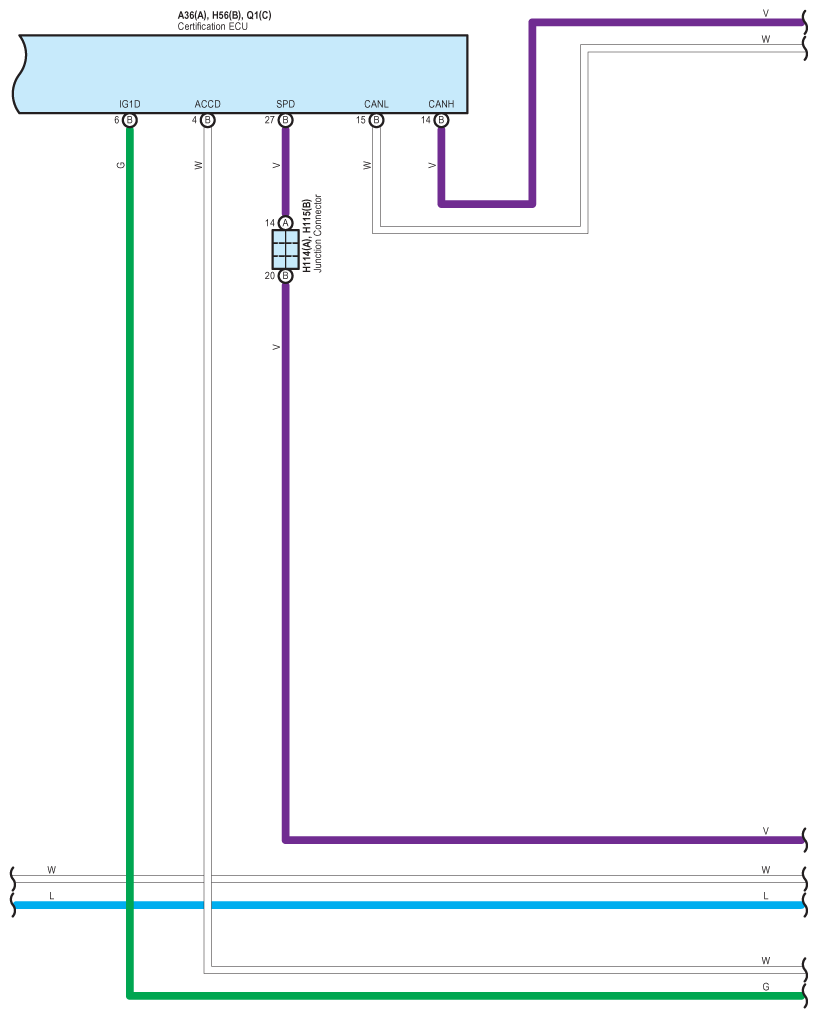

Fig 15: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (15 Of 20)

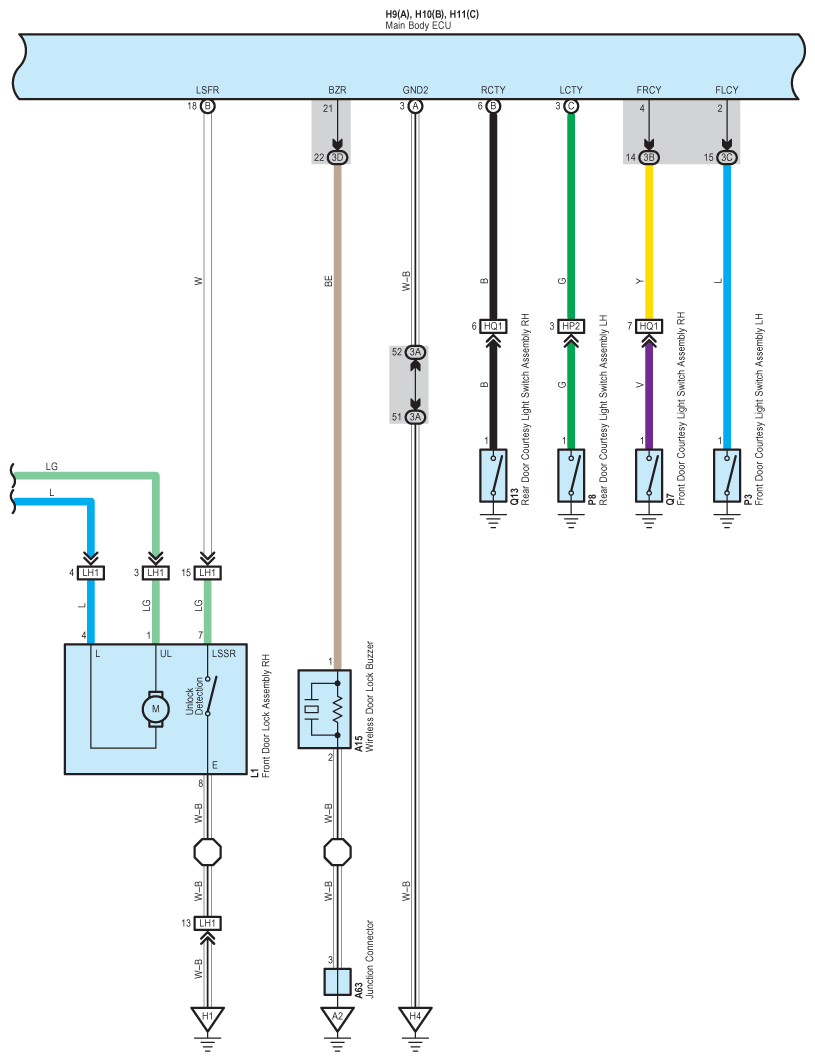

Fig 16: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (16 Of 20)

Fig 17: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (17 Of 20)

Fig 18: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (18 Of 20)

Fig 19: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (19 Of 20)

Fig 20: Immobilizer System, Smart Access System With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control - Circuit Diagram (20 Of 20)
