Lane Departure Alert: Notes

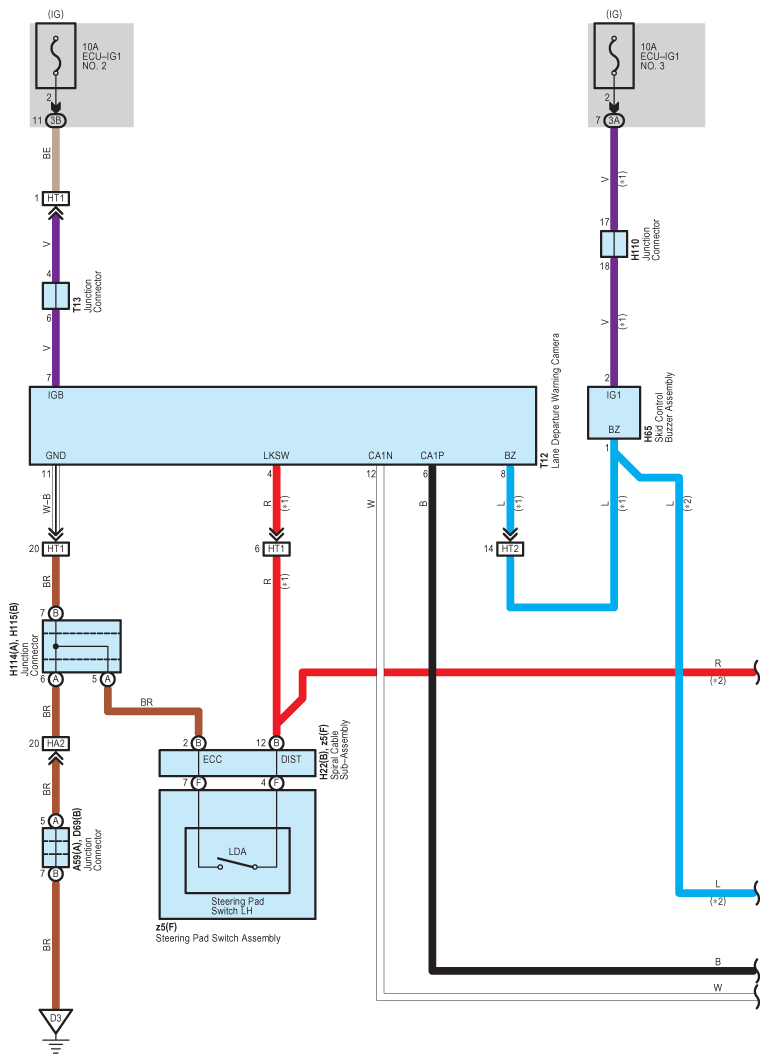

Fig 1: Lane Departure Alert - Circuit Diagram (1 Of 7)
G08948252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

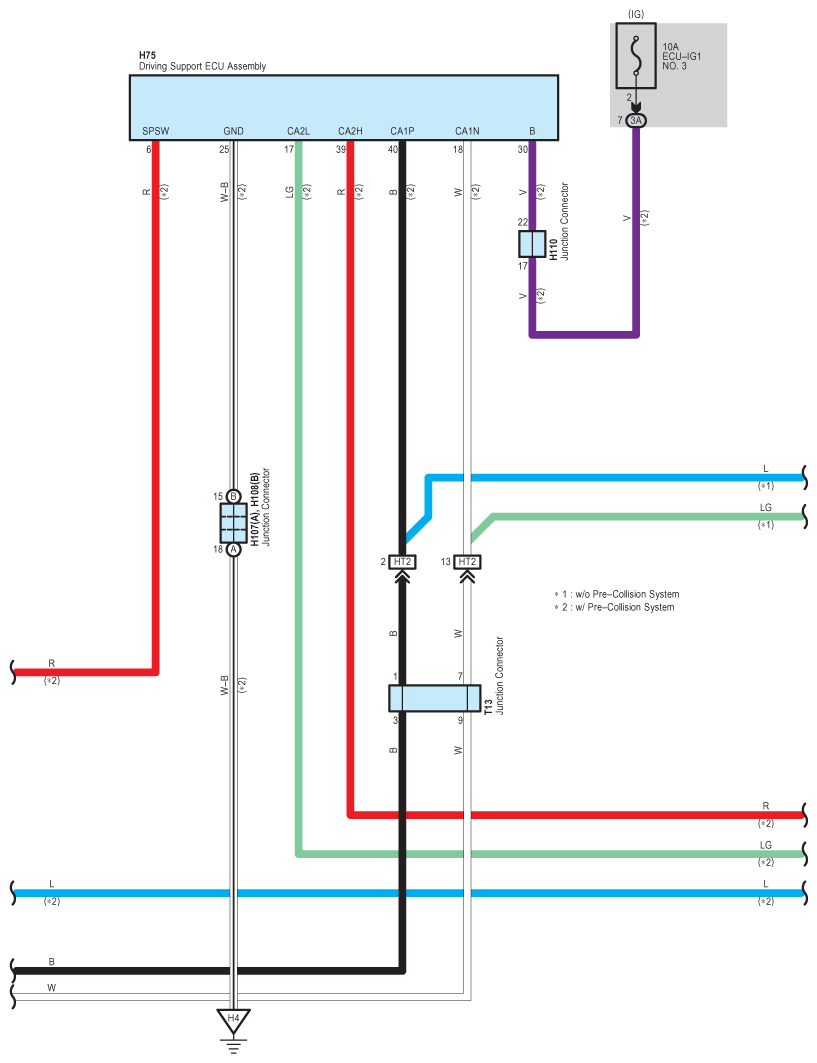

Fig 2: Lane Departure Alert - Circuit Diagram (2 Of 7)
G08948253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

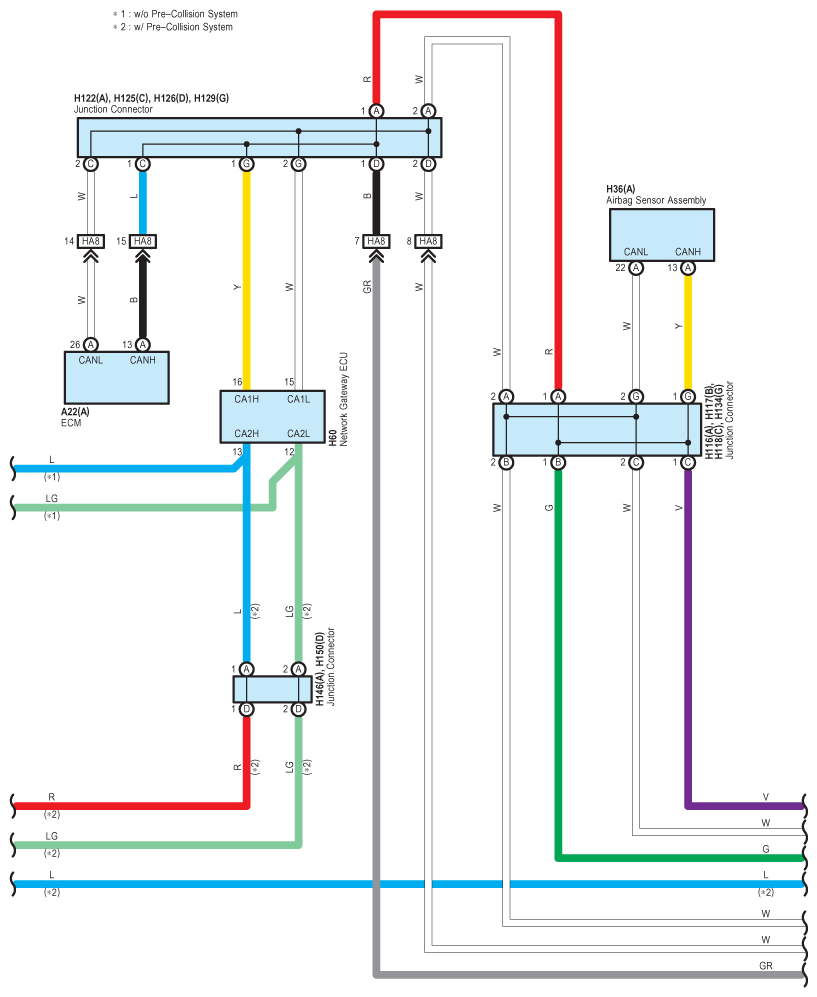

Fig 3: Lane Departure Alert - Circuit Diagram (3 Of 7)
G08948254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

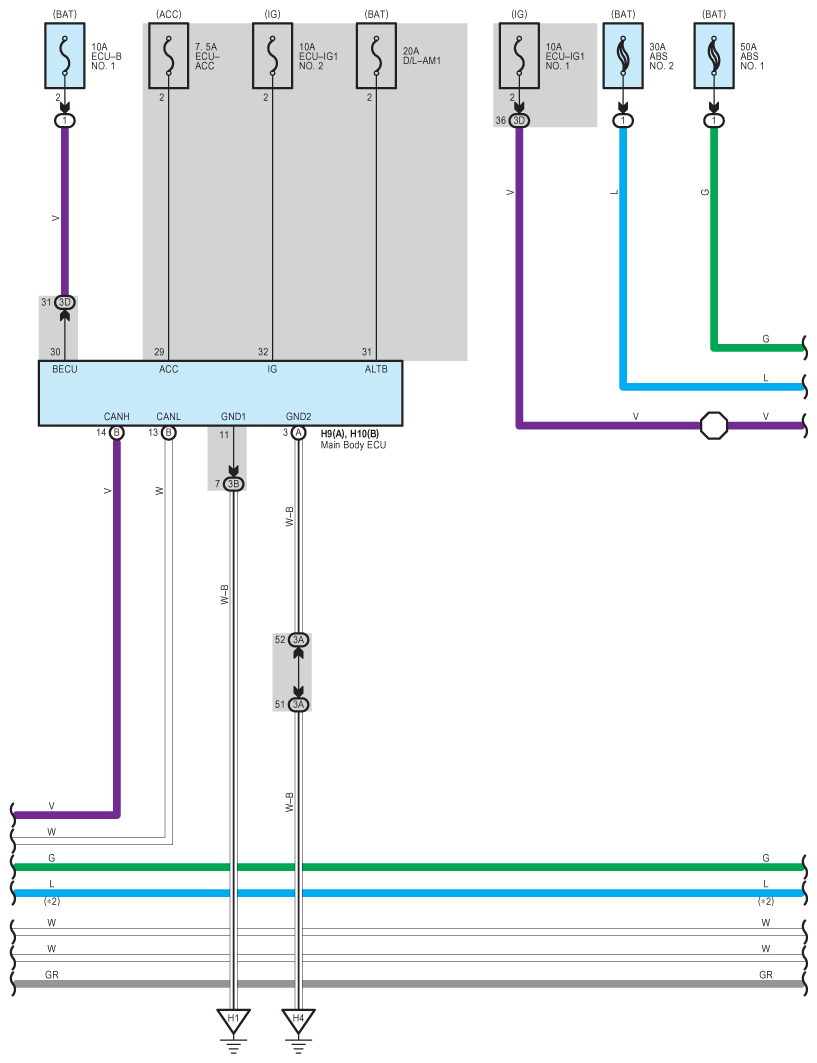

Fig 4: Lane Departure Alert - Circuit Diagram (4 Of 7)
G08948255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

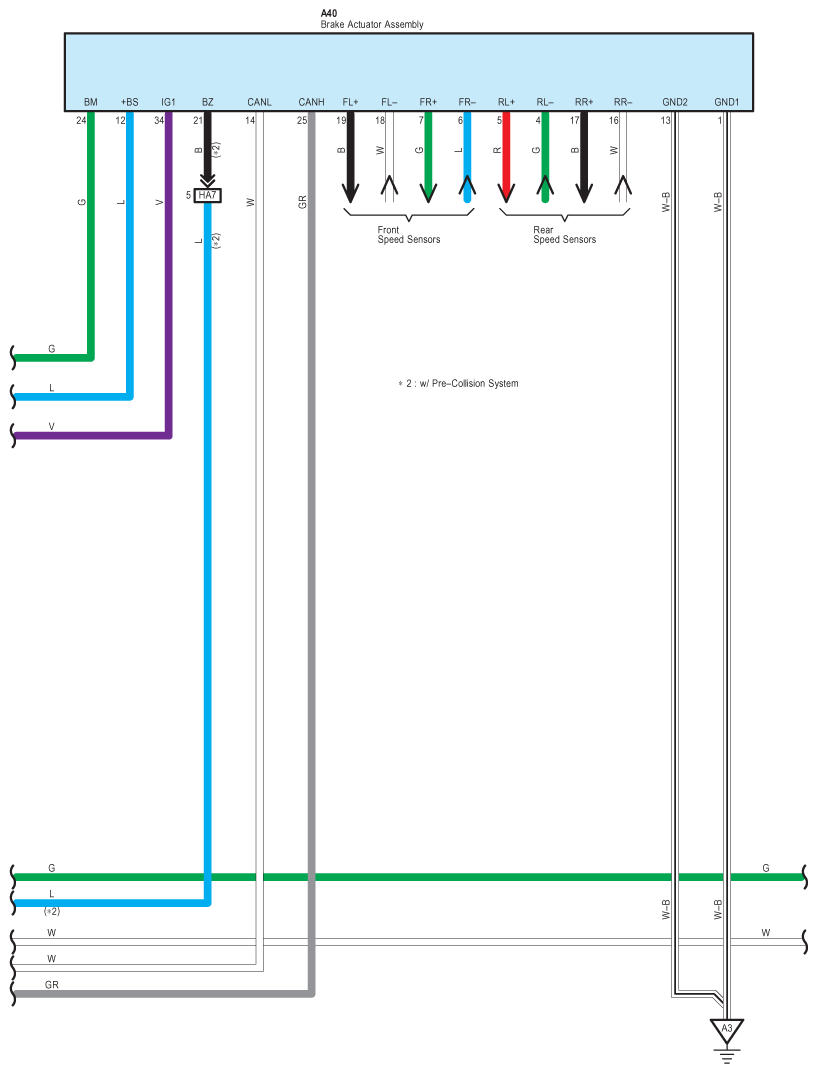

Fig 5: Lane Departure Alert - Circuit Diagram (5 Of 7)
G08948256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

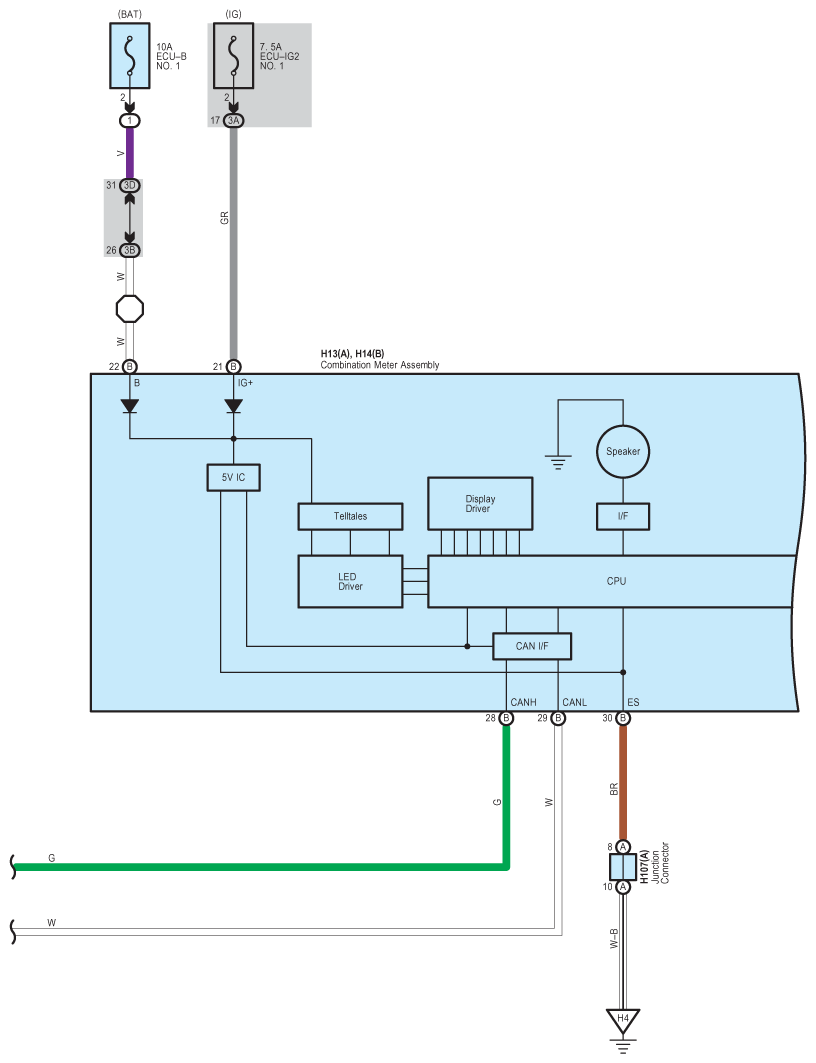

Fig 6: Lane Departure Alert - Circuit Diagram (6 Of 7)
G08948257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

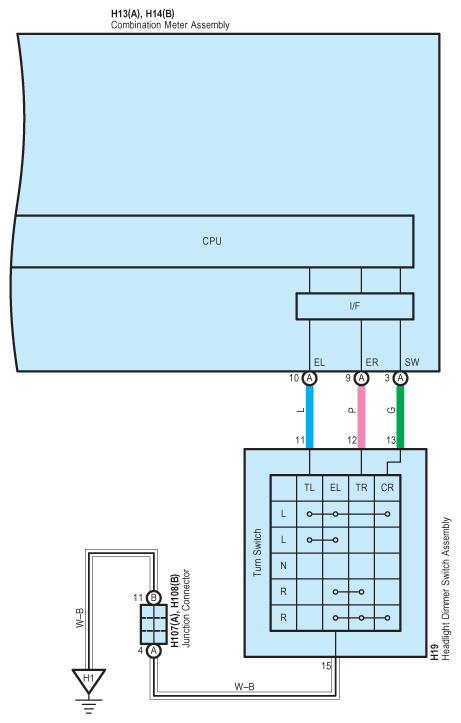

Fig 7: Lane Departure Alert - Circuit Diagram (7 Of 7)
G08948258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
