Power Trunk Opener and Closer: Notes

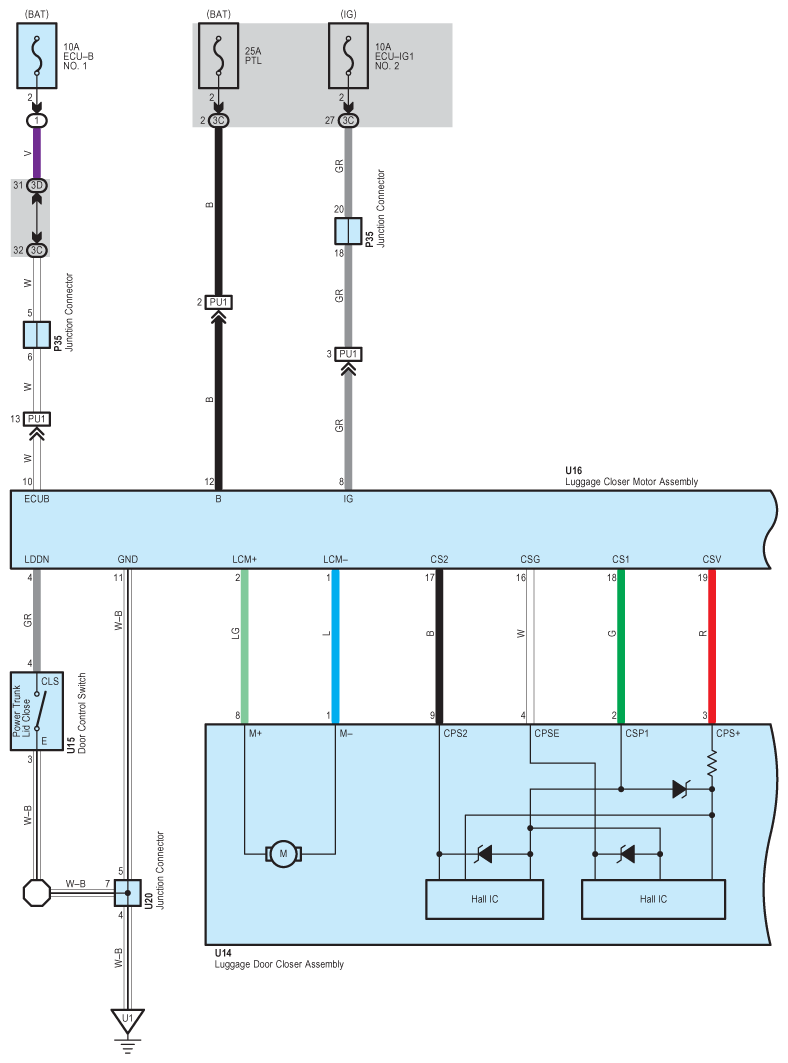

Fig 1: Power Trunk Opener And Closer - Circuit Diagram (1 Of 5)
G08948345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

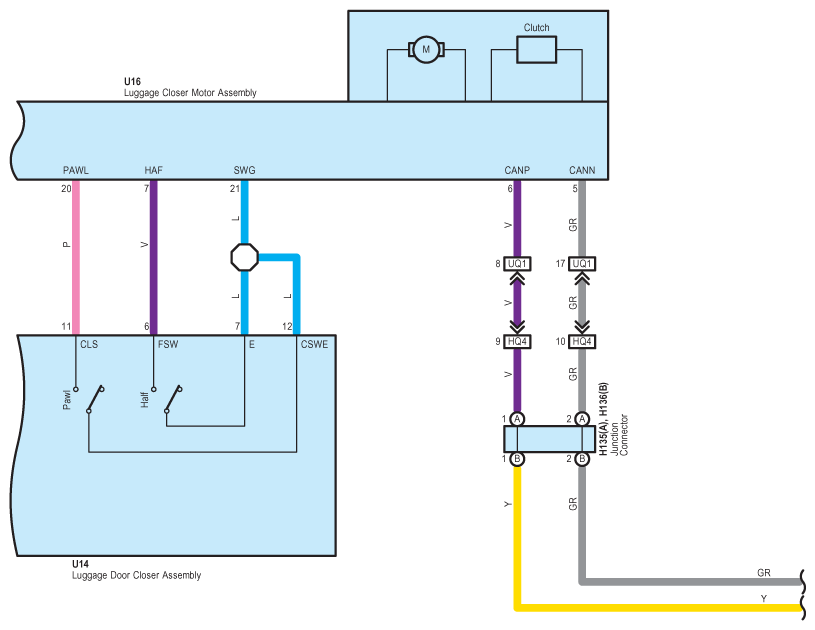

Fig 2: Power Trunk Opener And Closer - Circuit Diagram (2 Of 5)
G08948346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Power Trunk Opener And Closer - Circuit Diagram (3 Of 5)

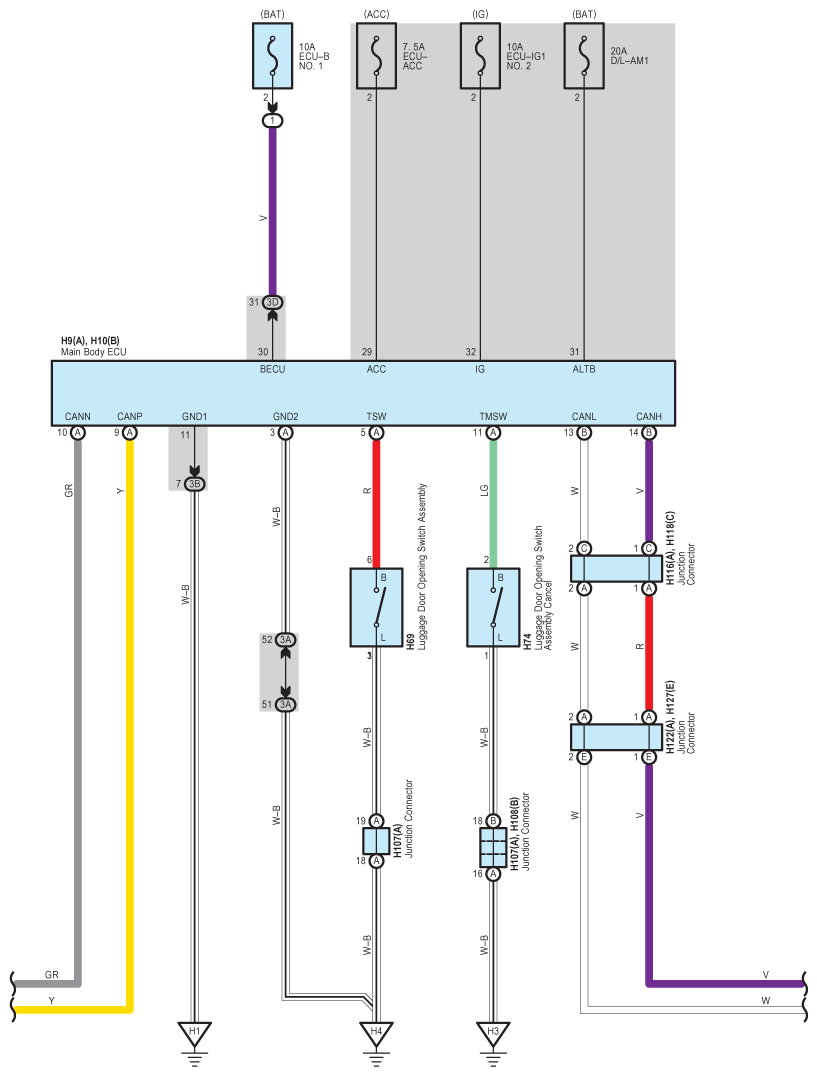

G08948347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

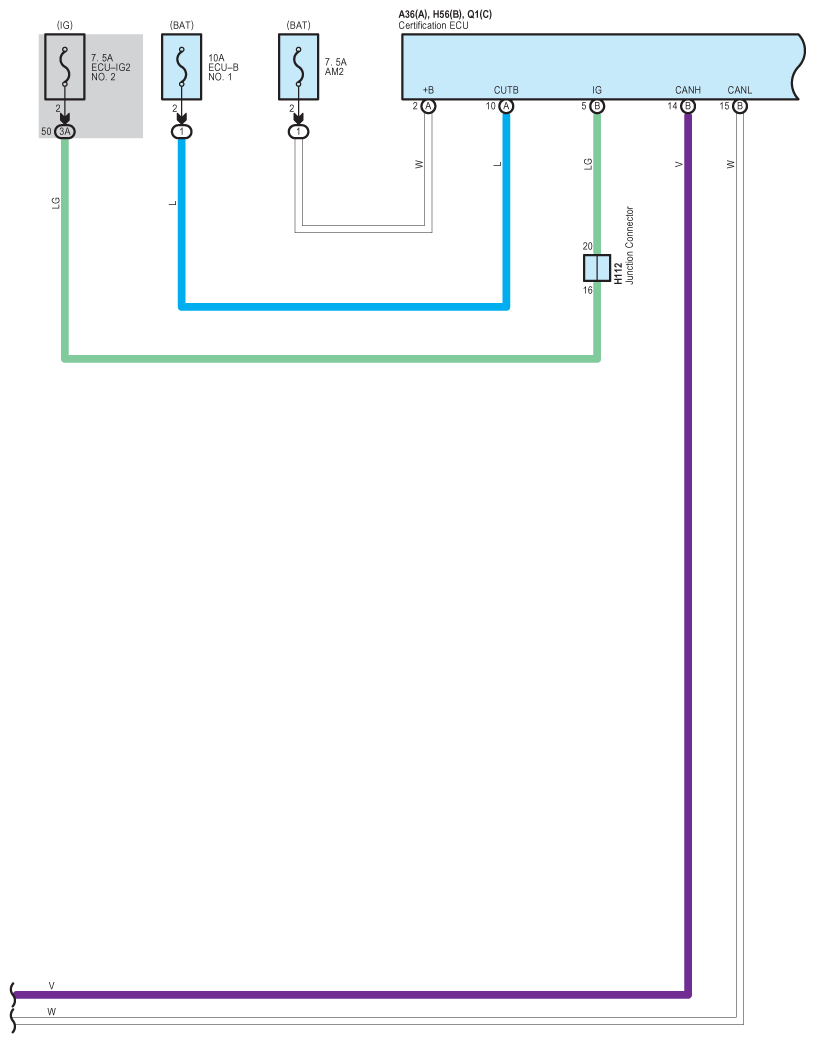

Fig 4: Power Trunk Opener And Closer - Circuit Diagram (4 Of 5)
G08948348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

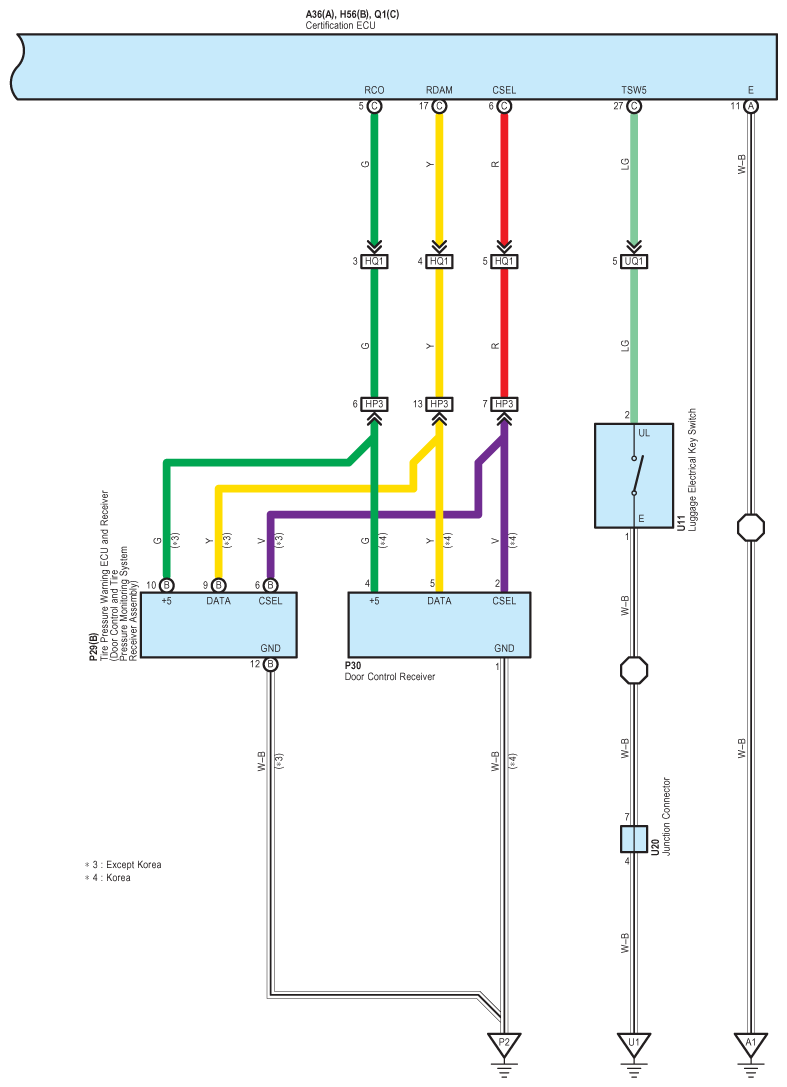

Fig 5: Power Trunk Opener And Closer - Circuit Diagram (5 Of 5)
G08948349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
