Air Conditioning: Notes

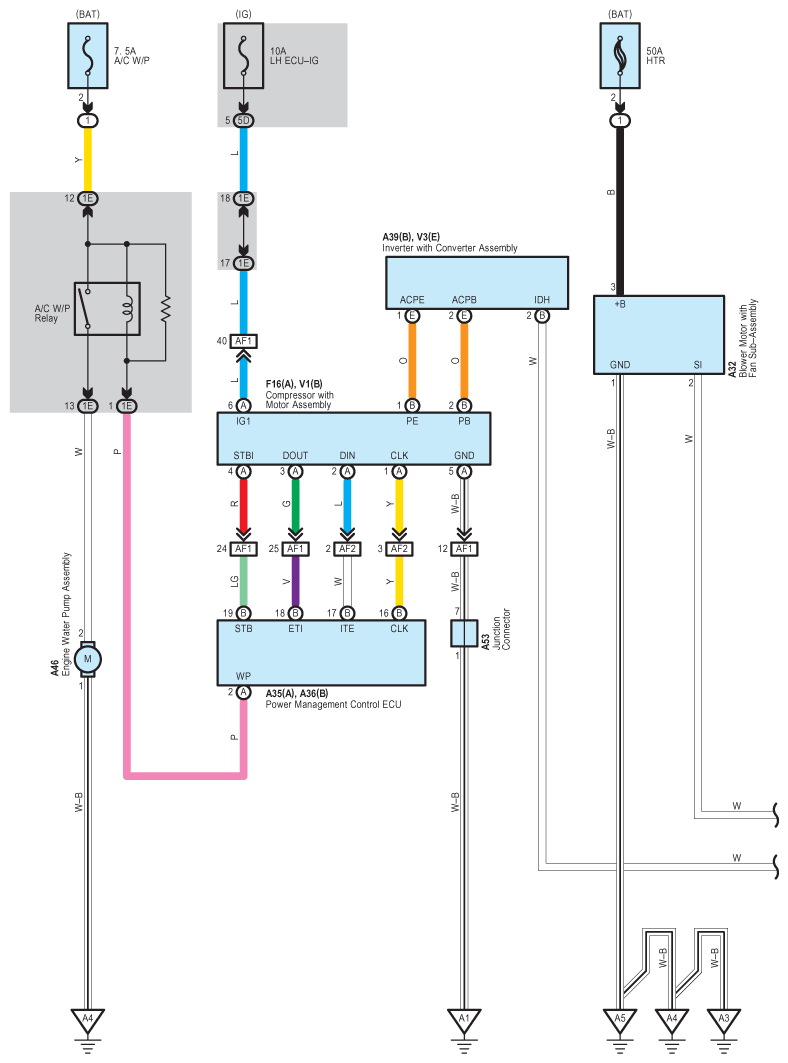

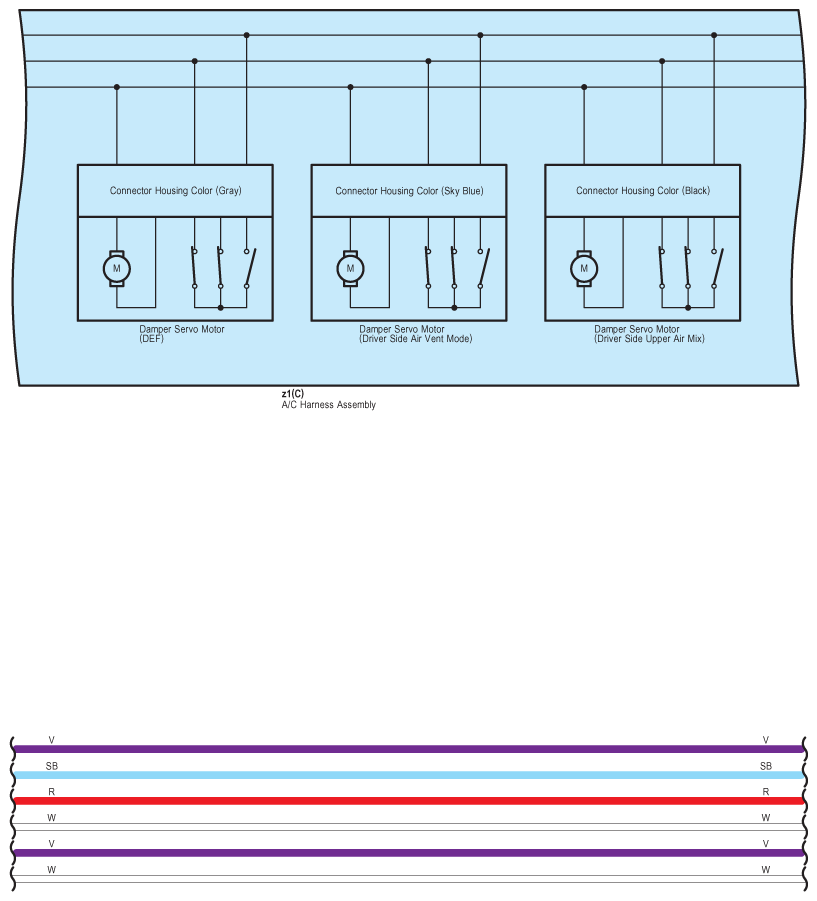

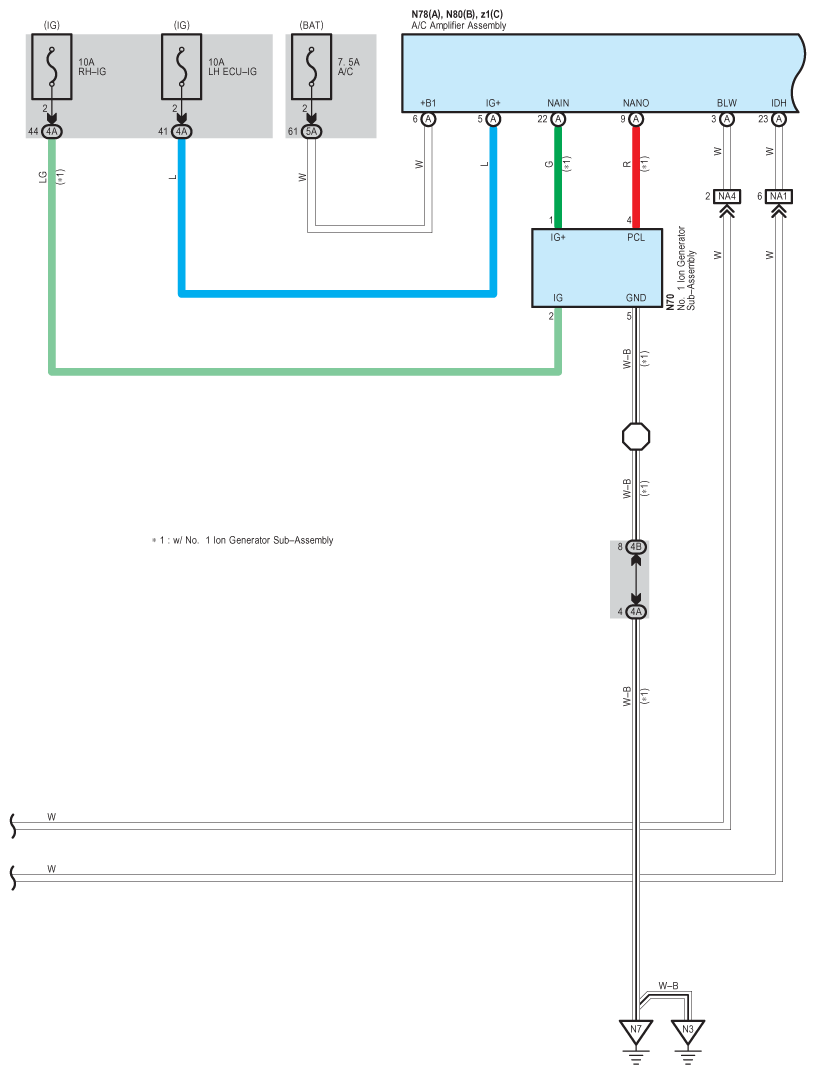

Fig 1: Air Conditioning Wiring Diagram (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

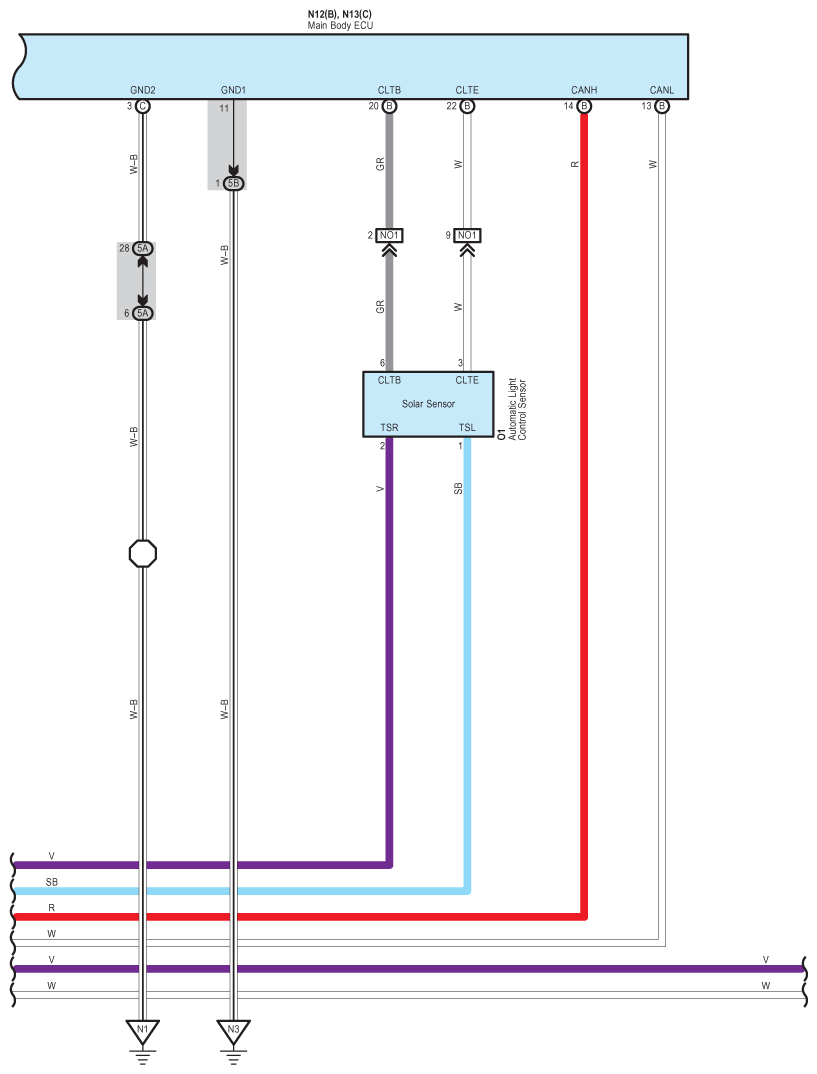

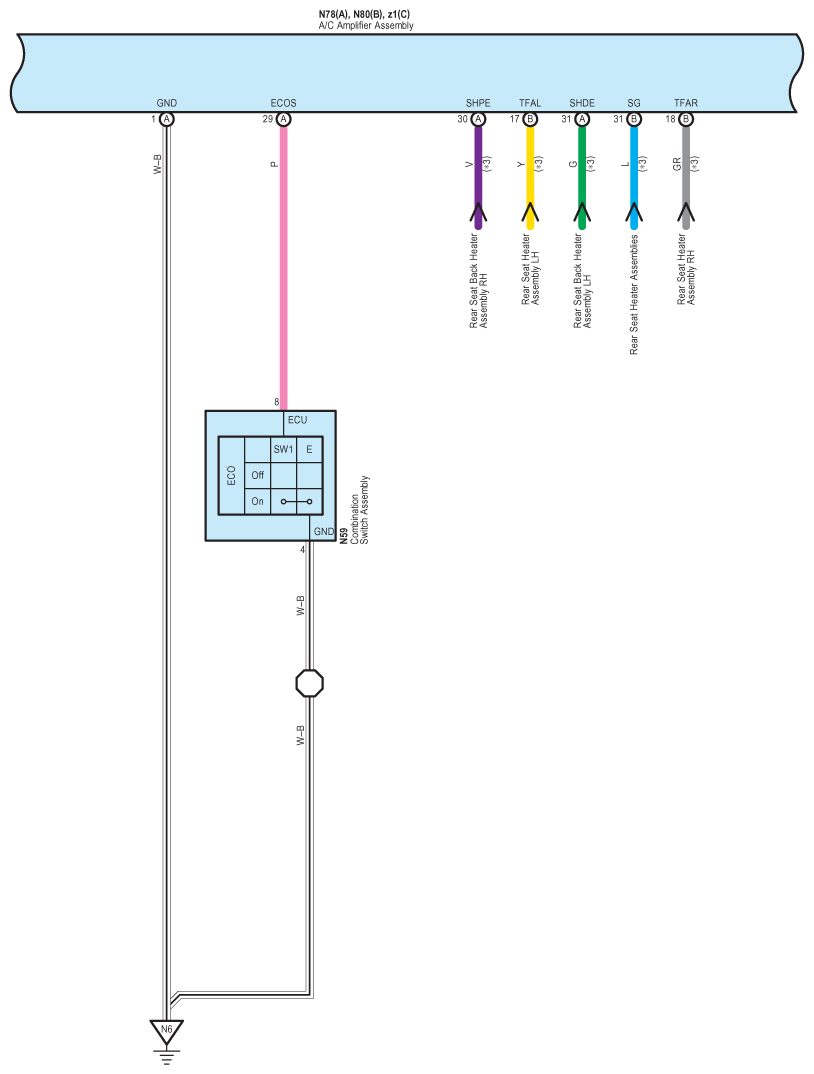

Fig 2: Air Conditioning Wiring Diagram (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

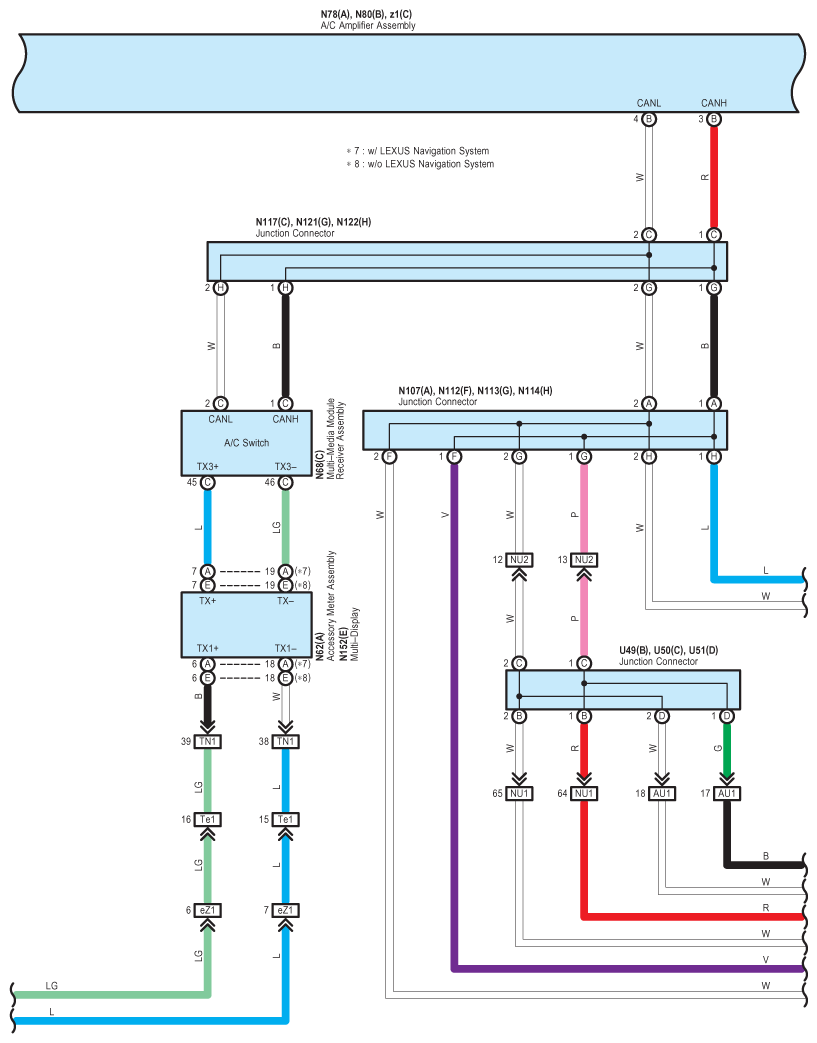

Fig 3: Air Conditioning Wiring Diagram (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

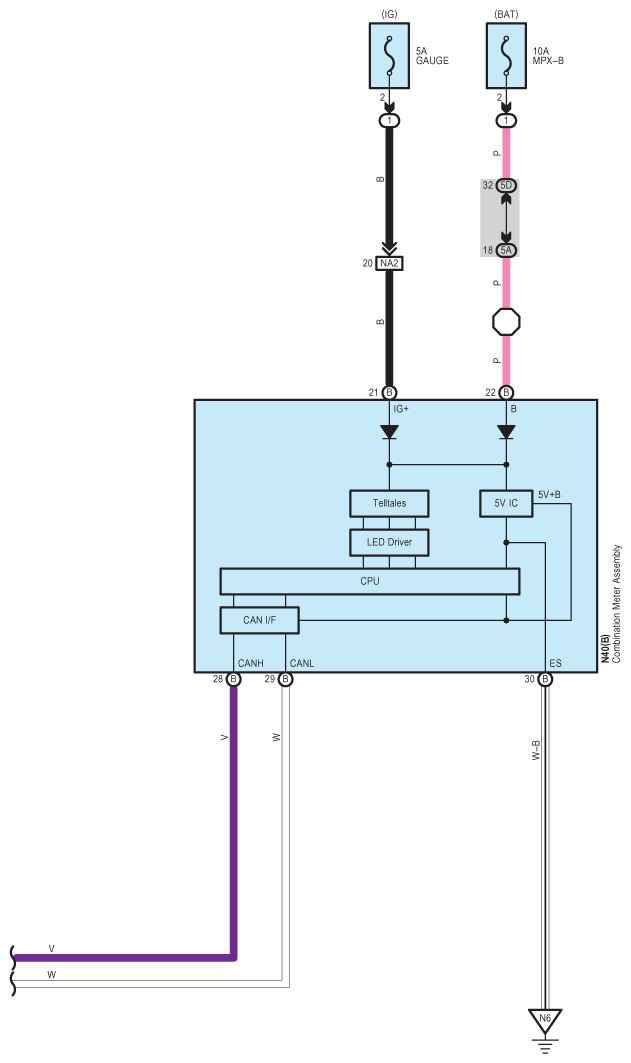

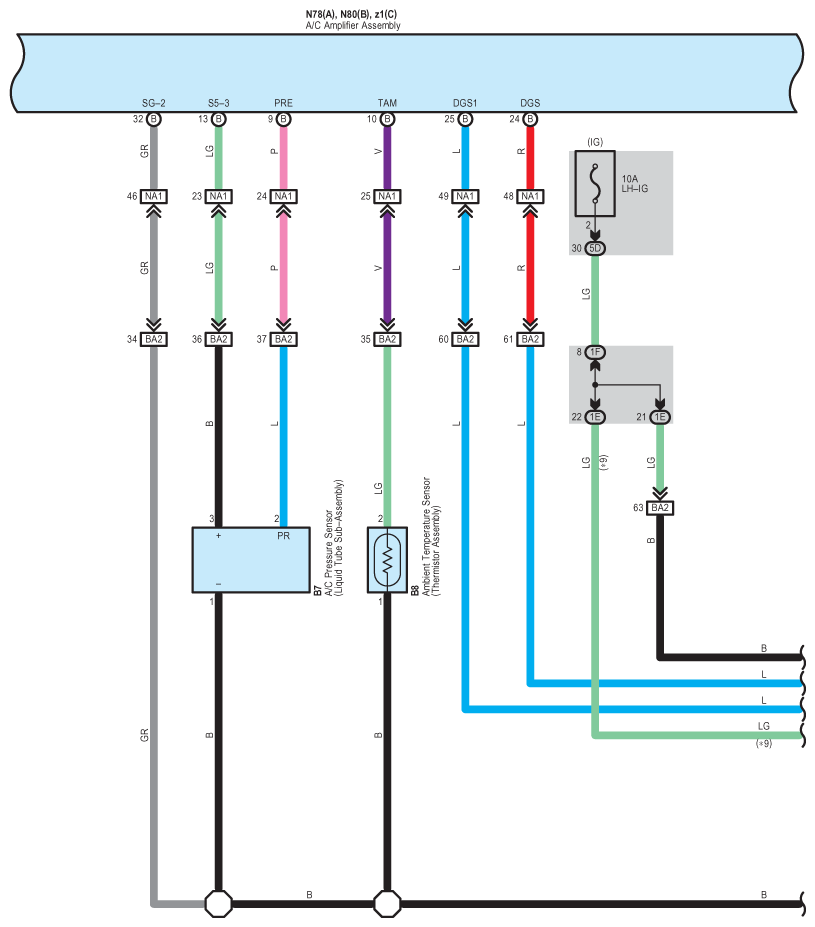

Fig 4: Air Conditioning Wiring Diagram (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

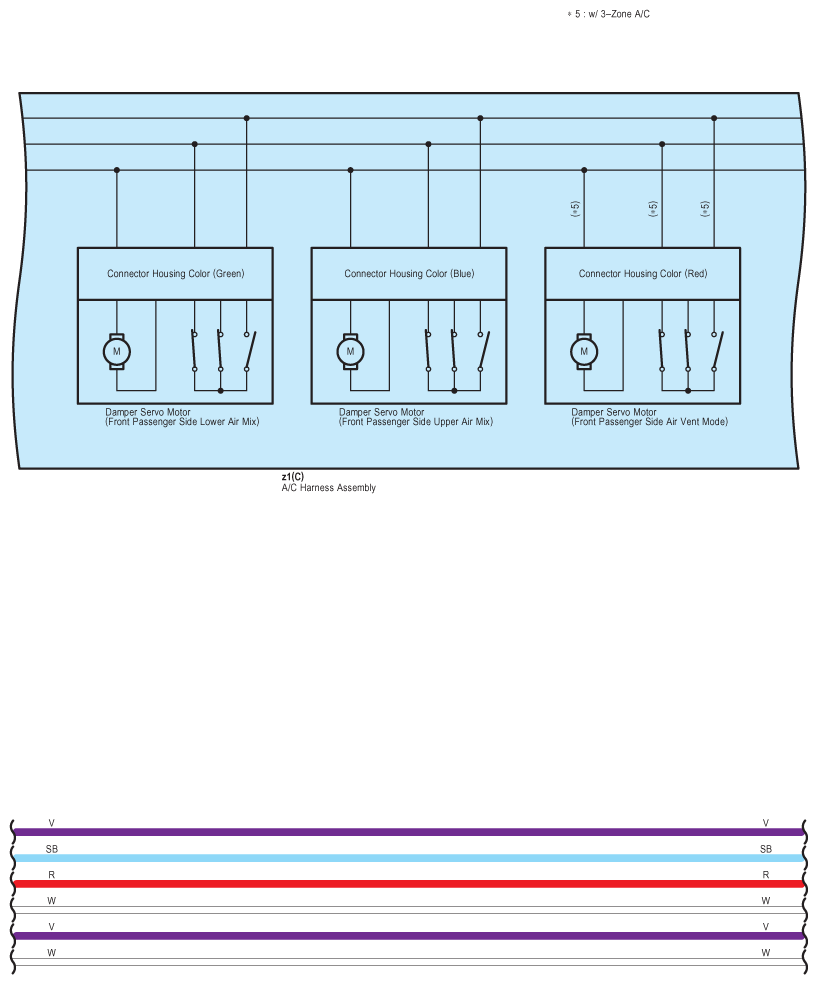

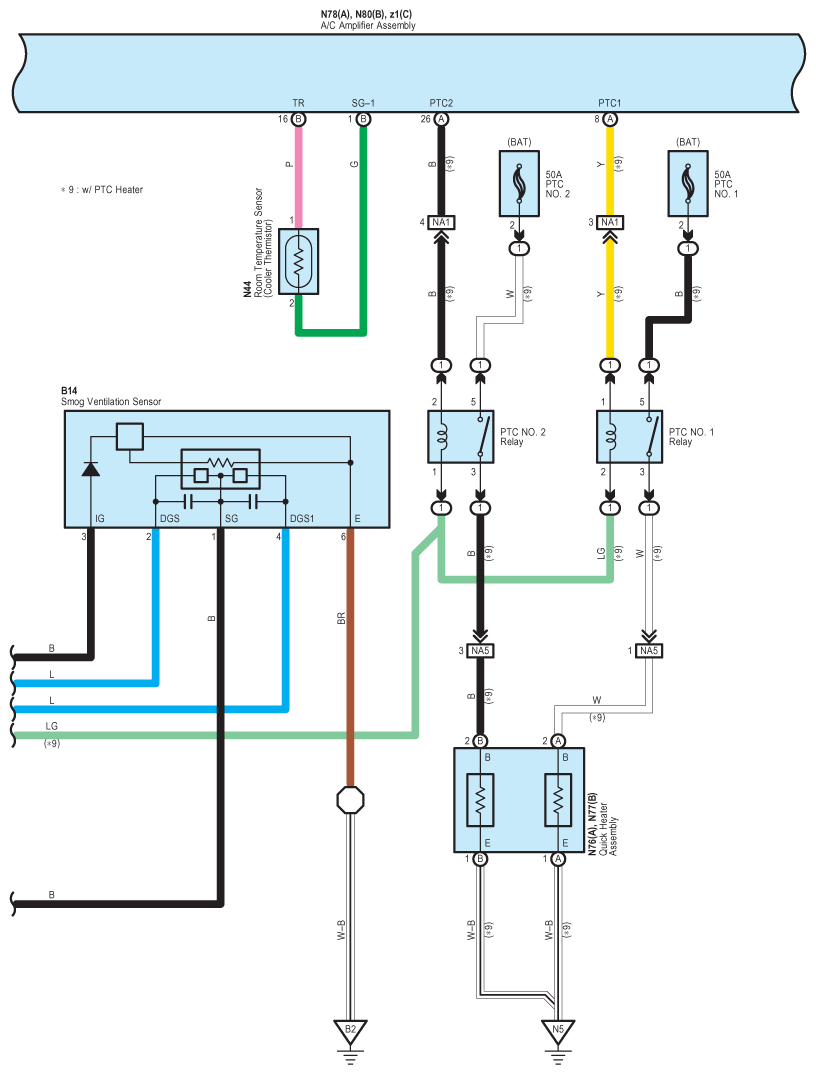

Fig 5: Air Conditioning Wiring Diagram (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

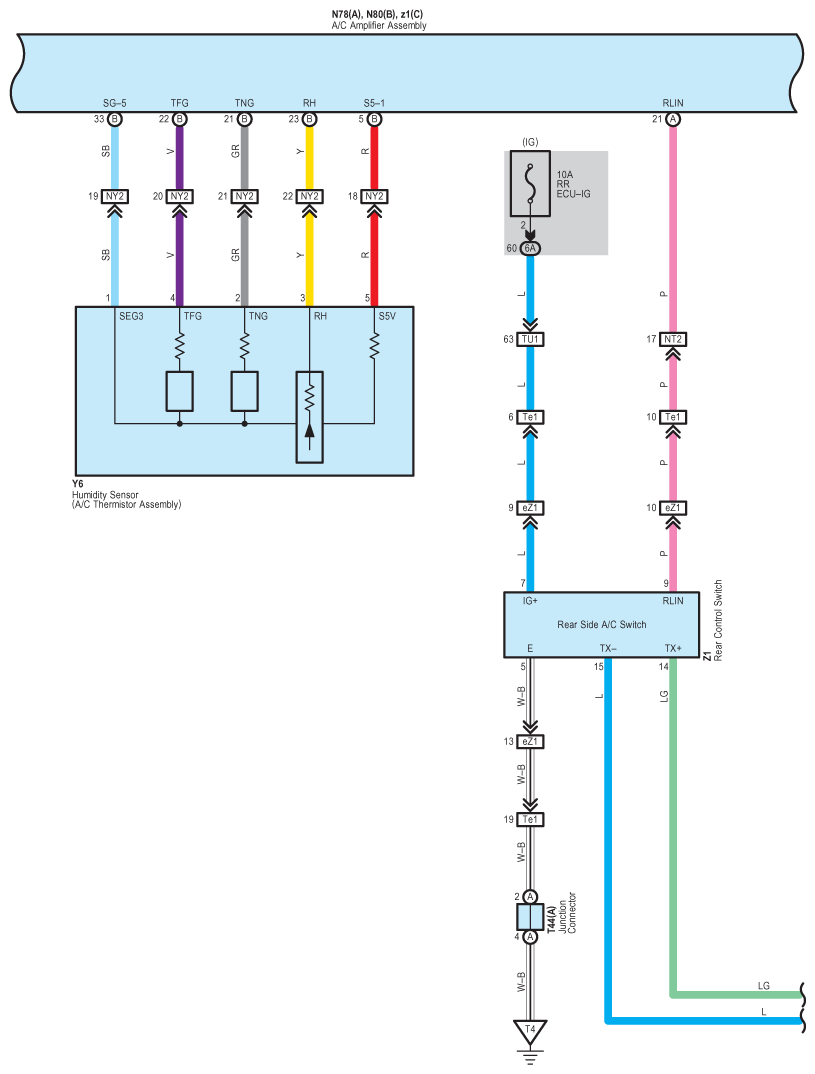

Fig 6: Air Conditioning Wiring Diagram (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

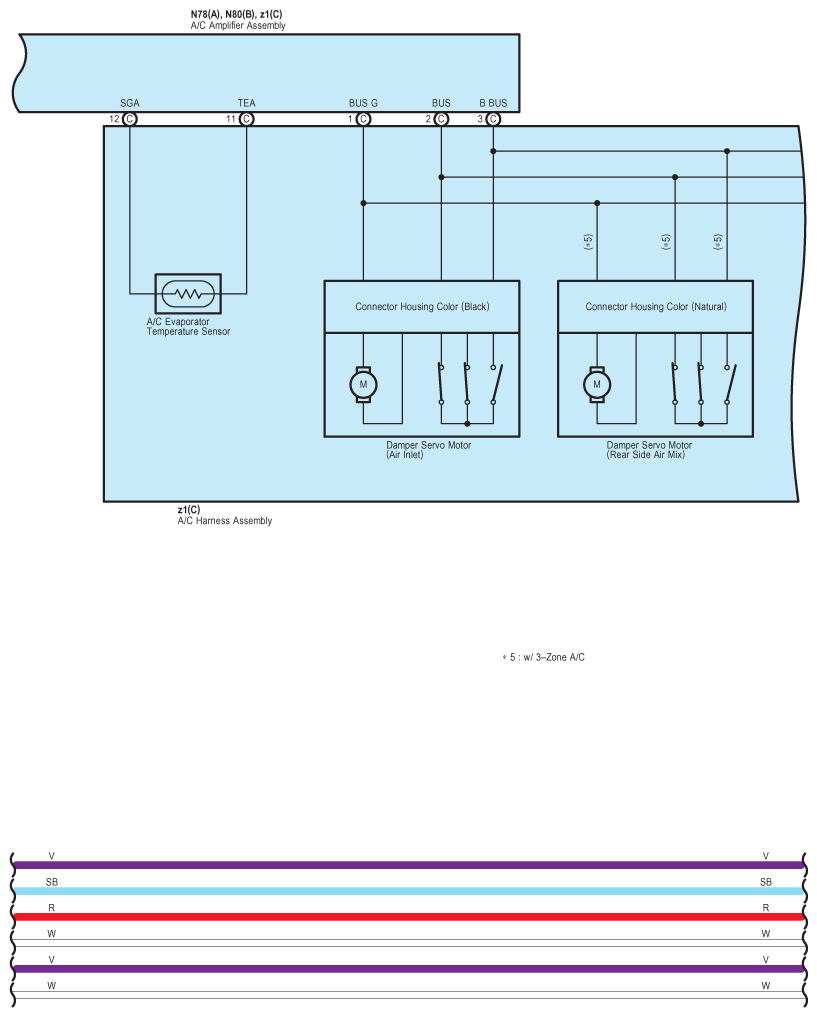

Fig 7: Air Conditioning Wiring Diagram (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

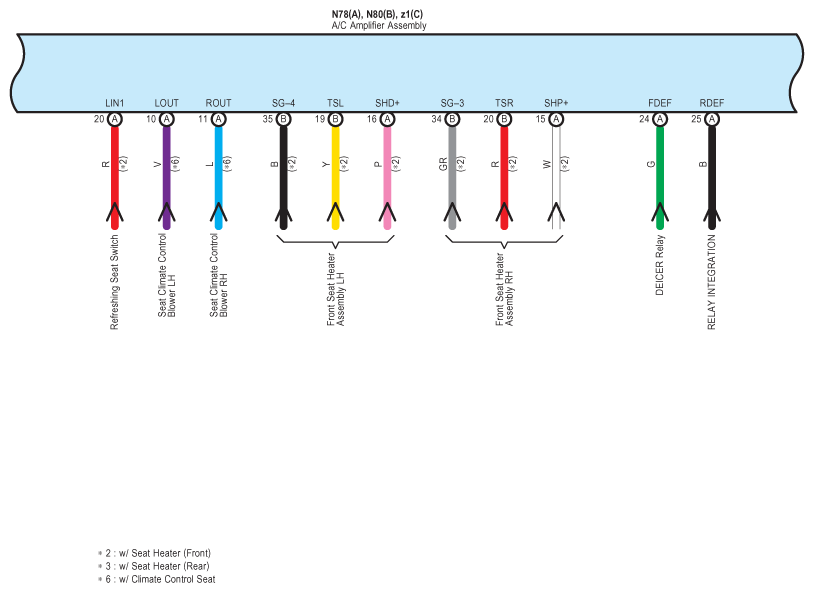

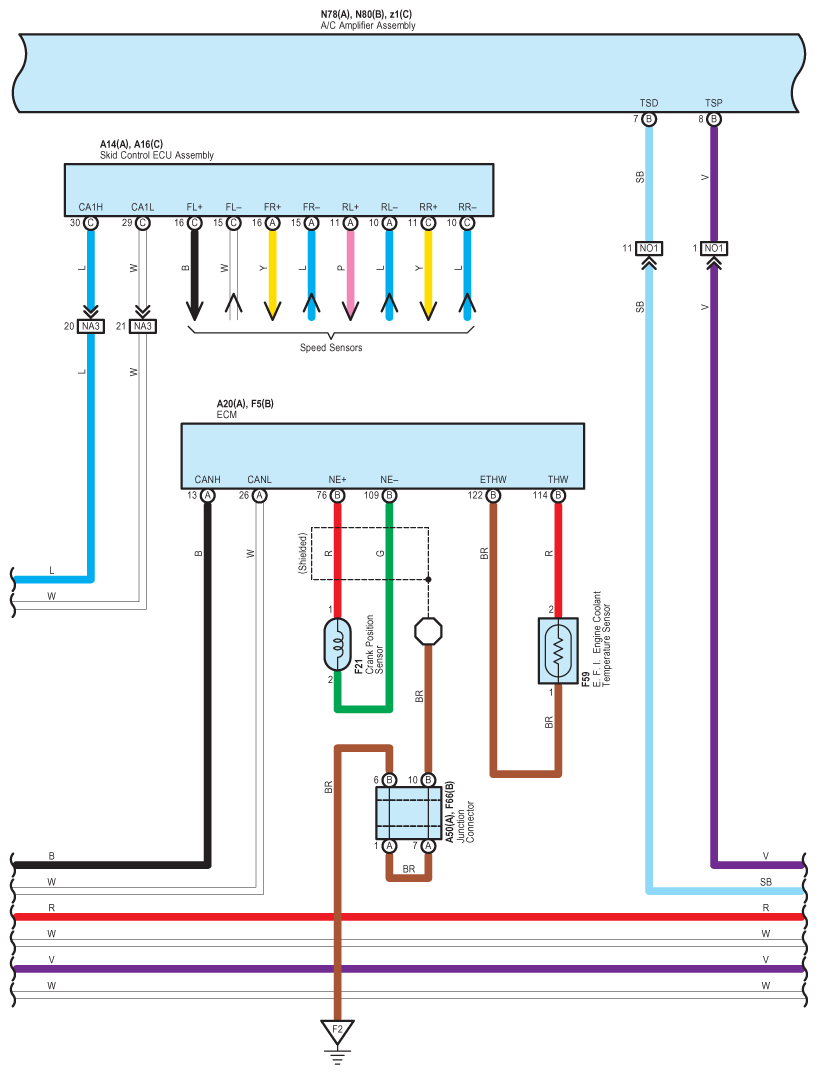

Fig 8: Air Conditioning Wiring Diagram (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Air Conditioning Wiring Diagram (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Air Conditioning Wiring Diagram (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Air Conditioning Wiring Diagram (11 Of 16)

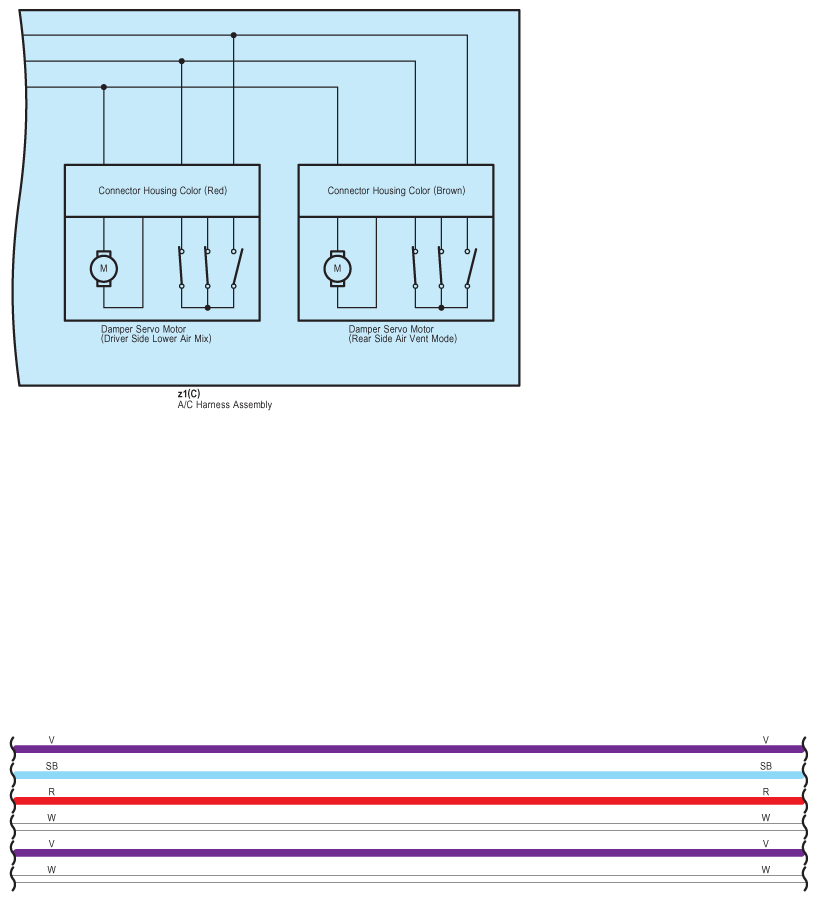

Fig 12: Air Conditioning Wiring Diagram (12 Of 16)

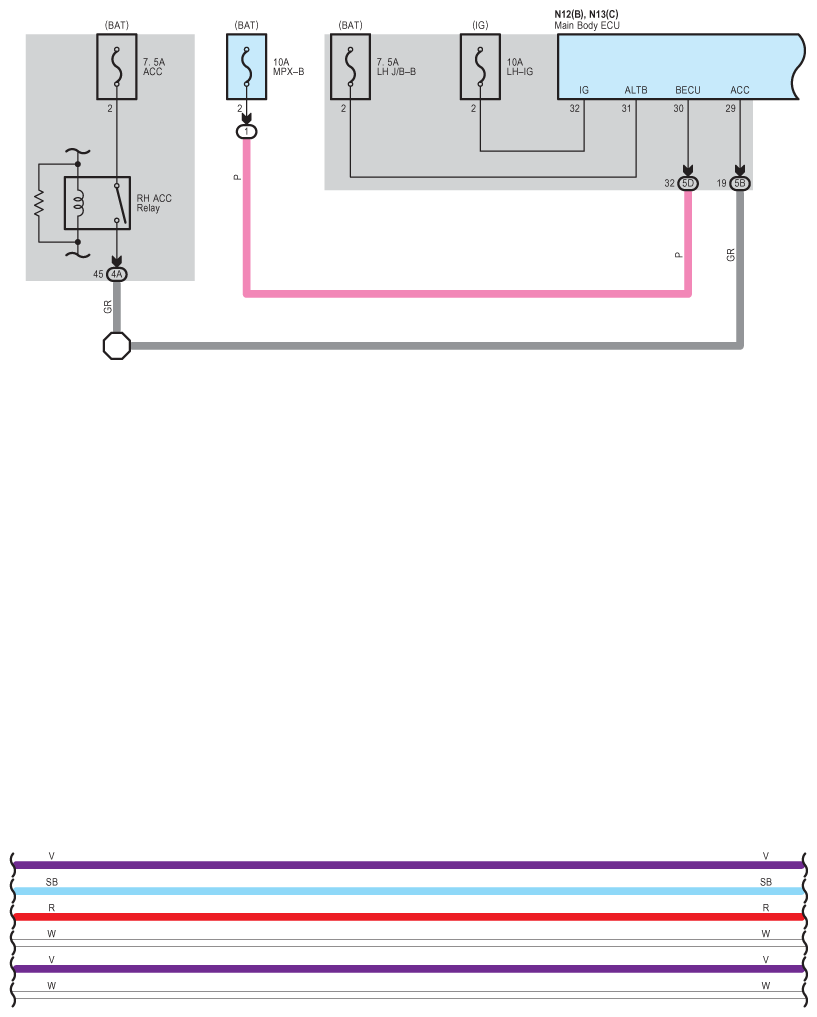

Fig 13: Air Conditioning Wiring Diagram (13 Of 16)

Fig 14: Air Conditioning Wiring Diagram (14 Of 16)

Fig 15: Air Conditioning Wiring Diagram (15 Of 16)

Fig 16: Air Conditioning Wiring Diagram (16 Of 16)
