Dynamic Radar Cruise Control: Notes

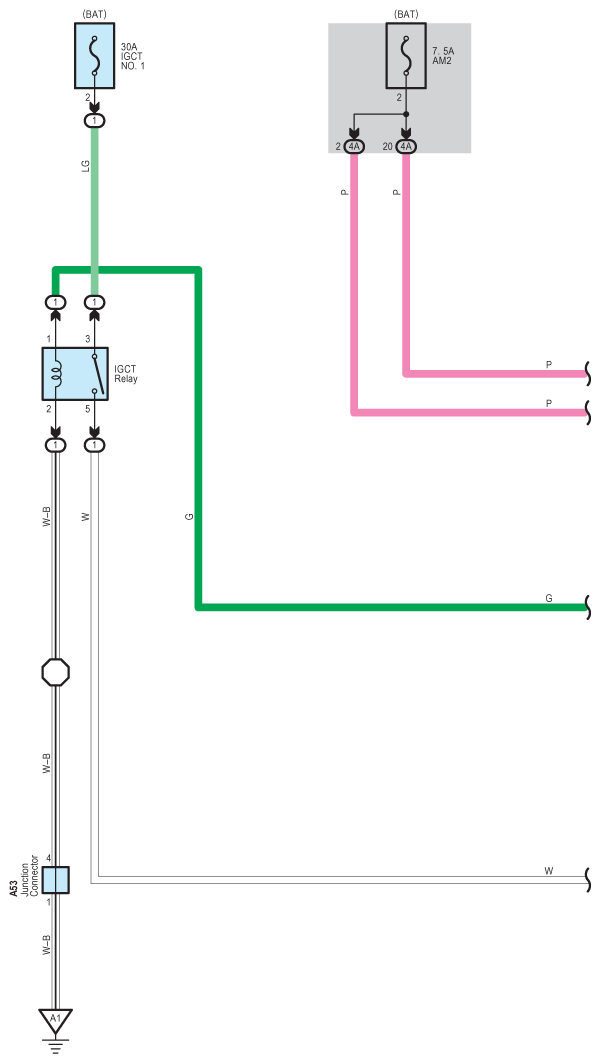

Fig 1: Dynamic Radar Cruise Control Wiring Diagram (1 Of 32)

G09117755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

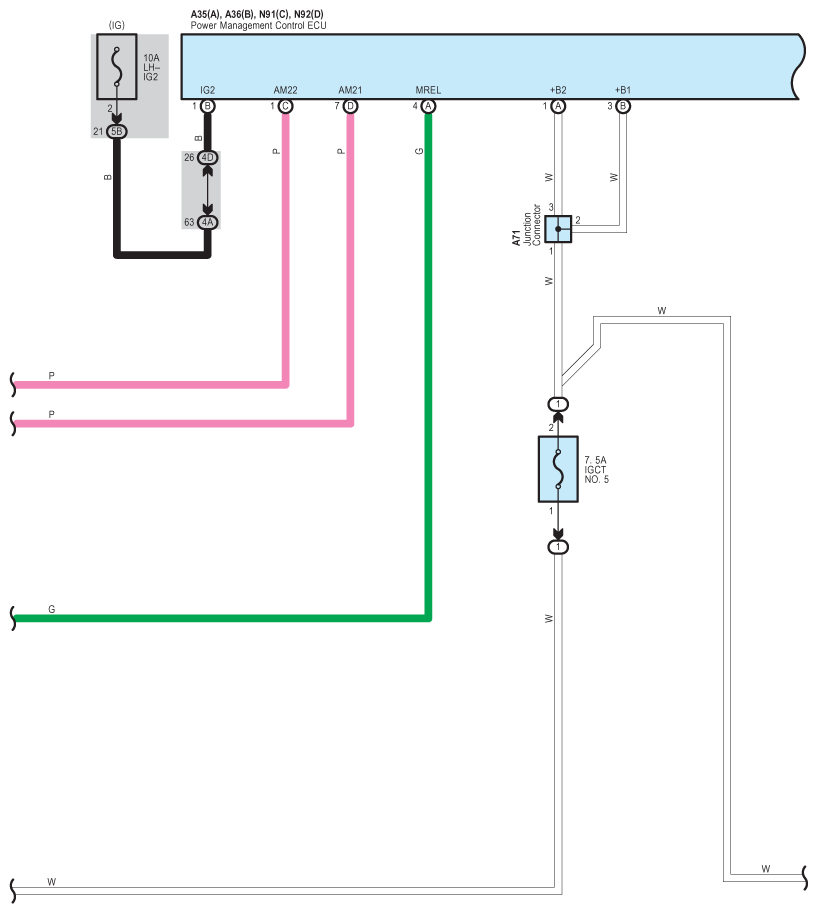

Fig 2: Dynamic Radar Cruise Control Wiring Diagram (2 Of 32)

G09117756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

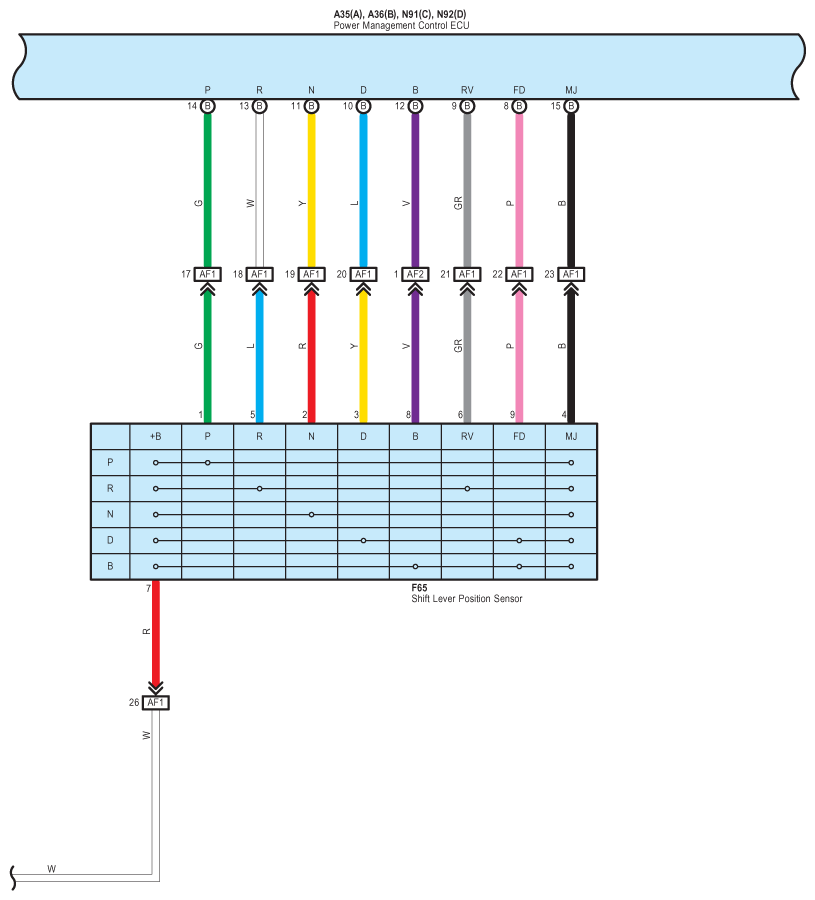

Fig 3: Dynamic Radar Cruise Control Wiring Diagram (3 Of 32)

G09117757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dynamic Radar Cruise Control Wiring Diagram (4 Of 32)

G09117758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

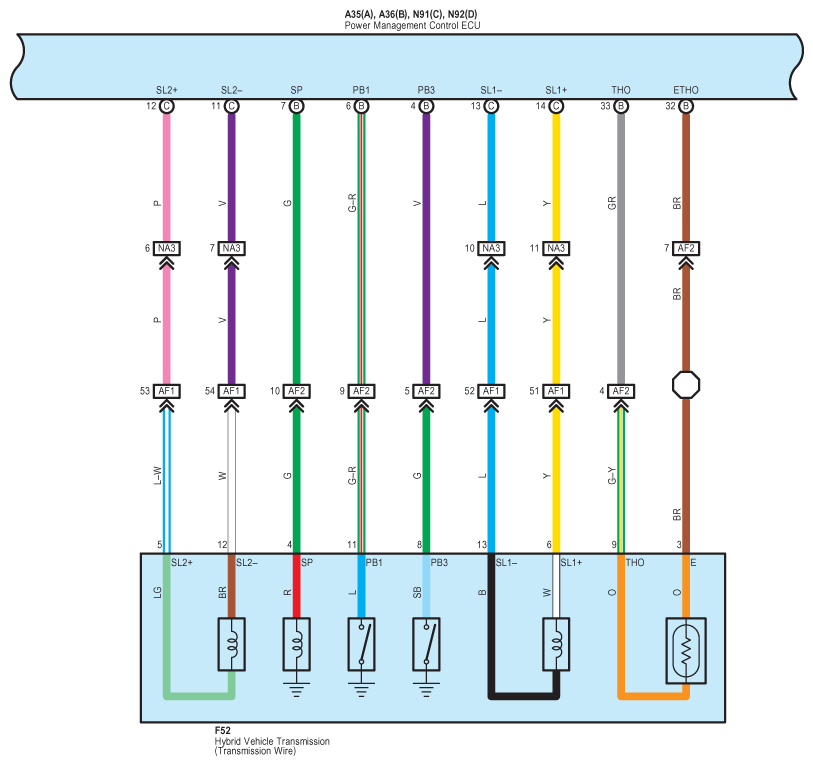

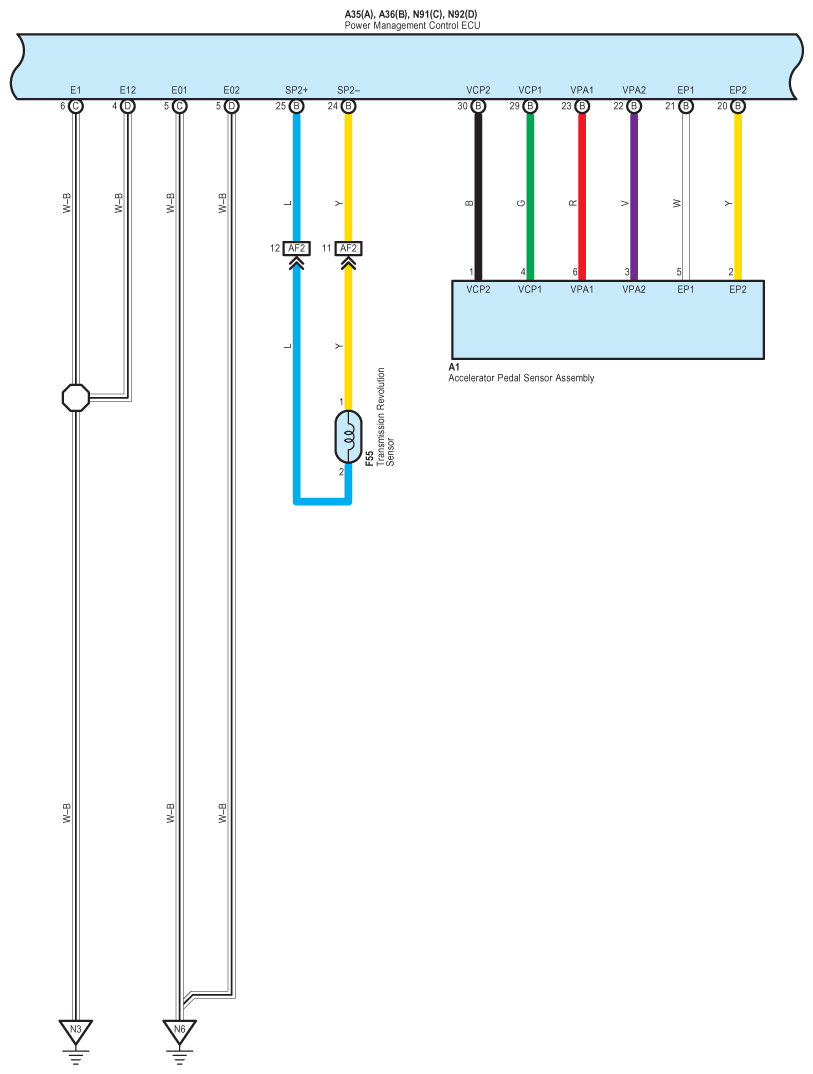

Fig 5: Dynamic Radar Cruise Control Wiring Diagram (5 Of 32)

G09117759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

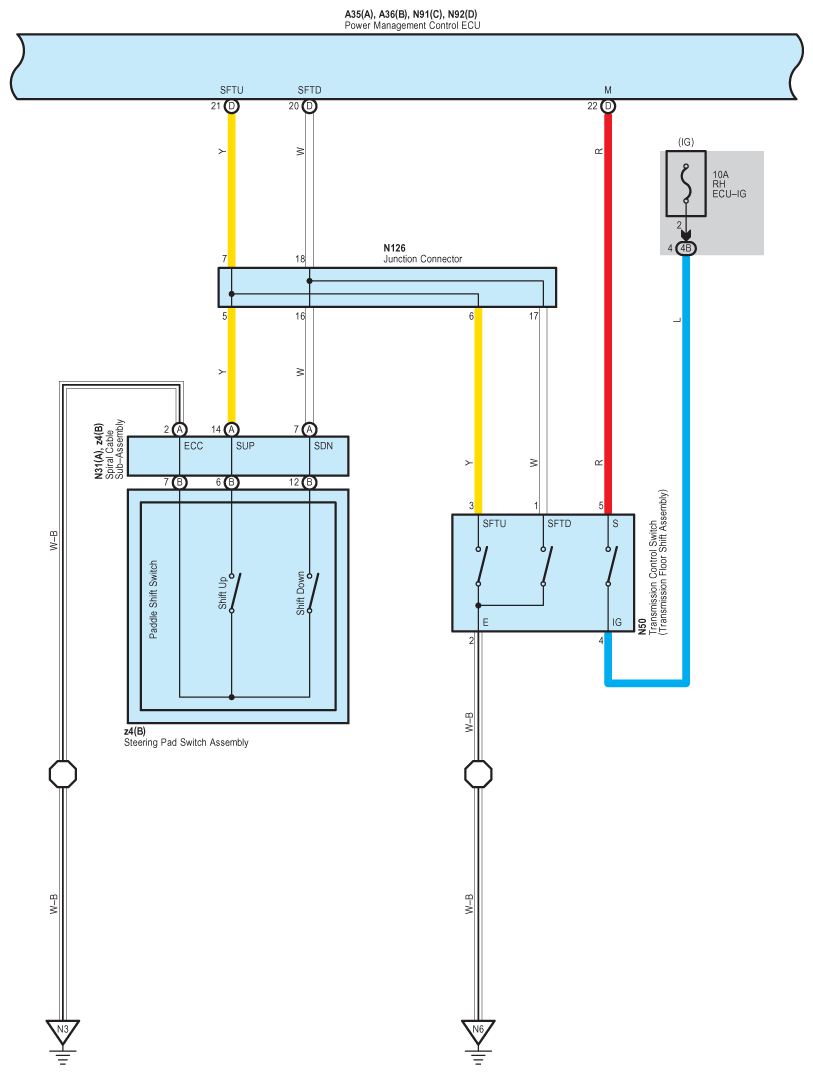

Fig 6: Dynamic Radar Cruise Control Wiring Diagram (6 Of 32)

G09117760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

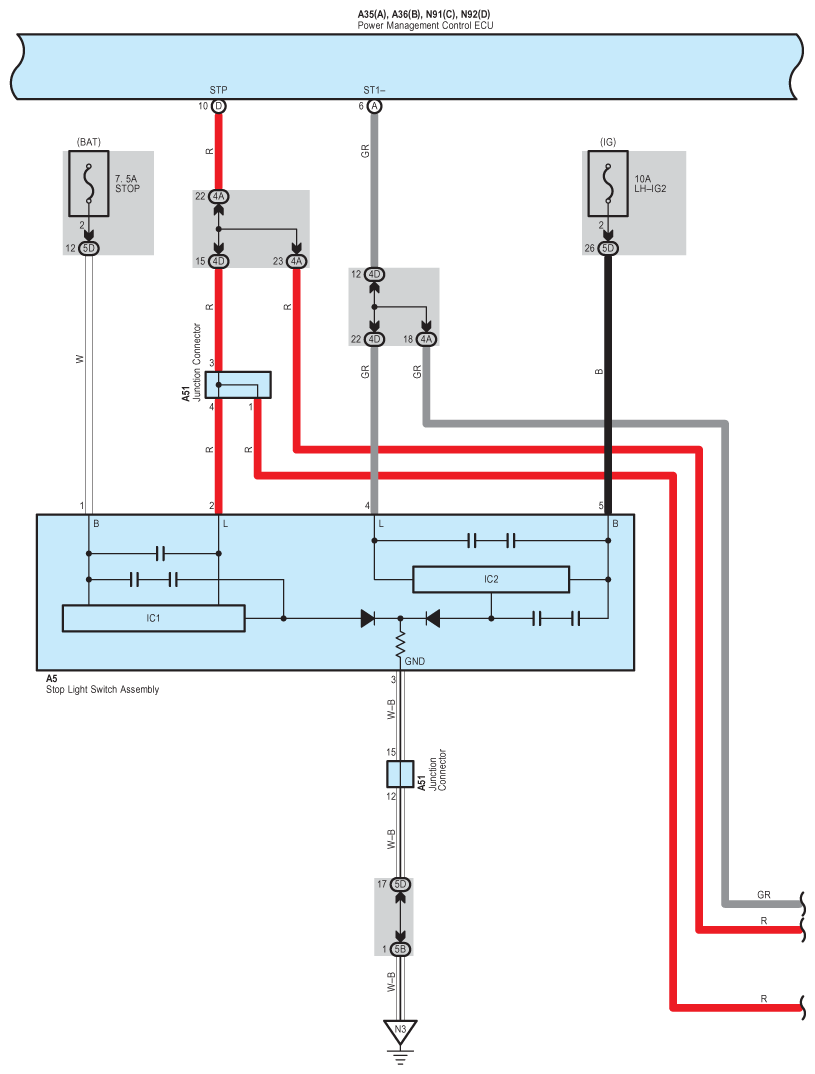

Fig 7: Dynamic Radar Cruise Control Wiring Diagram (7 Of 32)

G09117761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Dynamic Radar Cruise Control Wiring Diagram (8 Of 32)

G09117762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

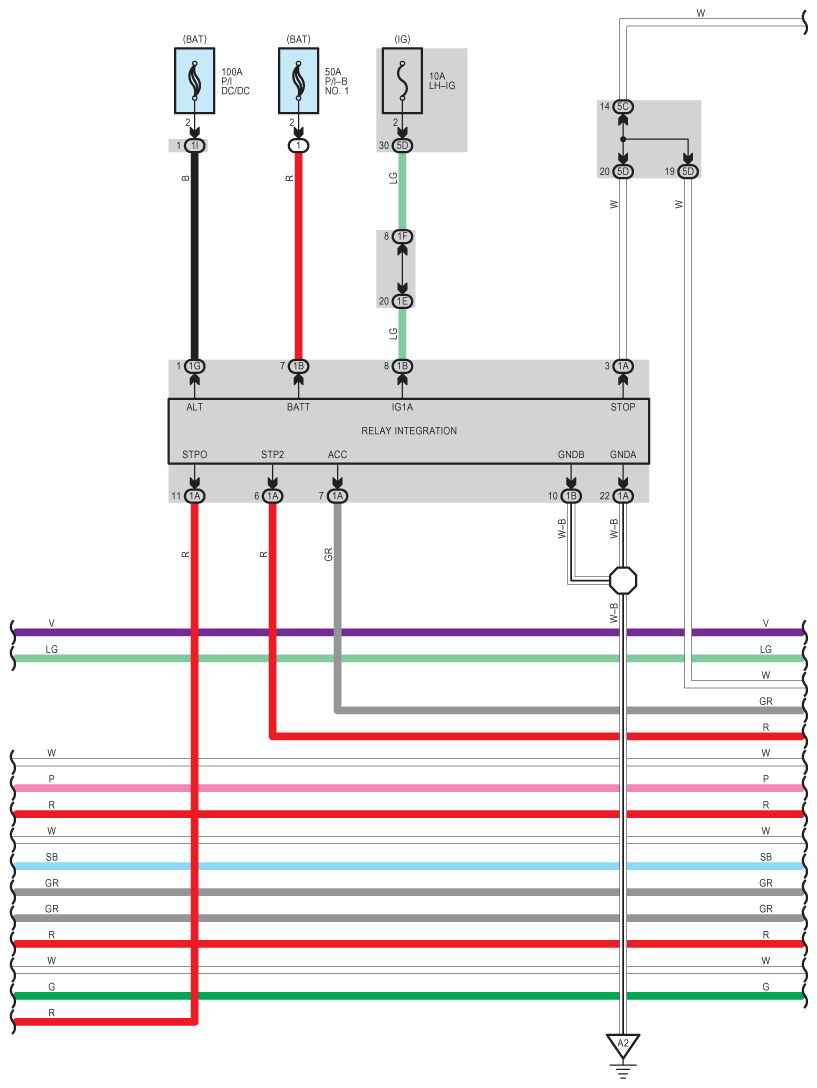

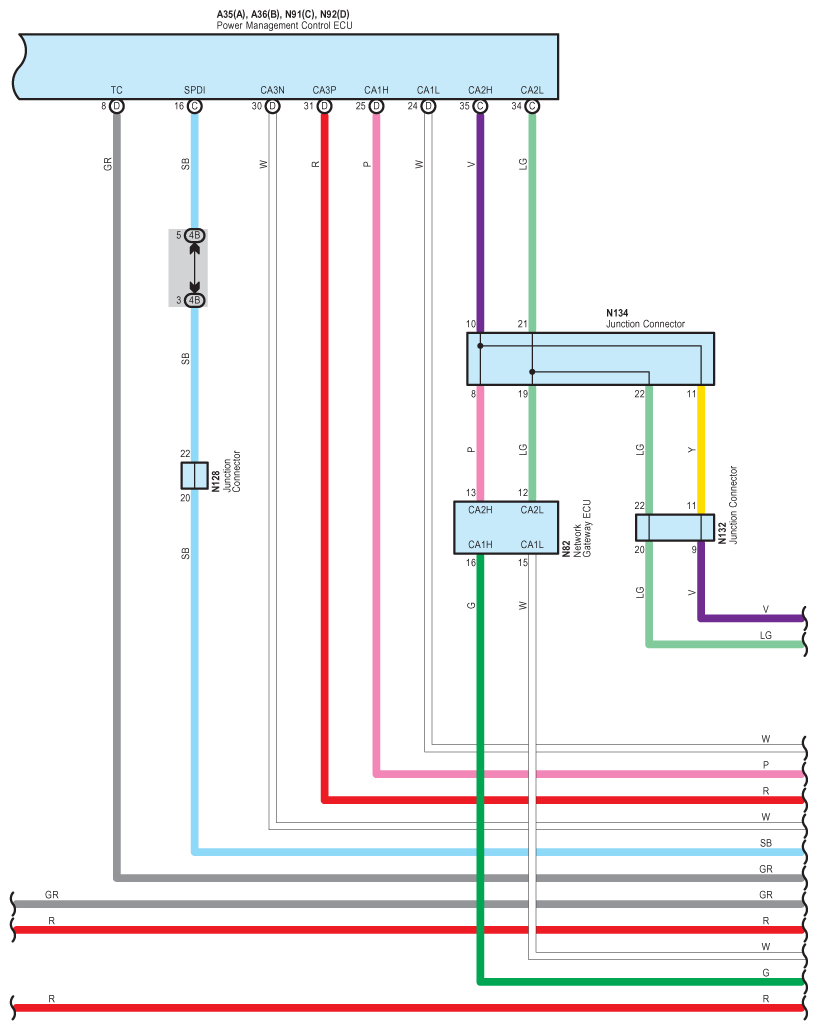

Fig 9: Dynamic Radar Cruise Control Wiring Diagram (9 Of 32)

G09117763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

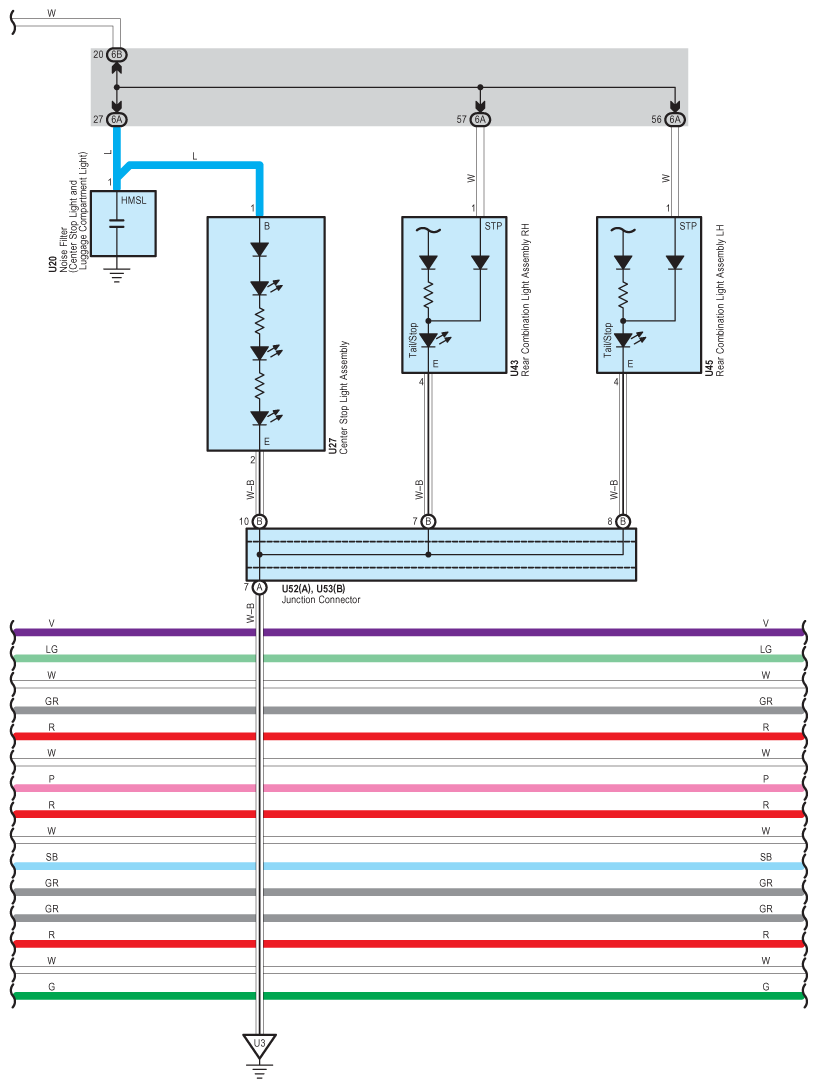

Fig 10: Dynamic Radar Cruise Control Wiring Diagram (10 Of 32)

G09117764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

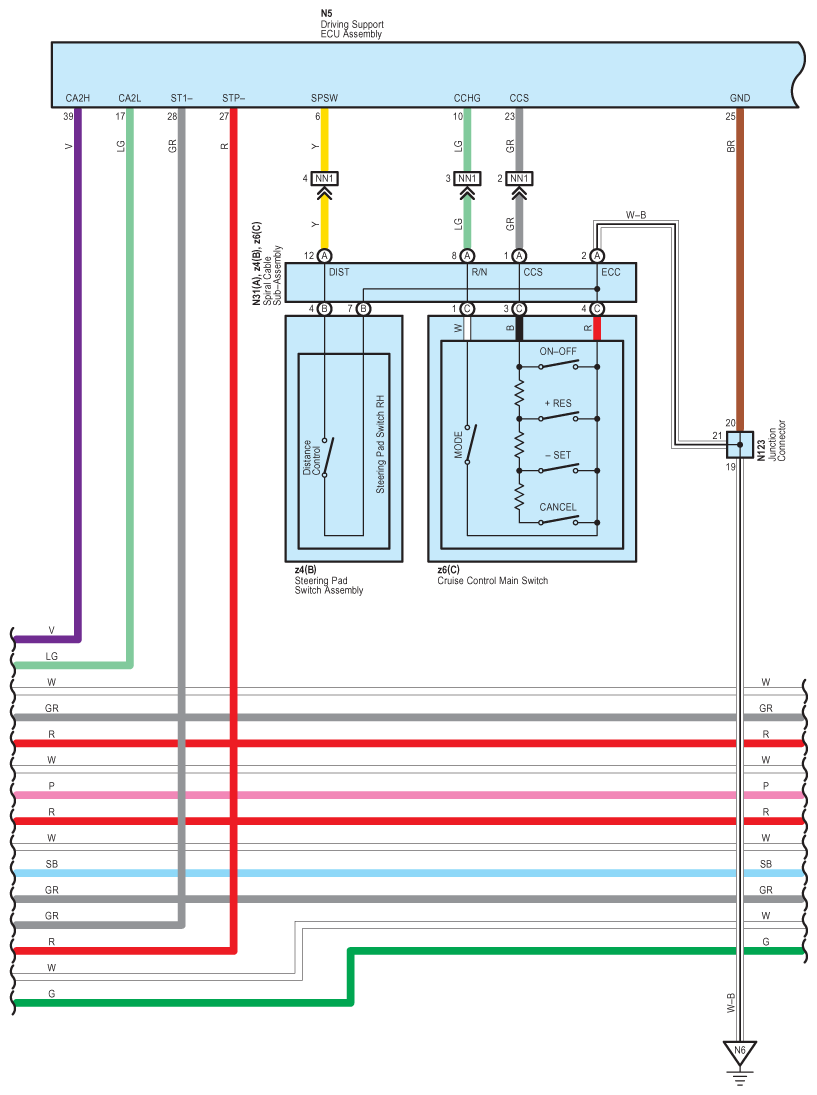

Fig 11: Dynamic Radar Cruise Control Wiring Diagram (11 Of 32)

G09117765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dynamic Radar Cruise Control Wiring Diagram (12 Of 32)

G09117766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

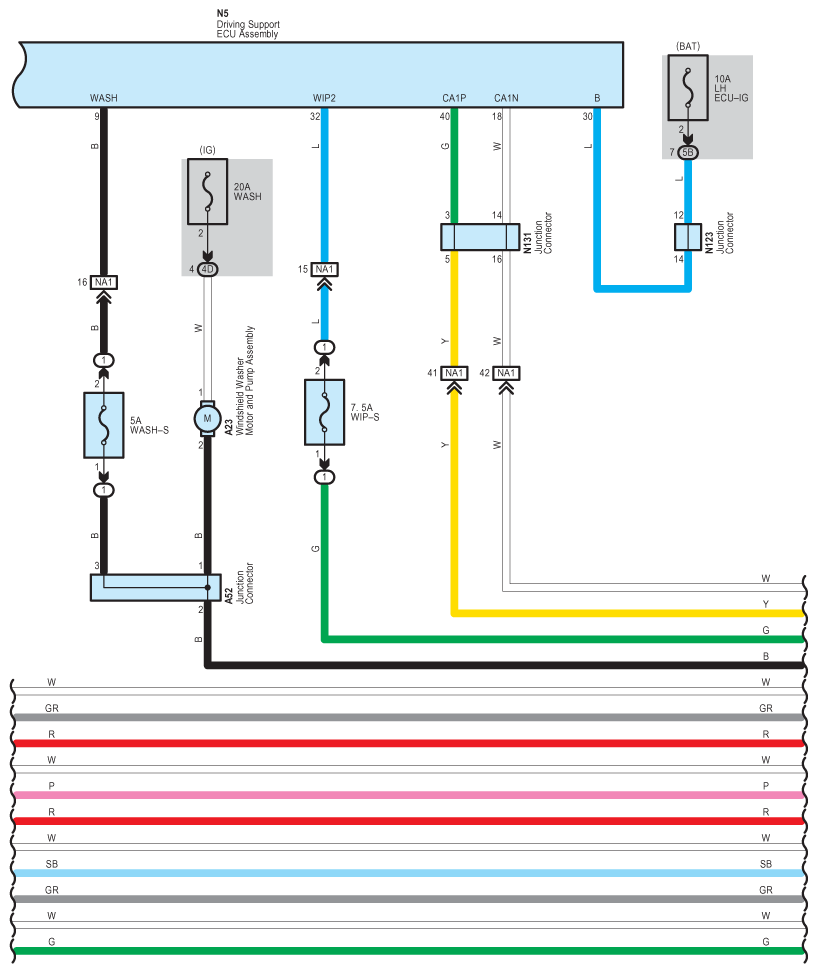

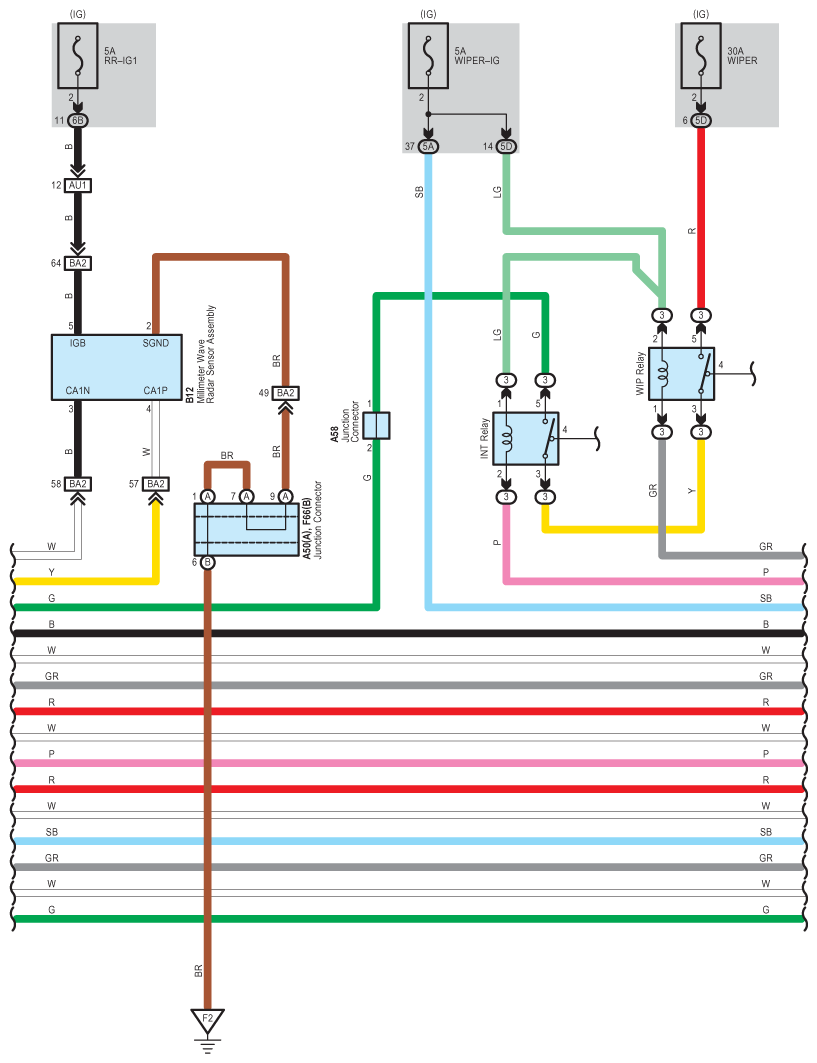

Fig 13: Dynamic Radar Cruise Control Wiring Diagram (13 Of 32)

G09117767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

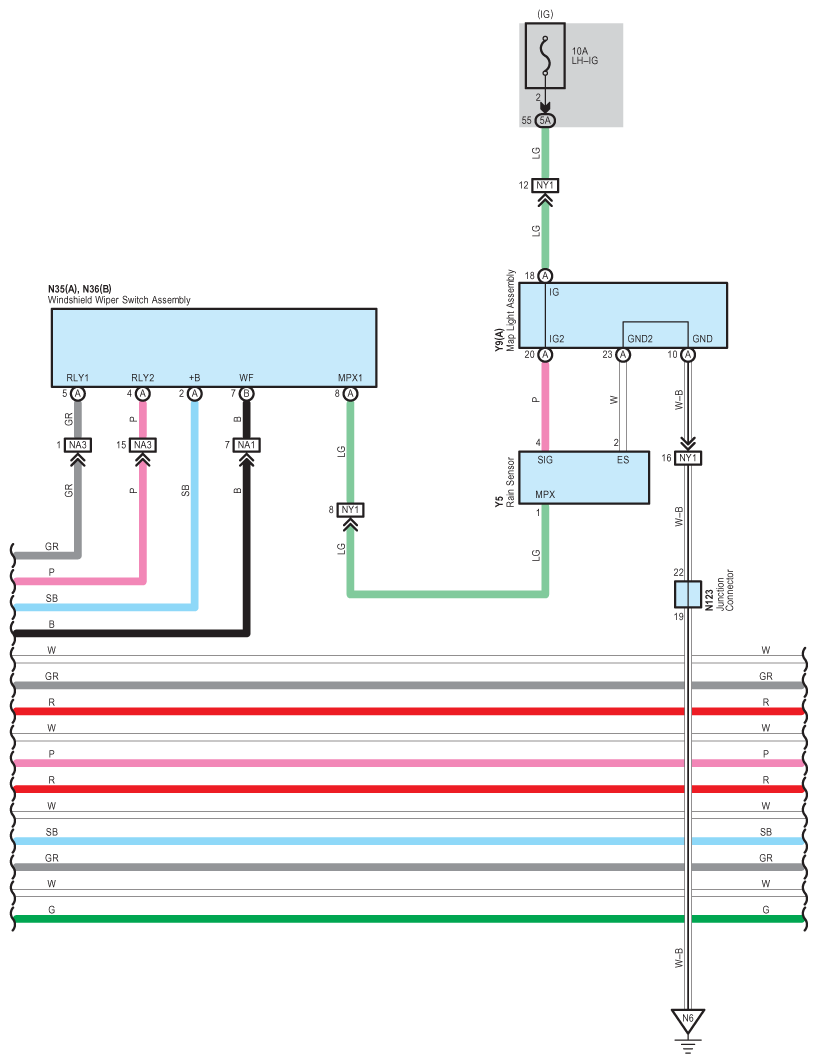

Fig 14: Dynamic Radar Cruise Control Wiring Diagram (14 Of 32)

G09117768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

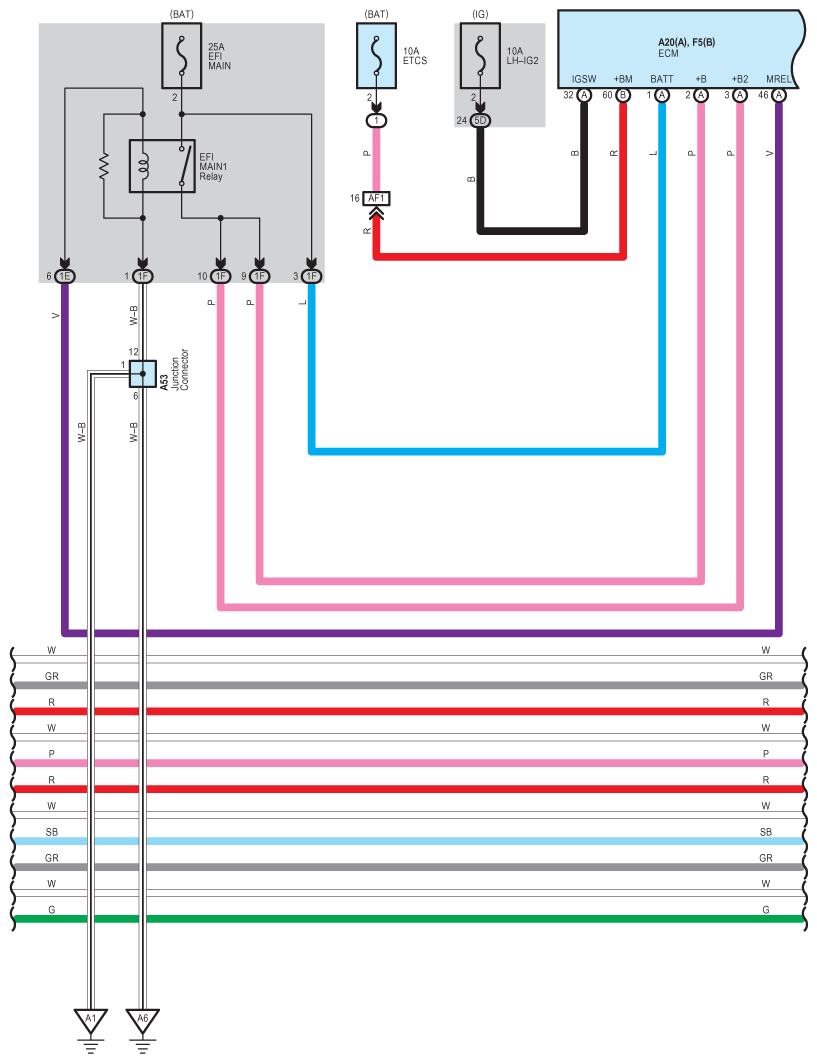

Fig 15: Dynamic Radar Cruise Control Wiring Diagram (15 Of 32)

G09117769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

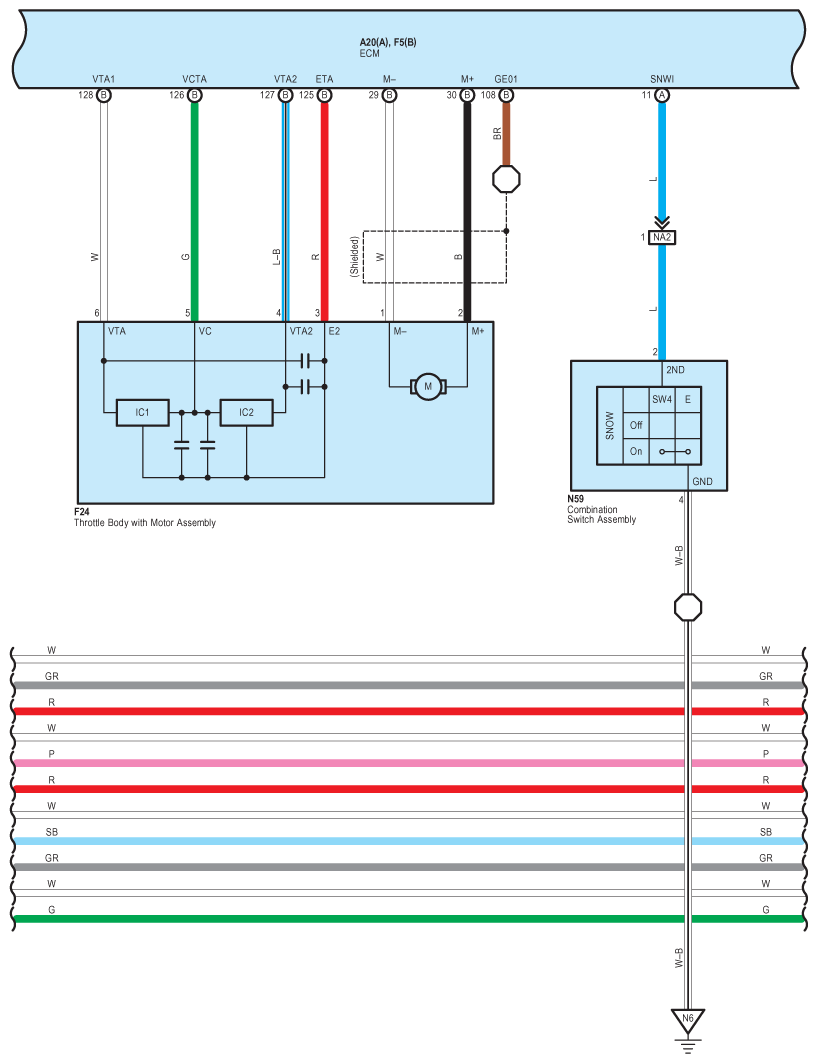

Fig 16: Dynamic Radar Cruise Control Wiring Diagram (16 Of 32)

G09117770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

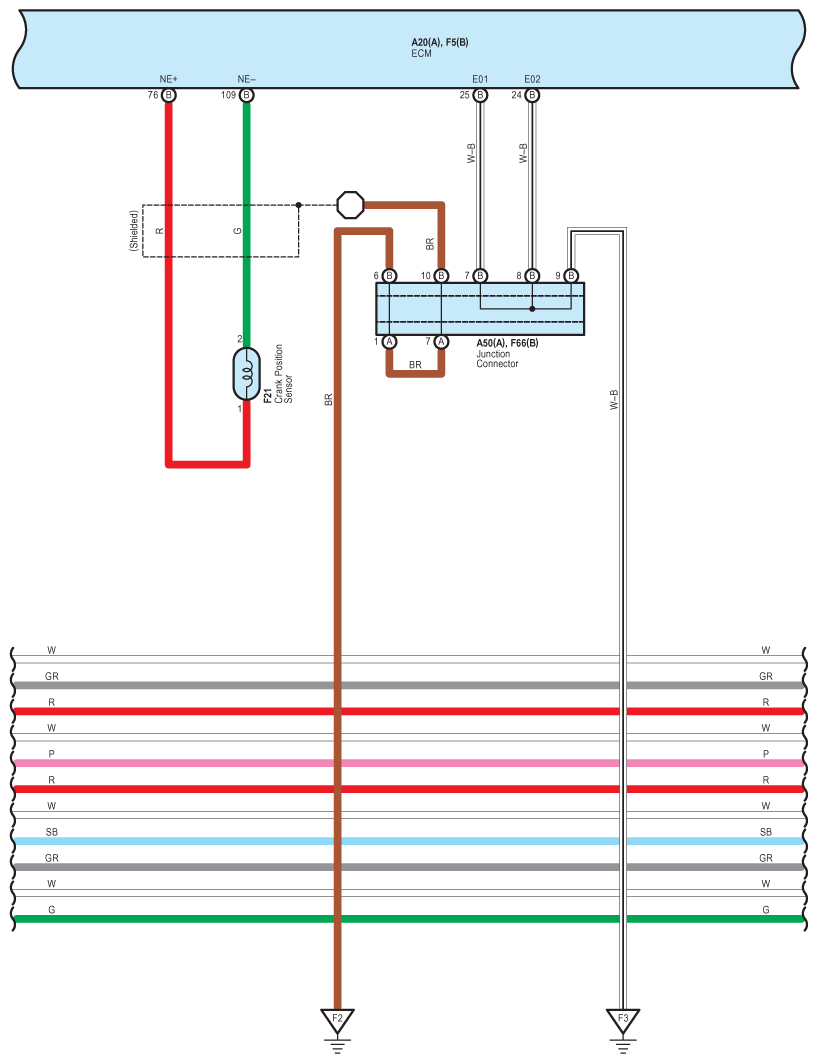

Fig 17: Dynamic Radar Cruise Control Wiring Diagram (17 Of 32)

G09117771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Dynamic Radar Cruise Control Wiring Diagram (18 Of 32)

G09117772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

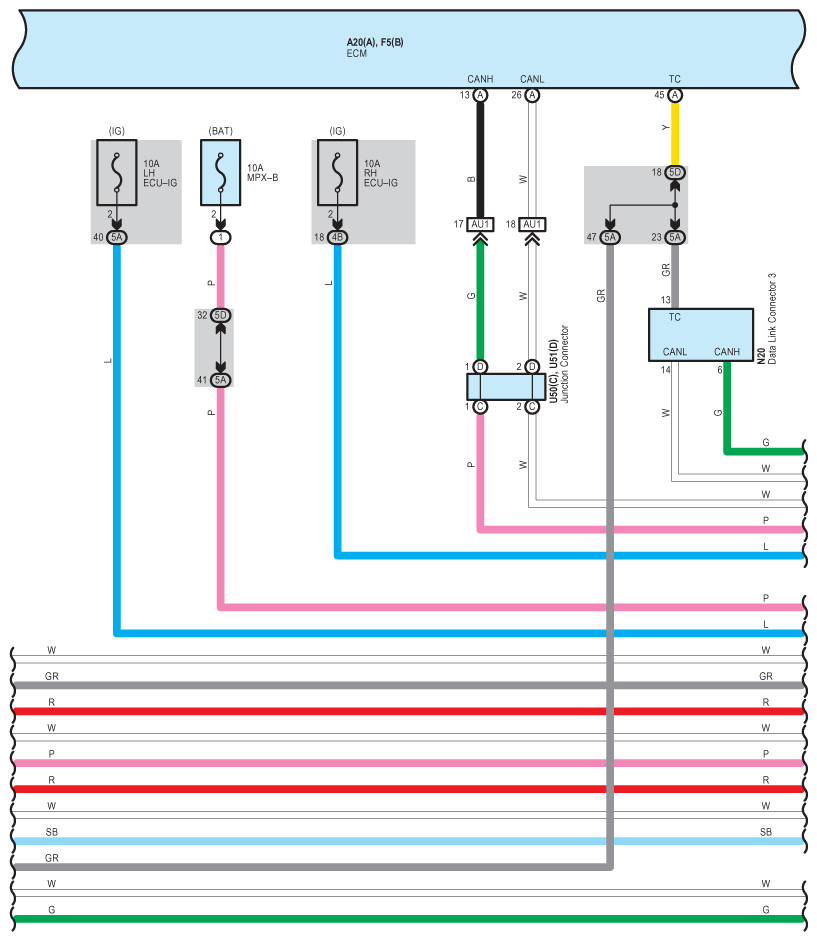

Fig 19: Dynamic Radar Cruise Control Wiring Diagram (19 Of 32)

G09117773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Dynamic Radar Cruise Control Wiring Diagram (20 Of 32)

G09117774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

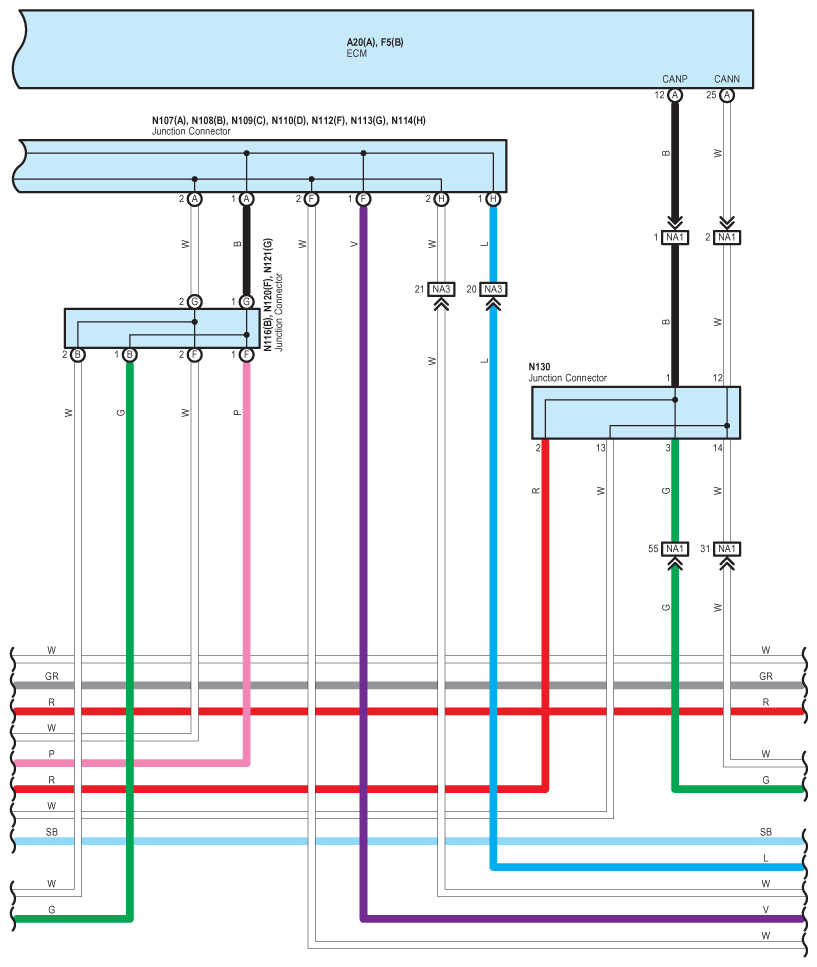

Fig 21: Dynamic Radar Cruise Control Wiring Diagram (21 Of 32)

G09117775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

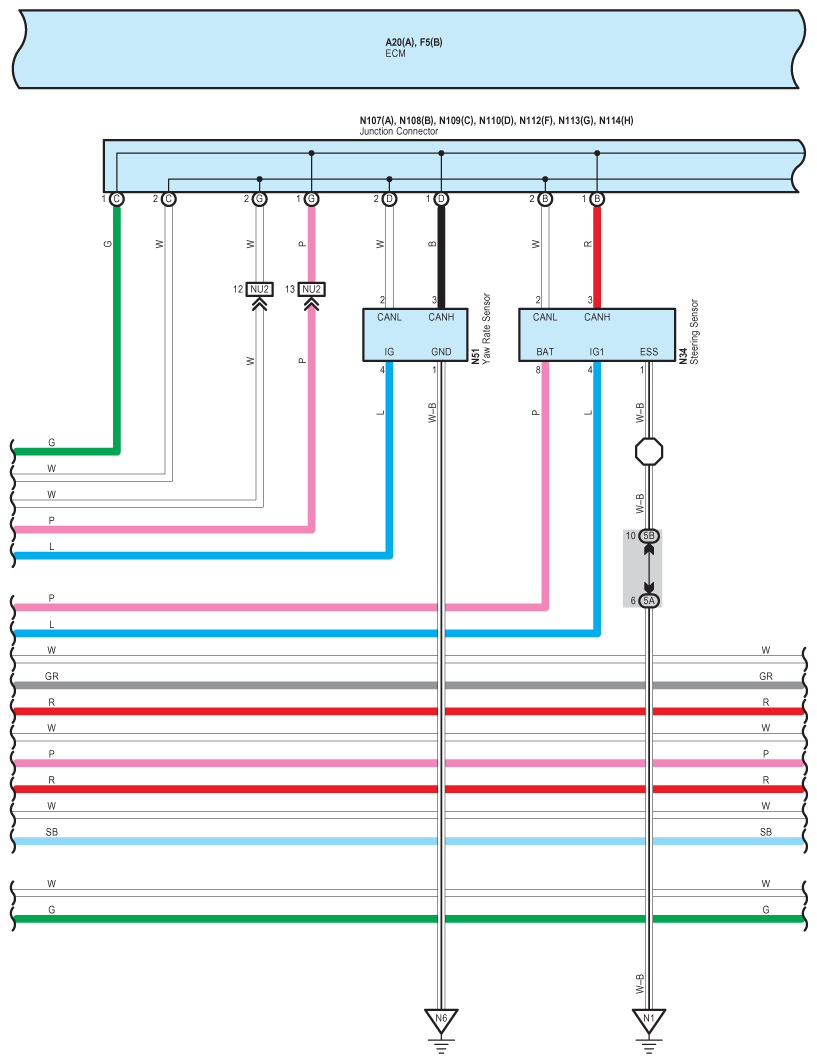

Fig 22: Dynamic Radar Cruise Control Wiring Diagram (22 Of 32)

G09117776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Dynamic Radar Cruise Control Wiring Diagram (23 Of 32)

G09117777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

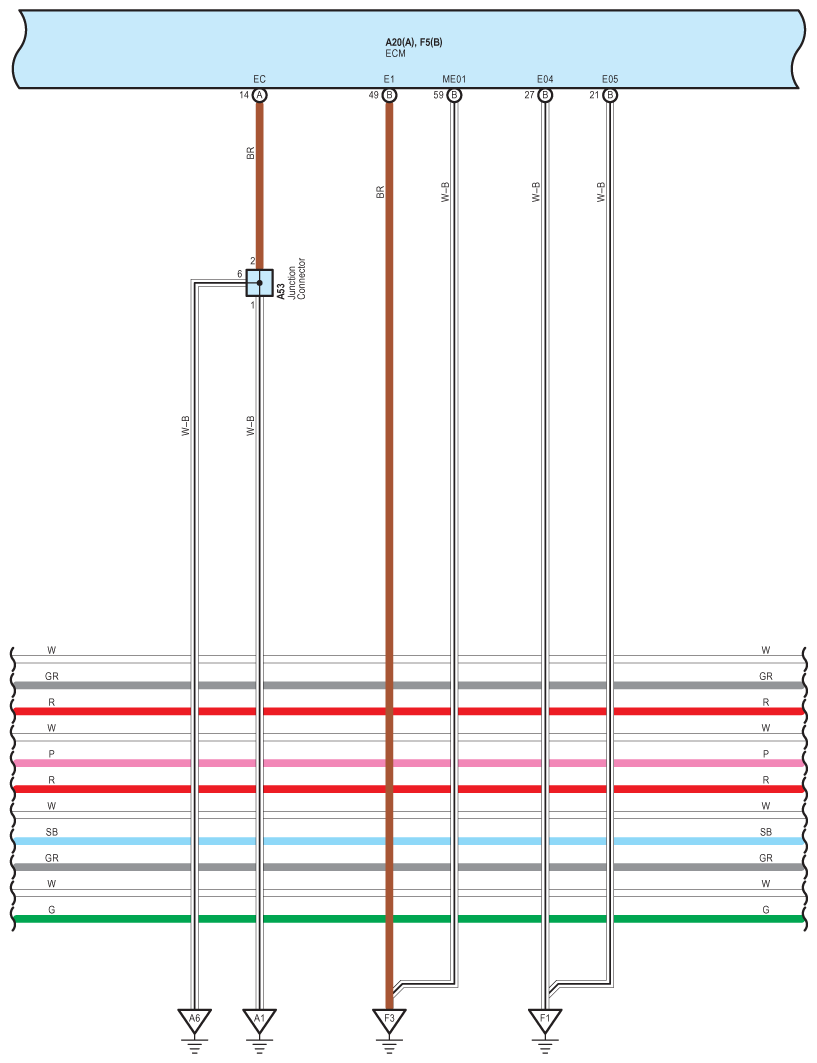

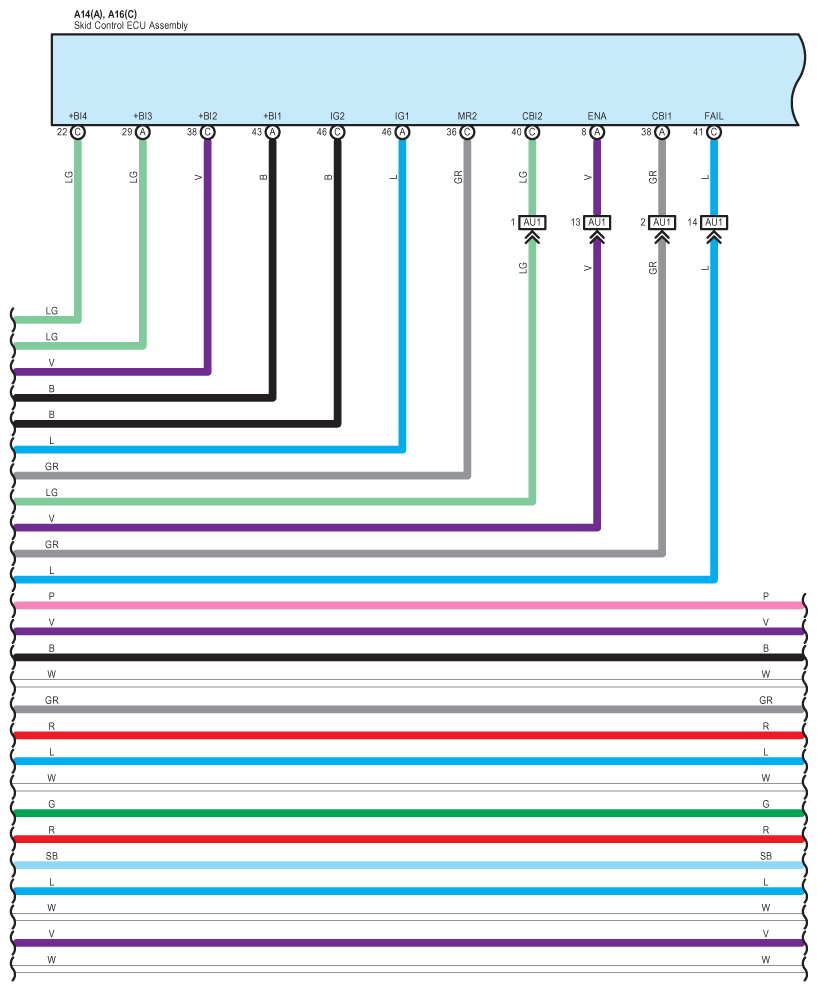

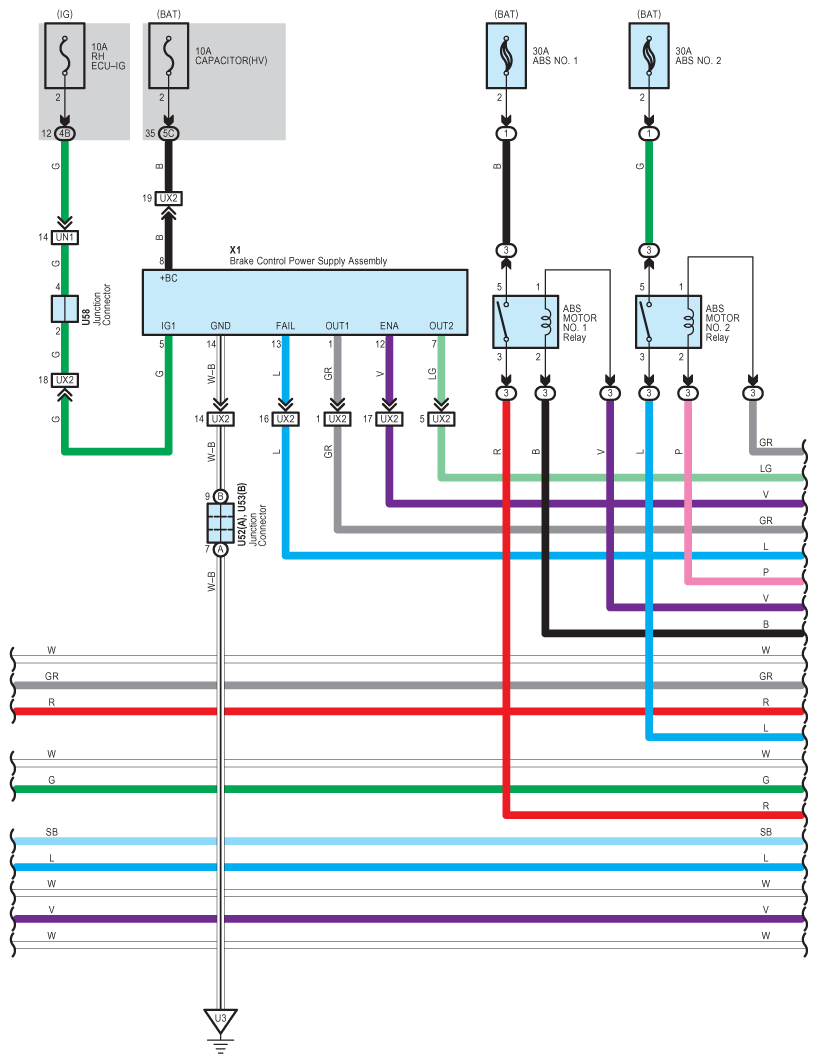

Fig 24: Dynamic Radar Cruise Control Wiring Diagram (24 Of 32)

G09117778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

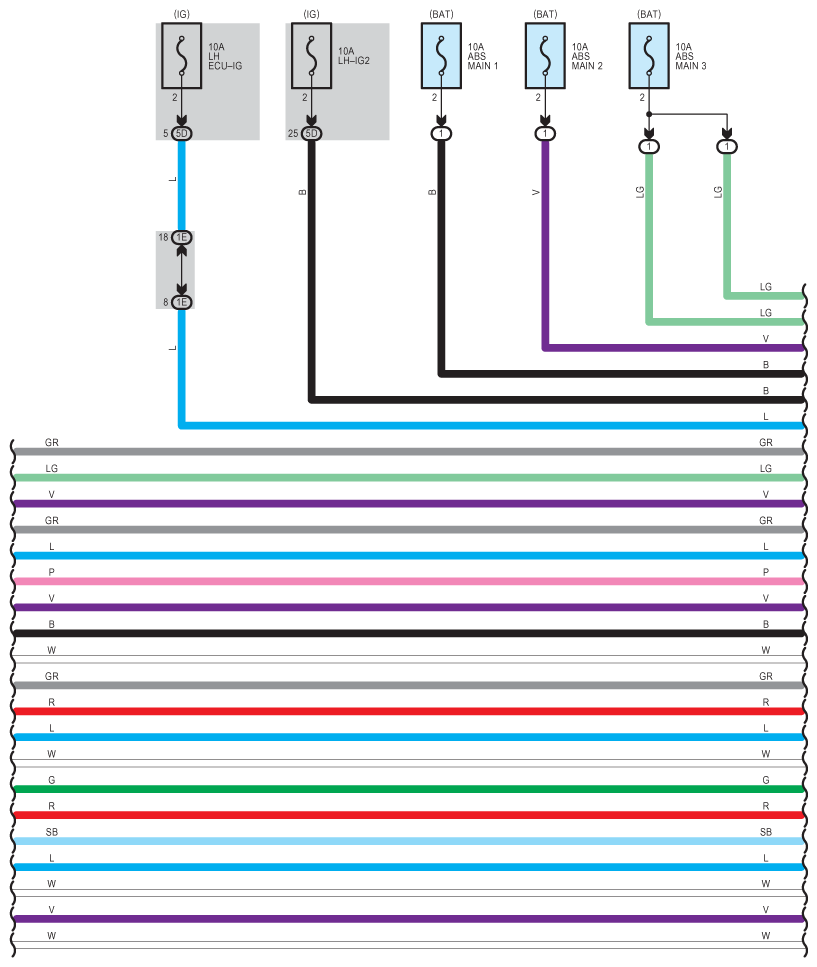

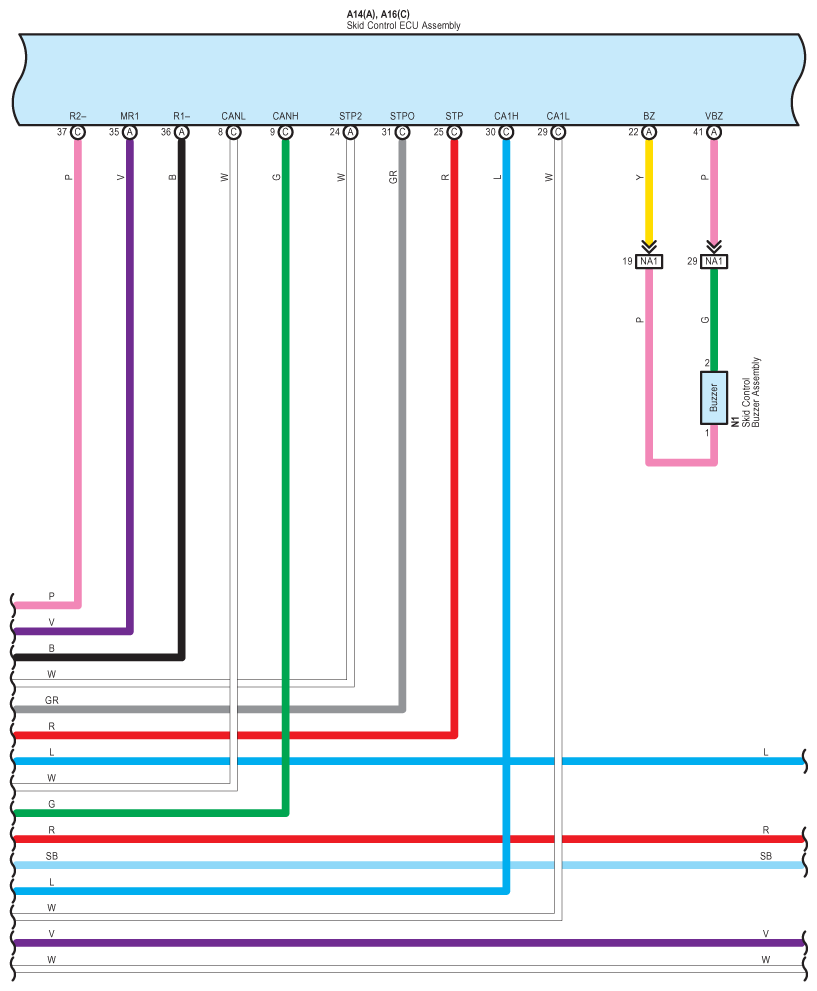

Fig 25: Dynamic Radar Cruise Control Wiring Diagram (25 Of 32)

G09117779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

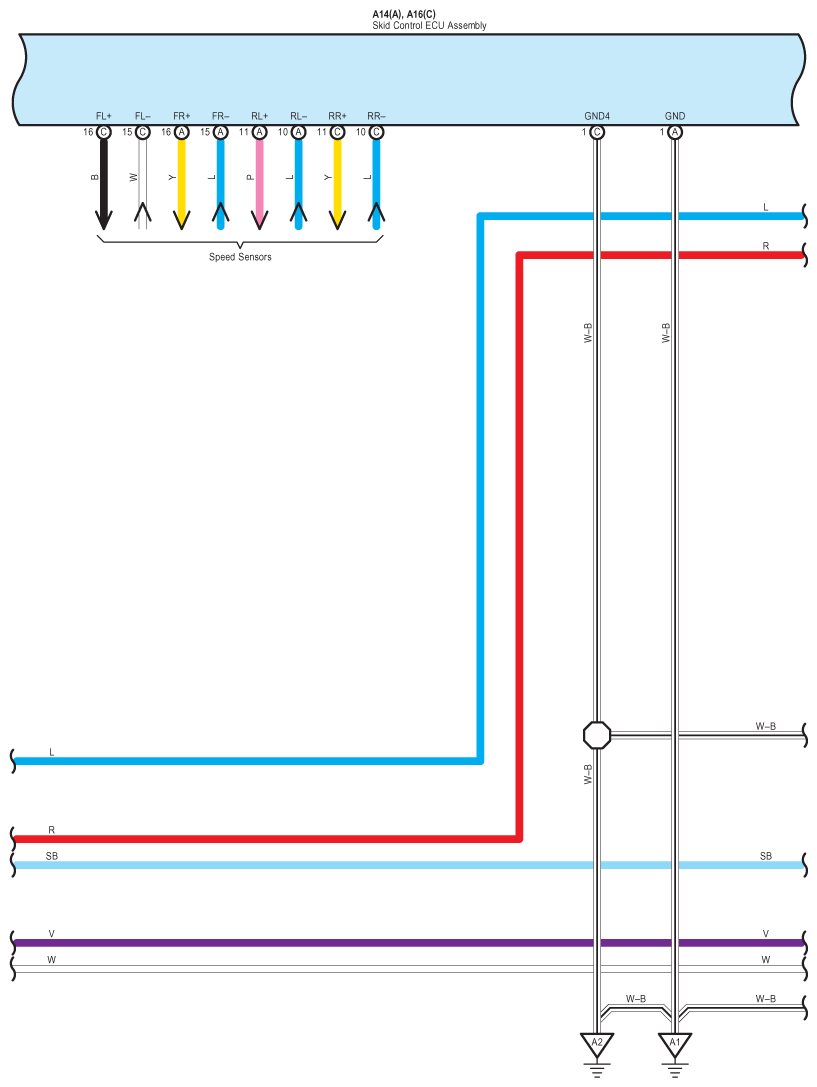

Fig 26: Dynamic Radar Cruise Control Wiring Diagram (26 Of 32)

G09117780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

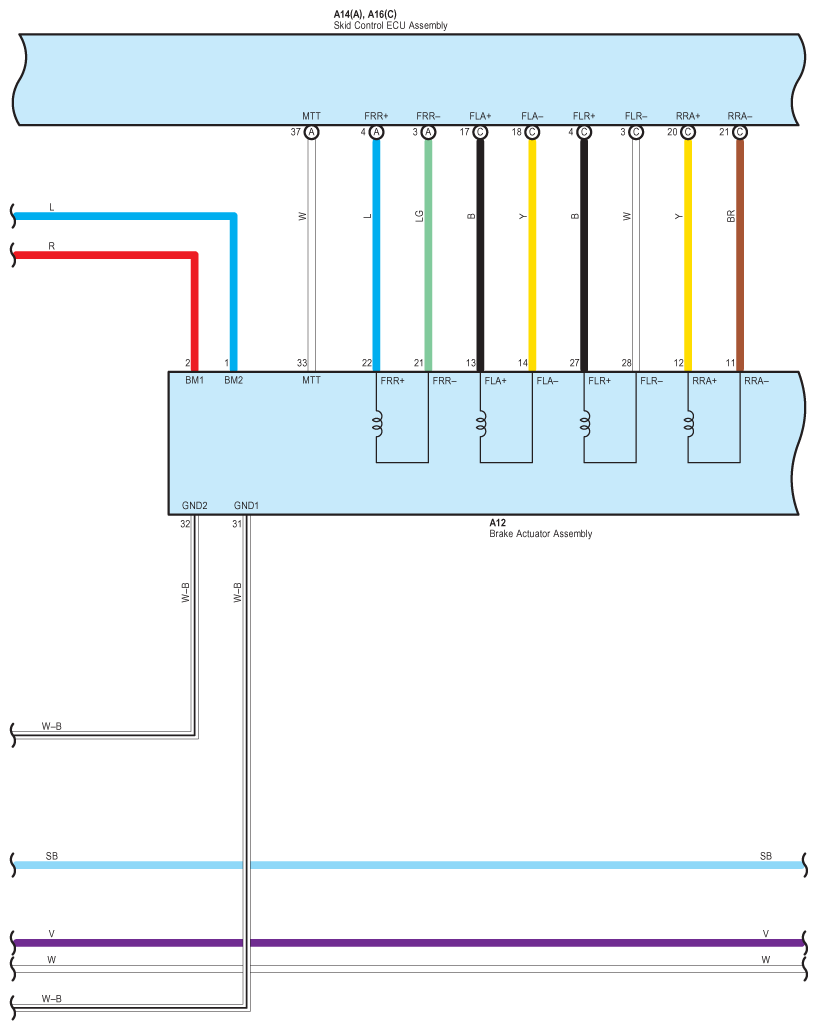

Fig 27: Dynamic Radar Cruise Control Wiring Diagram (27 Of 32)

G09117781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

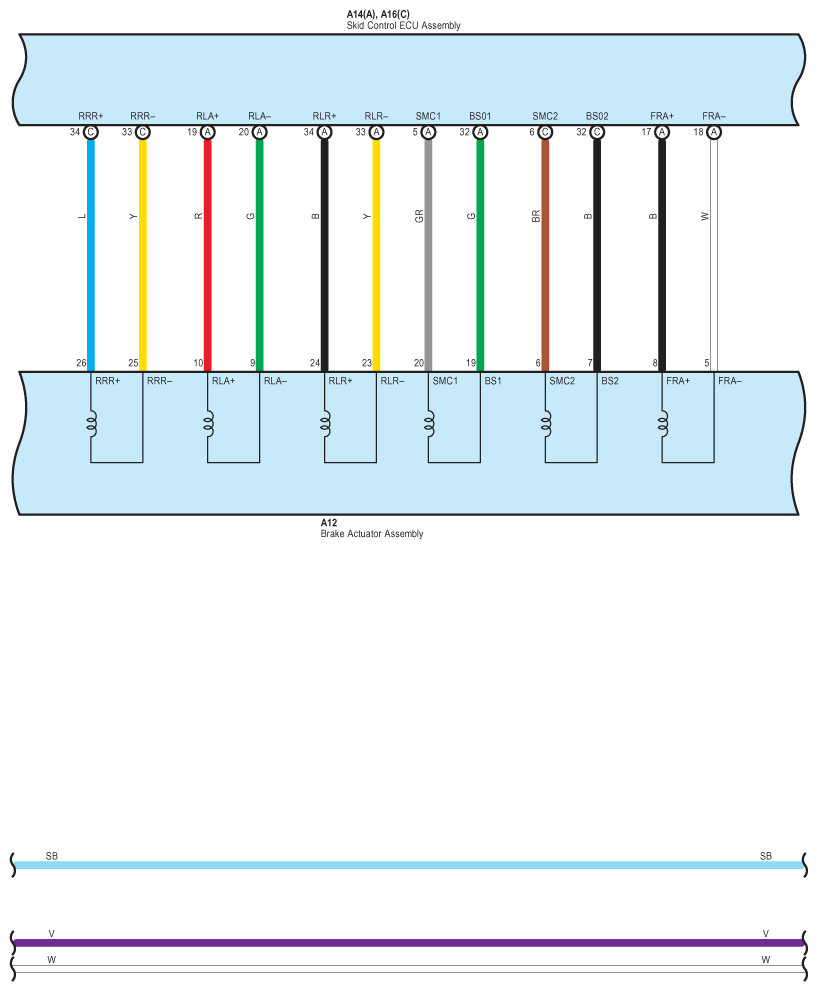

Fig 28: Dynamic Radar Cruise Control Wiring Diagram (28 Of 32)

G09117782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

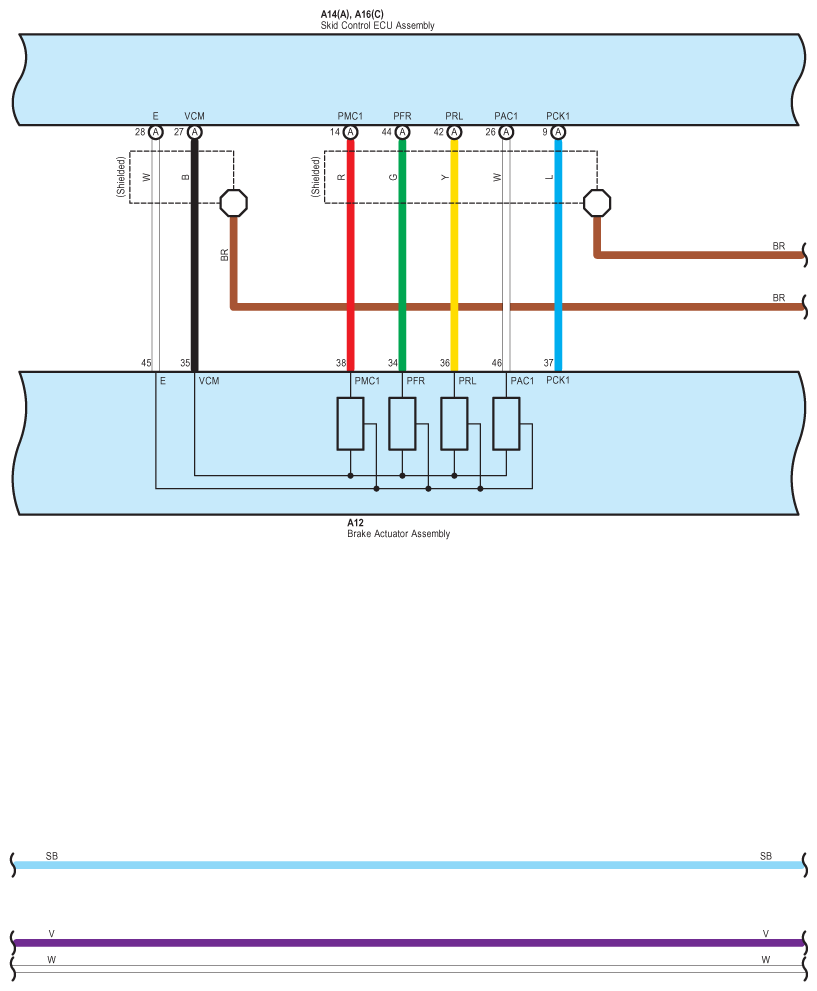

Fig 29: Dynamic Radar Cruise Control Wiring Diagram (29 Of 32)

G09117783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

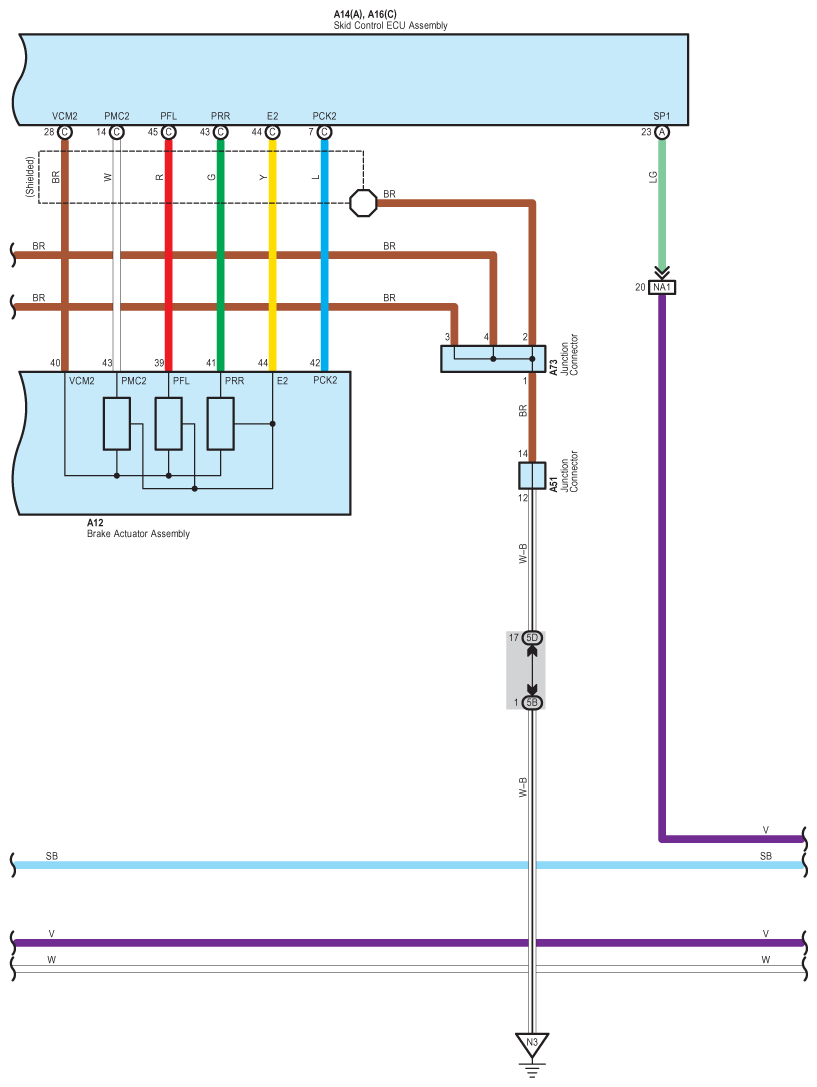

Fig 30: Dynamic Radar Cruise Control Wiring Diagram (30 Of 32)

G09117784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

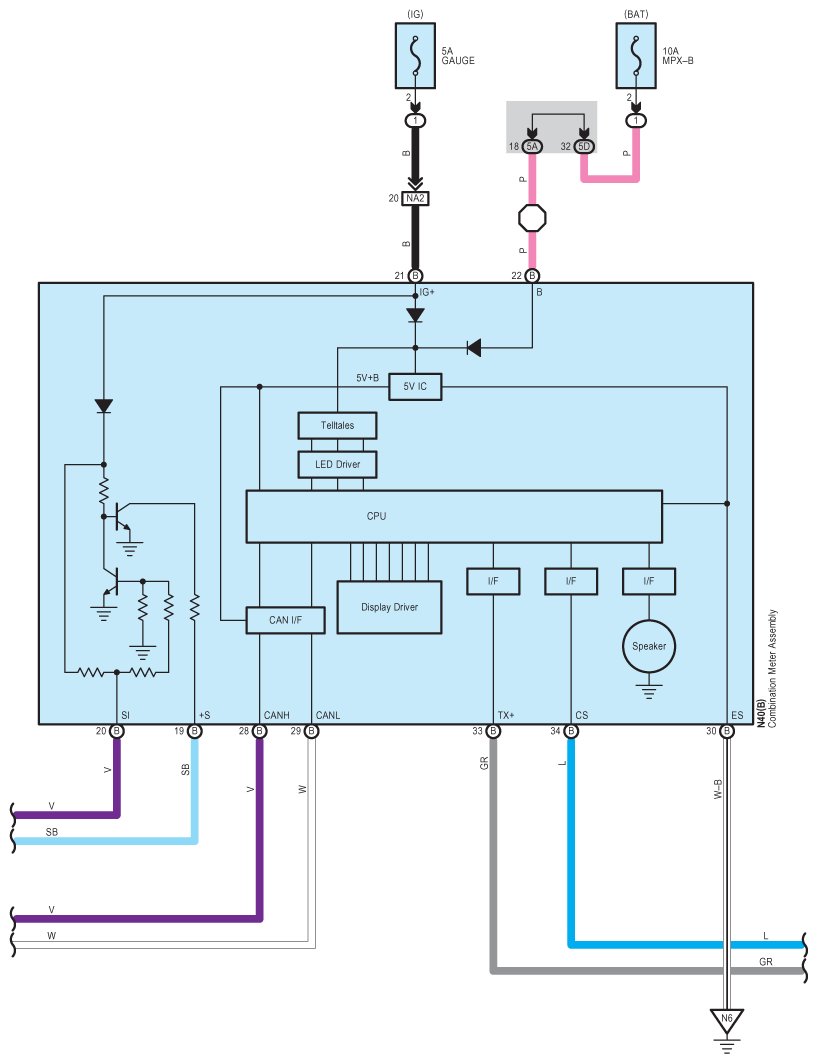

Fig 31: Dynamic Radar Cruise Control Wiring Diagram (31 Of 32)

G09117785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

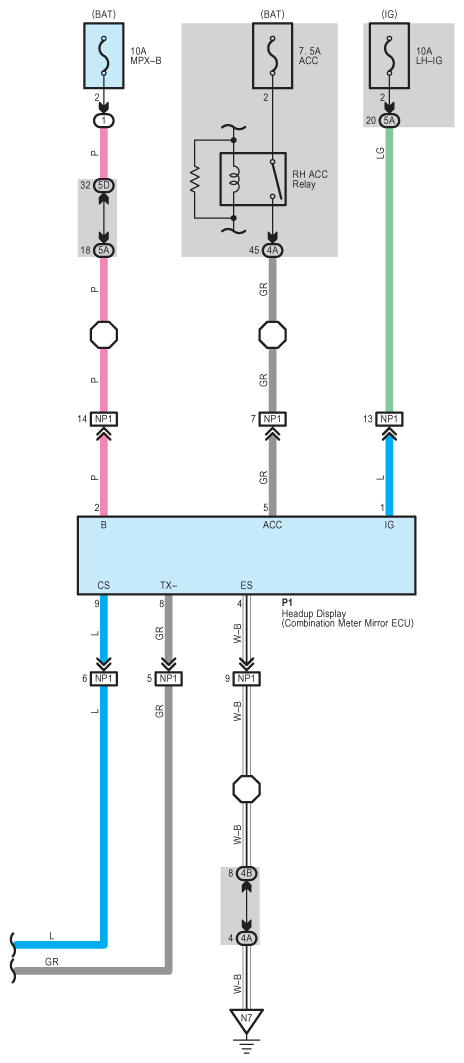

Fig 32: Dynamic Radar Cruise Control Wiring Diagram (32 Of 32)

G09117786
