OEM System Circuits: EPS: Notes

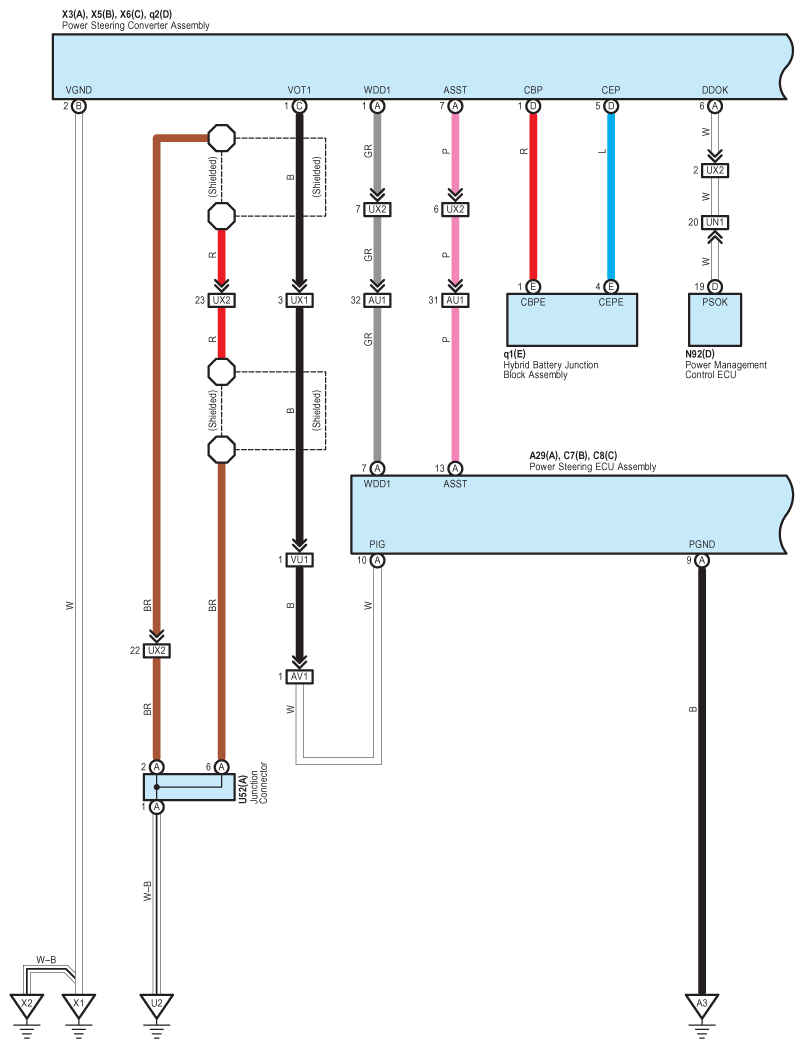

Fig 1: EPS Wiring Diagram (1 Of 7)

G09117925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

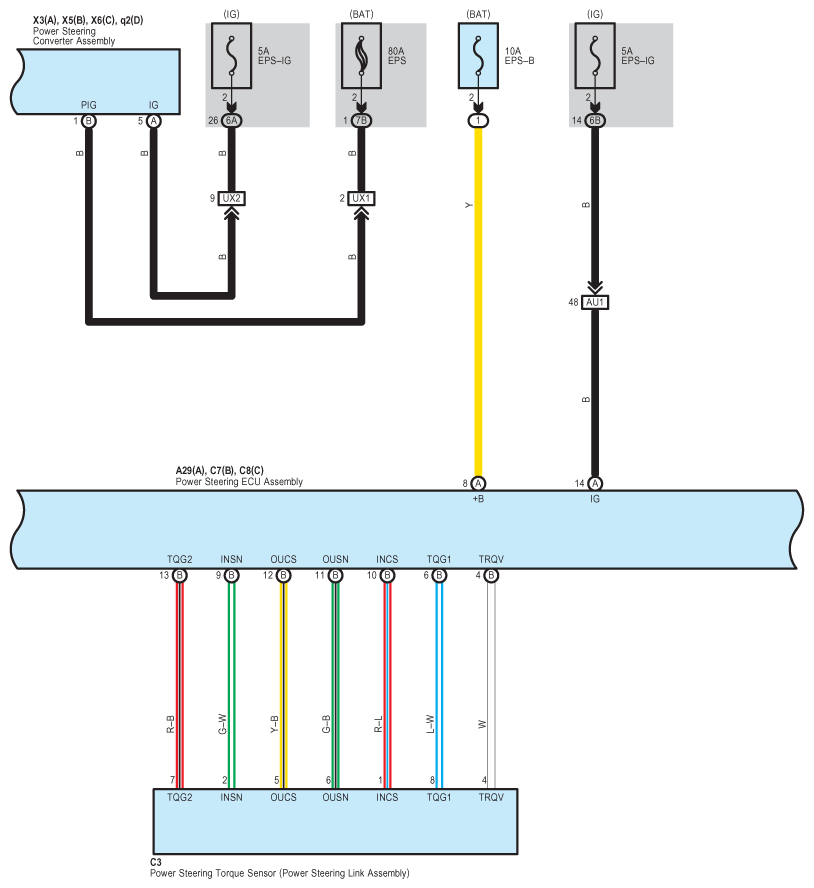

Fig 2: EPS Wiring Diagram (2 Of 7)

G09117926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

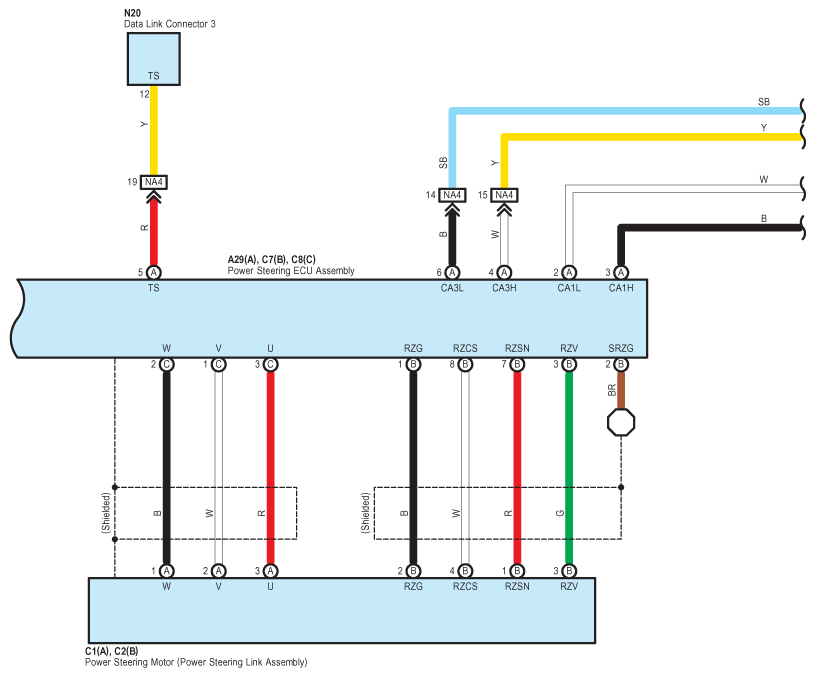

Fig 3: EPS Wiring Diagram (3 Of 7)

G09117927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

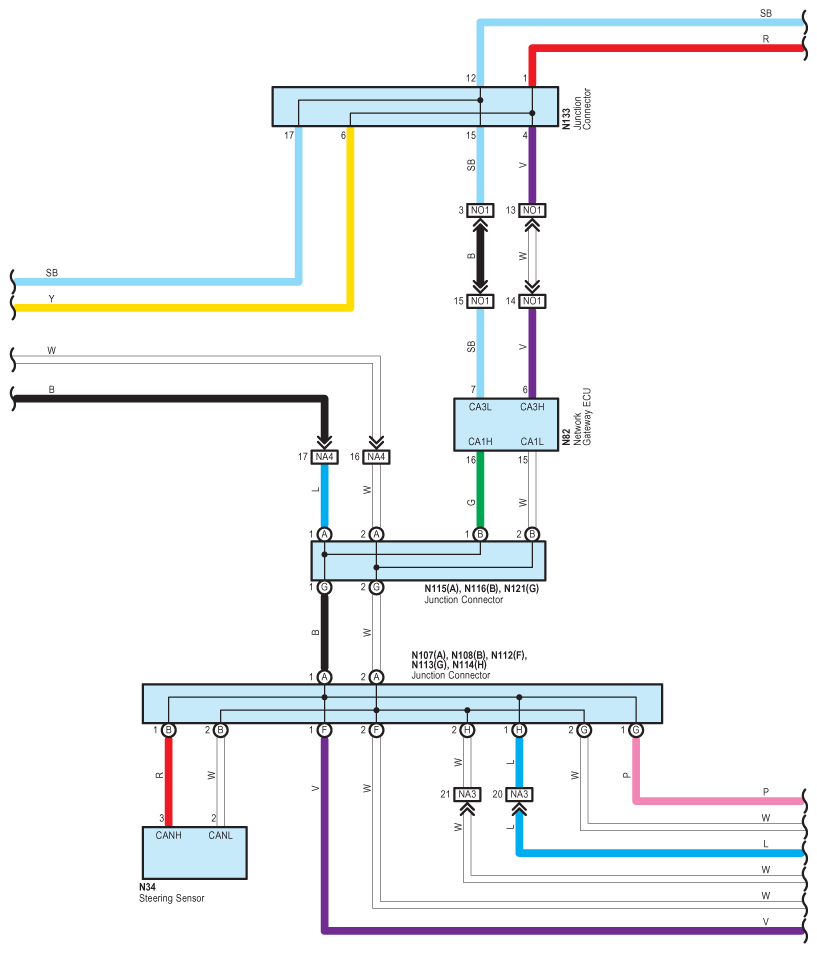

Fig 4: EPS Wiring Diagram (4 Of 7)

G09117928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

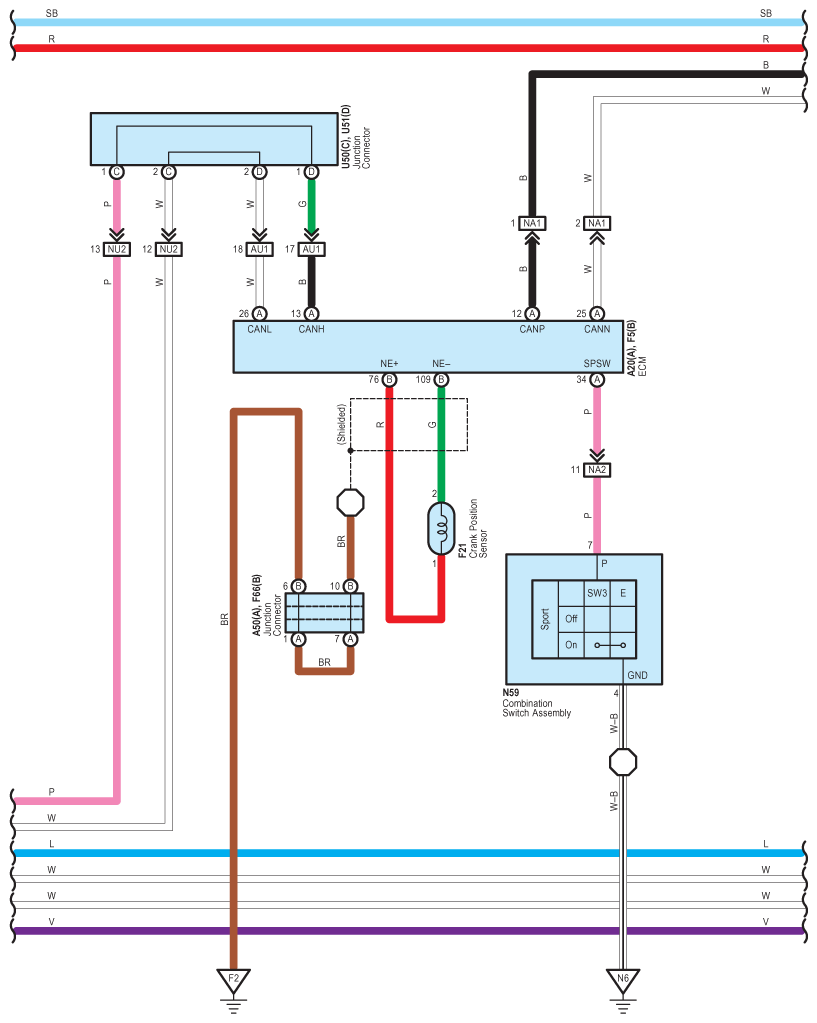

Fig 5: EPS Wiring Diagram (5 Of 7)

G09117929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

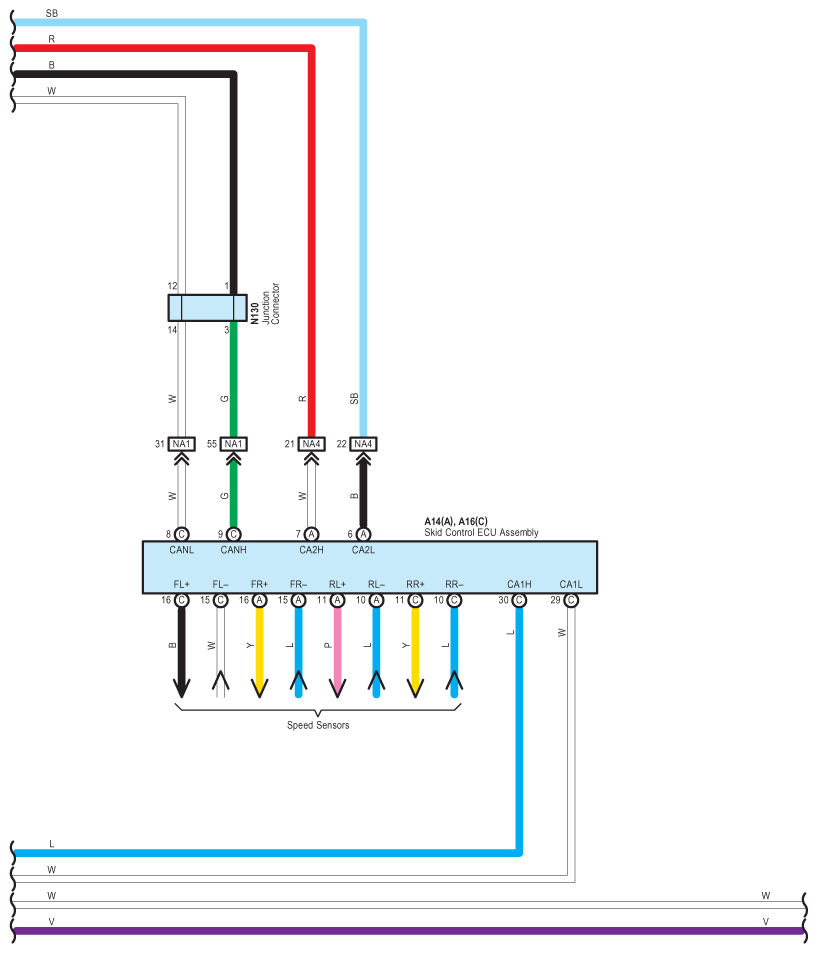

Fig 6: EPS Wiring Diagram (6 Of 7)

G09117930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

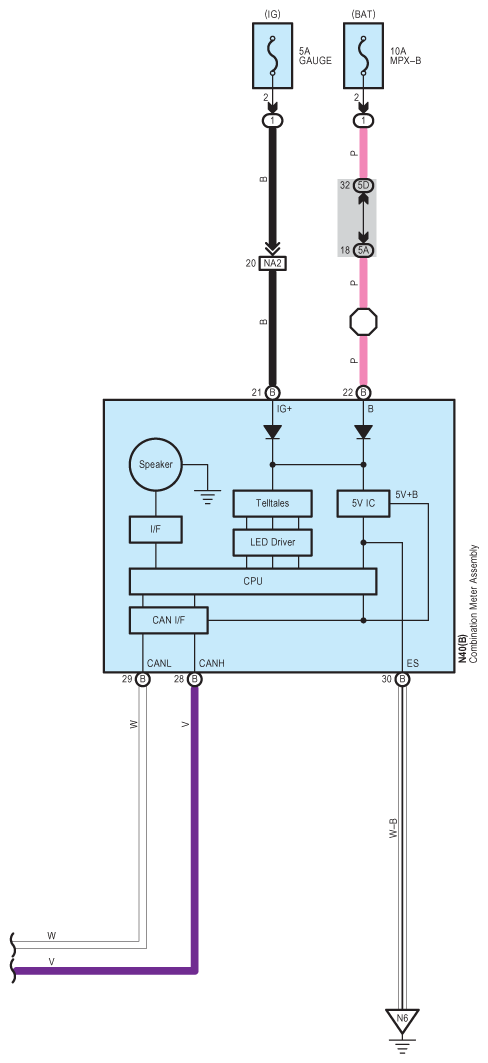

Fig 7: EPS Wiring Diagram (7 Of 7)

G09117931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
