Front Wiper and Washer: Notes

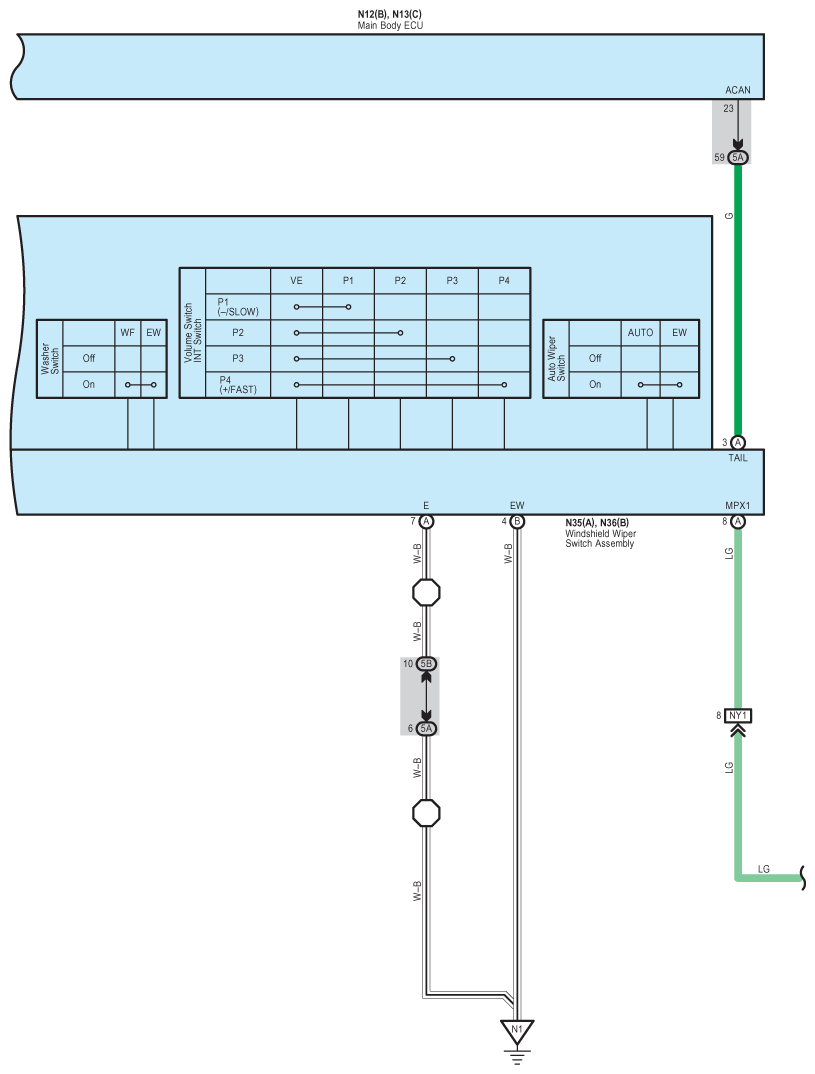

Fig 1: Front Wiper And Washer Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

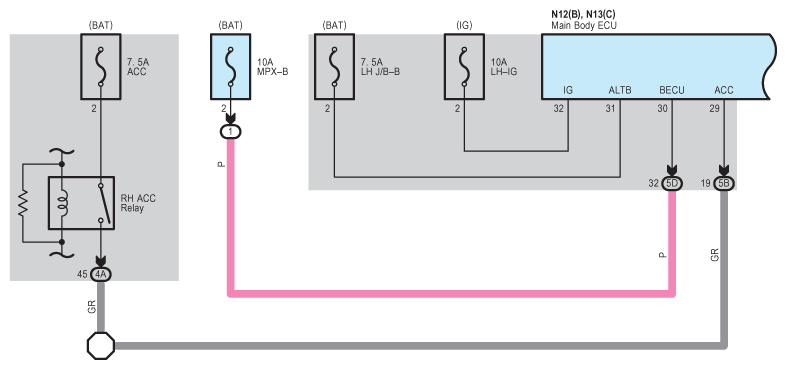

Fig 2: Front Wiper And Washer Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

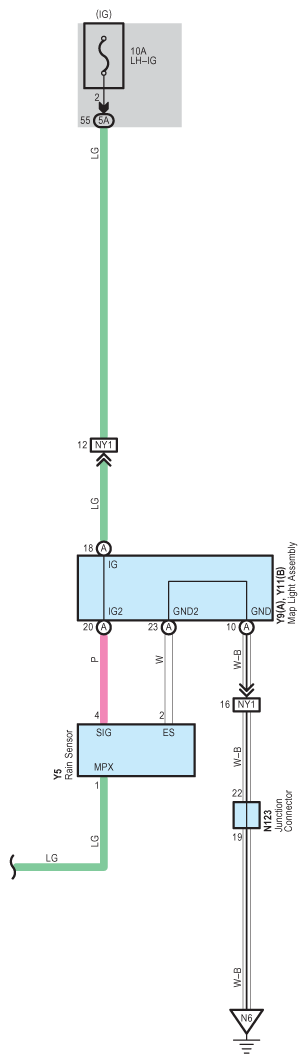

Fig 3: Front Wiper And Washer Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Wiper And Washer Wiring Diagram (4 Of 6)

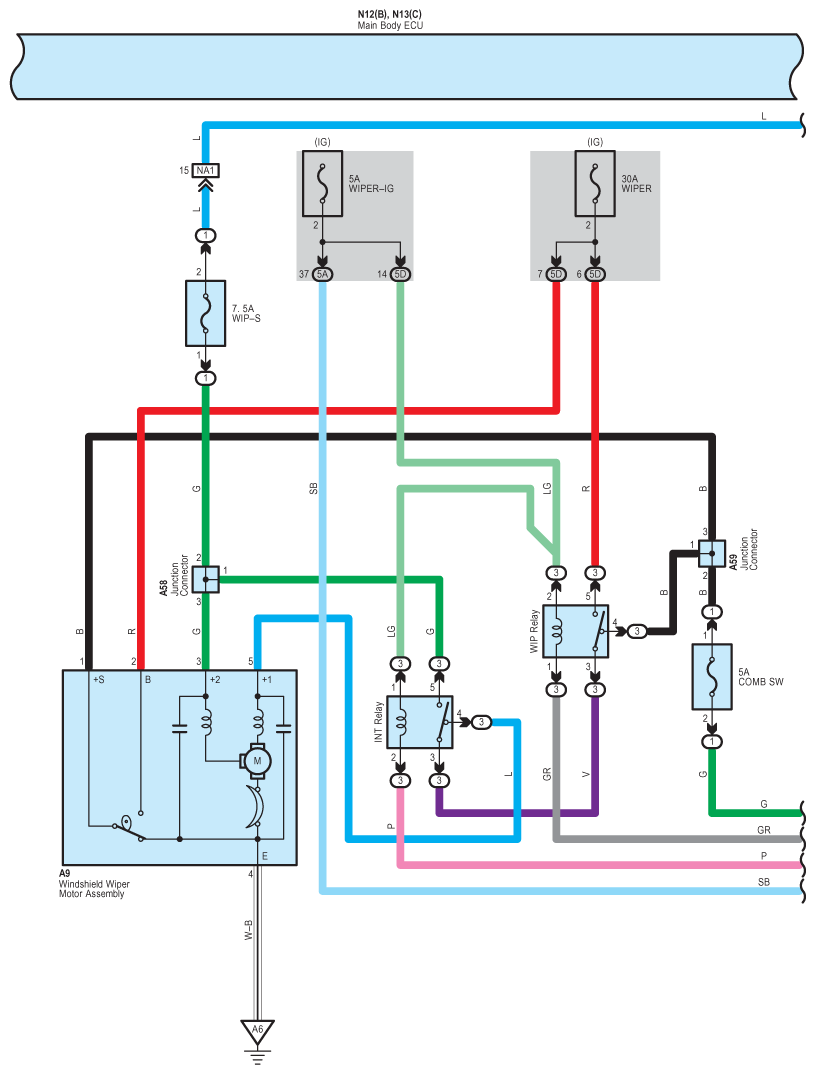

Fig 5: Front Wiper And Washer Wiring Diagram (5 Of 6)

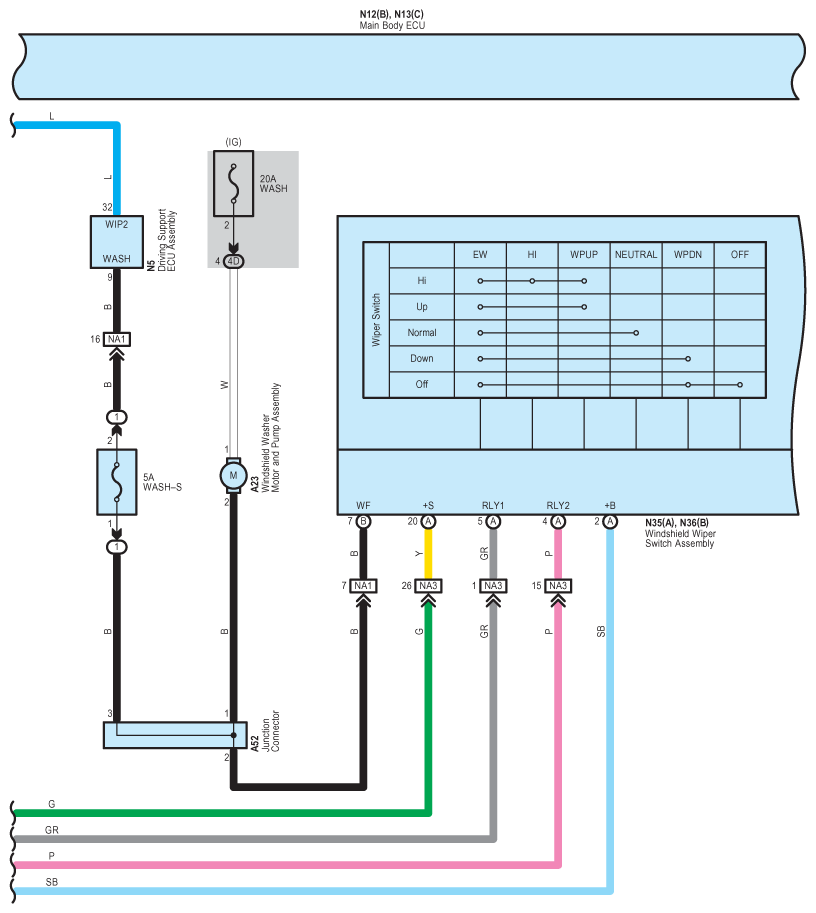

Fig 6: Front Wiper And Washer Wiring Diagram (6 Of 6)
