Fuel Lid Opener: Notes — 2013 Lexus GS 450h Service Manual ~ LEMON Manuals

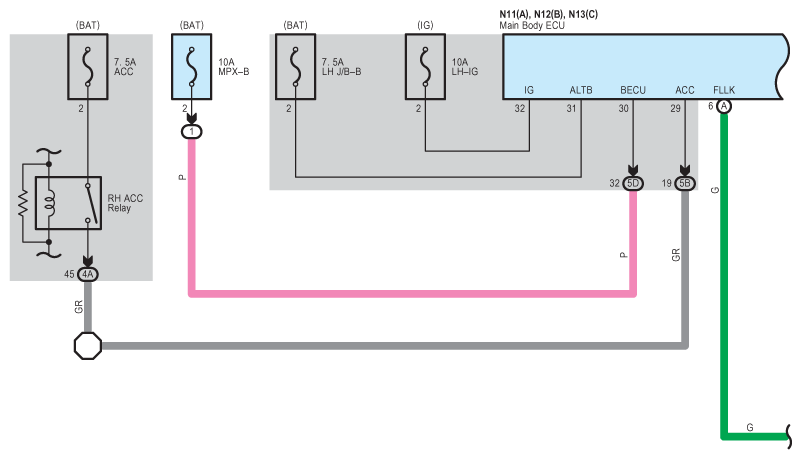

Fig 1: Fuel Lid Opener Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Lid Opener Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

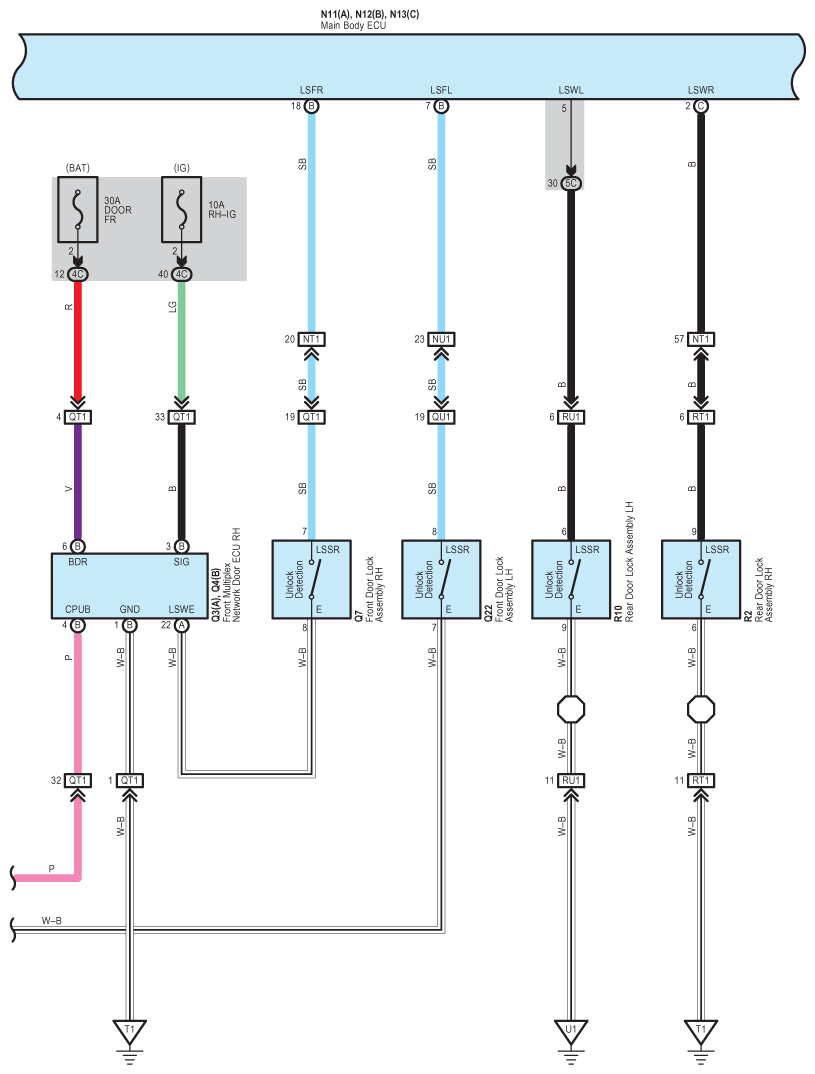

Fig 3: Fuel Lid Opener Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

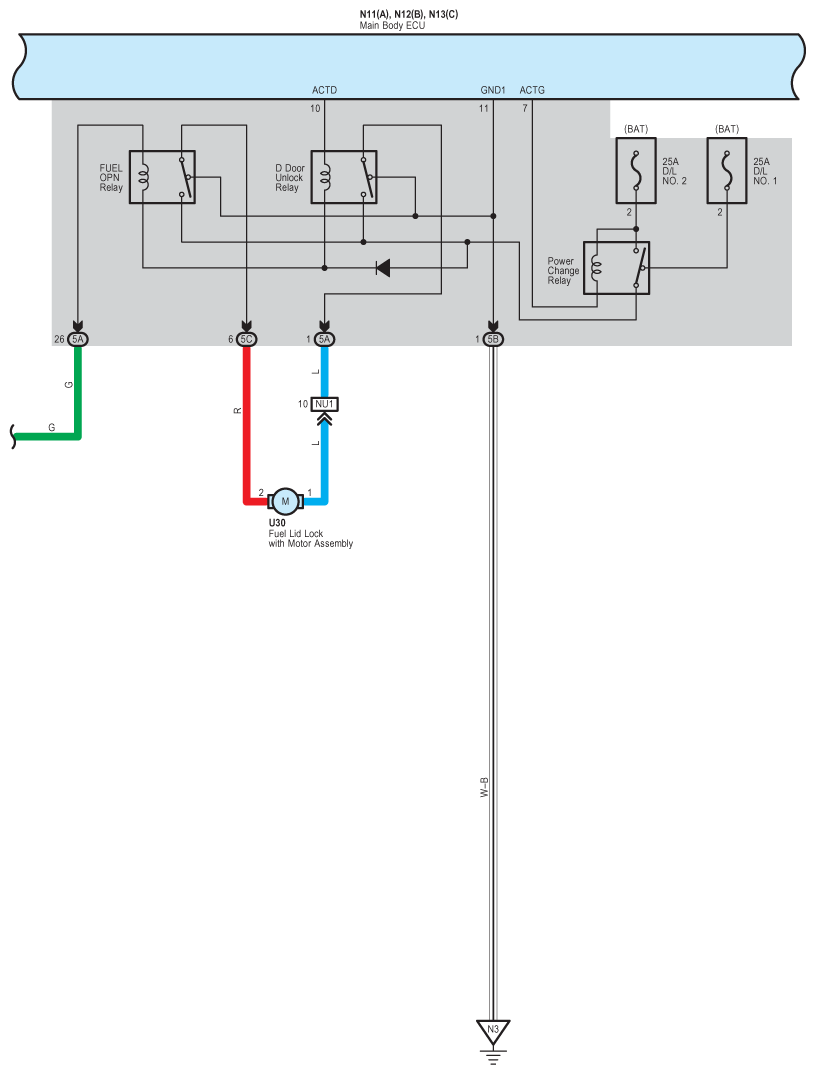

Fig 4: Fuel Lid Opener Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

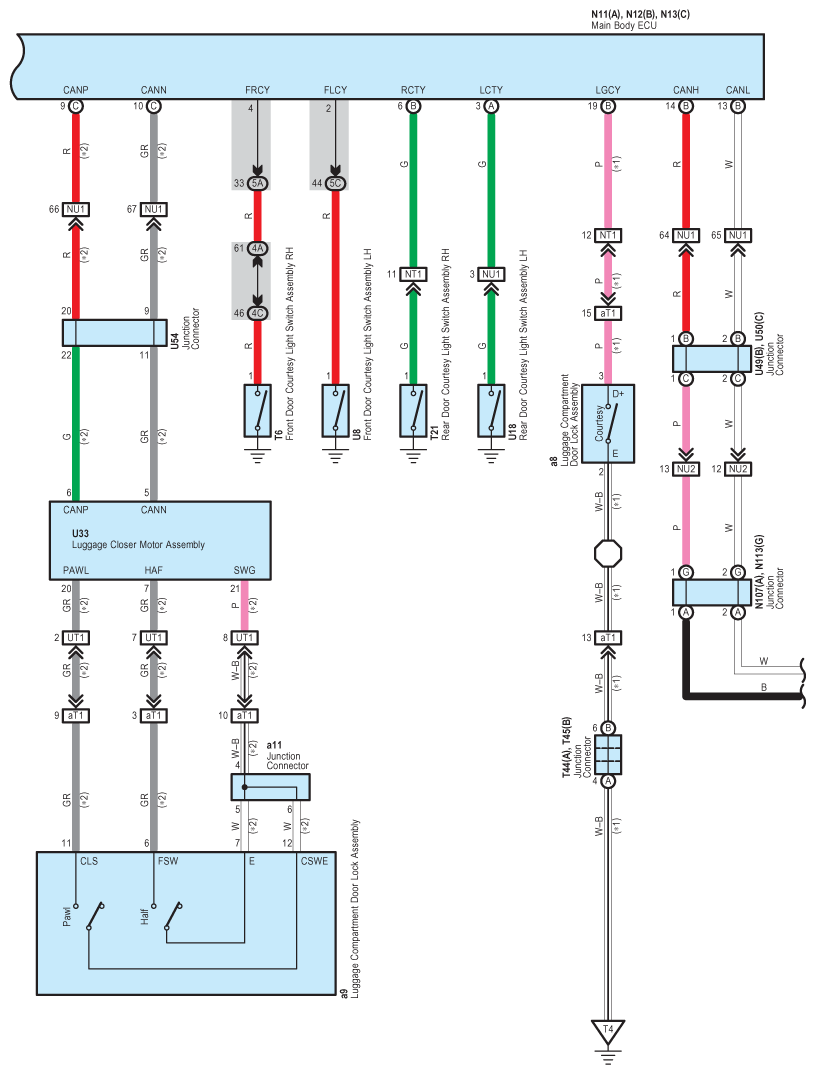

Fig 5: Fuel Lid Opener Wiring Diagram (5 Of 6)

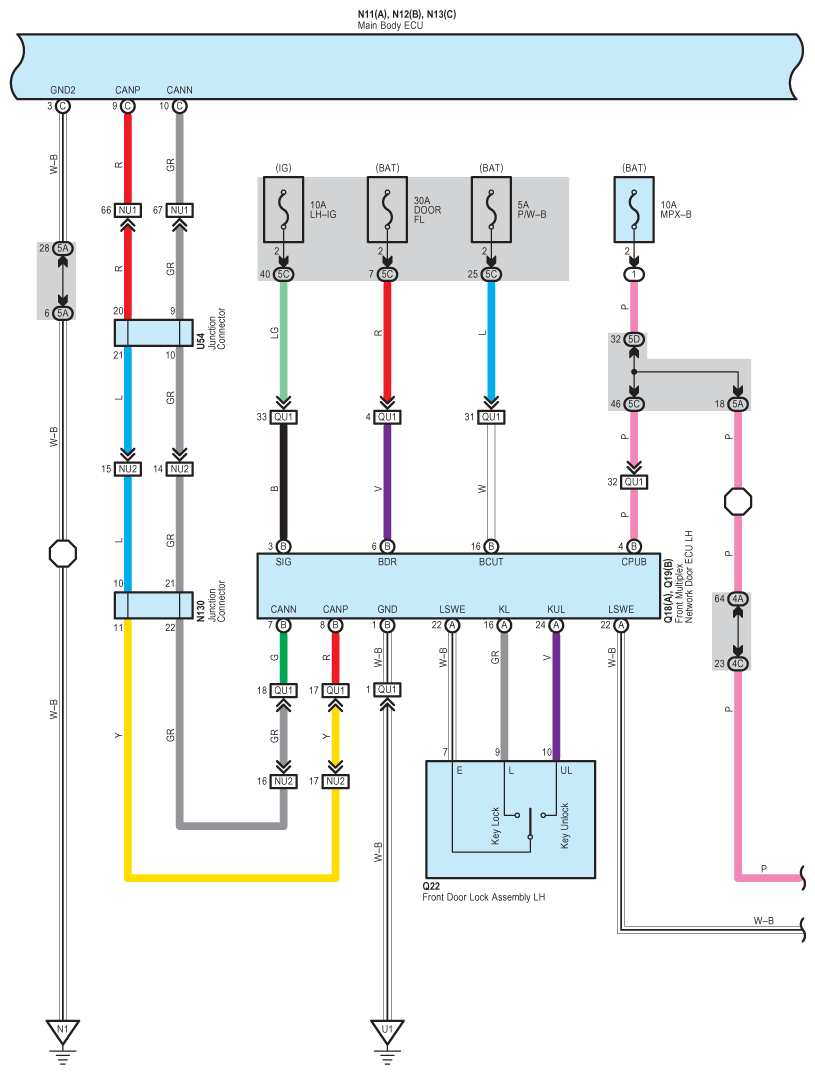

Fig 6: Fuel Lid Opener Wiring Diagram (6 Of 6)
