OEM System Circuits: Headlight: Notes

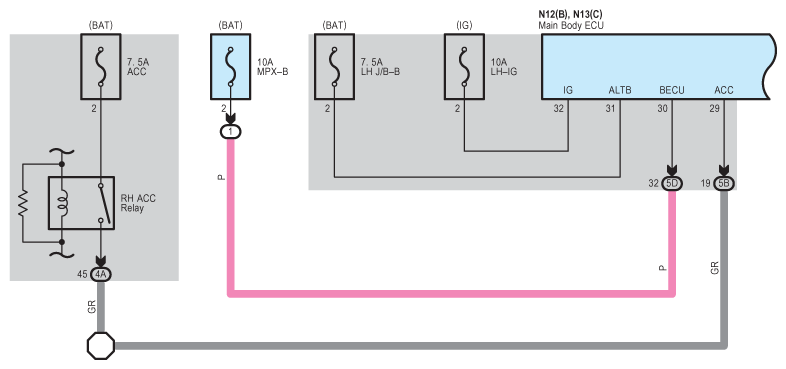

Fig 1: Headlight Wiring Diagram (1 Of 7)

G09117799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

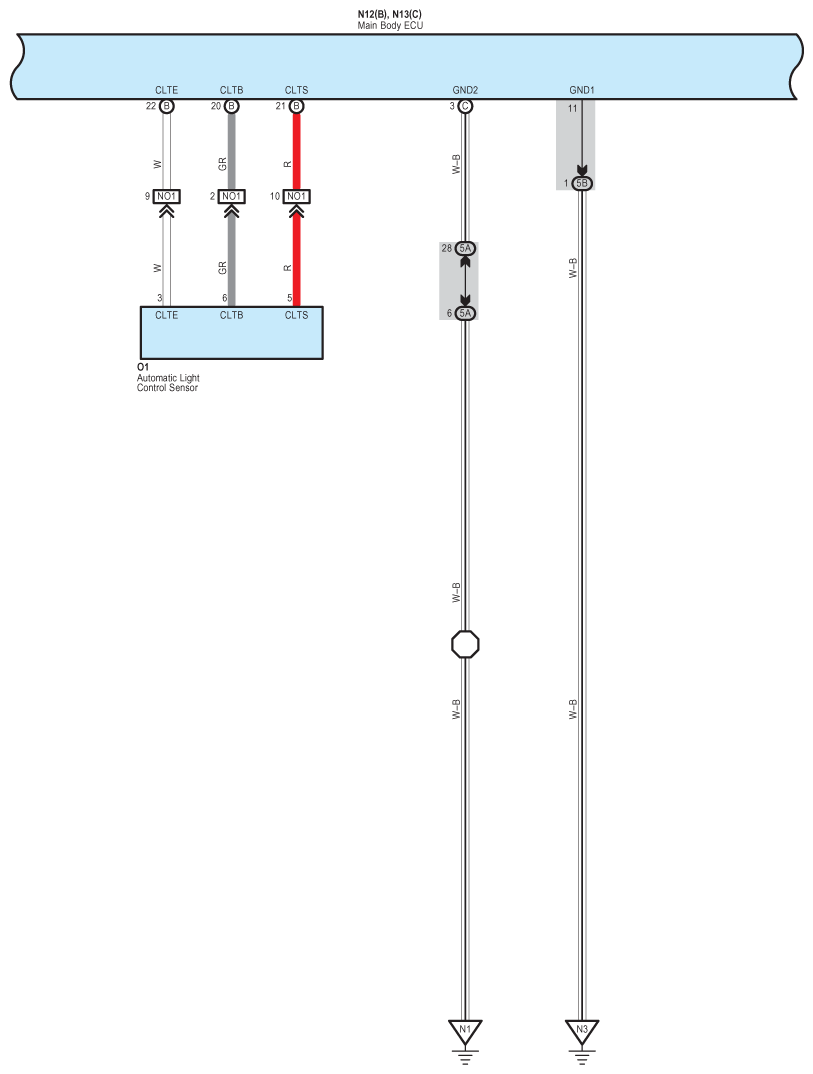

Fig 2: Headlight Wiring Diagram (2 Of 7)

G09117800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

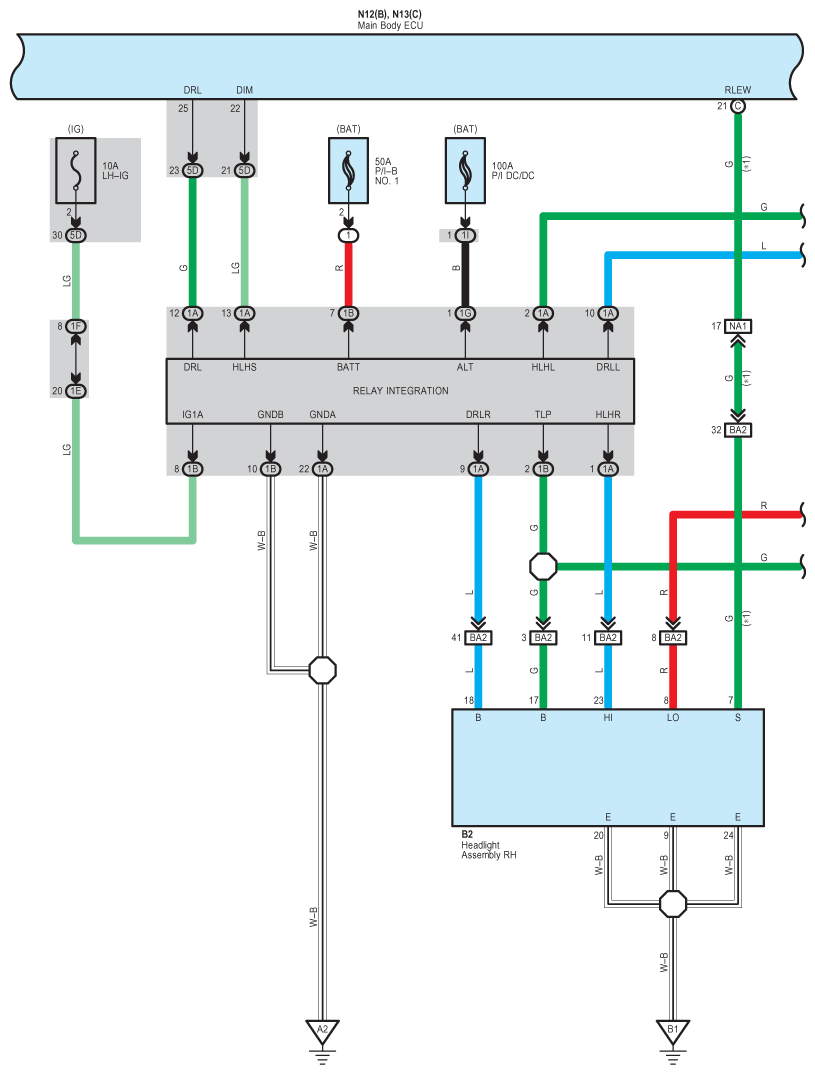

Fig 3: Headlight Wiring Diagram (3 Of 7)

G09117801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

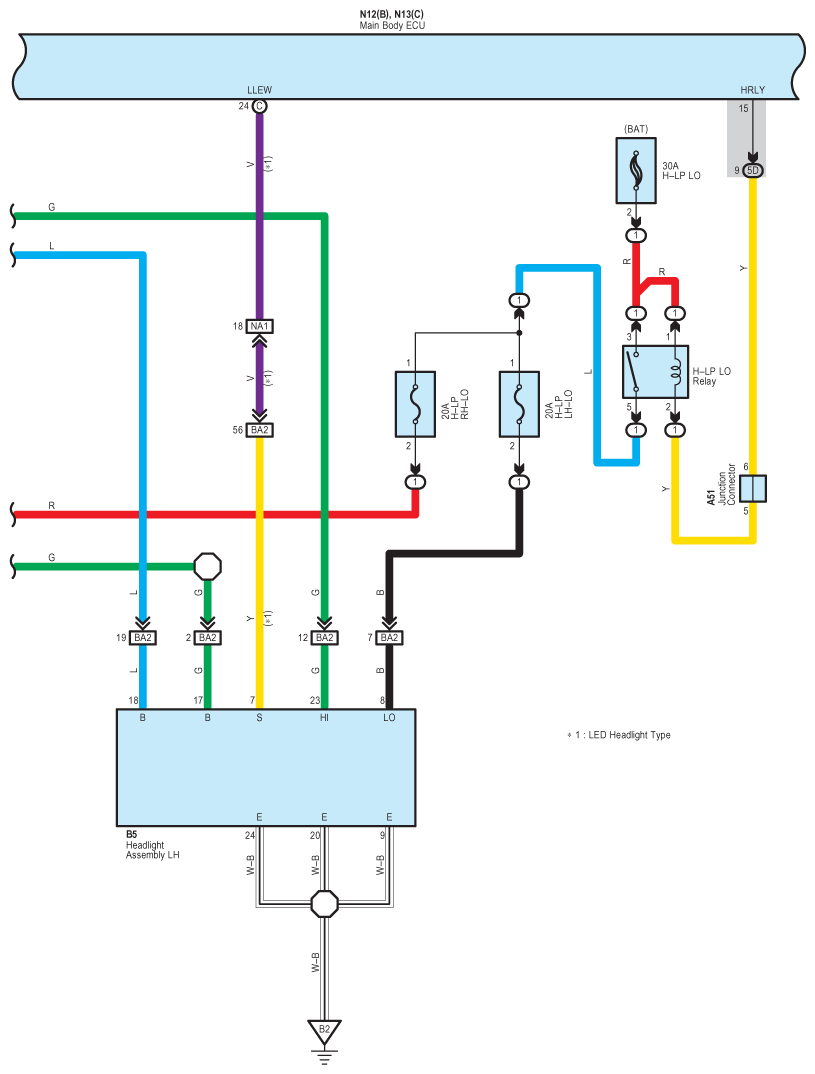

Fig 4: Headlight Wiring Diagram (4 Of 7)

G09117802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

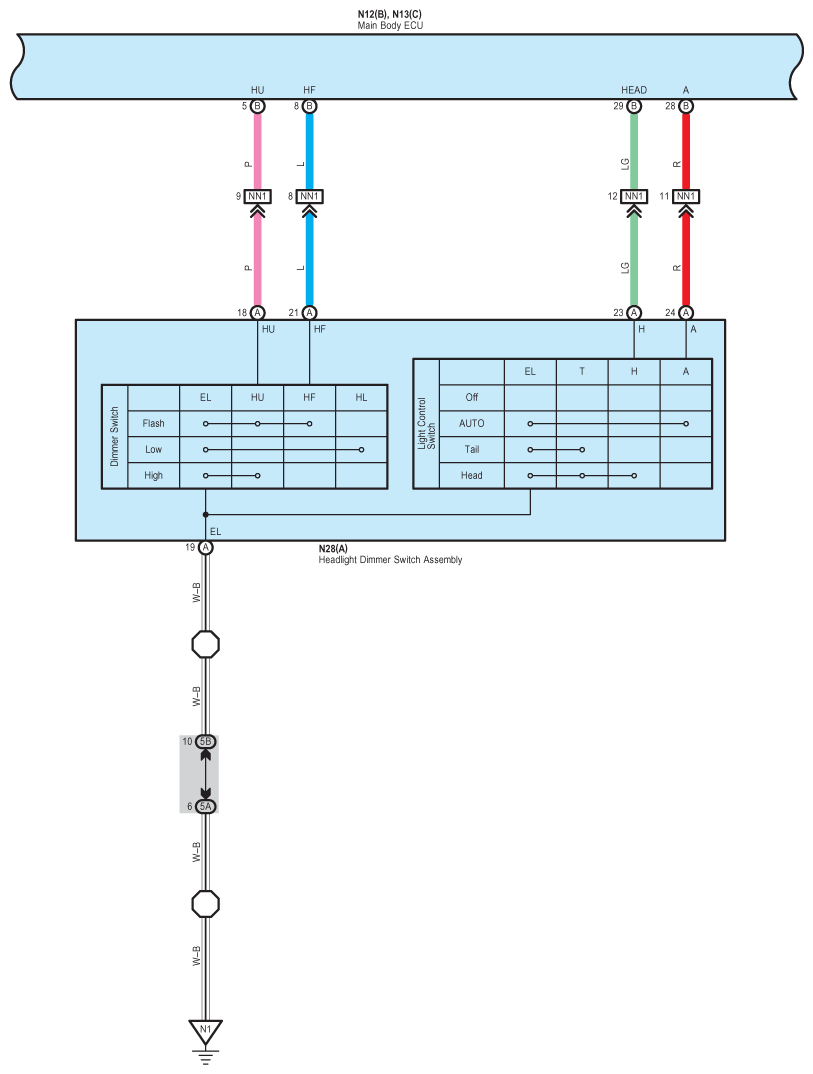

Fig 5: Headlight Wiring Diagram (5 Of 7)

G09117803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

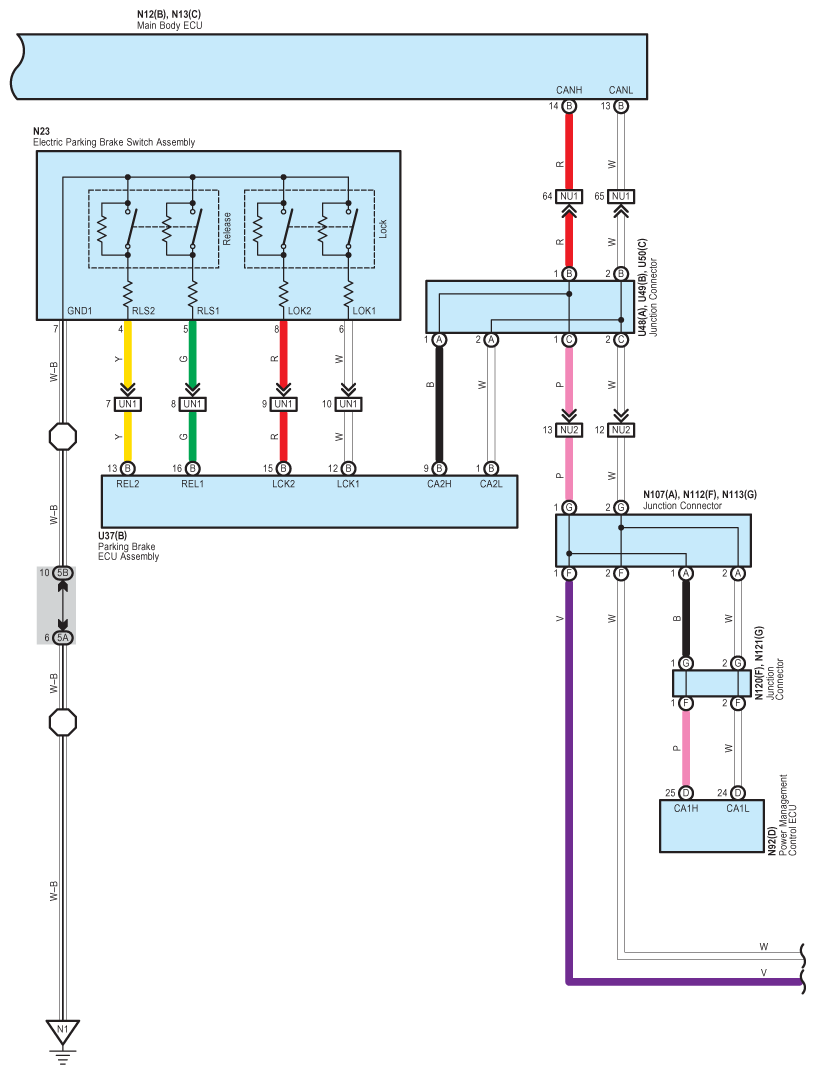

Fig 6: Headlight Wiring Diagram (6 Of 7)

G09117804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

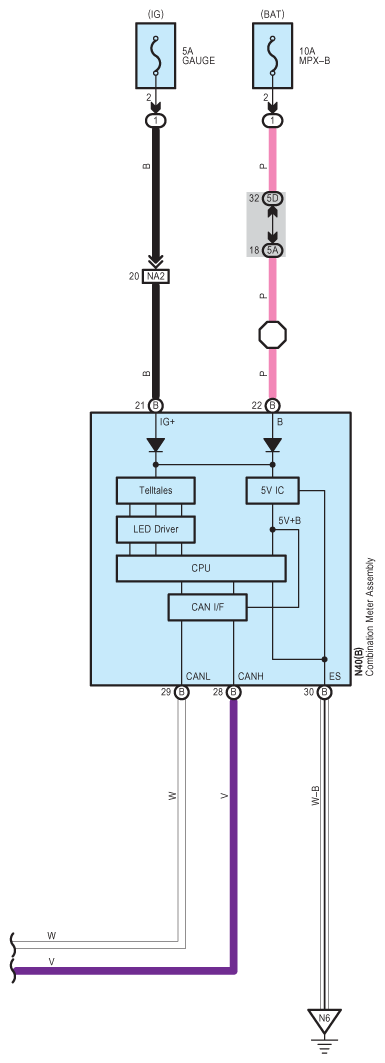

Fig 7: Headlight Wiring Diagram (7 Of 7)

G09117805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
