Hybrid Vehicle Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control: Notes

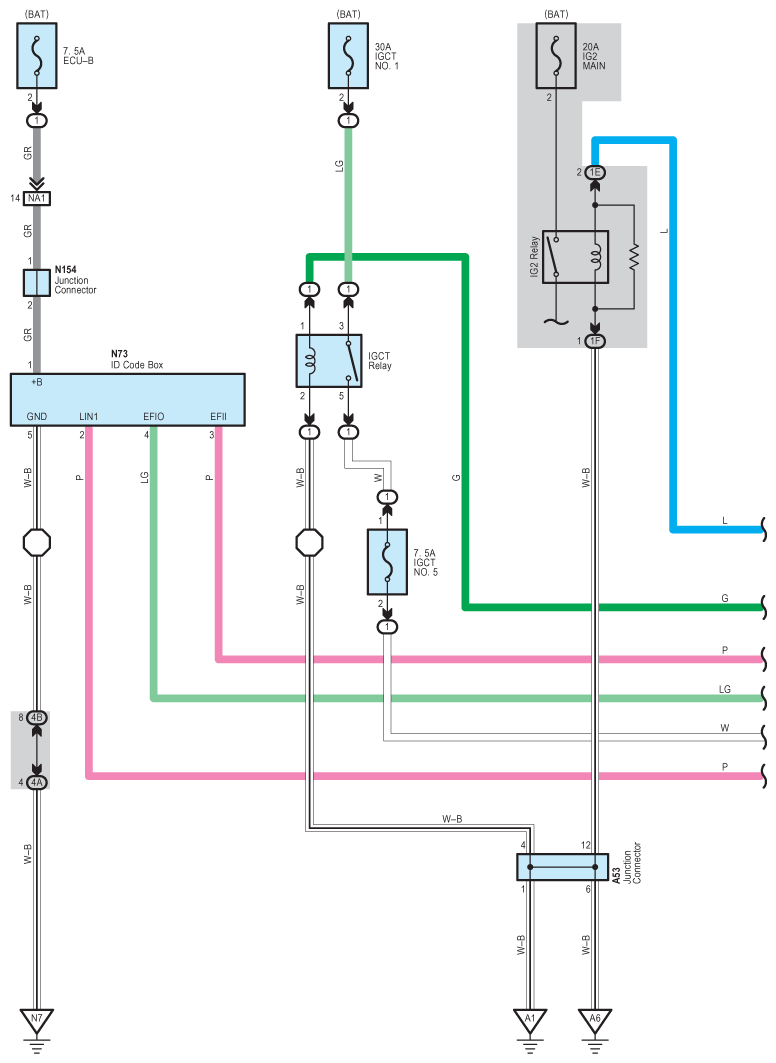

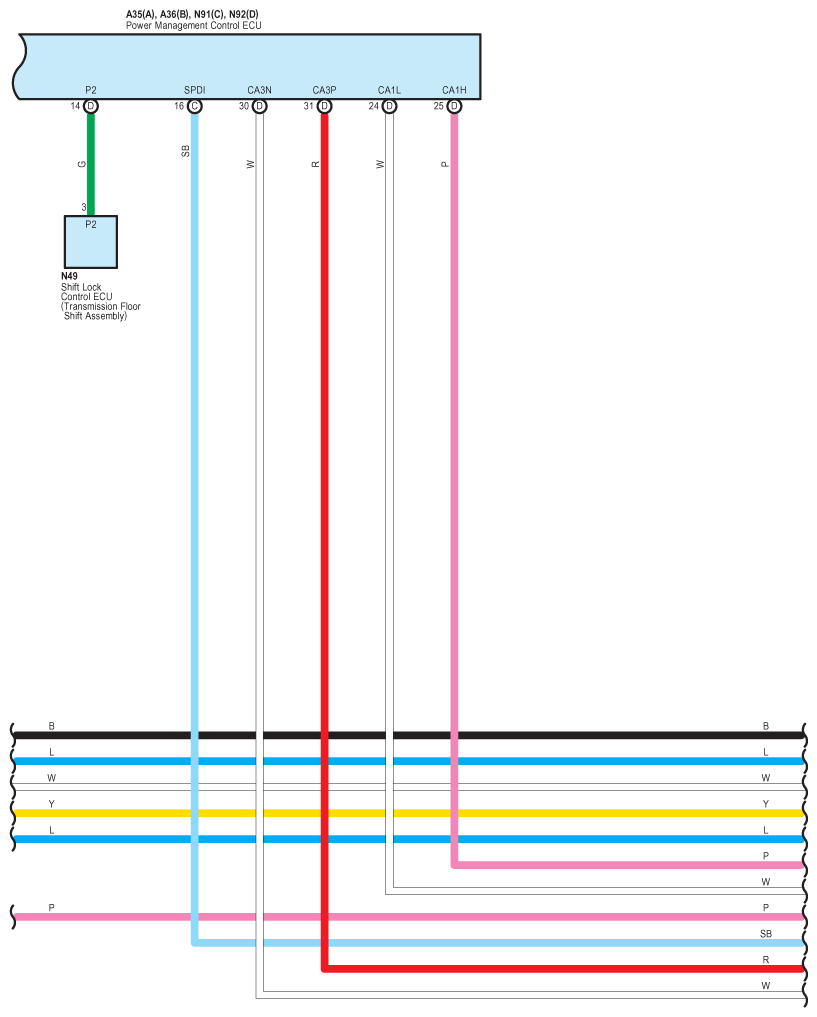

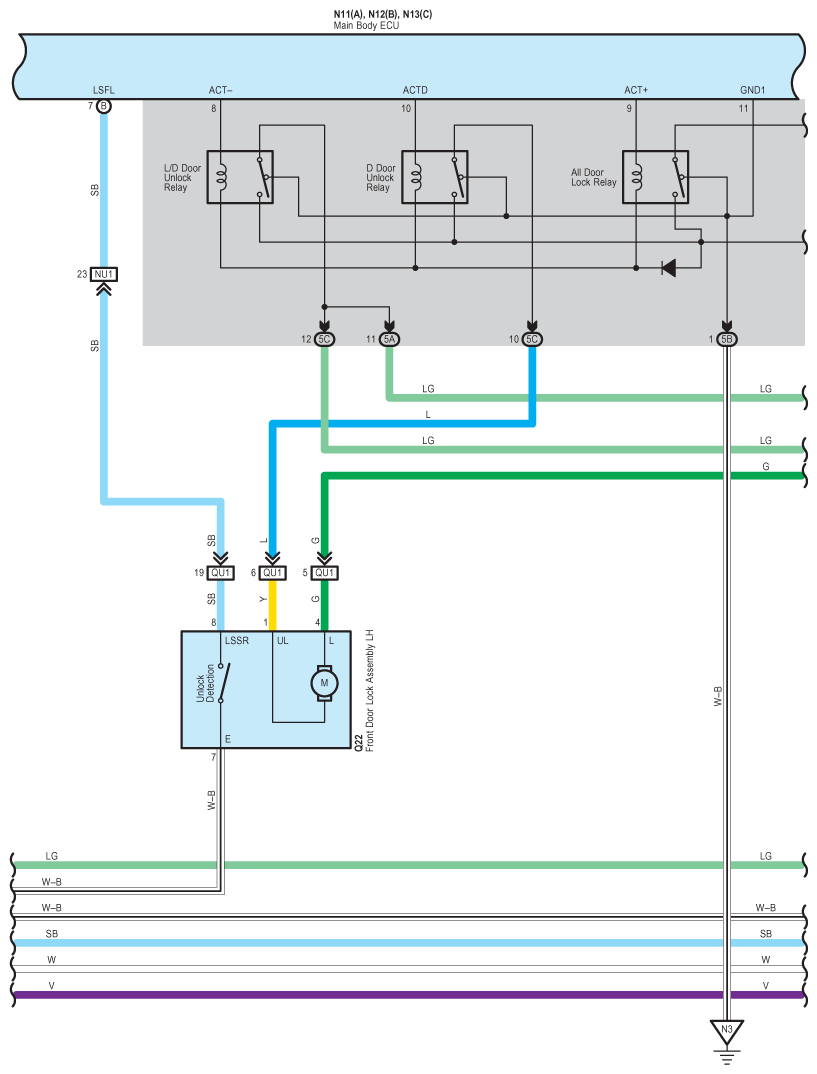

Fig 1: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (1 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

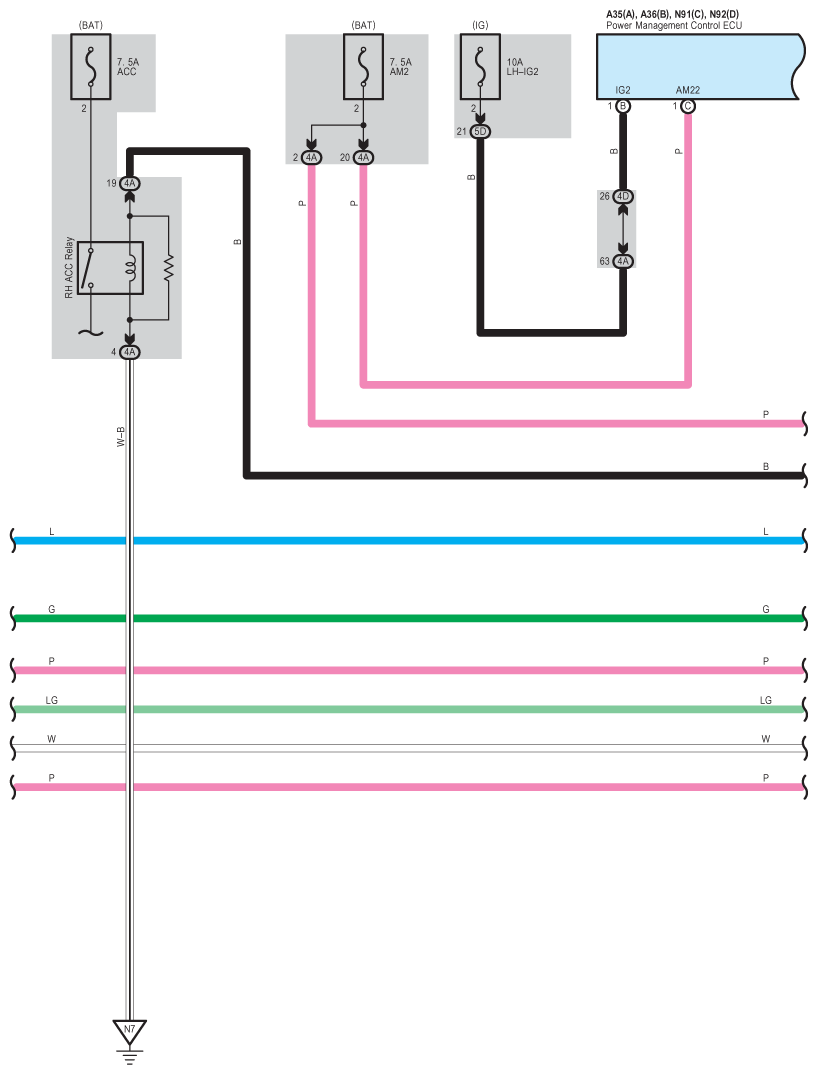

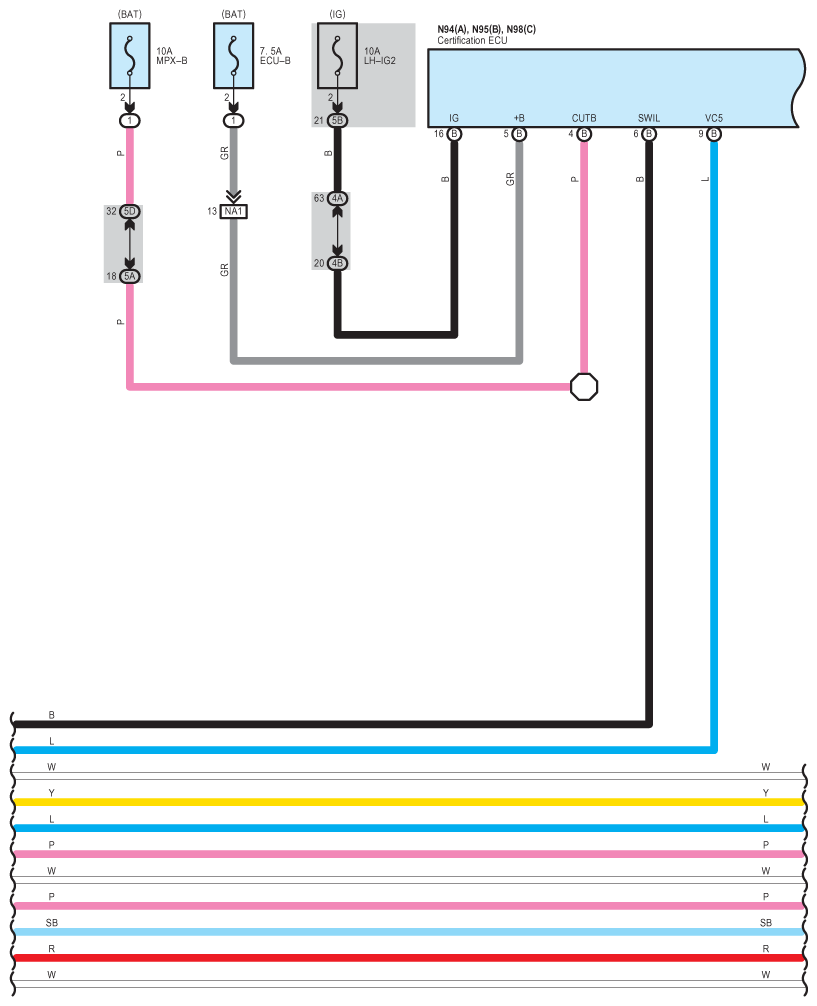

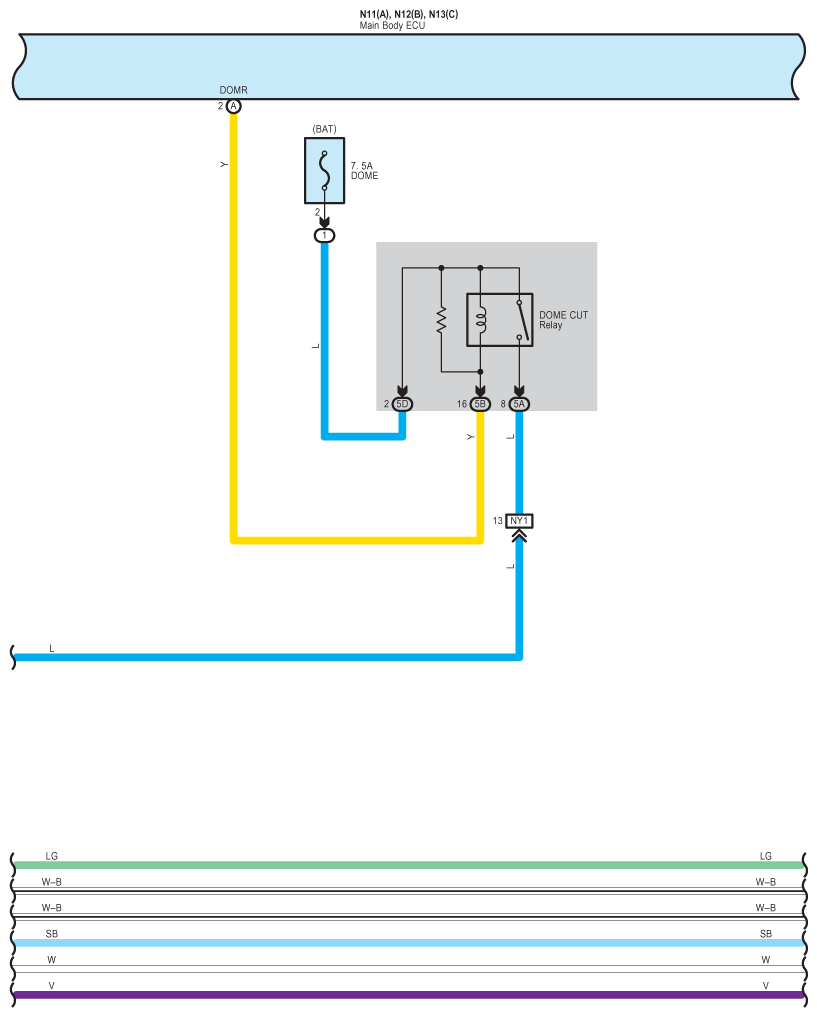

Fig 2: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (2 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

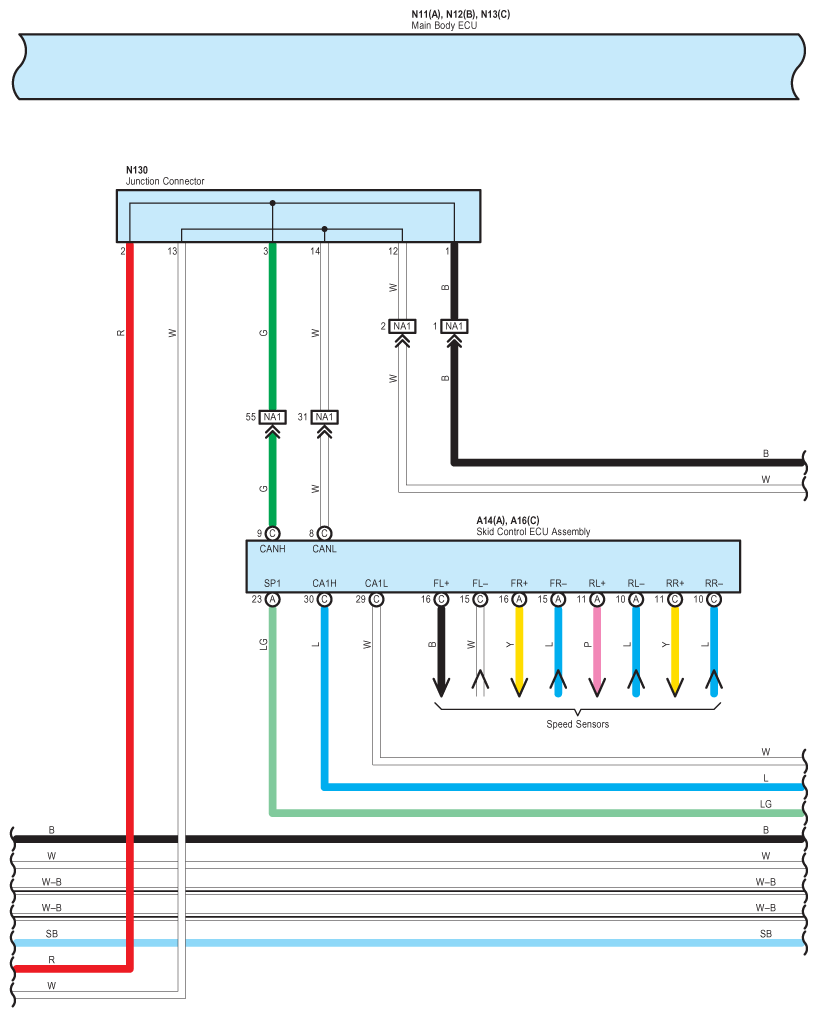

Fig 3: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (3 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

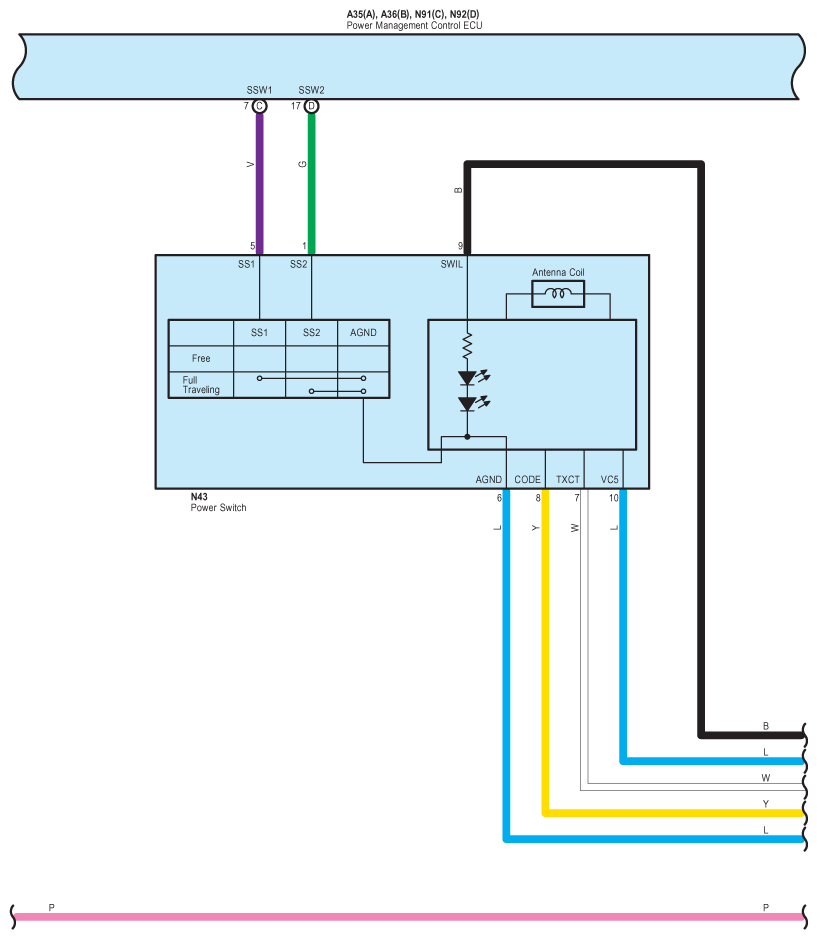

Fig 4: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (4 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

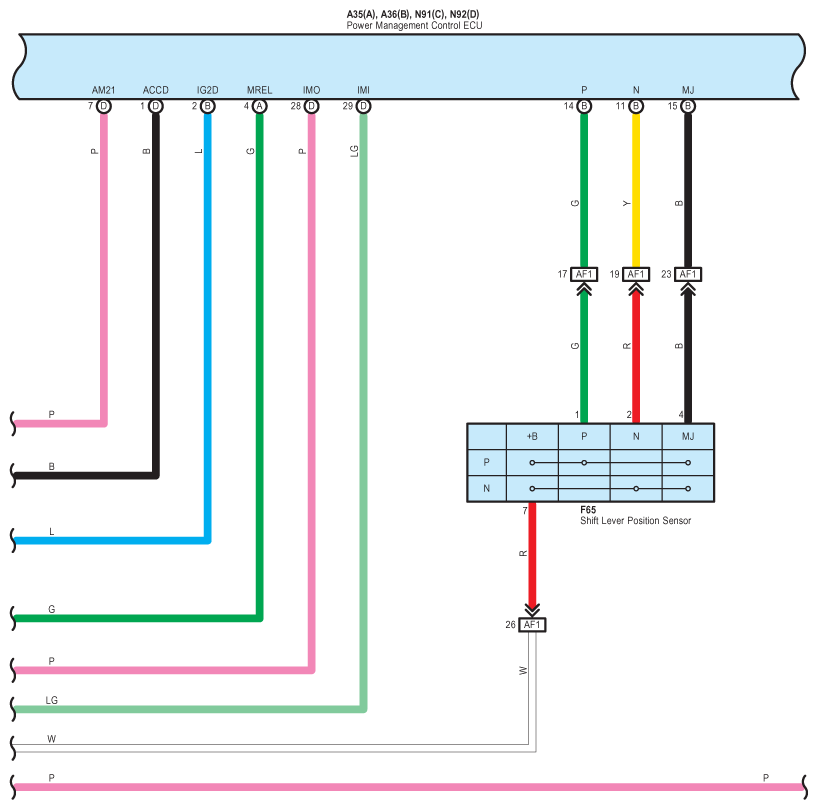

Fig 5: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (5 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

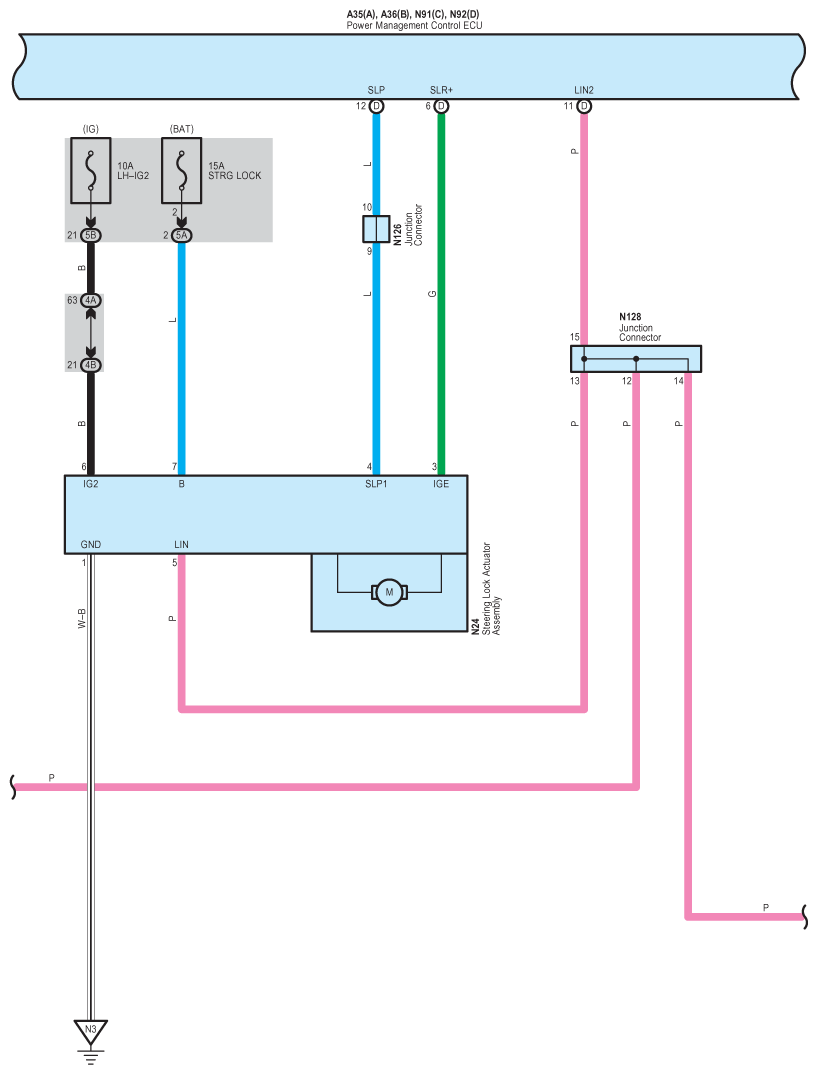

Fig 6: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (6 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

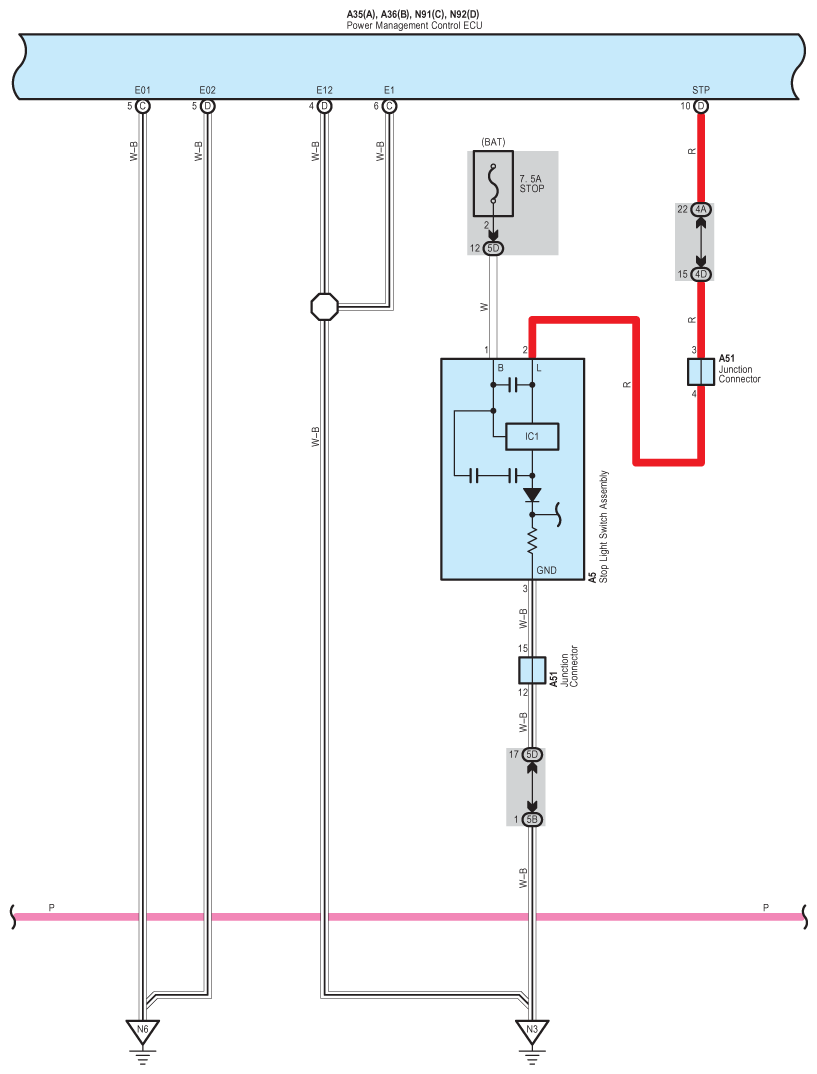

Fig 7: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (7 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

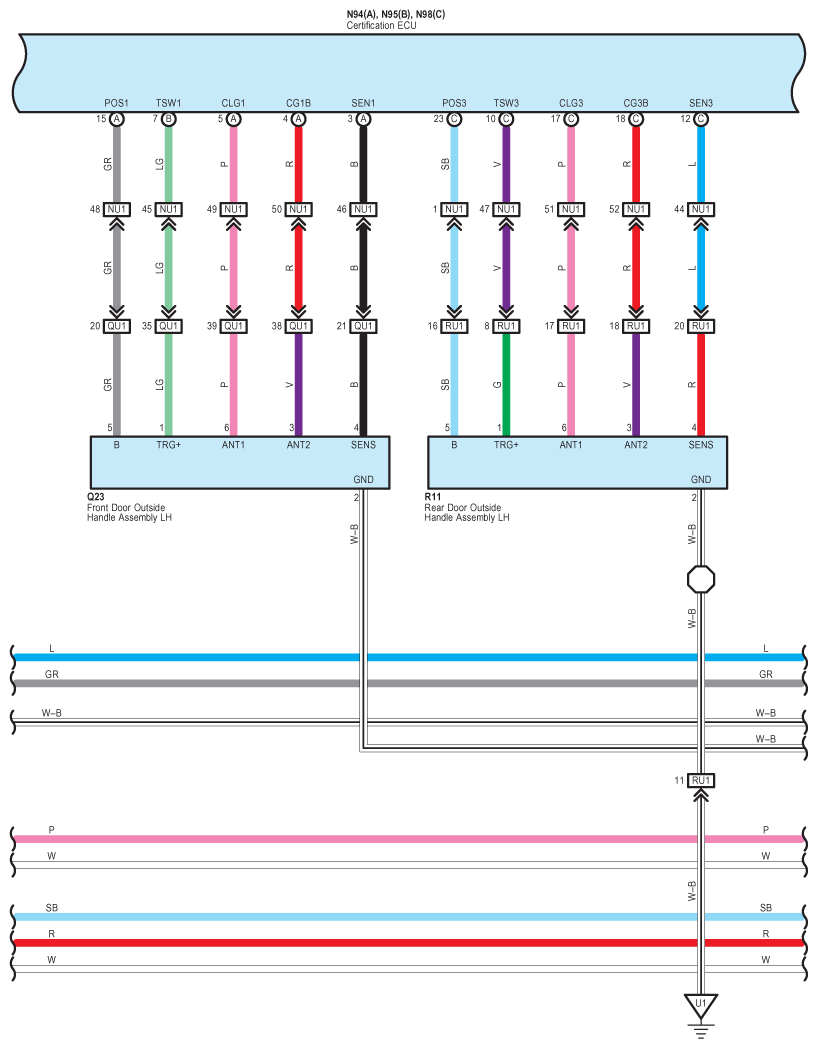

Fig 8: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (8 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

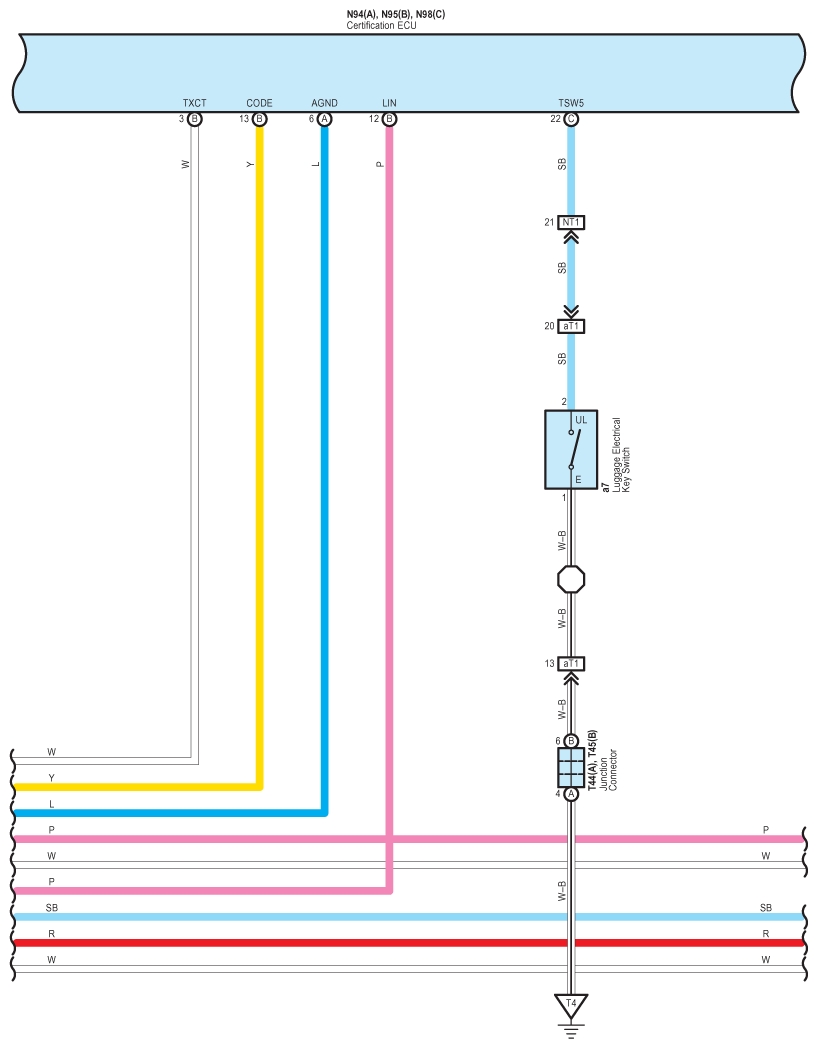

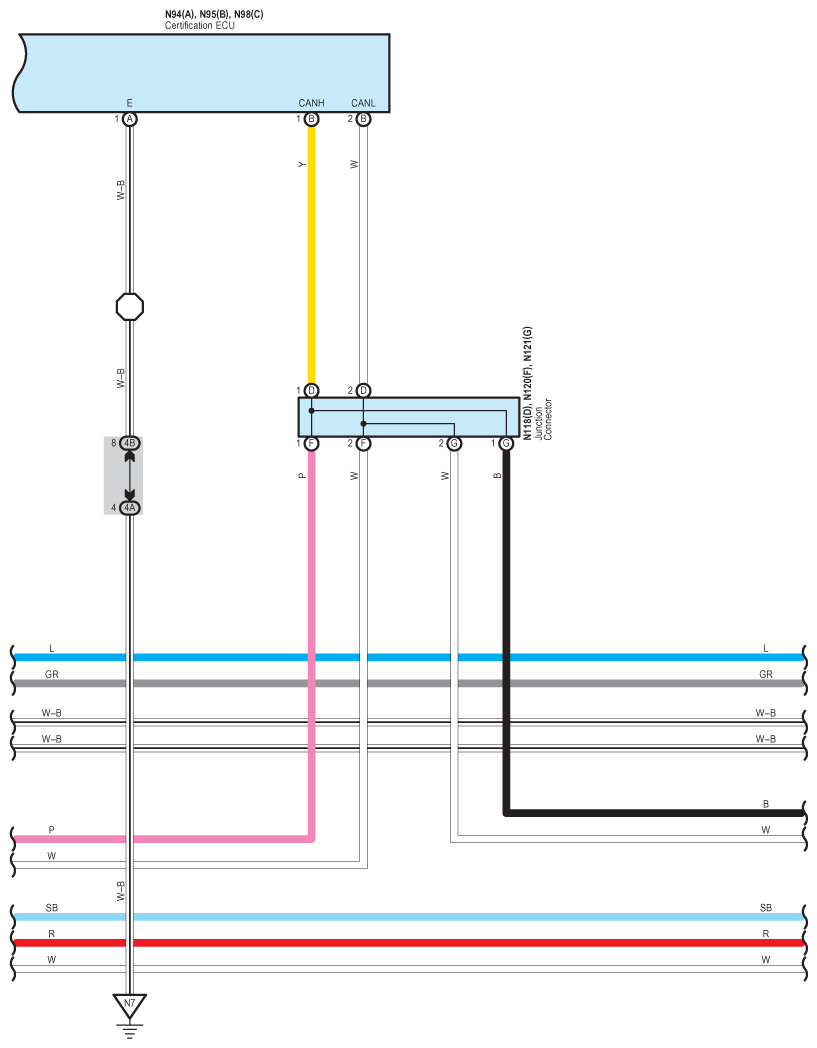

Fig 9: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (9 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

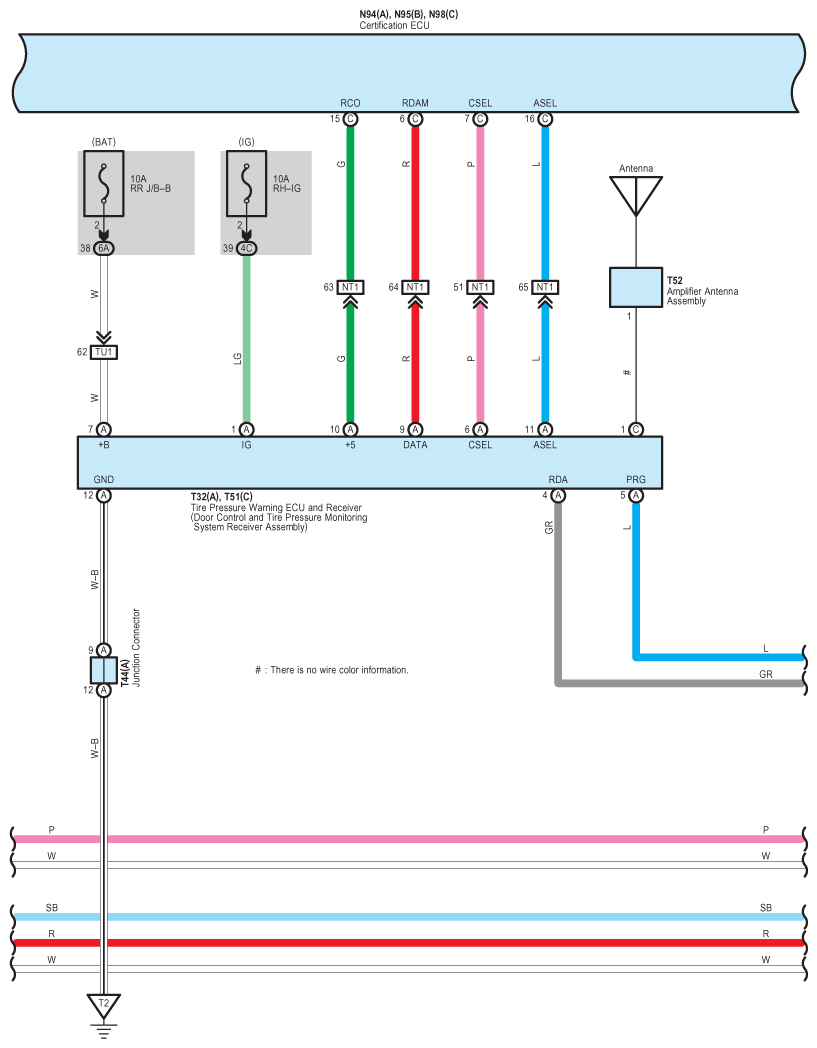

Fig 10: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (10 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

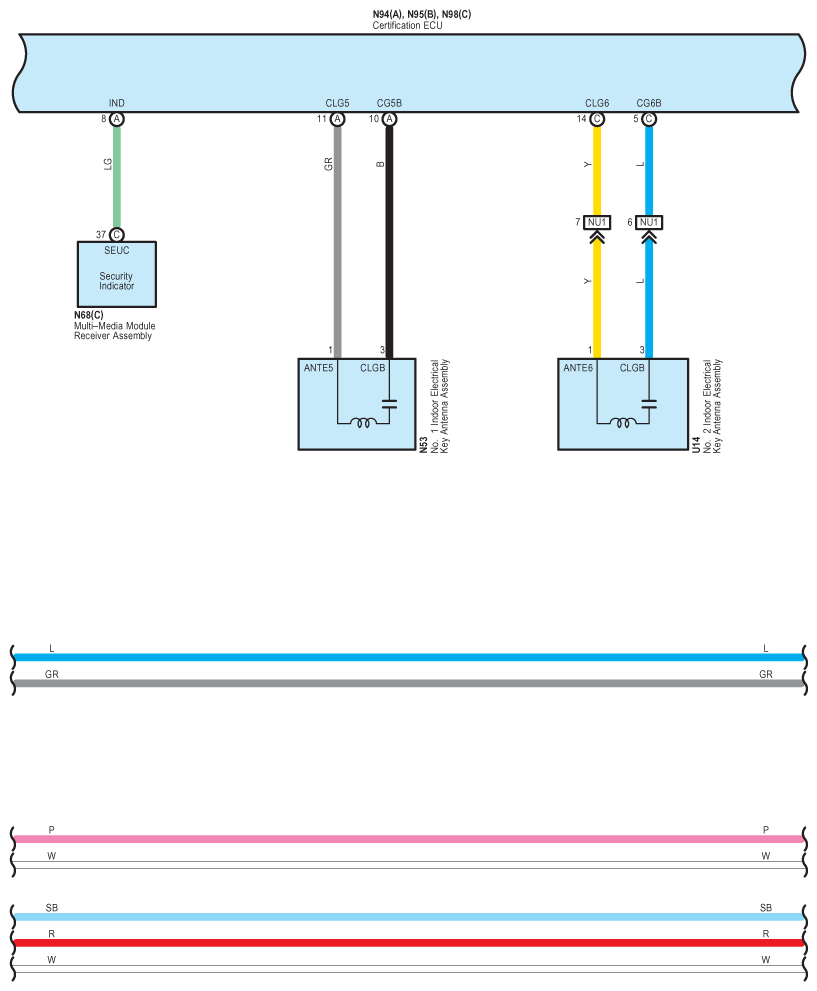

Fig 11: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (11 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

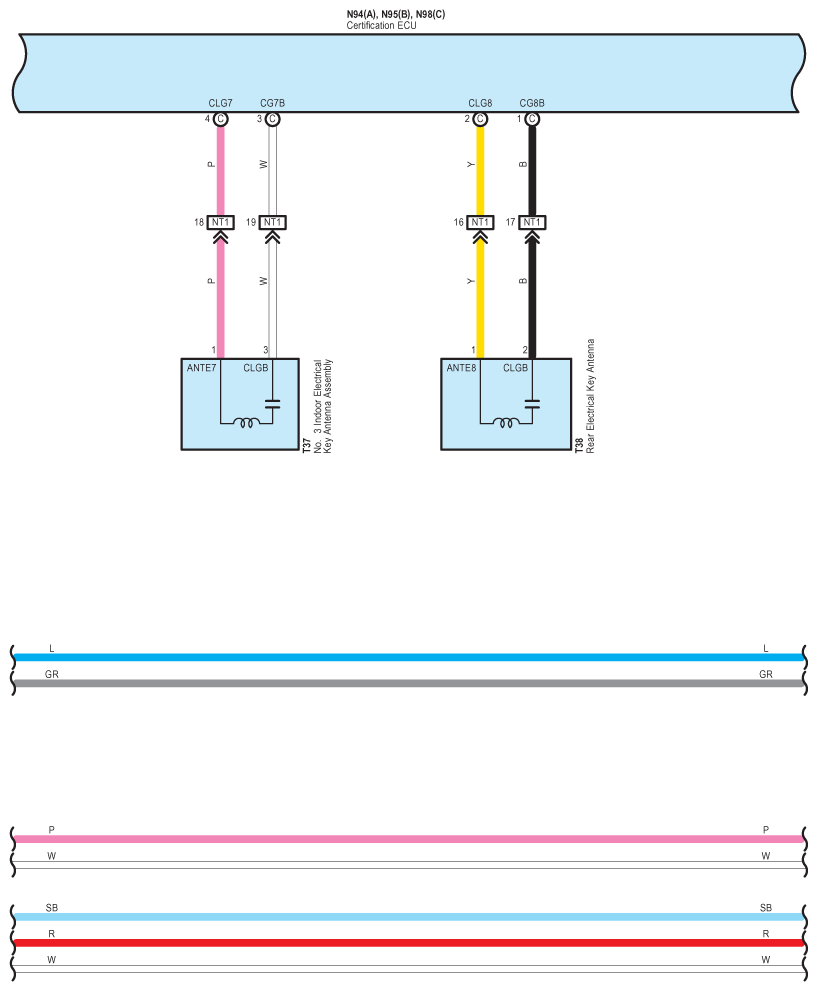

Fig 12: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (12 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

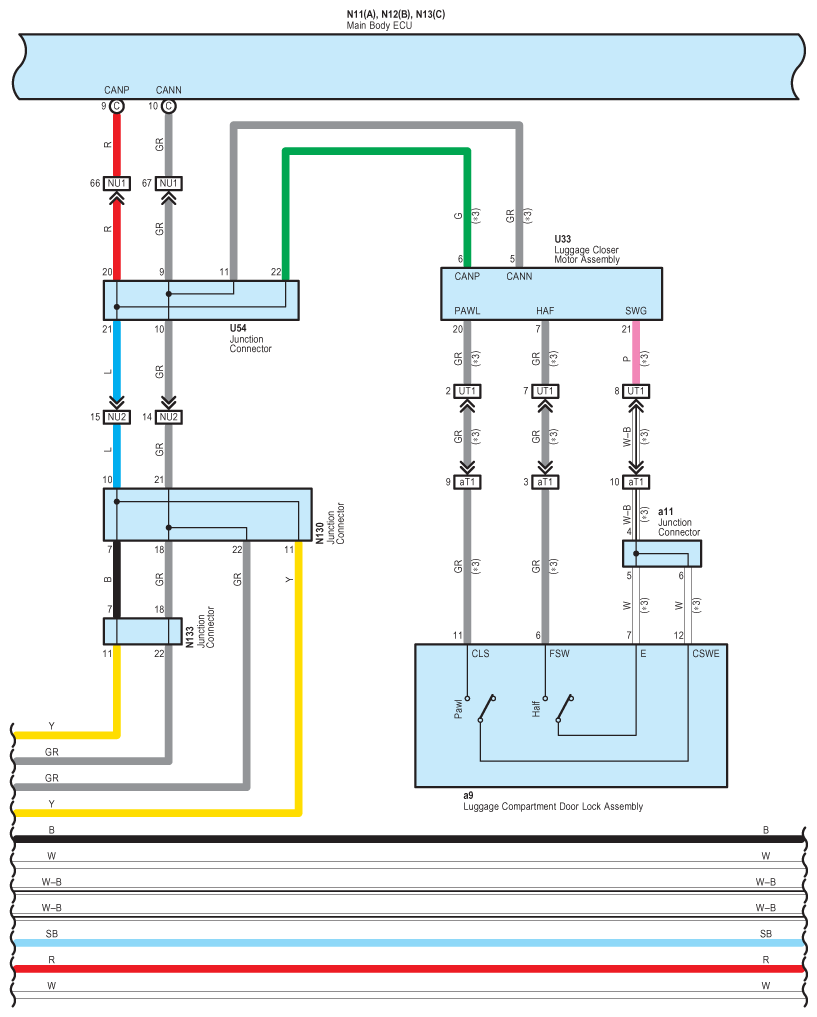

Fig 13: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (13 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

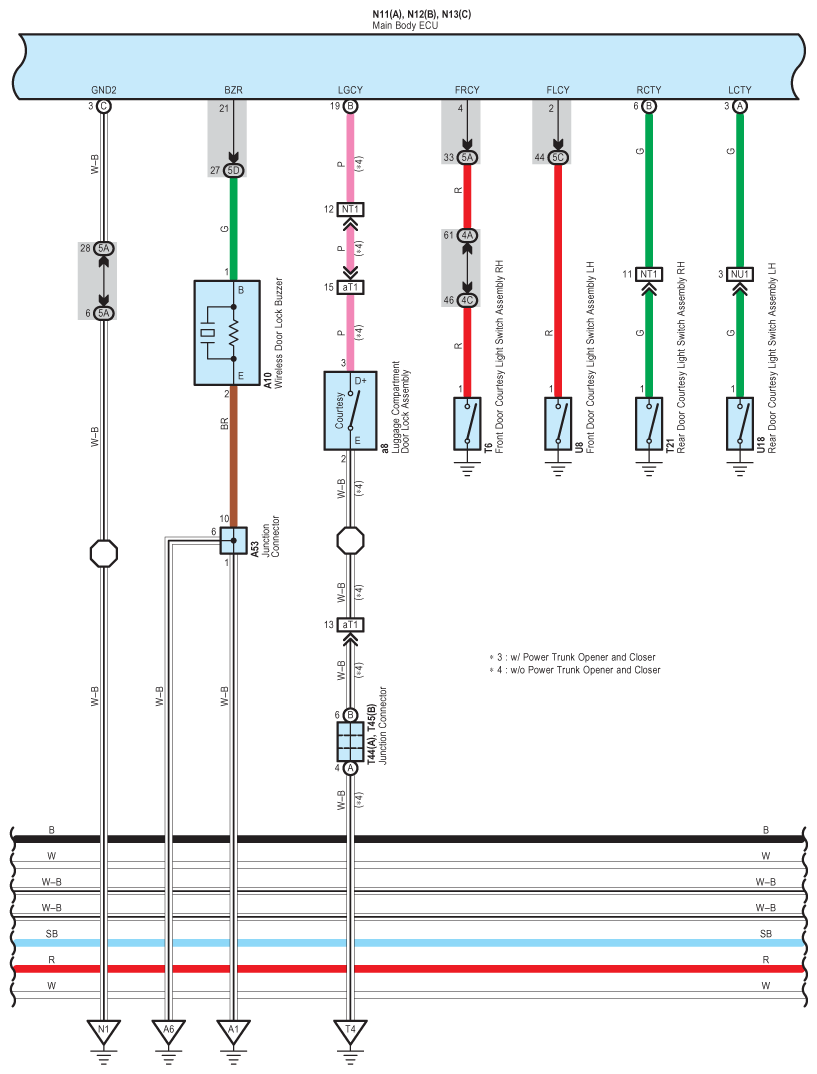

Fig 14: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (14 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

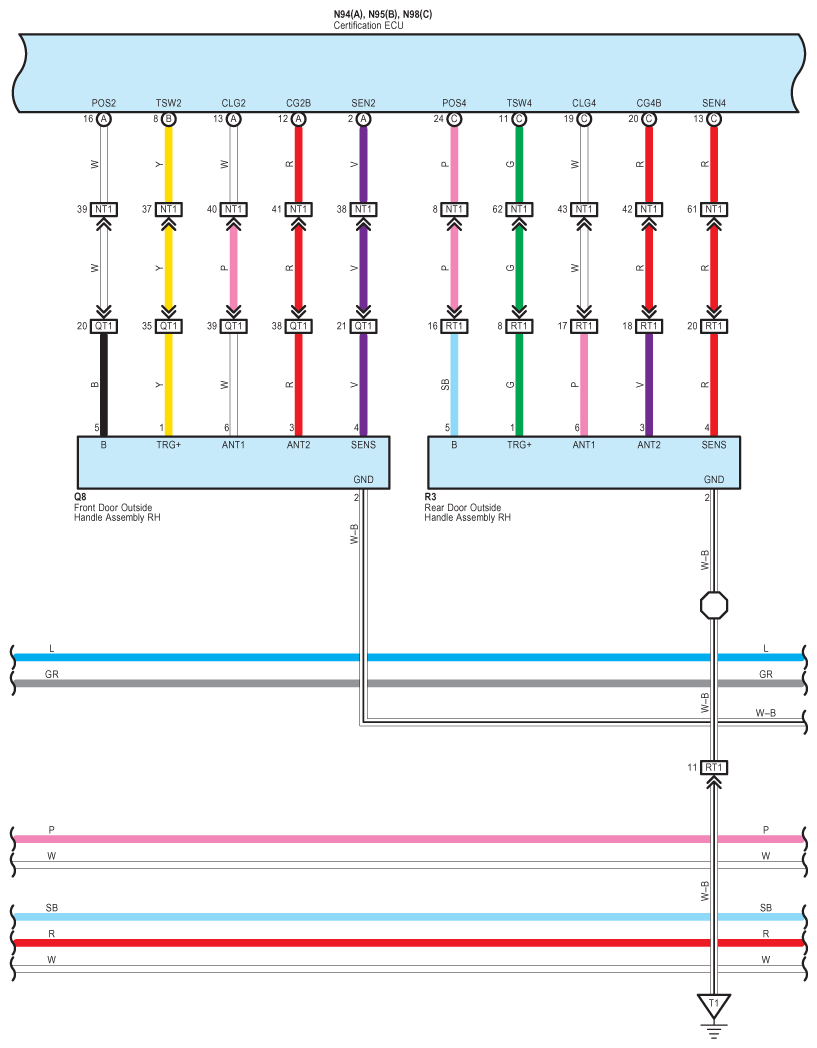

Fig 15: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (15 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (16 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

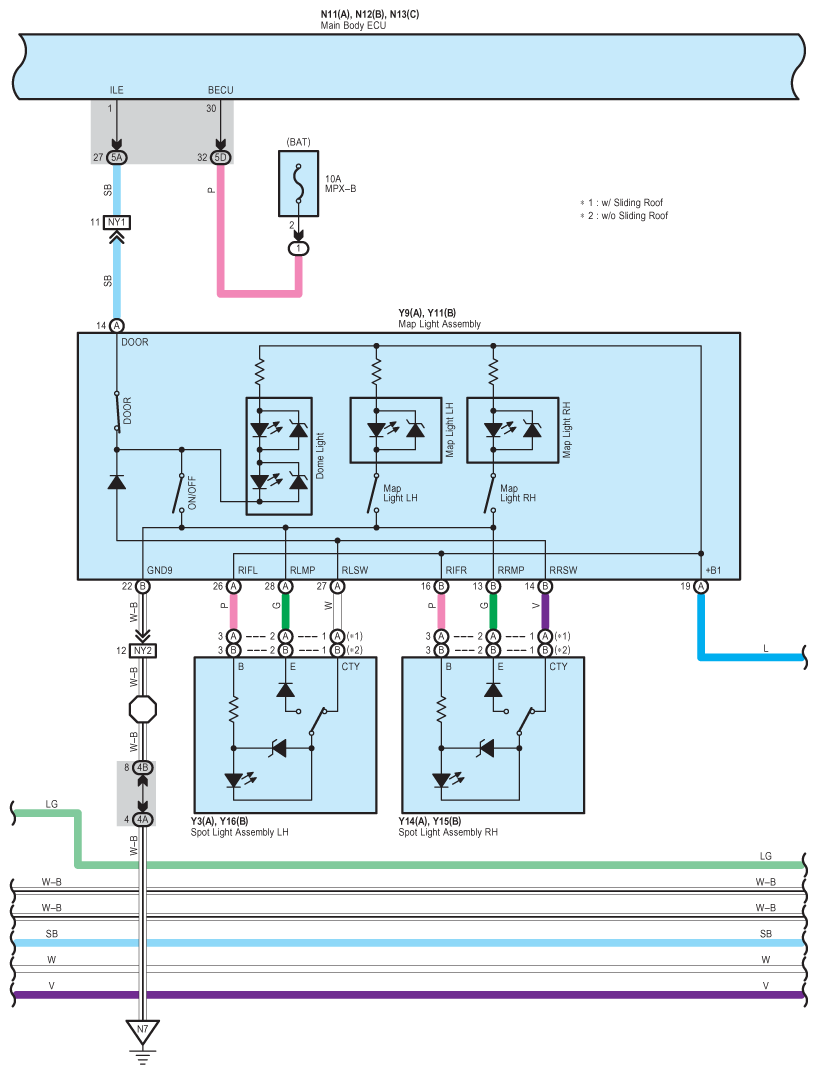

Fig 17: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (17 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

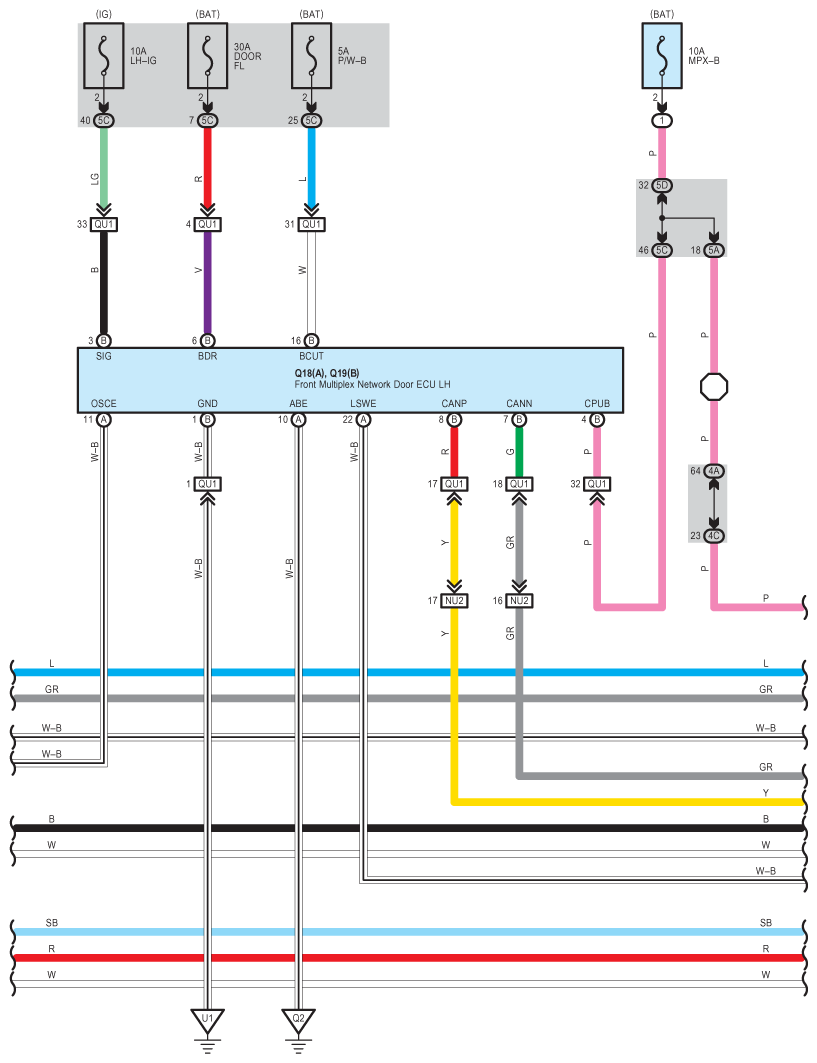

Fig 18: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (18 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

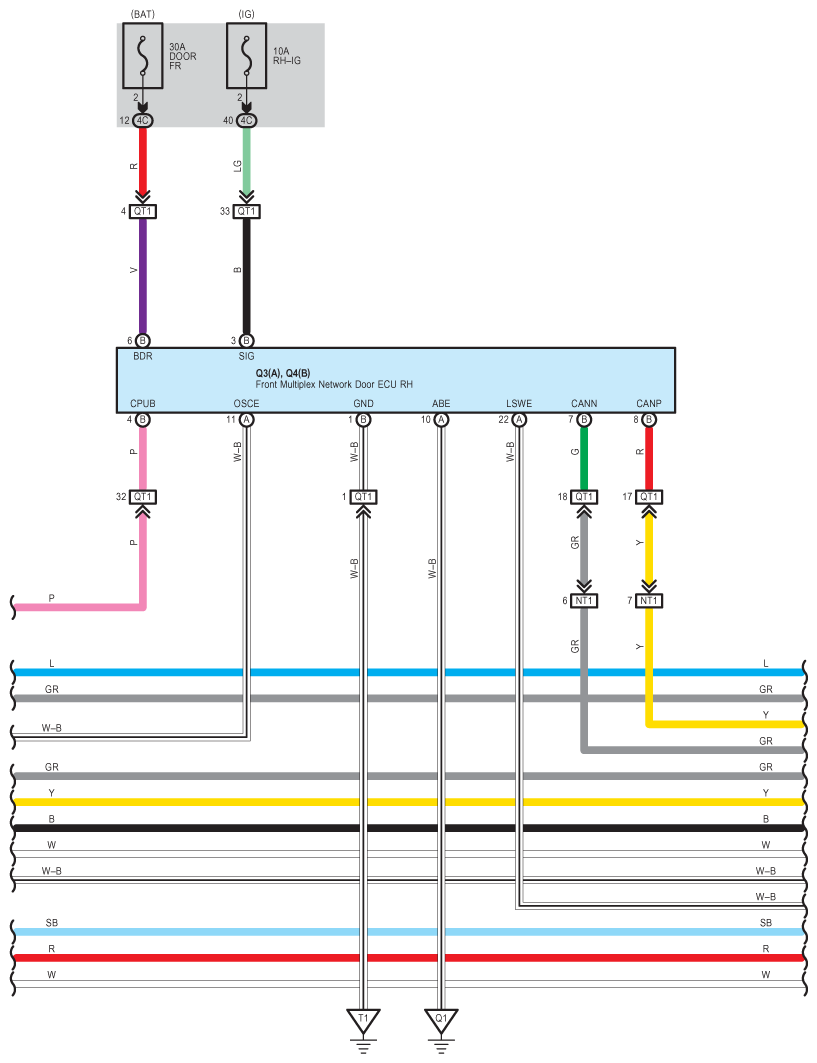

Fig 19: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (19 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

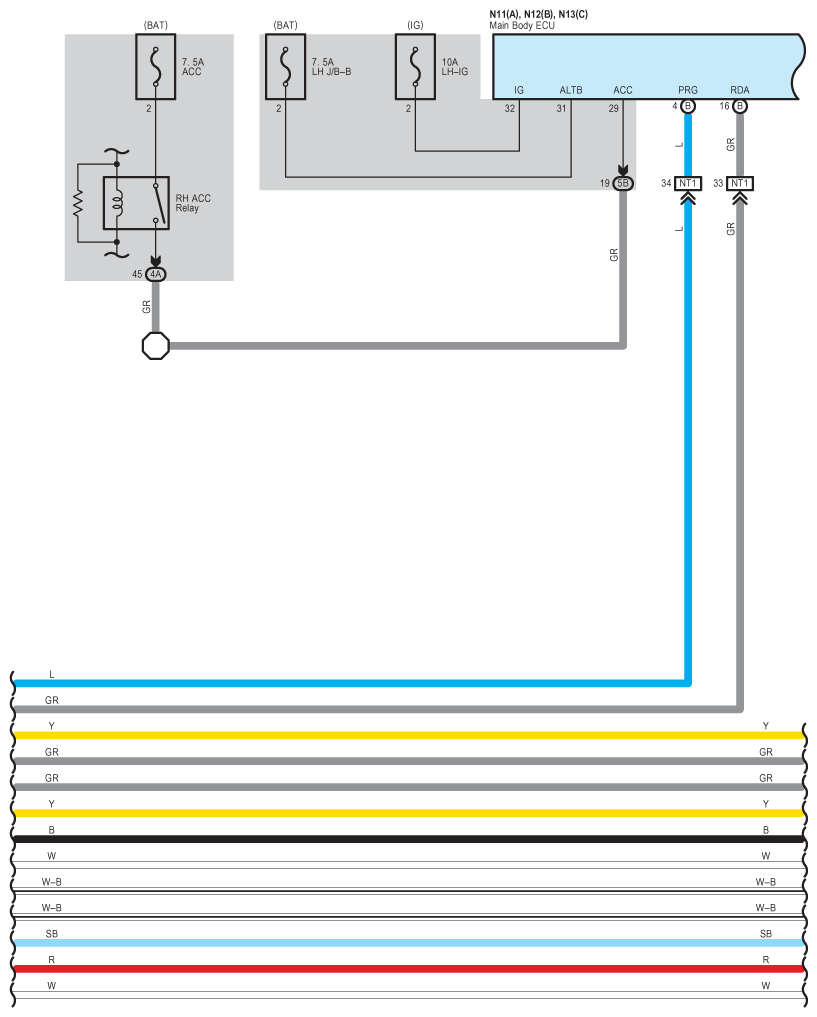

Fig 20: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (20 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

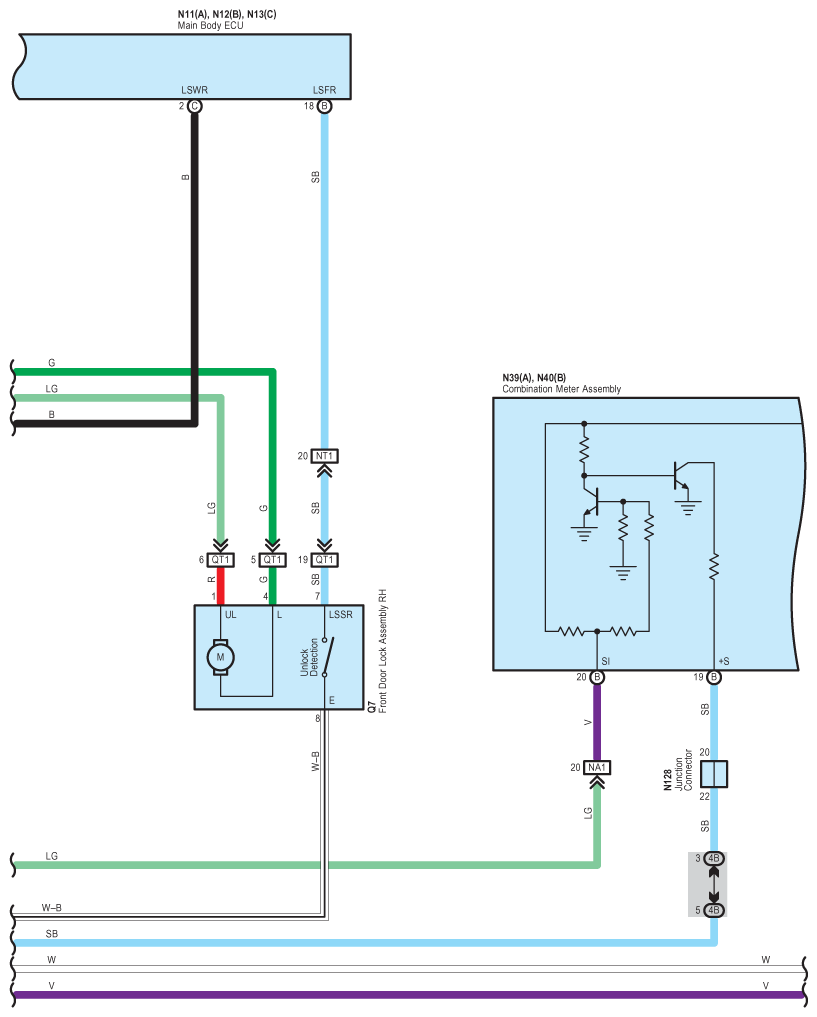

Fig 21: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (21 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

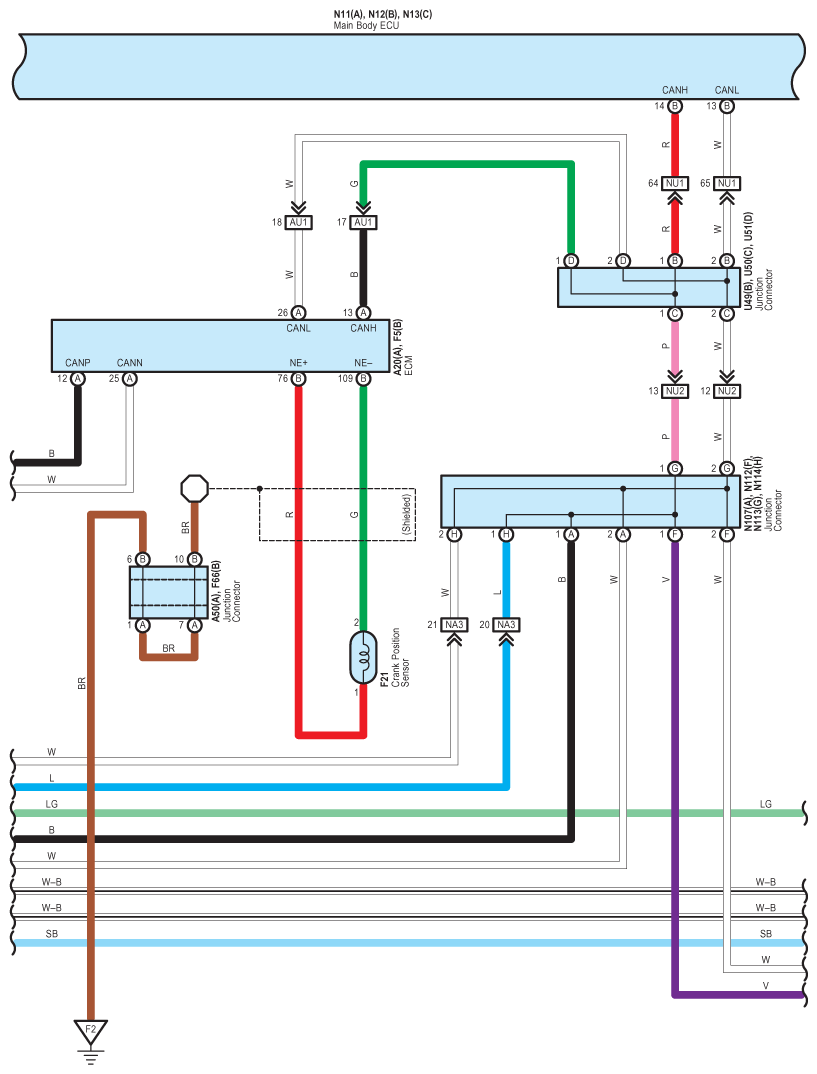

Fig 22: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (22 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (23 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (24 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (25 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (26 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (27 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

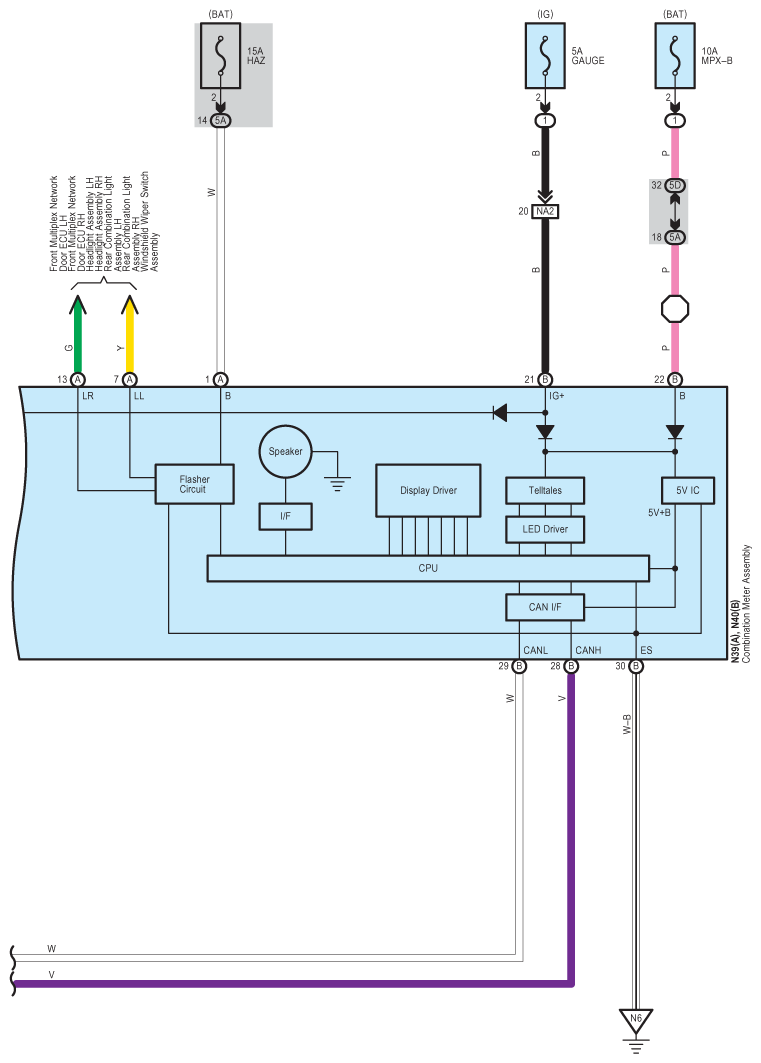

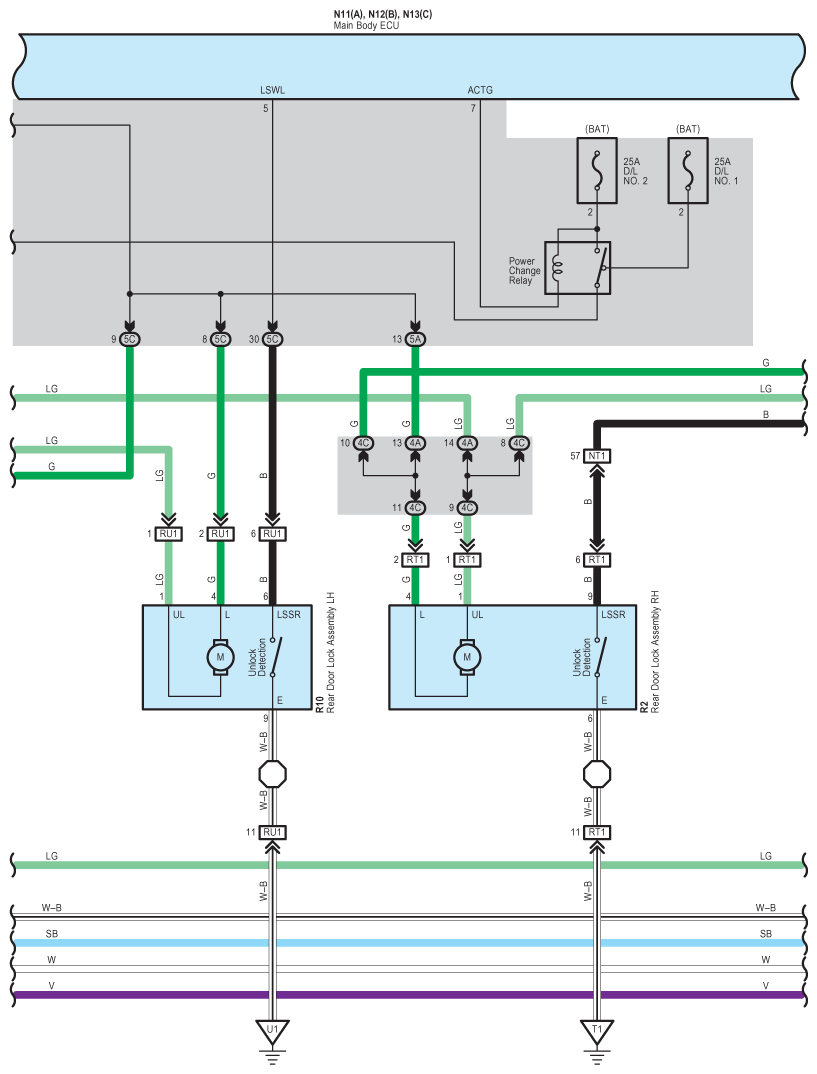

Fig 28: Hybrid Vehicle Immobilizer, Starting, Steering And Wireless Door Lock Control Wiring Diagram (28 Of 28)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
