Interior Light: Notes

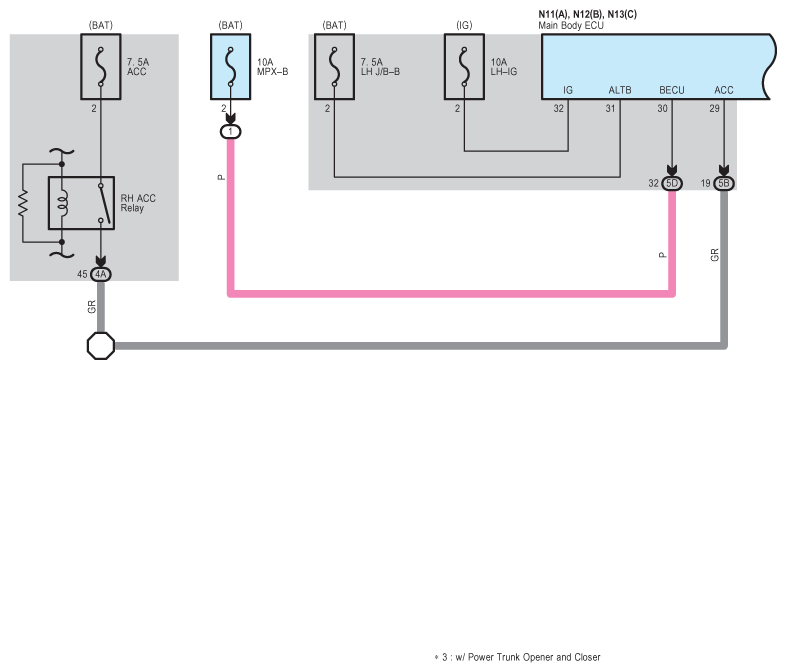

Fig 1: Interior Light Wiring Diagram (1 Of 14)

G09117806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

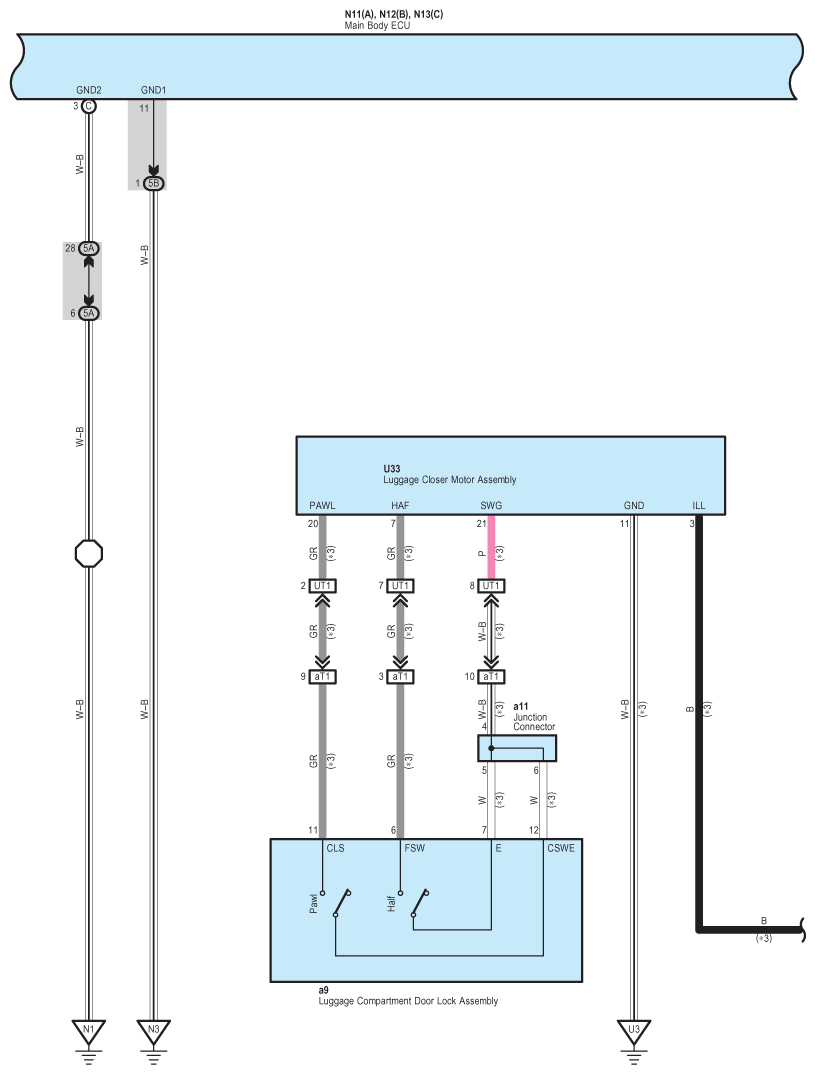

Fig 2: Interior Light Wiring Diagram (2 Of 14)

G09117807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

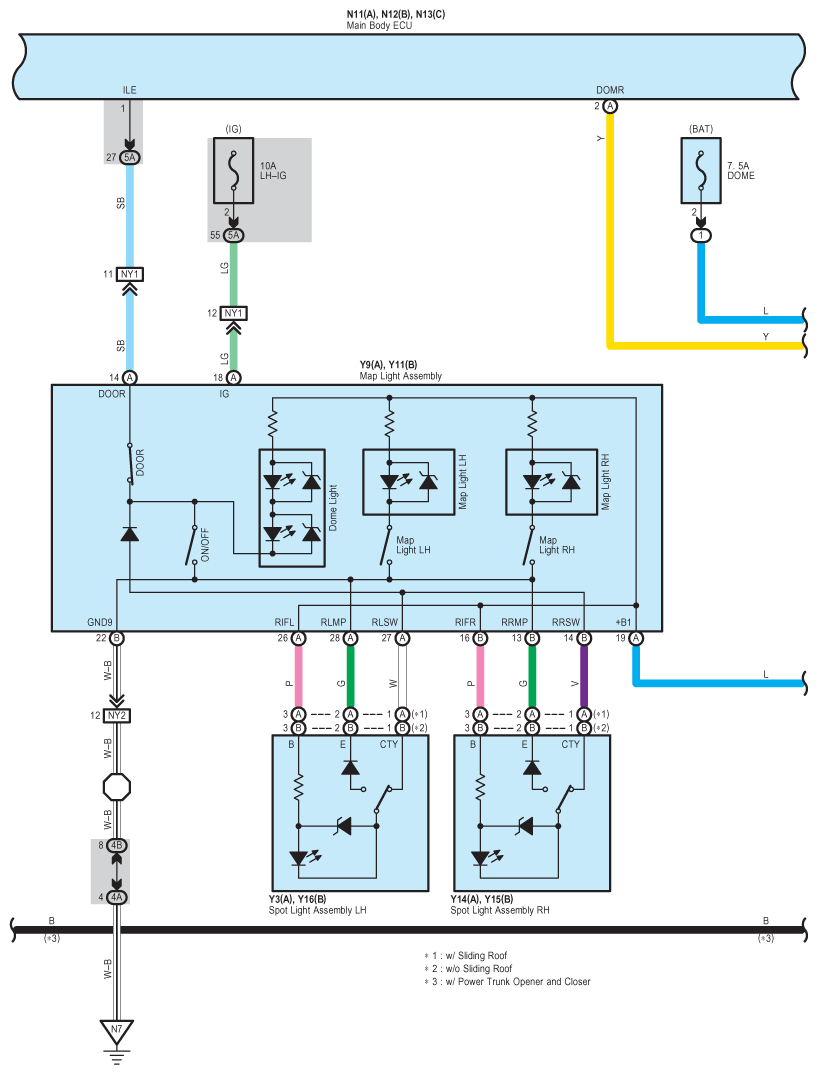

Fig 3: Interior Light Wiring Diagram (3 Of 14)

G09117808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Interior Light Wiring Diagram (4 Of 14)

G09117809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

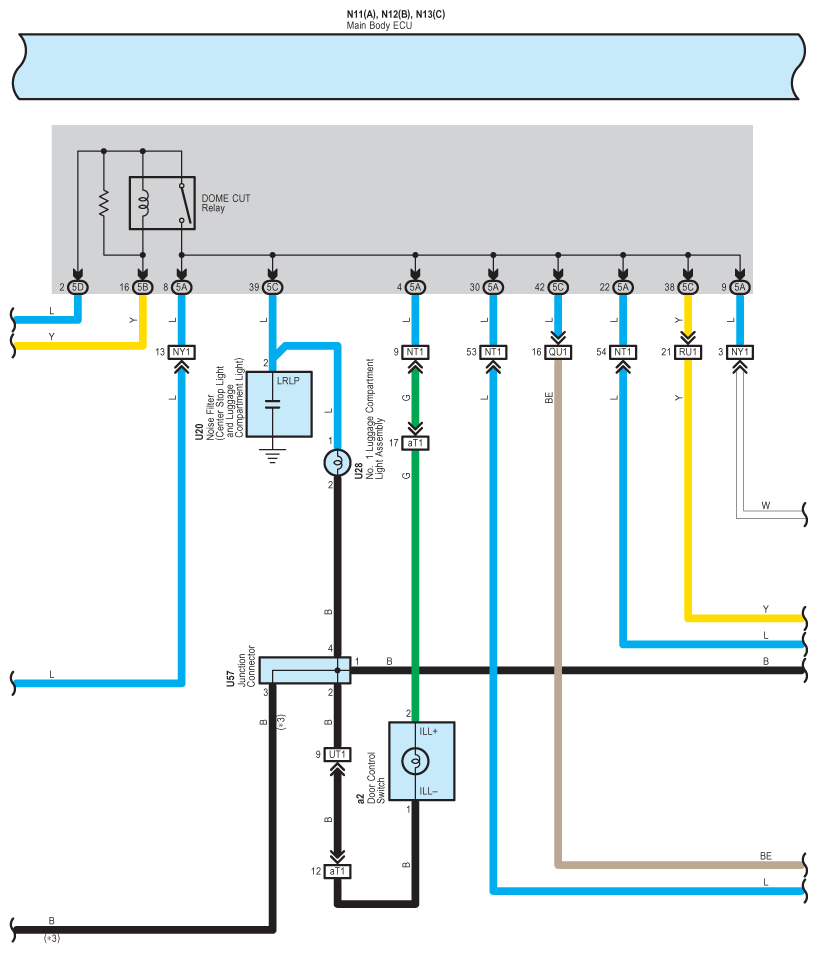

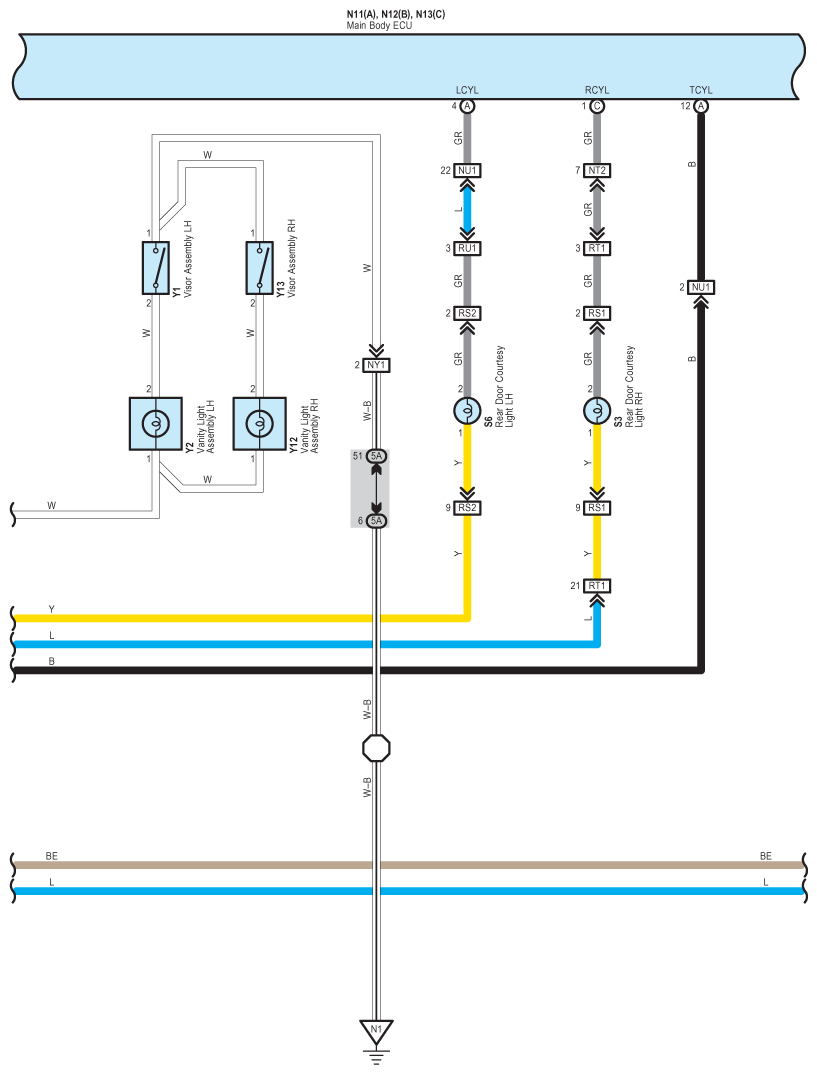

Fig 5: Interior Light Wiring Diagram (5 Of 14)

G09117810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

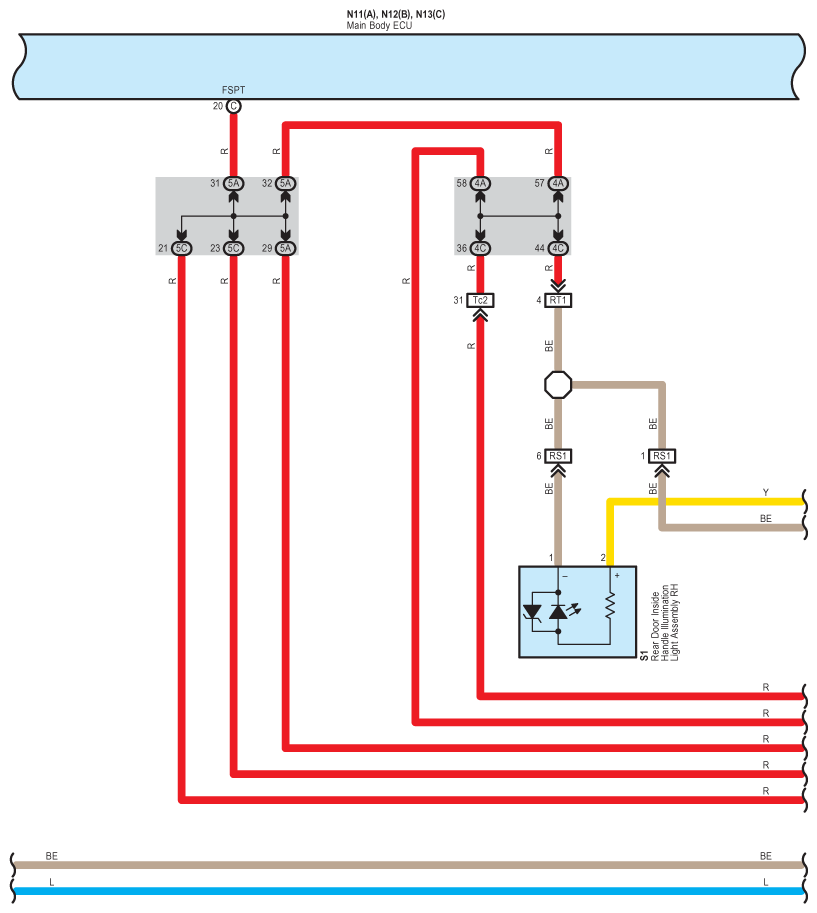

Fig 6: Interior Light Wiring Diagram (6 Of 14)

G09117811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

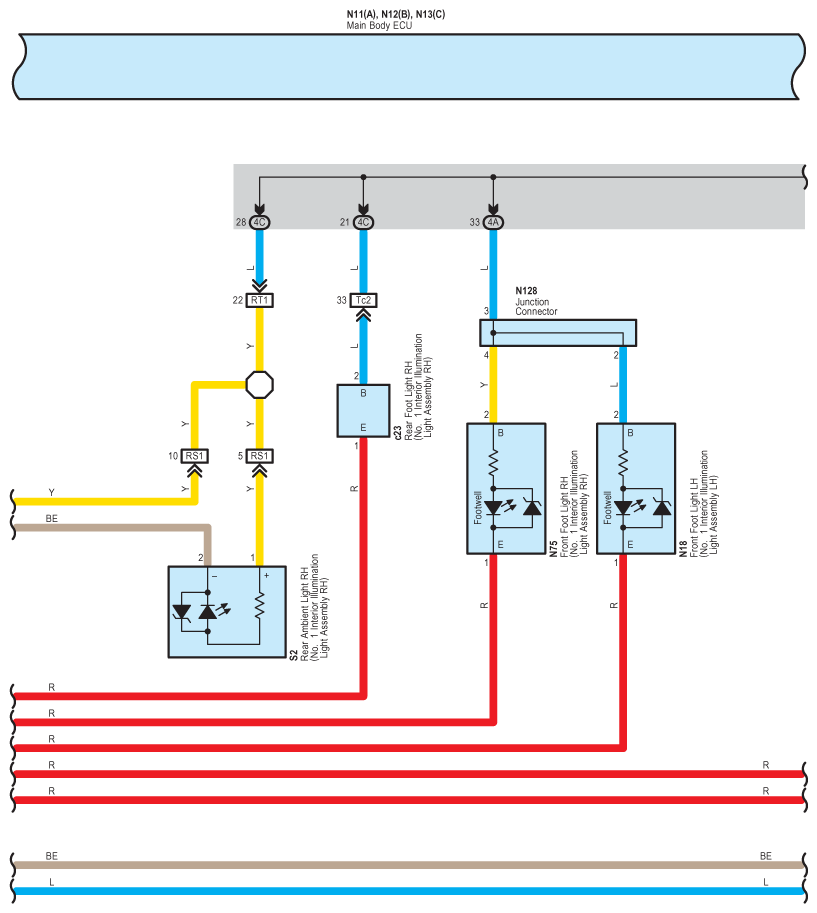

Fig 7: Interior Light Wiring Diagram (7 Of 14)

G09117812

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Interior Light Wiring Diagram (8 Of 14)

G09117813

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Interior Light Wiring Diagram (9 Of 14)

G09117814

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

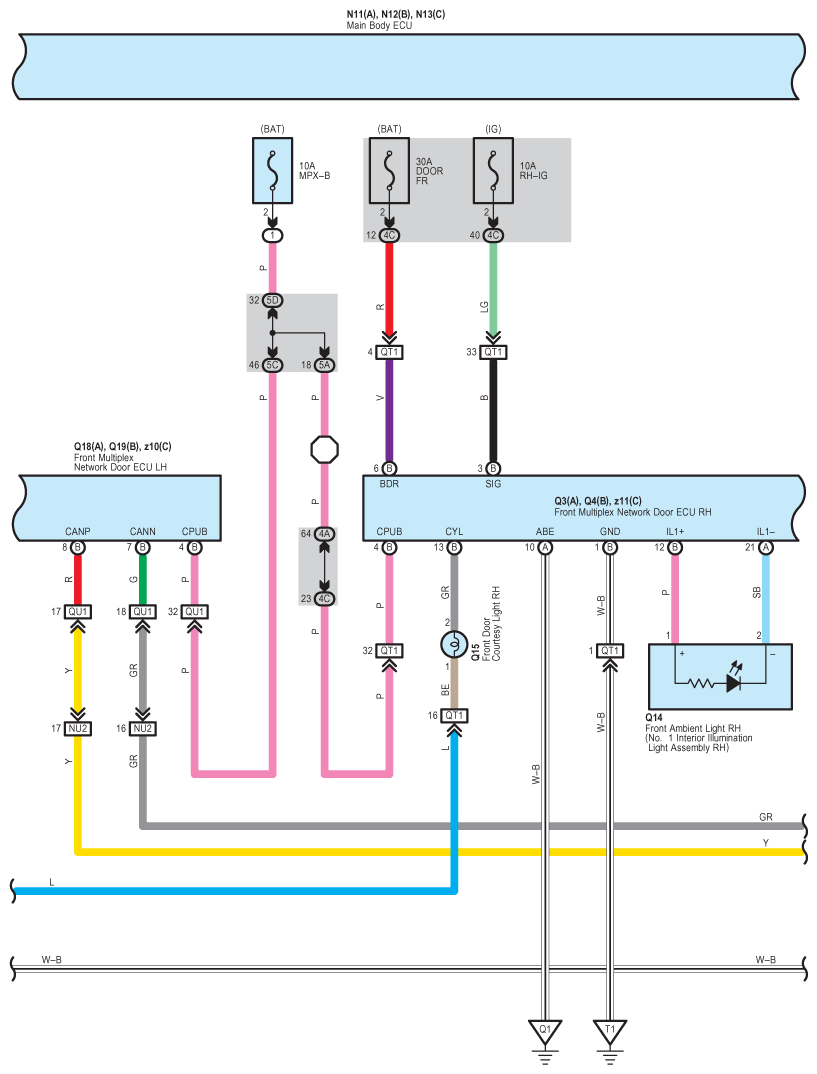

Fig 10: Interior Light Wiring Diagram (10 Of 14)

G09117815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

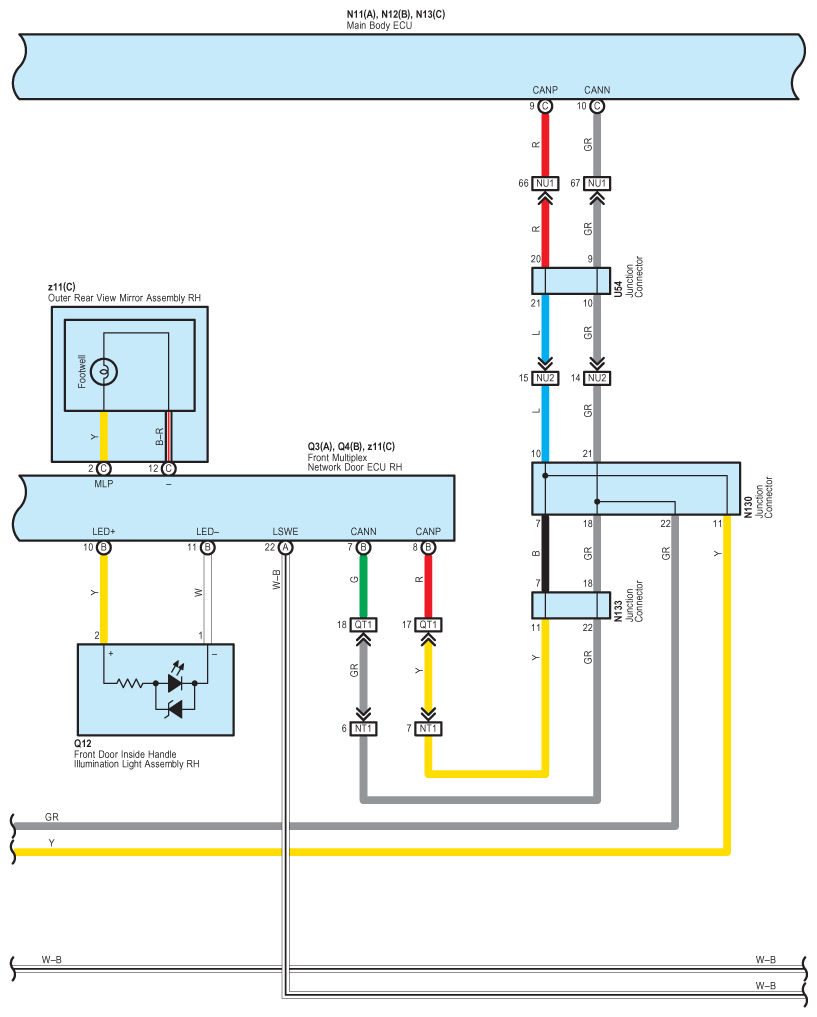

Fig 11: Interior Light Wiring Diagram (11 Of 14)

G09117816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Interior Light Wiring Diagram (12 Of 14)

G09117817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

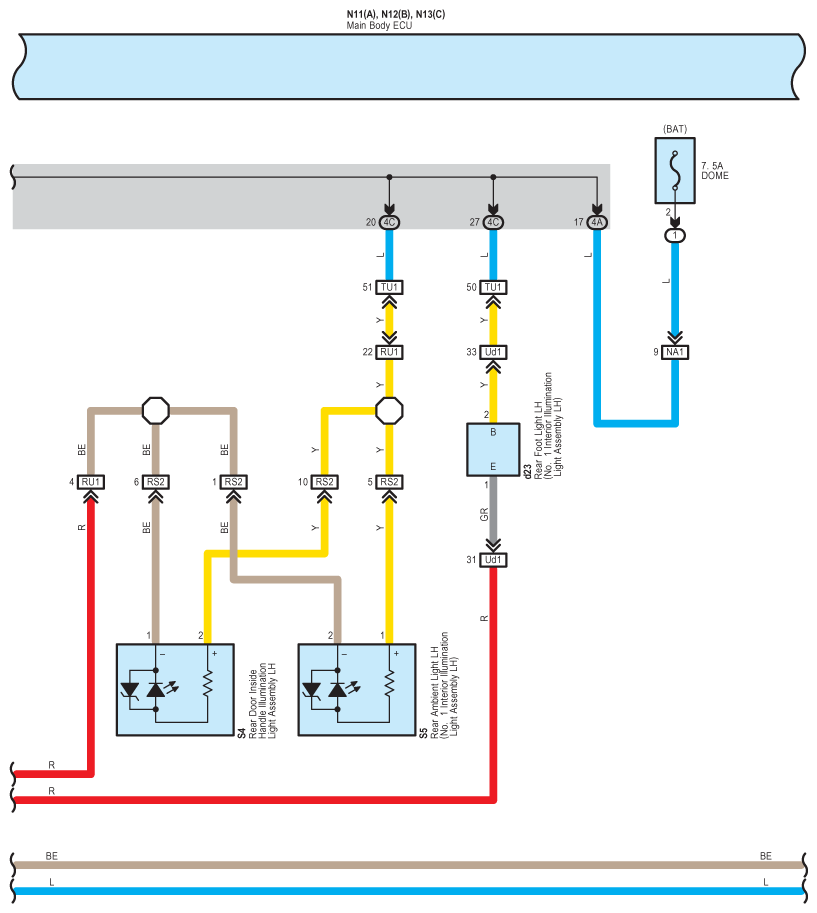

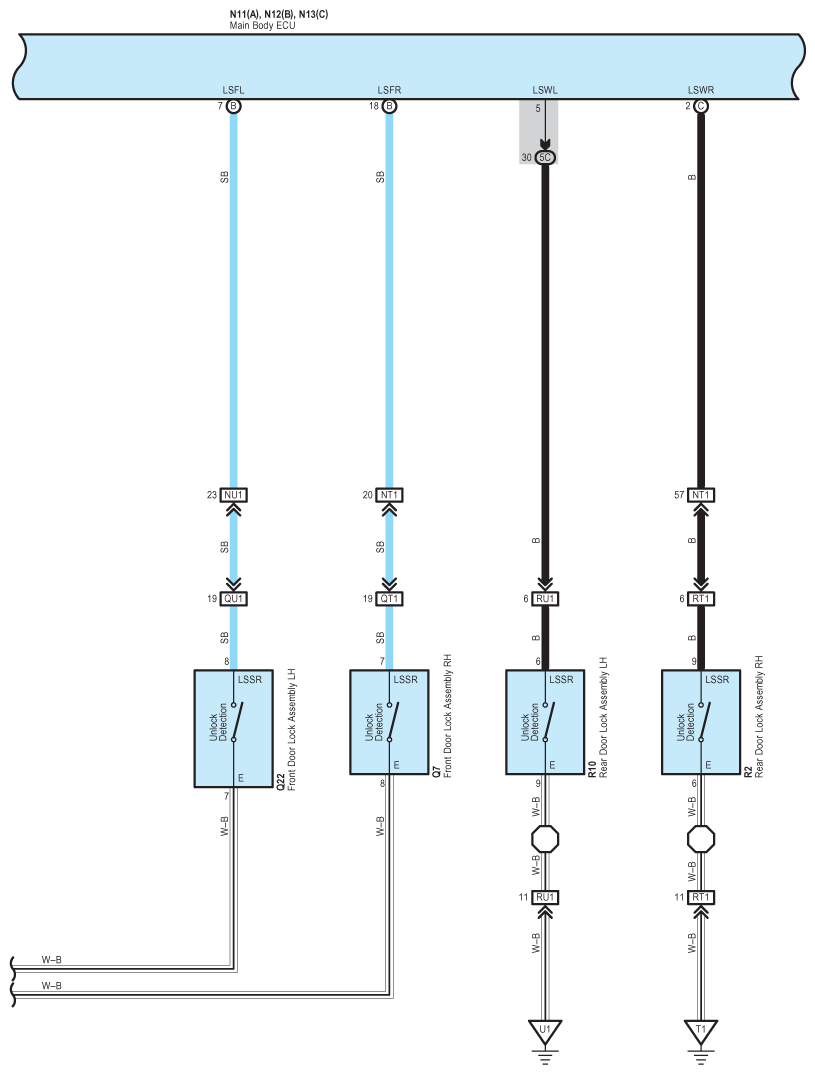

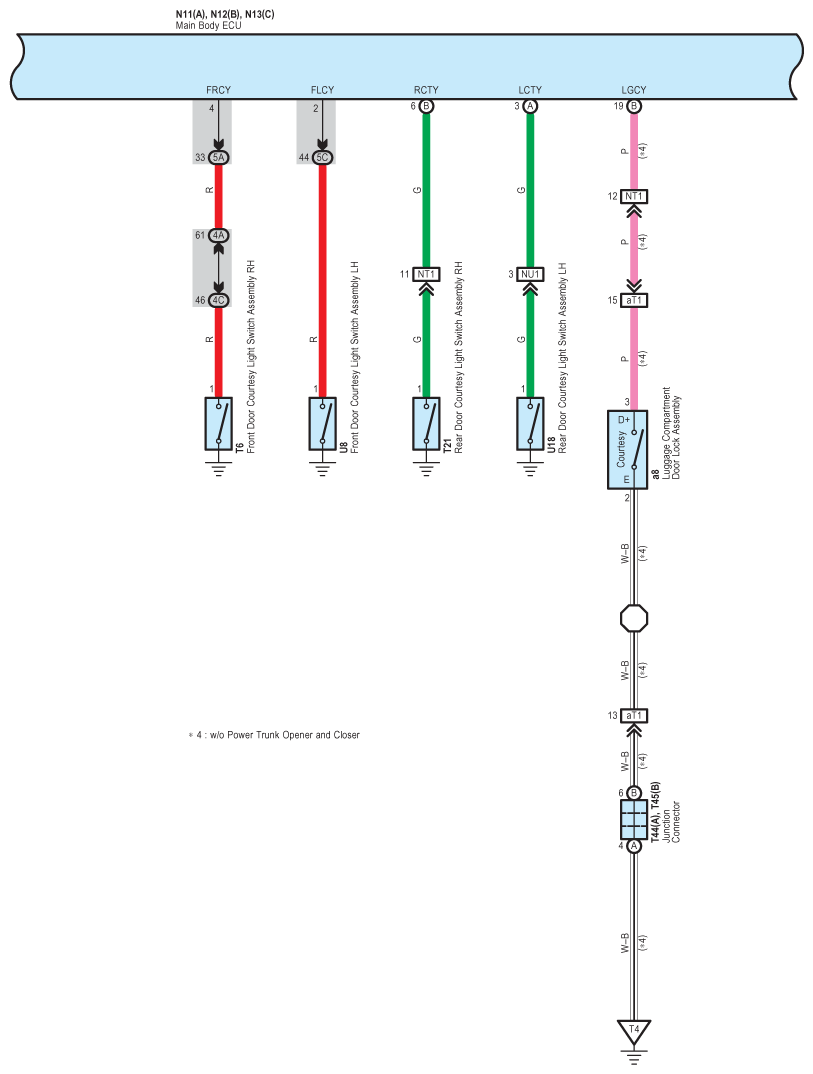

Fig 13: Interior Light Wiring Diagram (13 Of 14)

G09117818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

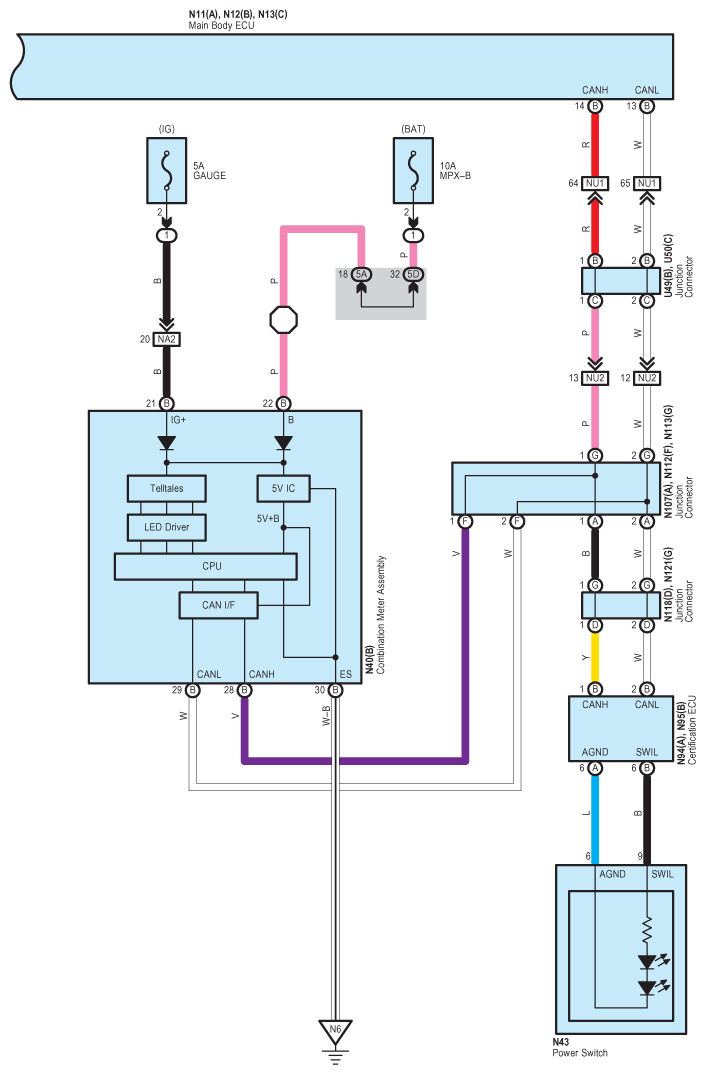

Fig 14: Interior Light Wiring Diagram (14 Of 14)

G09117819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
