LEXUS Night View System: Notes

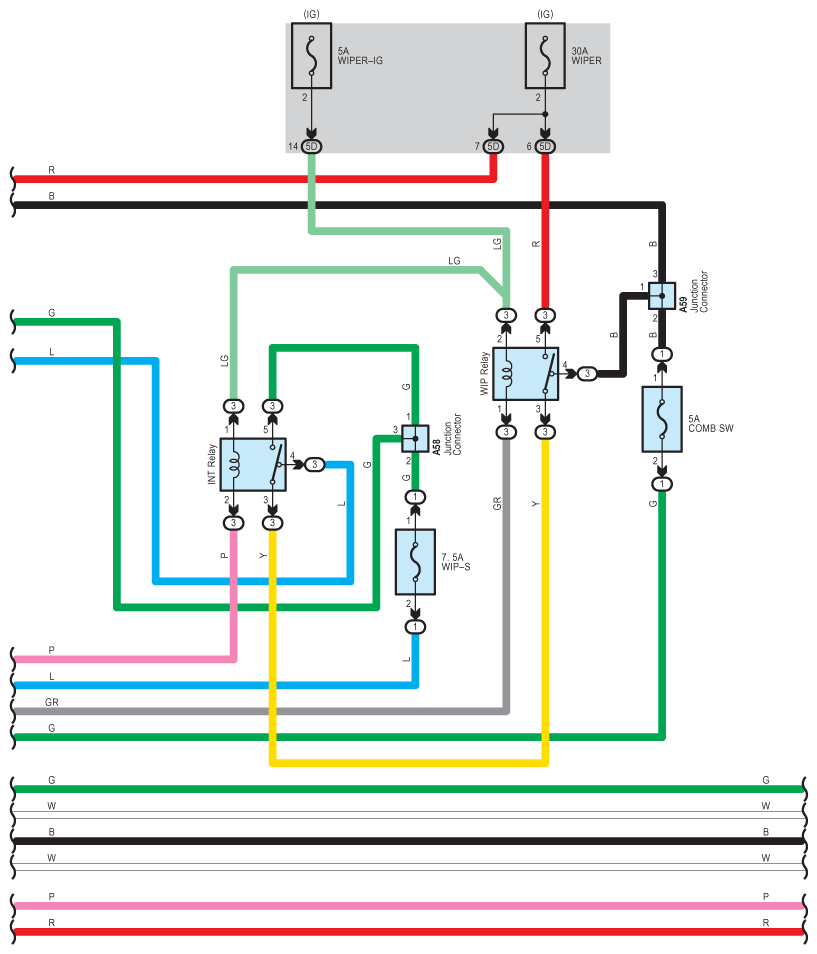

Fig 1: Lexus Night View System Wiring Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

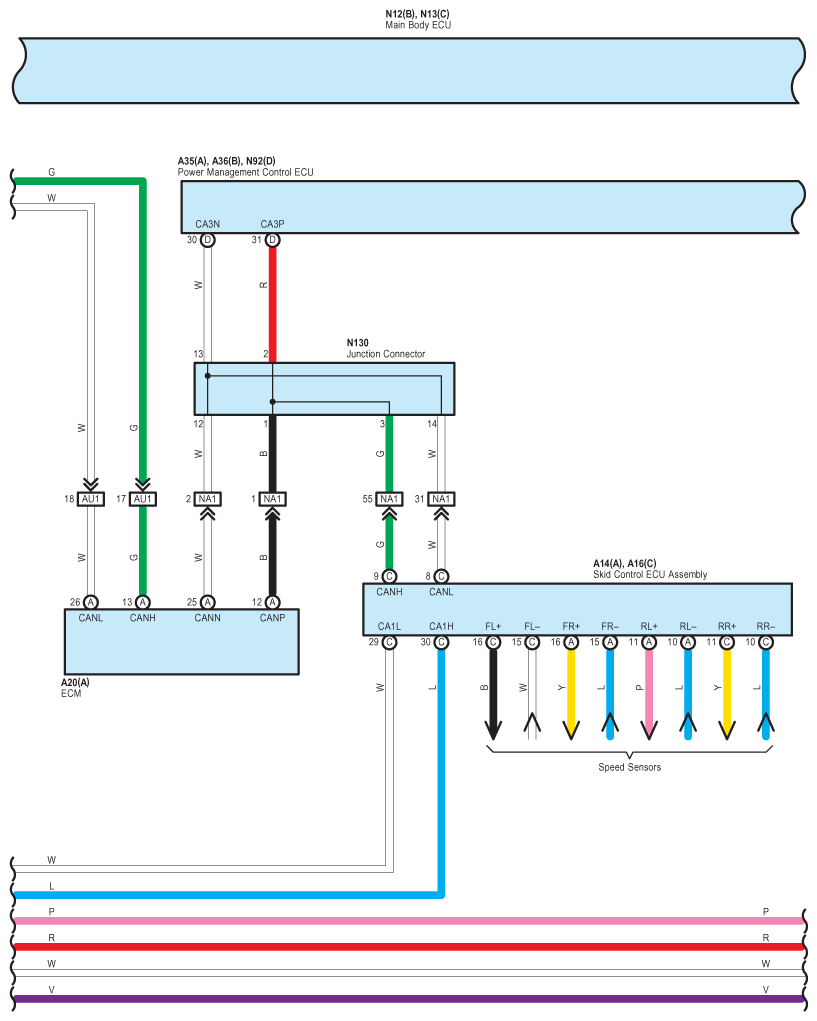

Fig 2: Lexus Night View System Wiring Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

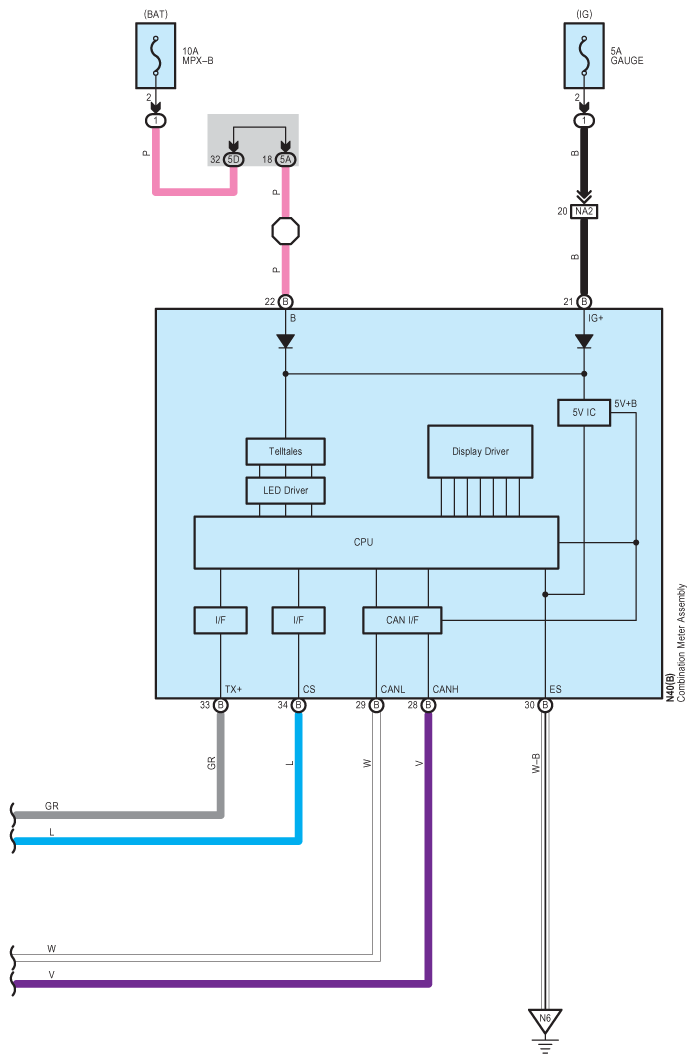

Fig 3: Lexus Night View System Wiring Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

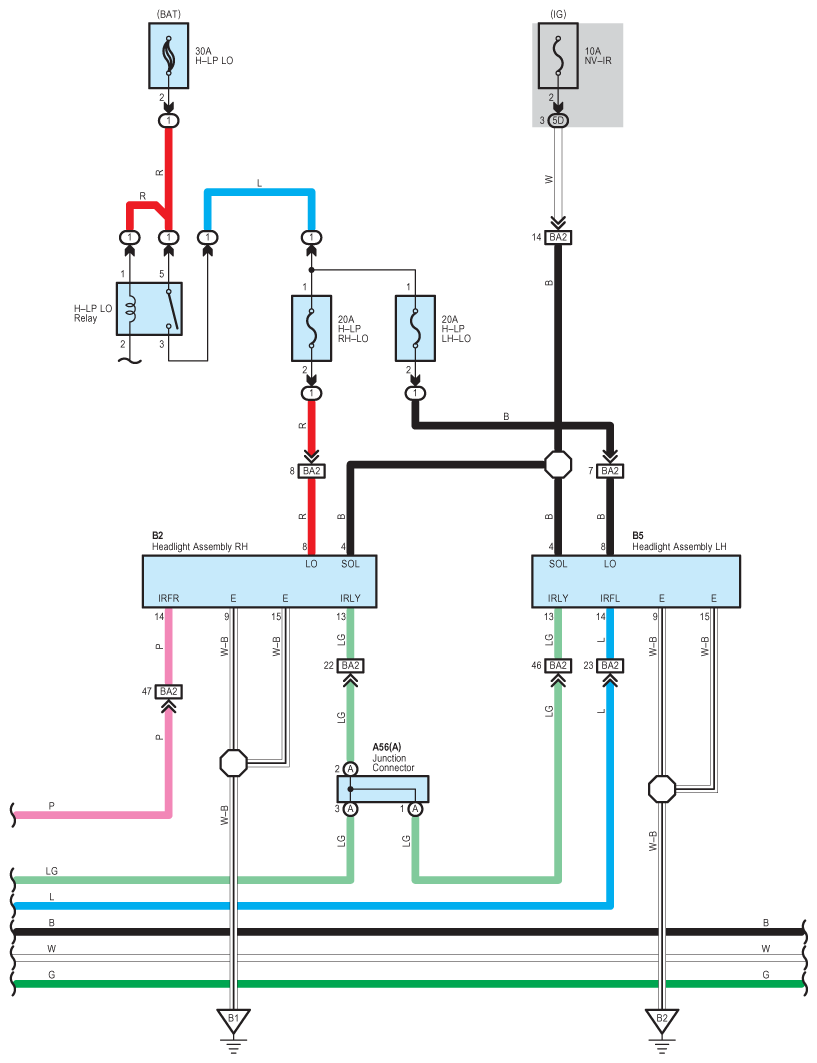

Fig 4: Lexus Night View System Wiring Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

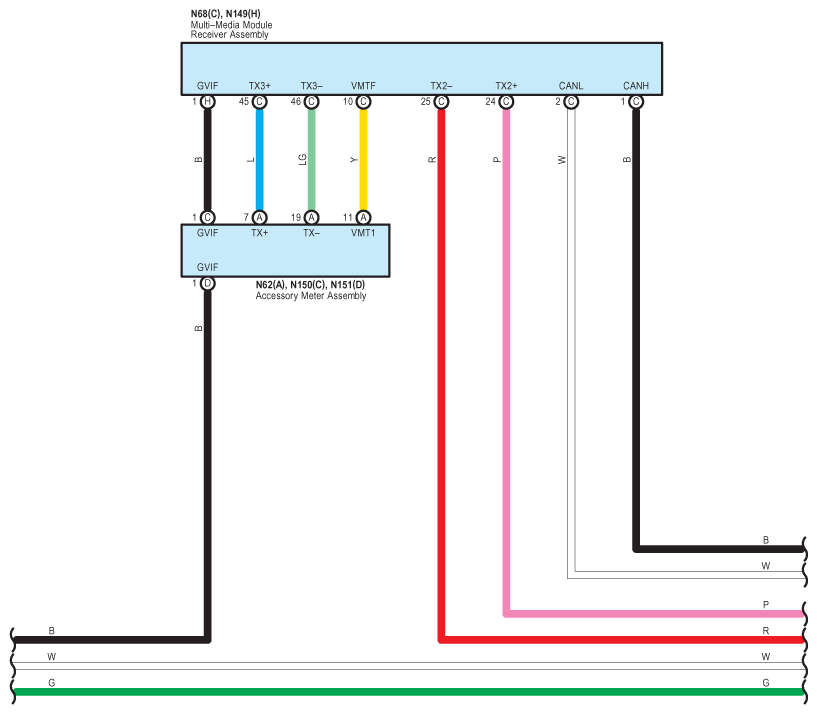

Fig 5: Lexus Night View System Wiring Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

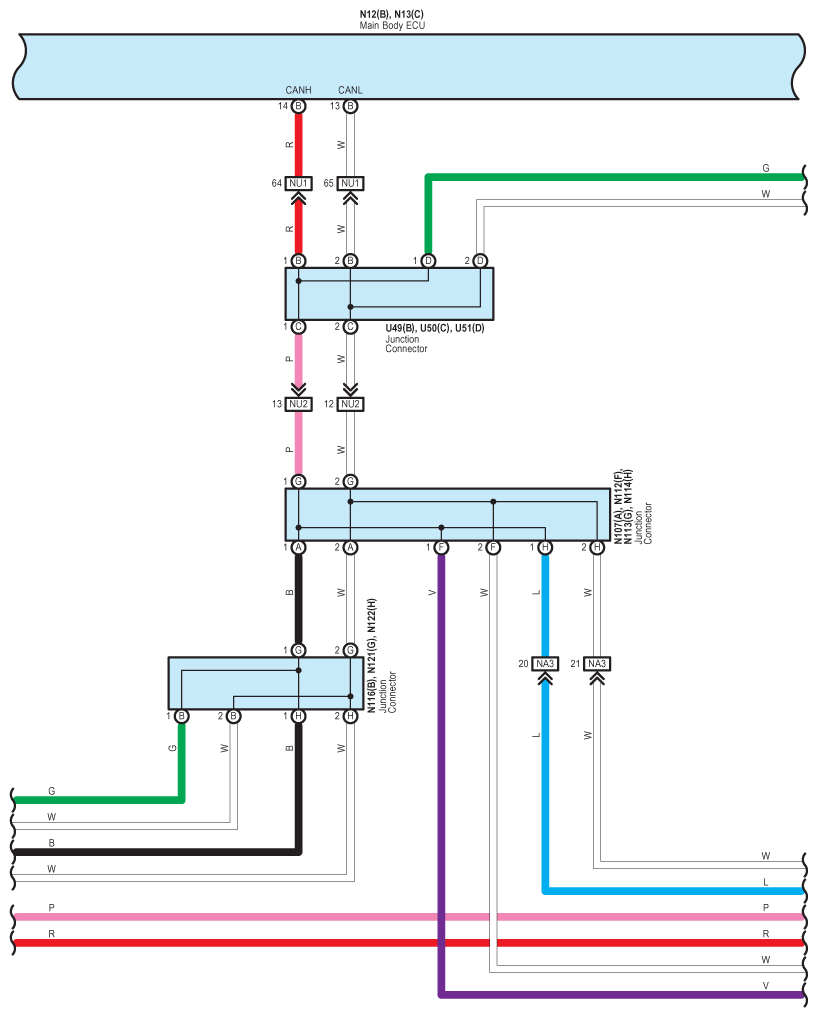

Fig 6: Lexus Night View System Wiring Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

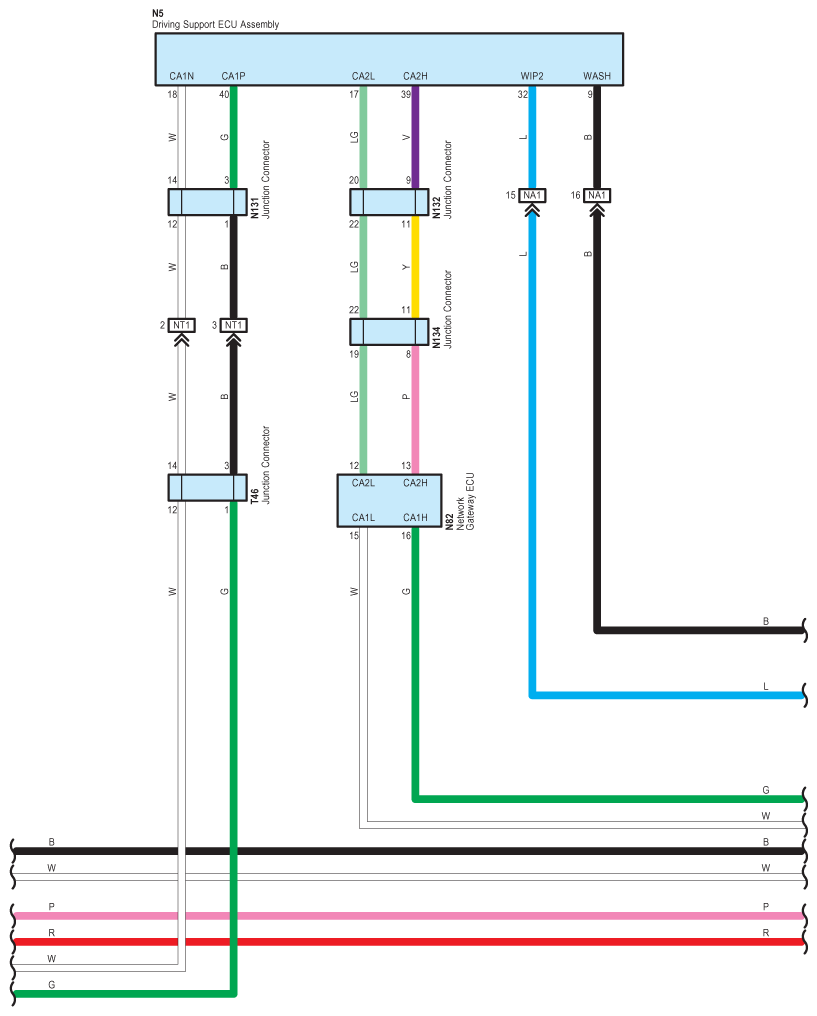

Fig 7: Lexus Night View System Wiring Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

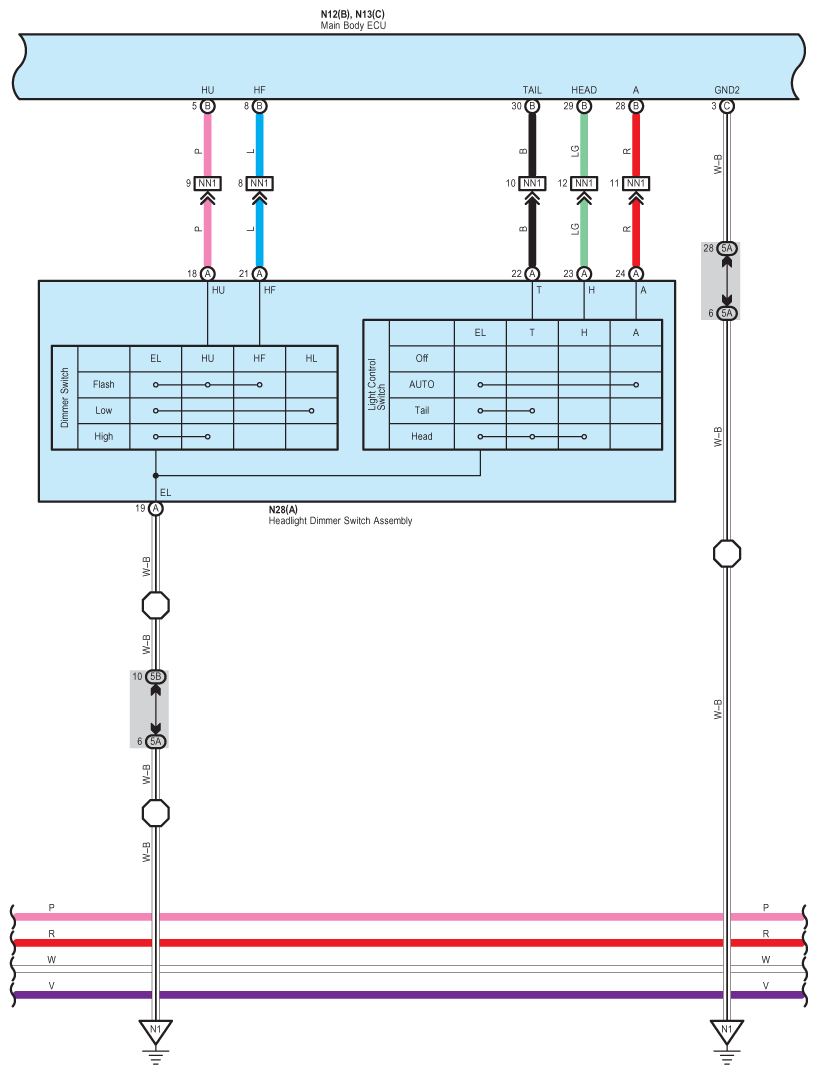

Fig 8: Lexus Night View System Wiring Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

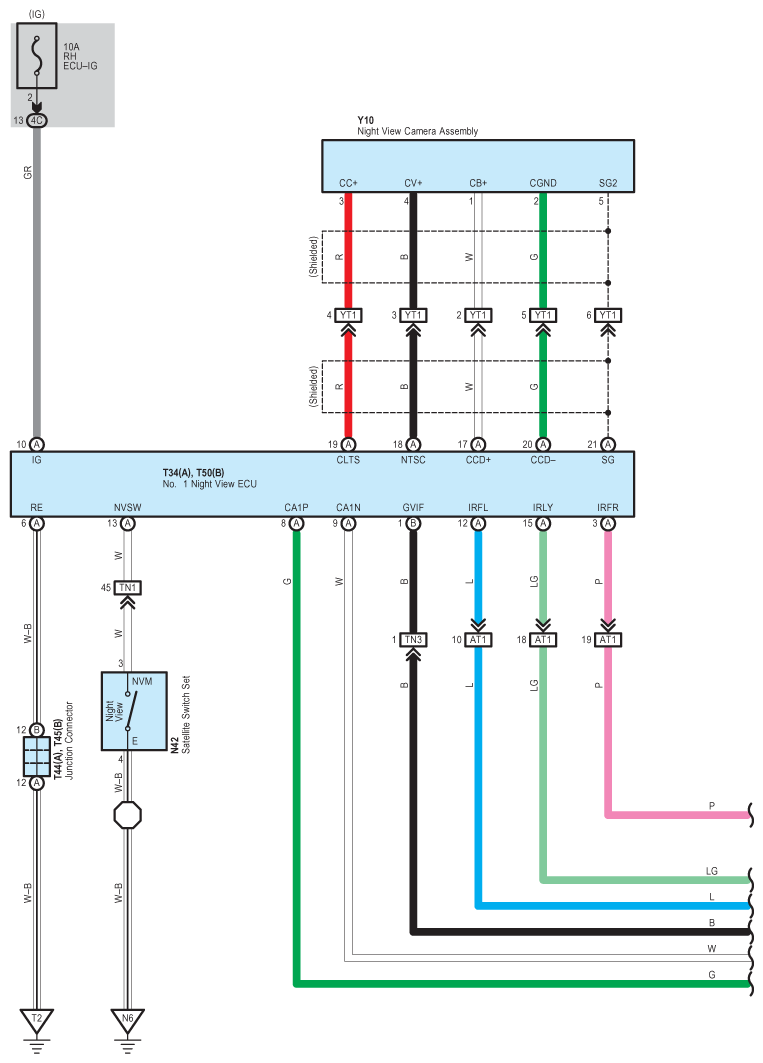

Fig 9: Lexus Night View System Wiring Diagram (9 Of 13)

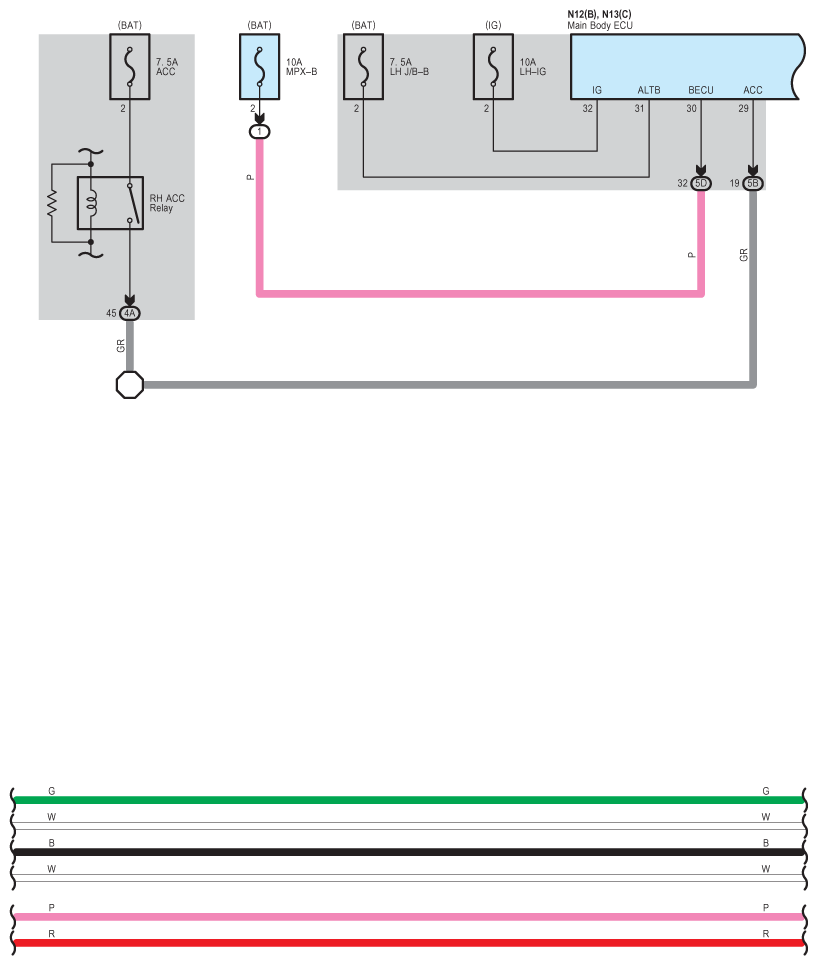

Fig 10: Lexus Night View System Wiring Diagram (10 Of 13)

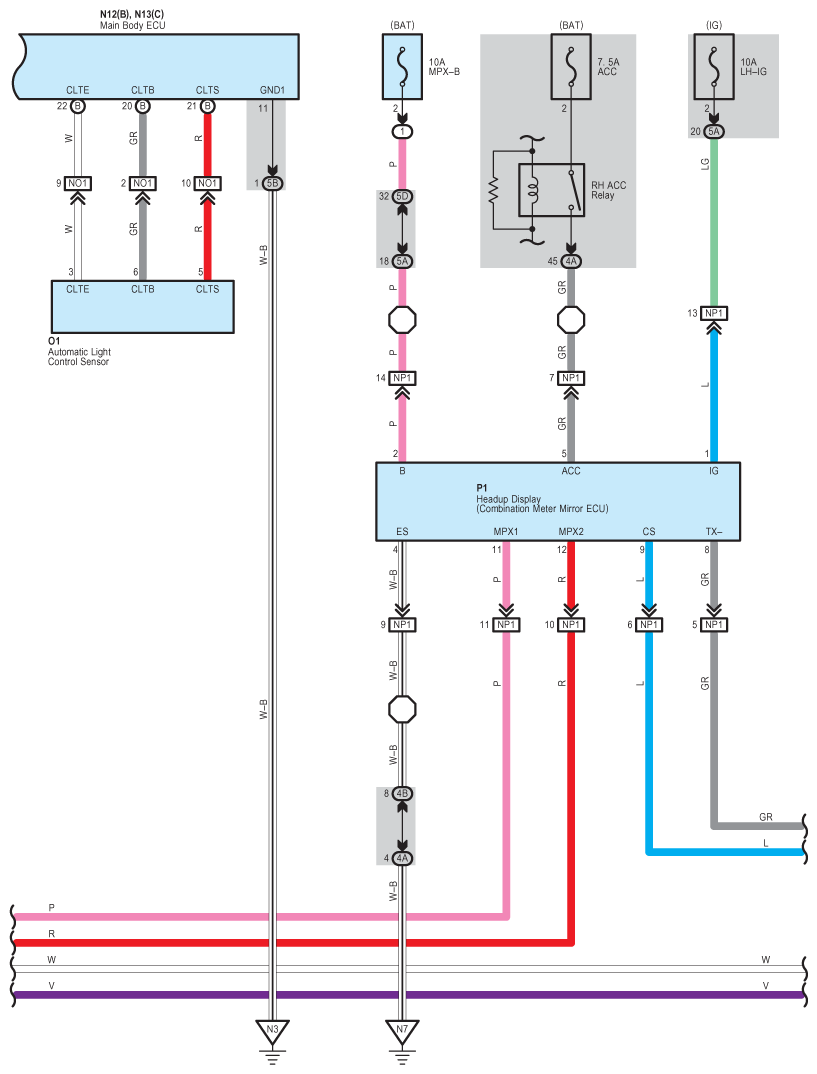

Fig 11: Lexus Night View System Wiring Diagram (11 Of 13)

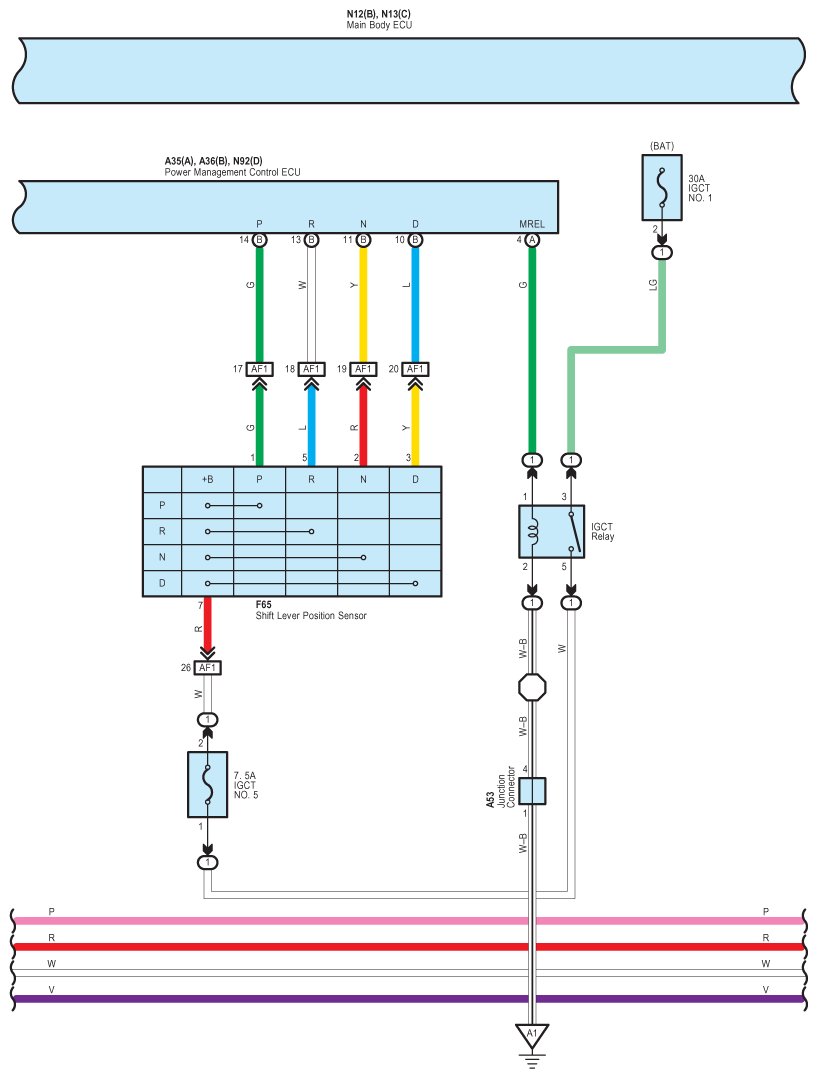

Fig 12: Lexus Night View System Wiring Diagram (12 Of 13)

Fig 13: Lexus Night View System Wiring Diagram (13 Of 13)
