Lane Keeping Assist: Notes

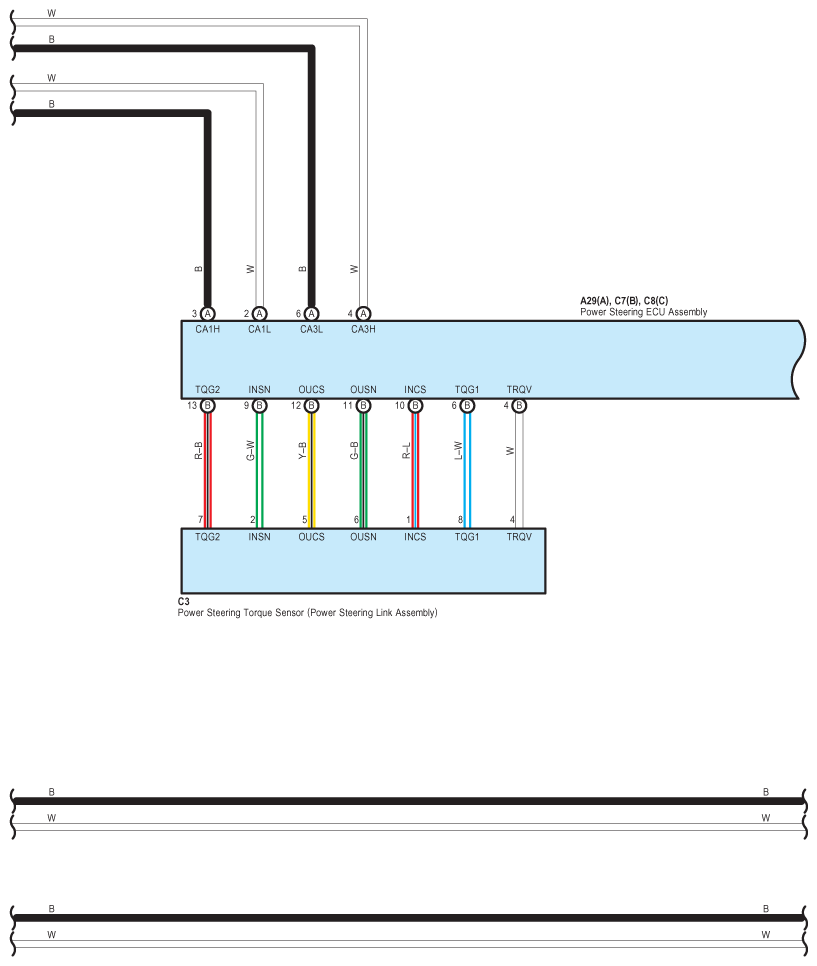

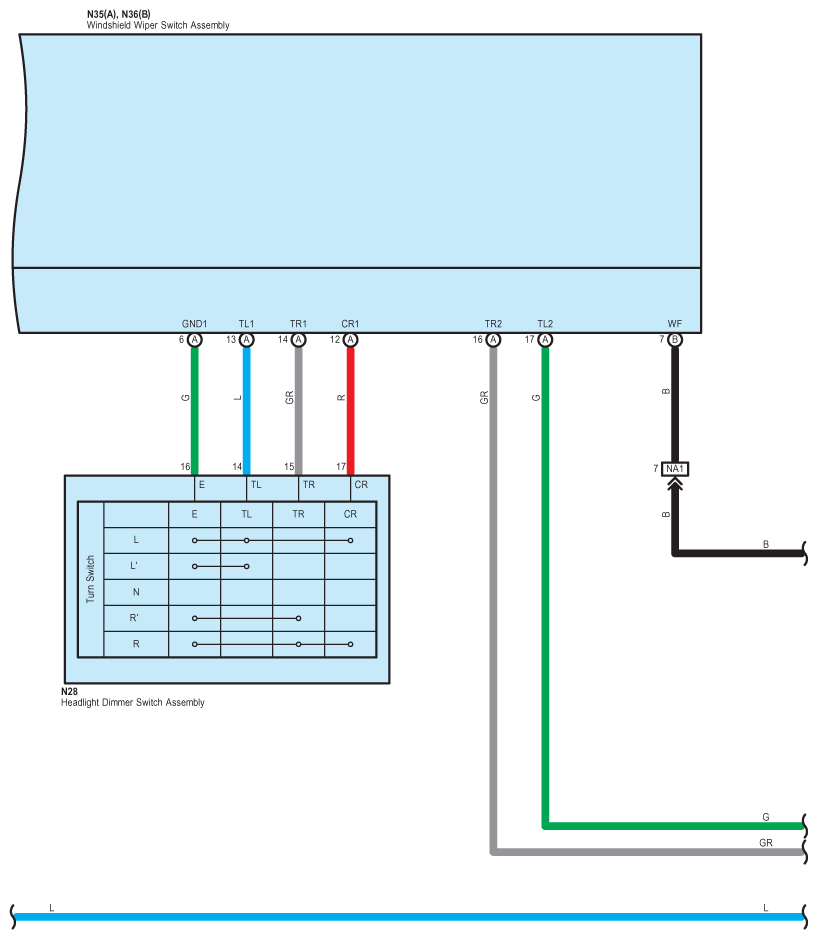

Fig 1: Lane Keeping Assist Wiring Diagram (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

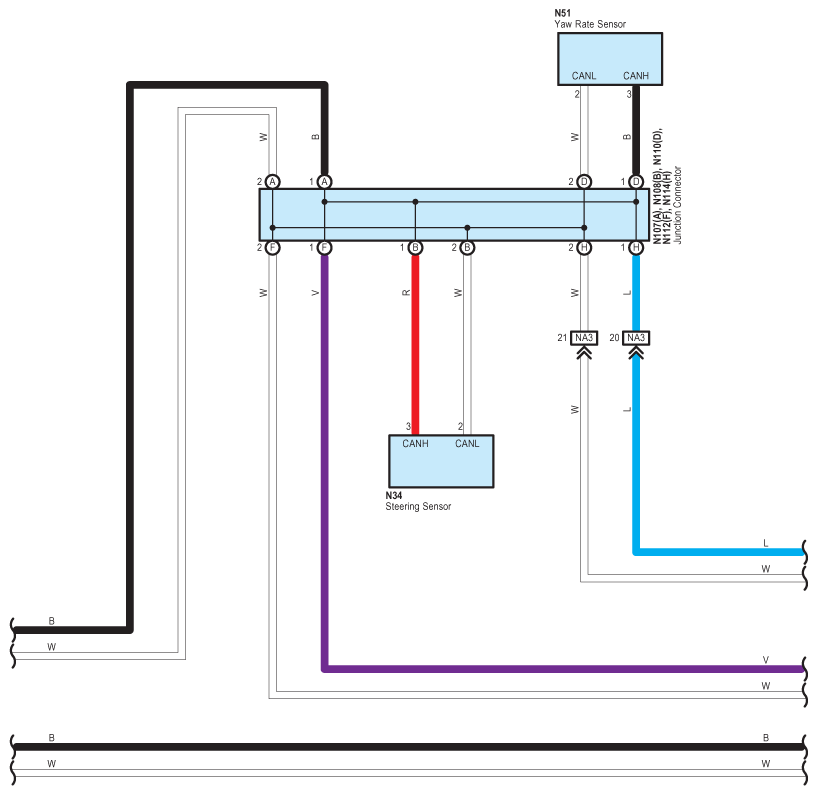

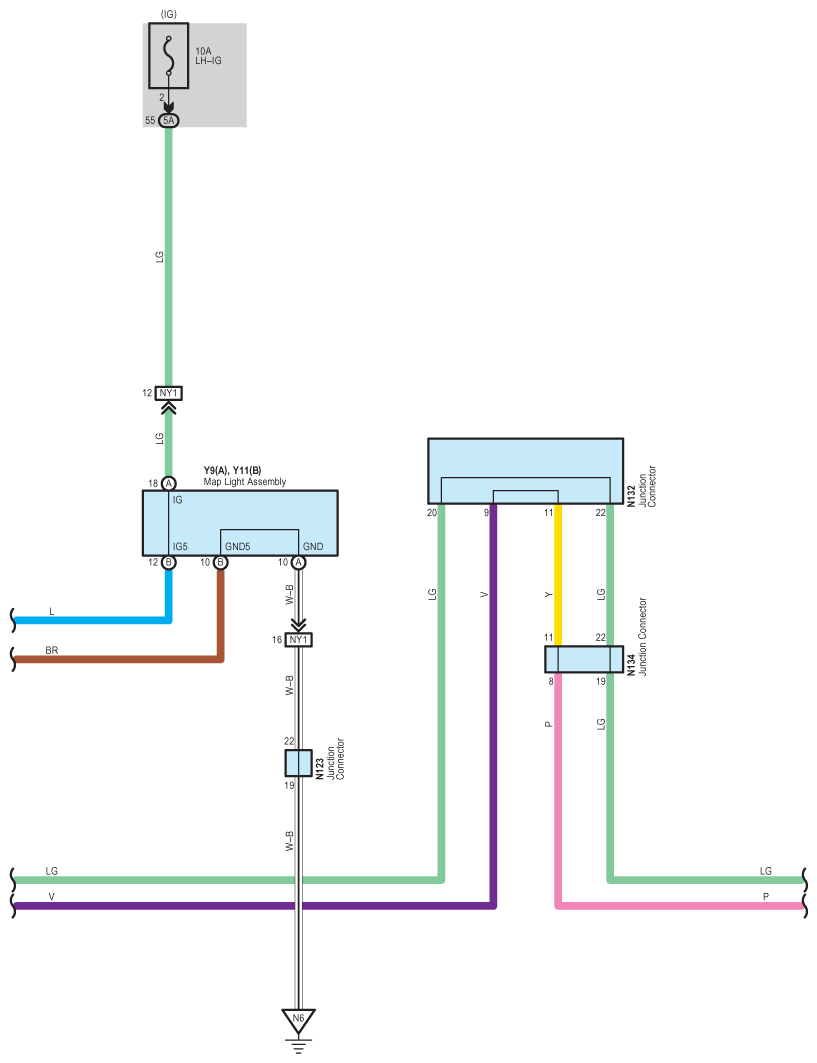

Fig 2: Lane Keeping Assist Wiring Diagram (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

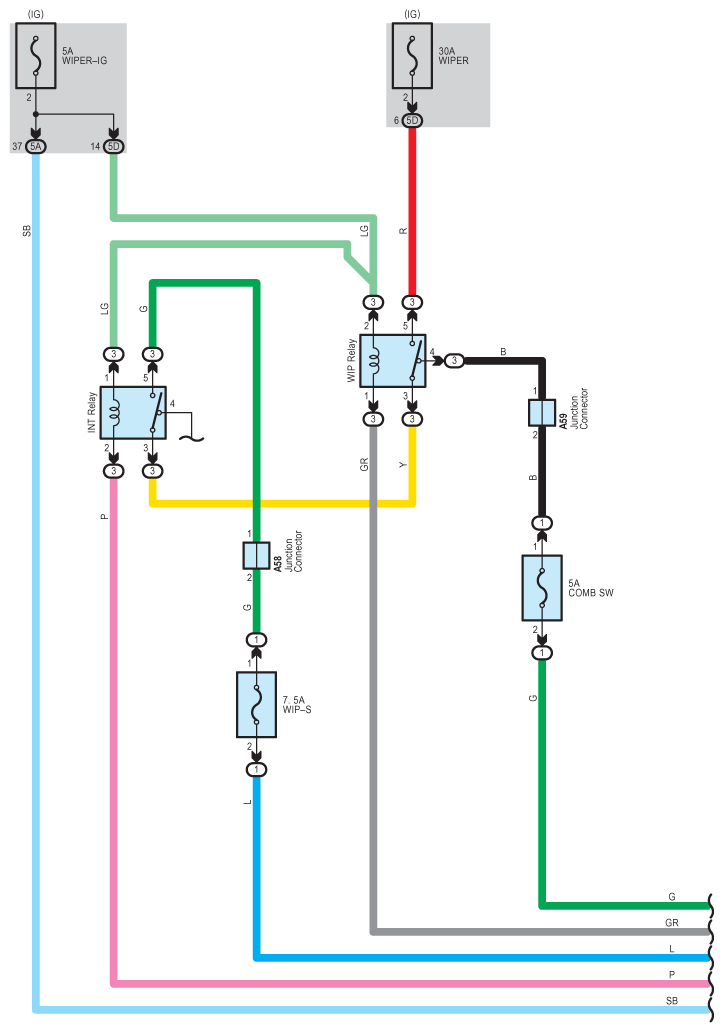

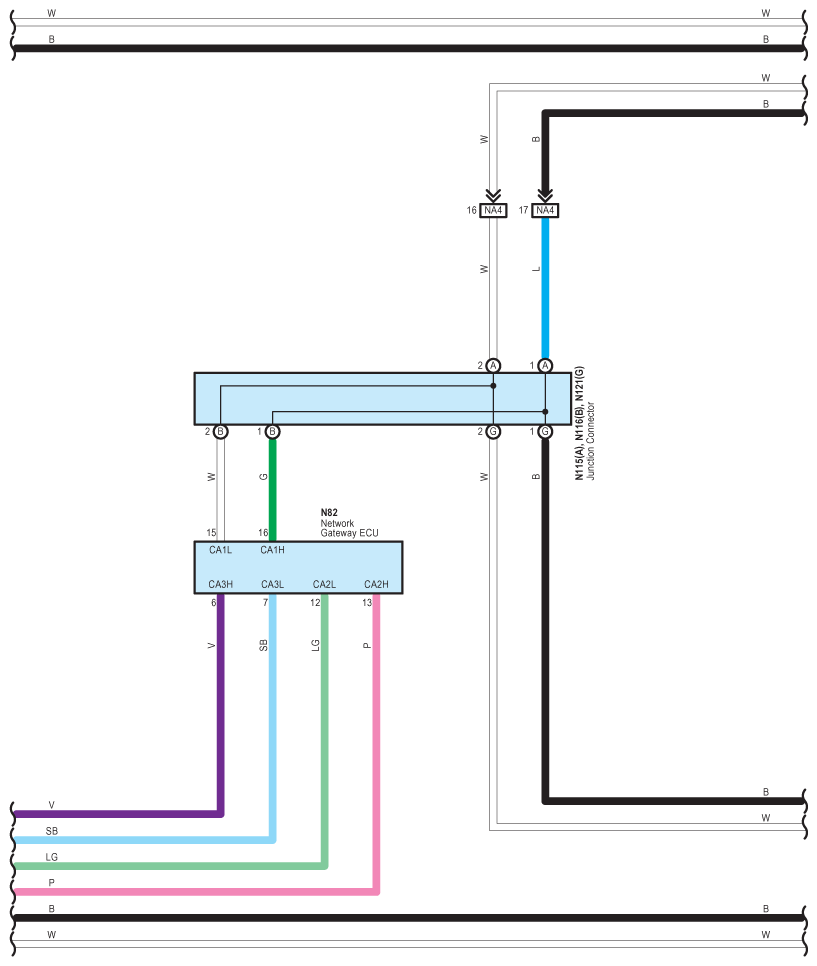

Fig 3: Lane Keeping Assist Wiring Diagram (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

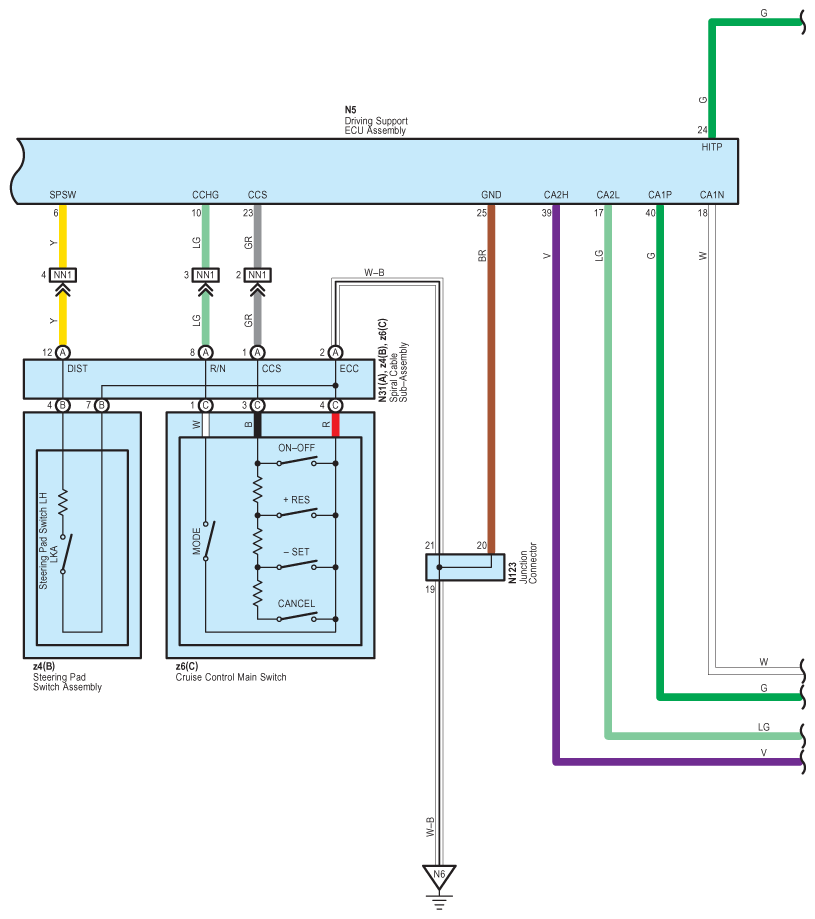

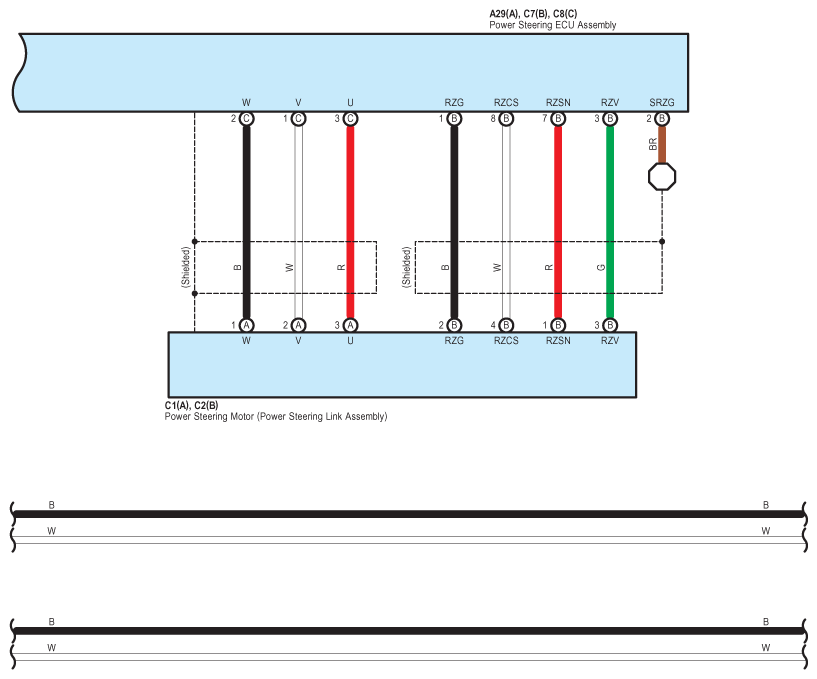

Fig 4: Lane Keeping Assist Wiring Diagram (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

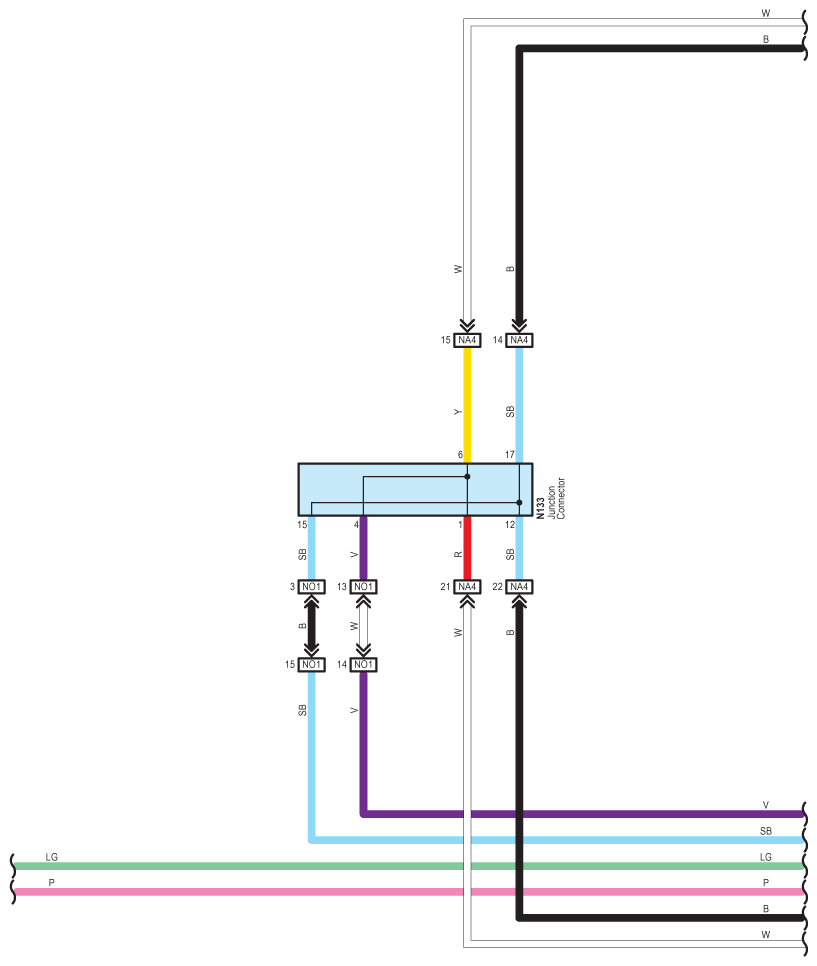

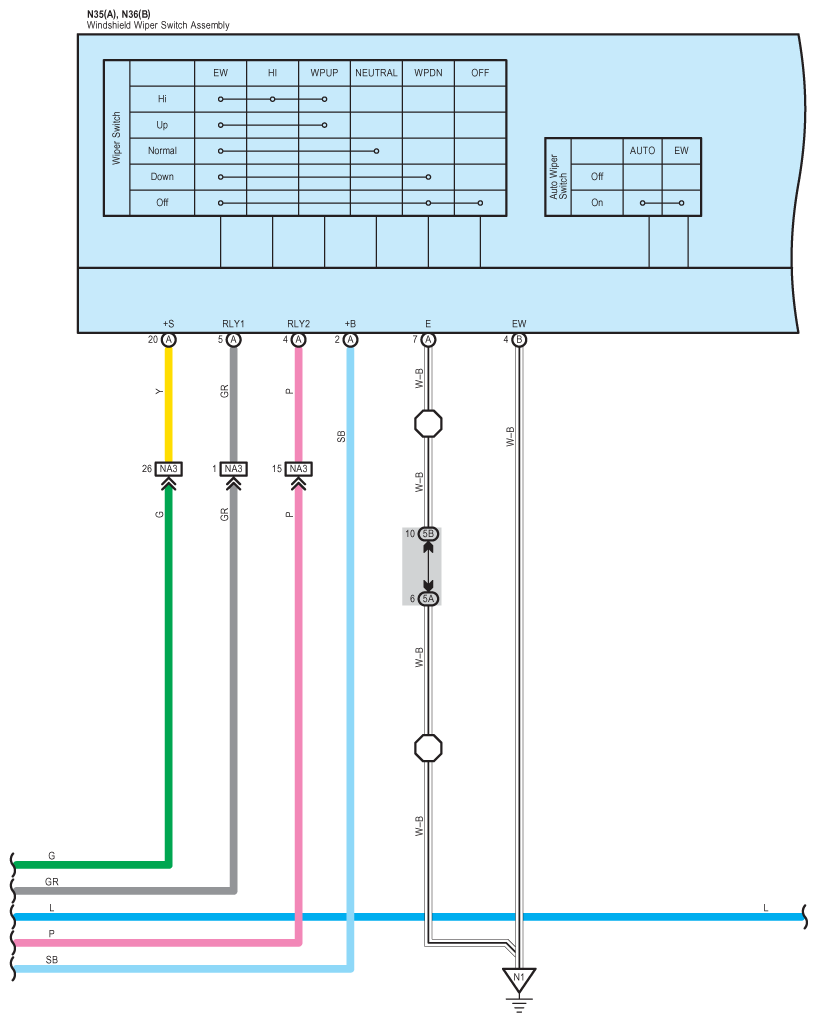

Fig 5: Lane Keeping Assist Wiring Diagram (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

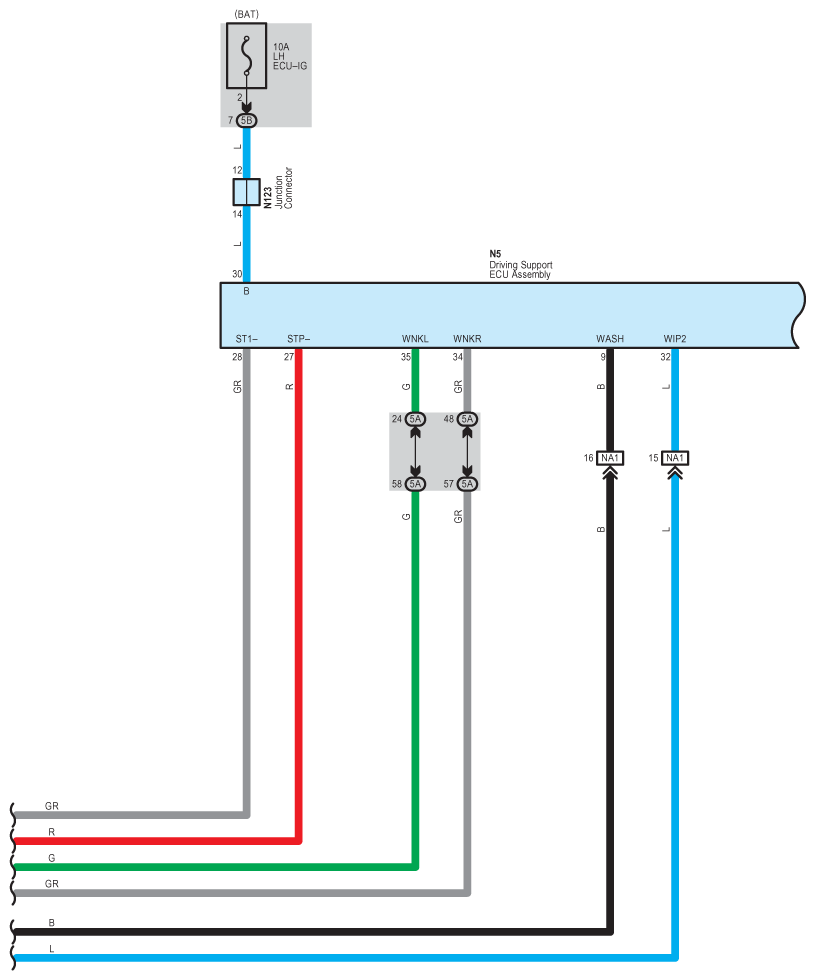

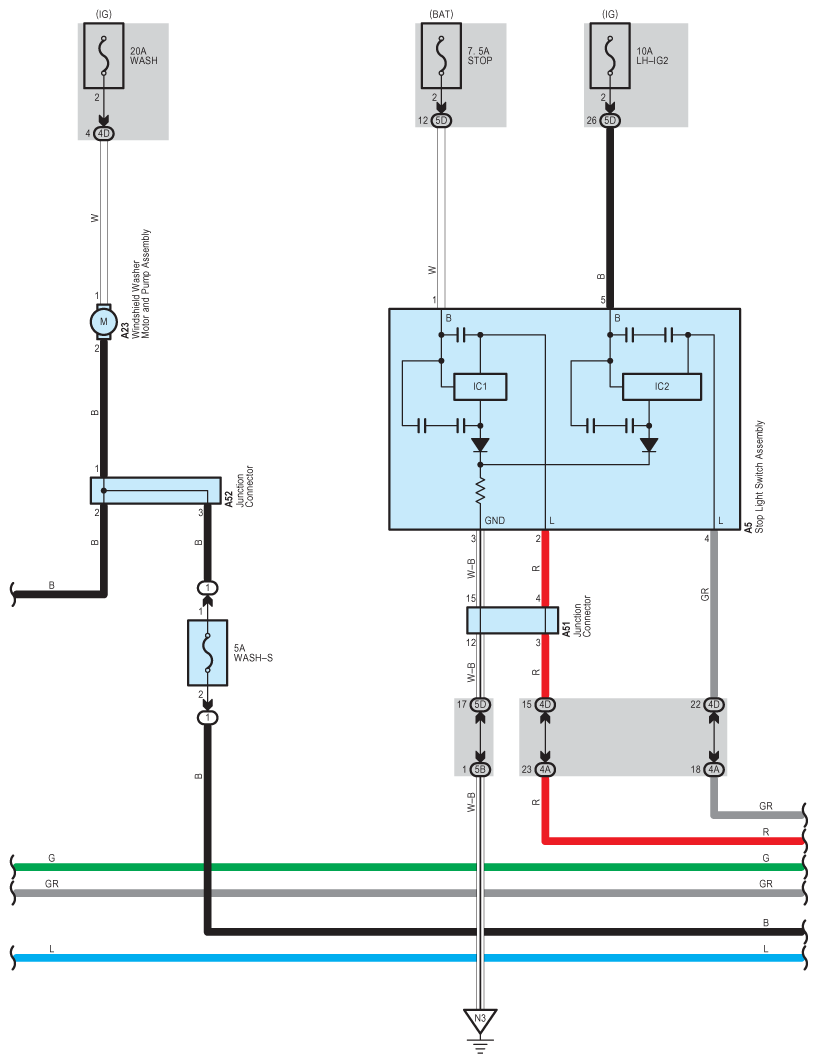

Fig 6: Lane Keeping Assist Wiring Diagram (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

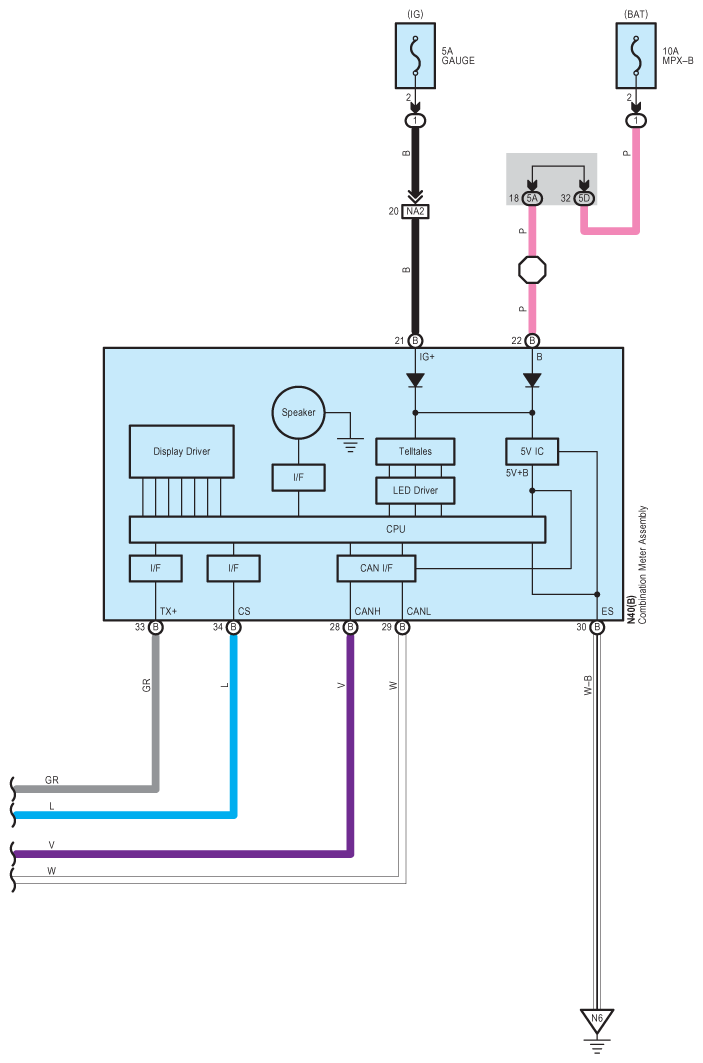

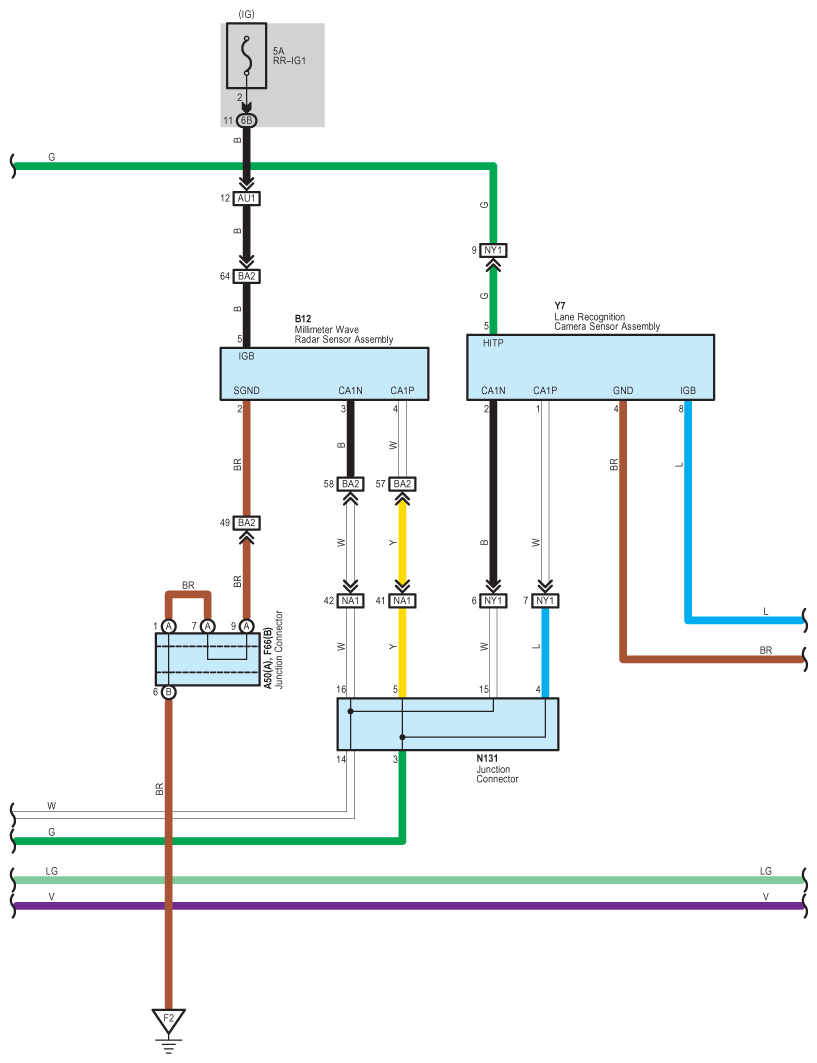

Fig 7: Lane Keeping Assist Wiring Diagram (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

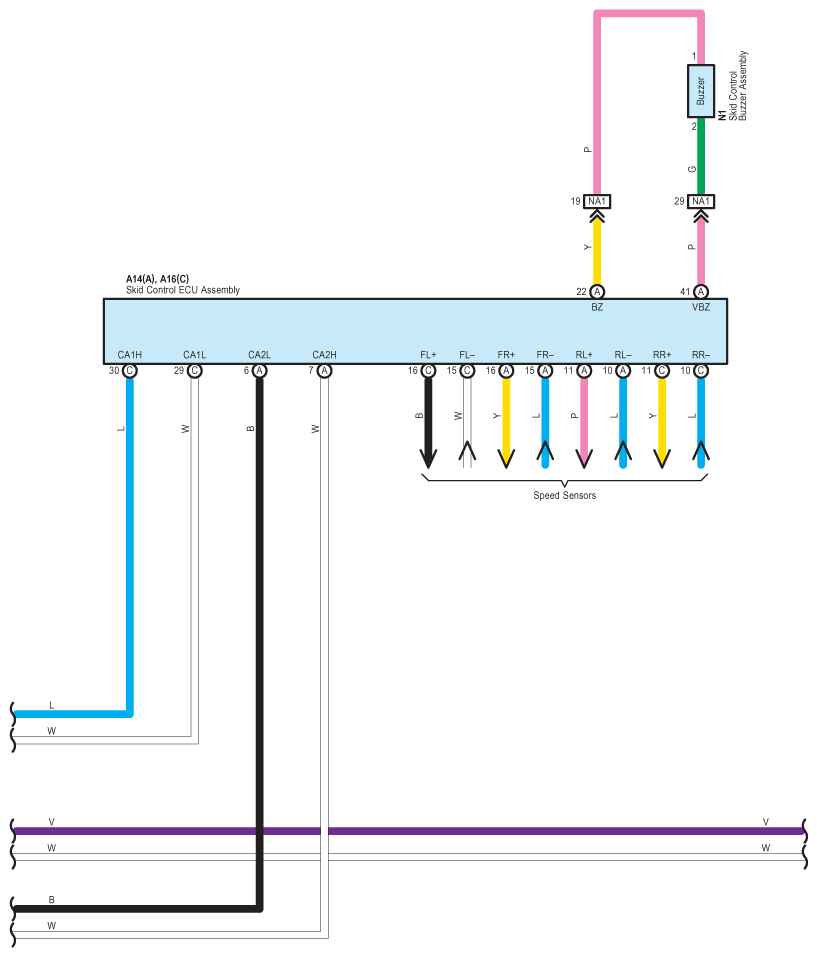

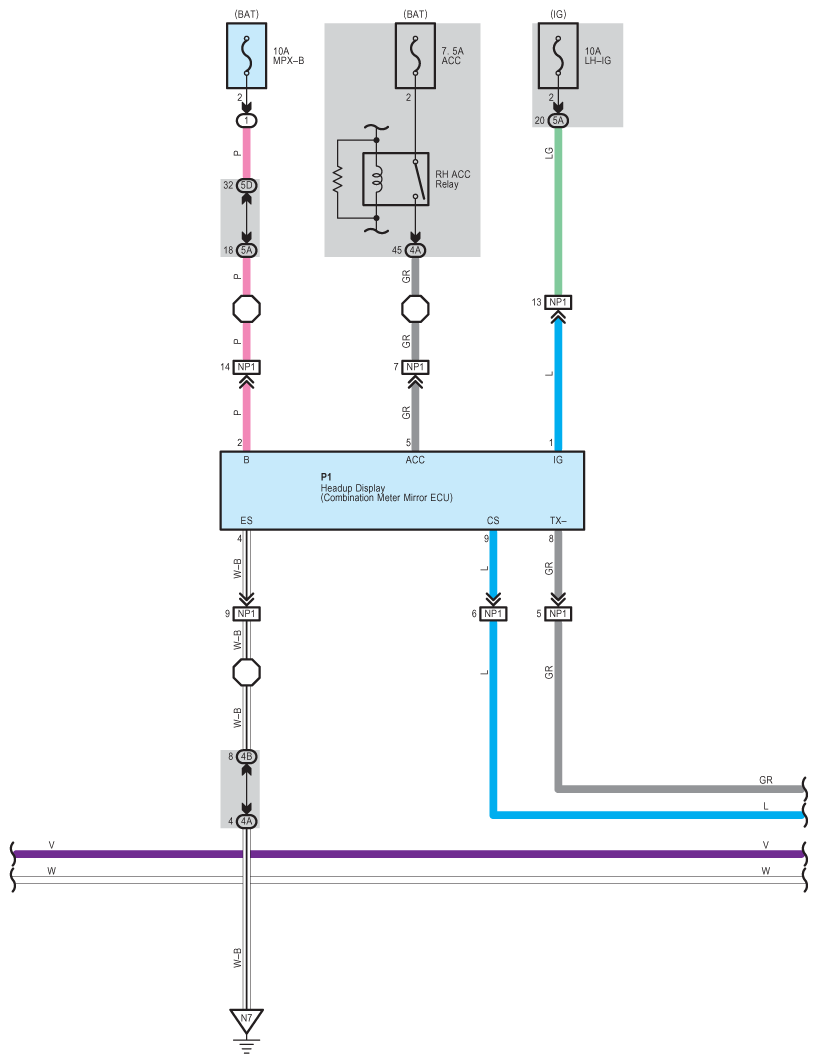

Fig 8: Lane Keeping Assist Wiring Diagram (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Lane Keeping Assist Wiring Diagram (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Lane Keeping Assist Wiring Diagram (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Lane Keeping Assist Wiring Diagram (11 Of 16)

Fig 12: Lane Keeping Assist Wiring Diagram (12 Of 16)

Fig 13: Lane Keeping Assist Wiring Diagram (13 Of 16)

Fig 14: Lane Keeping Assist Wiring Diagram (14 Of 16)

Fig 15: Lane Keeping Assist Wiring Diagram (15 Of 16)

Fig 16: Lane Keeping Assist Wiring Diagram (16 Of 16)
