Mirror Heater and Remote Control Mirror: Notes

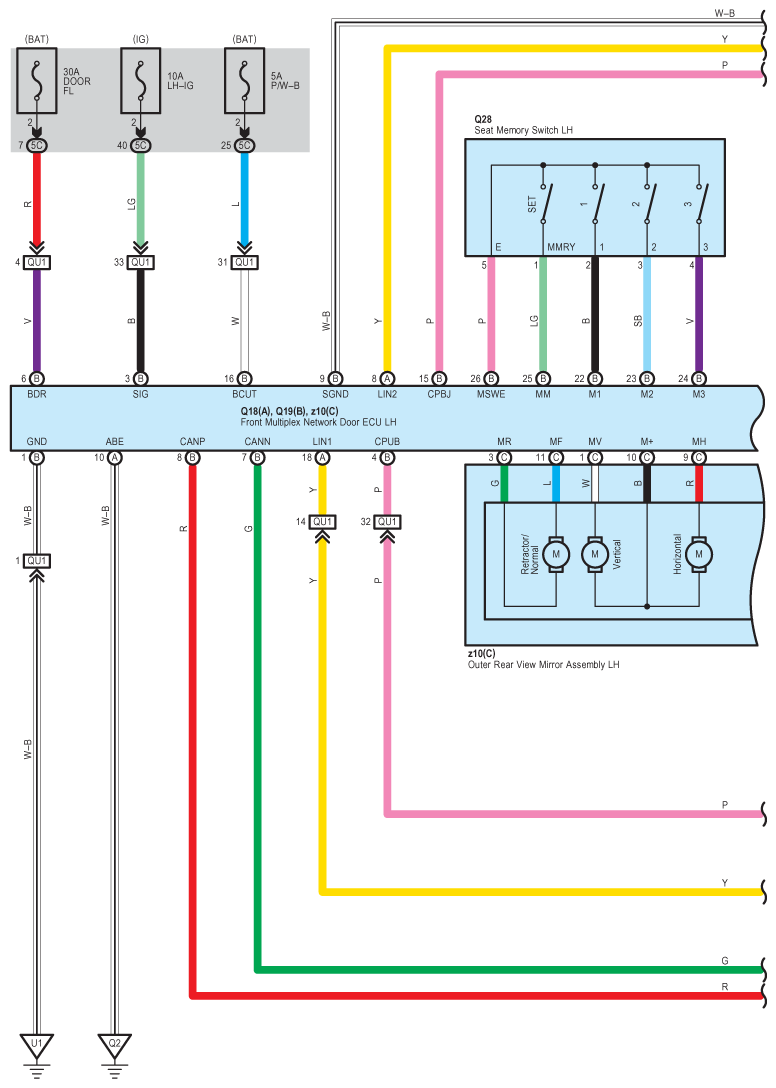

Fig 1: Mirror Heater And Remote Control Mirror Wiring Diagram (1 Of 9)
G09118057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

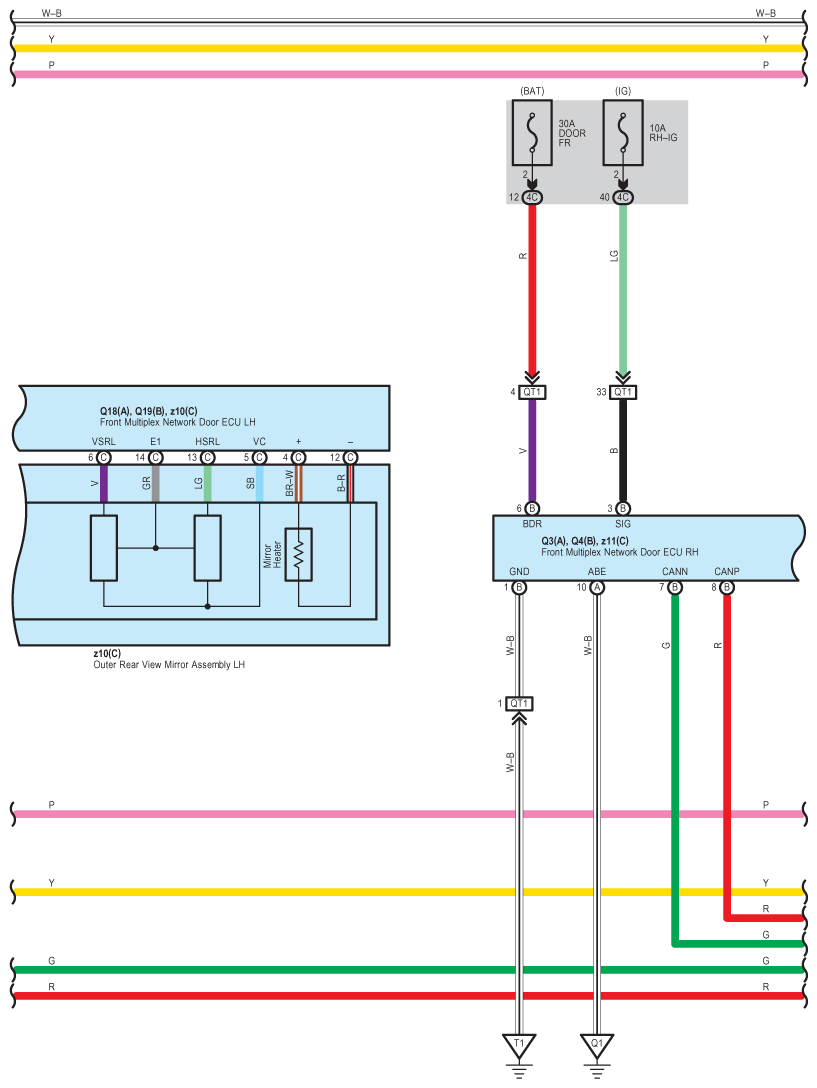

Fig 2: Mirror Heater And Remote Control Mirror Wiring Diagram (2 Of 9)
G09118058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

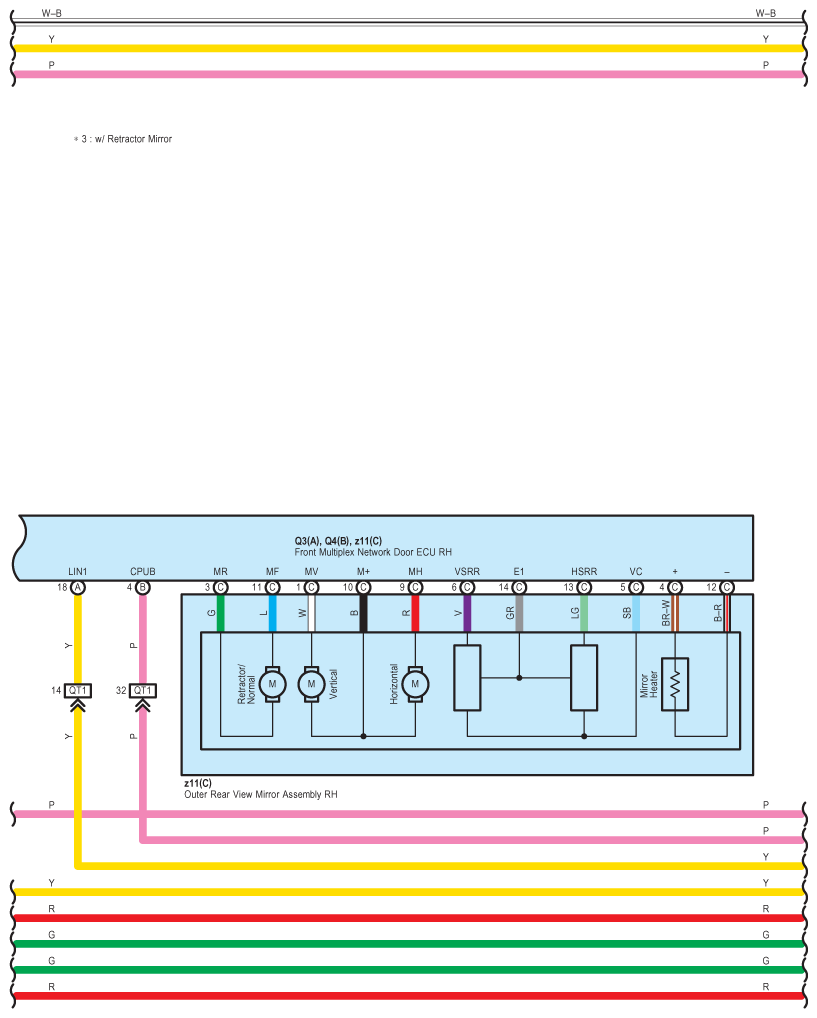

Fig 3: Mirror Heater And Remote Control Mirror Wiring Diagram (3 Of 9)
G09118059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

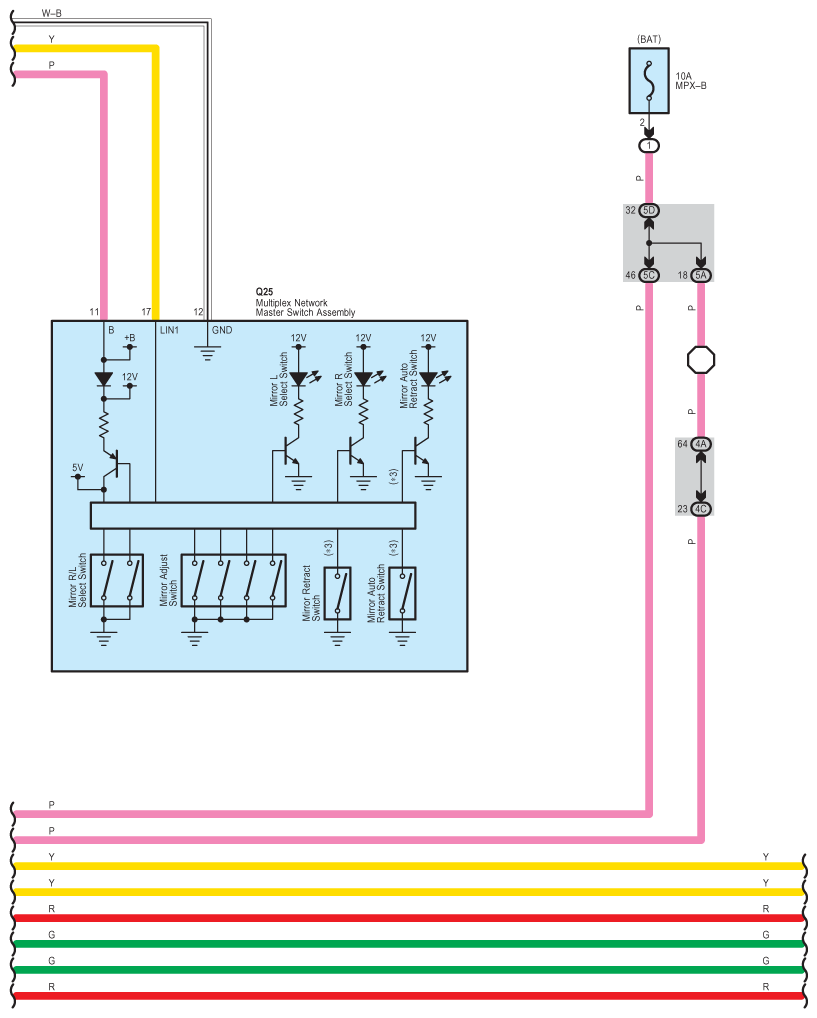

Fig 4: Mirror Heater And Remote Control Mirror Wiring Diagram (4 Of 9)
G09118060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

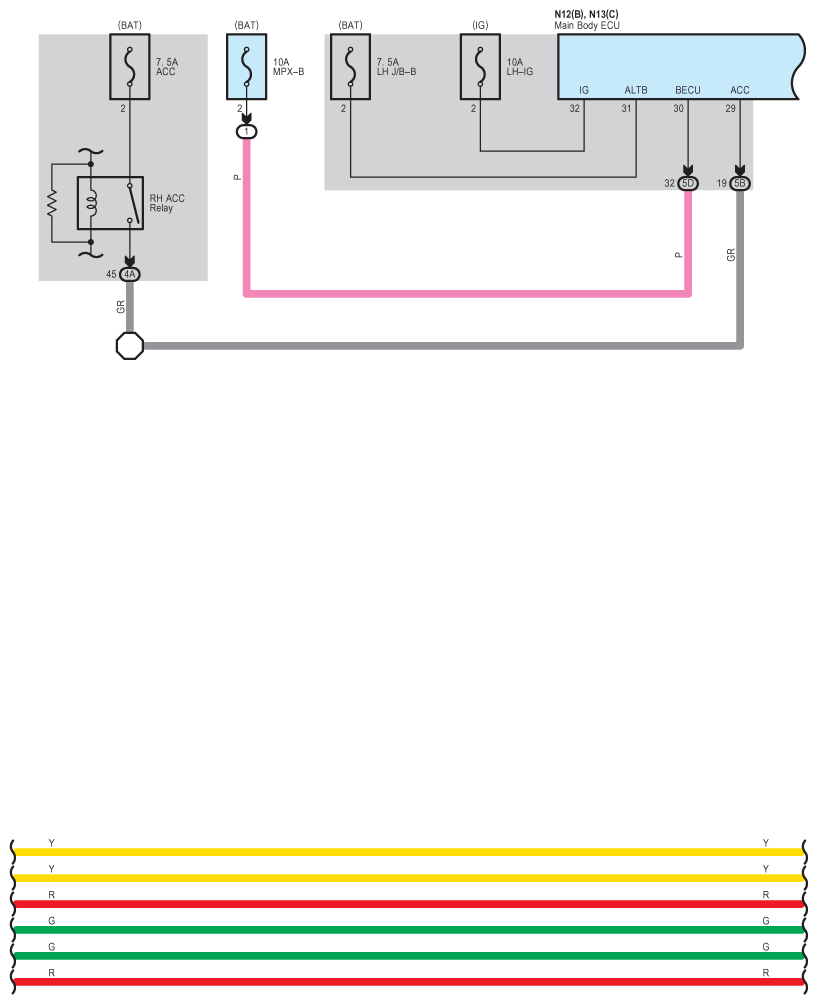

Fig 5: Mirror Heater And Remote Control Mirror Wiring Diagram (5 Of 9)
G09118061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

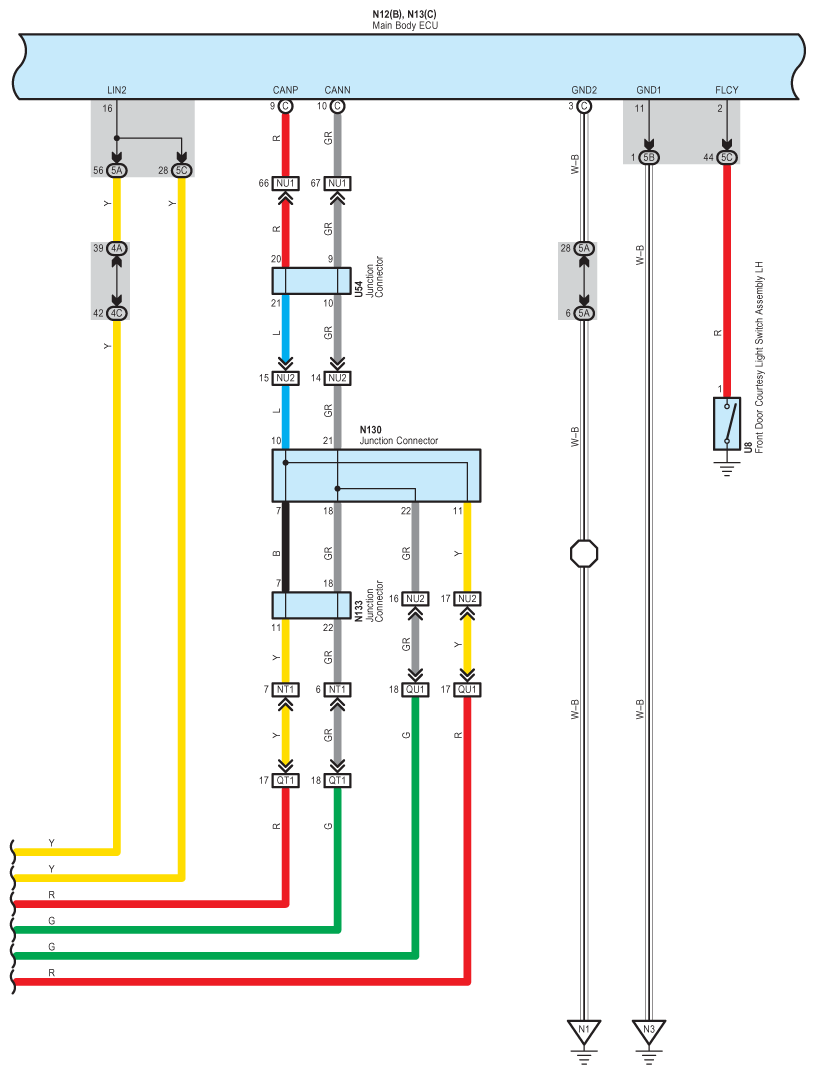

Fig 6: Mirror Heater And Remote Control Mirror Wiring Diagram (6 Of 9)
G09118062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

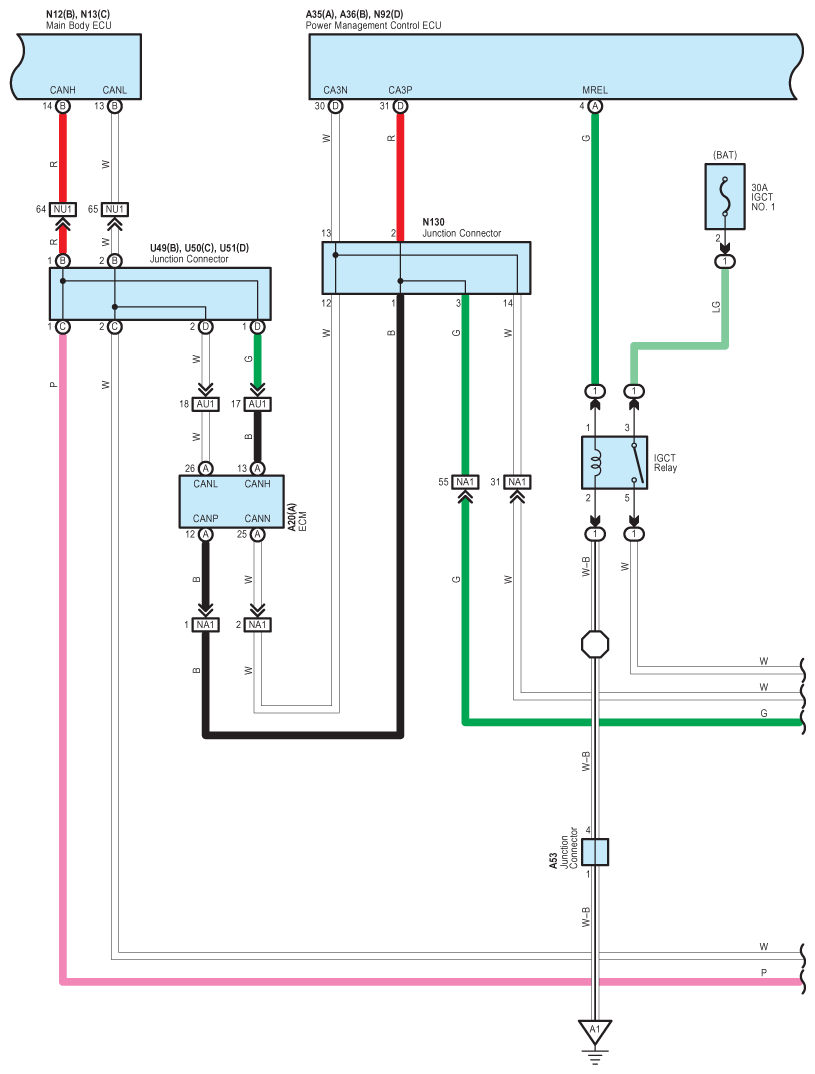

Fig 7: Mirror Heater And Remote Control Mirror Wiring Diagram (7 Of 9)
G09118063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

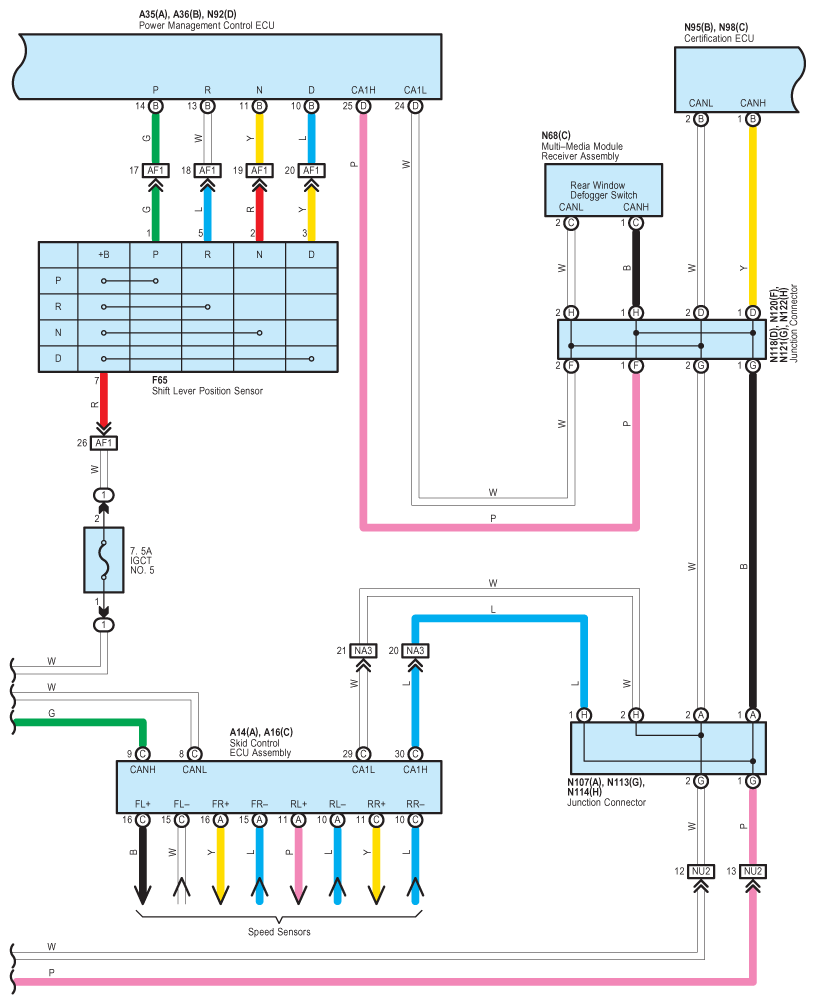

Fig 8: Mirror Heater And Remote Control Mirror Wiring Diagram (8 Of 9)
G09118064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

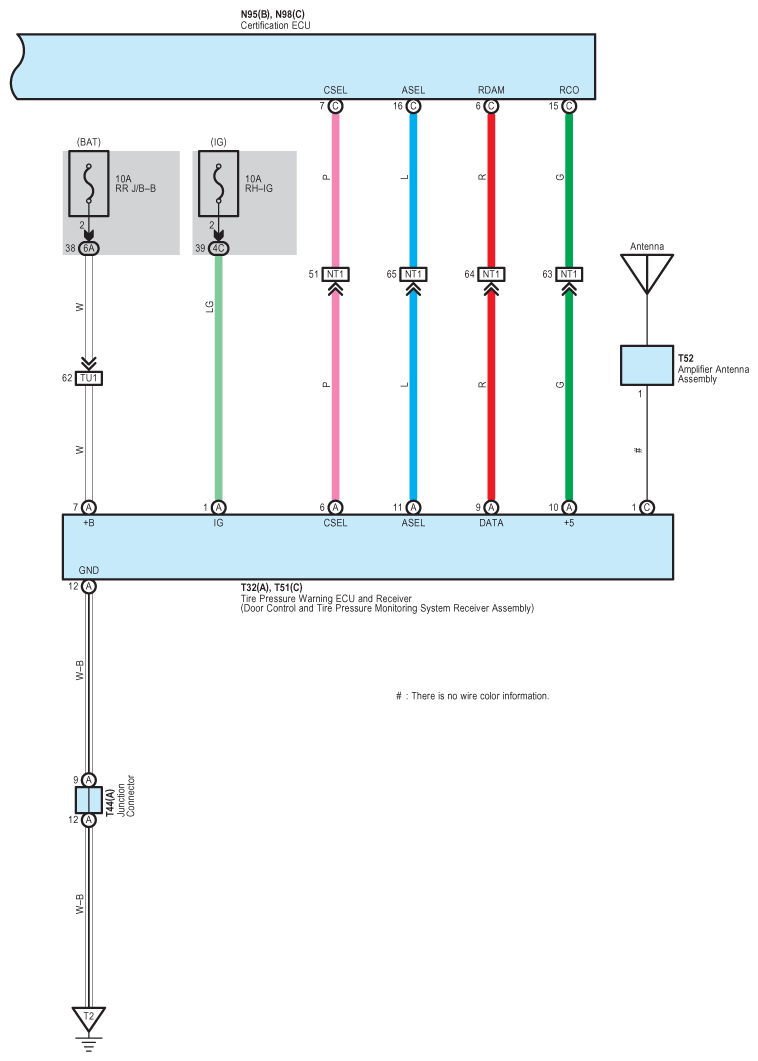

Fig 9: Mirror Heater And Remote Control Mirror Wiring Diagram (9 Of 9)
G09118065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
