Rear Sunshade: Notes

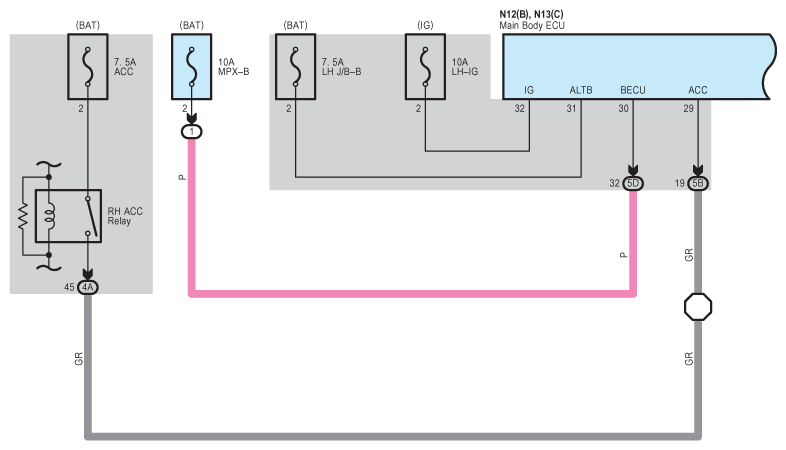

Fig 1: Rear Sunshade Wiring Diagram (1 Of 4)
G09117993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

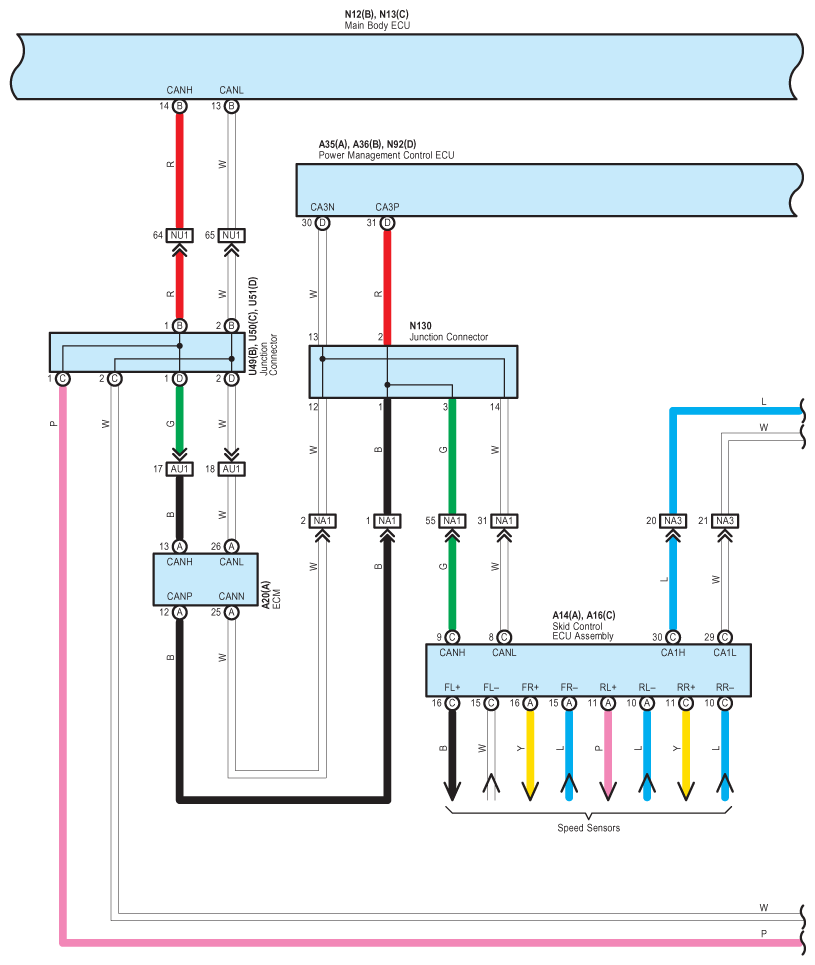

Fig 2: Rear Sunshade Wiring Diagram (2 Of 4)
G09117994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

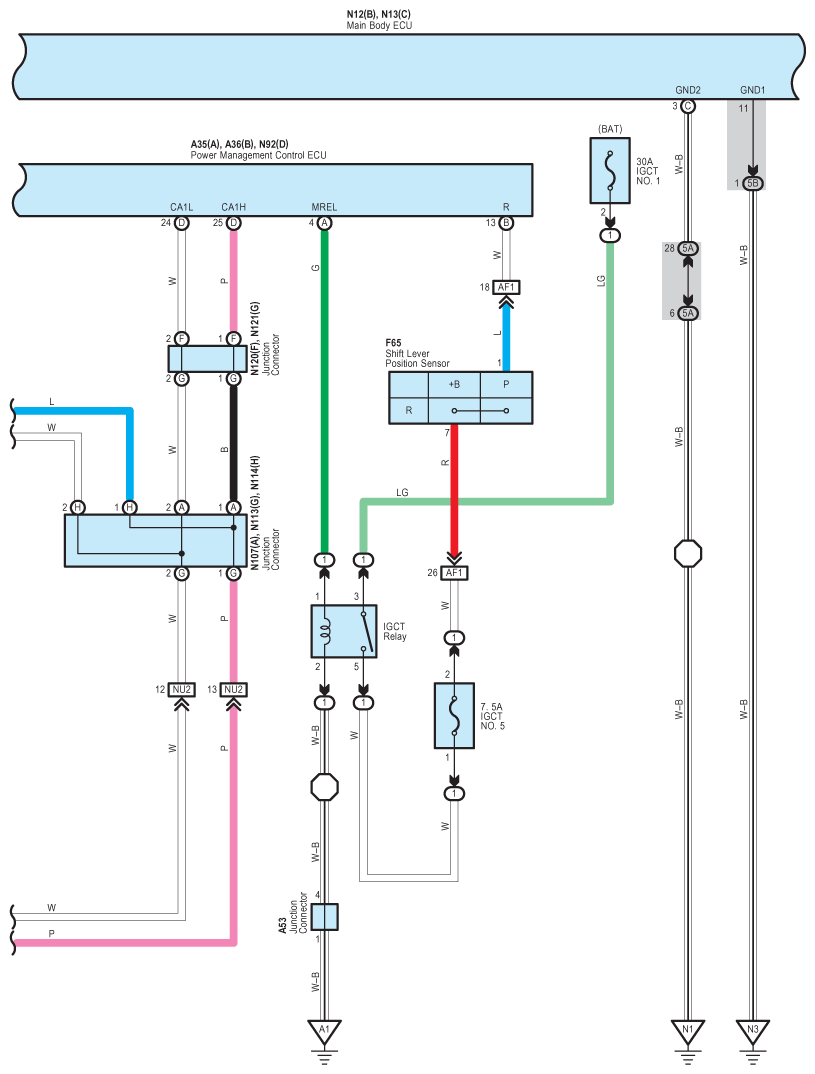

Fig 3: Rear Sunshade Wiring Diagram (3 Of 4)
G09117995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

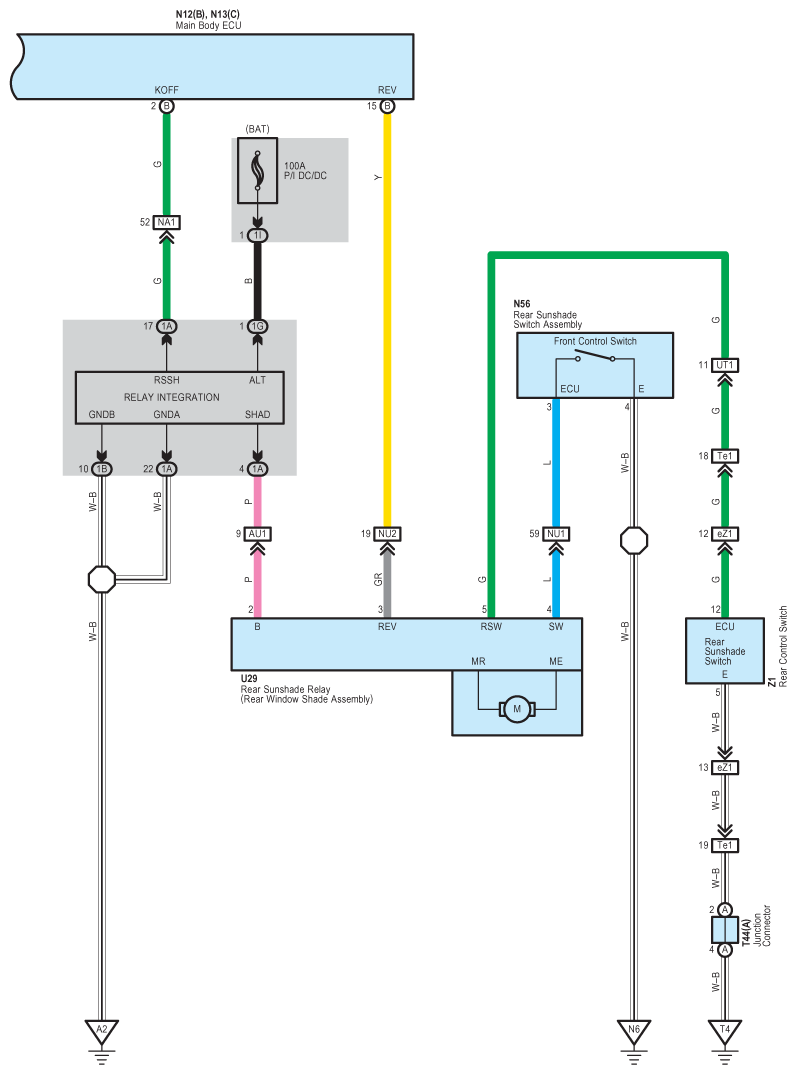

Fig 4: Rear Sunshade Wiring Diagram (4 Of 4)
G09117996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
