Sliding Roof: Notes

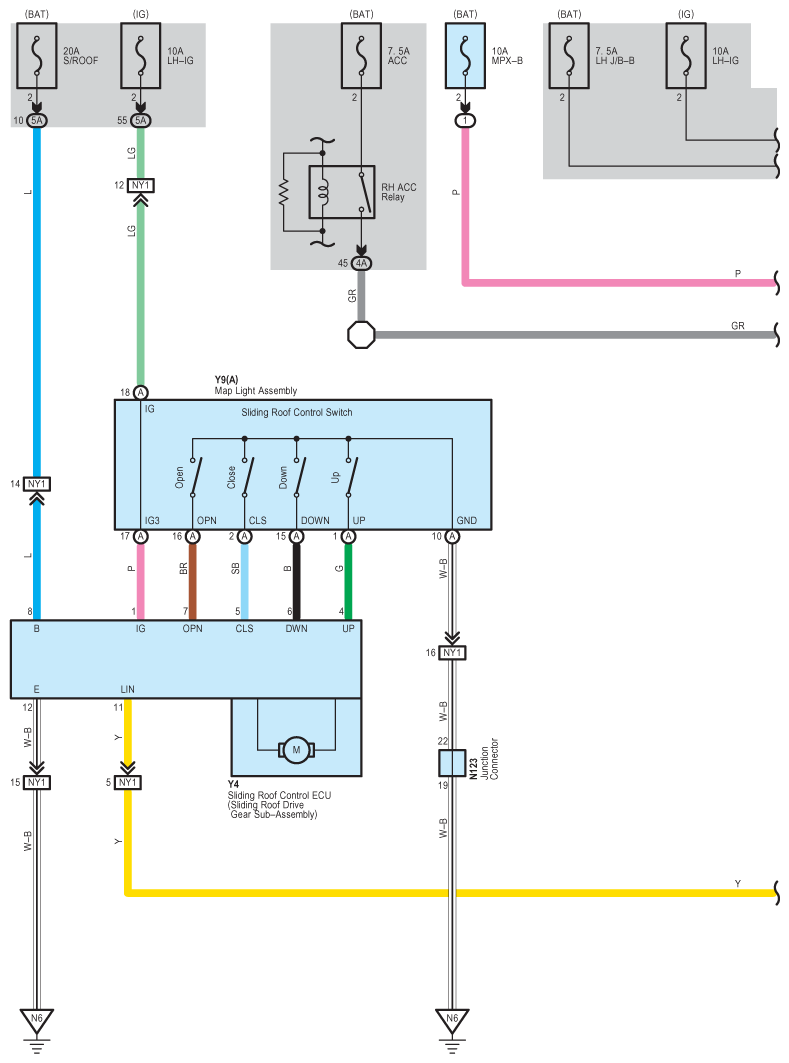

Fig 1: Sliding Roof Wiring Diagram (1 Of 6)
G09117986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Sliding Roof Wiring Diagram (2 Of 6)
G09117987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

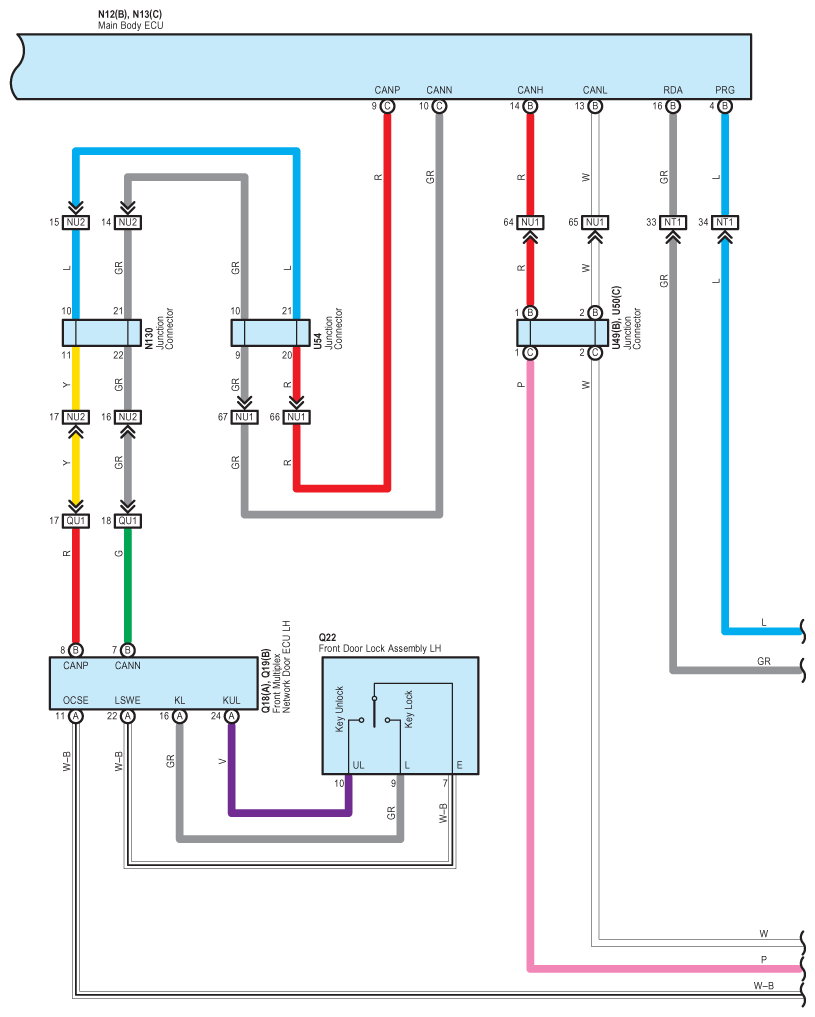

Fig 3: Sliding Roof Wiring Diagram (3 Of 6)
G09117988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Sliding Roof Wiring Diagram (4 Of 6)
G09117989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

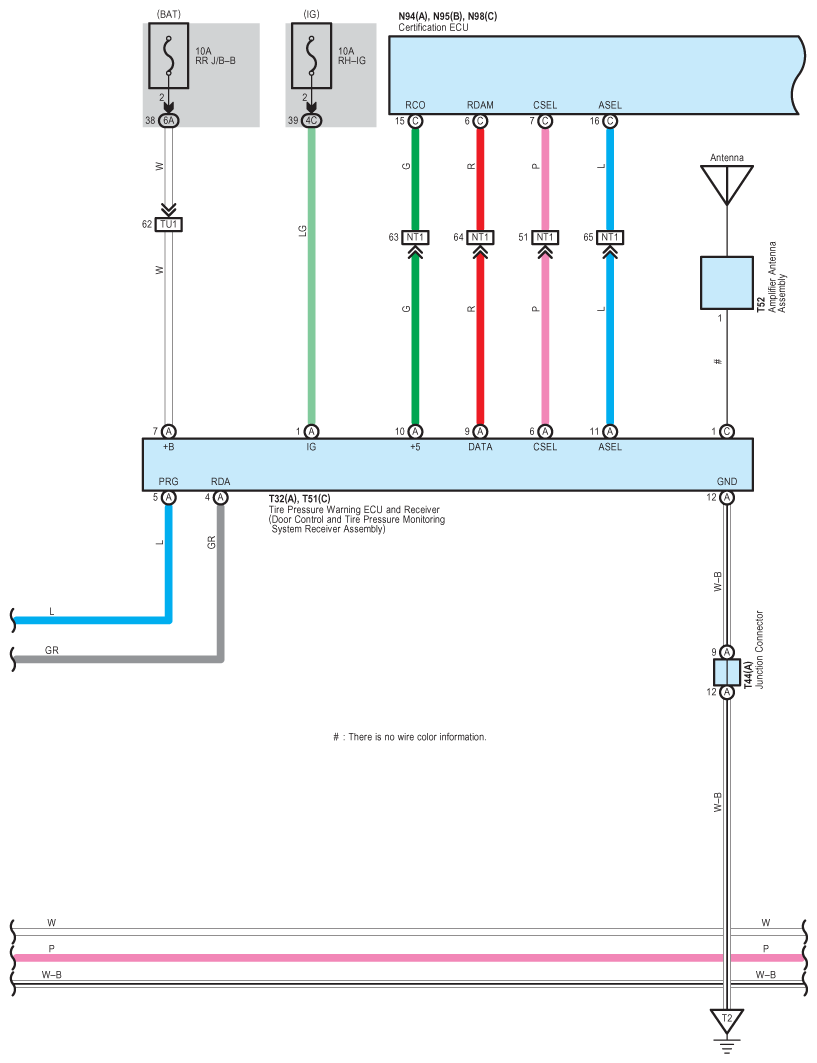

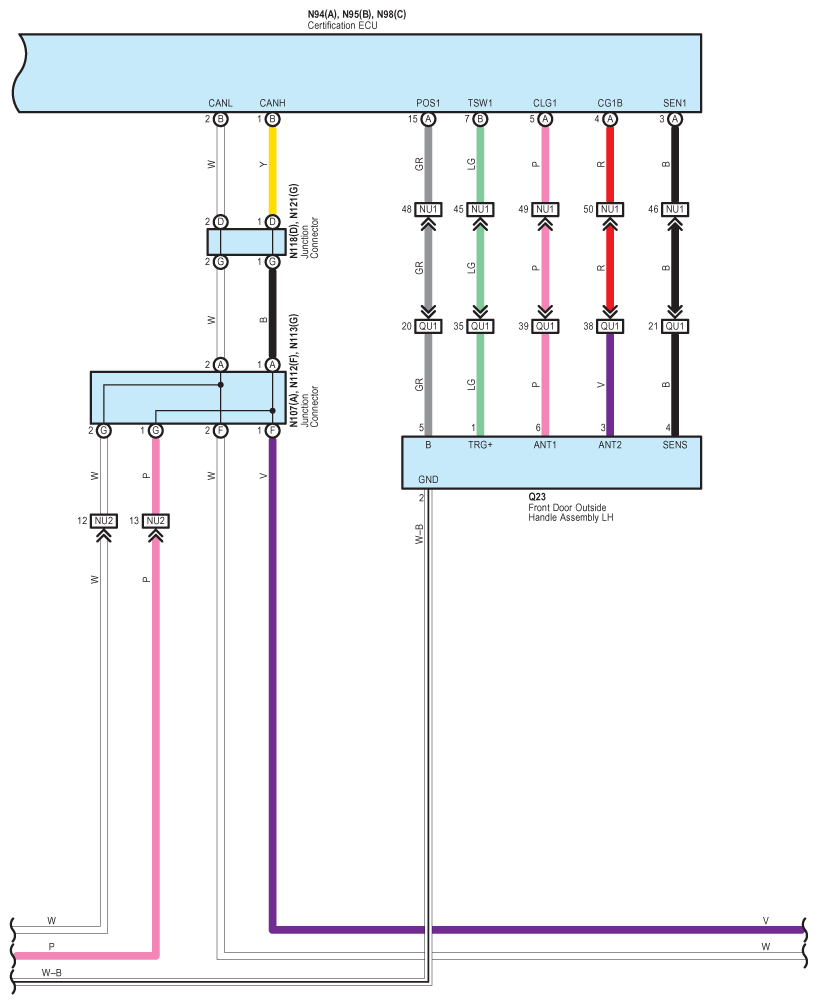

Fig 5: Sliding Roof Wiring Diagram (5 Of 6)
G09117990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

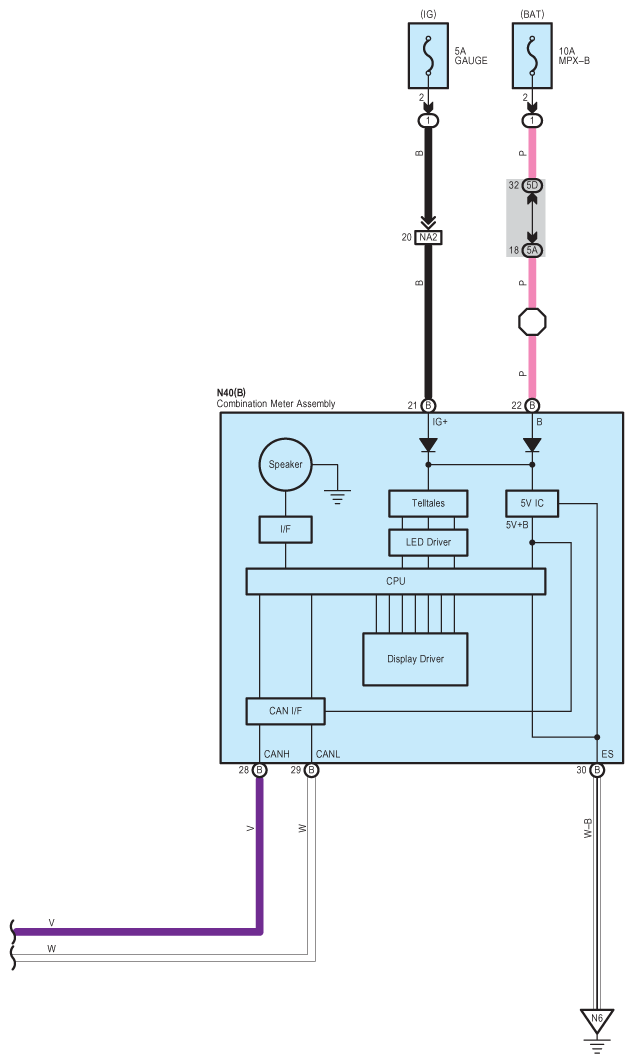

Fig 6: Sliding Roof Wiring Diagram (6 Of 6)
G09117991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
