Adaptive Front-Lighting System: Notes

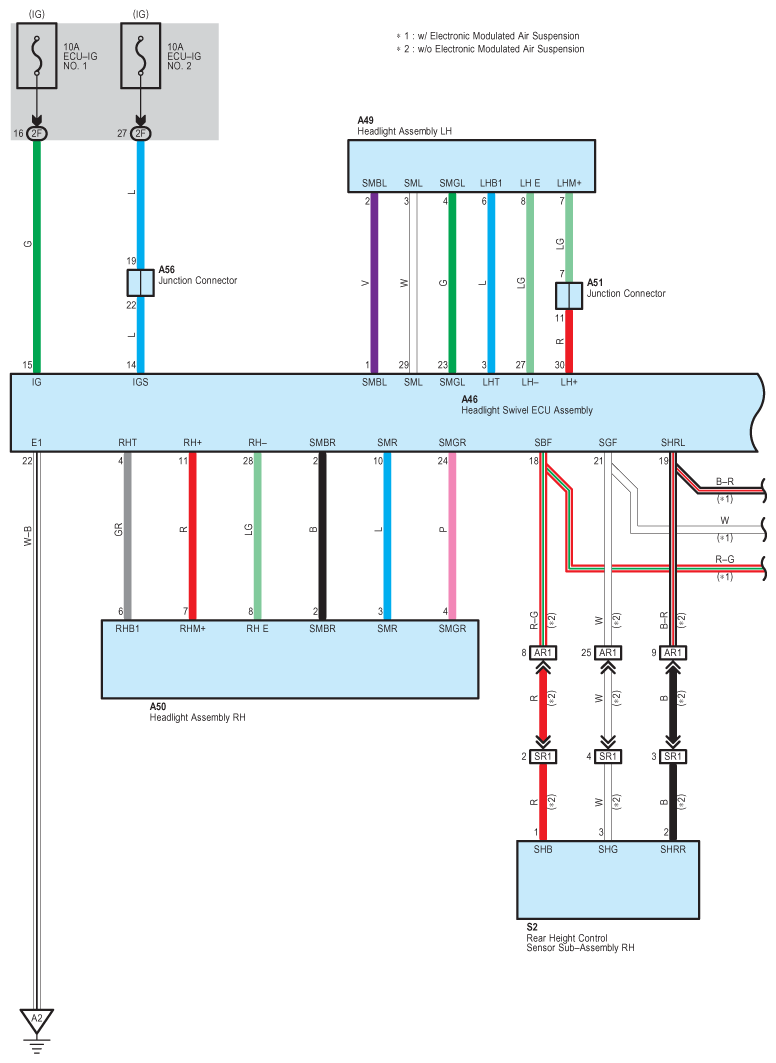

Fig 1: Adaptive Front-Lighting - Wiring Diagram (1 Of 7)
G09114577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

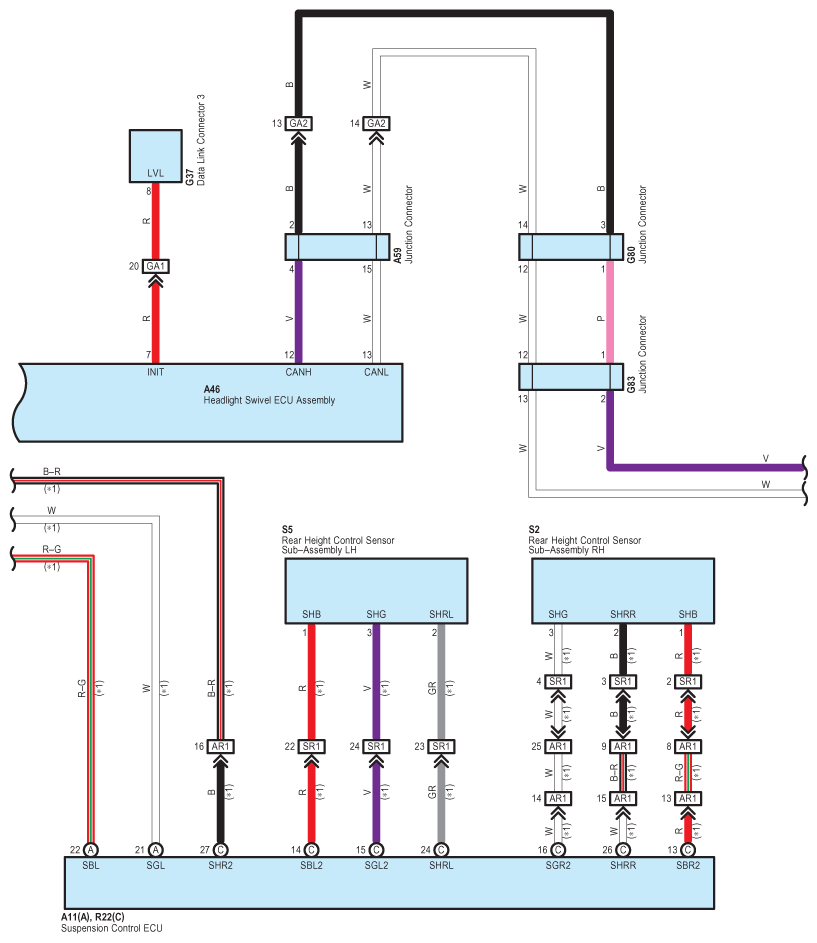

Fig 2: Adaptive Front-Lighting - Wiring Diagram (2 Of 7)
G09114578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

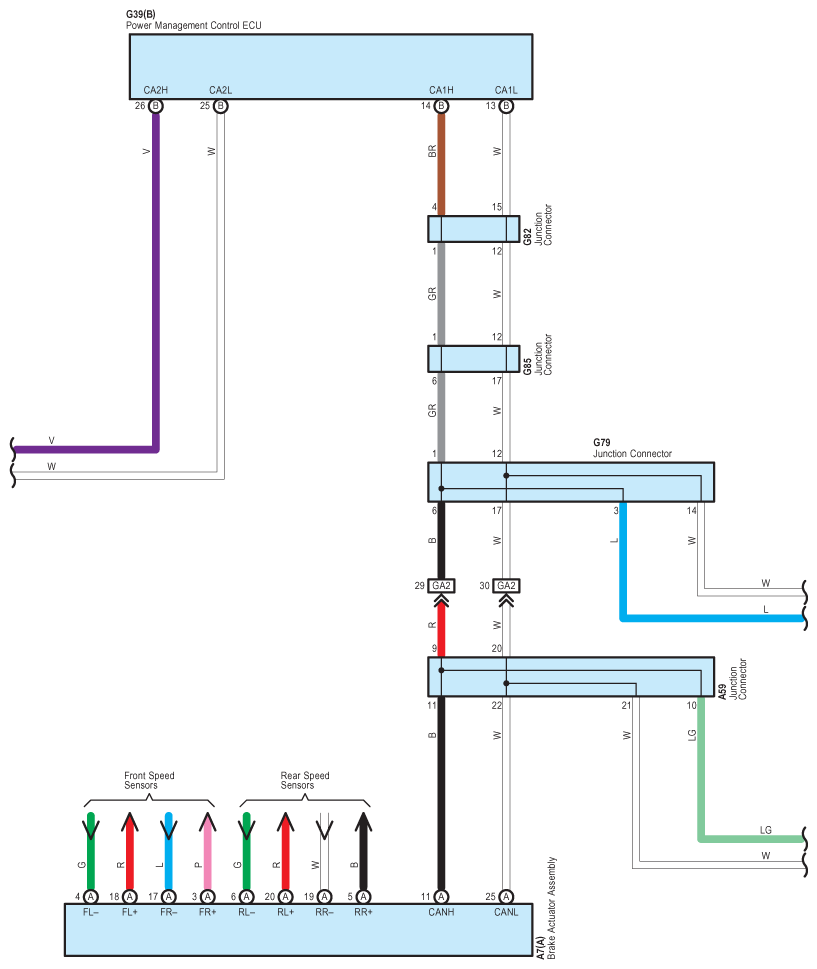

Fig 3: Adaptive Front-Lighting - Wiring Diagram (3 Of 7)
G09114579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

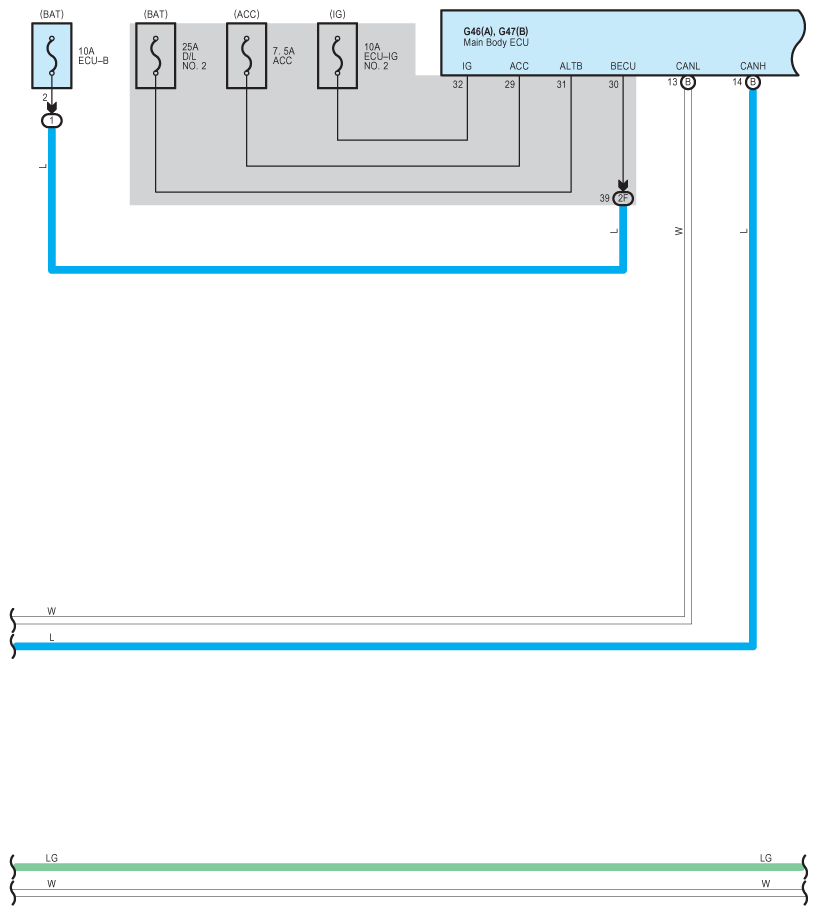

Fig 4: Adaptive Front-Lighting - Wiring Diagram (4 Of 7)
G09114580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

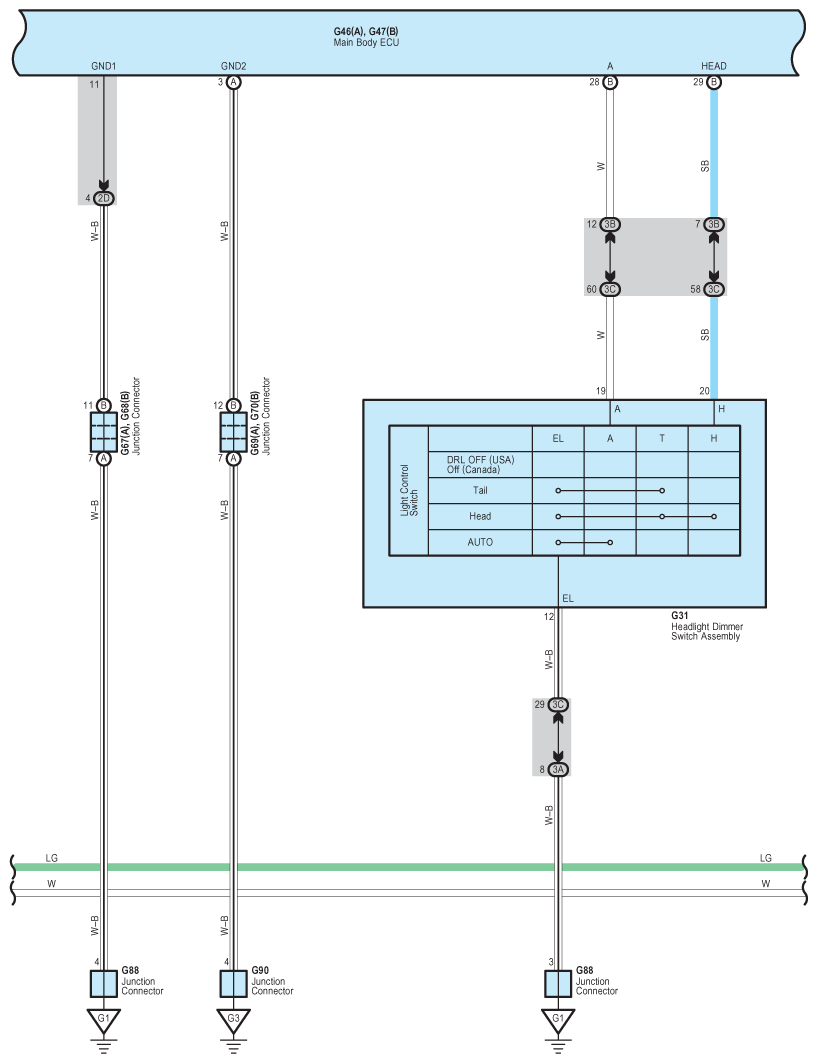

Fig 5: Adaptive Front-Lighting - Wiring Diagram (5 Of 7)
G09114581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

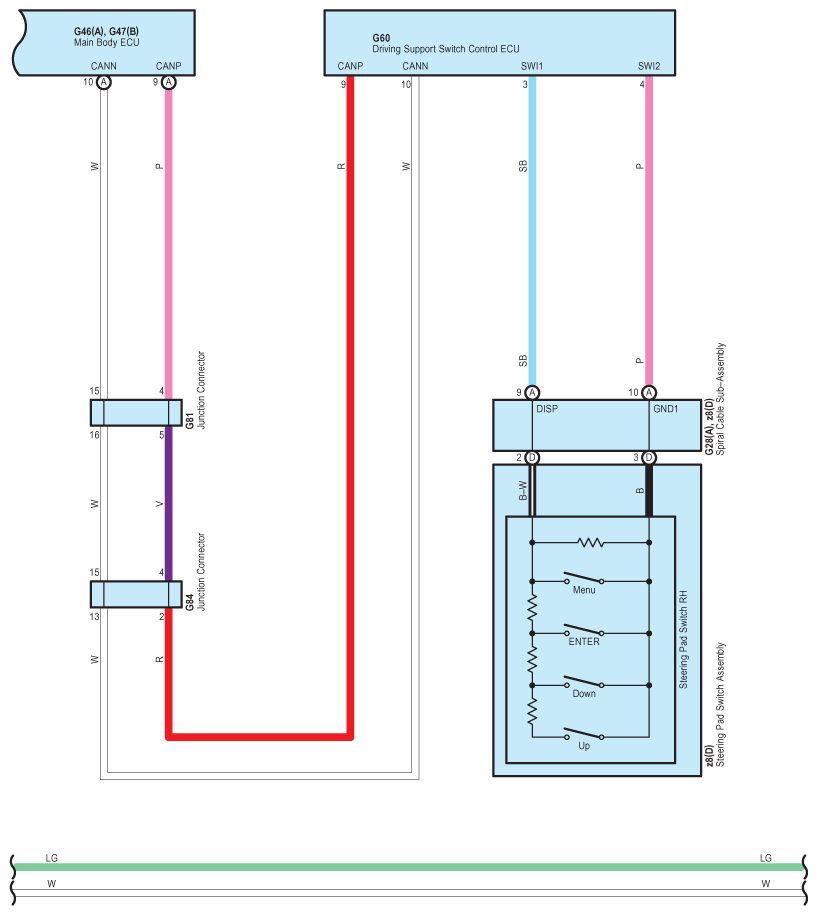

Fig 6: Adaptive Front-Lighting - Wiring Diagram (6 Of 7)
G09114582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

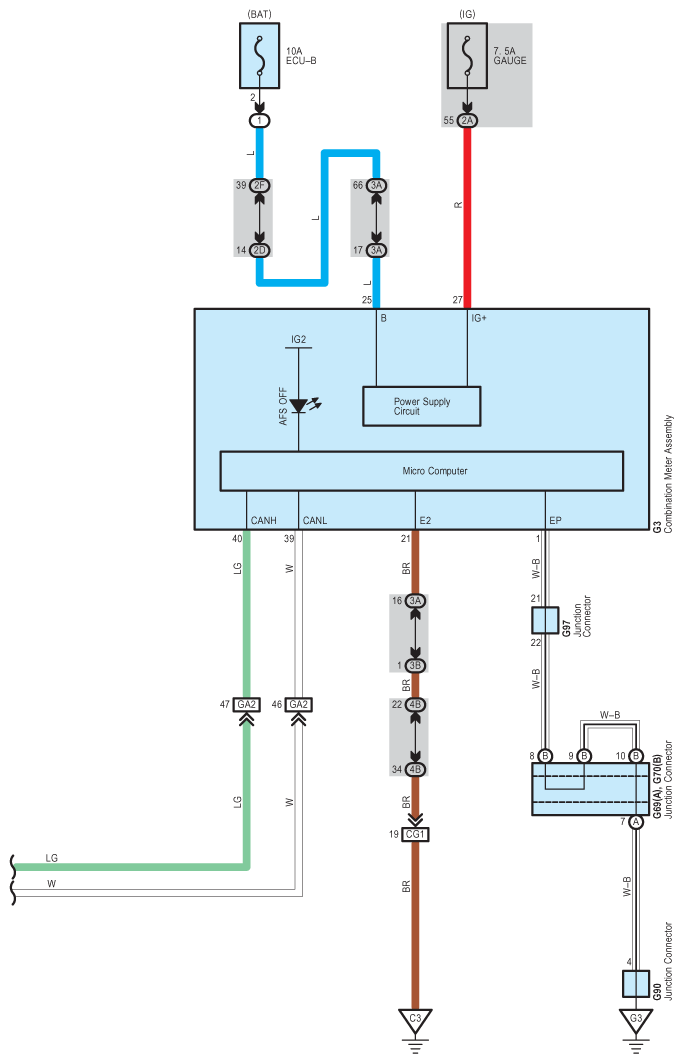

Fig 7: Adaptive Front-Lighting - Wiring Diagram (7 Of 7)
G09114583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
