Automatic Glare-Resistant EC Mirror with Compass: Notes

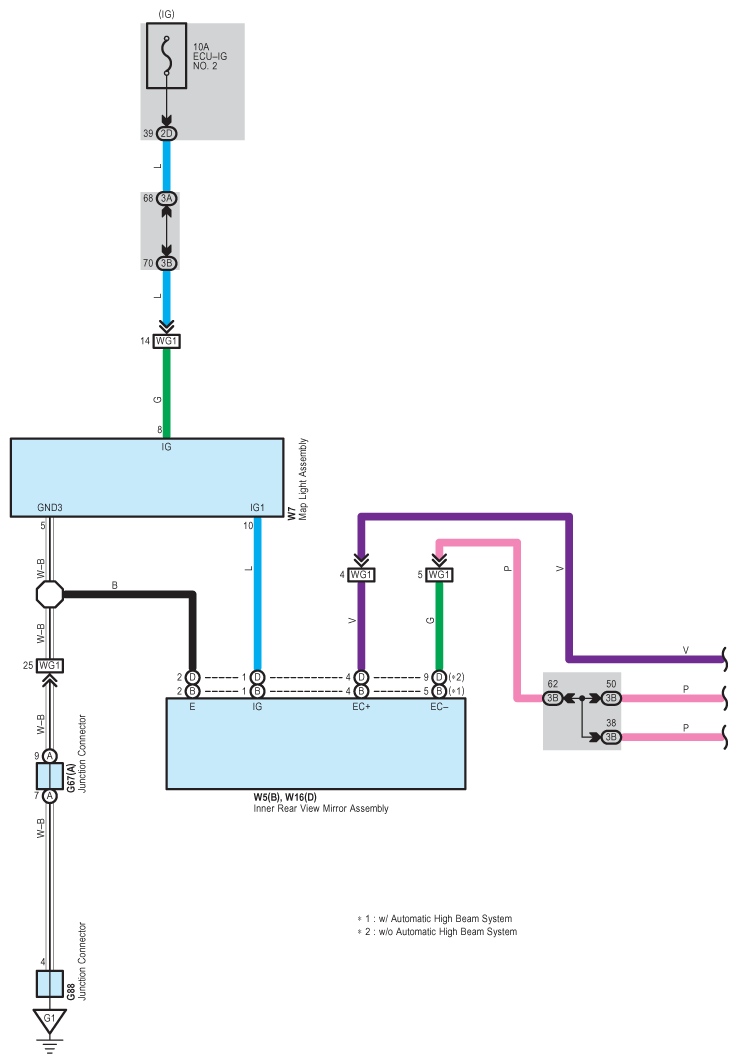

Fig 1: Automatic Glare-Resistant EC Mirror With Compass - Wiring Diagram (1 Of 2)
G09114729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

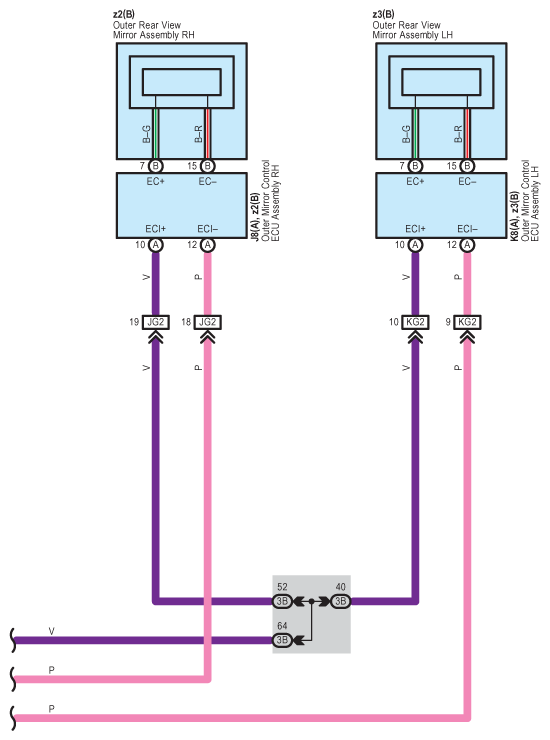

Fig 2: Automatic Glare-Resistant EC Mirror With Compass - Wiring Diagram (2 Of 2)
G09114730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
