Automatic Light Control and Light Auto Turn Off System: Notes

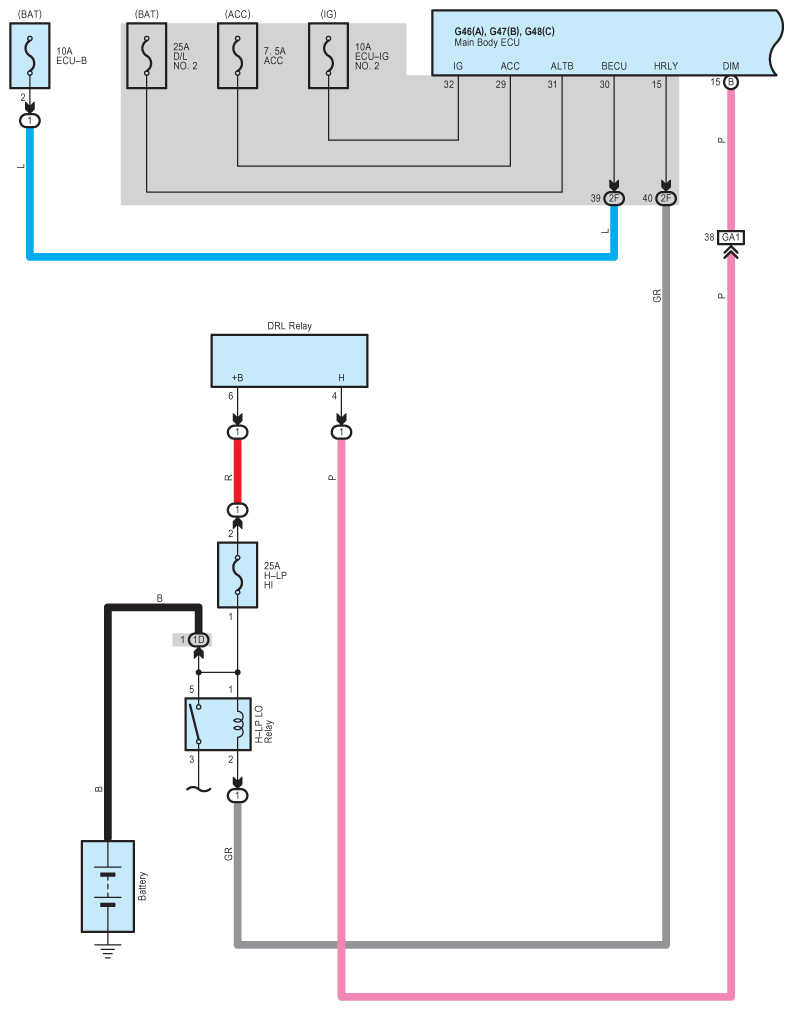

Fig 1: Automatic Light Control And Turn Off - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

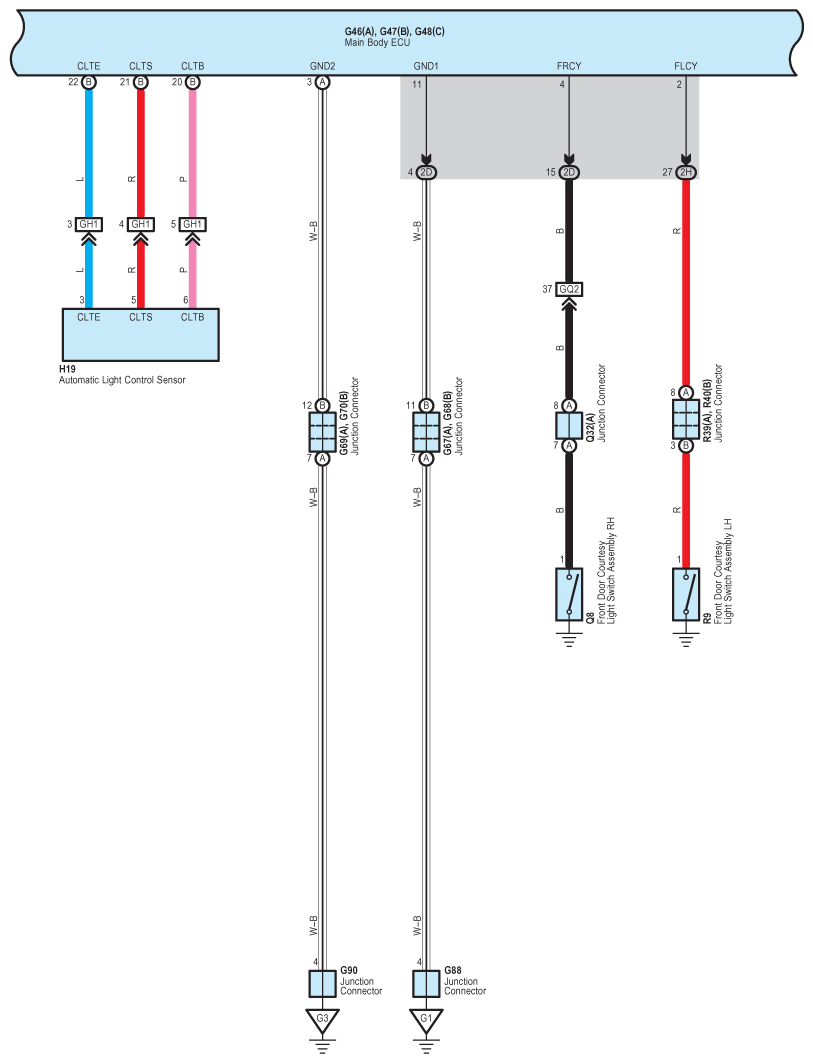

Fig 2: Automatic Light Control And Turn Off - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

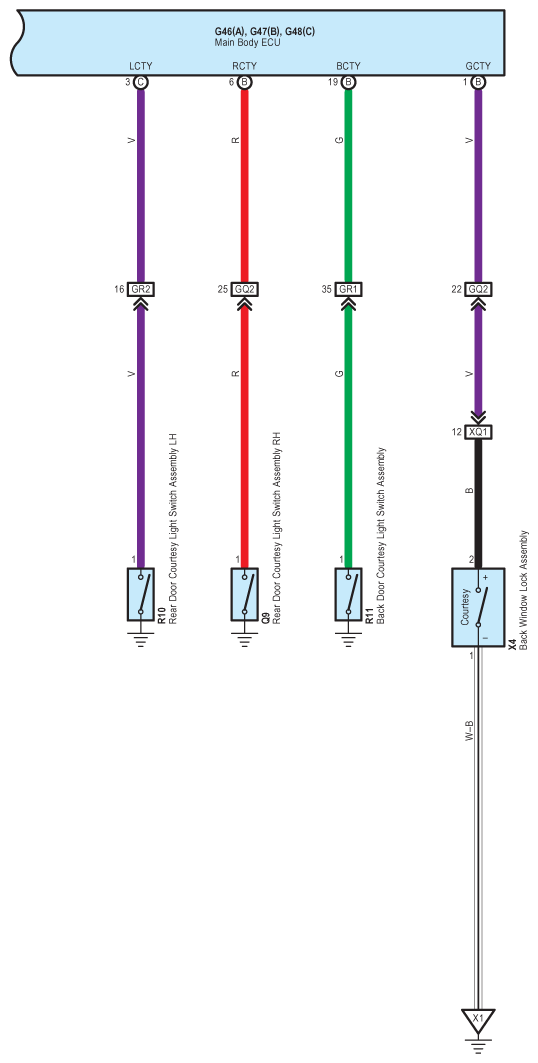

Fig 3: Automatic Light Control And Turn Off - Wiring Diagram (3 Of 4)

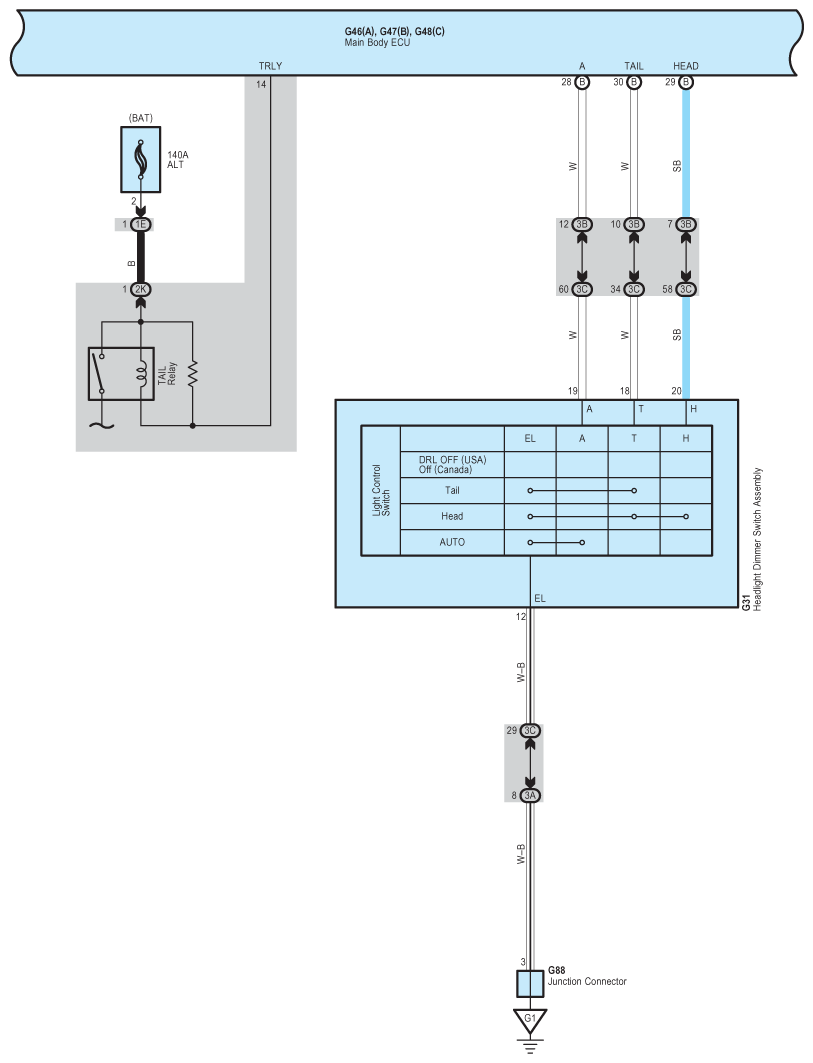

Fig 4: Automatic Light Control And Turn Off - Wiring Diagram (4 Of 4)
