Center Differential Lock: Notes

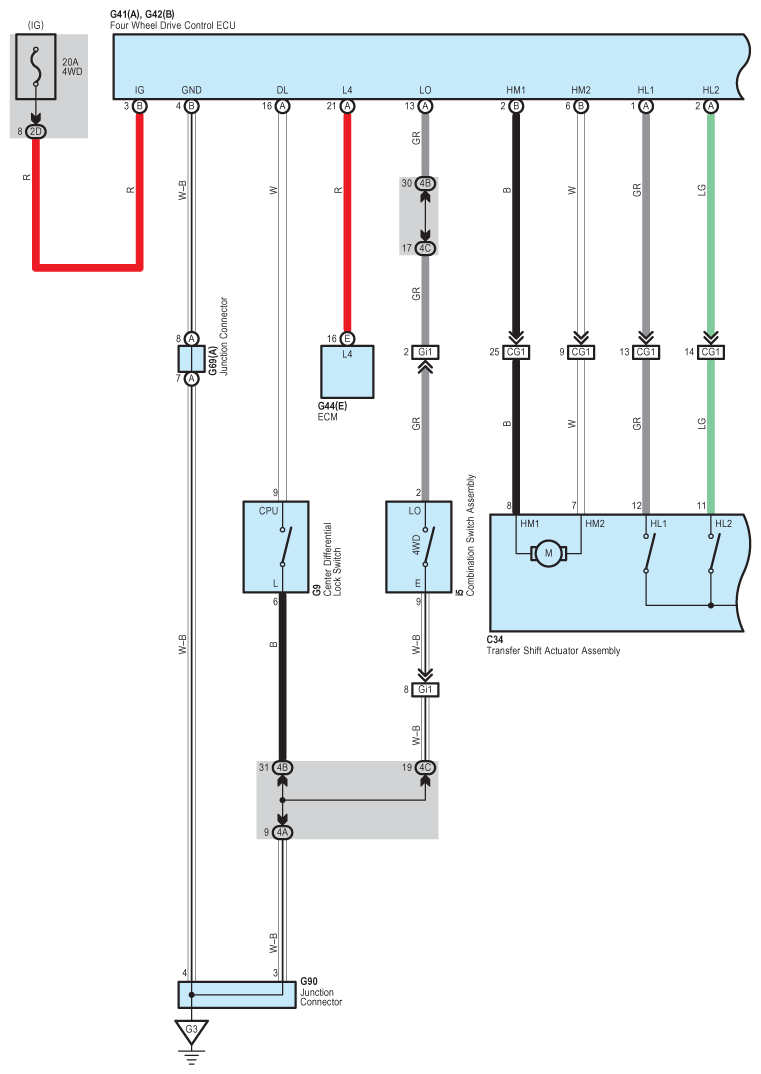

Fig 1: Center Differential Lock - Wiring Diagram (1 Of 5)
G09114618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

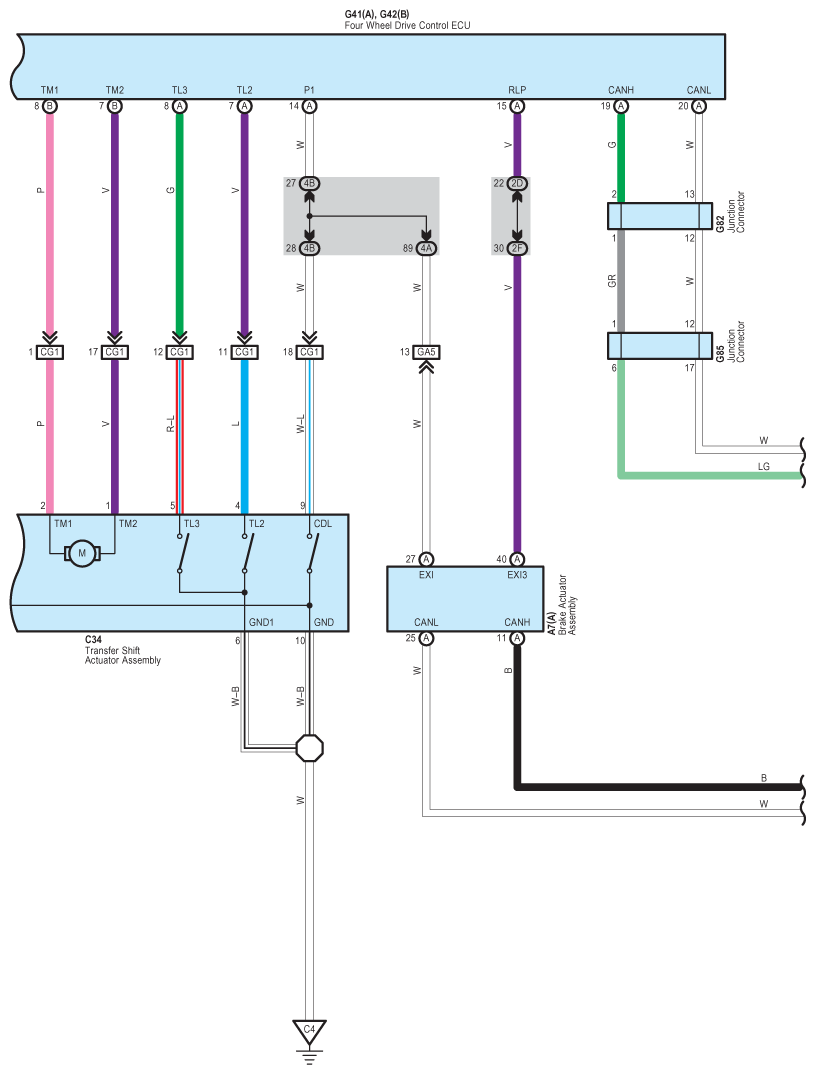

Fig 2: Center Differential Lock - Wiring Diagram (2 Of 5)
G09114619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

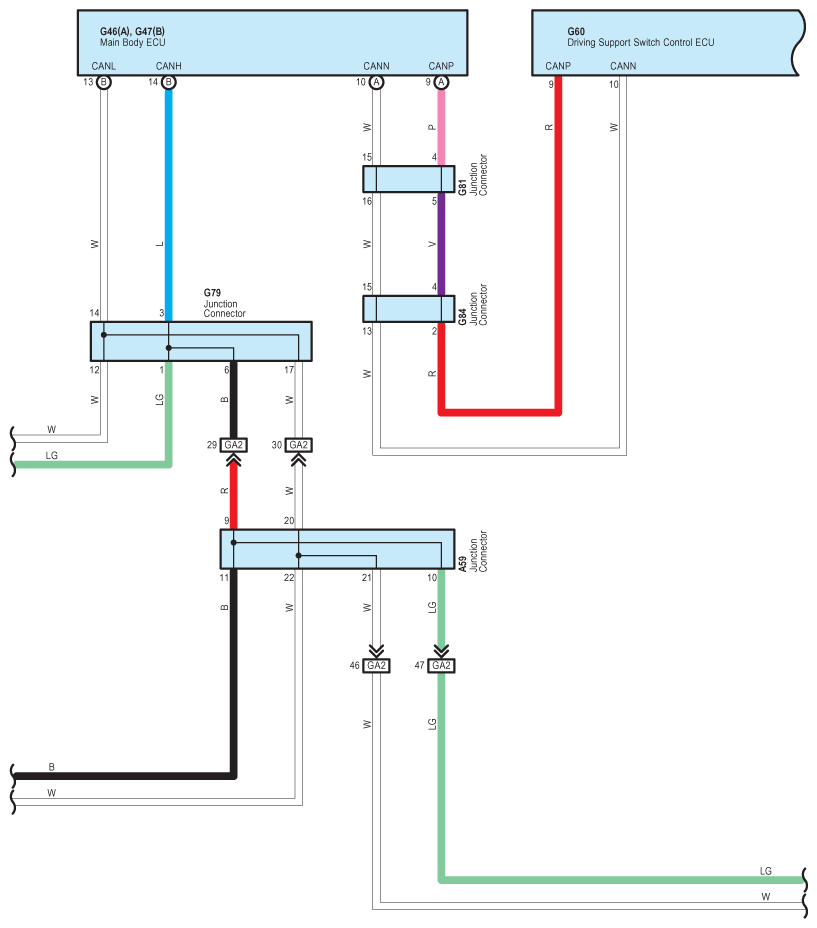

Fig 3: Center Differential Lock - Wiring Diagram (3 Of 5)
G09114620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

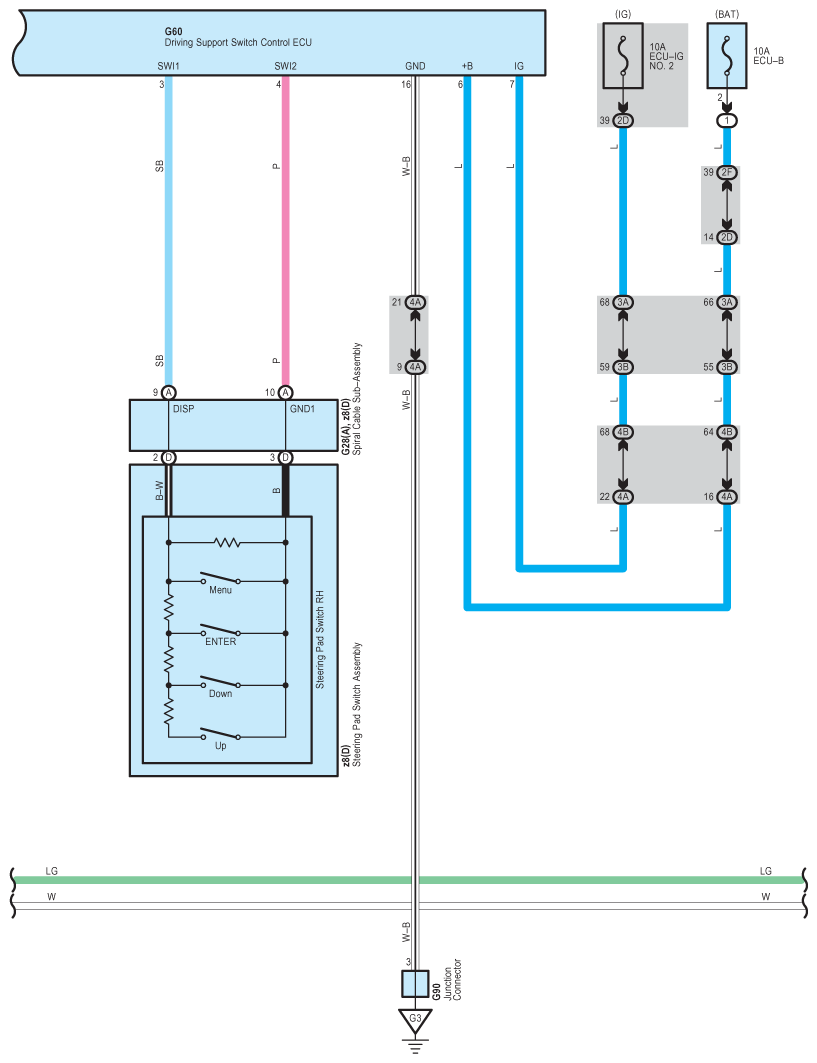

Fig 4: Center Differential Lock - Wiring Diagram (4 Of 5)
G09114621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

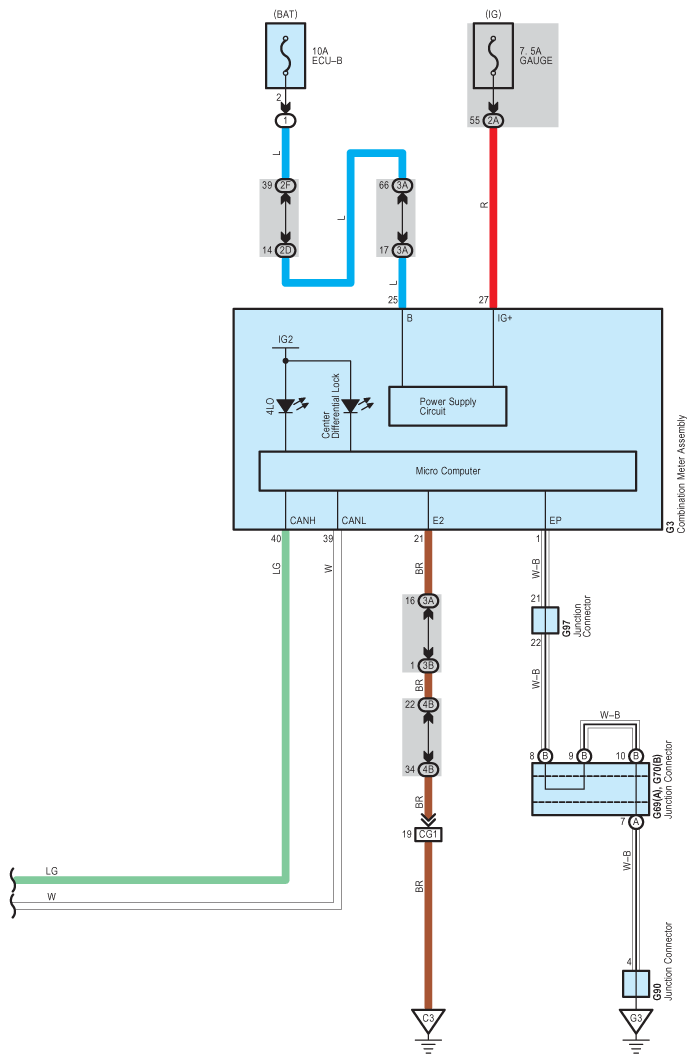

Fig 5: Center Differential Lock - Wiring Diagram (5 Of 5)
G09114622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
