Combination Meter: Notes

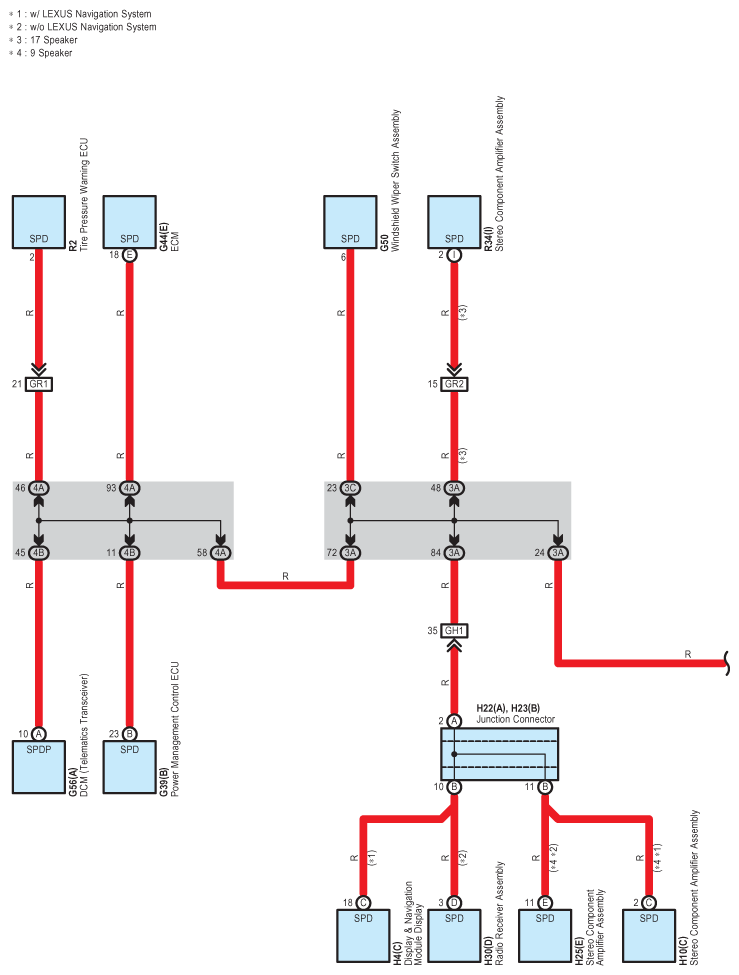

Fig 1: Combination Meter - Wiring Diagram (1 Of 9)
G09114845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

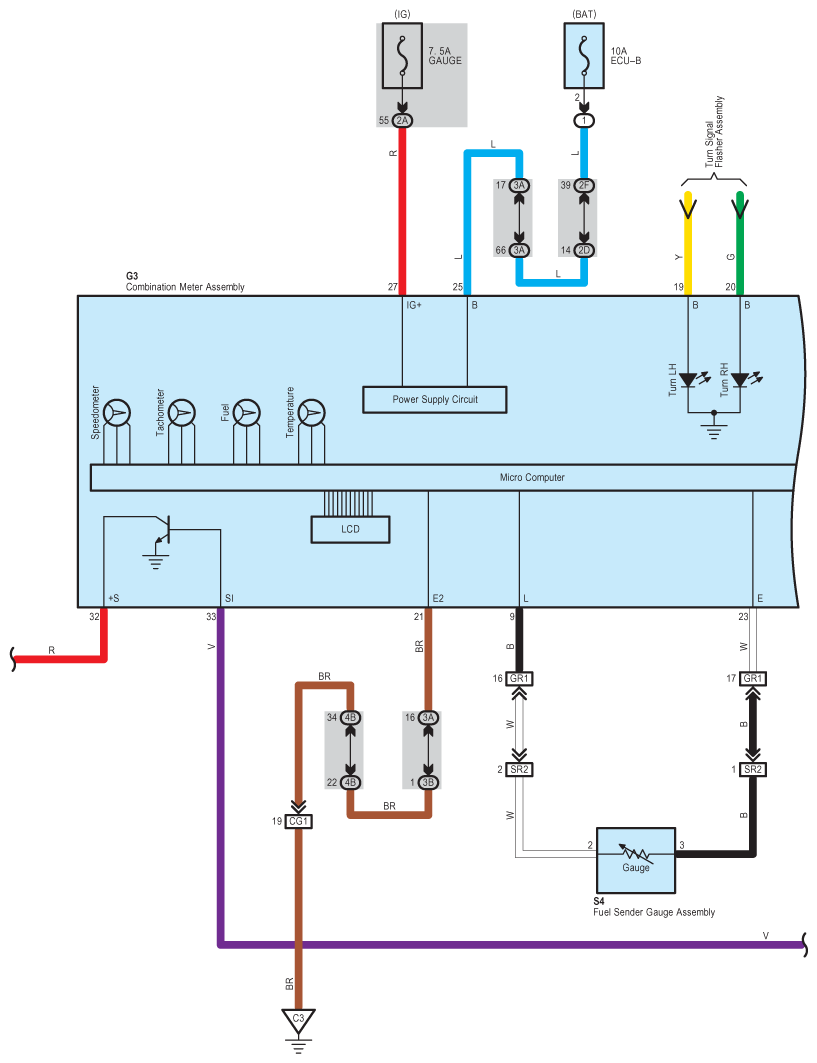

Fig 2: Combination Meter - Wiring Diagram (2 Of 9)
G09114846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

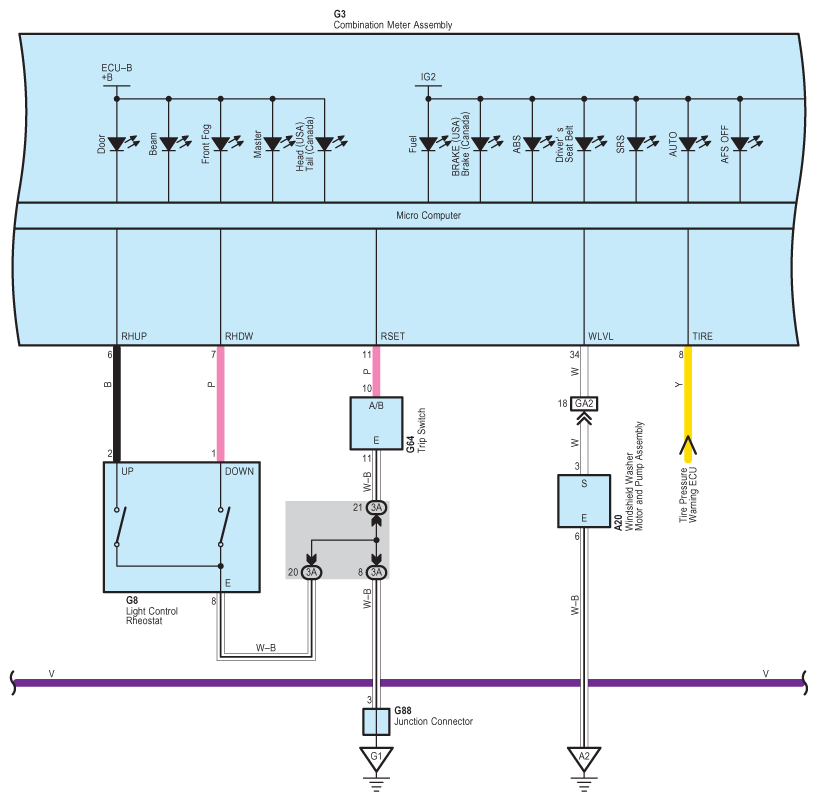

Fig 3: Combination Meter - Wiring Diagram (3 Of 9)
G09114847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

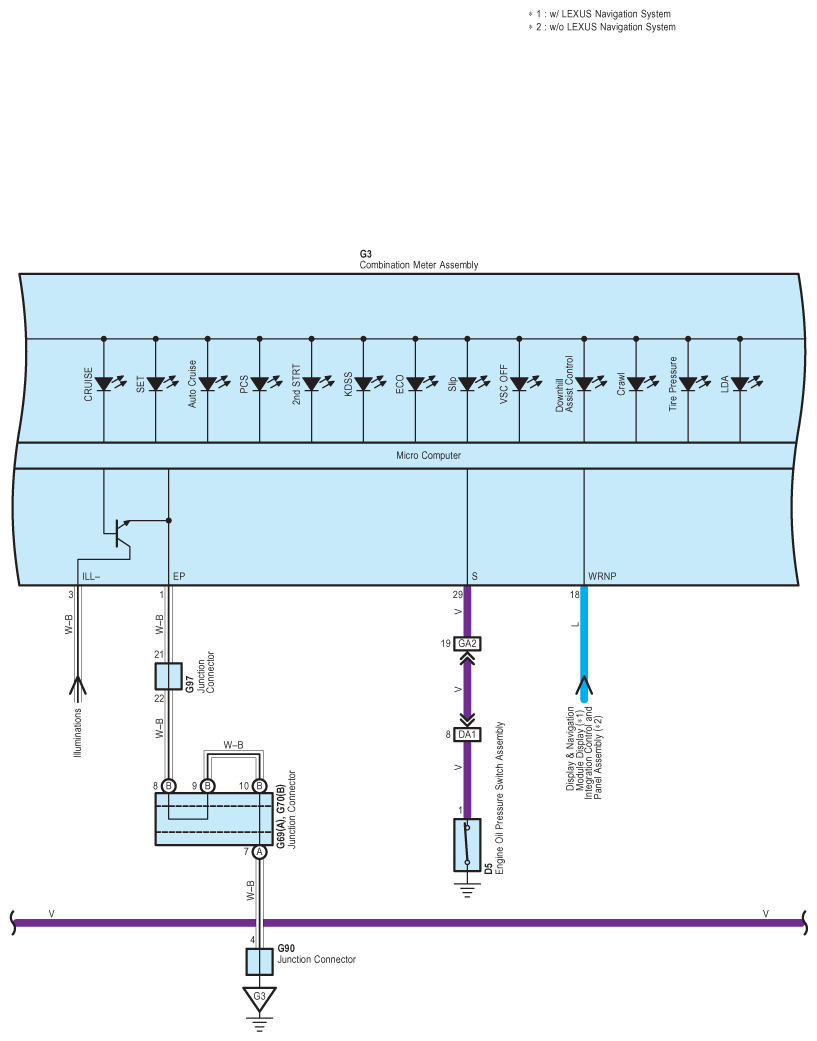

Fig 4: Combination Meter - Wiring Diagram (4 Of 9)
G09114848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

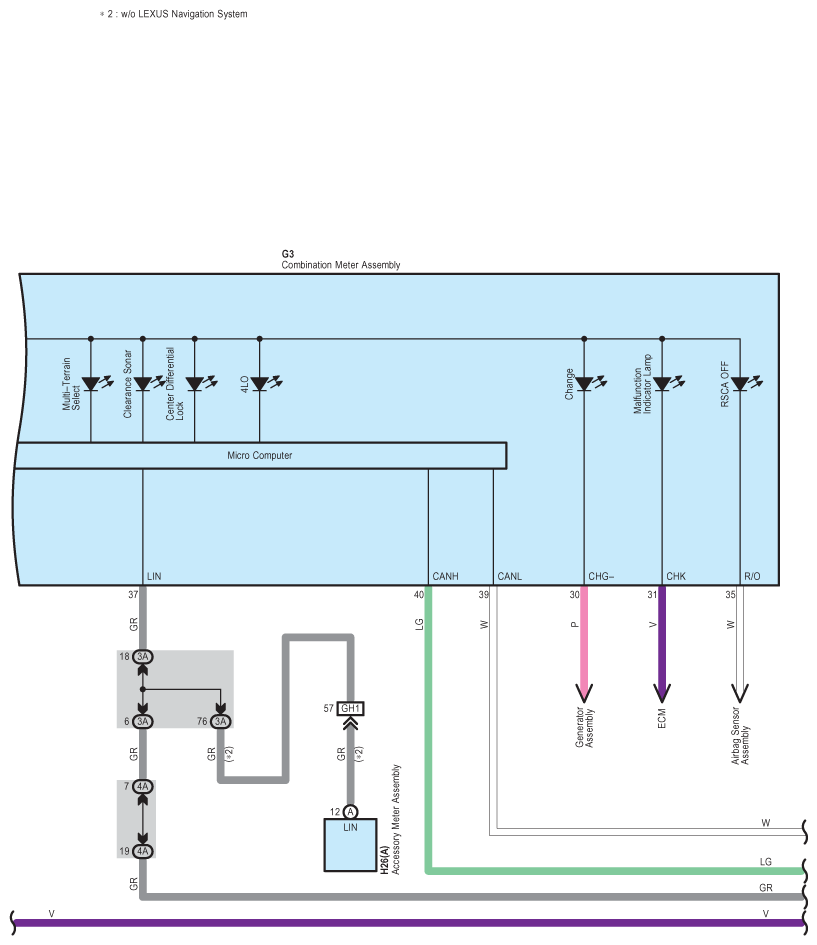

Fig 5: Combination Meter - Wiring Diagram (5 Of 9)
G09114849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

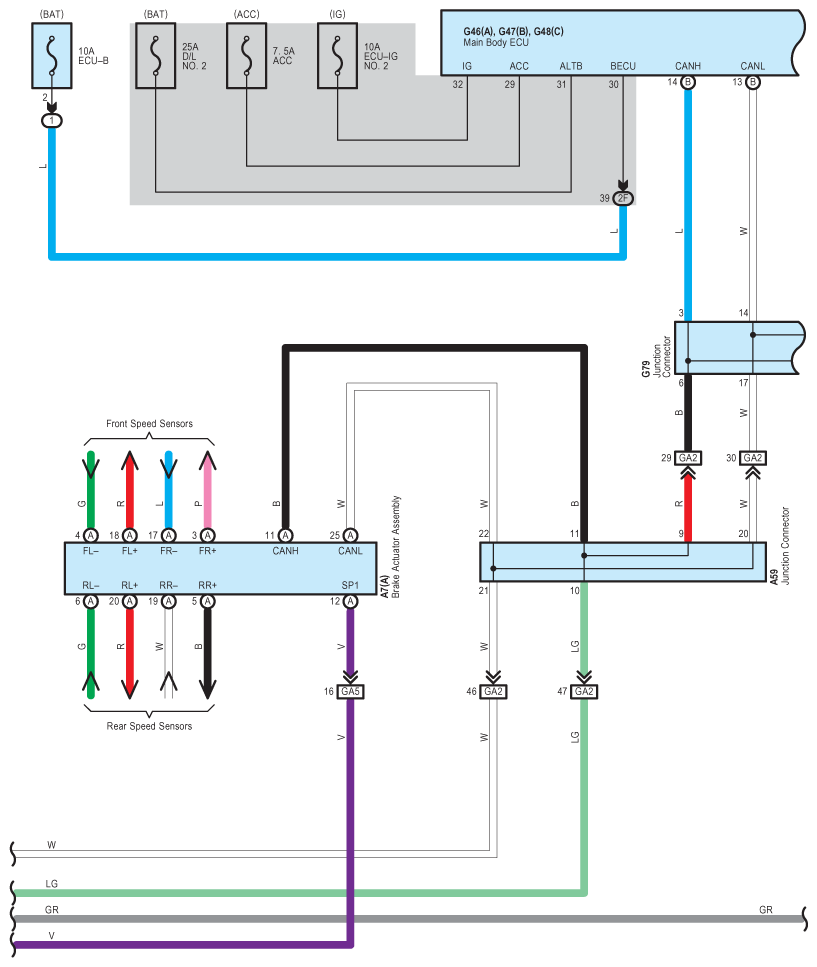

Fig 6: Combination Meter - Wiring Diagram (6 Of 9)
G09114850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

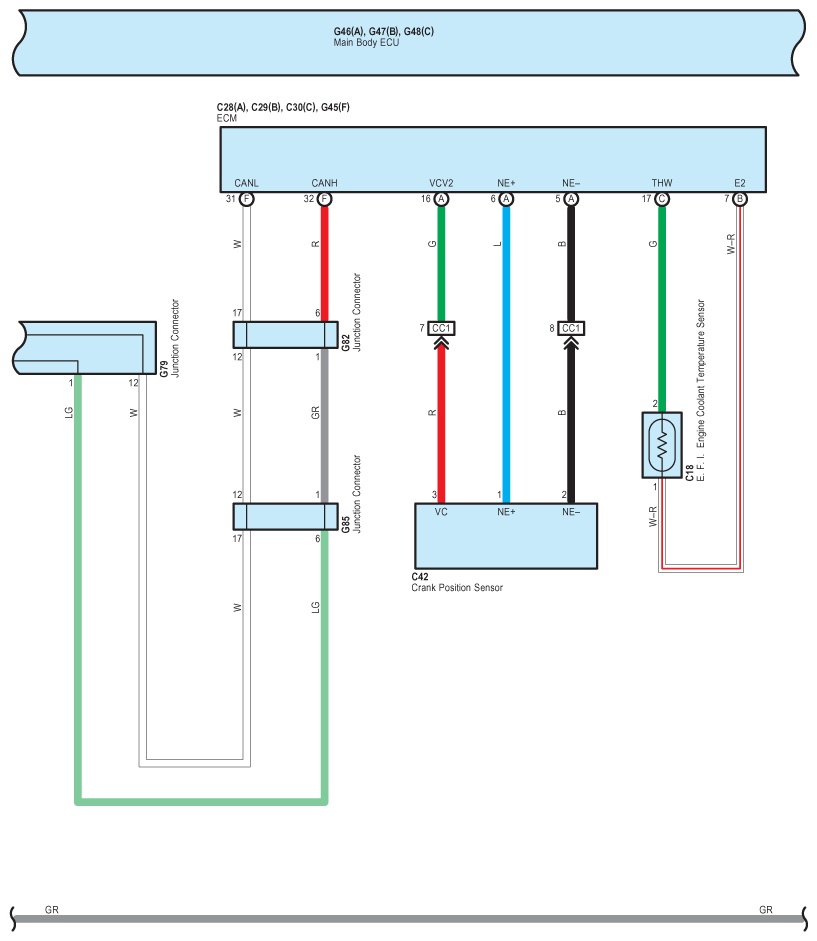

Fig 7: Combination Meter - Wiring Diagram (7 Of 9)
G09114851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

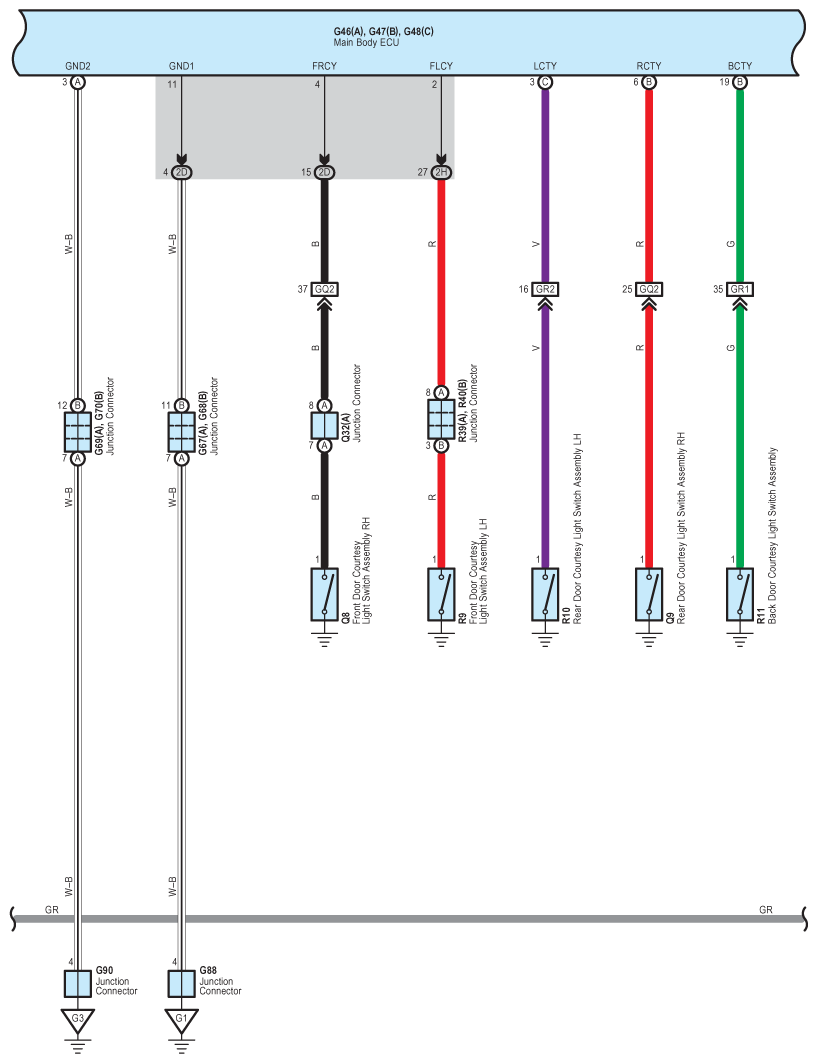

Fig 8: Combination Meter - Wiring Diagram (8 Of 9)
G09114852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

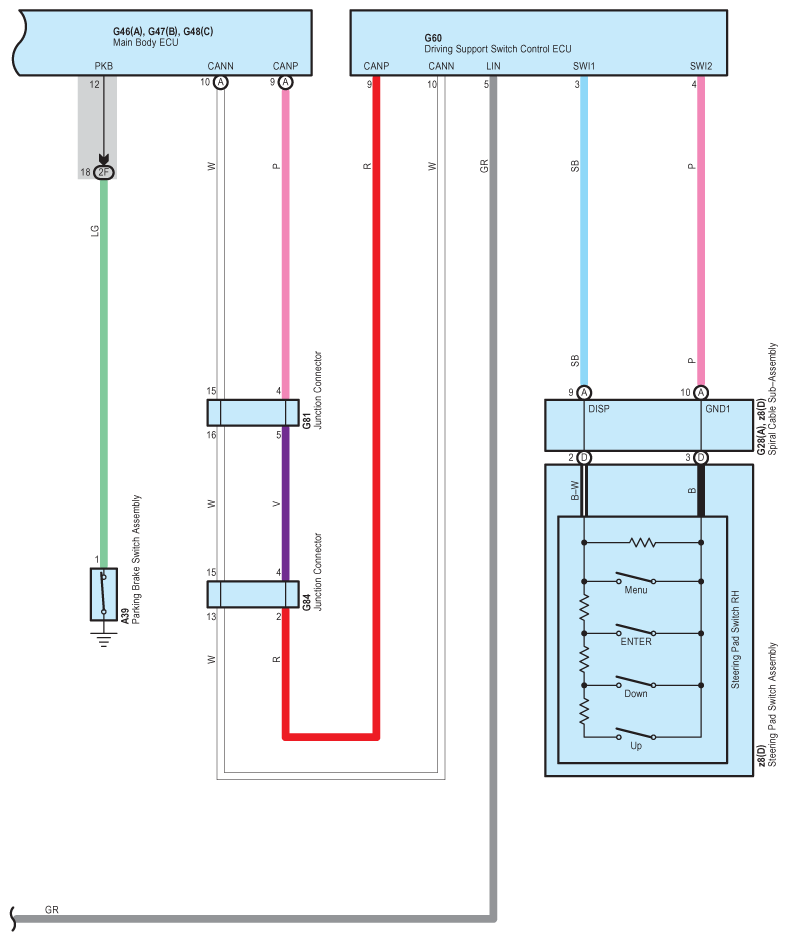

Fig 9: Combination Meter - Wiring Diagram (9 Of 9)
G09114853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
