Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control: Notes

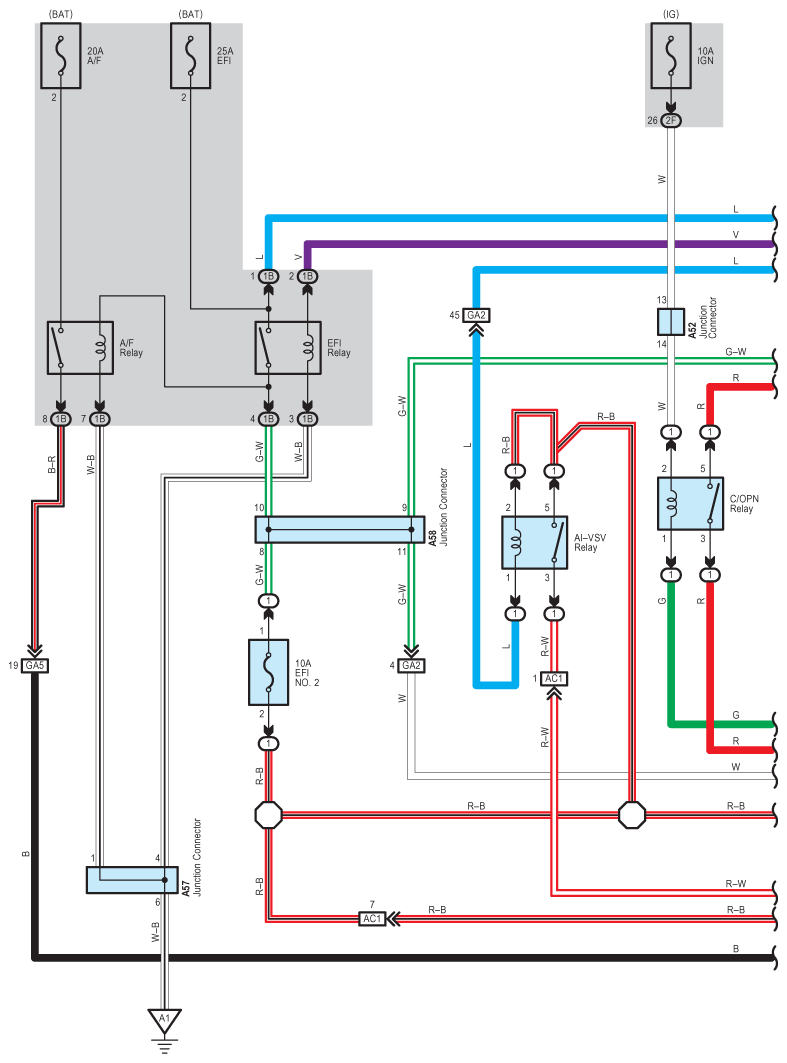

Fig 1: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (1 Of 26)
G09114499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

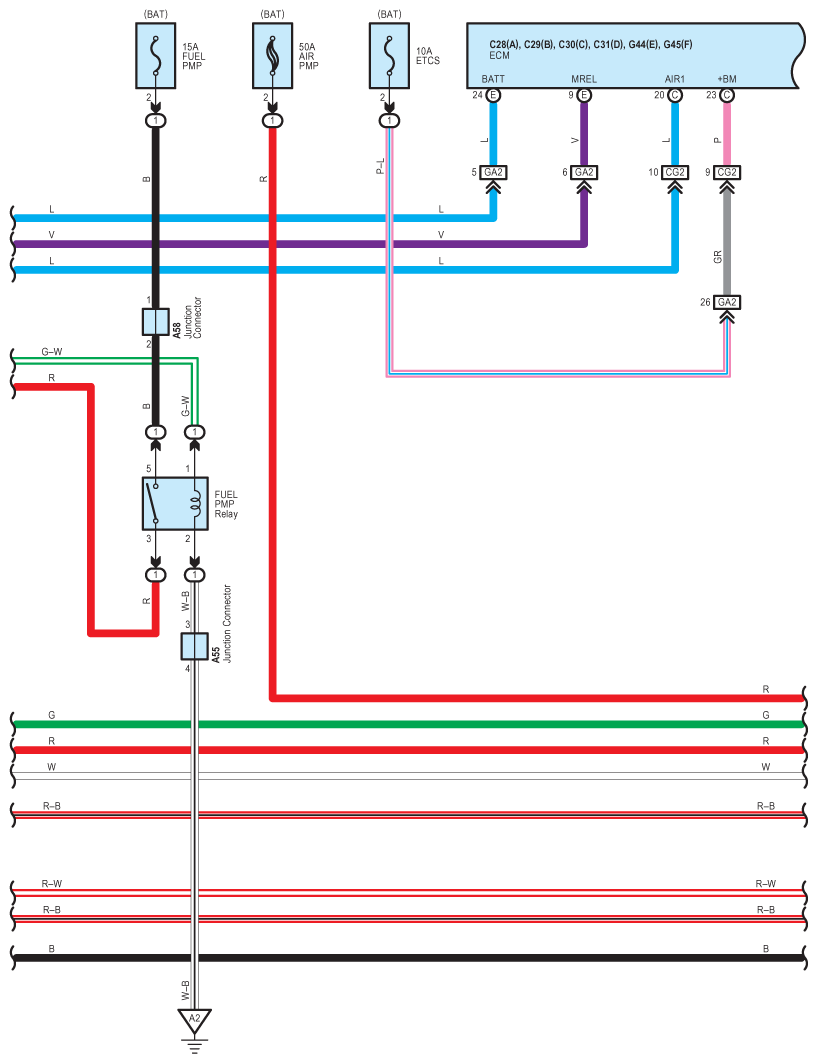

Fig 2: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (2 Of 26)
G09114500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

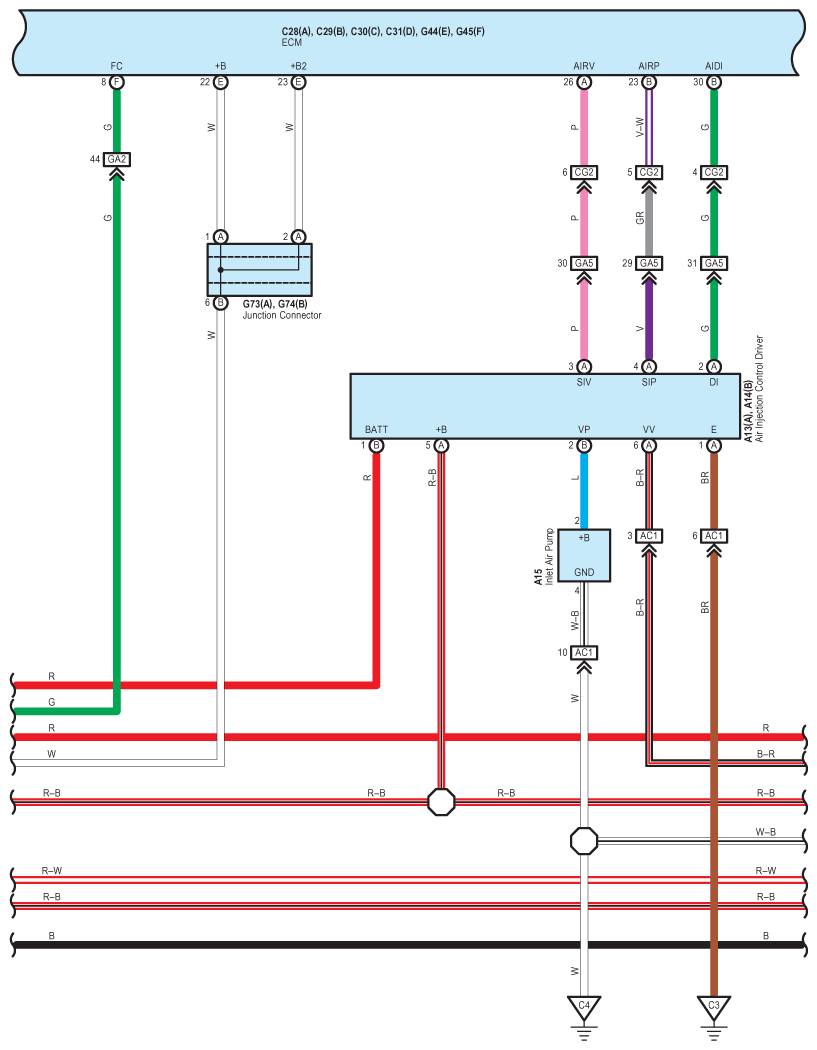

Fig 3: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (3 Of 26)
G09114501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

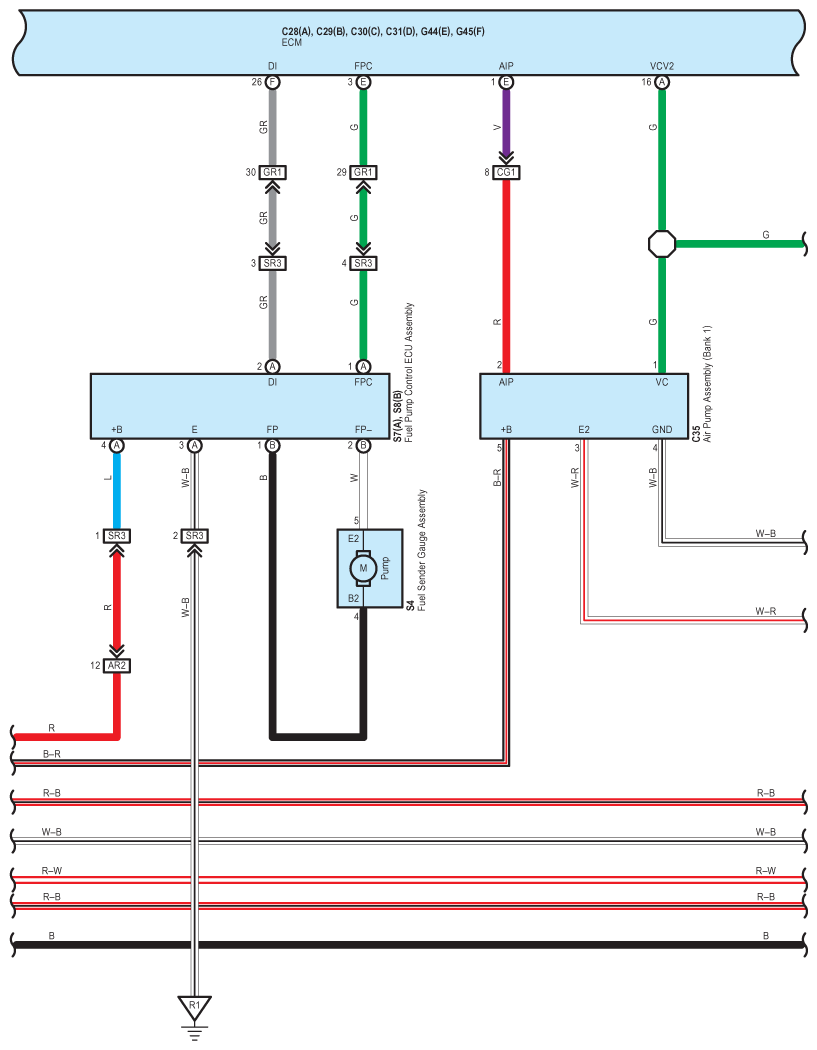

Fig 4: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (4 Of 26)
G09114502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

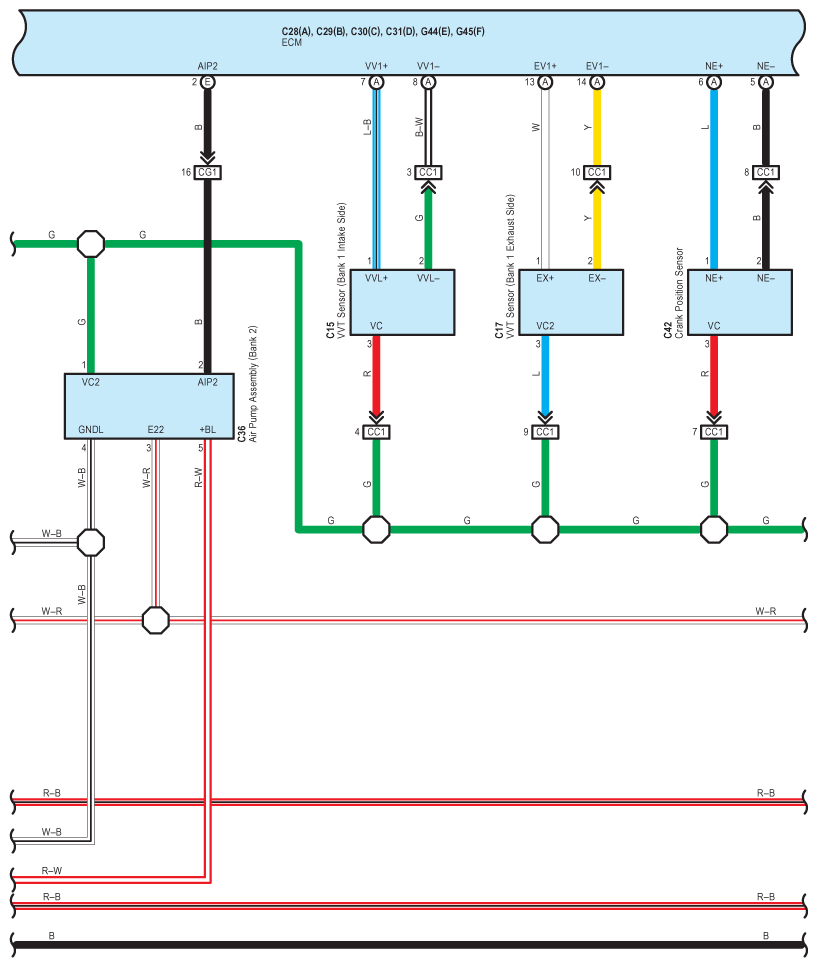

Fig 5: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (5 Of 26)
G09114503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

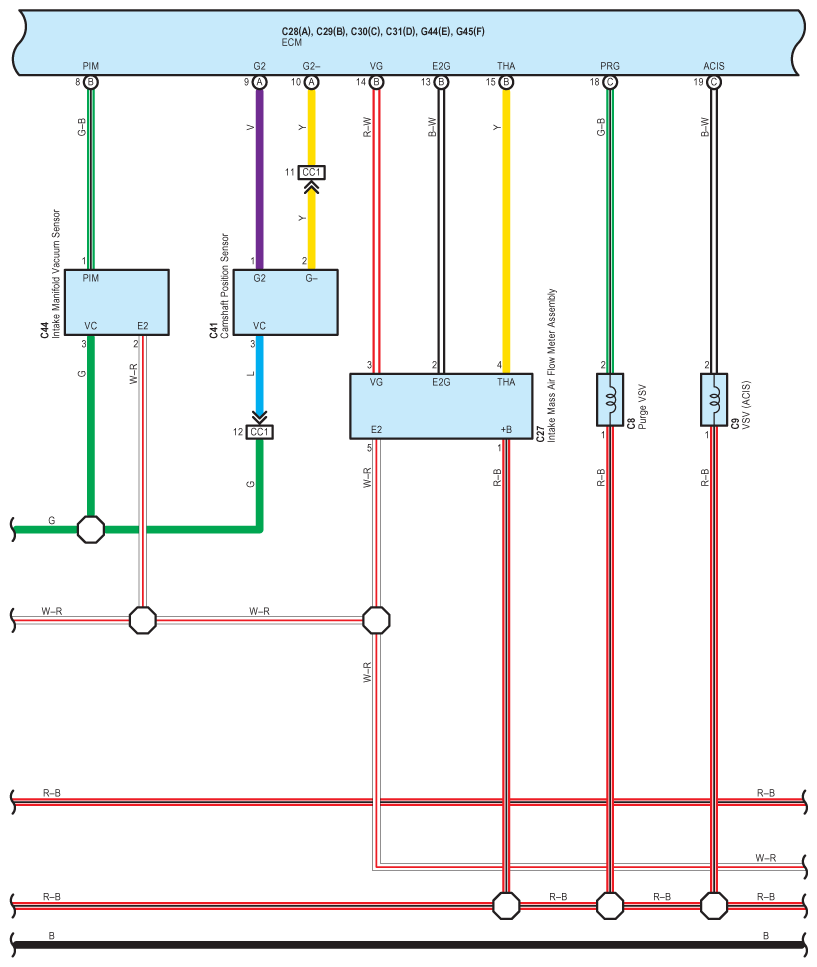

Fig 6: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (6 Of 26)
G09114504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (7 Of 26)
G09114505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

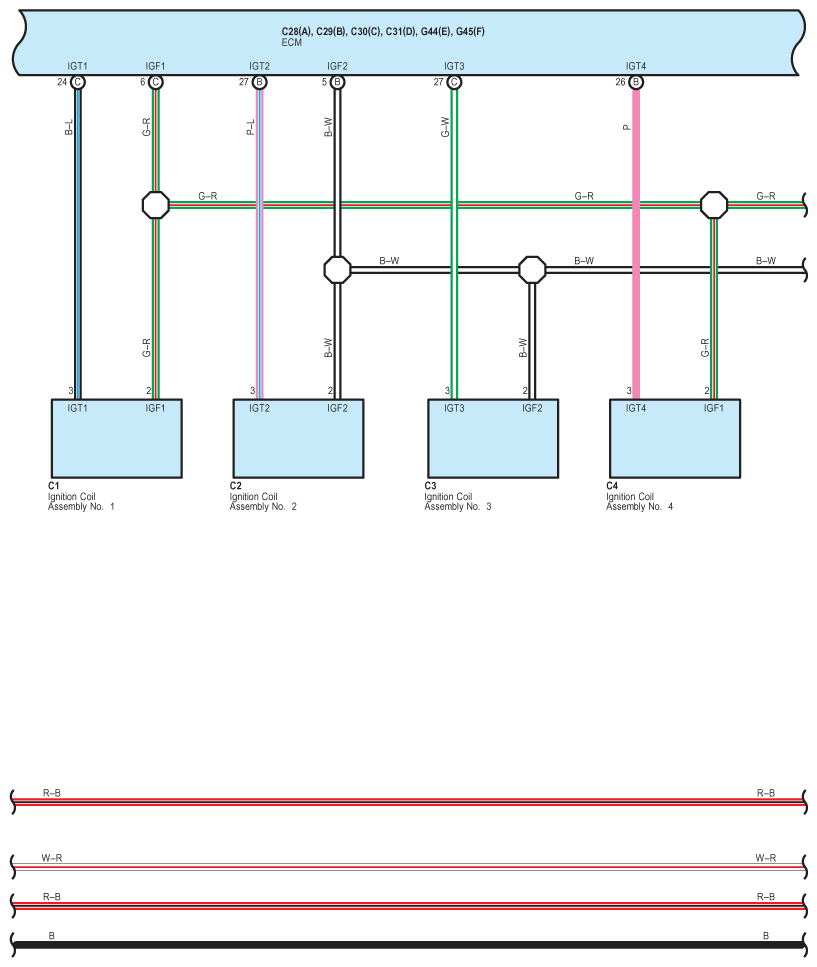

Fig 8: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (8 Of 26)
G09114506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

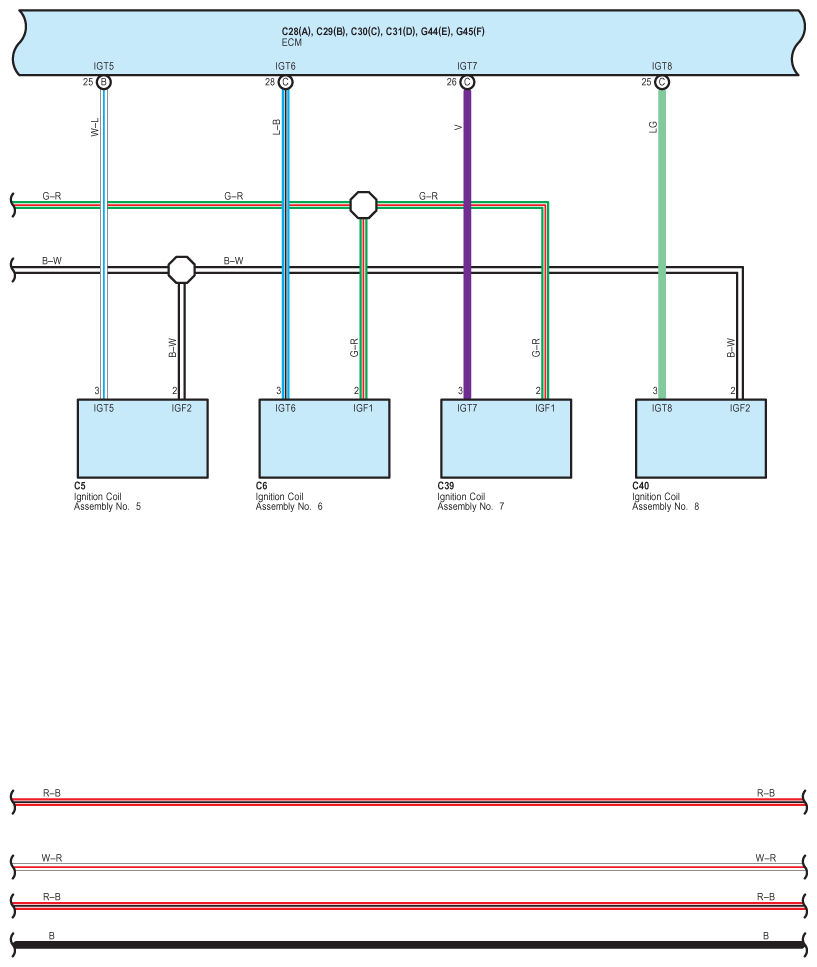

Fig 9: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (9 Of 26)

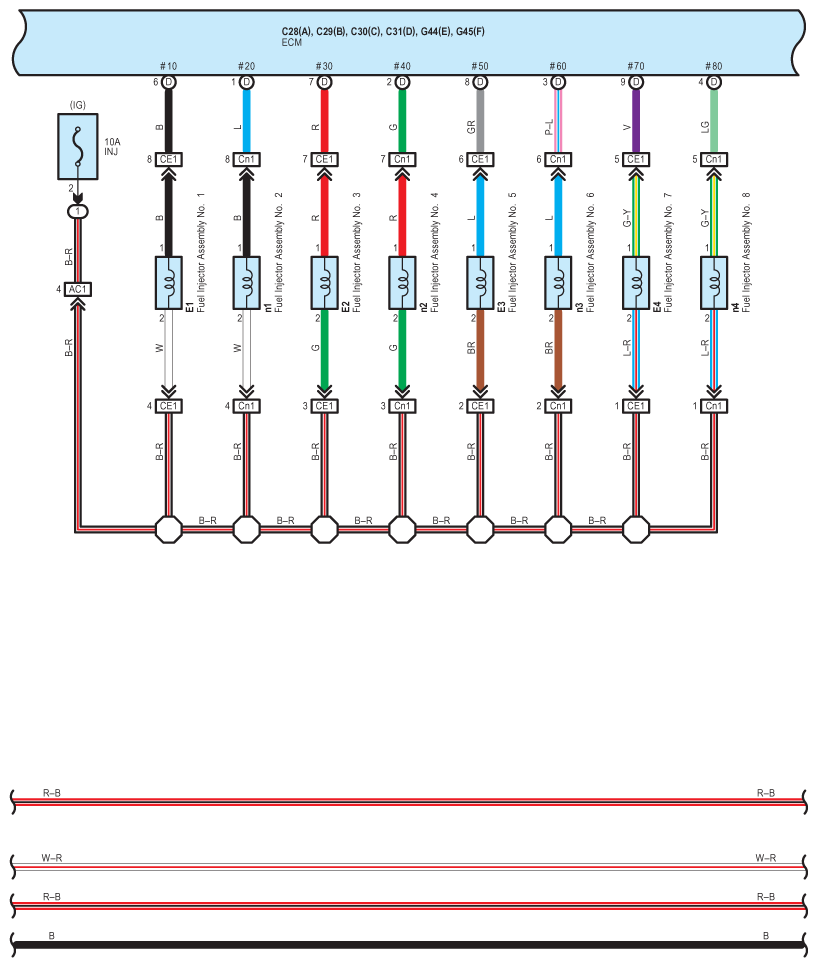

G09114507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (10 Of 26)

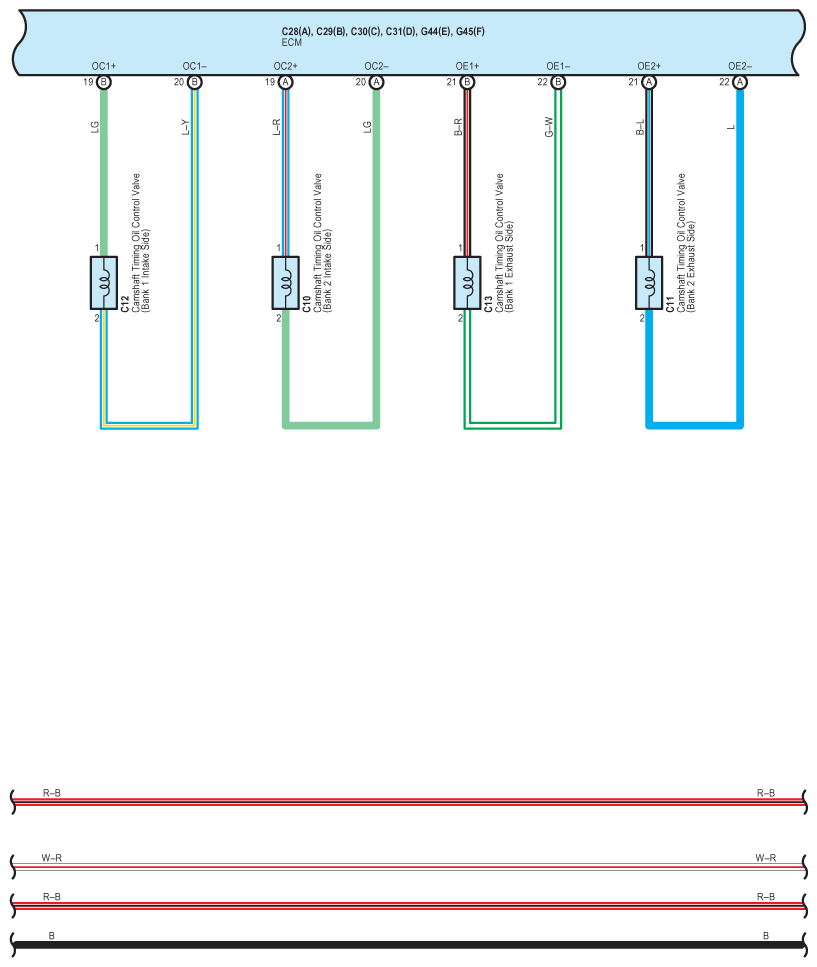

G09114508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

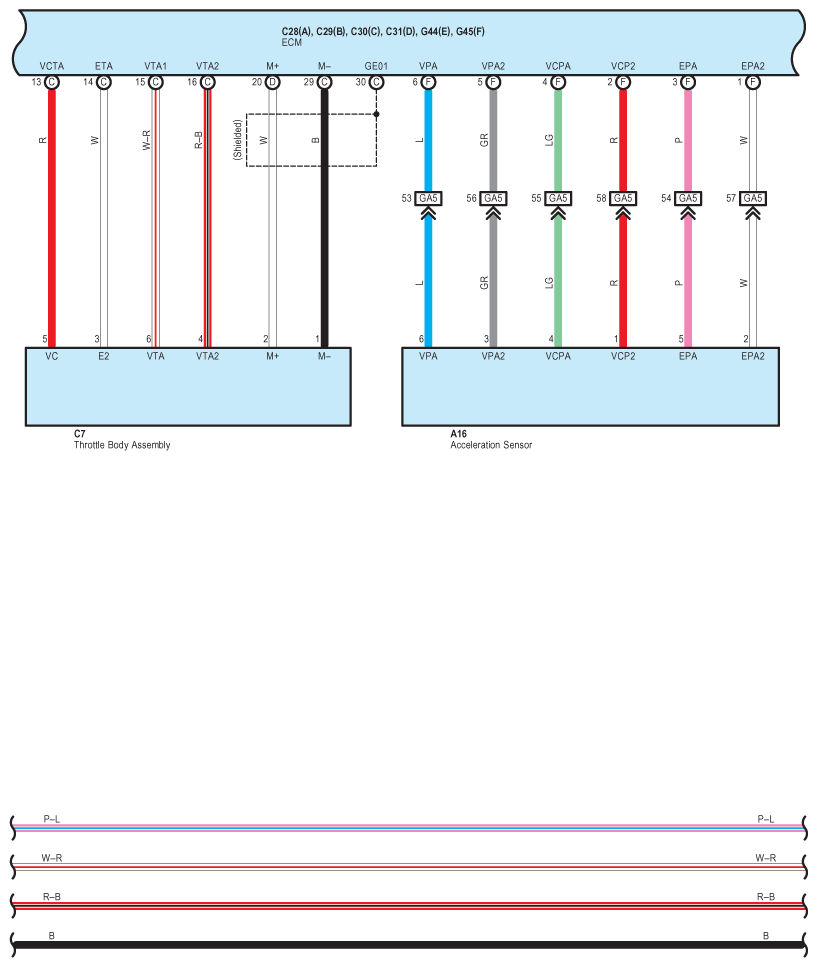

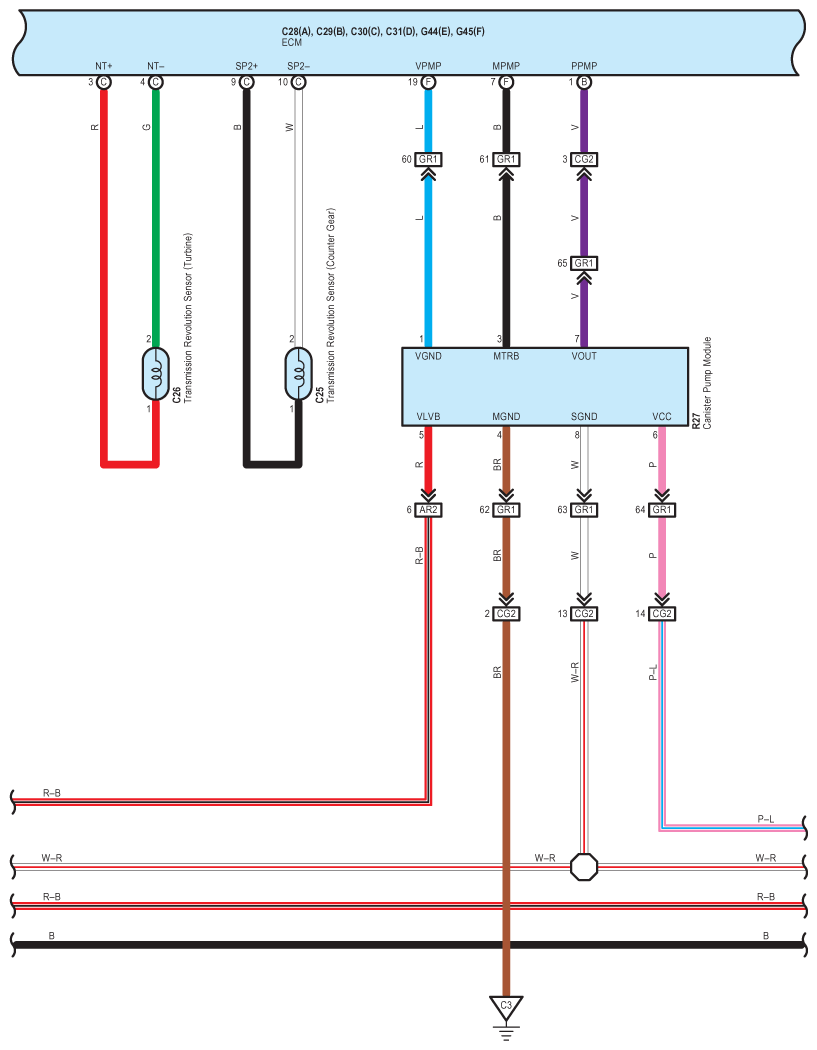

Fig 11: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (11 Of 26)
G09114509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (12 Of 26)
G09114510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

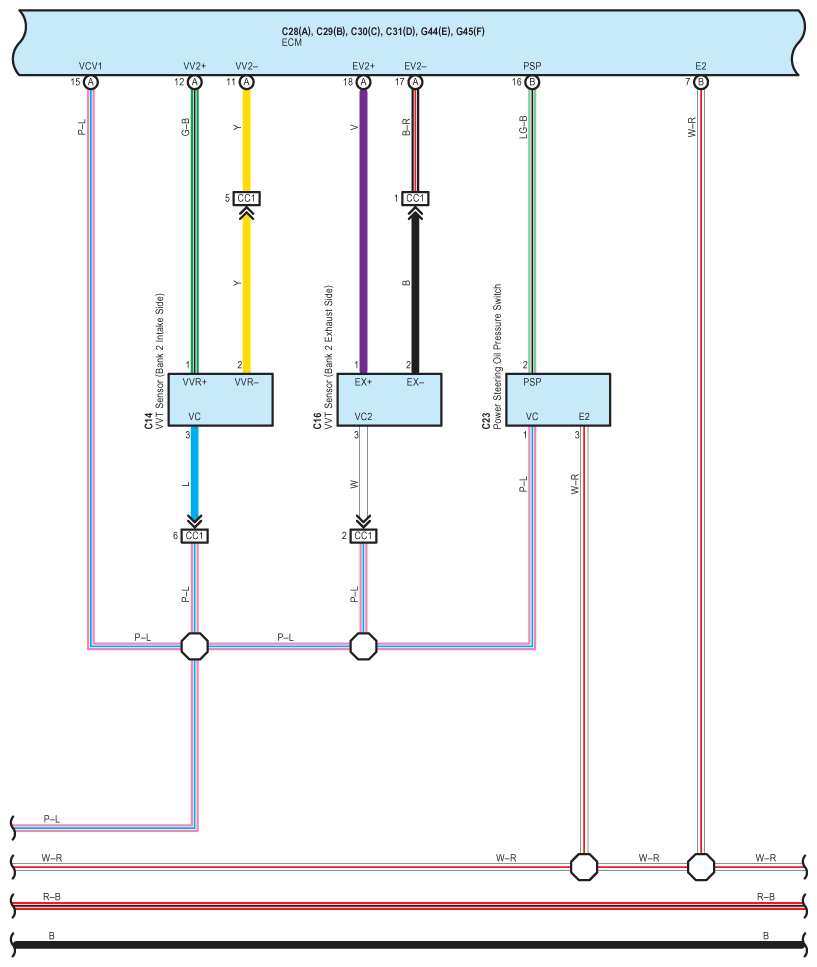

Fig 13: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (13 Of 26)
G09114511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

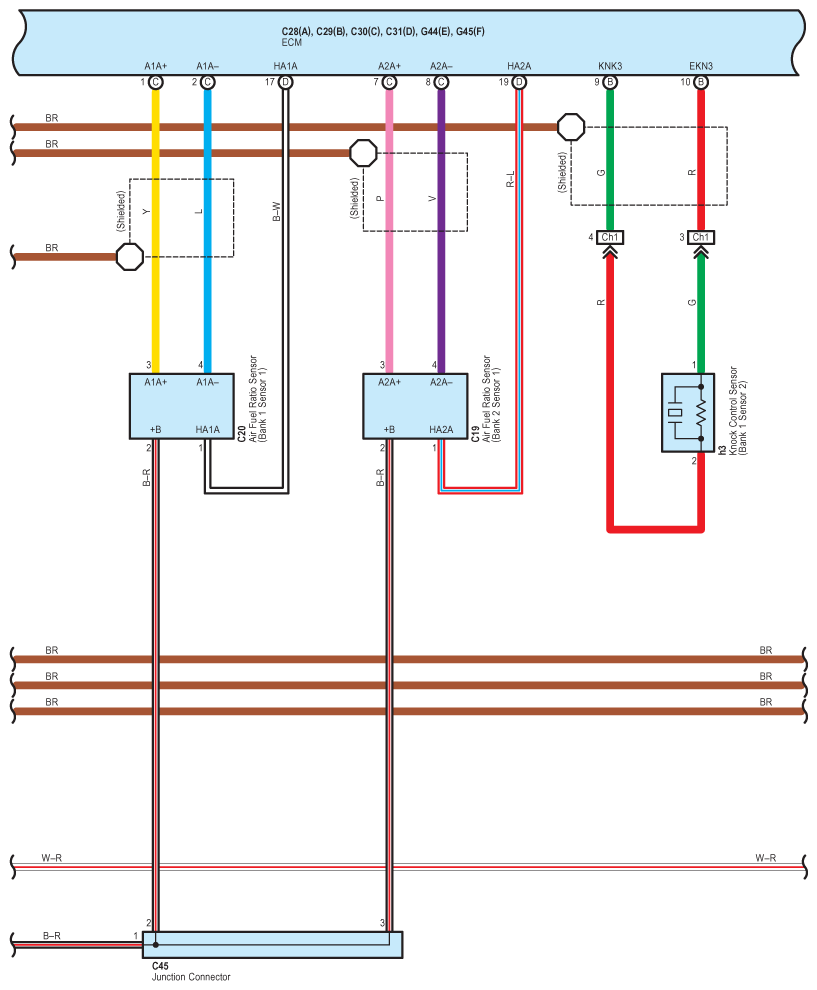

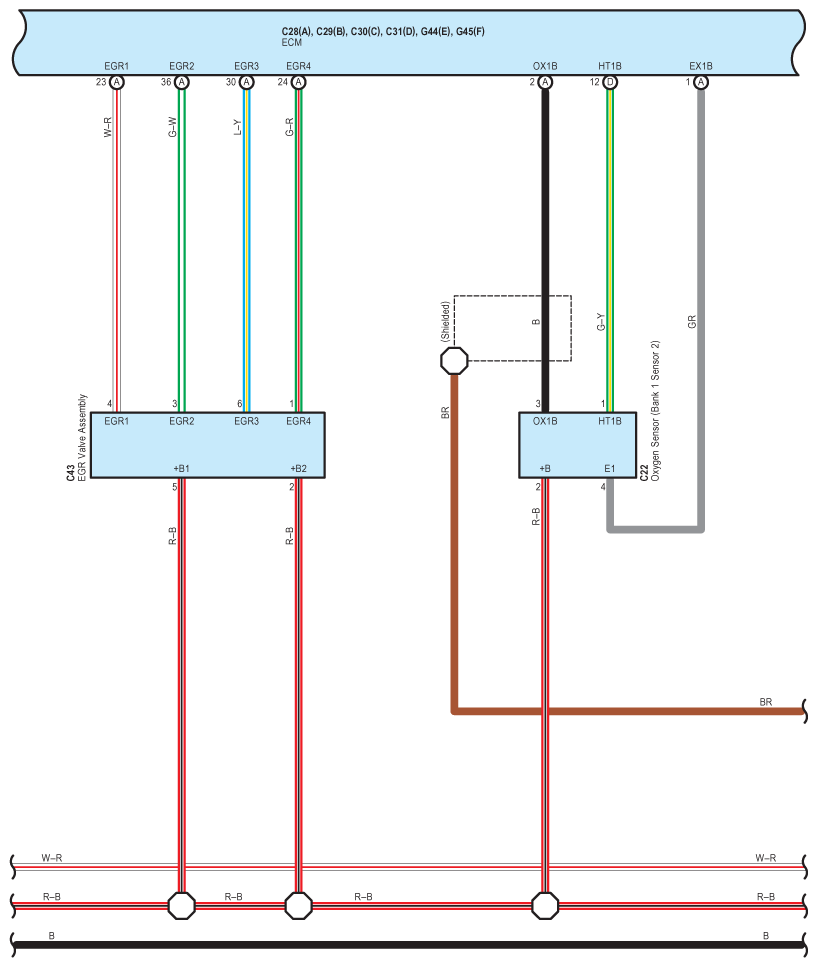

Fig 14: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (14 Of 26)
G09114512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

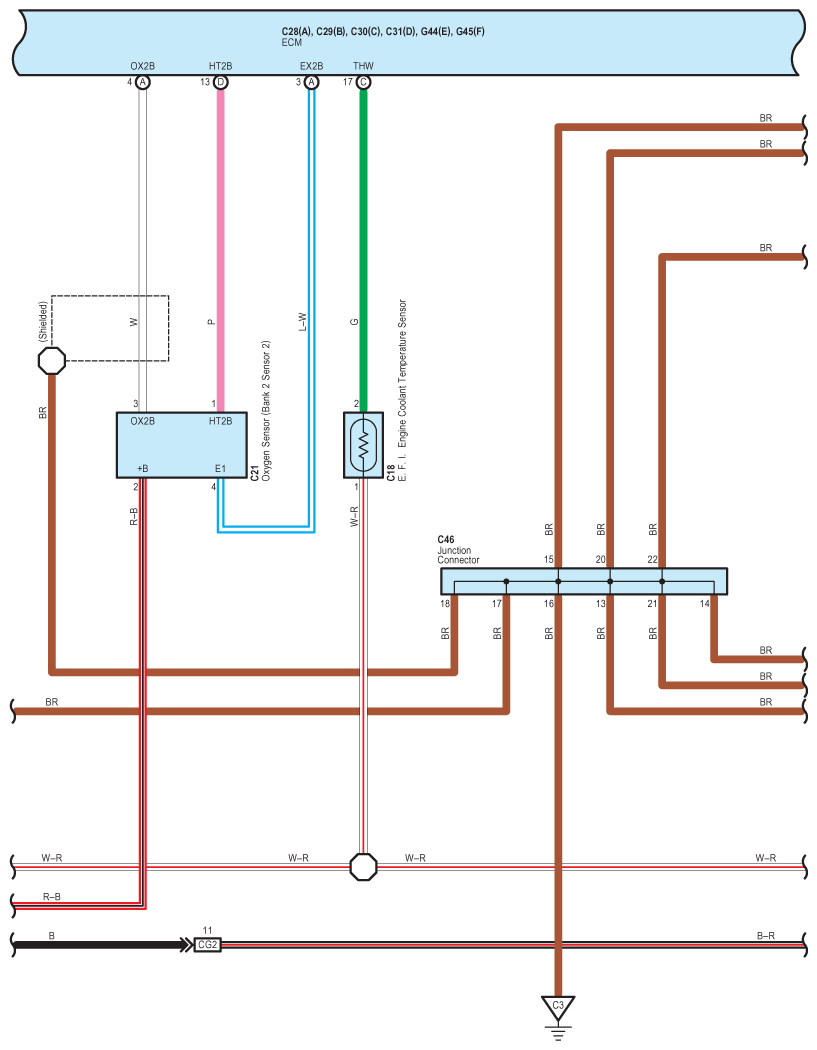

Fig 15: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (15 Of 26)
G09114513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (16 Of 26)
G09114514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (17 Of 26)

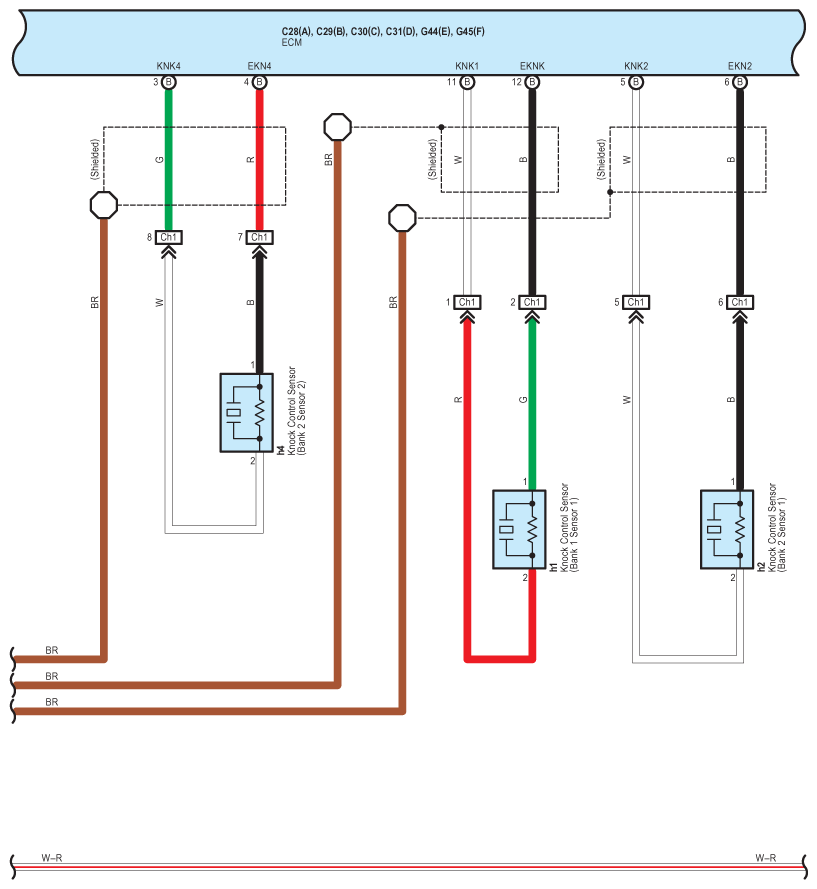

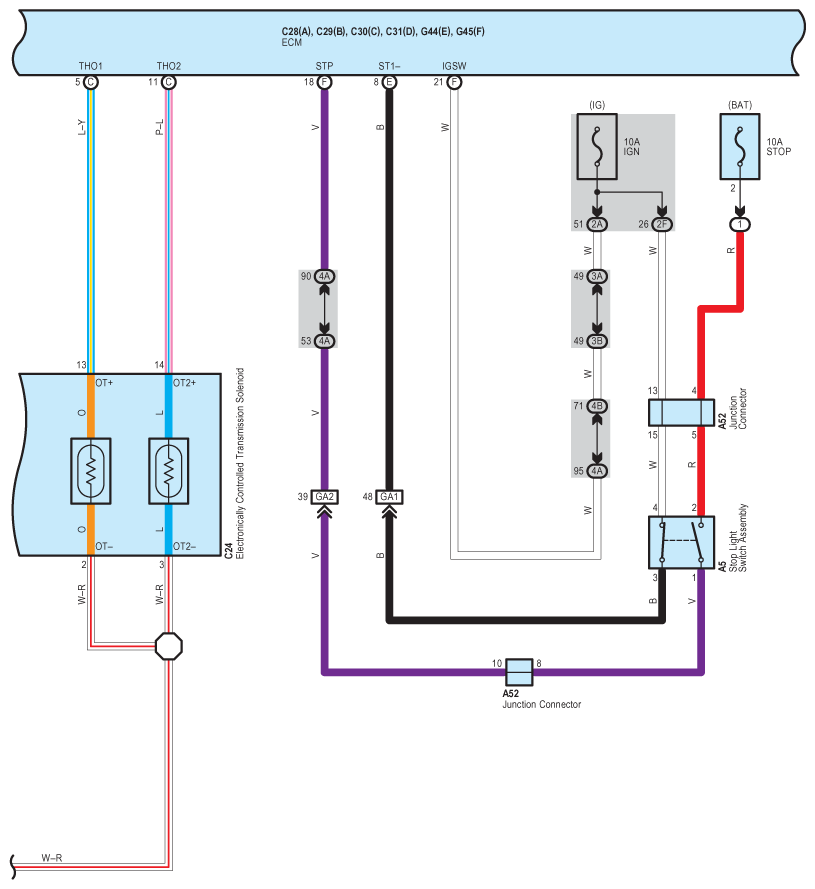

G09114515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

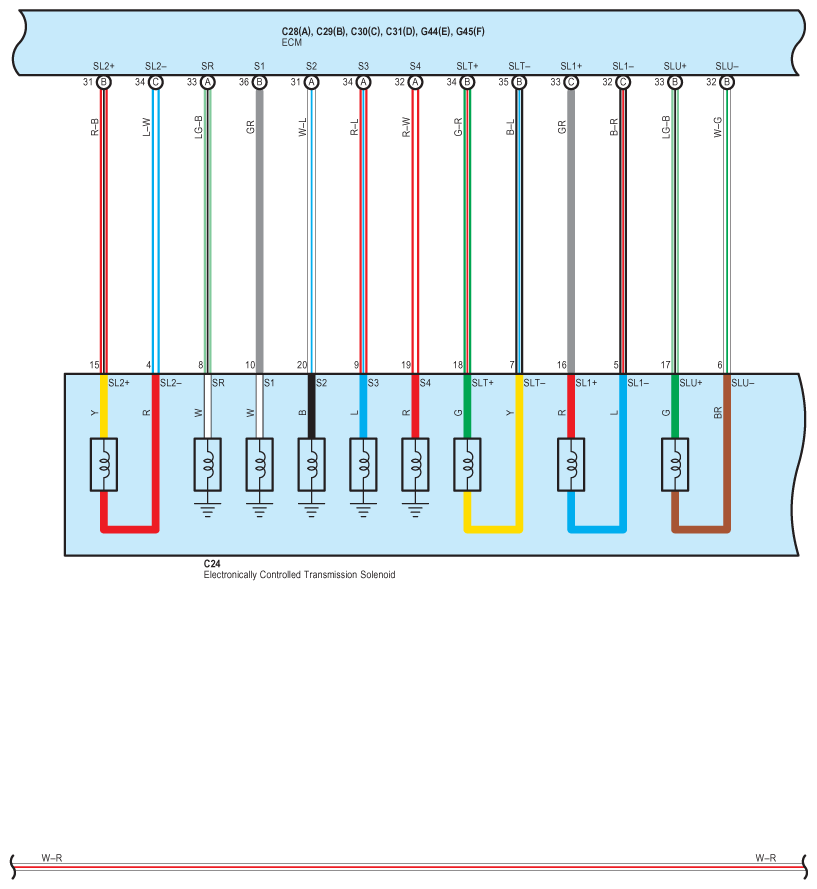

Fig 18: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator Wiring Diagram (18 Of 26)
G09114516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 19: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (19 Of 26)

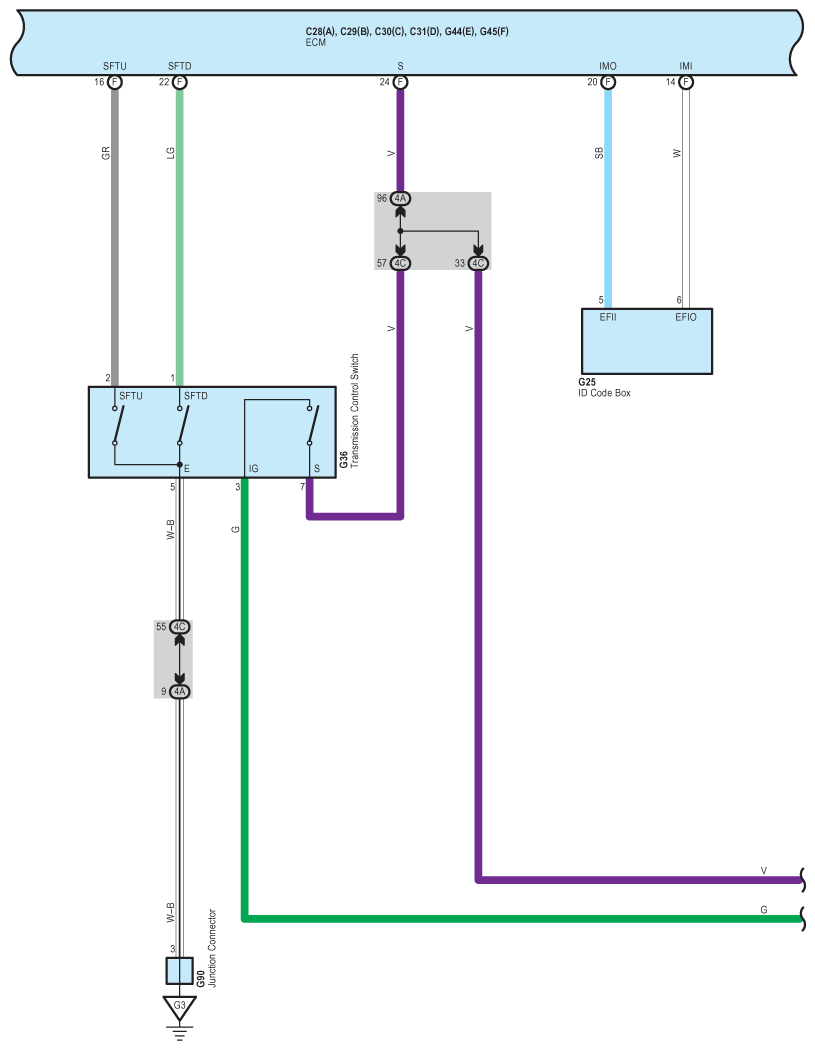

G09114517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (20 Of 26)

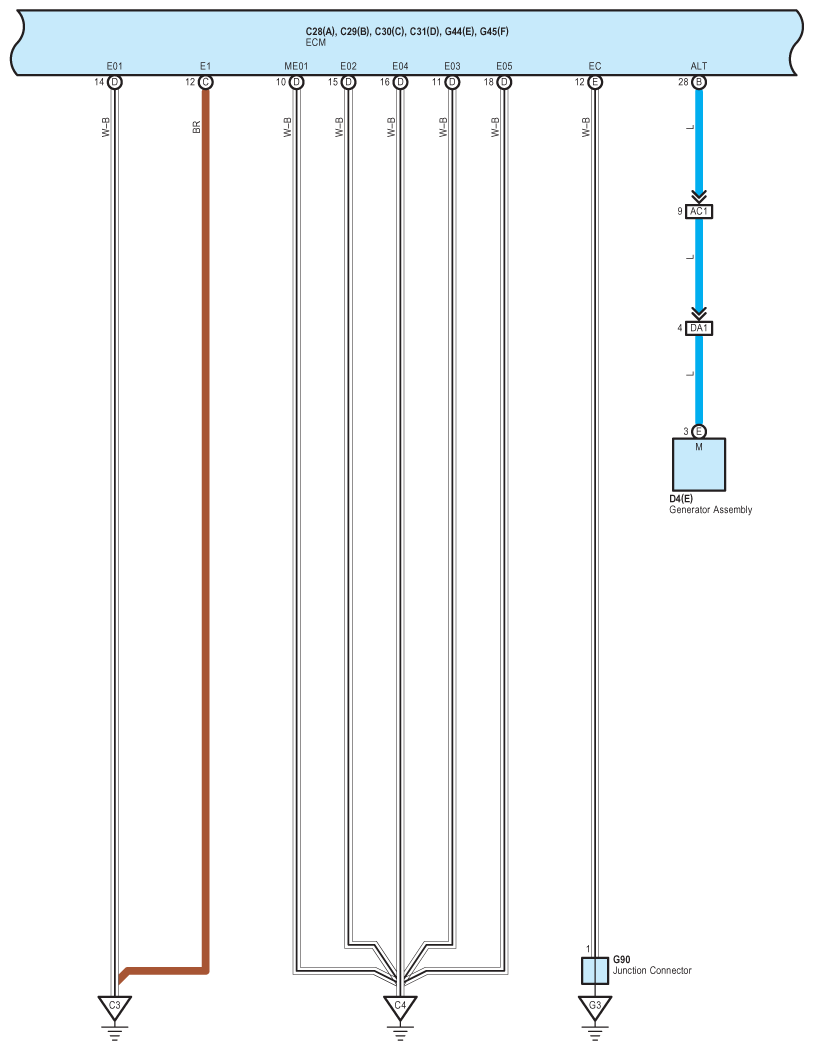

G09114518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (21 Of 26)

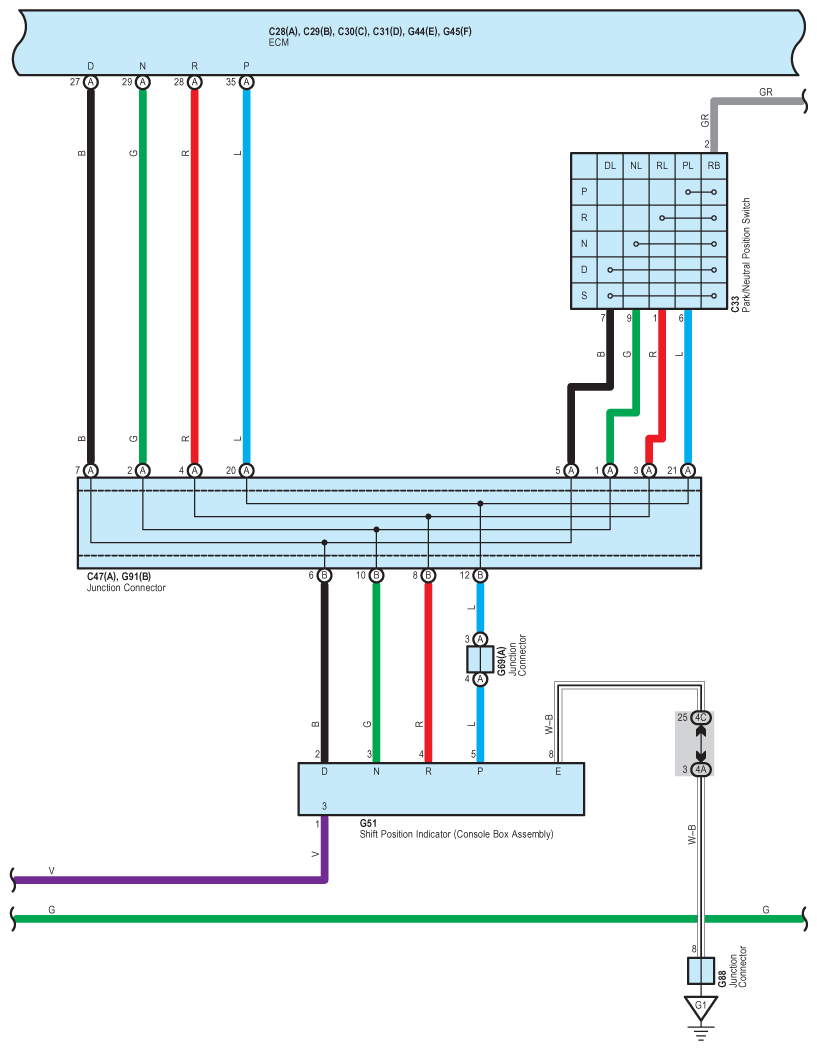

G09114519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (22 Of 26)
G09114520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

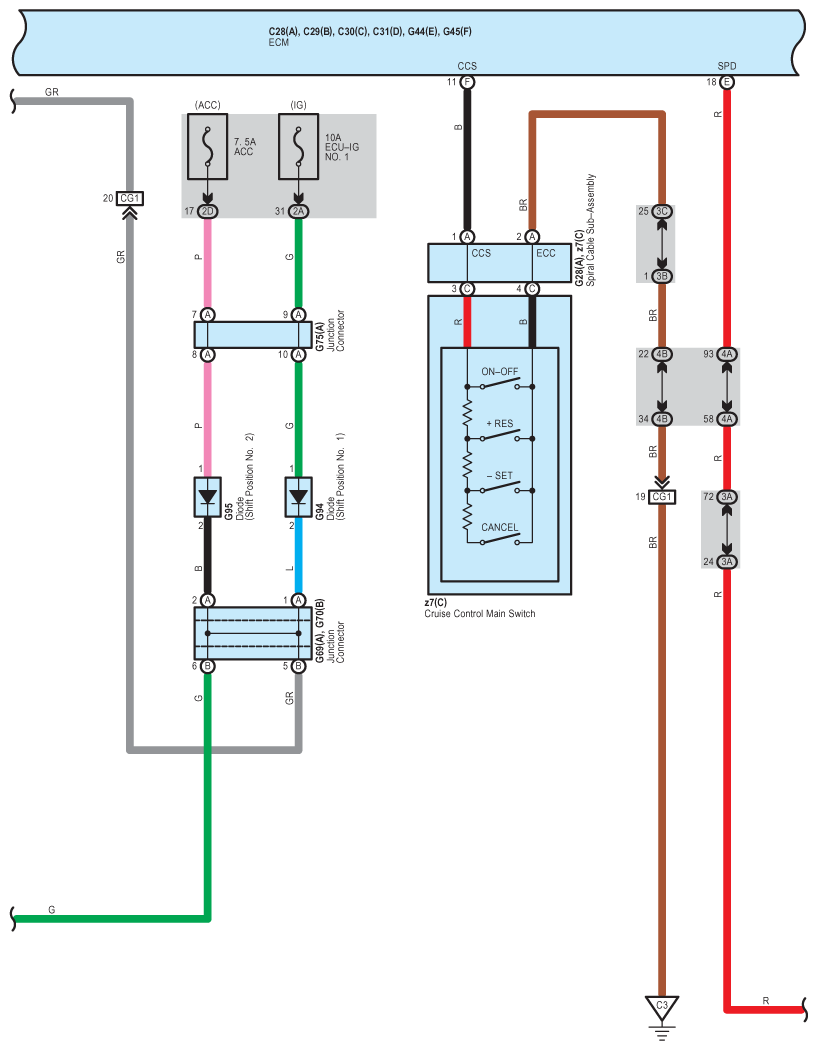

Fig 23: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (23 Of 26)
G09114521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 24: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (24 Of 26)

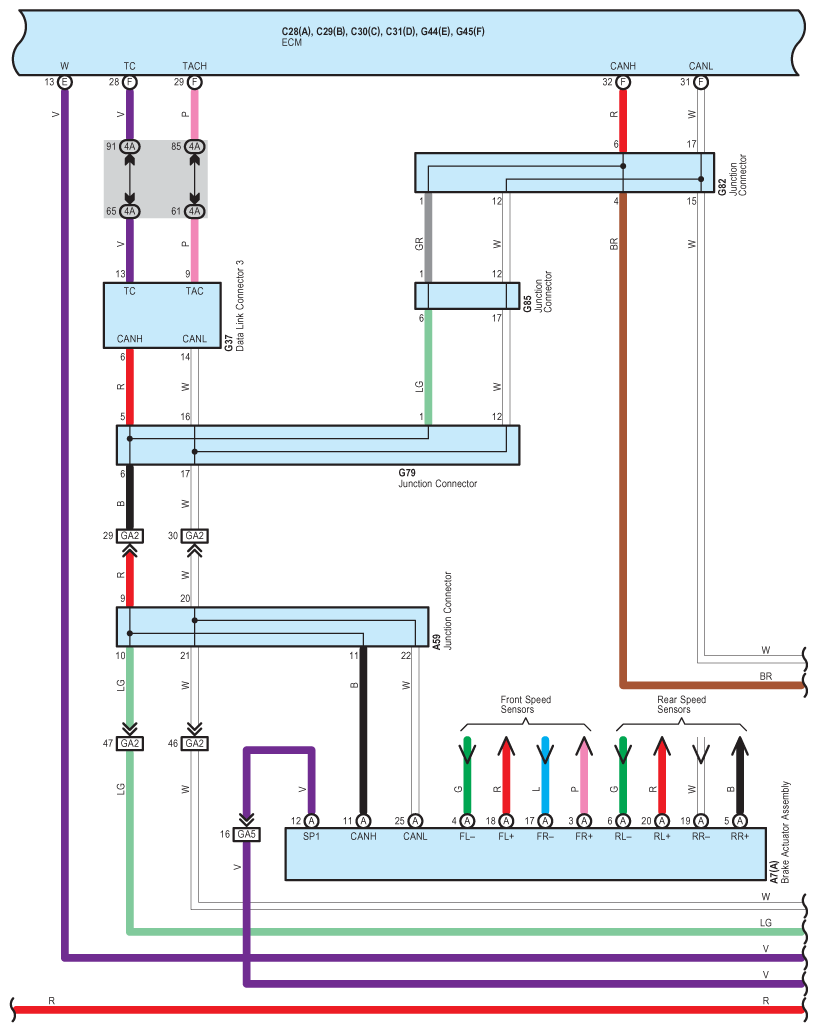

G09114522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

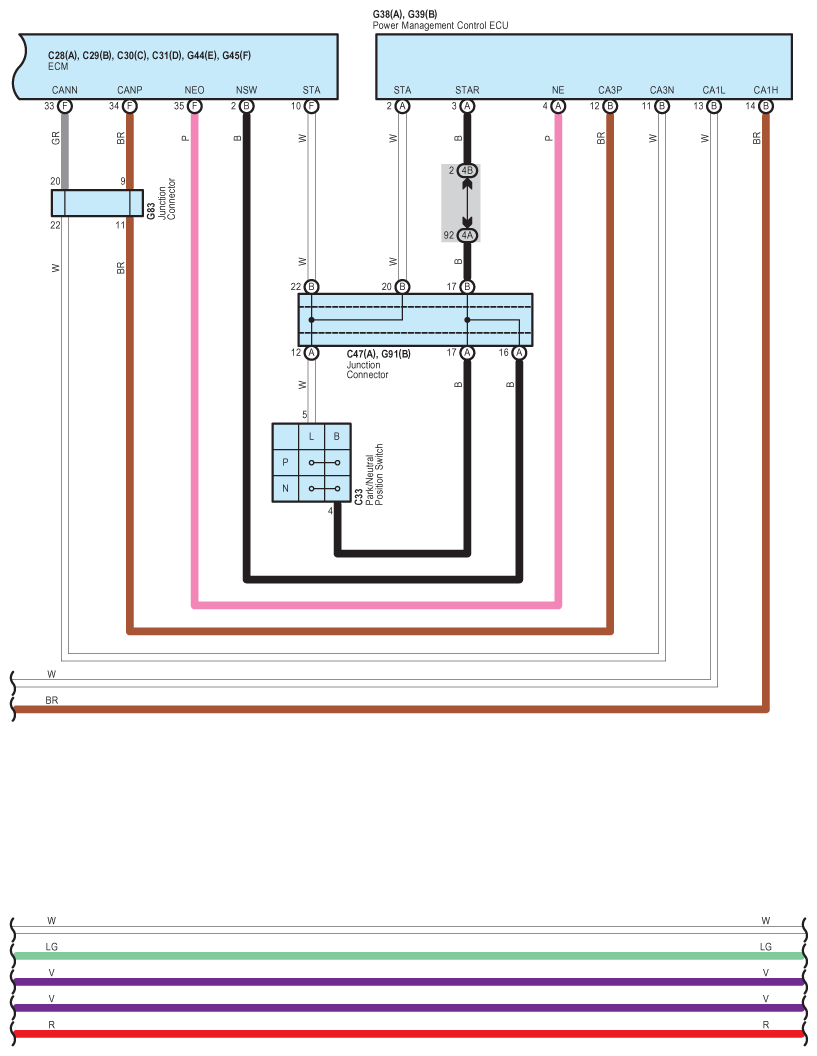

Fig 25: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (25 Of 26)
G09114523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

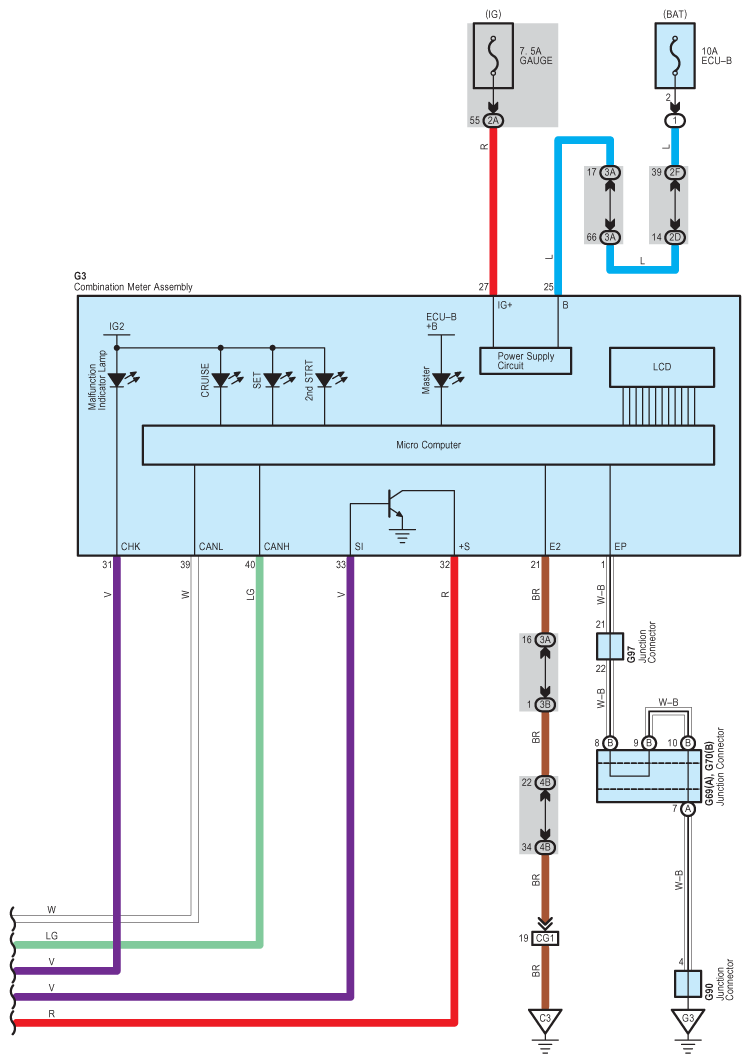

Fig 26: Engine Control, Cruise Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (26 Of 26)
G09114524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
