Dynamic Radar Cruise Control and Lane Departure Alert: Notes

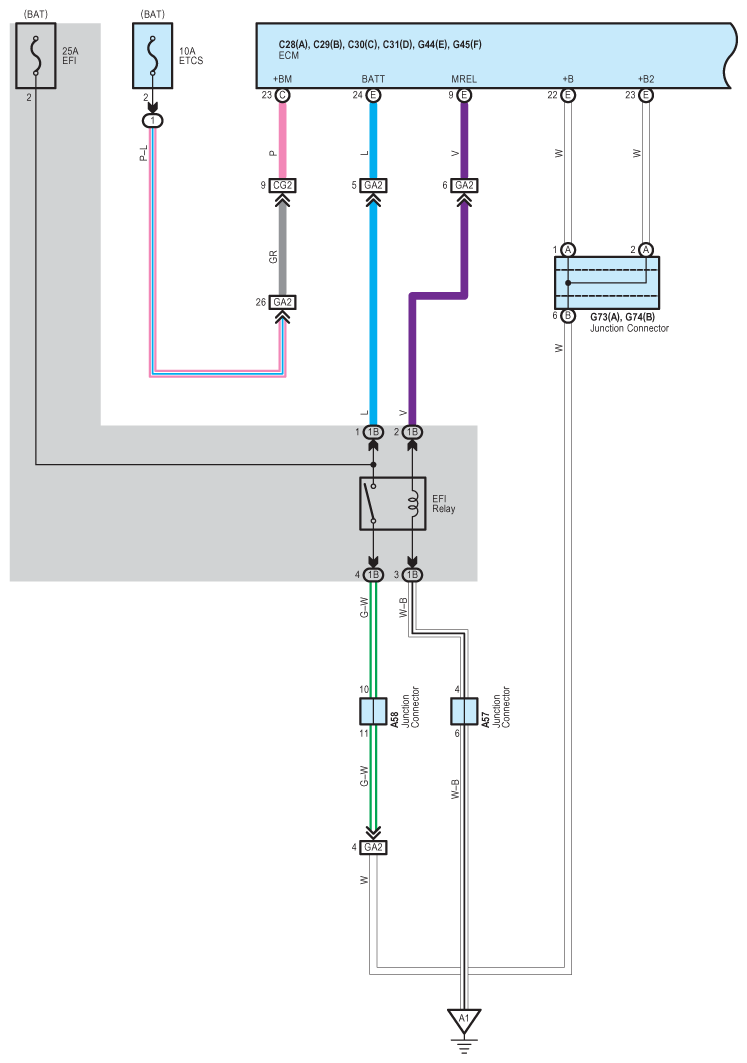

Fig 1: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (1 Of 22)

G09114623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

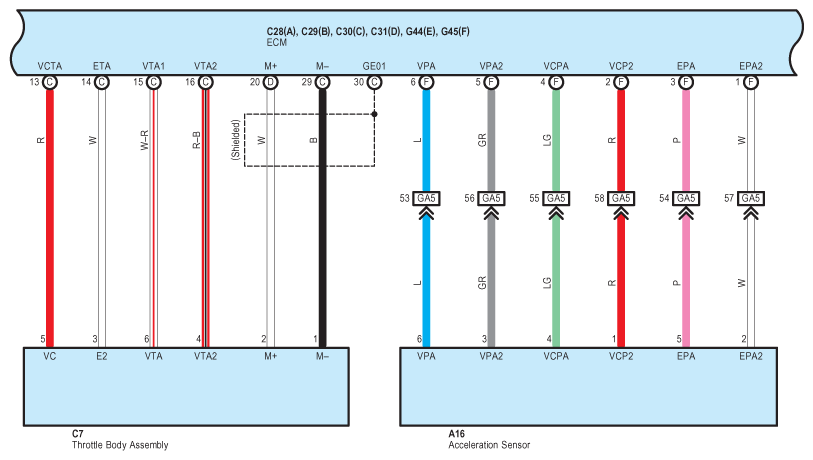

Fig 2: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (2 Of 22)

G09114624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

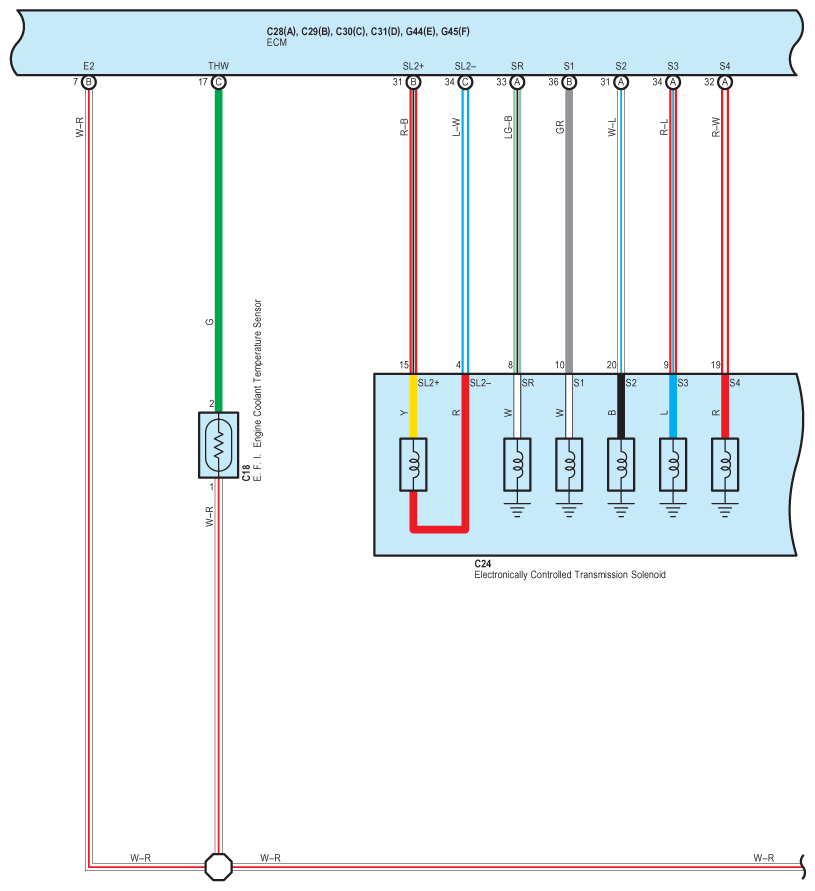

Fig 3: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (3 Of 22)

G09114625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

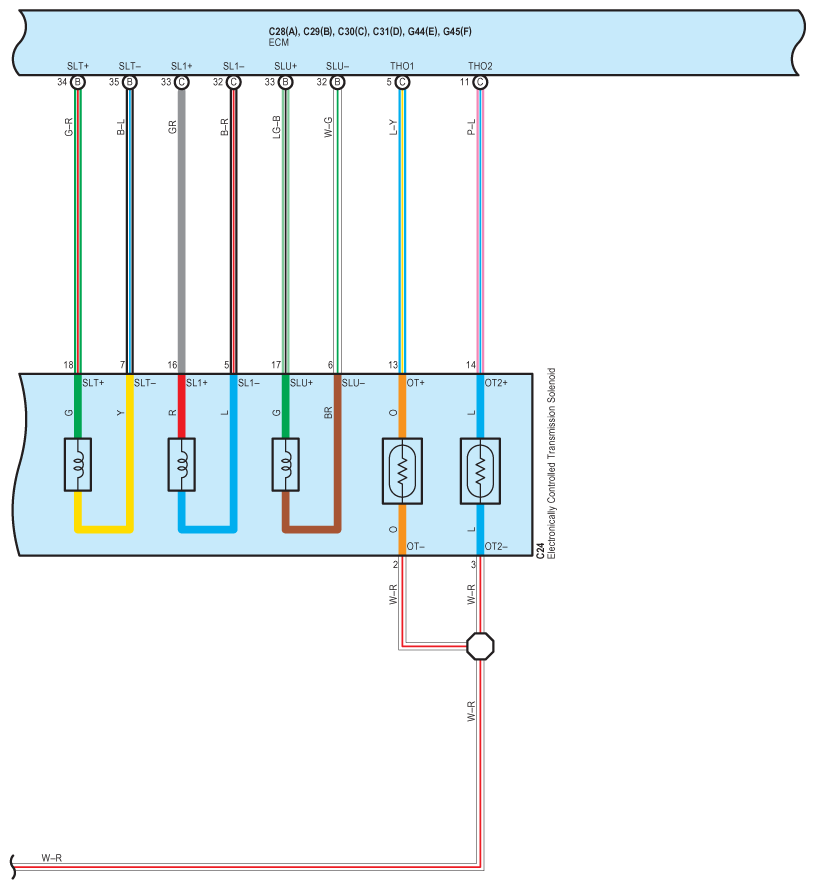

Fig 4: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (4 Of 22)

G09114626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

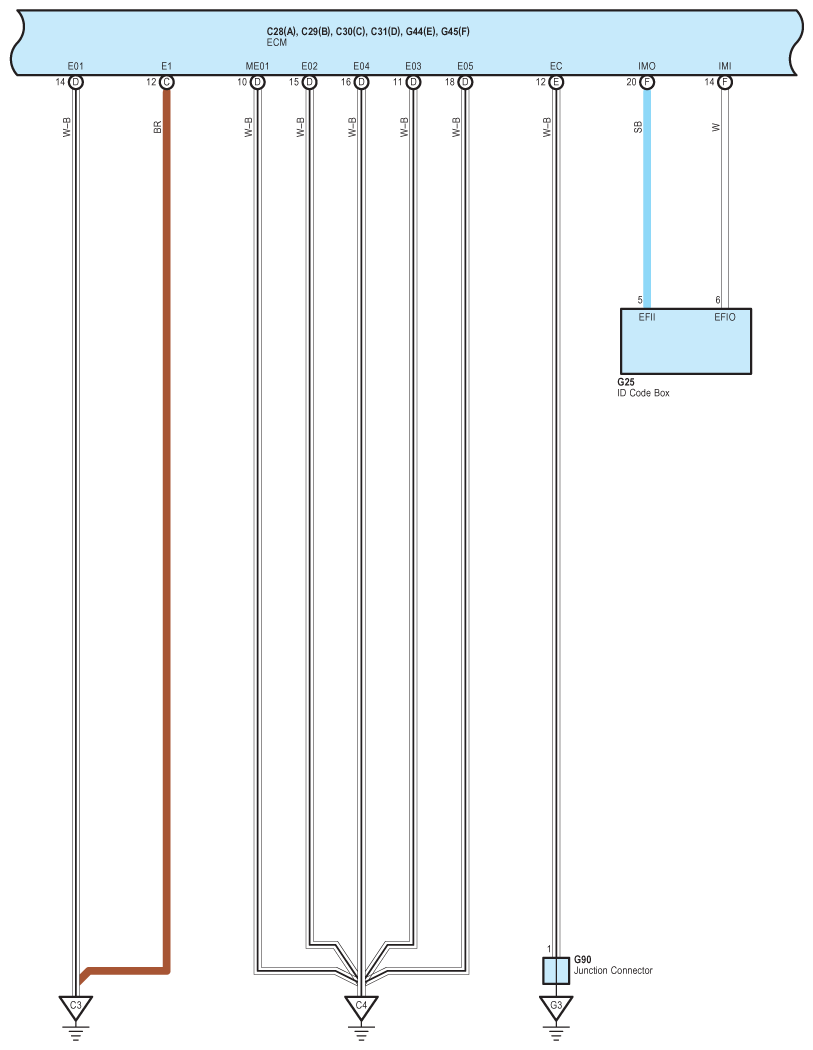

Fig 5: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (5 Of 22)

G09114627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

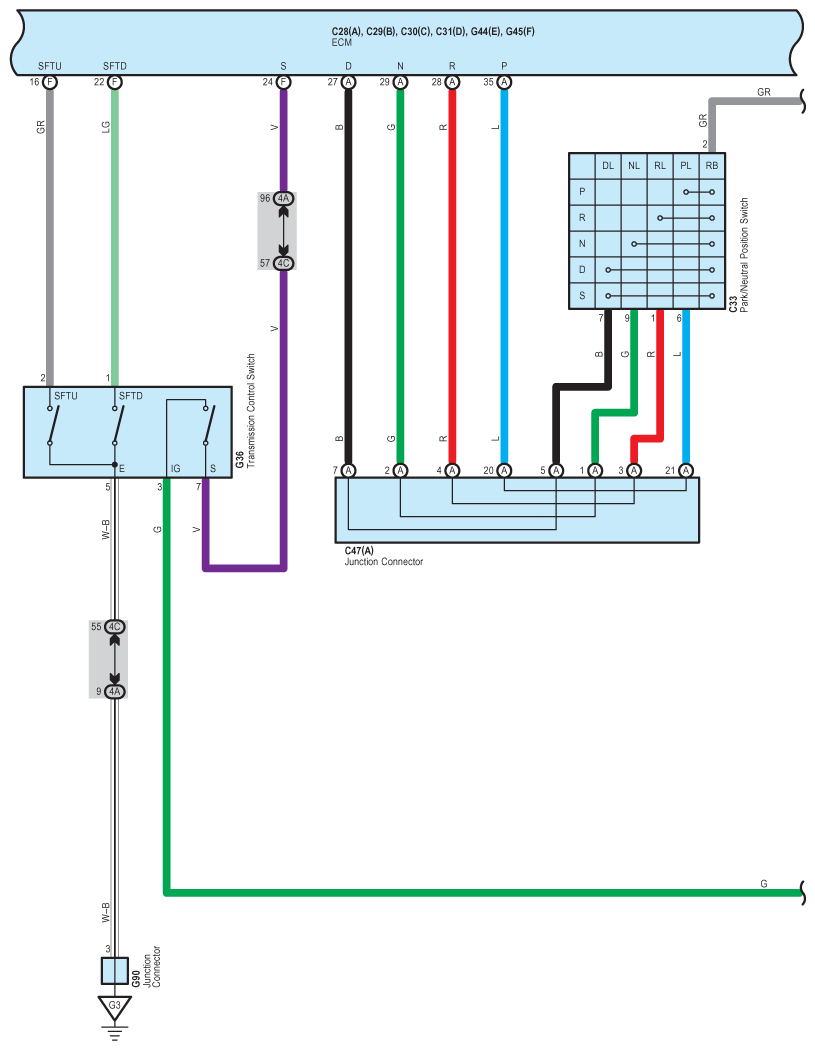

Fig 6: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (6 Of 22)

G09114628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

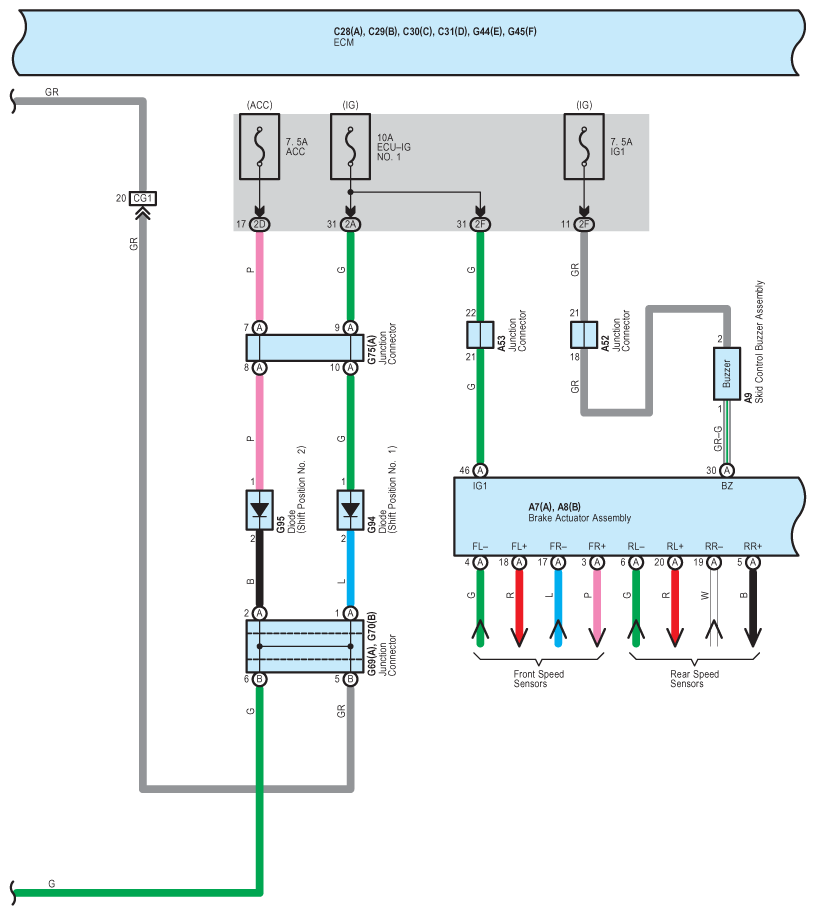

Fig 7: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (7 Of 22)

G09114629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

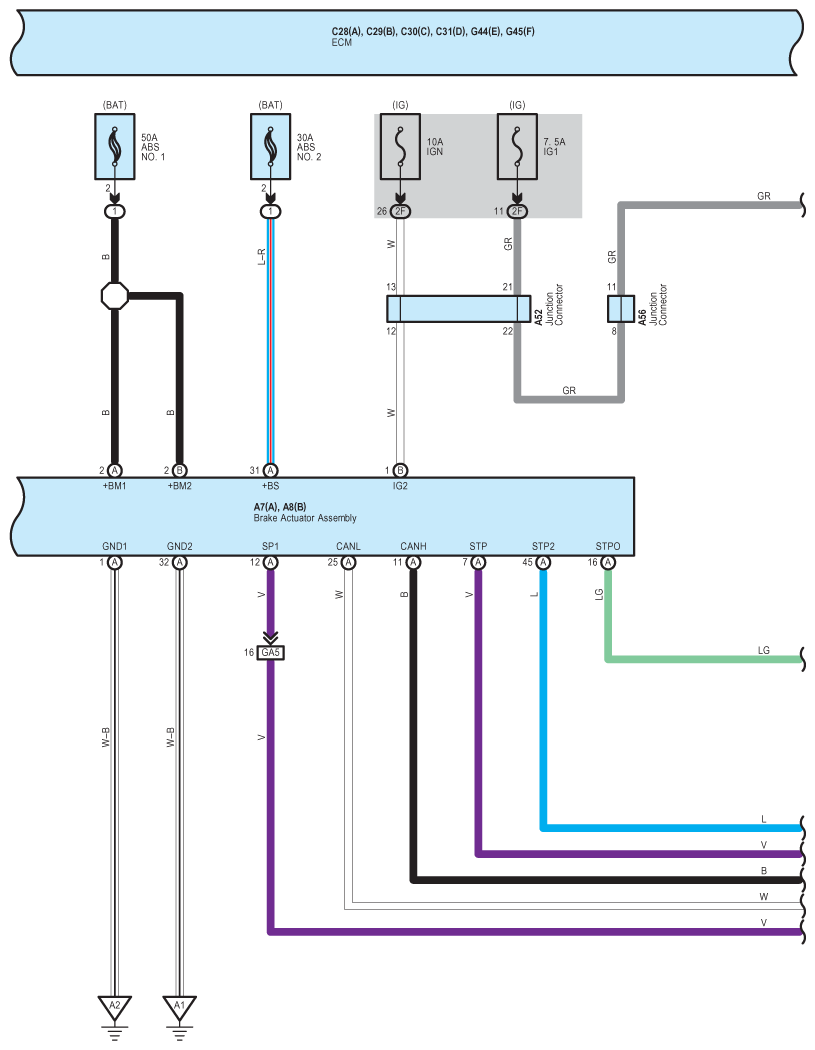

Fig 8: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (8 Of 22)

G09114630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

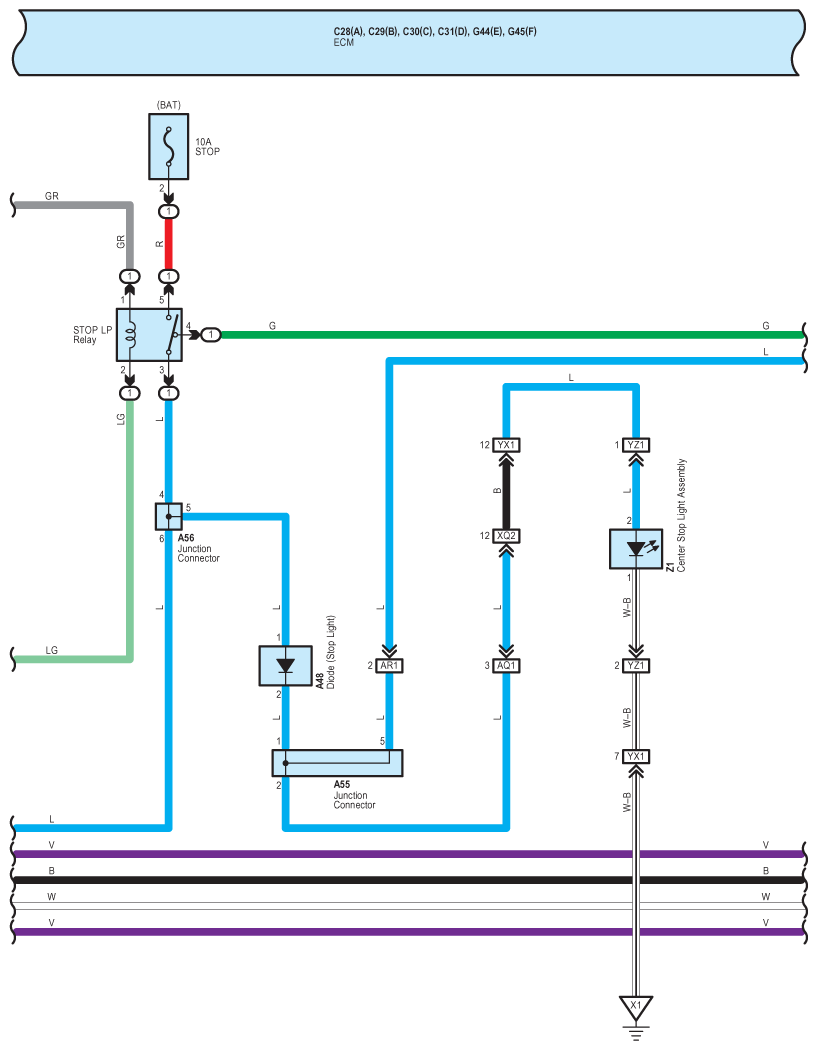

Fig 9: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (9 Of 22)

G09114631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

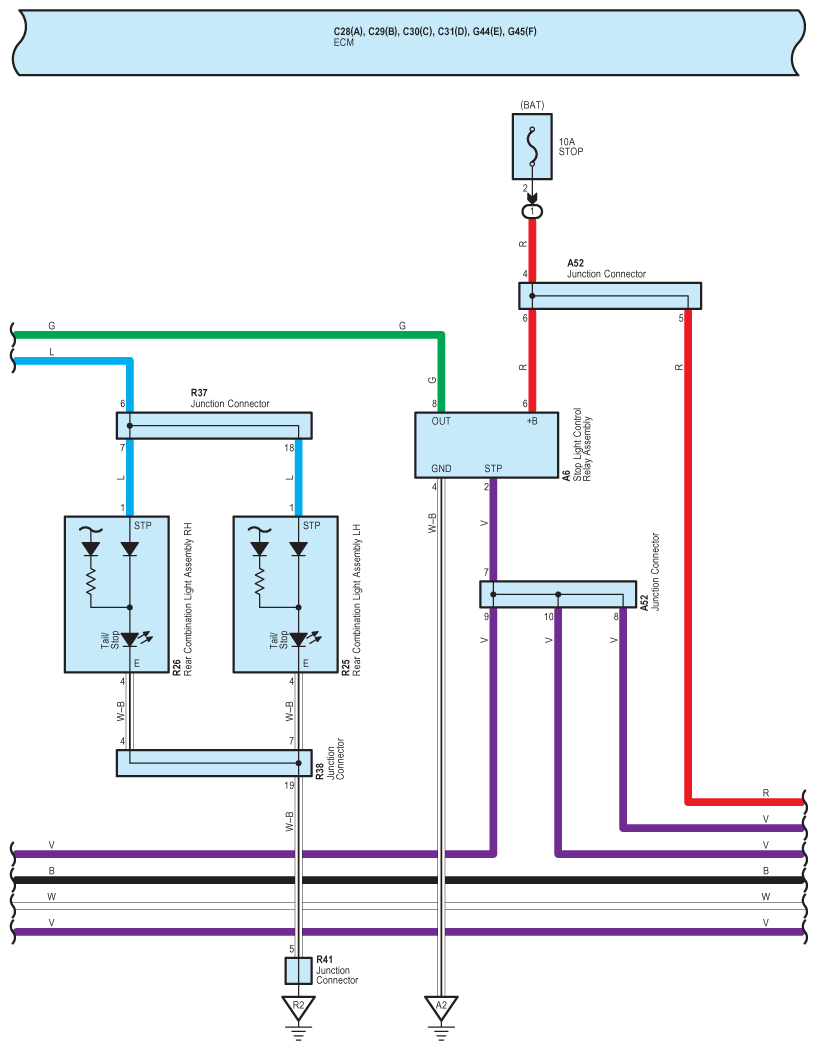

Fig 10: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (10 Of 22)

G09114632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

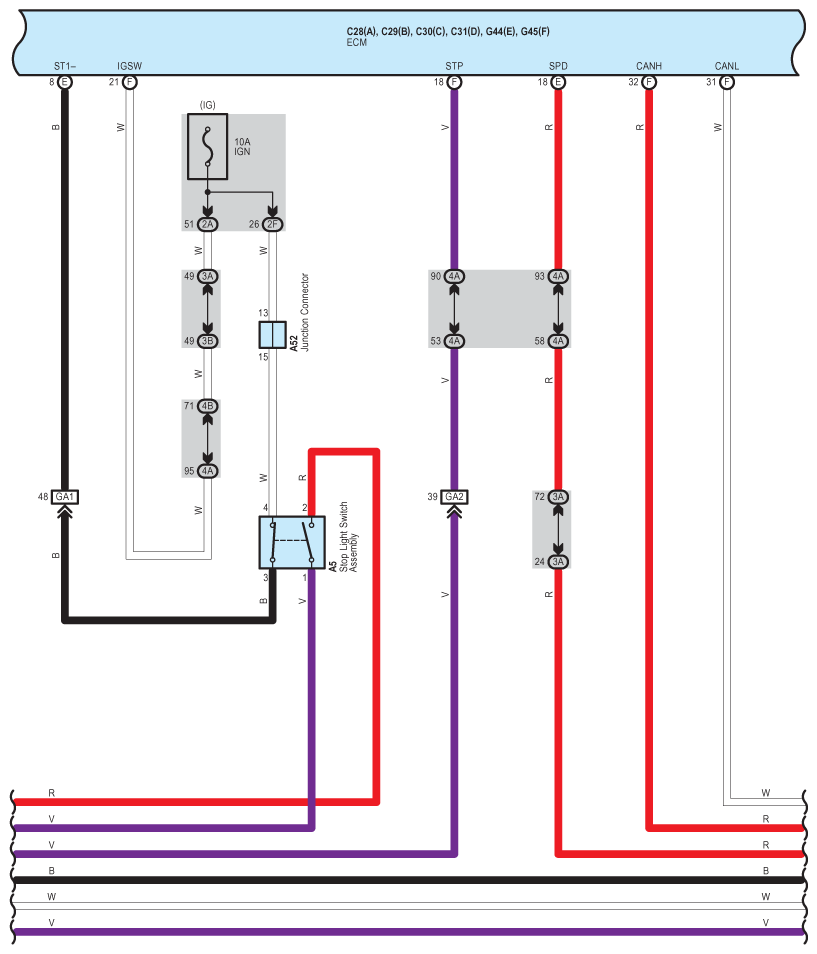

Fig 11: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (11 Of 22)

G09114633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

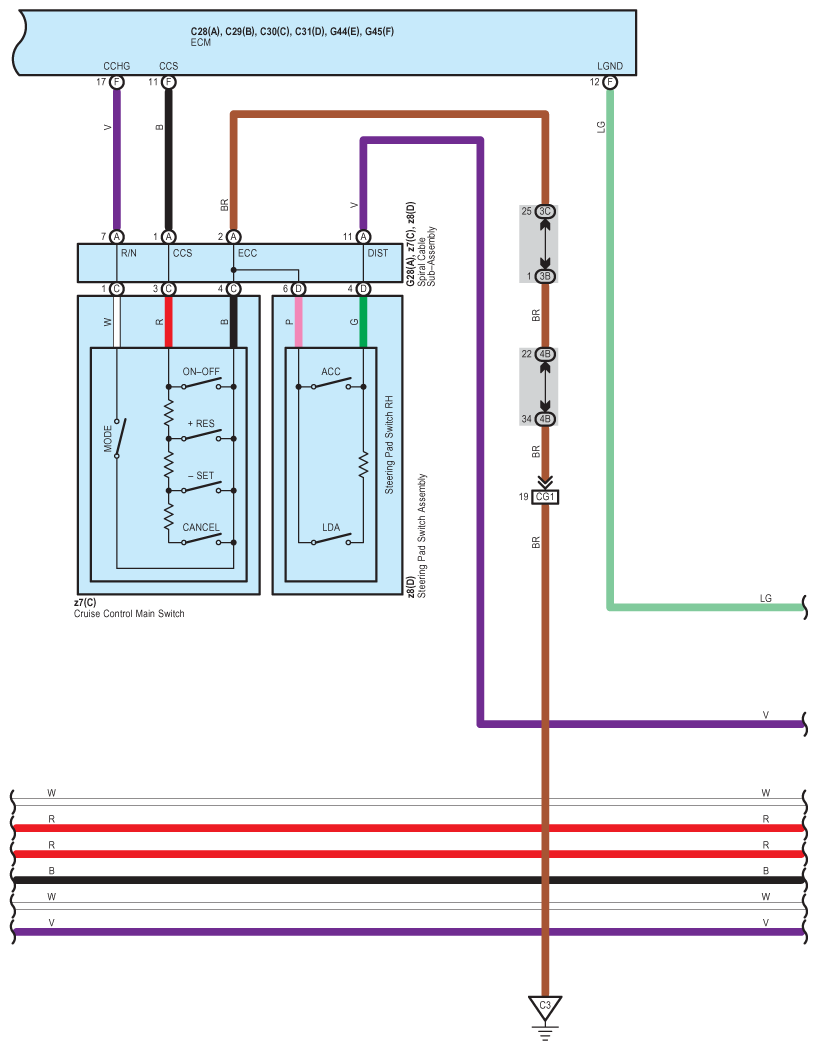

Fig 12: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (12 Of 22)

G09114634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

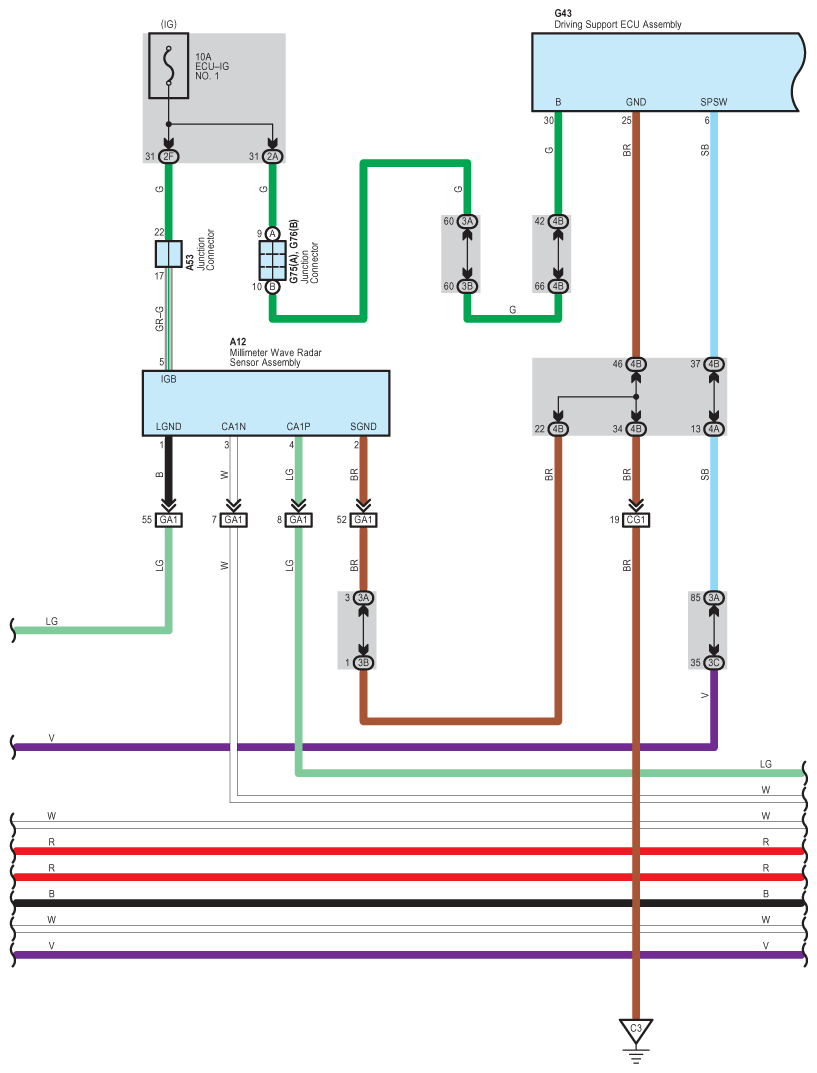

Fig 13: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (13 Of 22)

G09114635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

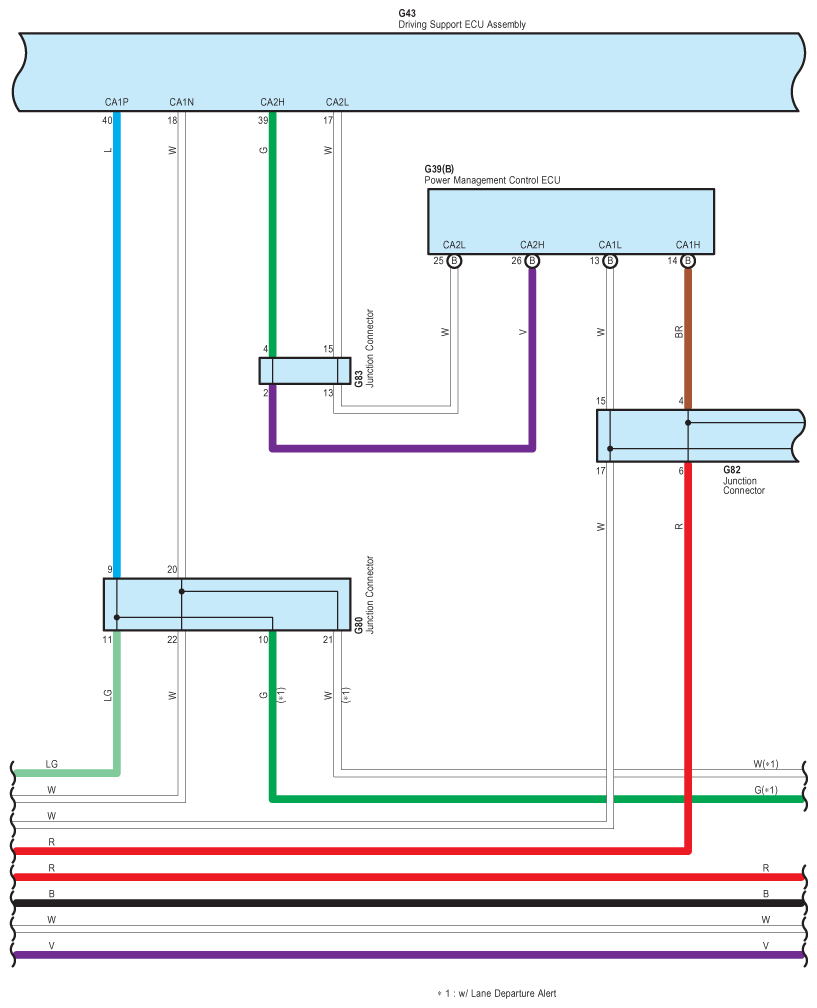

Fig 14: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (14 Of 22)

G09114636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

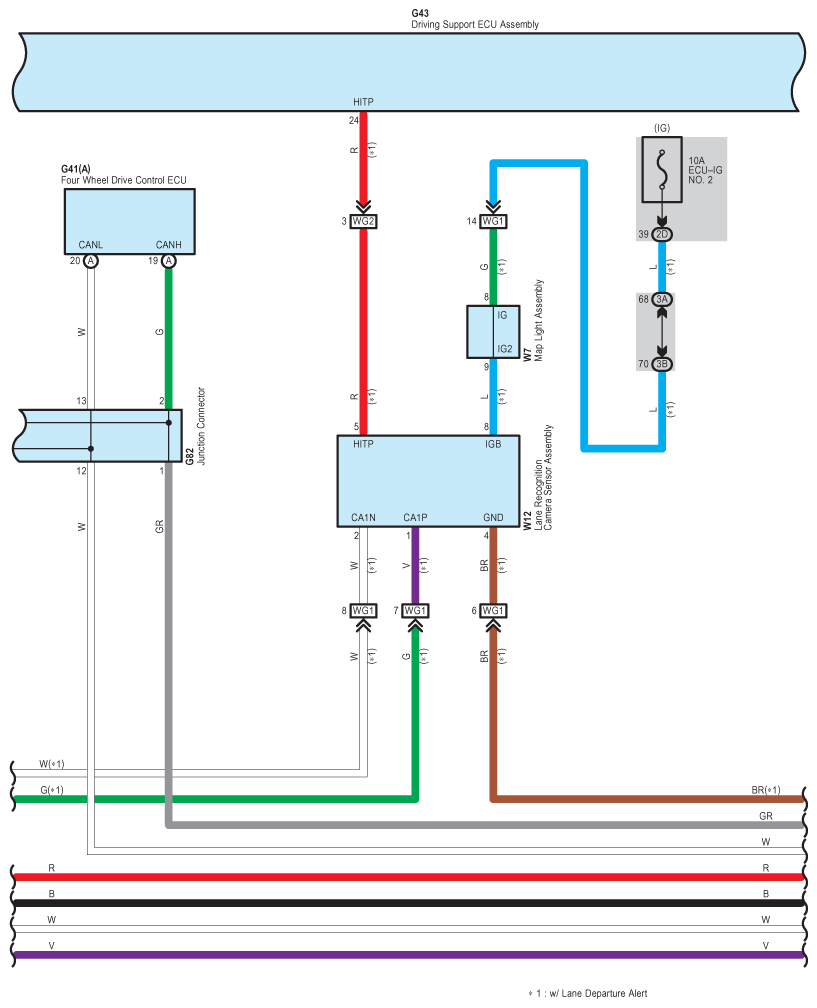

Fig 15: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (15 Of 22)

G09114637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

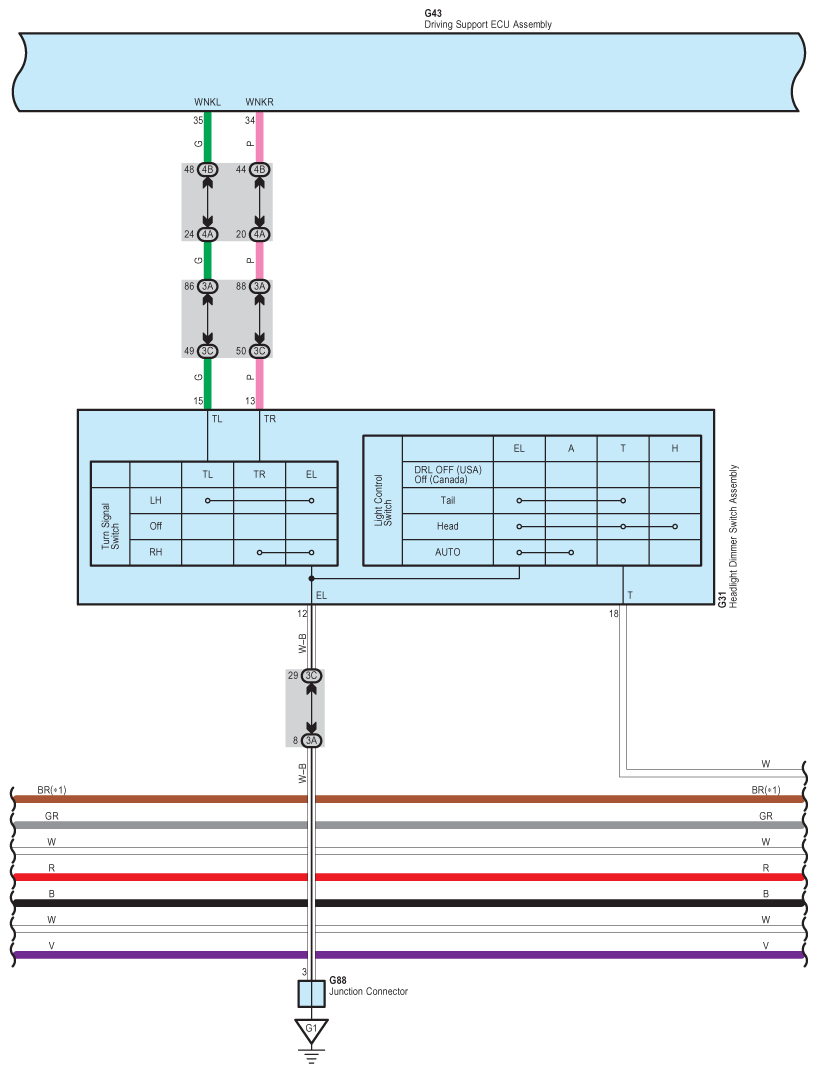

Fig 16: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (16 Of 22)

G09114638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

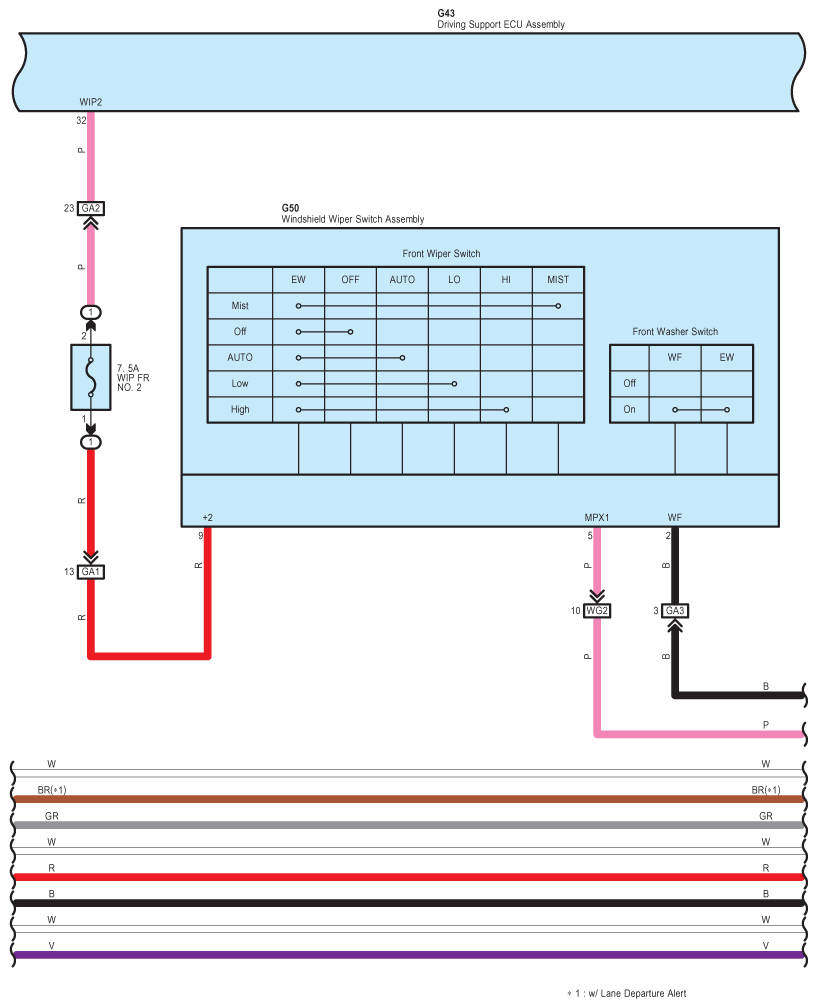

Fig 17: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (17 Of 22)

G09114639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

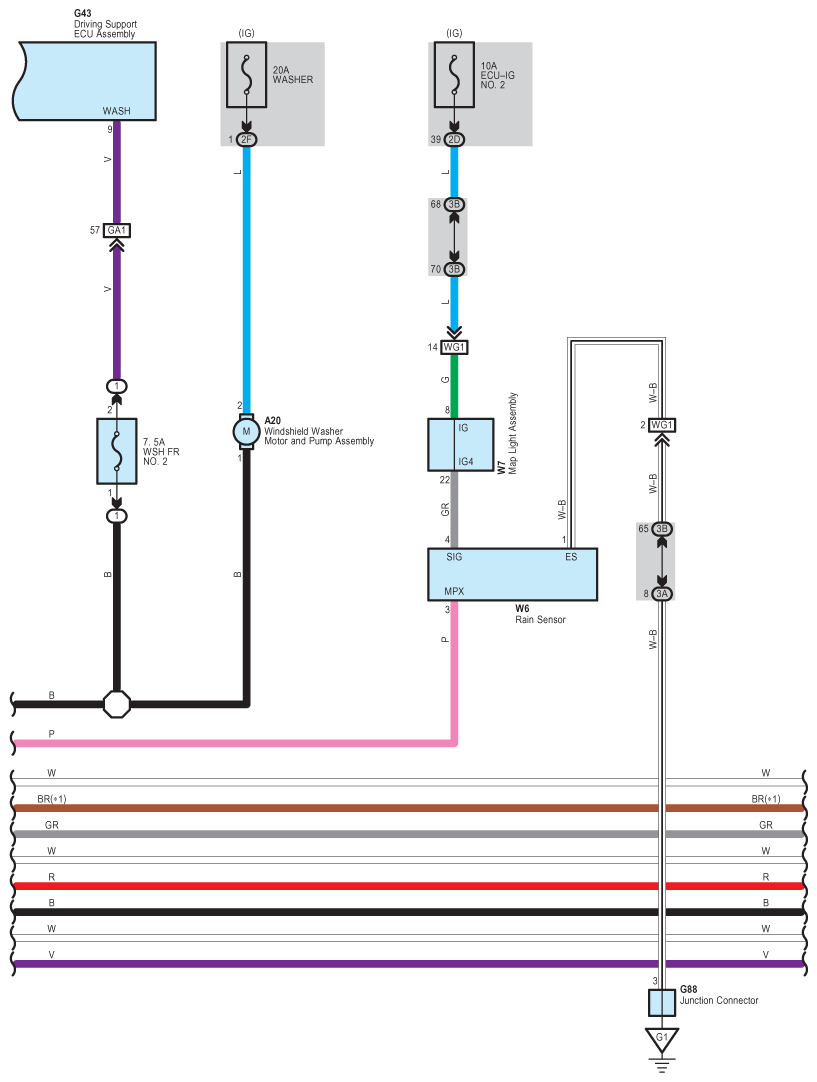

Fig 18: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (18 Of 22)

G09114640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

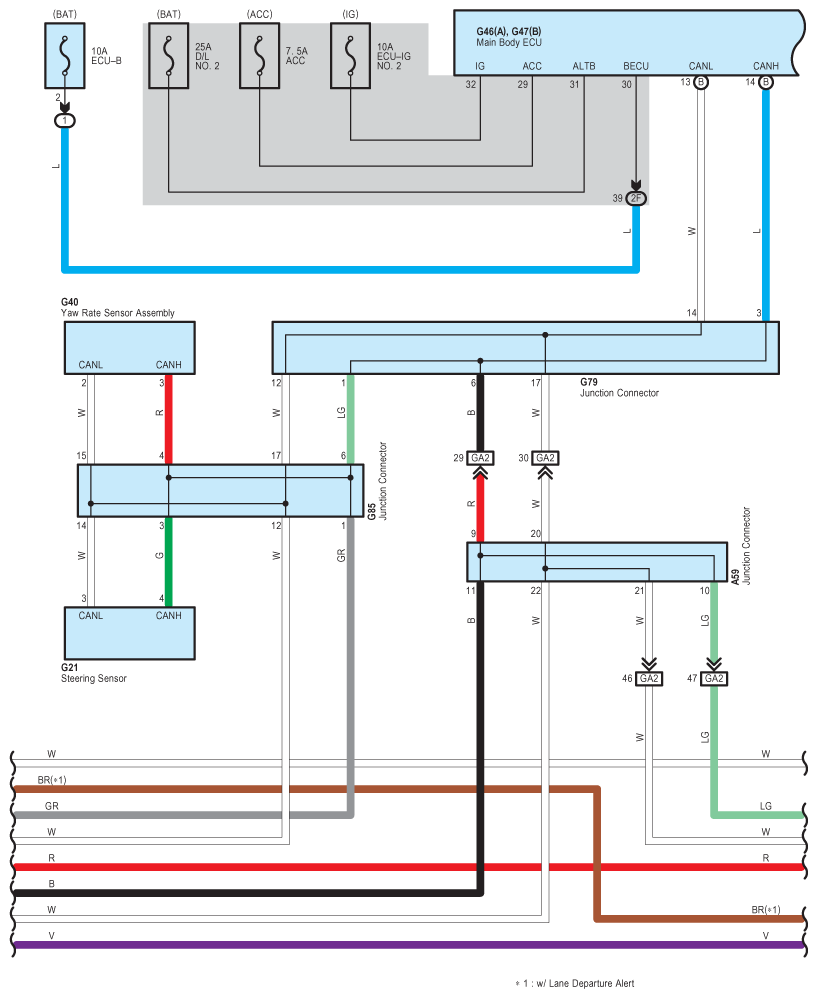

Fig 19: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (19 Of 22)

G09114641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

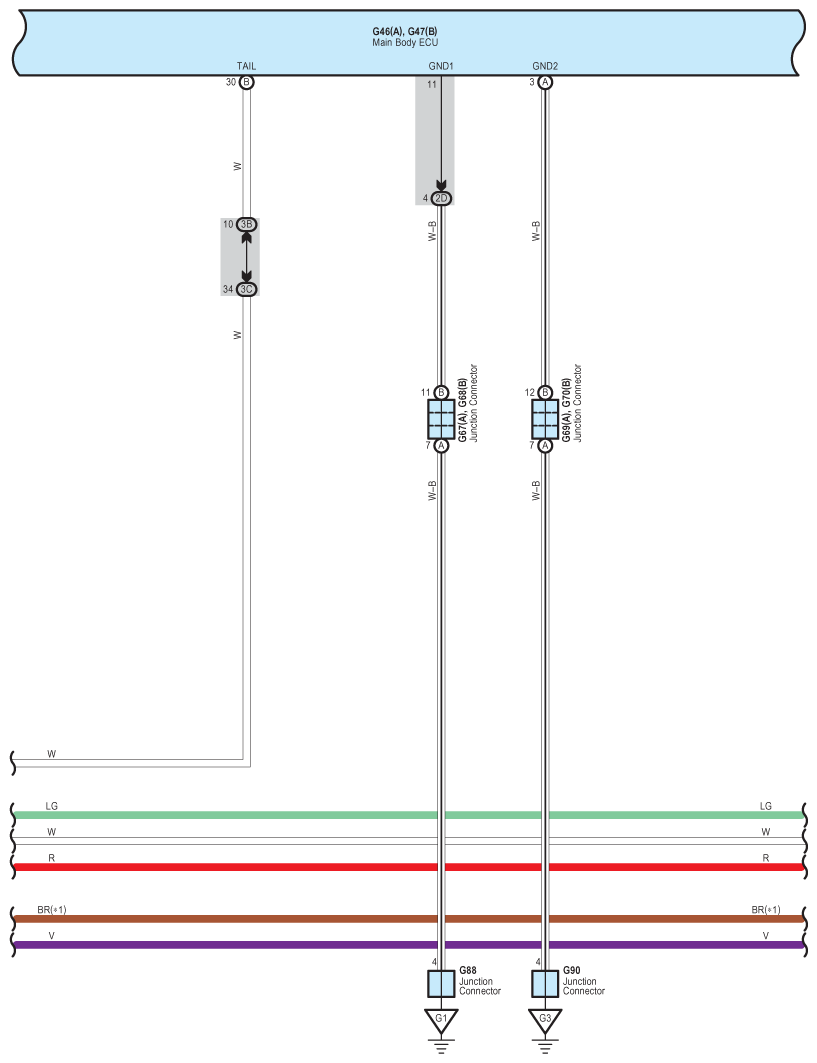

Fig 20: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (20 Of 22)

G09114642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

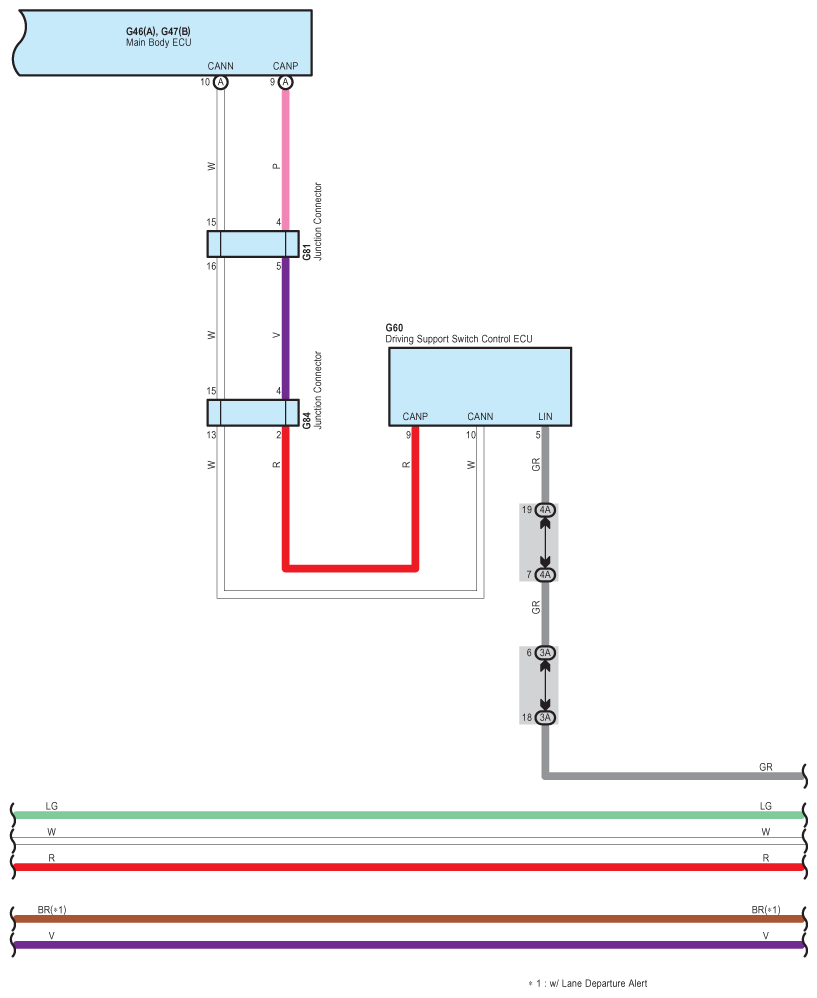

Fig 21: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (21 Of 22)

G09114643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

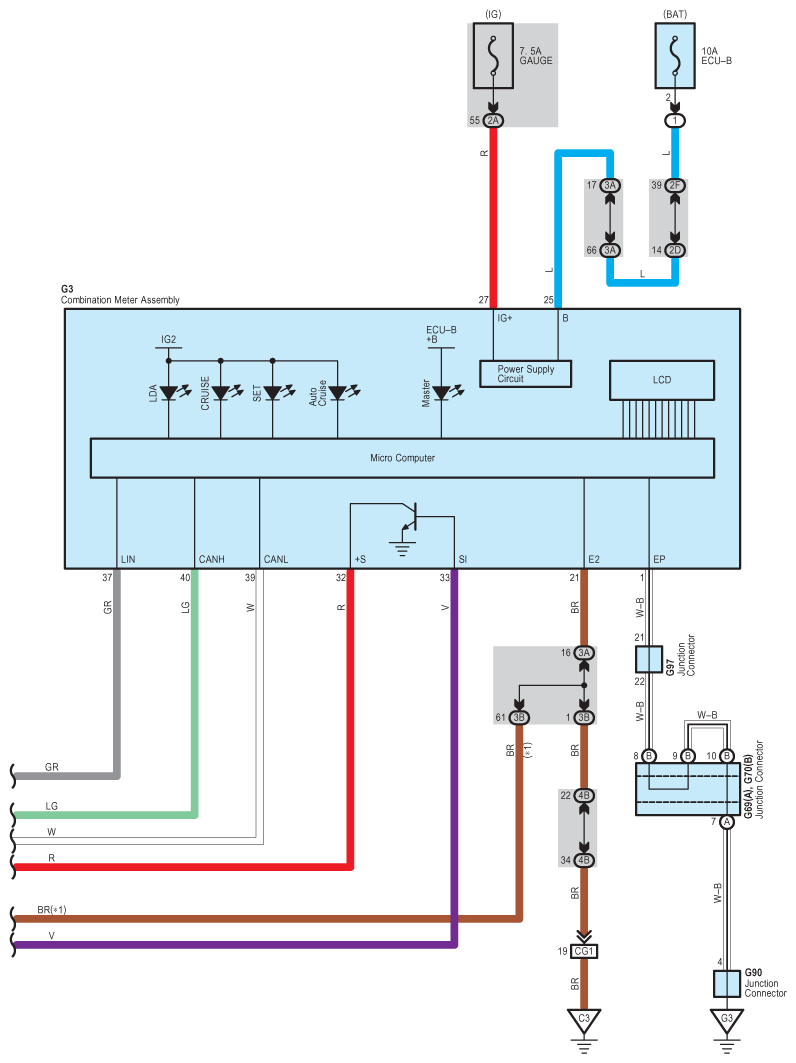

Fig 22: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (22 Of 22)

G09114644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
