Illumination and Taillight: Notes

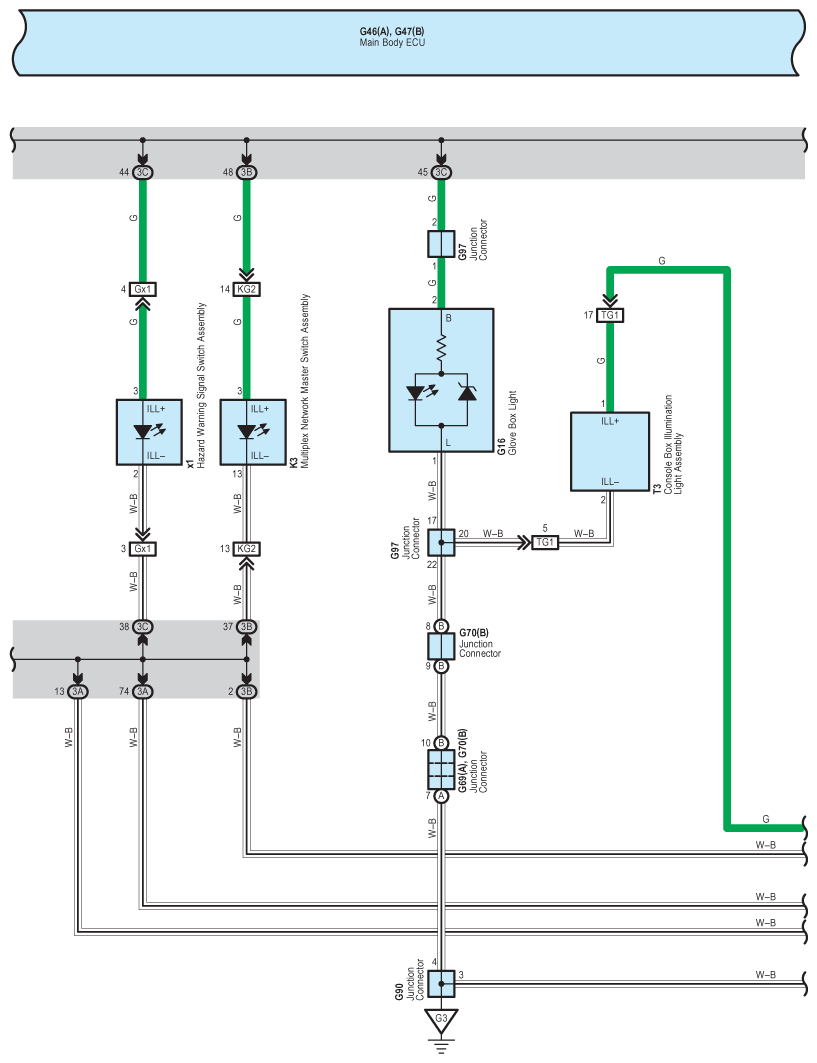

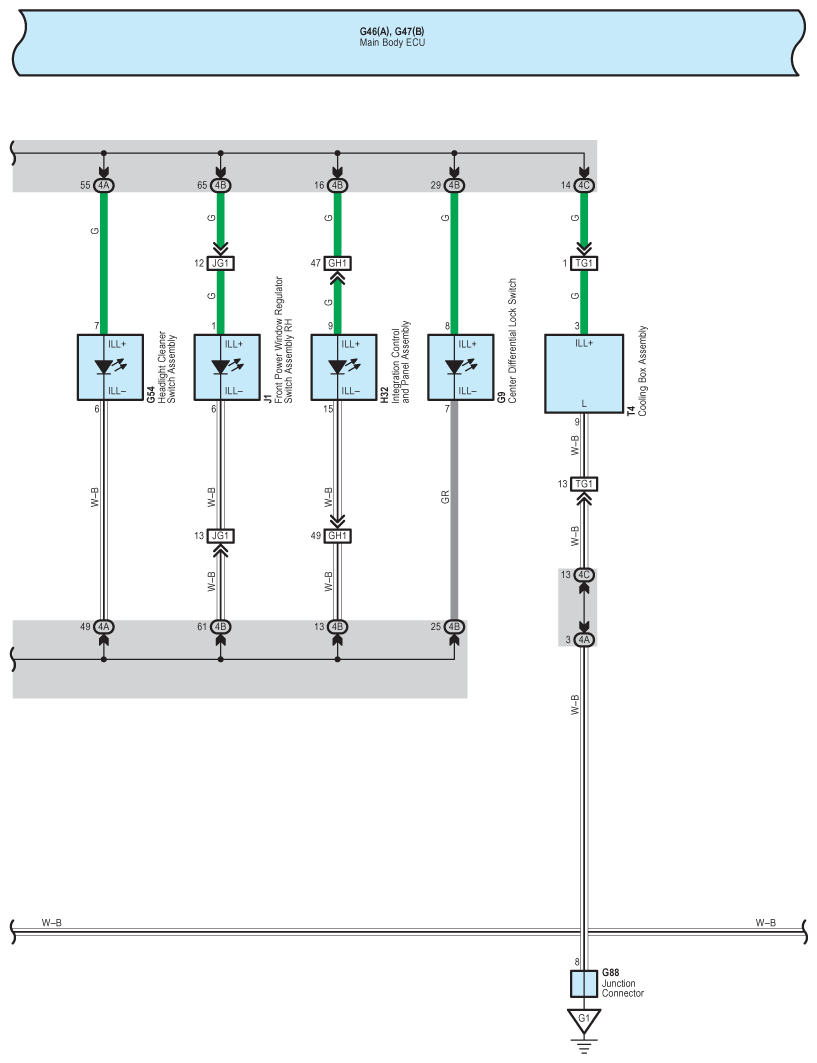

Fig 1: Illumination And Taillight - Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

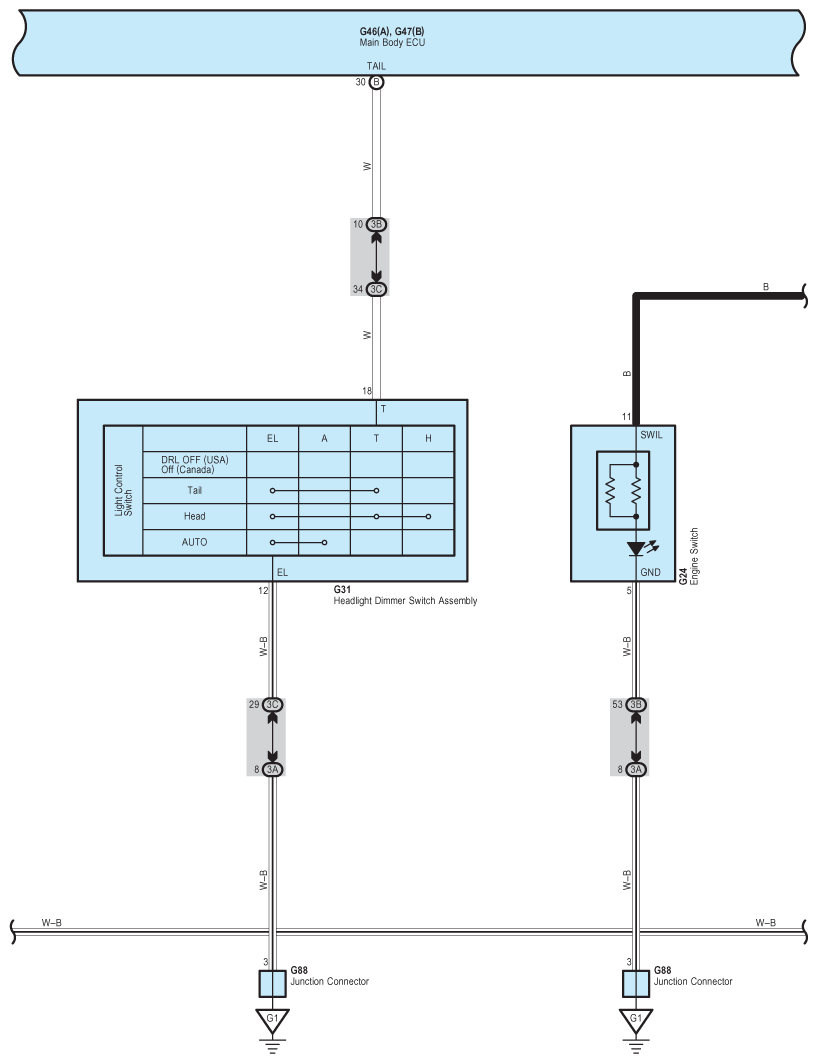

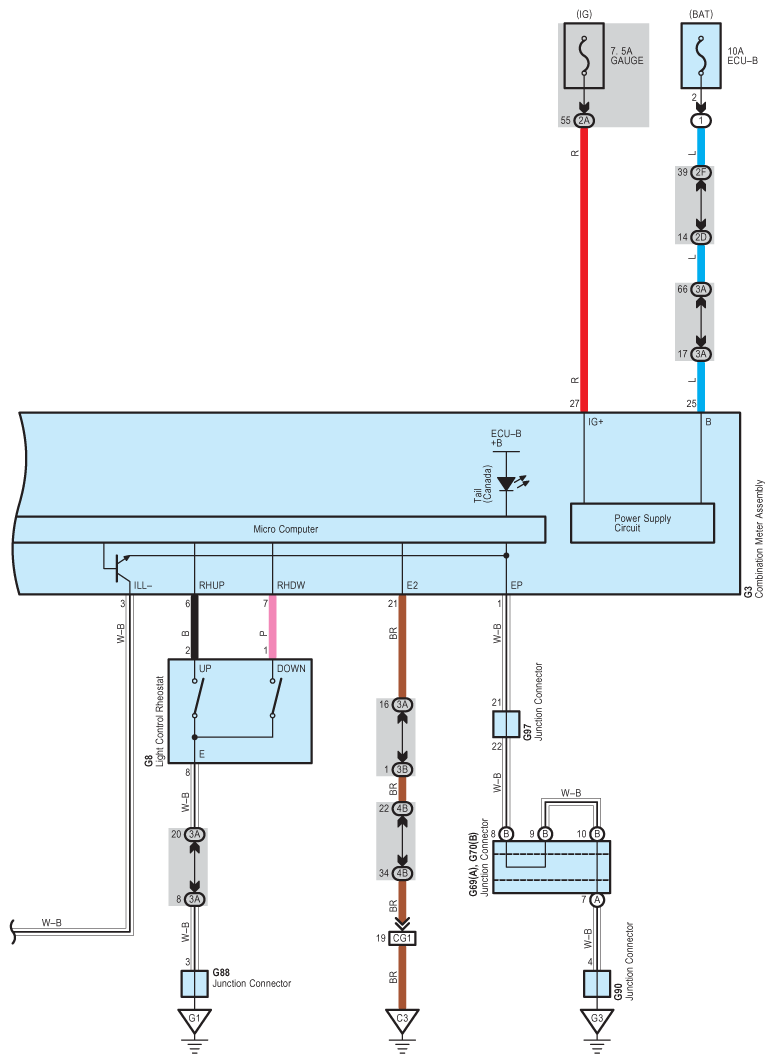

Fig 2: Illumination And Taillight - Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

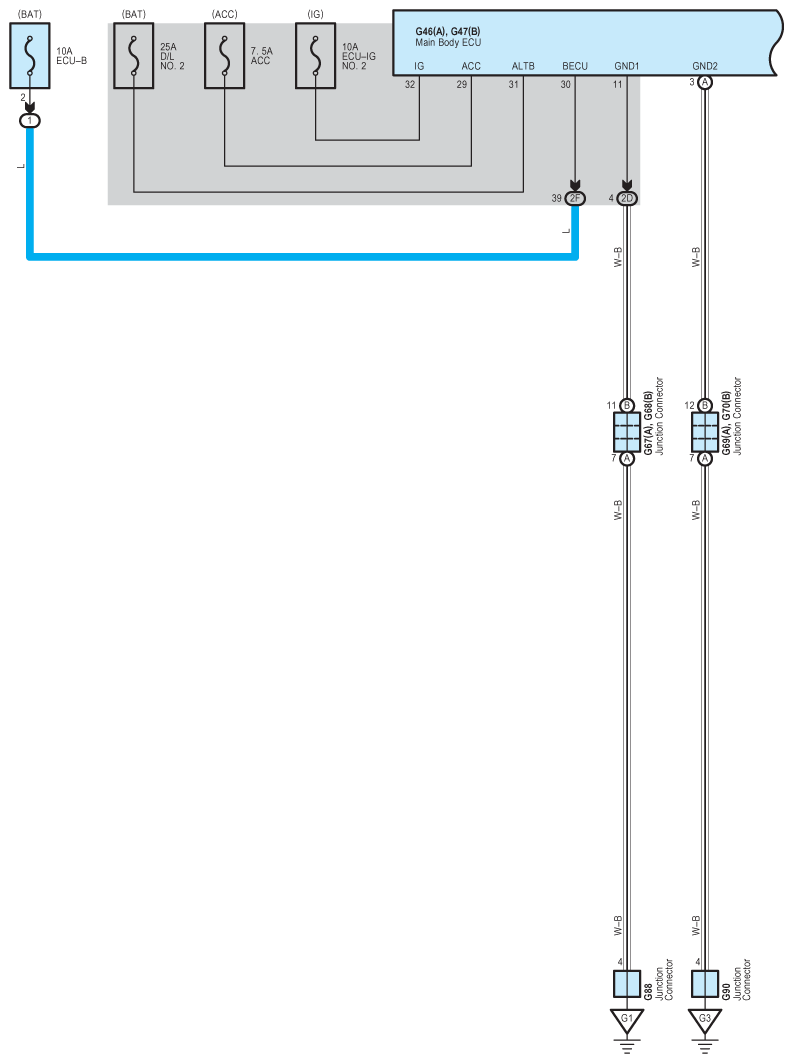

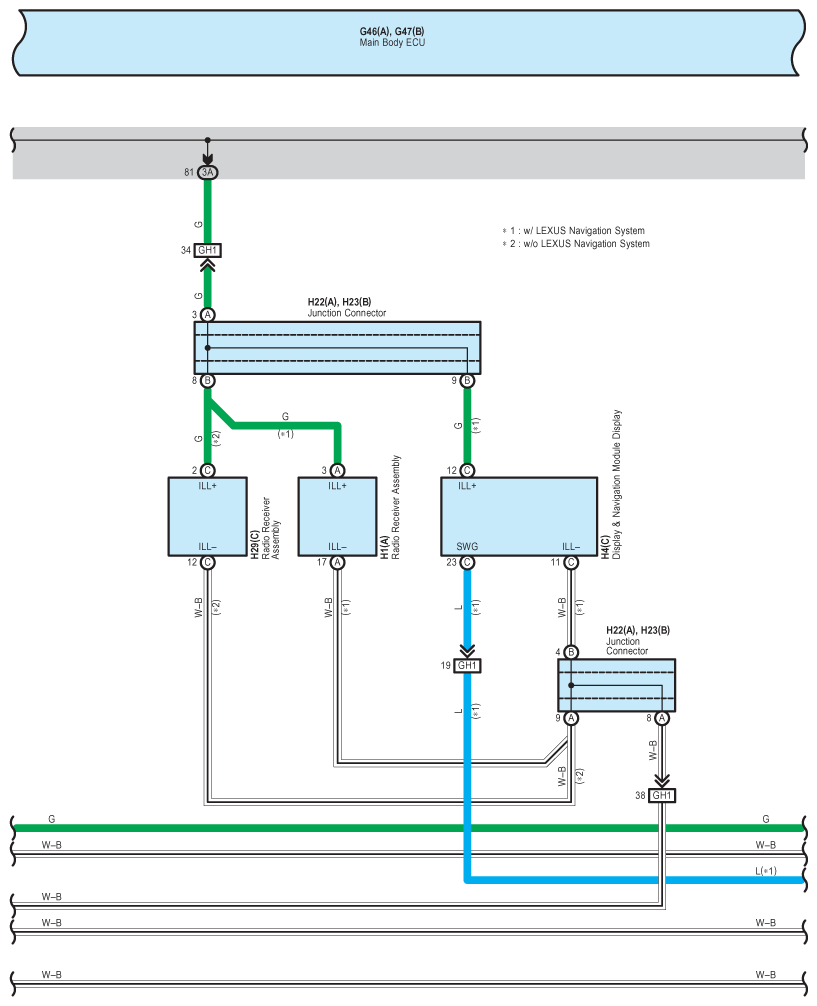

Fig 3: Illumination And Taillight - Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

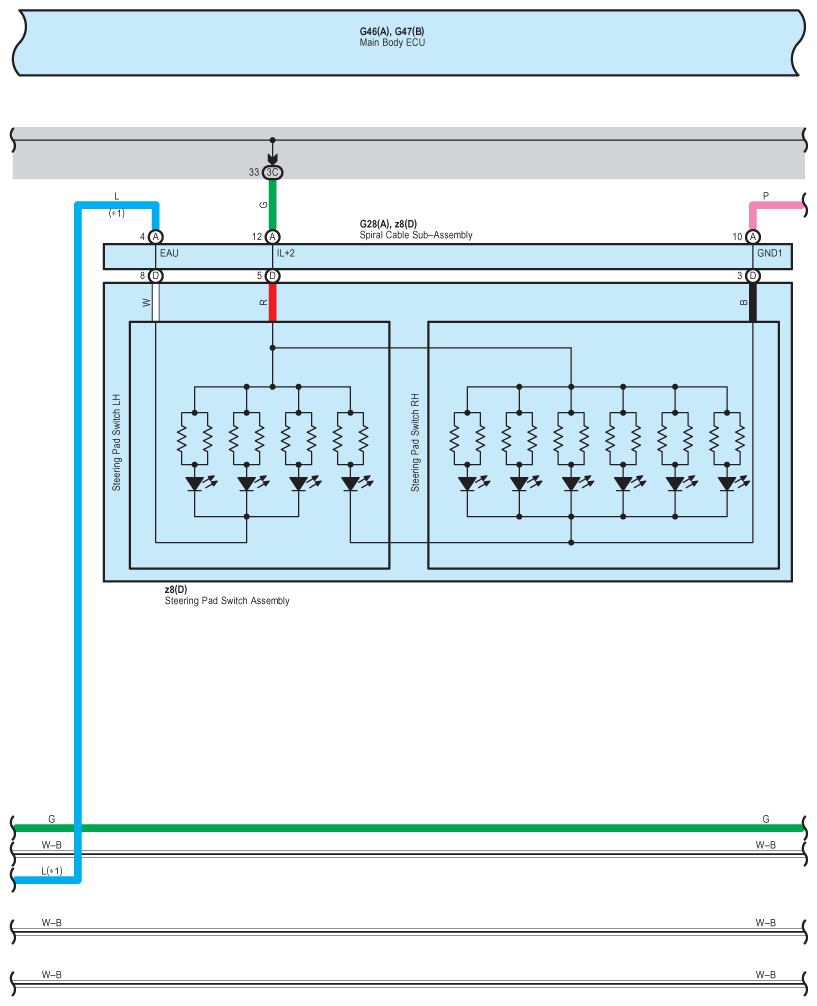

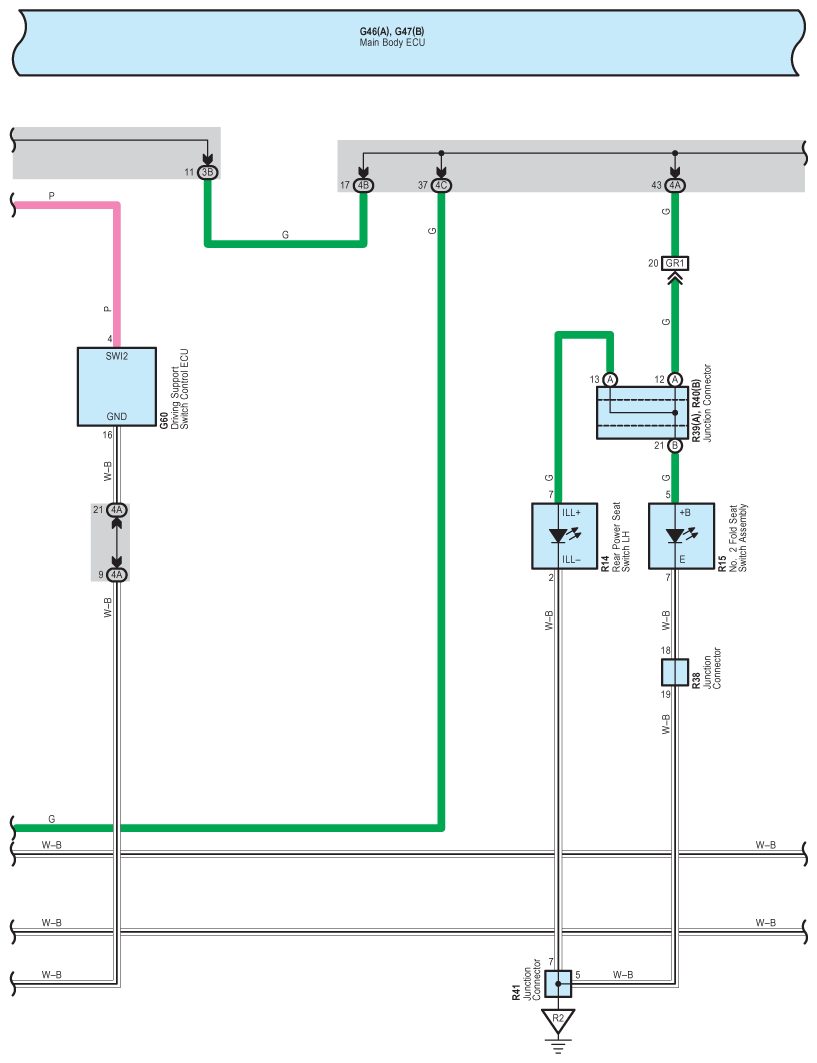

Fig 4: Illumination And Taillight - Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

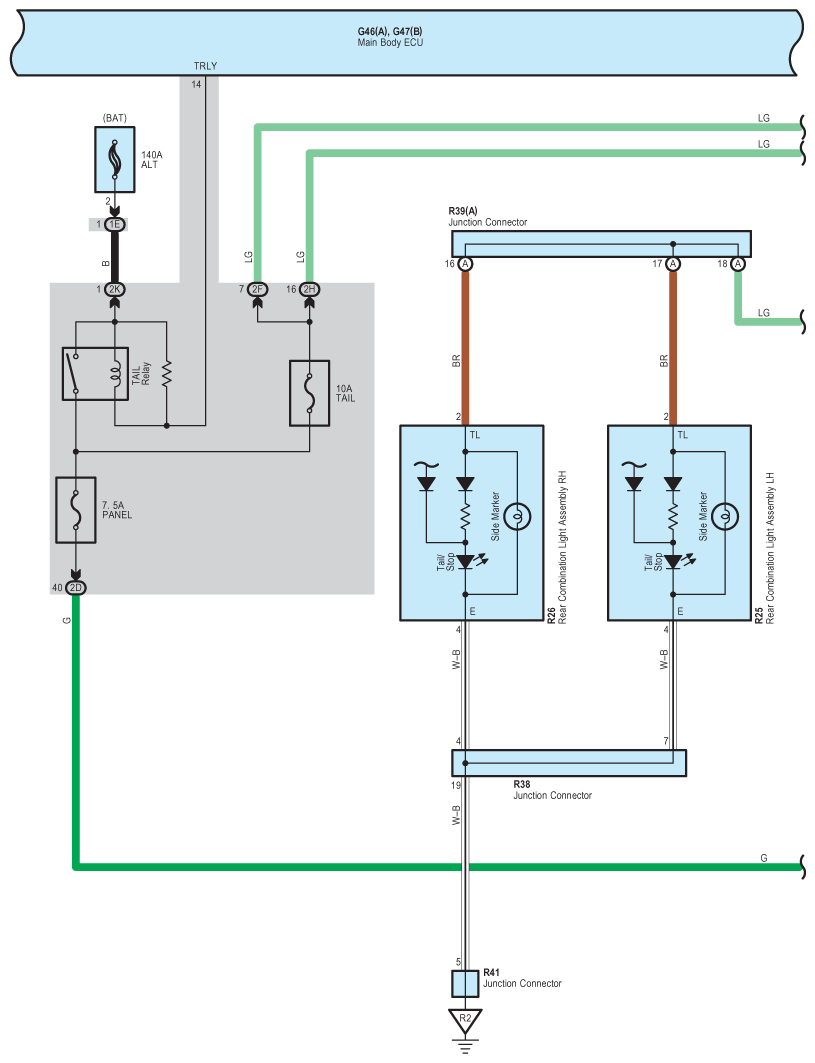

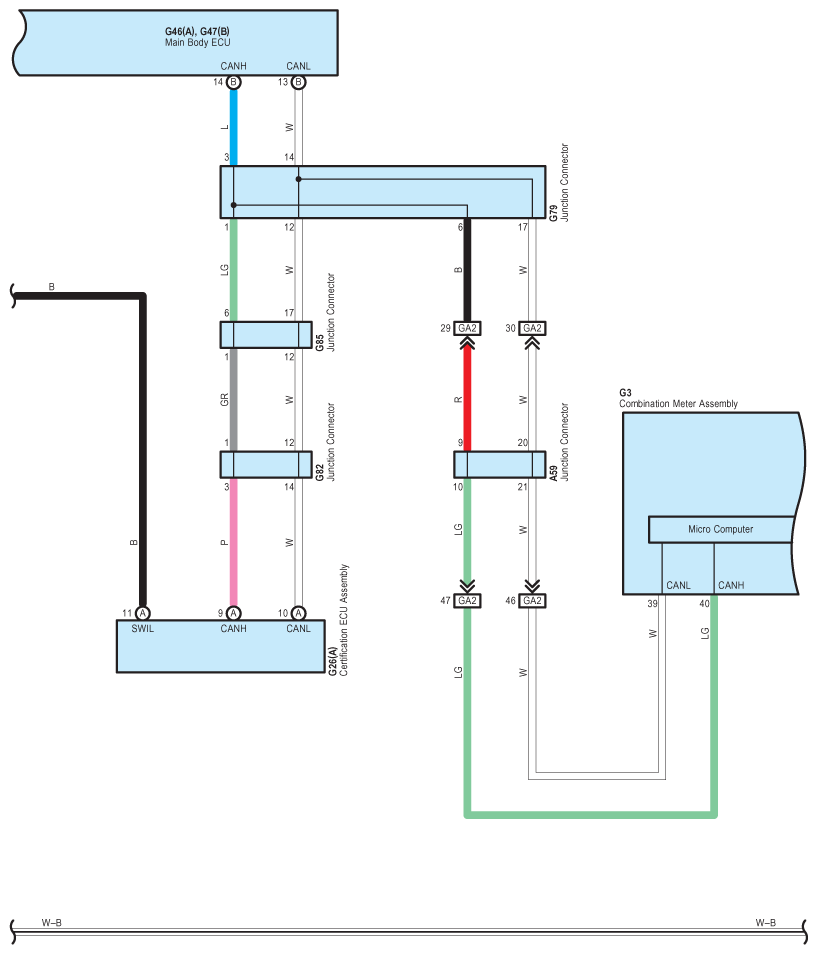

Fig 5: Illumination And Taillight - Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

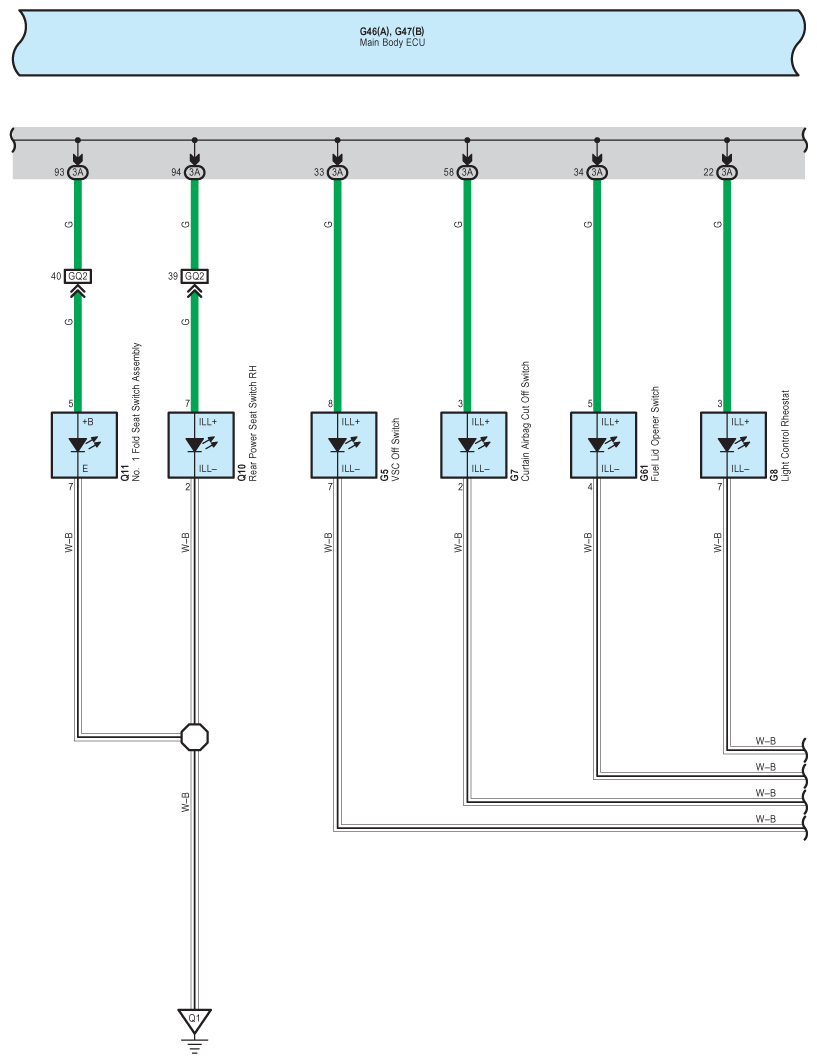

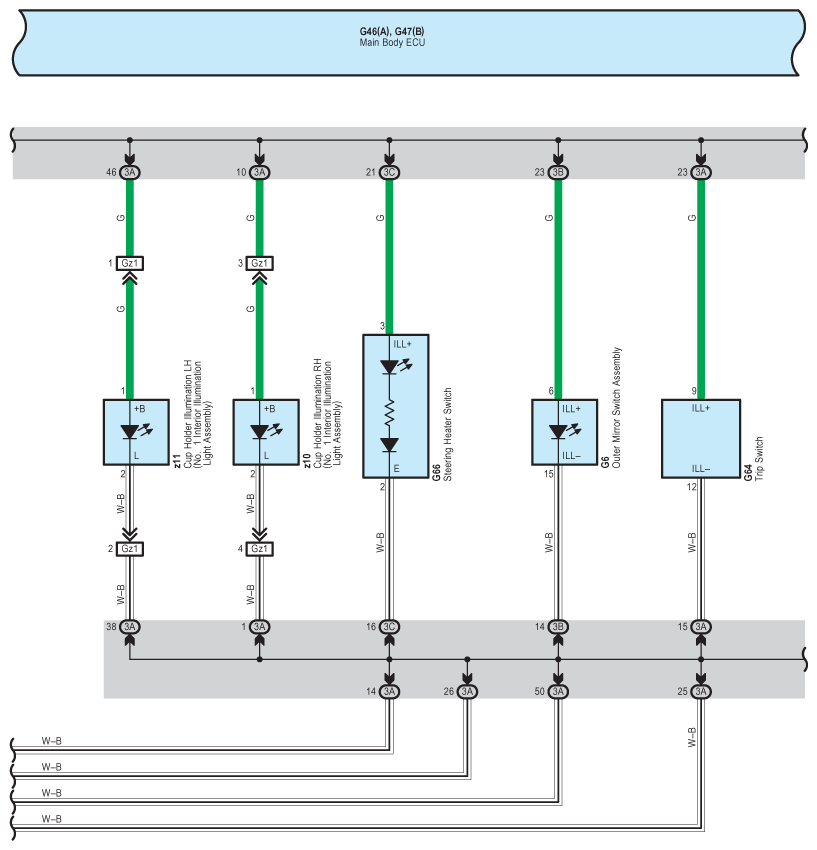

Fig 6: Illumination And Taillight - Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

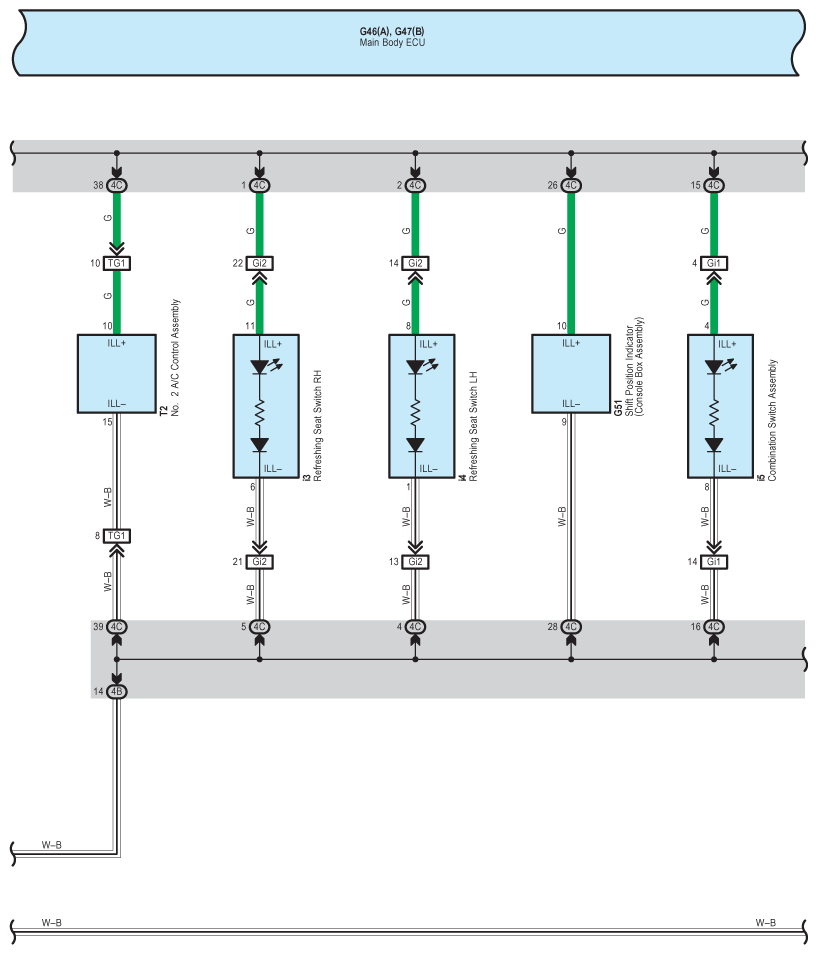

Fig 7: Illumination And Taillight - Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

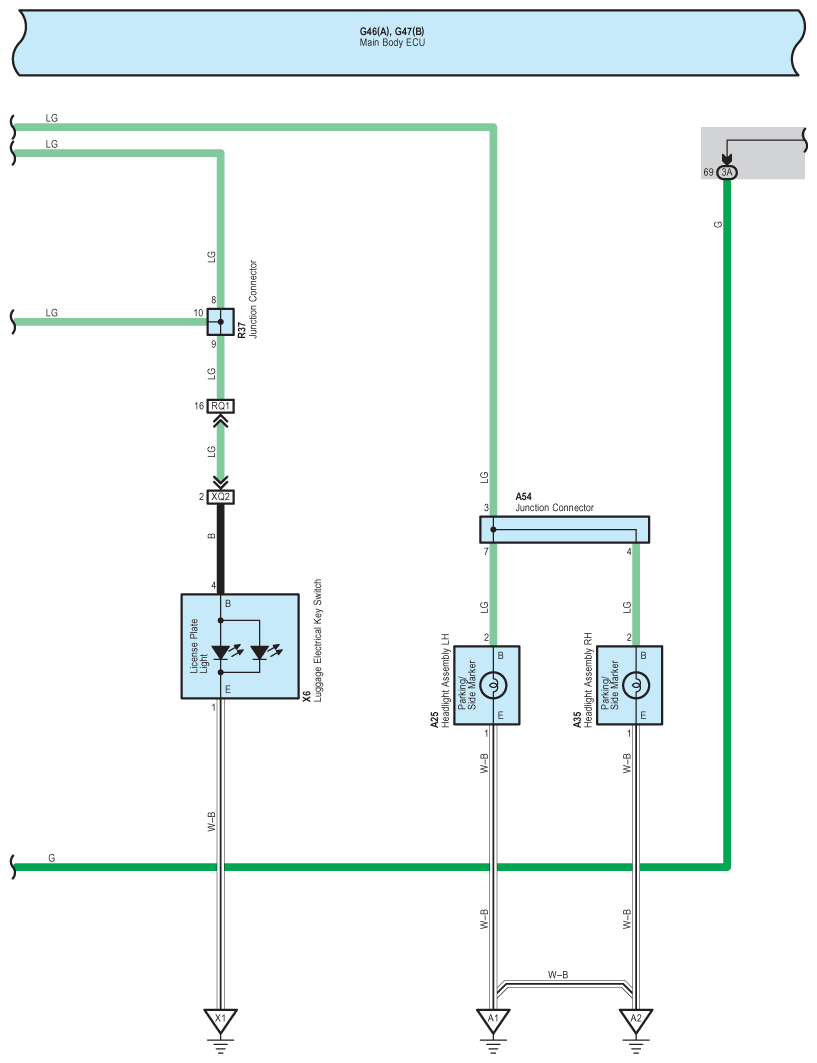

Fig 8: Illumination And Taillight - Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Illumination And Taillight - Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Illumination And Taillight - Wiring Diagram (10 Of 14)

Fig 11: Illumination And Taillight - Wiring Diagram (11 Of 14)

Fig 12: Illumination And Taillight - Wiring Diagram (12 Of 14)

Fig 13: Illumination And Taillight - Wiring Diagram (13 Of 14)

Fig 14: Illumination And Taillight - Wiring Diagram (14 Of 14)
