Multiplex Communication System (CAN): Notes

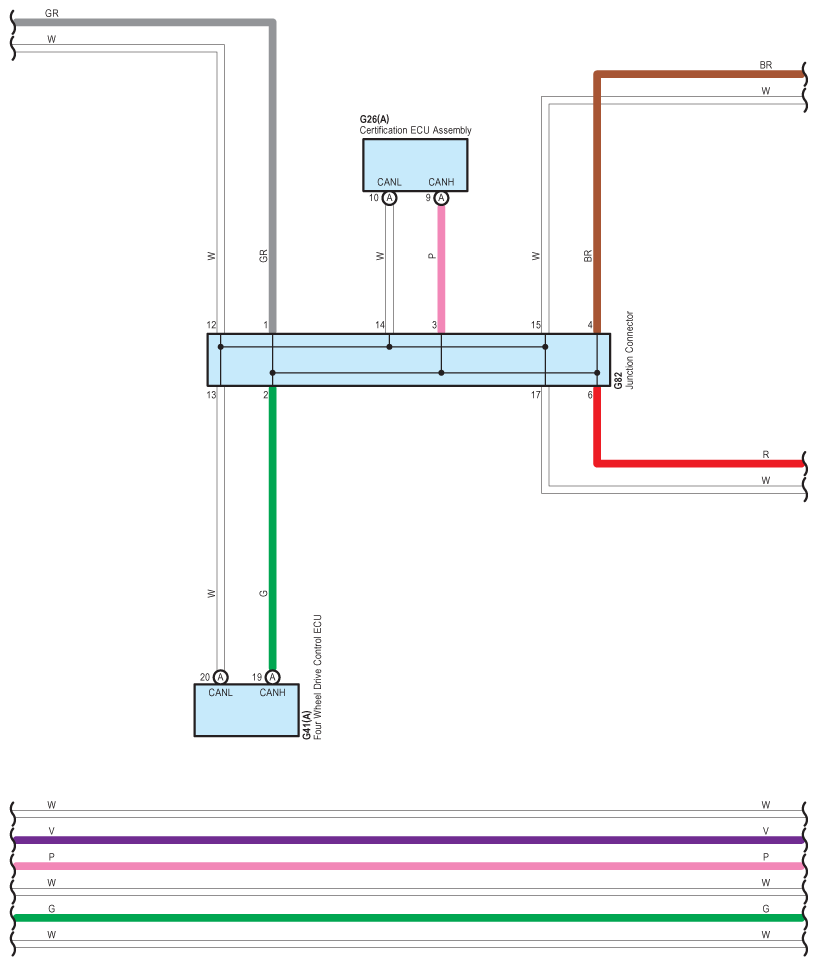

Fig 1: Multiplex Communication System (CAN) - Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

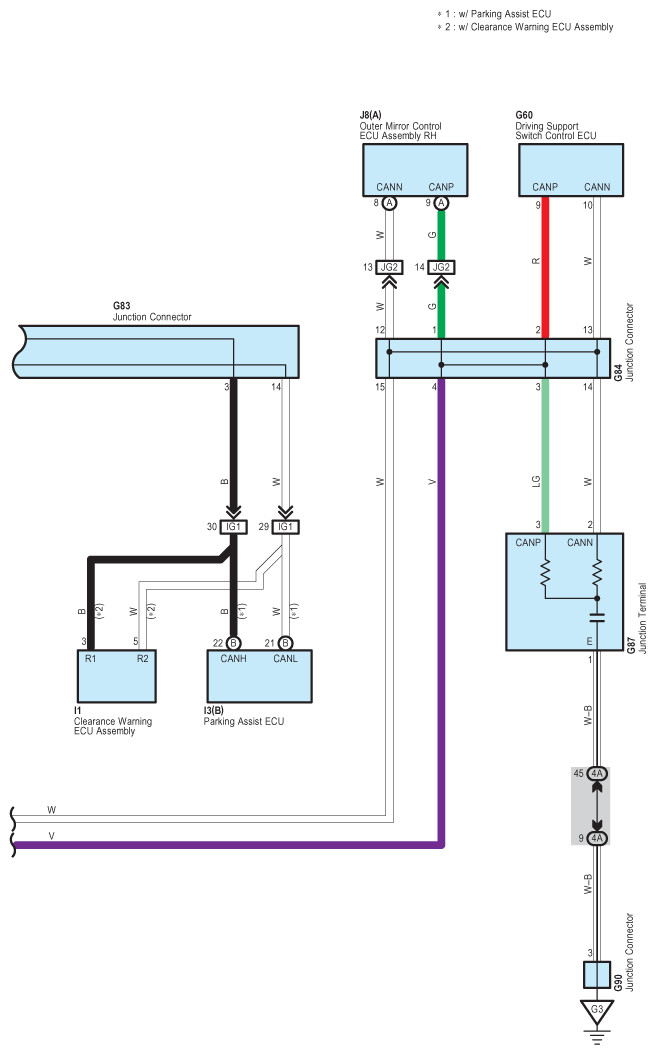

Fig 2: Multiplex Communication System (CAN) - Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

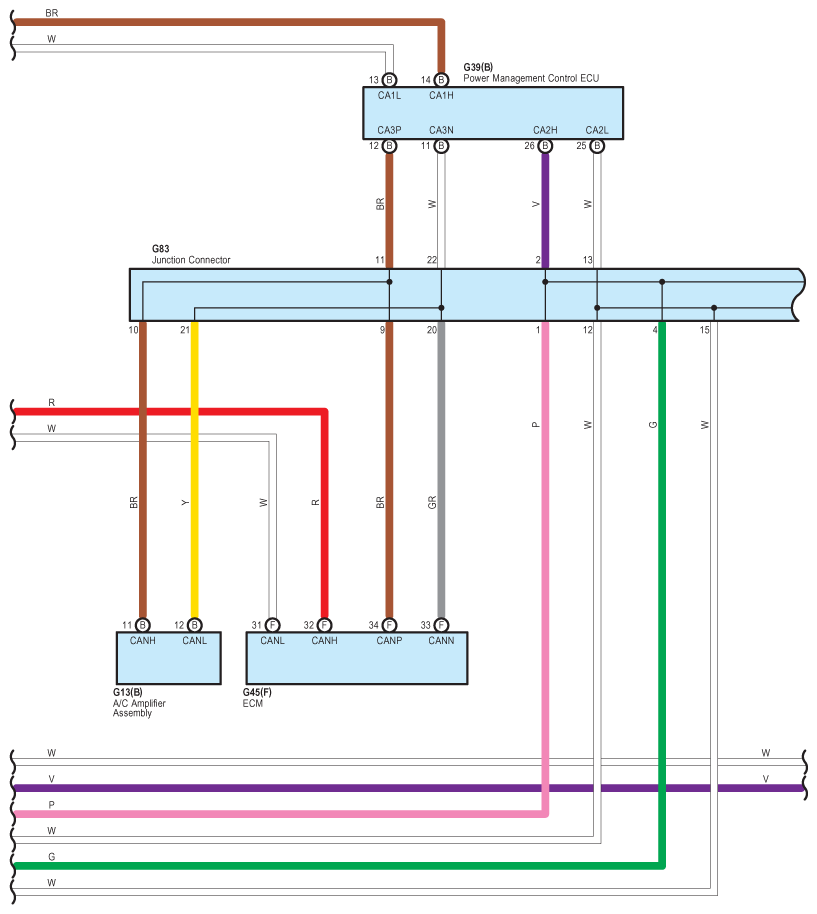

Fig 3: Multiplex Communication System (CAN) - Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

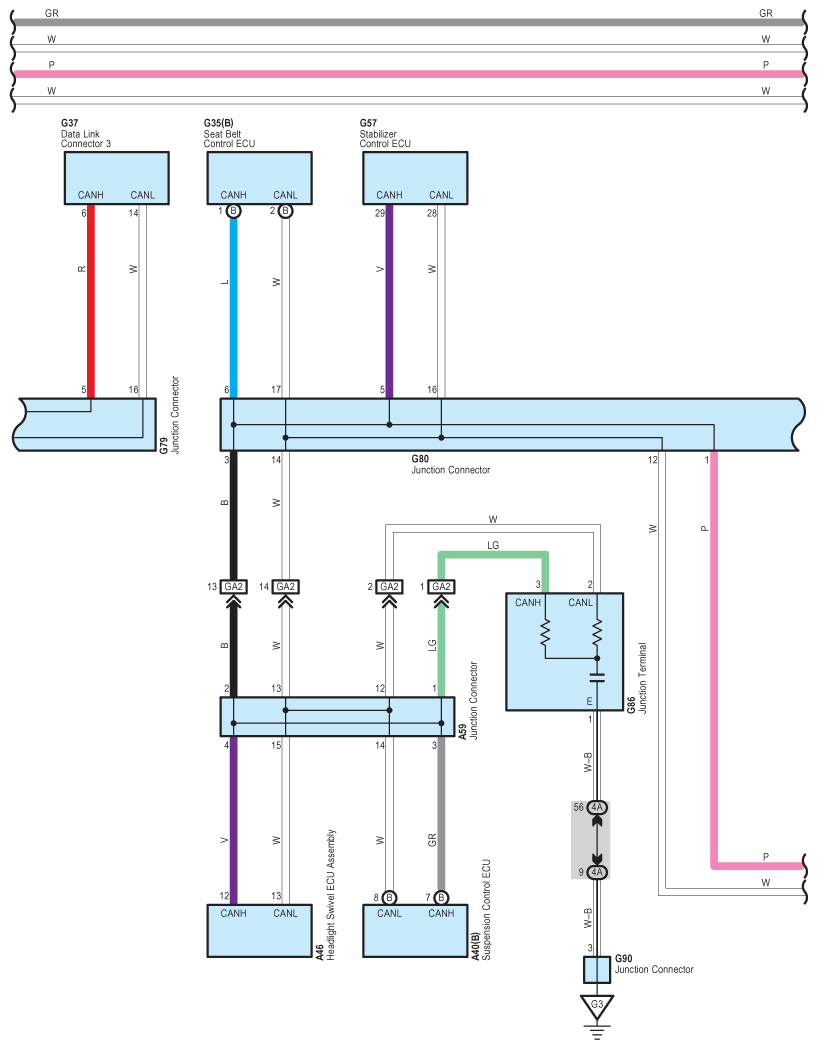

Fig 4: Multiplex Communication System (CAN) - Wiring Diagram (4 Of 6)

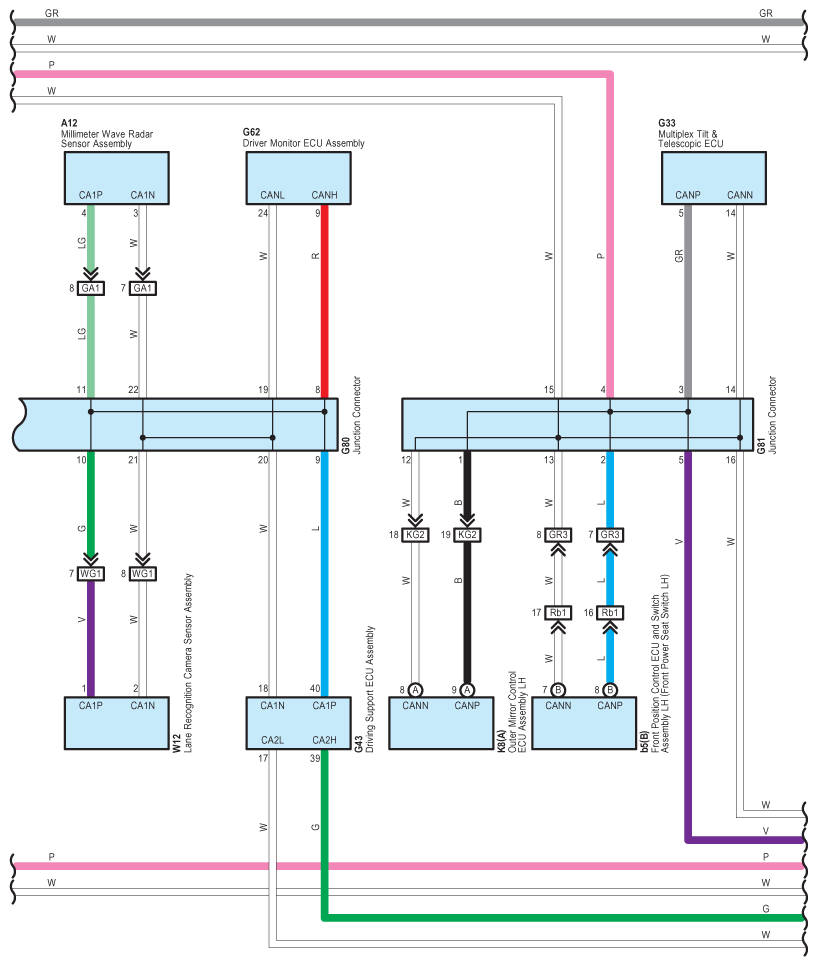

Fig 5: Multiplex Communication System (CAN) - Wiring Diagram (5 Of 6)

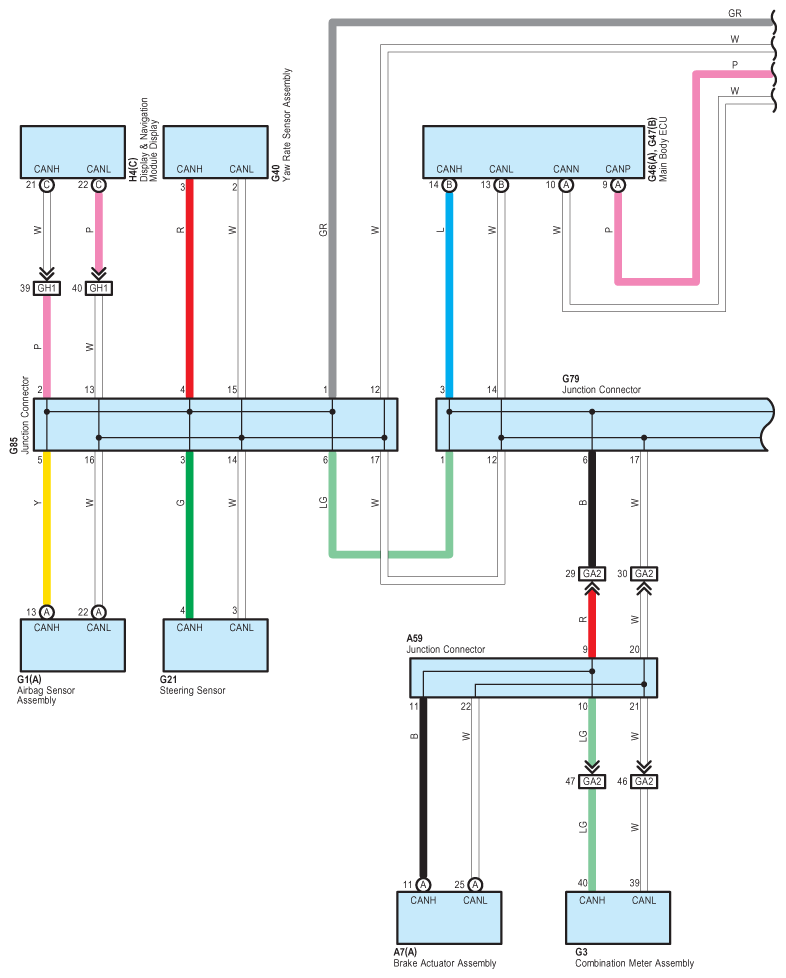

Fig 6: Multiplex Communication System (CAN) - Wiring Diagram (6 Of 6)
