Theft Deterrent: Notes

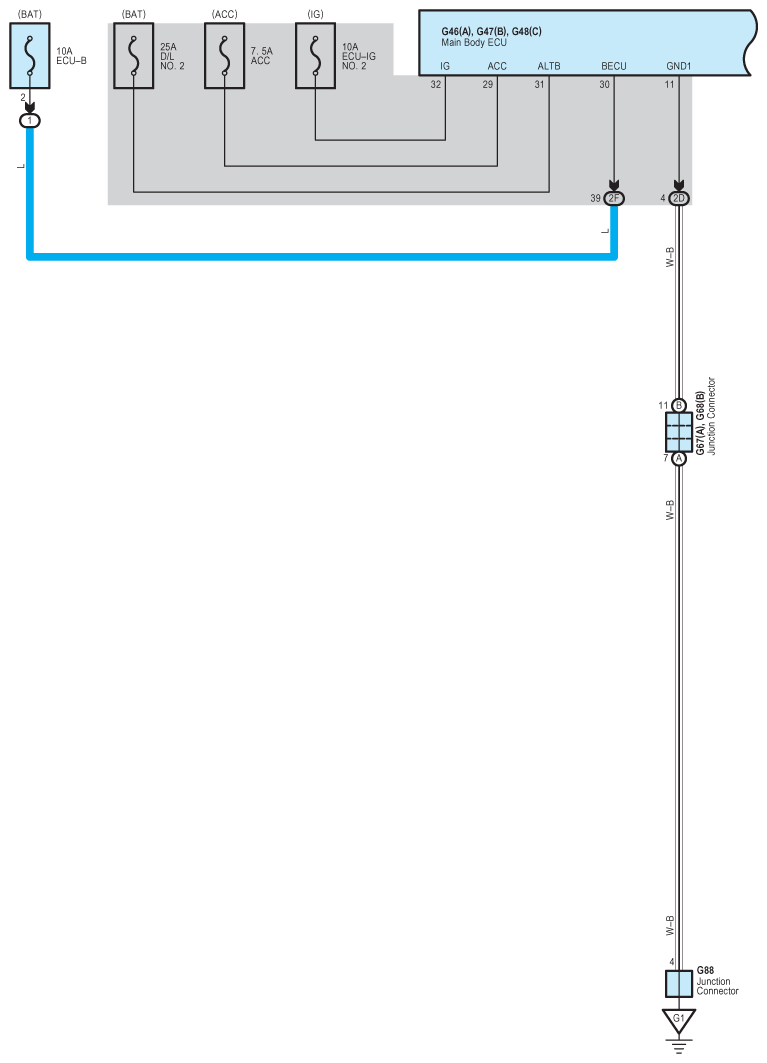

Fig 1: Theft Deterrent - Wiring Diagram (1 Of 7)

G09114687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

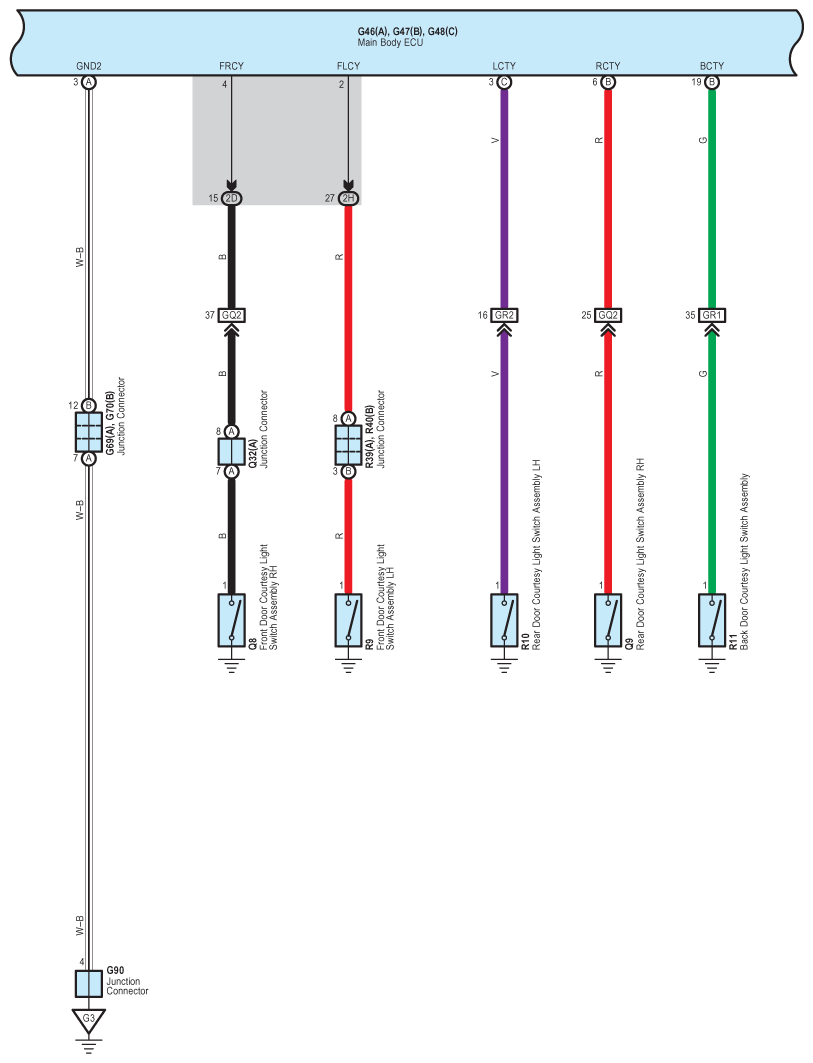

Fig 2: Theft Deterrent - Wiring Diagram (2 Of 7)

G09114688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

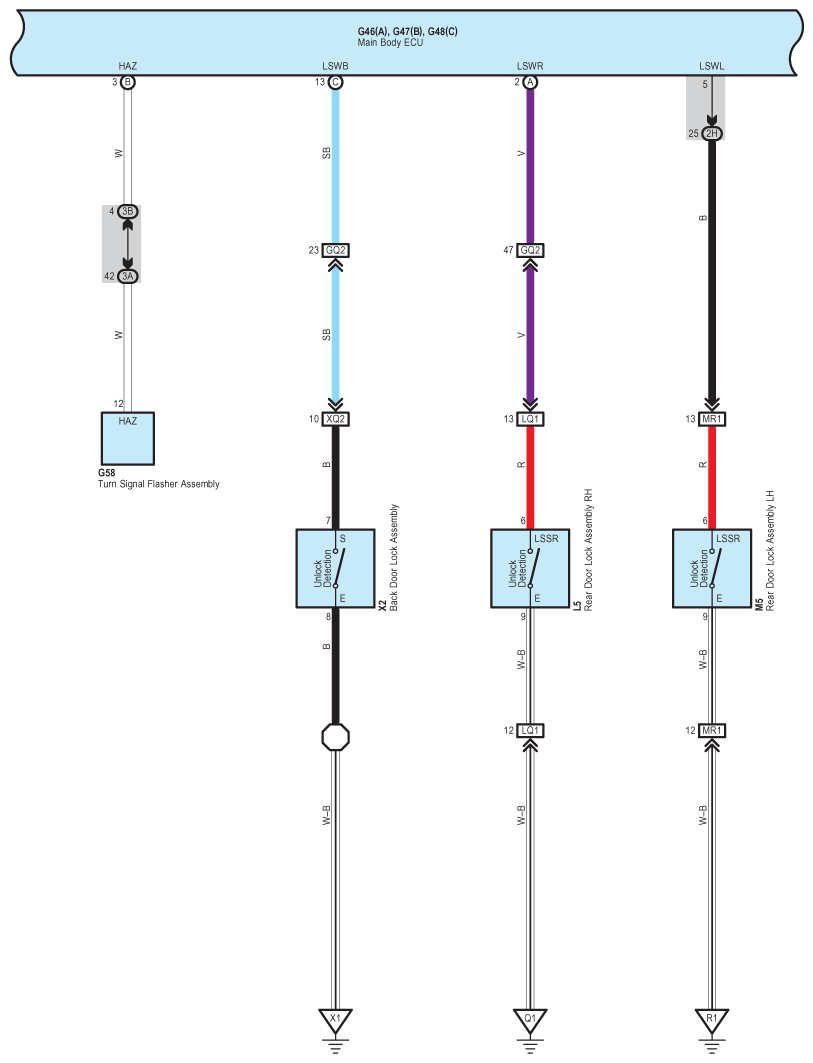

Fig 3: Theft Deterrent - Wiring Diagram (3 Of 7)

G09114689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

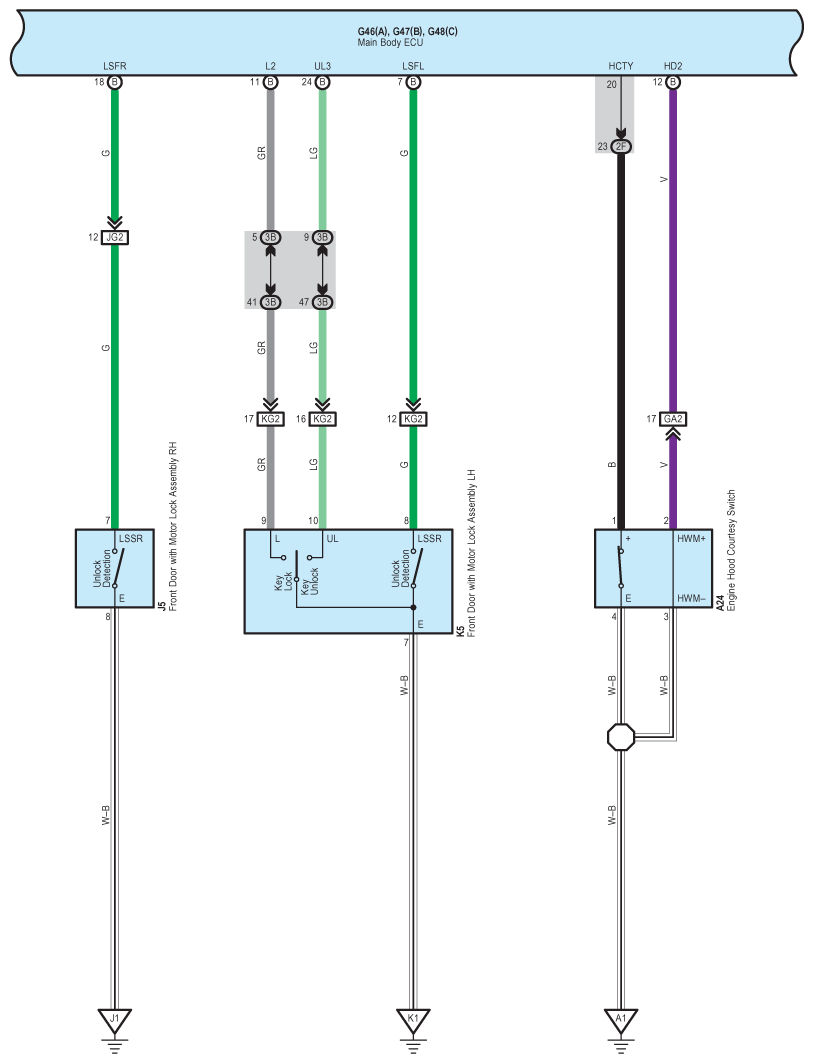

Fig 4: Theft Deterrent - Wiring Diagram (4 Of 7)

G09114690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

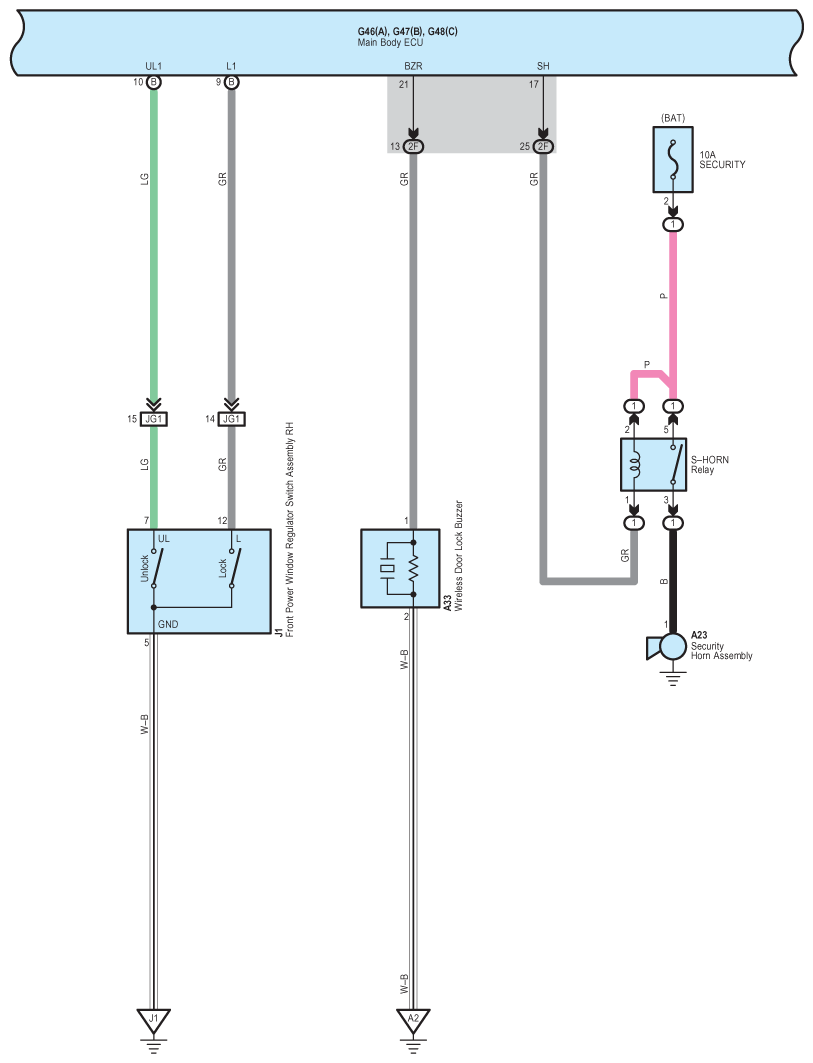

Fig 5: Theft Deterrent - Wiring Diagram (5 Of 7)

G09114691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

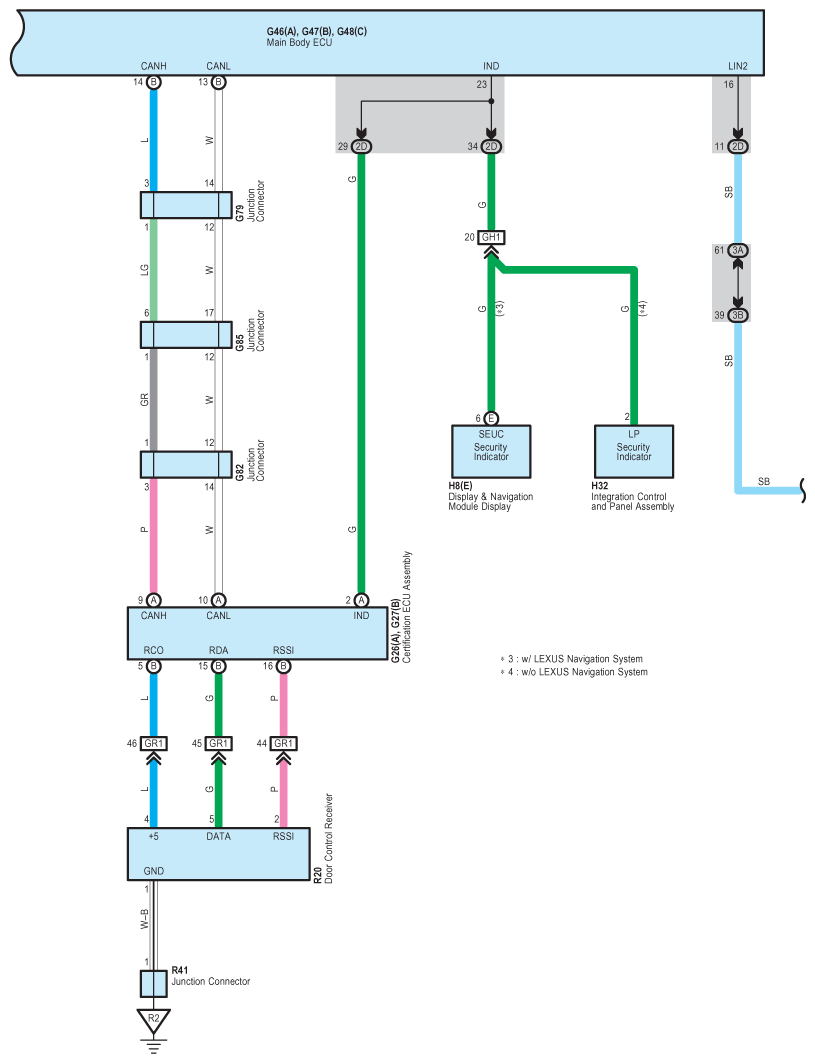

Fig 6: Theft Deterrent - Wiring Diagram (6 Of 7)

G09114692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

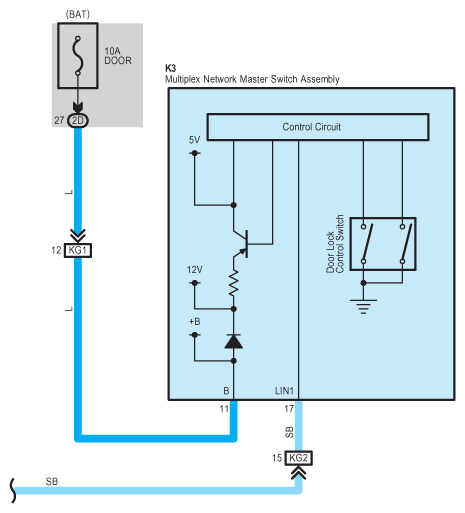

Fig 7: Theft Deterrent - Wiring Diagram (7 Of 7)

G09114693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
