Trailer Towing: Notes

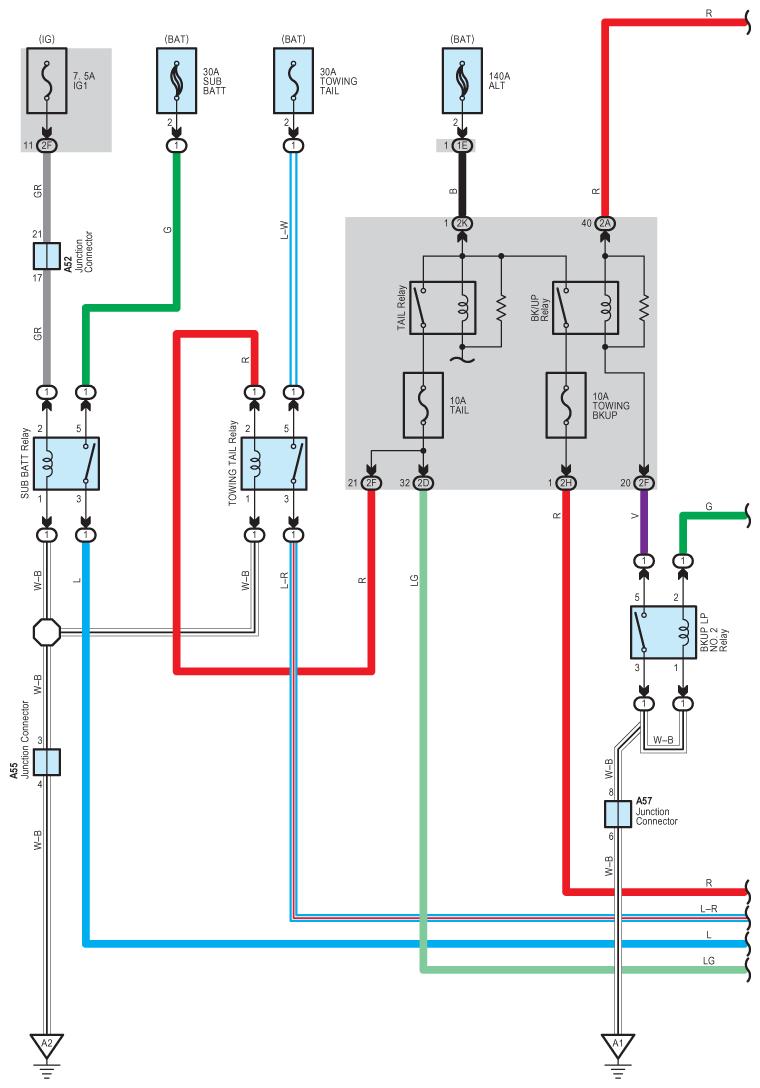

Fig 1: Trailer Towing - Wiring Diagram (1 Of 5)
G09114748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

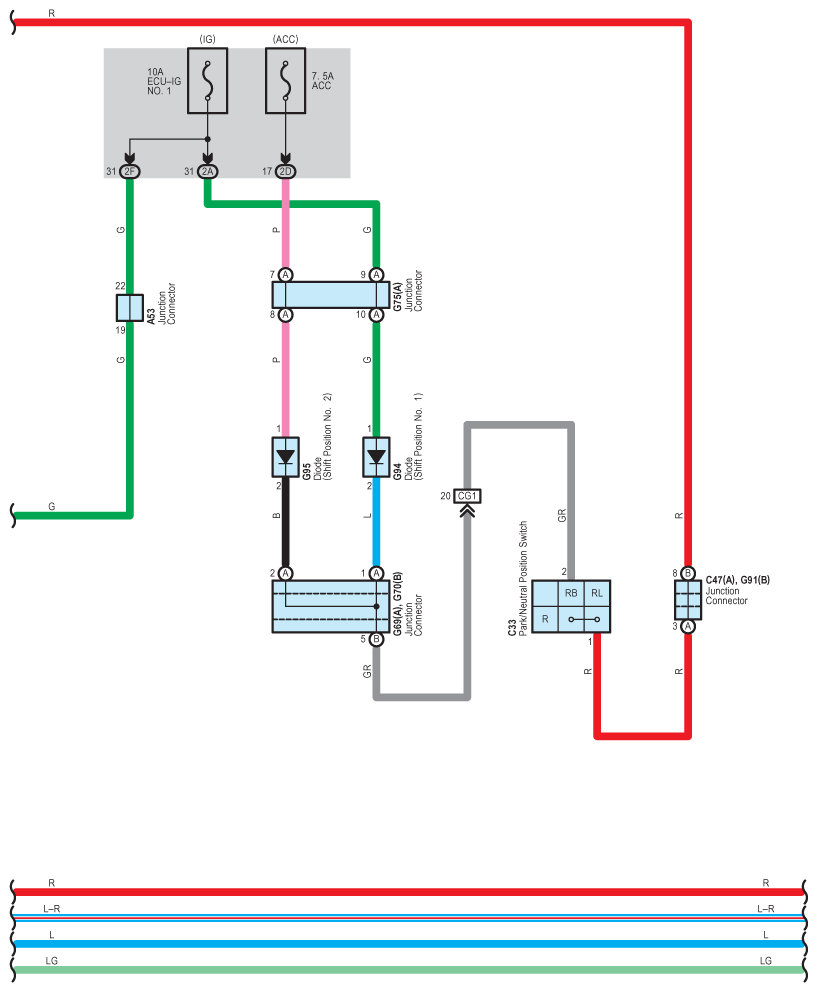

Fig 2: Trailer Towing - Wiring Diagram (2 Of 5)
G09114749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

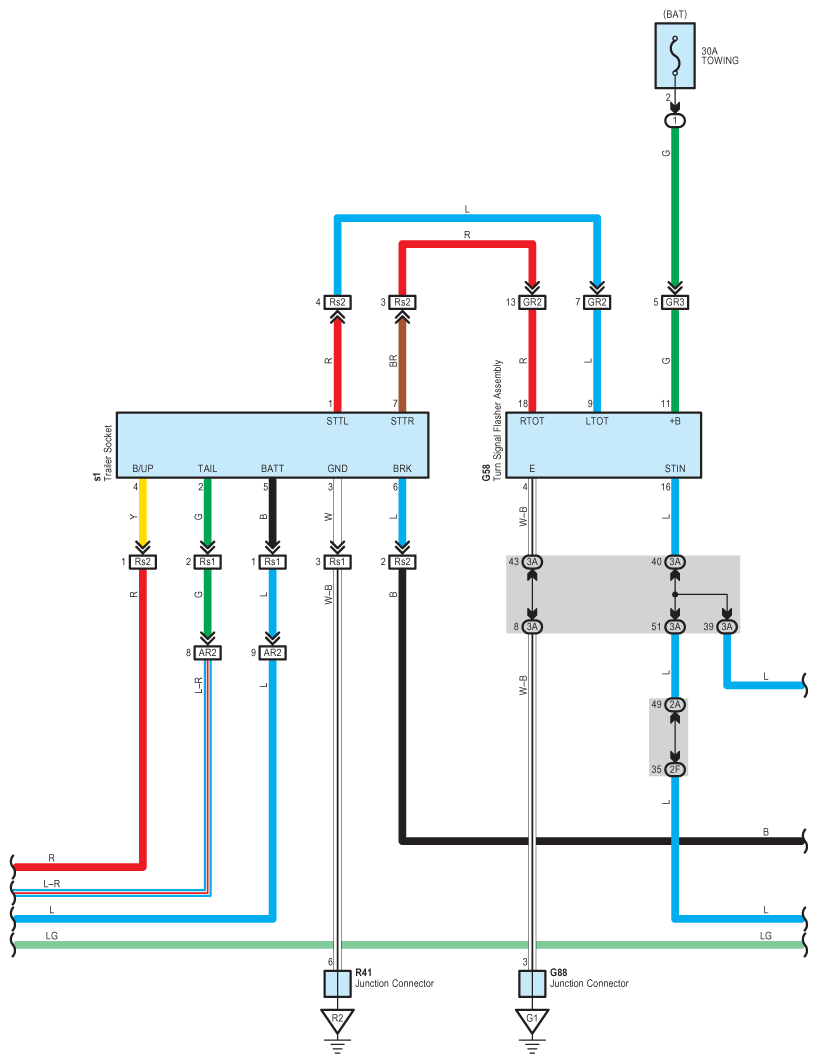

Fig 3: Trailer Towing - Wiring Diagram (3 Of 5)
G09114750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

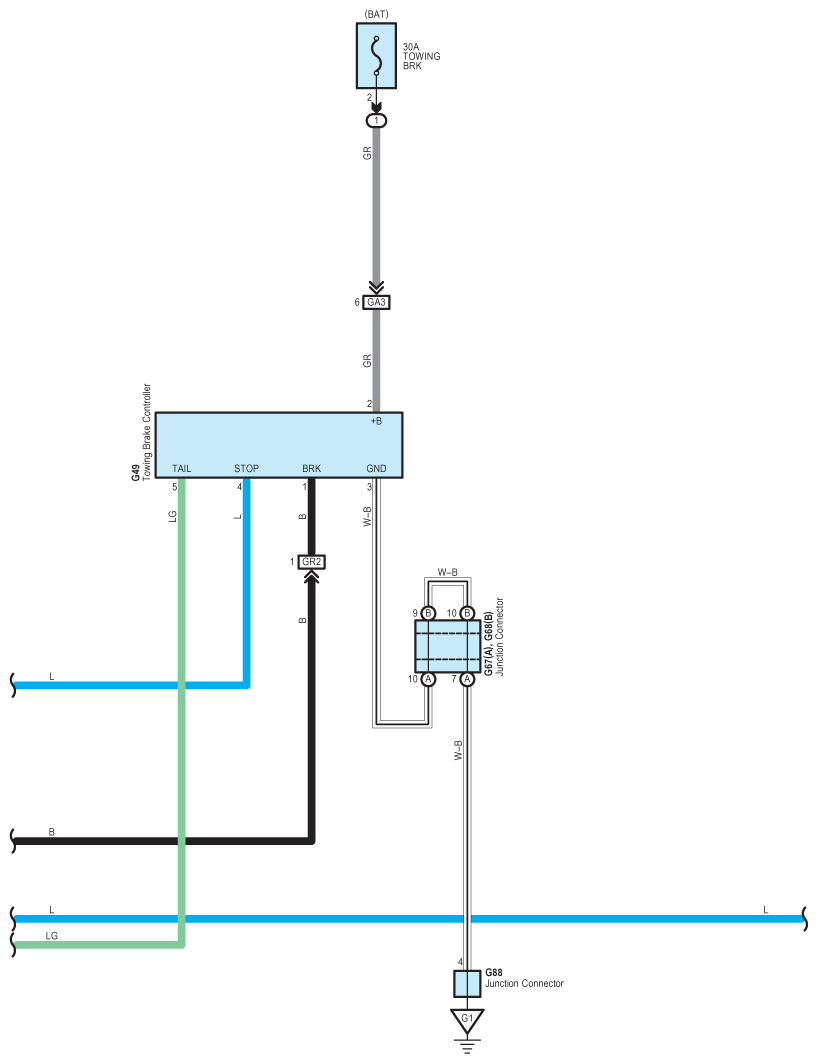

Fig 4: Trailer Towing - Wiring Diagram (4 Of 5)
G09114751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Trailer Towing - Wiring Diagram (5 Of 5)
G09114752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
