Alignment

Wheel Alignment Specifications

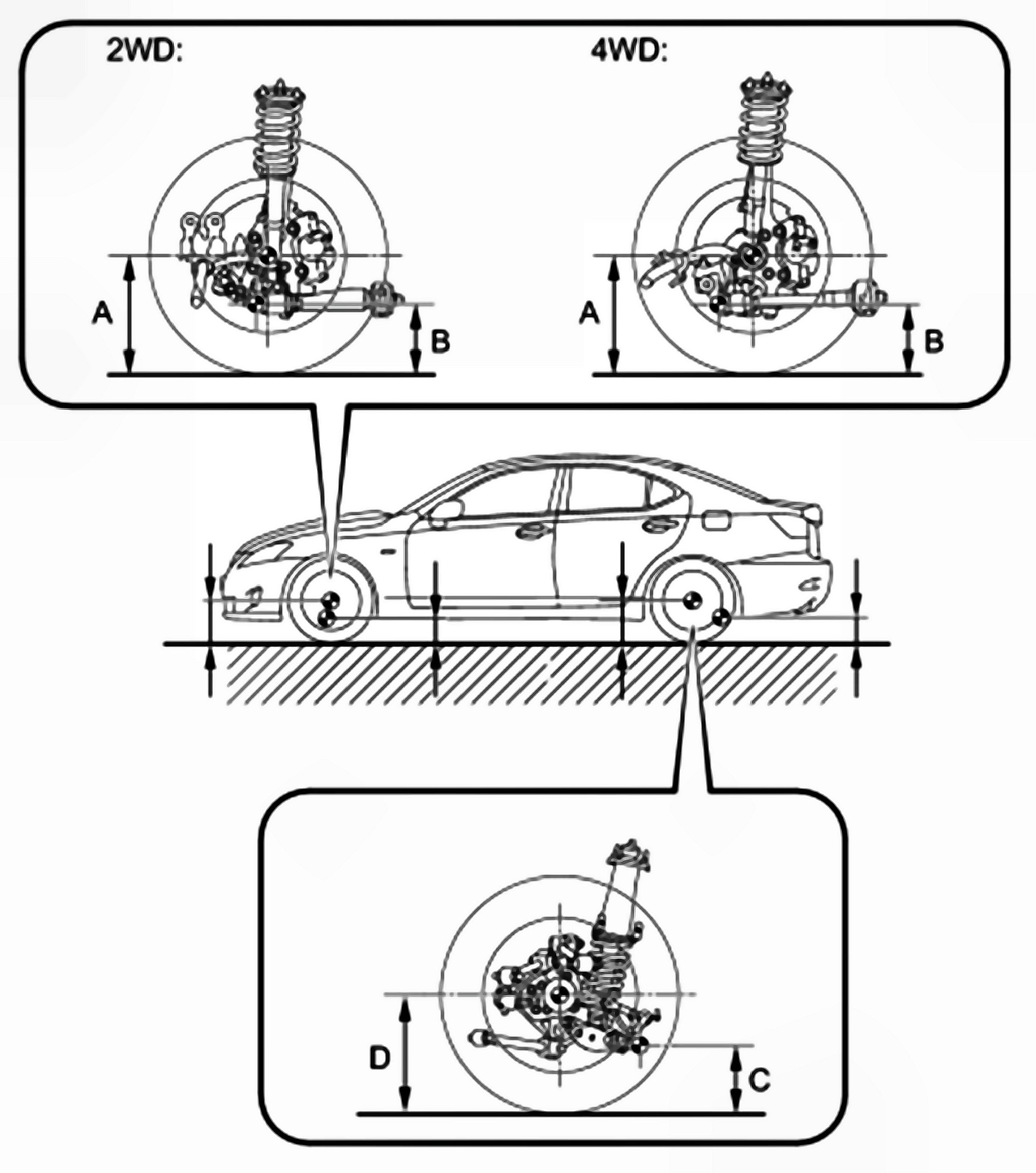

Measurement Points:

A: Ground clearance of front wheel center.
B: Ground clearance of front center position of front suspension lower arm front bush installation bolt head.
C: Ground clearance of rear center position of rear No.2 lower arm bush installation bolt screw thread.
D: Ground clearance of rear wheel center.

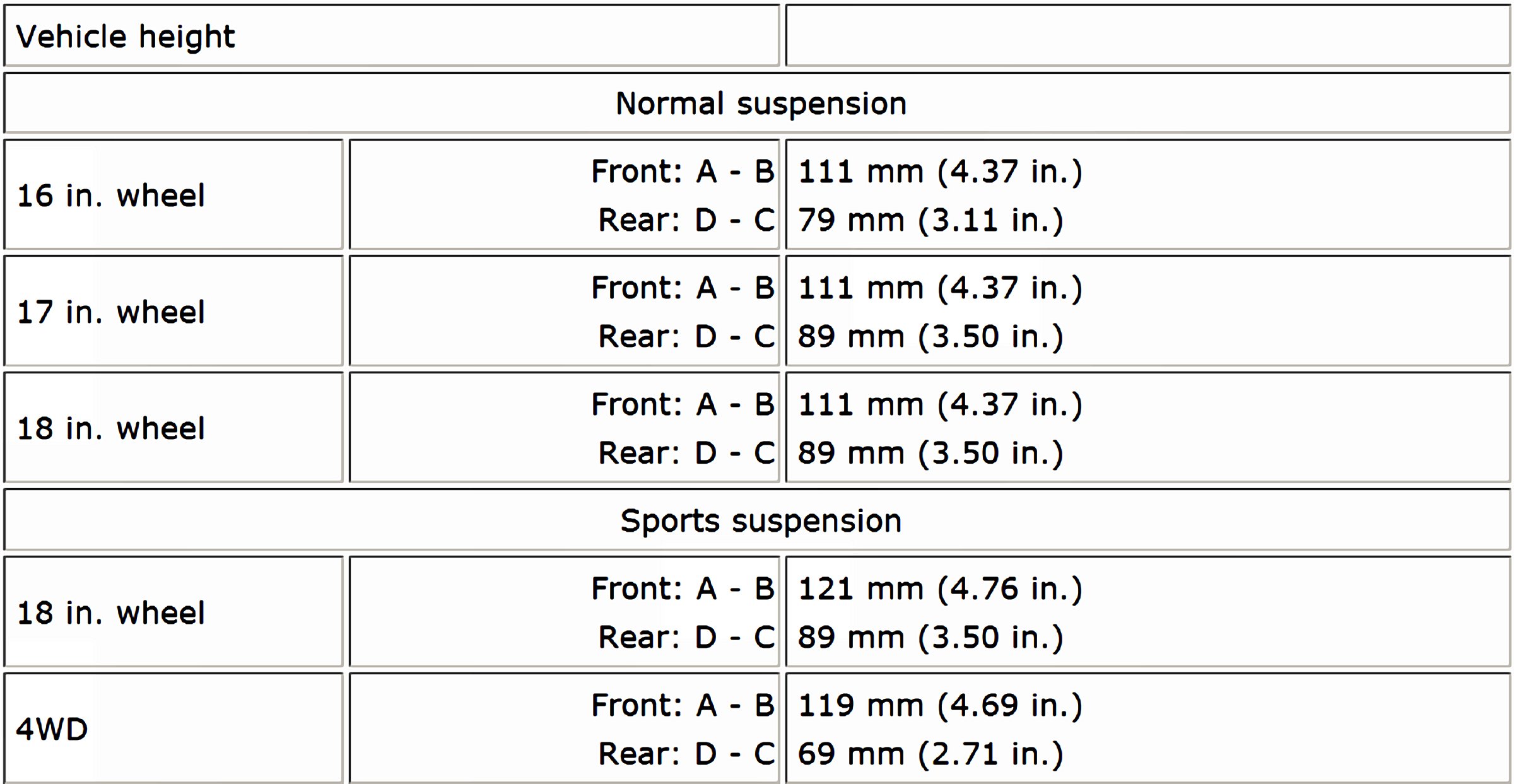

Vehicle Height:

Measurement Points:

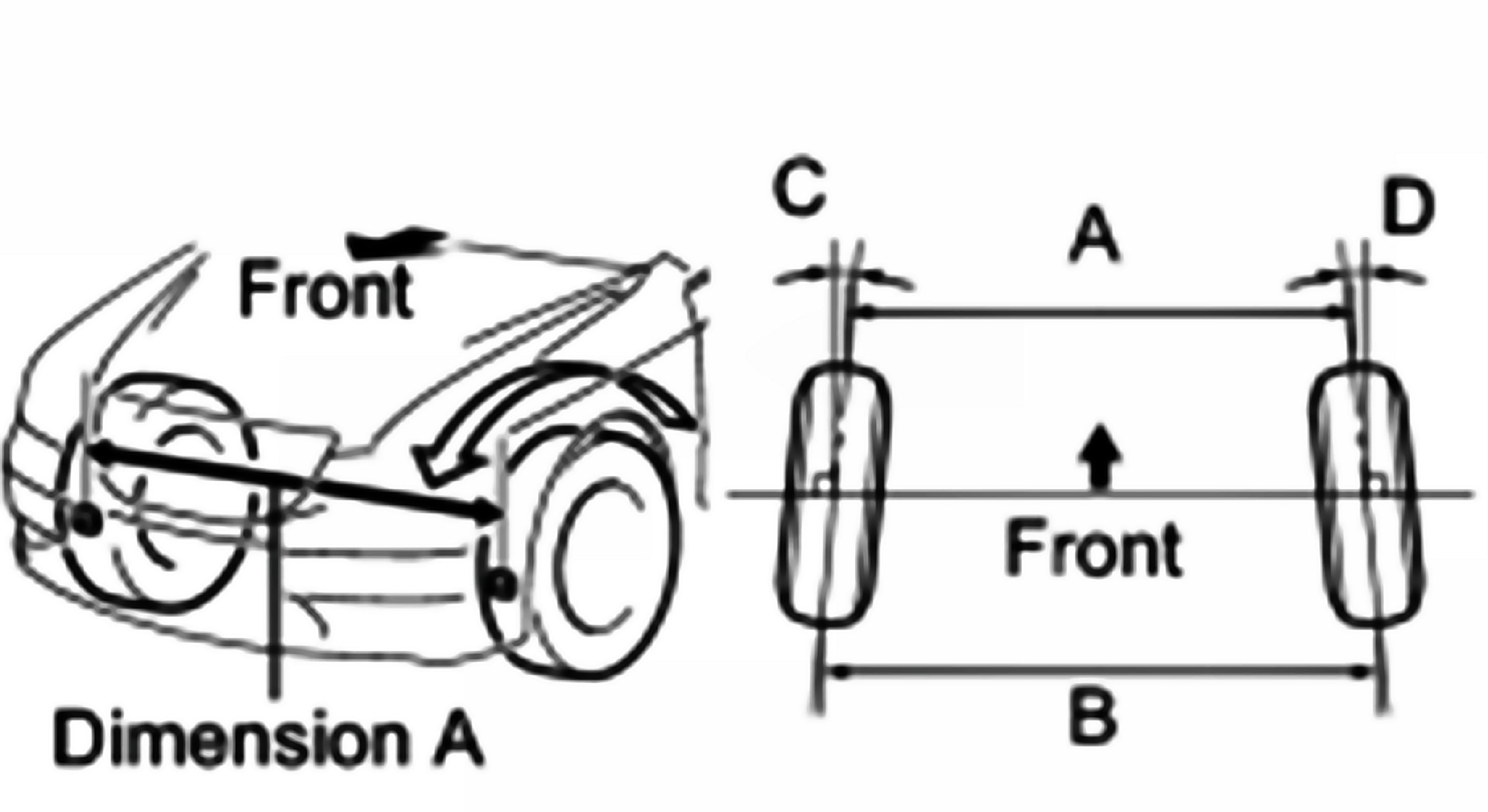

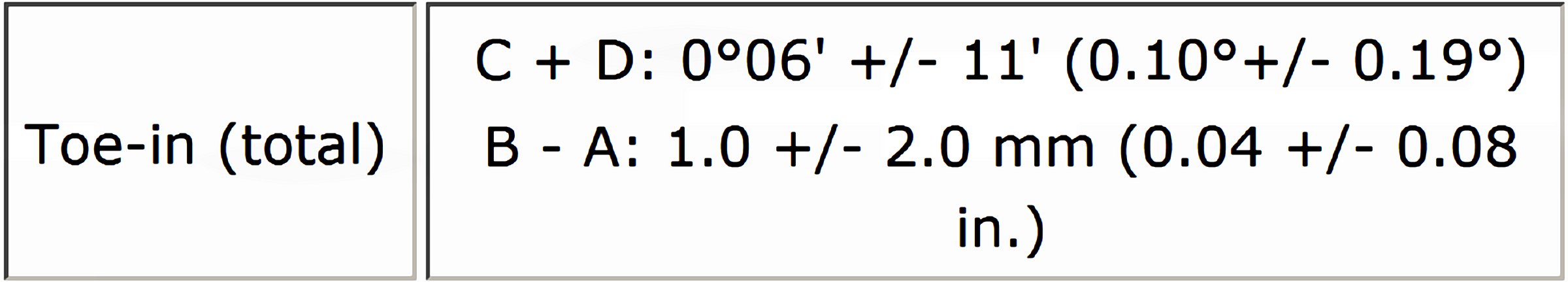

Toe-in:

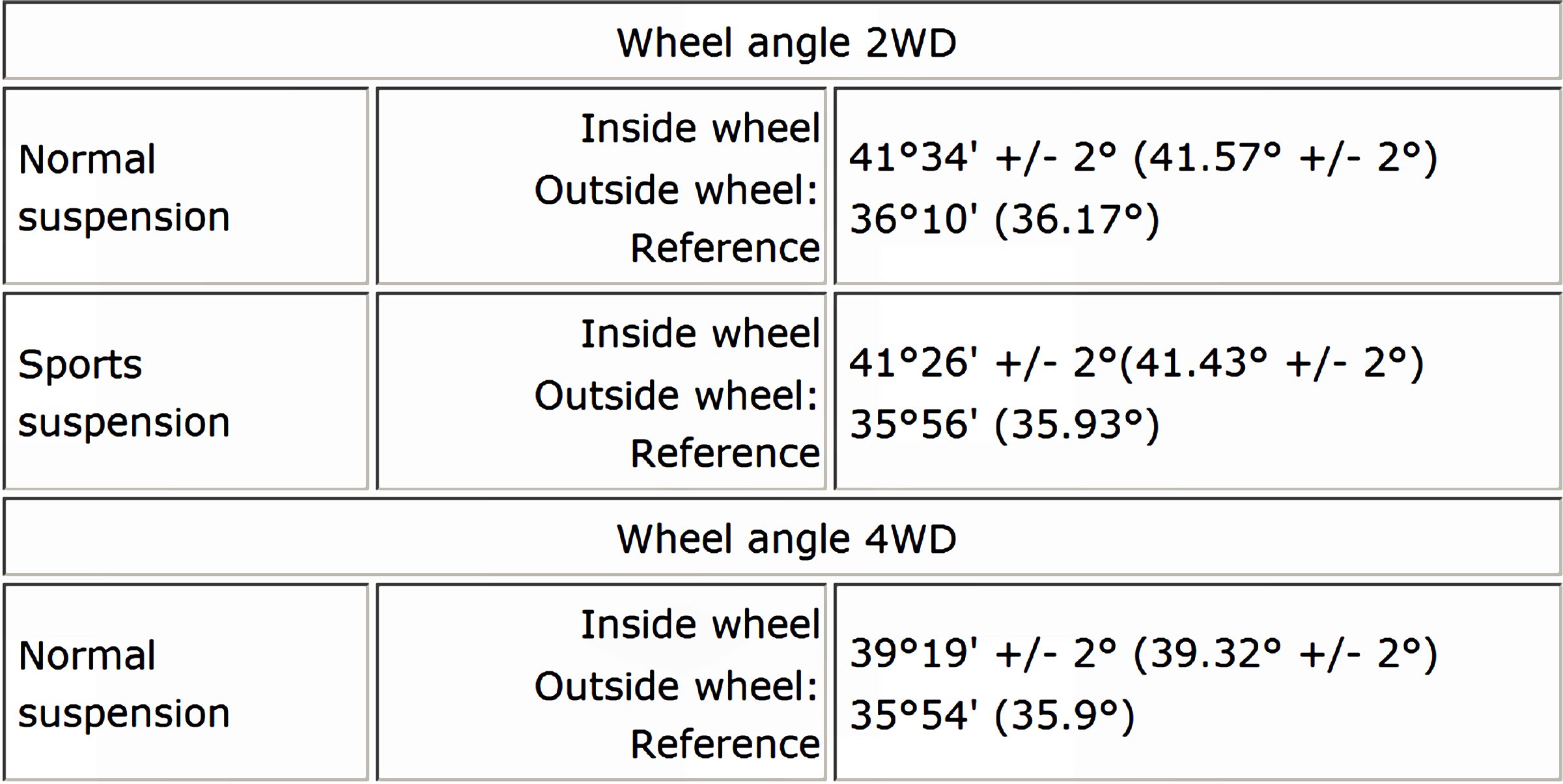

Wheel Angle:

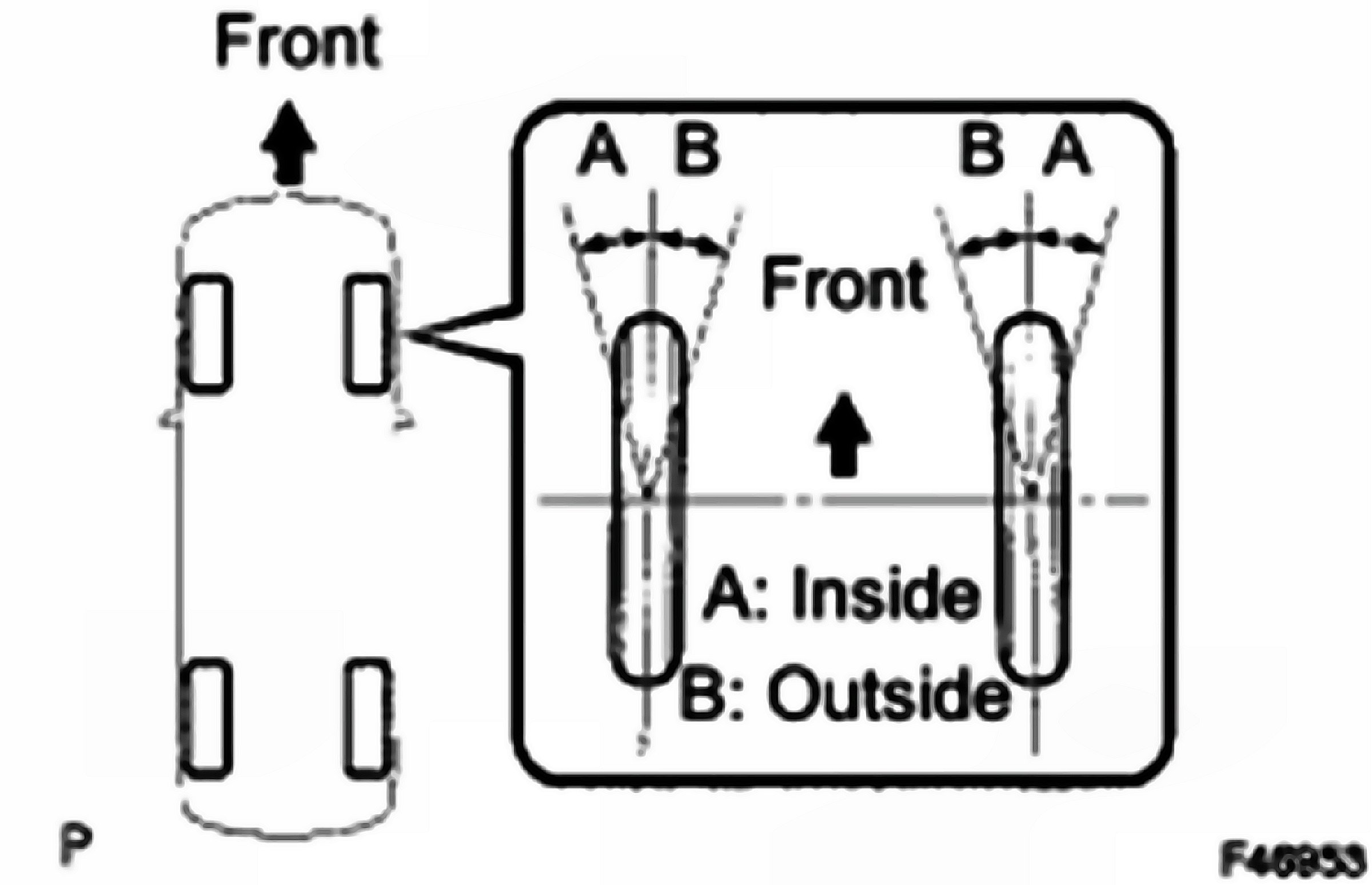

Measurement Points:

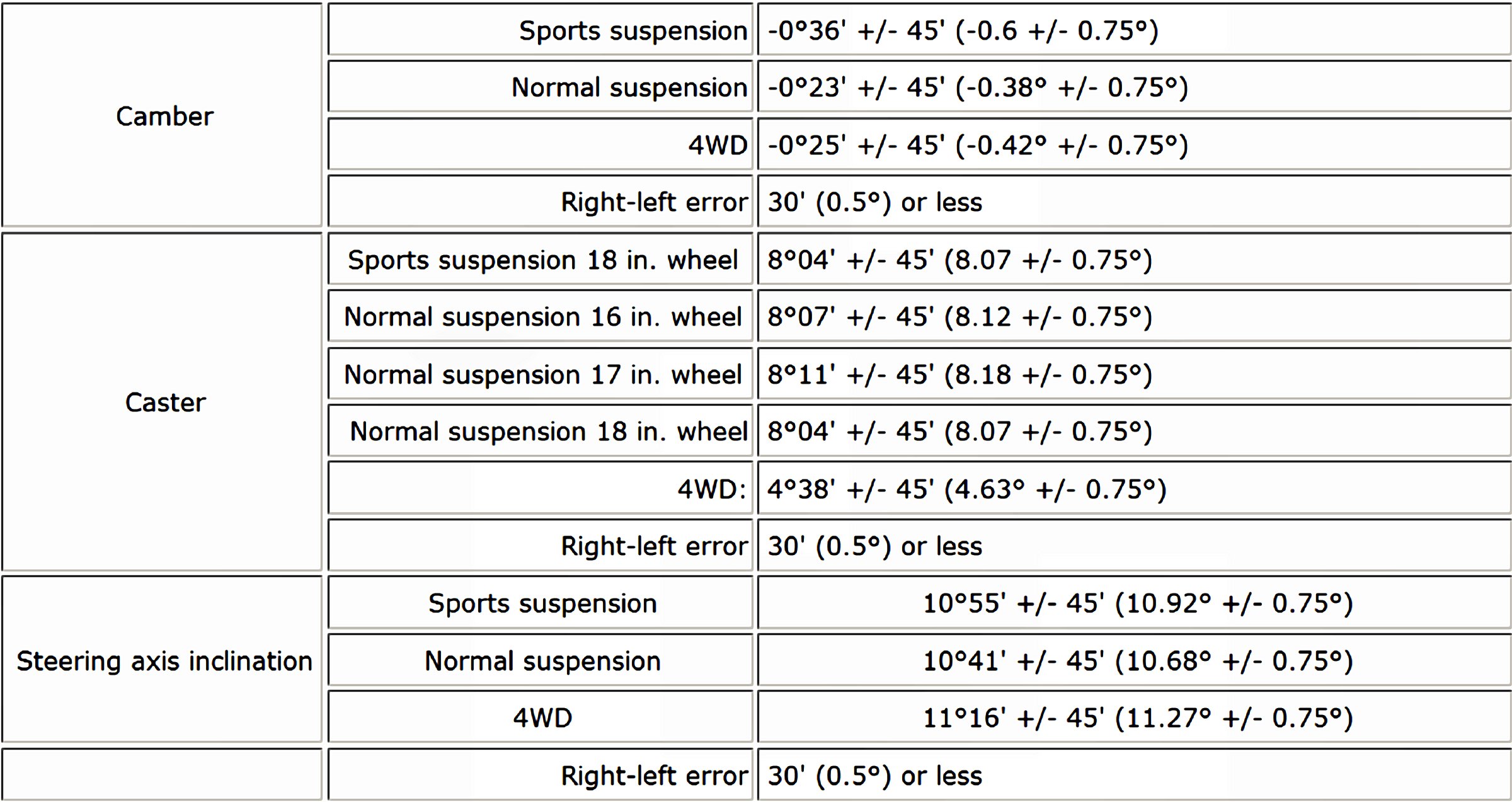

Camber, Caster and Steering Axis Inclination:

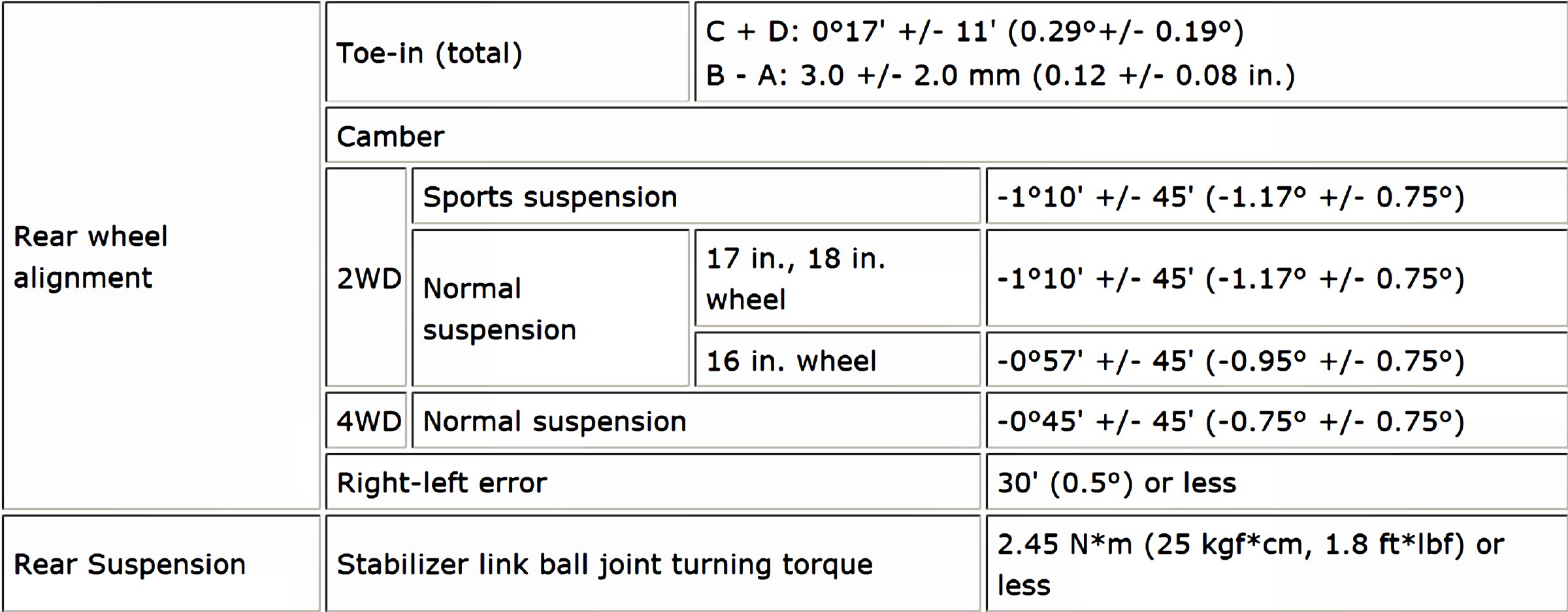

Rear Alignment:
