Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor/Rear View Monitor): Notes

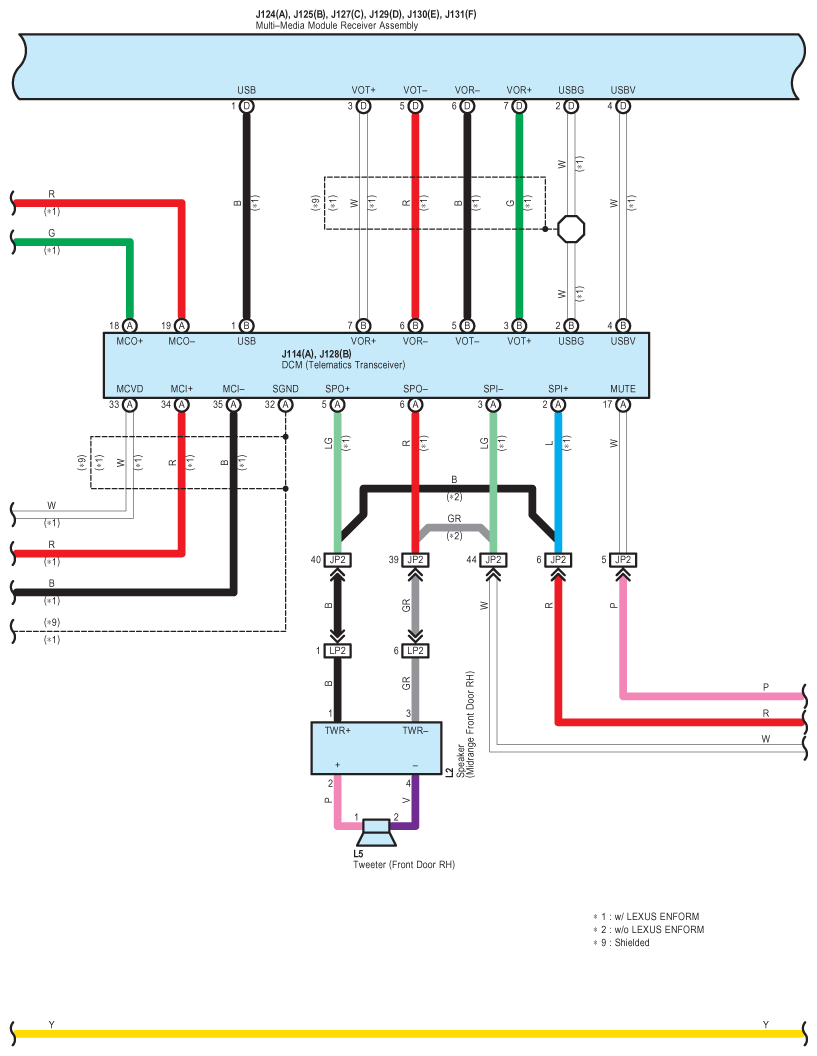

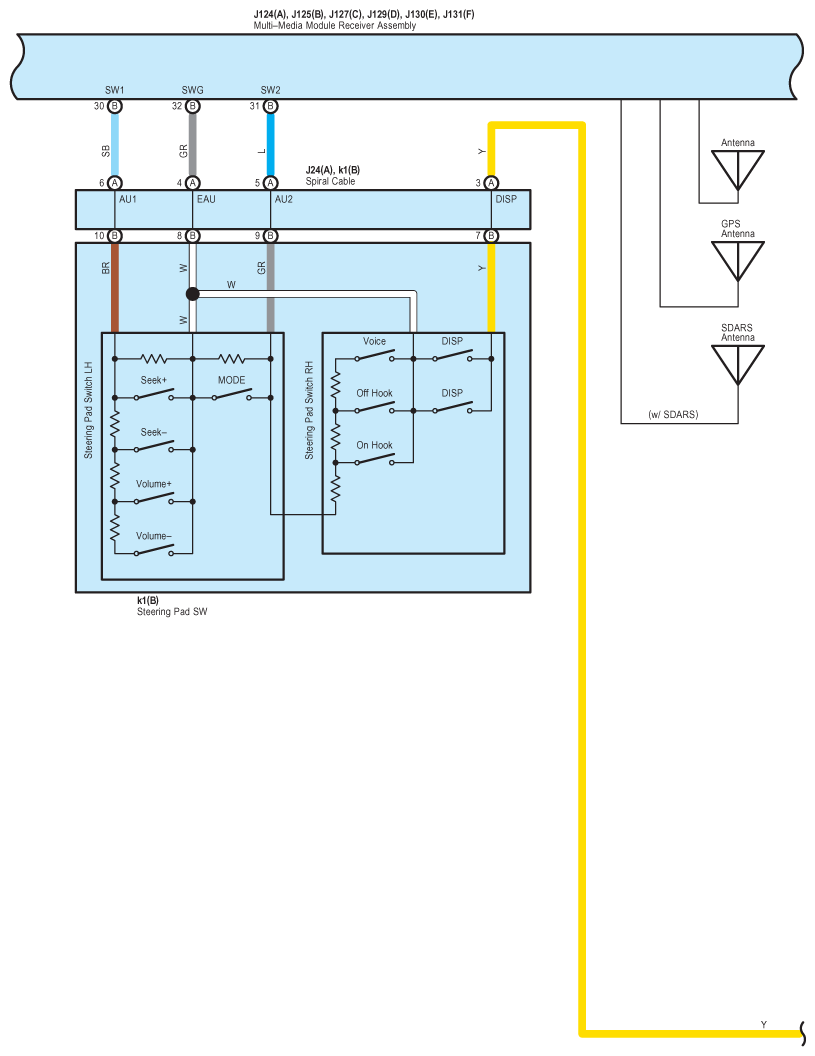

Fig 1: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

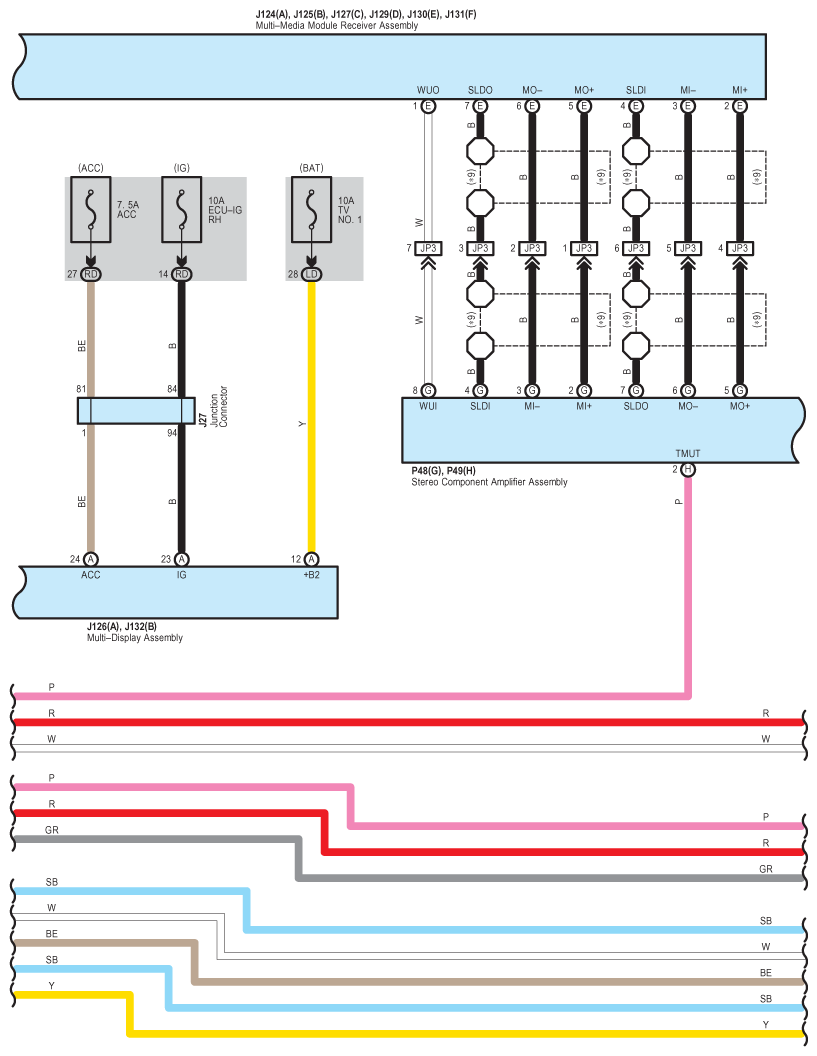

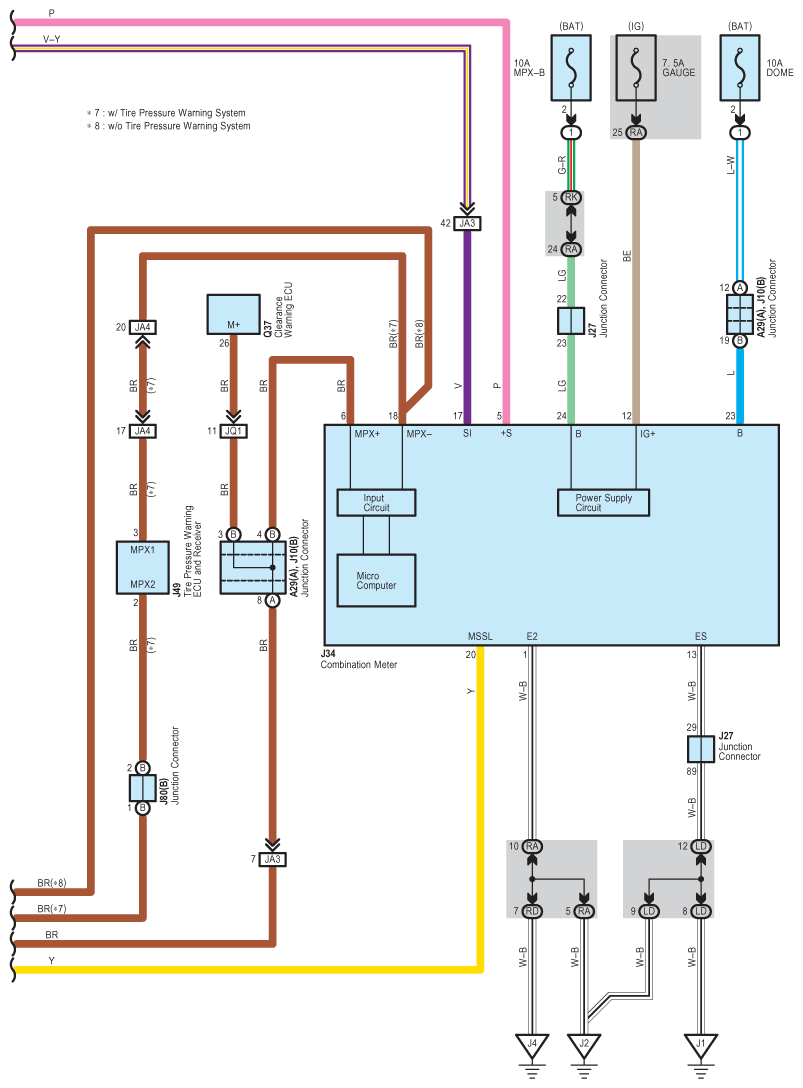

Fig 2: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

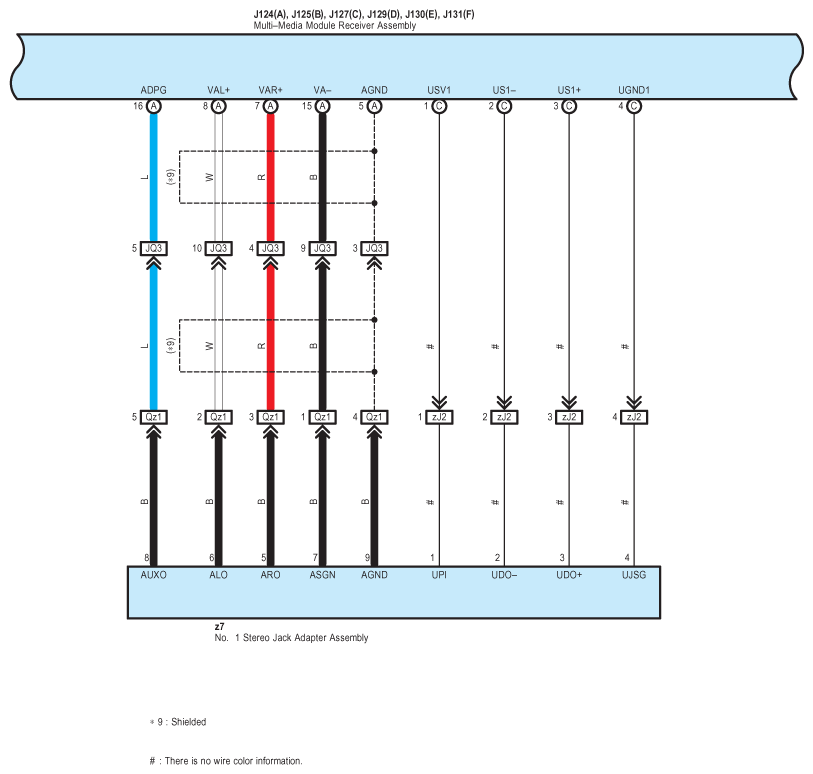

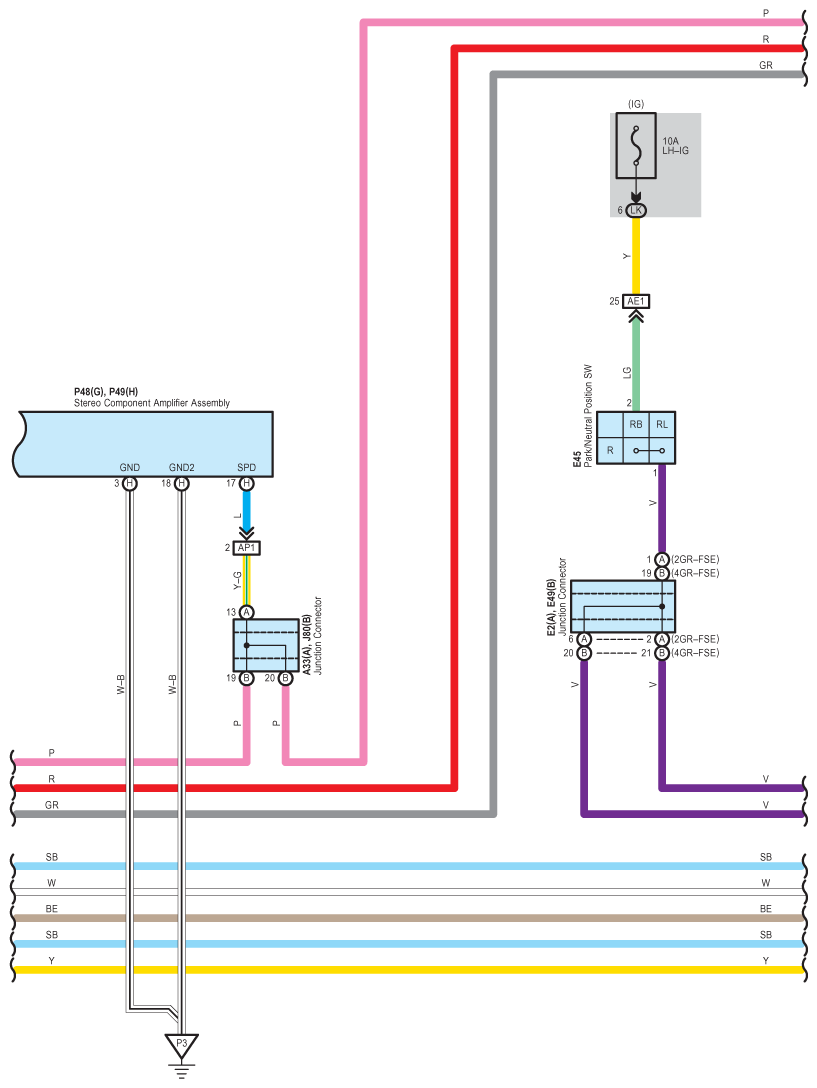

Fig 3: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

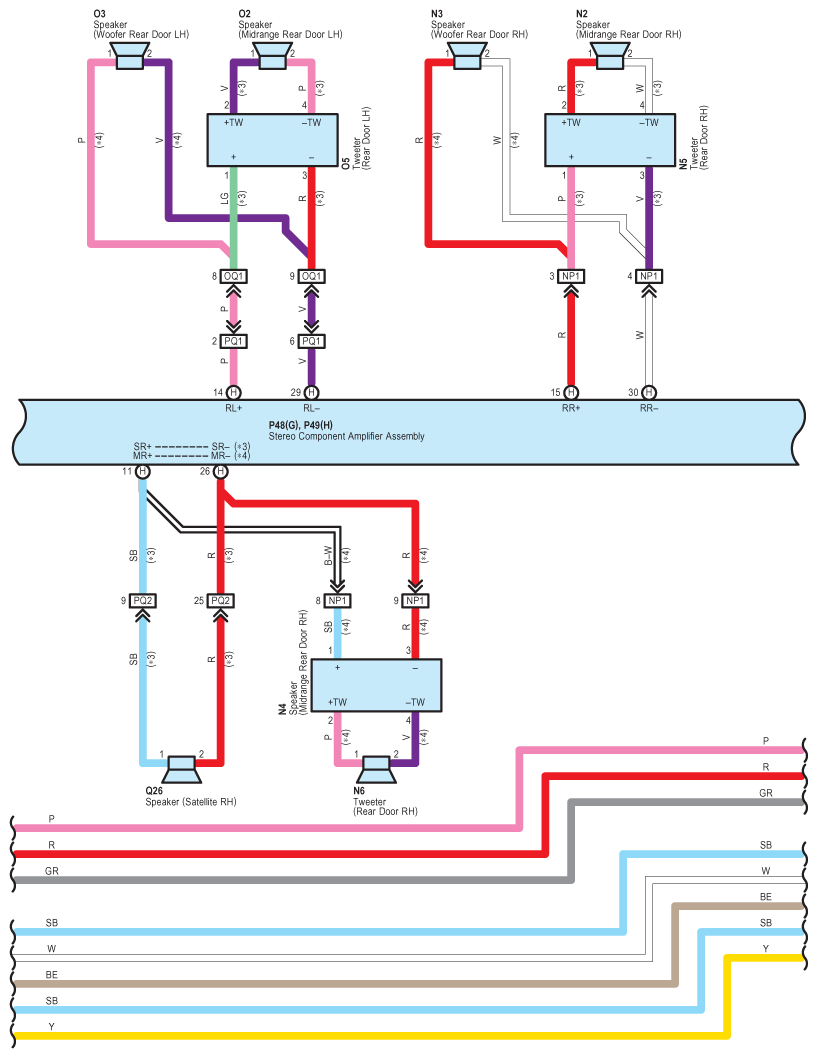

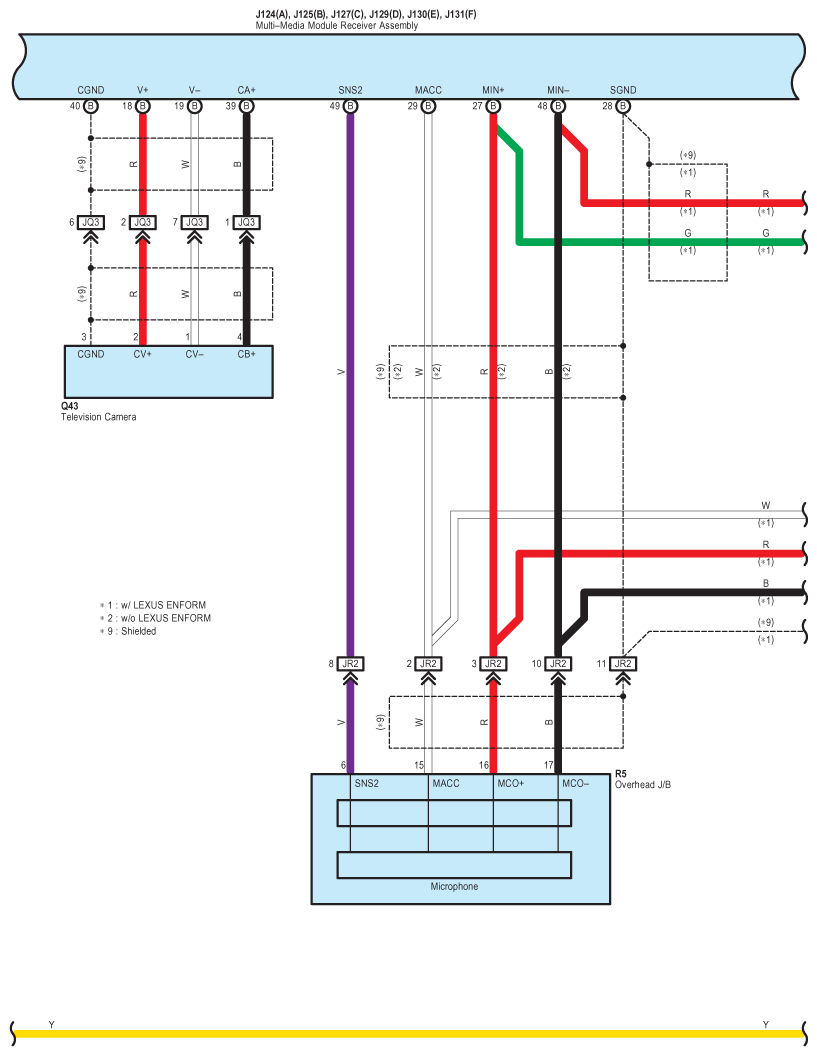

Fig 4: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

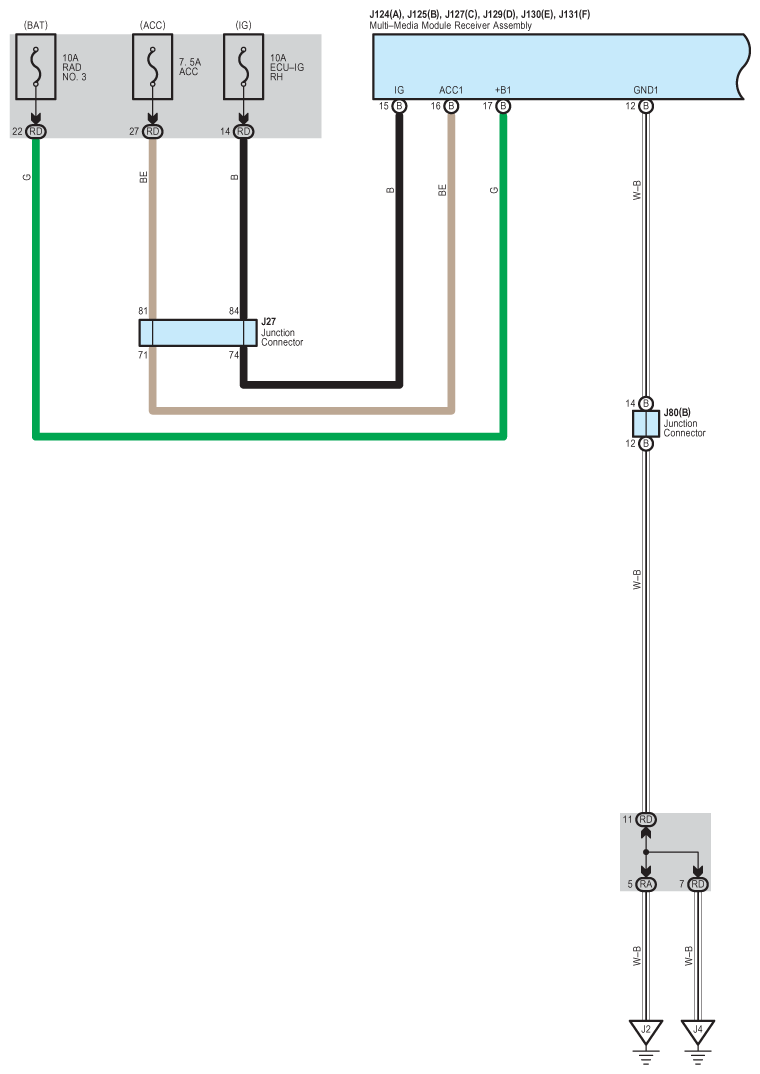

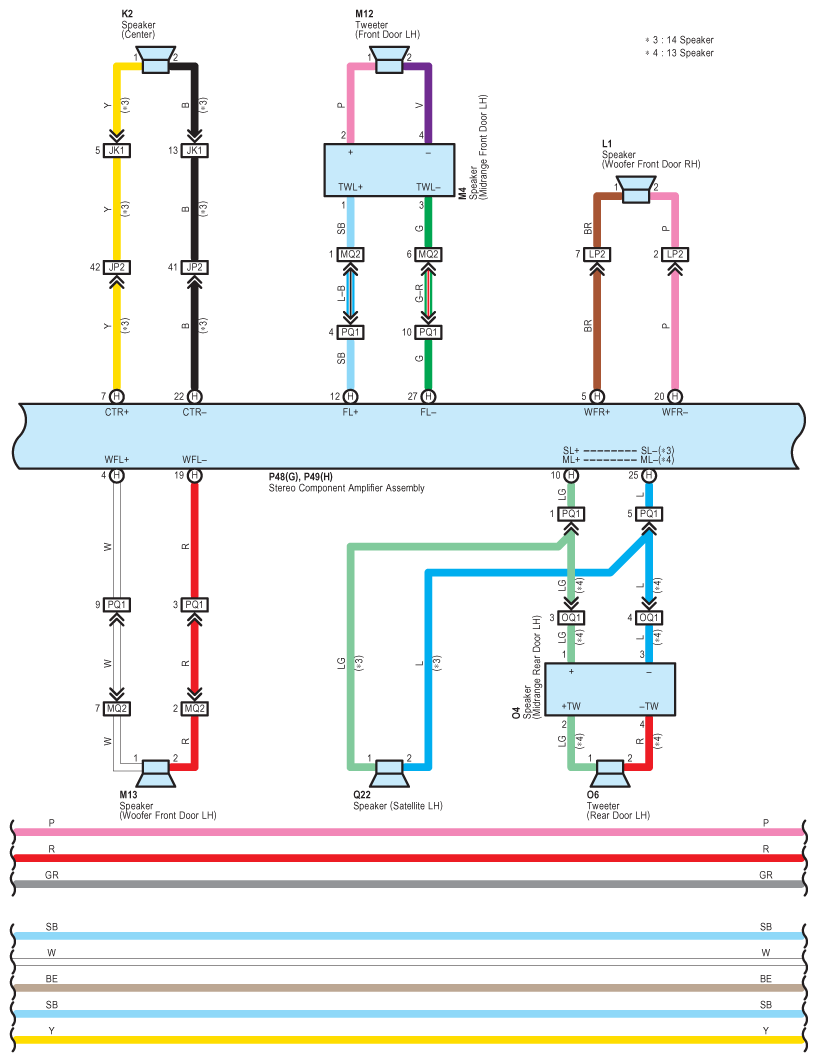

Fig 5: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

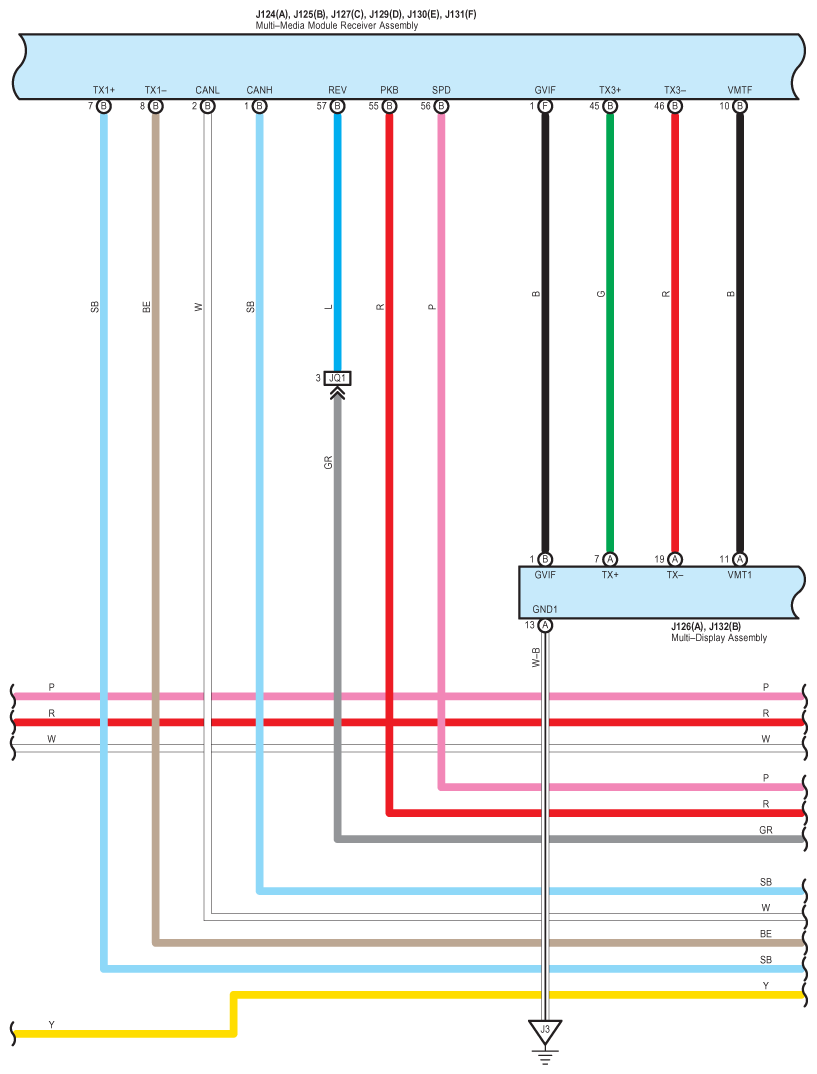

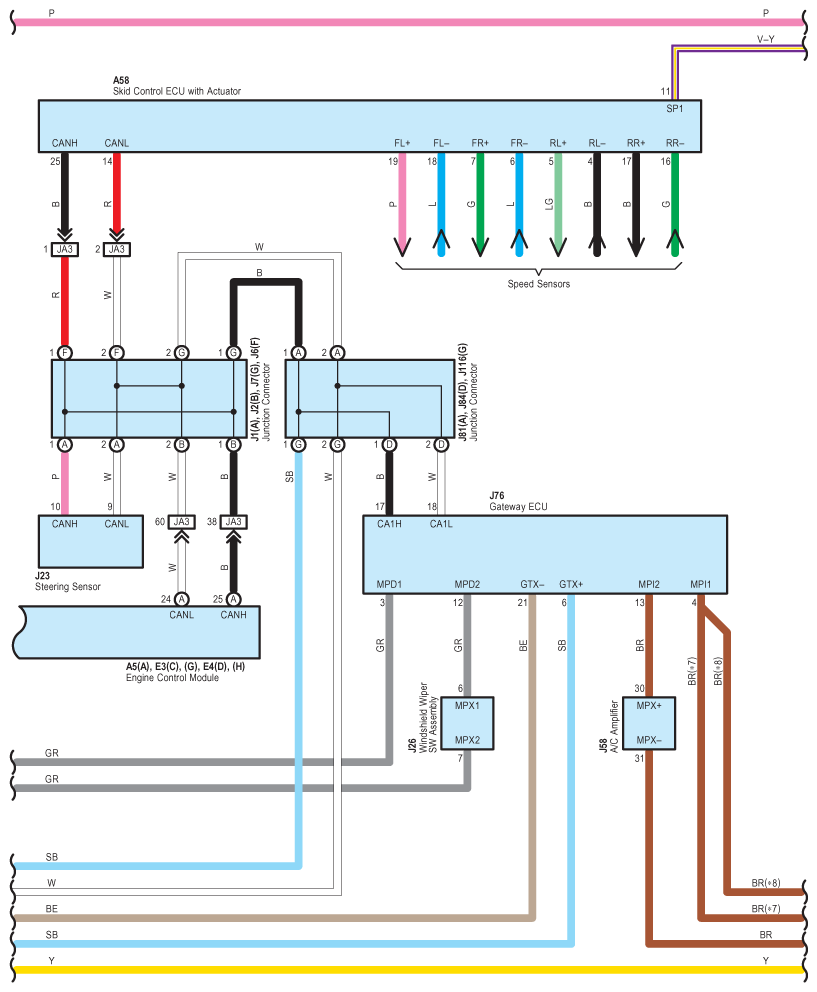

Fig 6: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

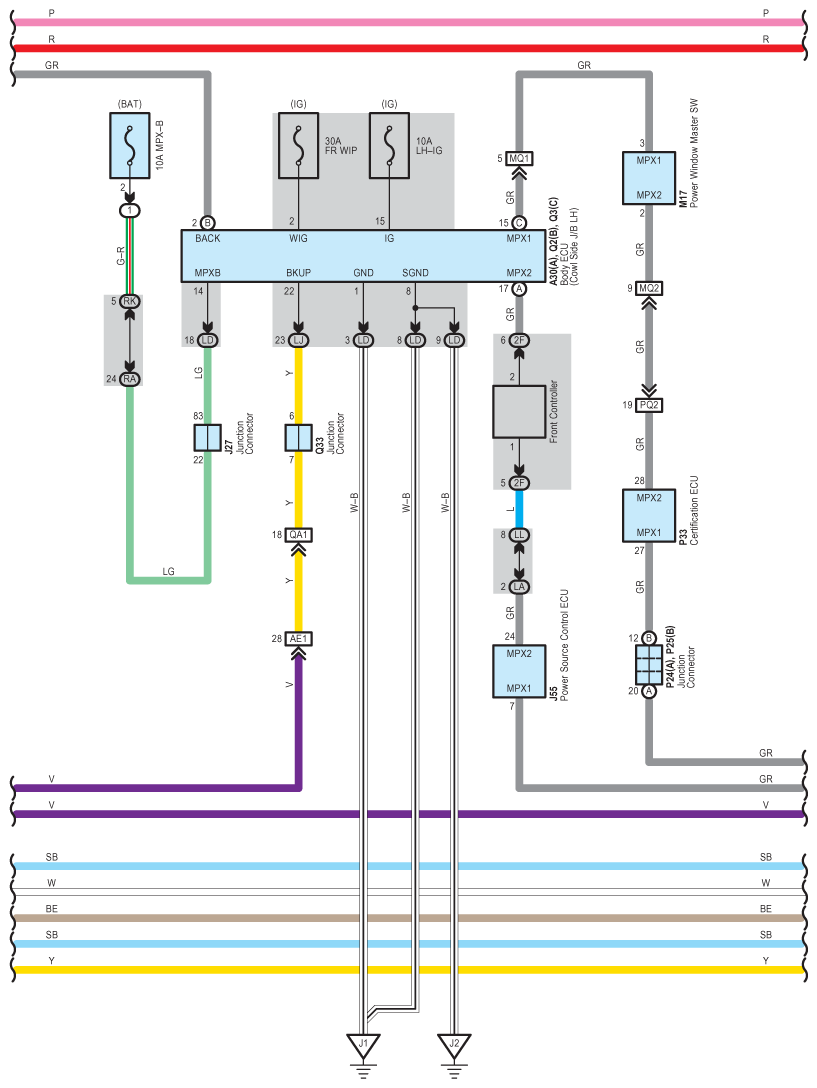

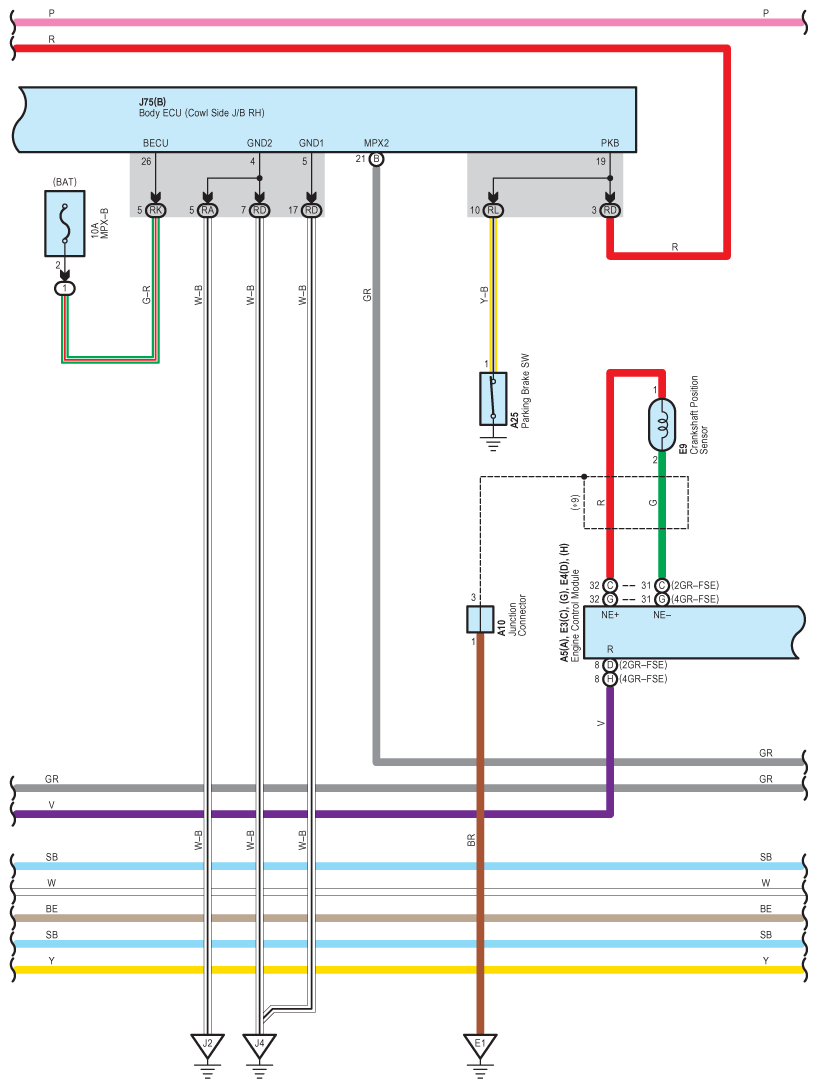

Fig 7: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

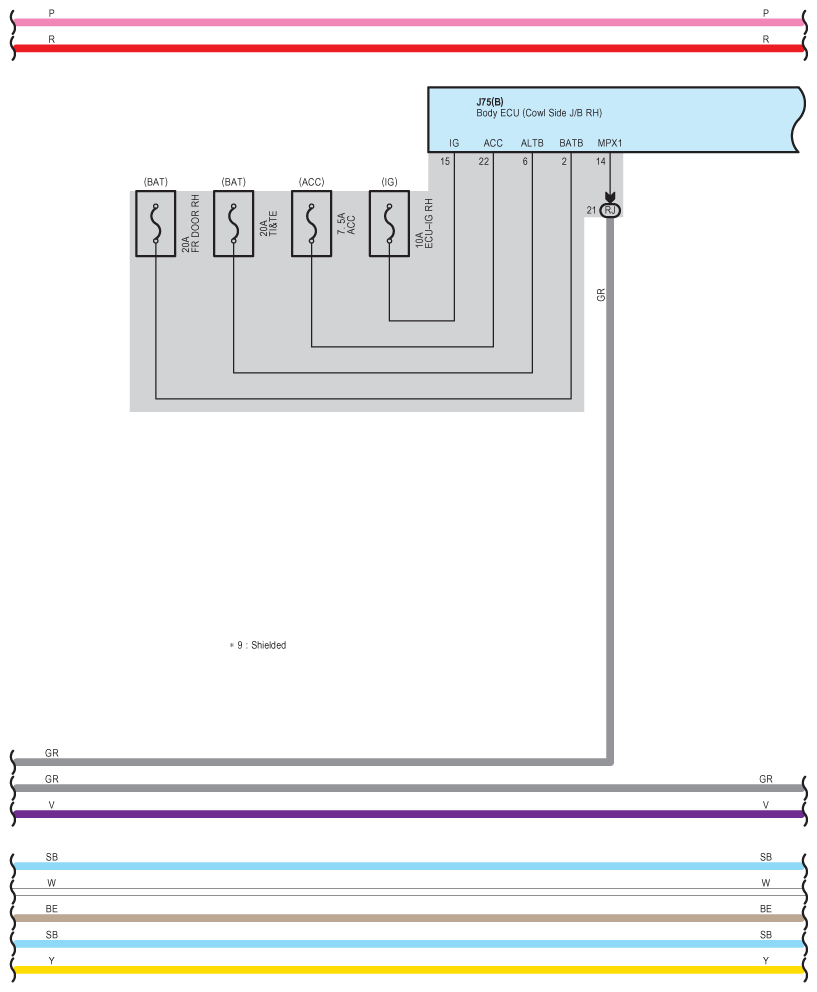

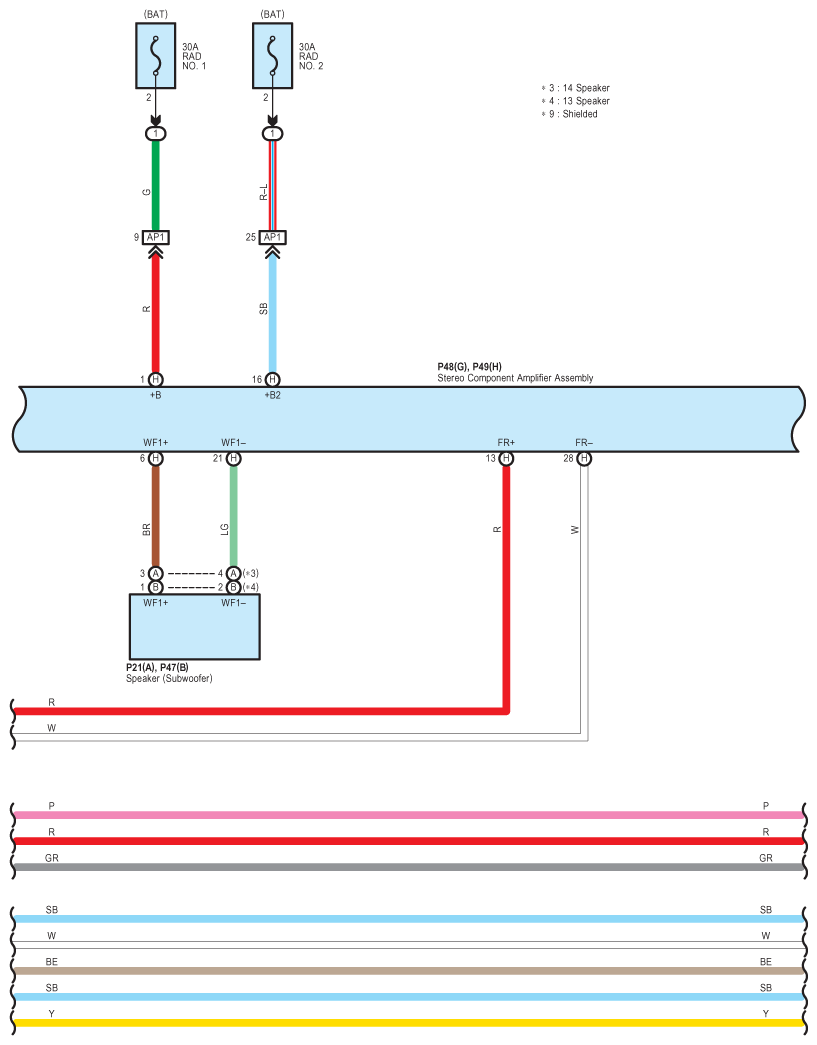

Fig 8: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (11 Of 16)

Fig 12: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (12 Of 16)

Fig 13: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (13 Of 16)

Fig 14: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (14 Of 16)

Fig 15: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (15 Of 16)

Fig 16: Audio - With Lexus Navigation And Parking Assist (Back Guide/Rear View Monitor) System Wiring Diagram (16 Of 16)
