Electronically Controlled Transmission and A/T Indicator (4GR-FSE): Notes

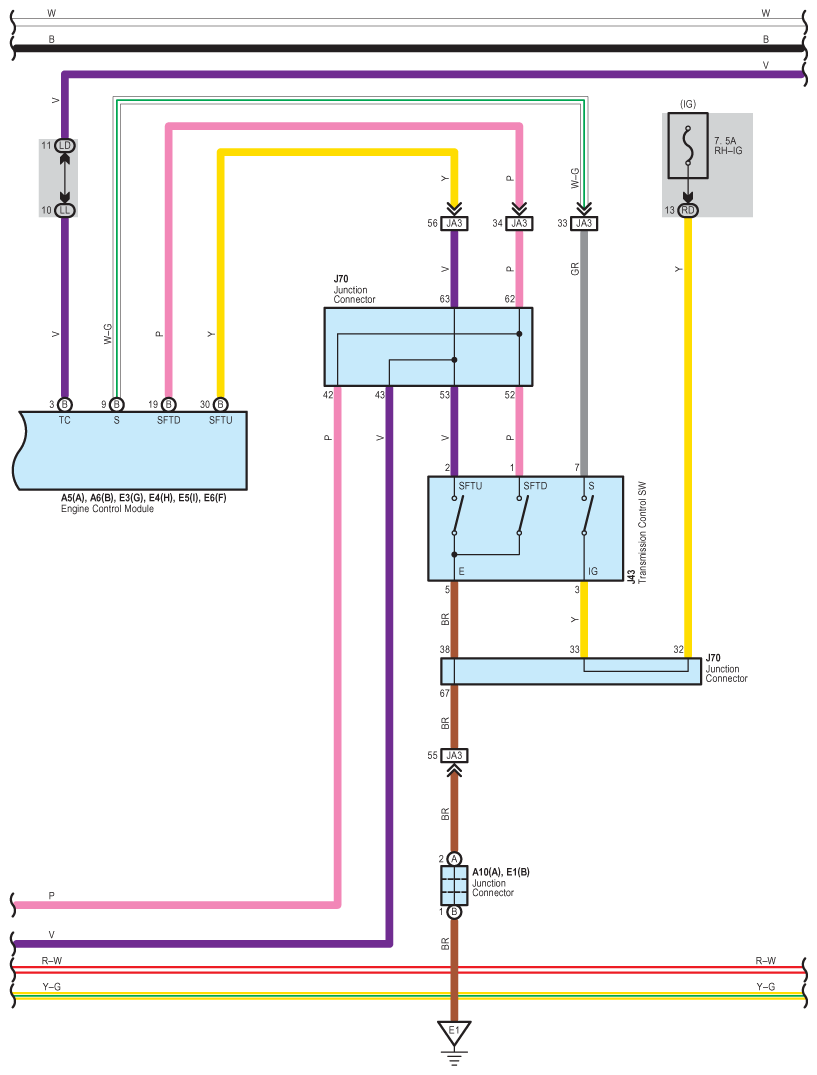

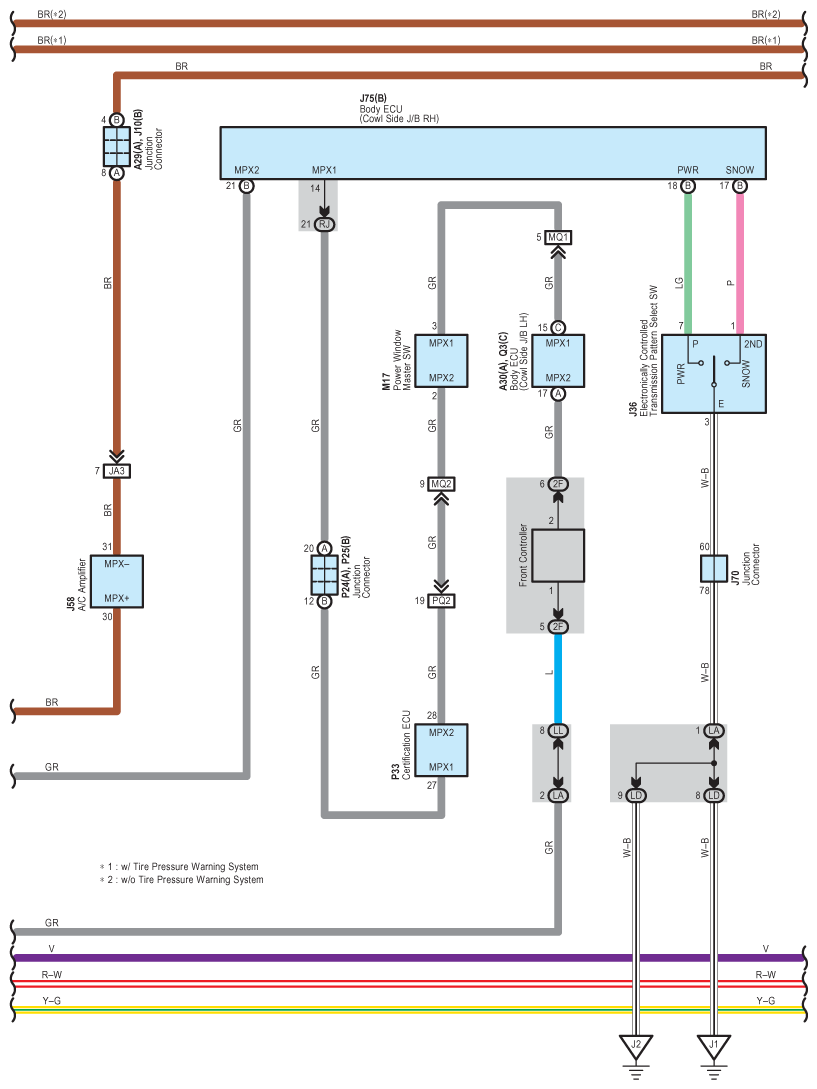

Fig 1: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

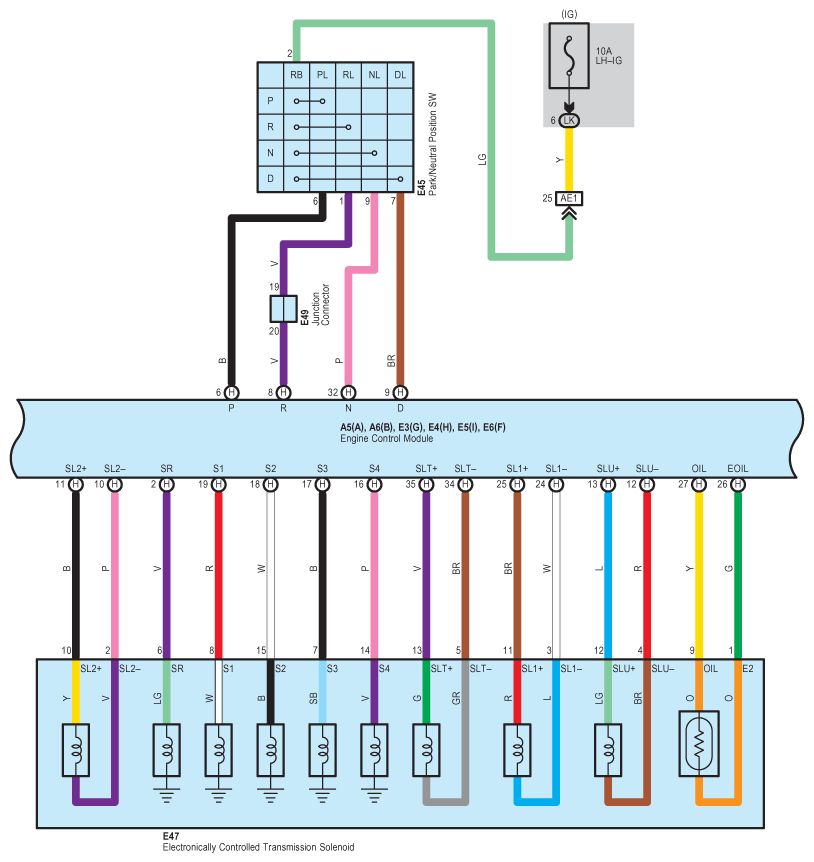

Fig 2: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

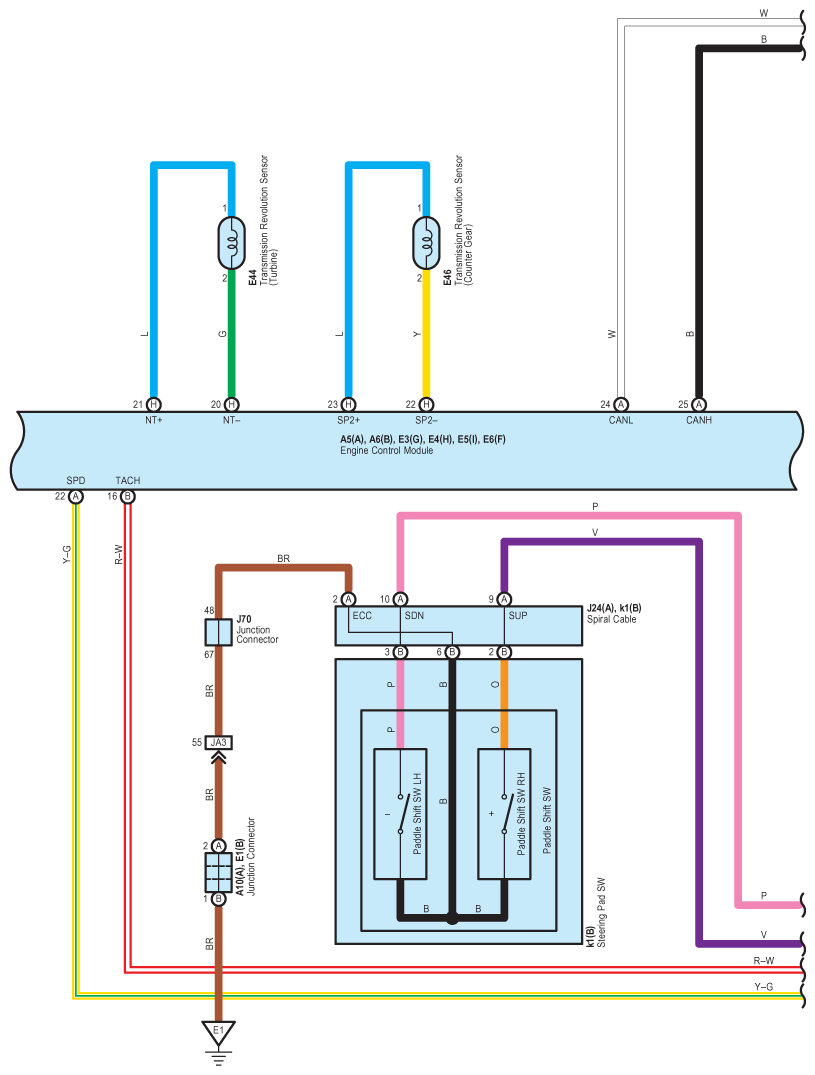

Fig 3: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

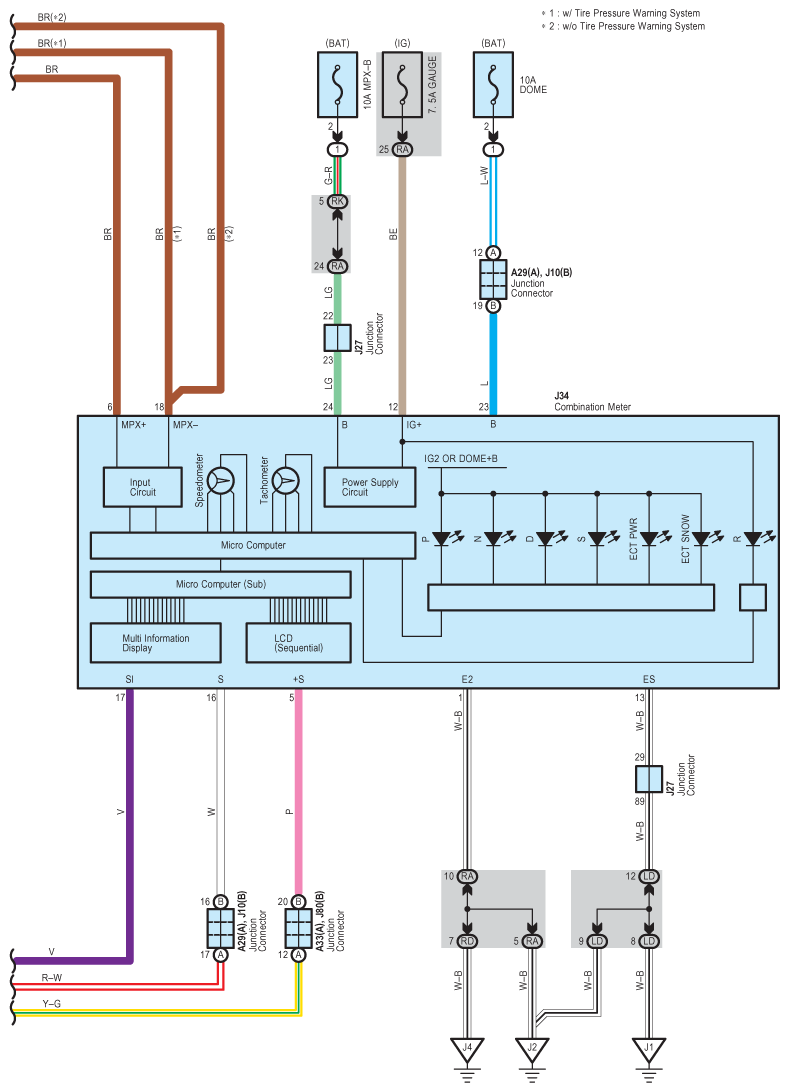

Fig 4: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

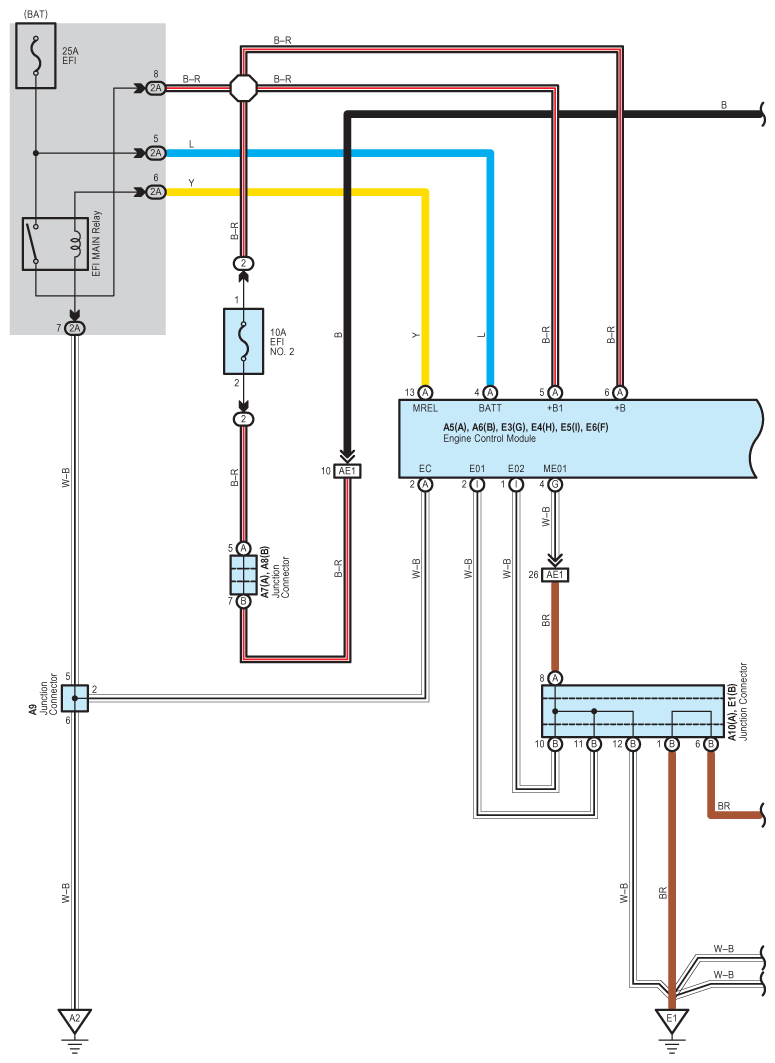

Fig 5: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

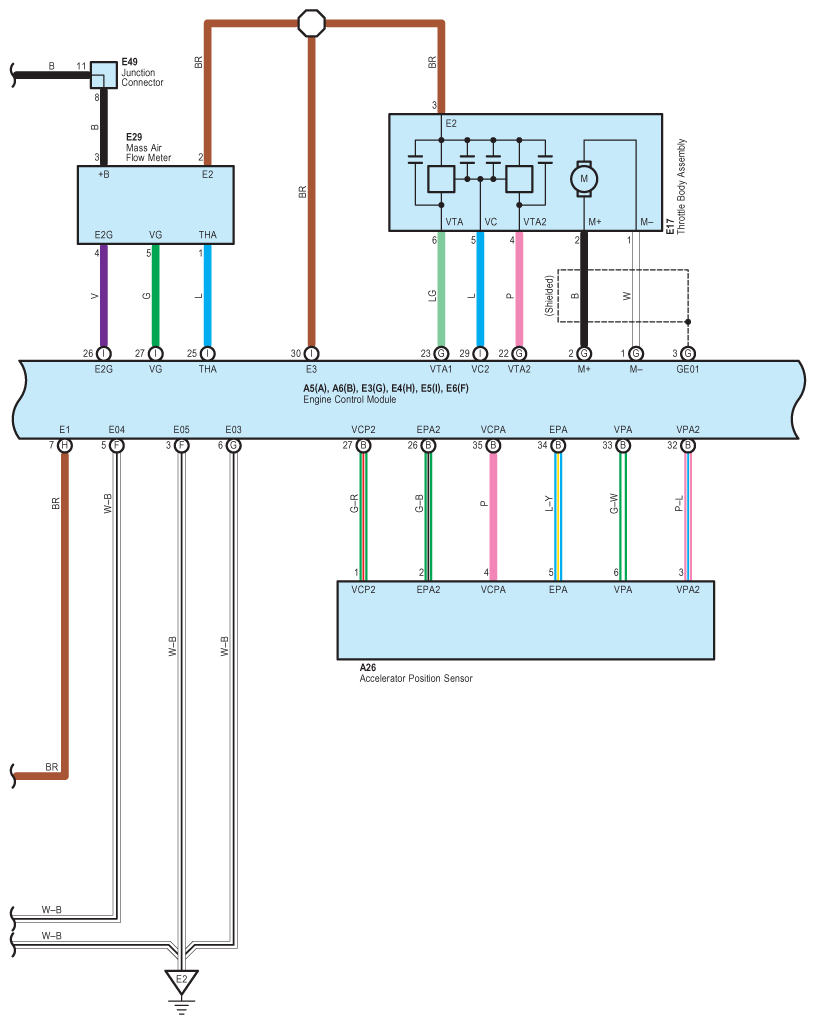

Fig 6: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

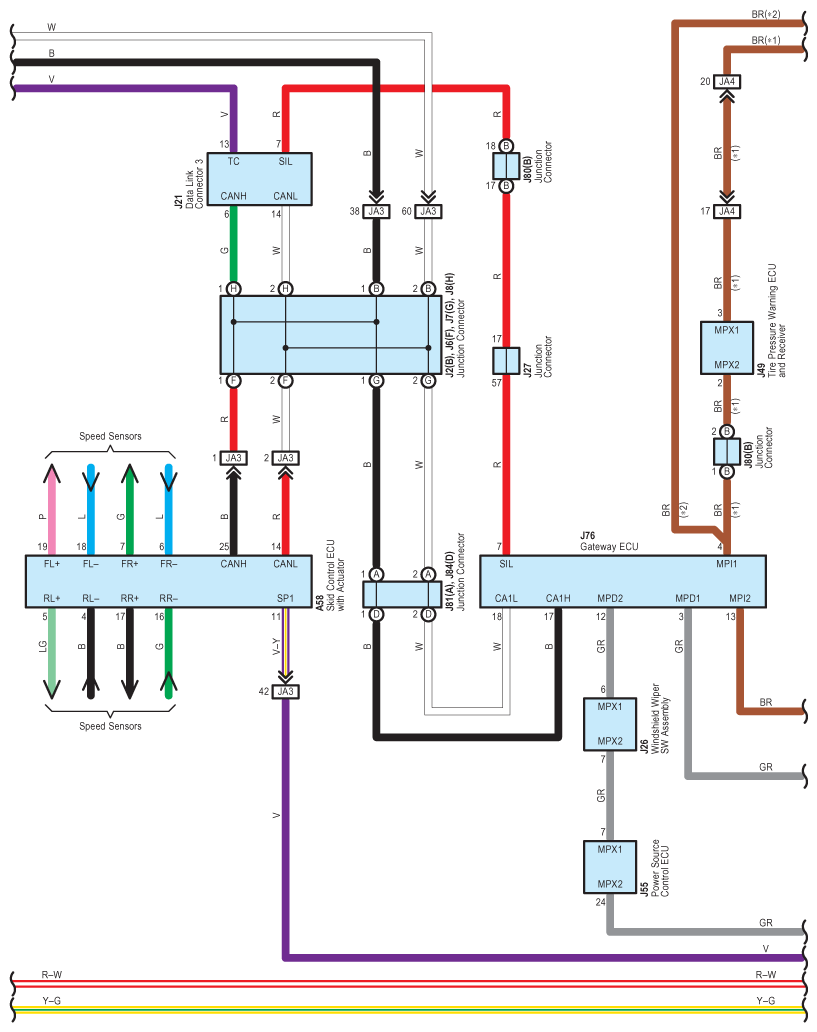

Fig 7: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (7 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

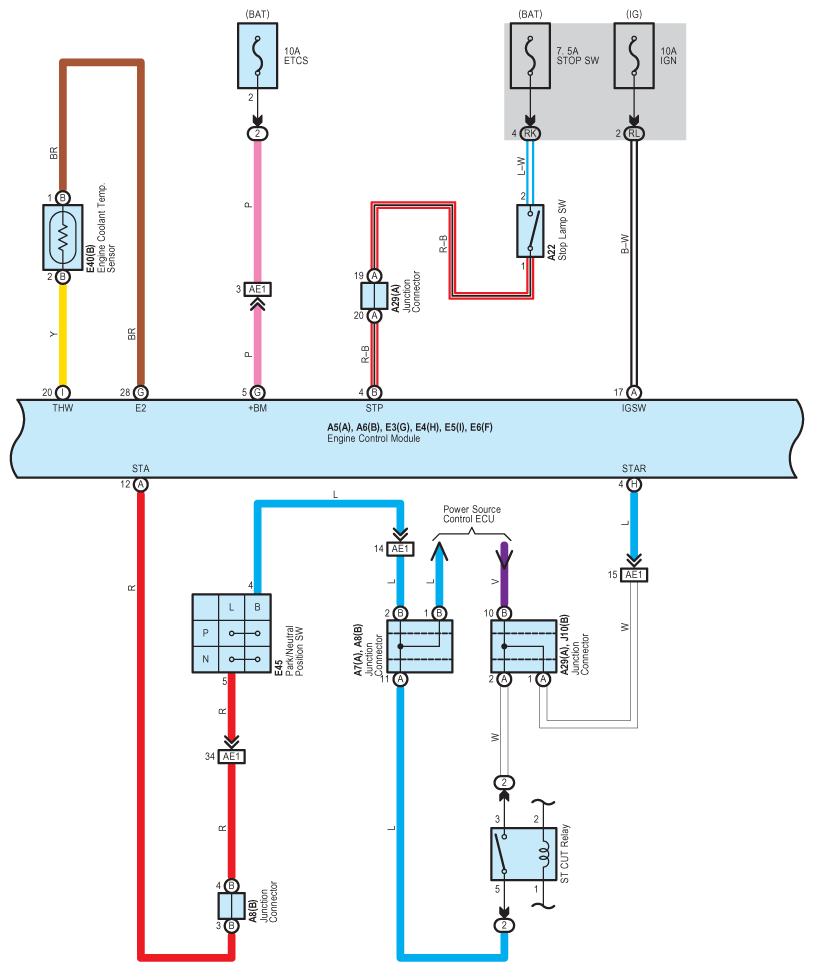

Fig 8: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (8 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) System Wiring Diagram (9 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
