Engine Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control: Notes

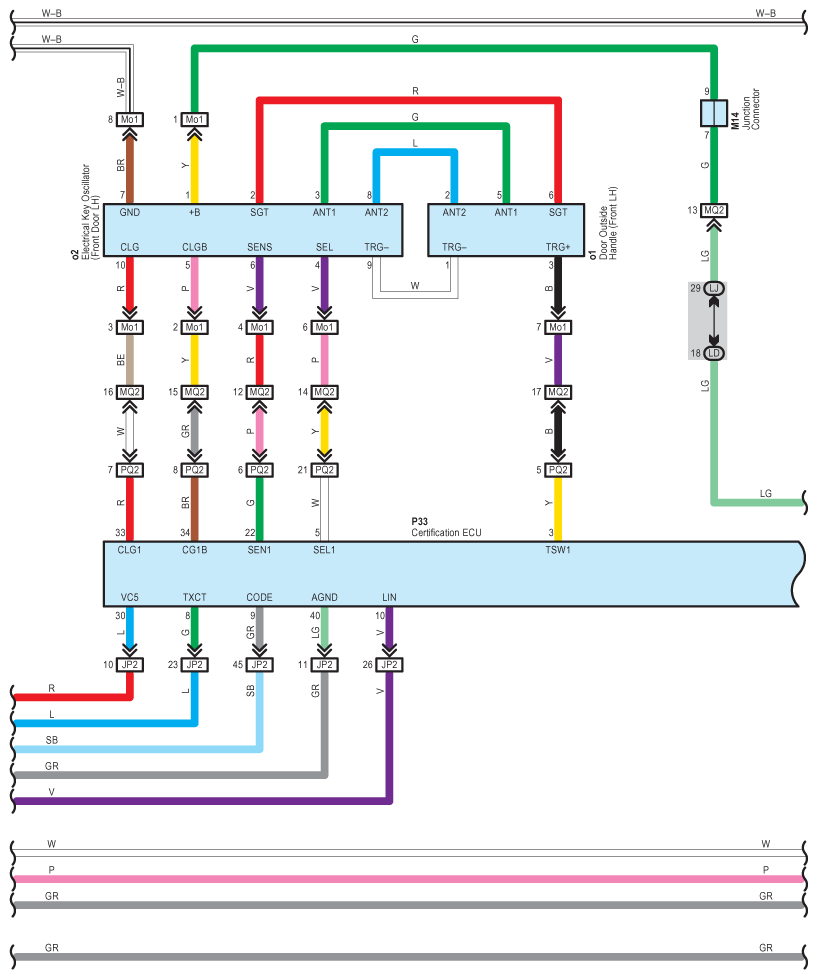

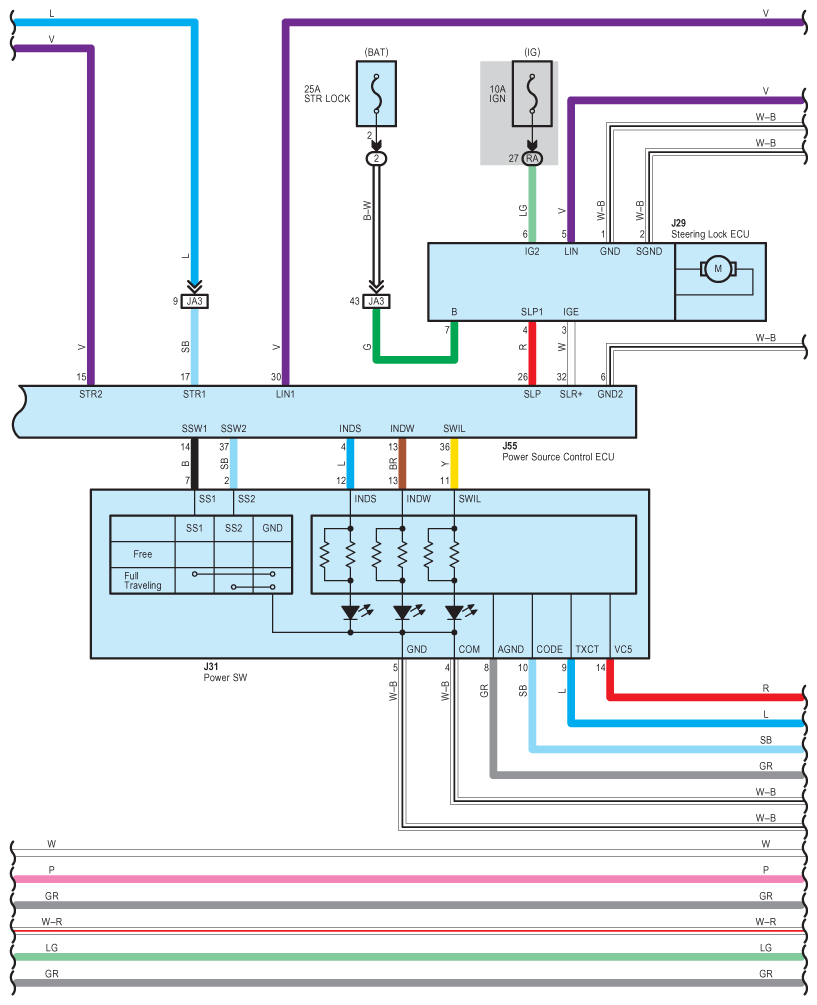

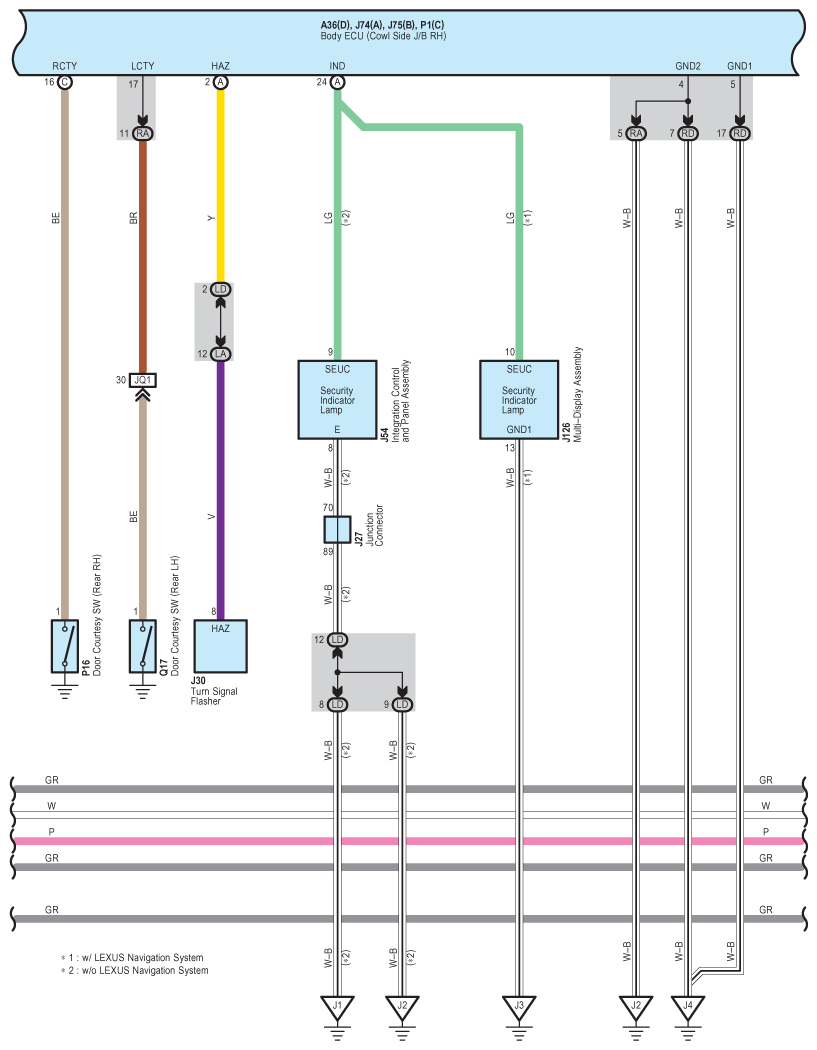

Fig 1: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (1 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

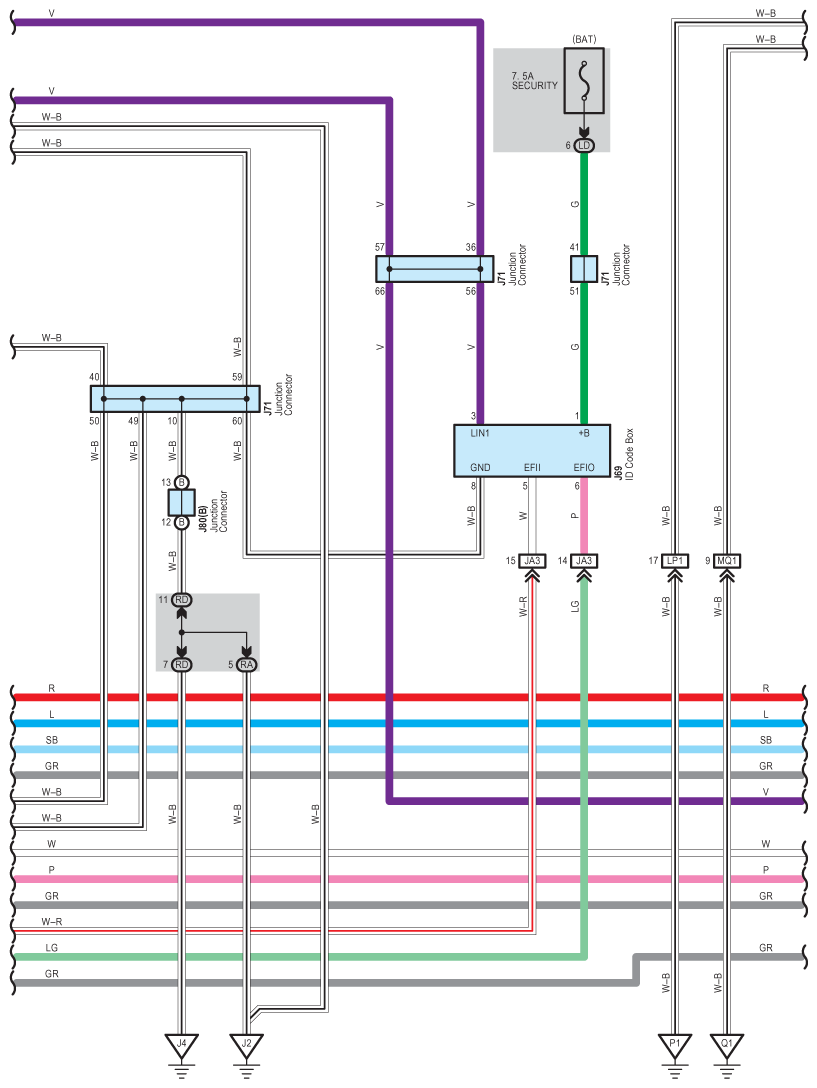

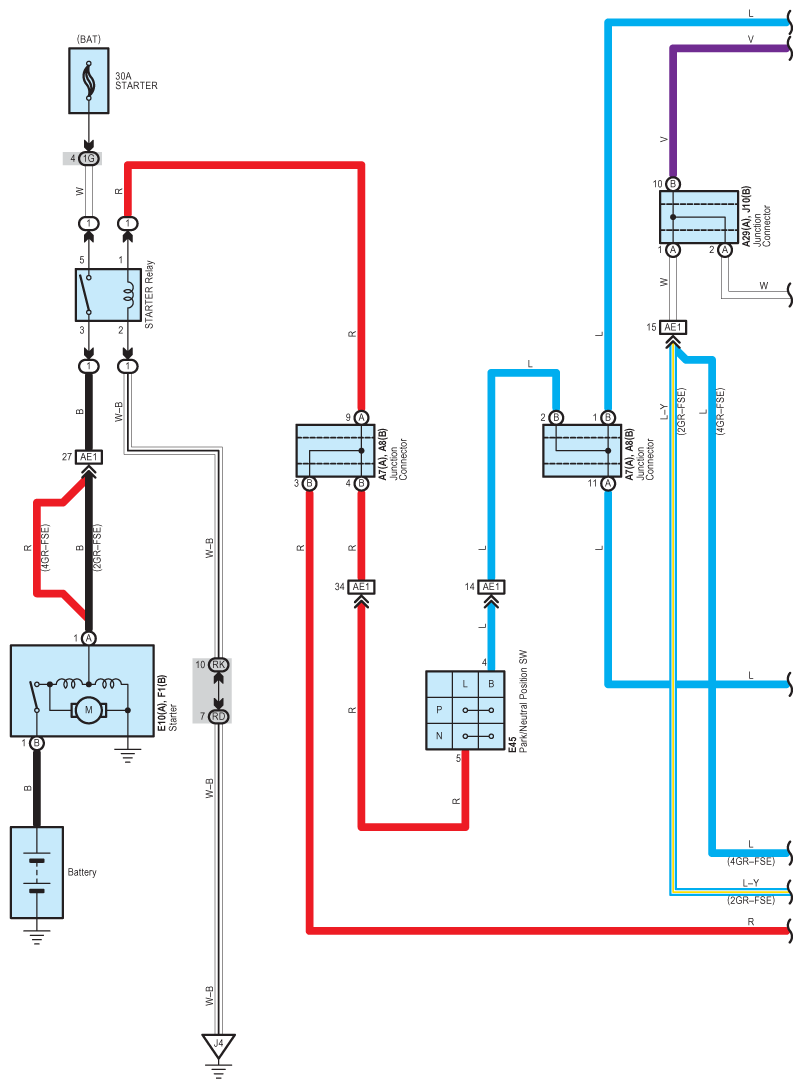

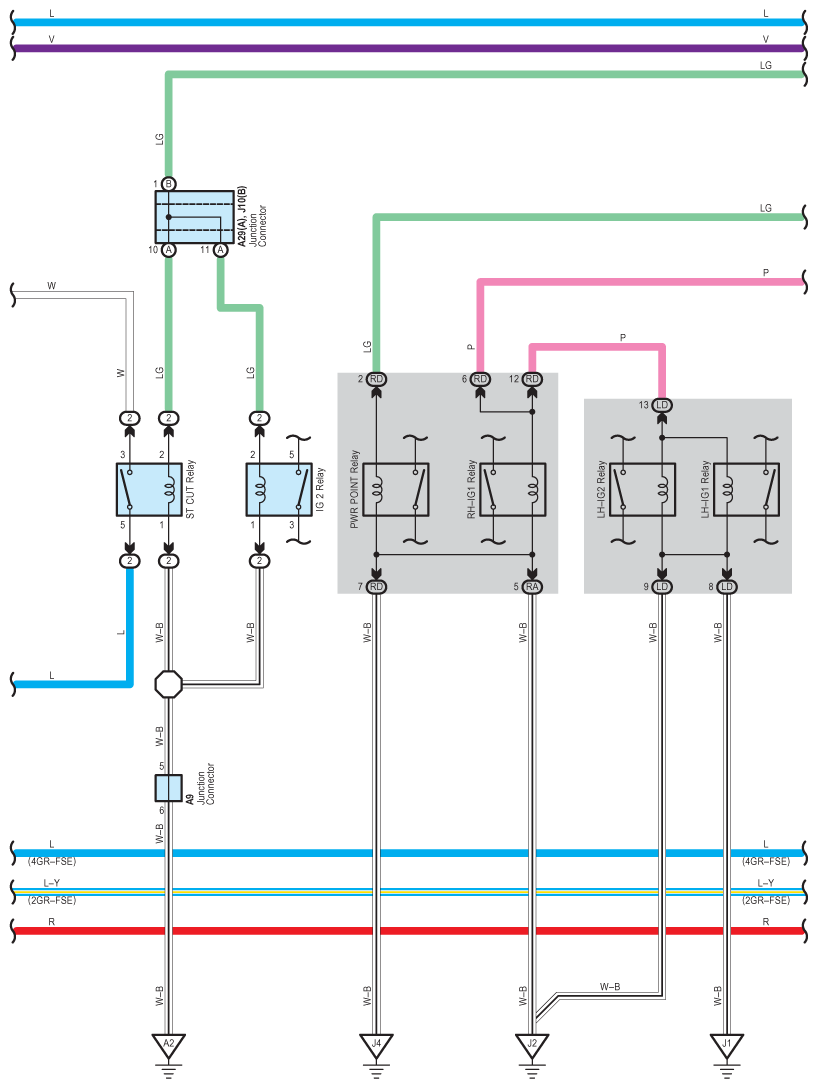

Fig 2: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (2 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

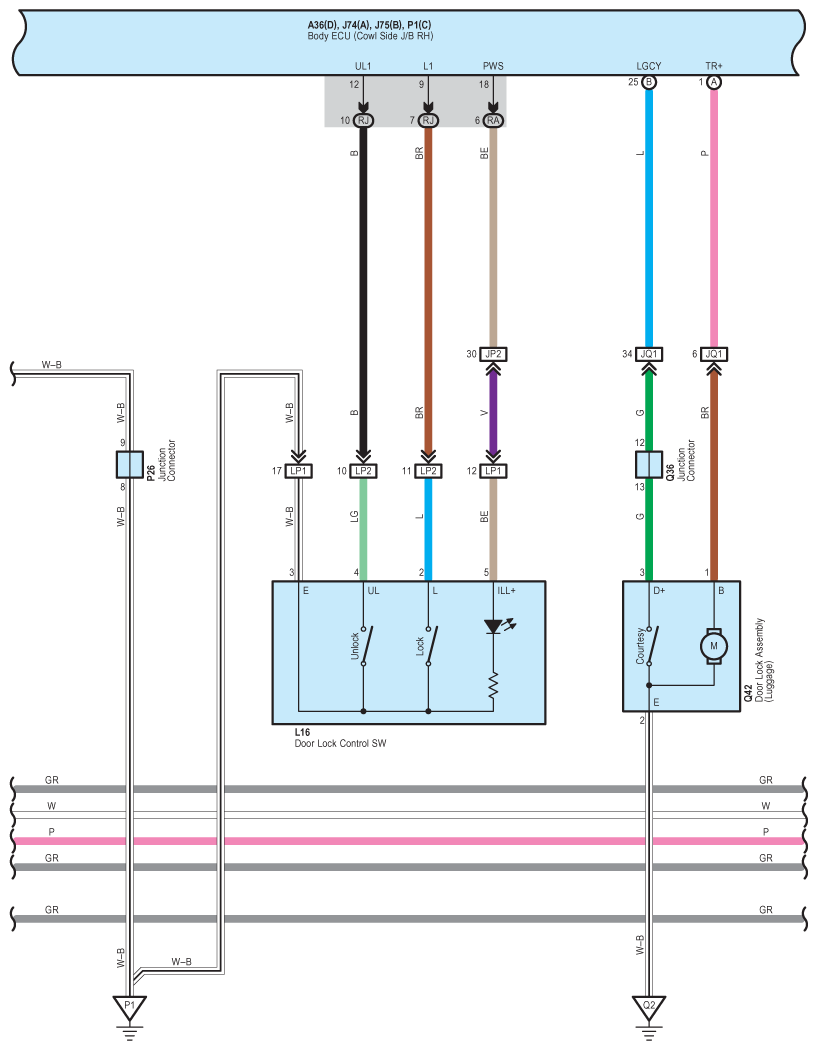

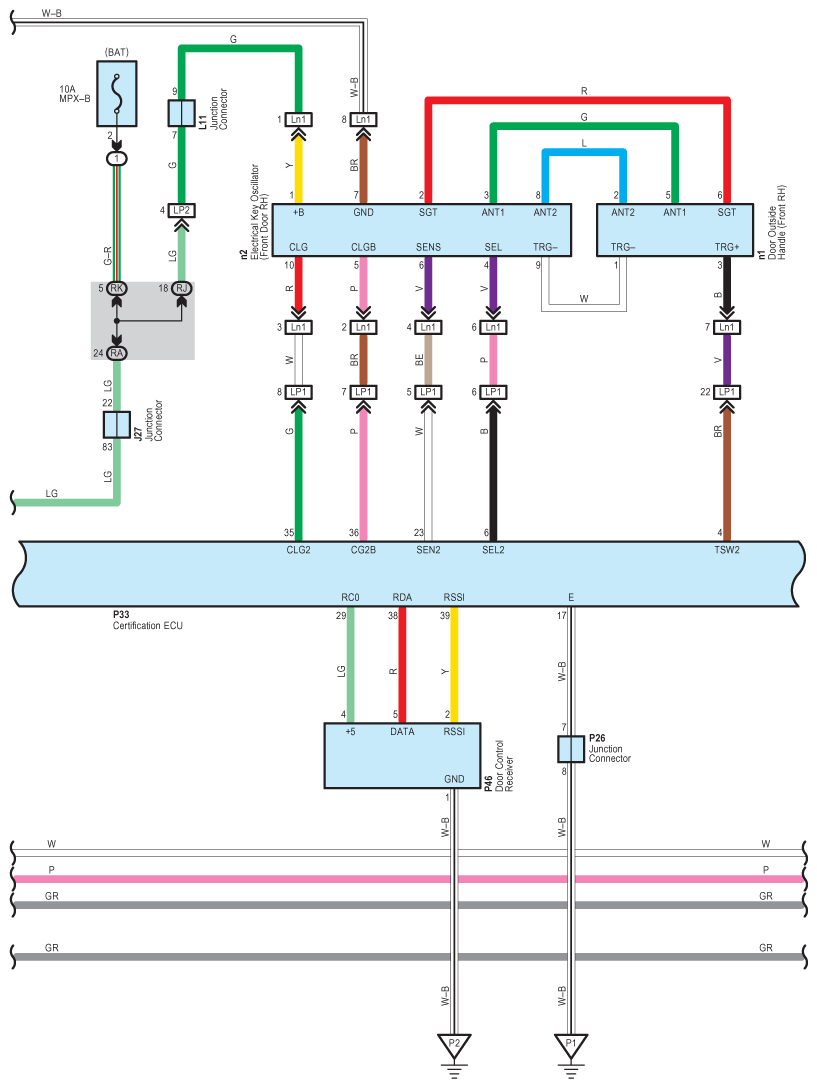

Fig 3: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (3 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

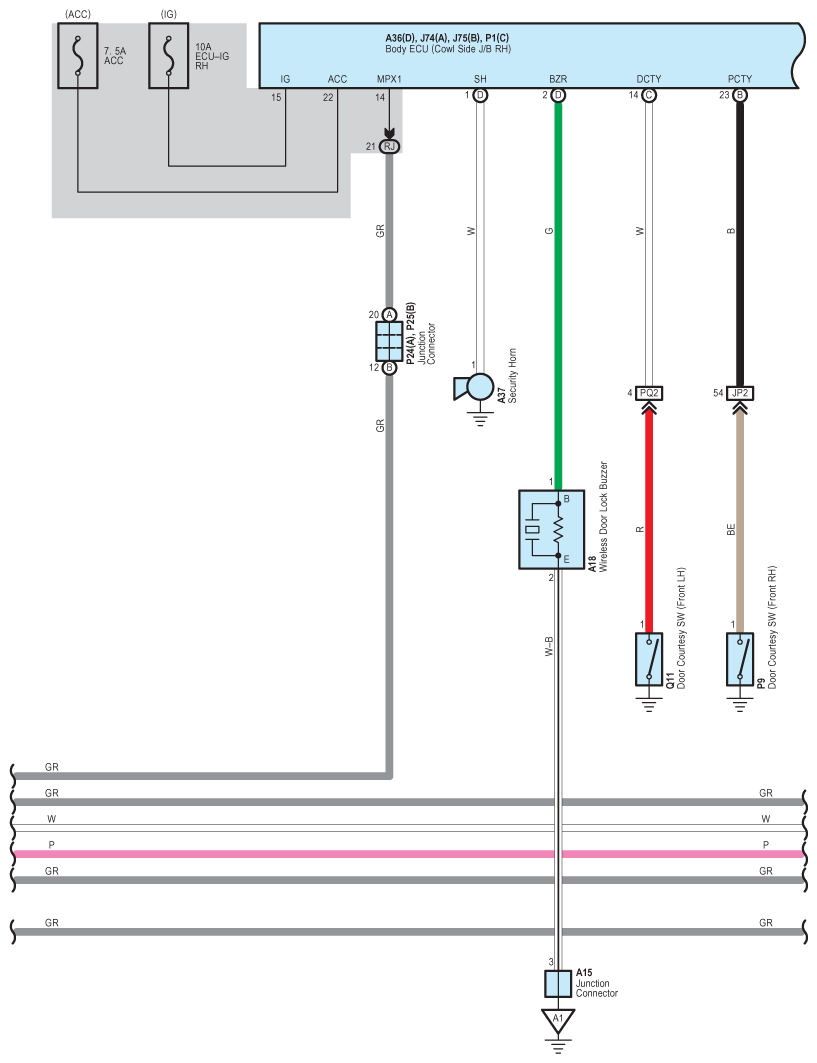

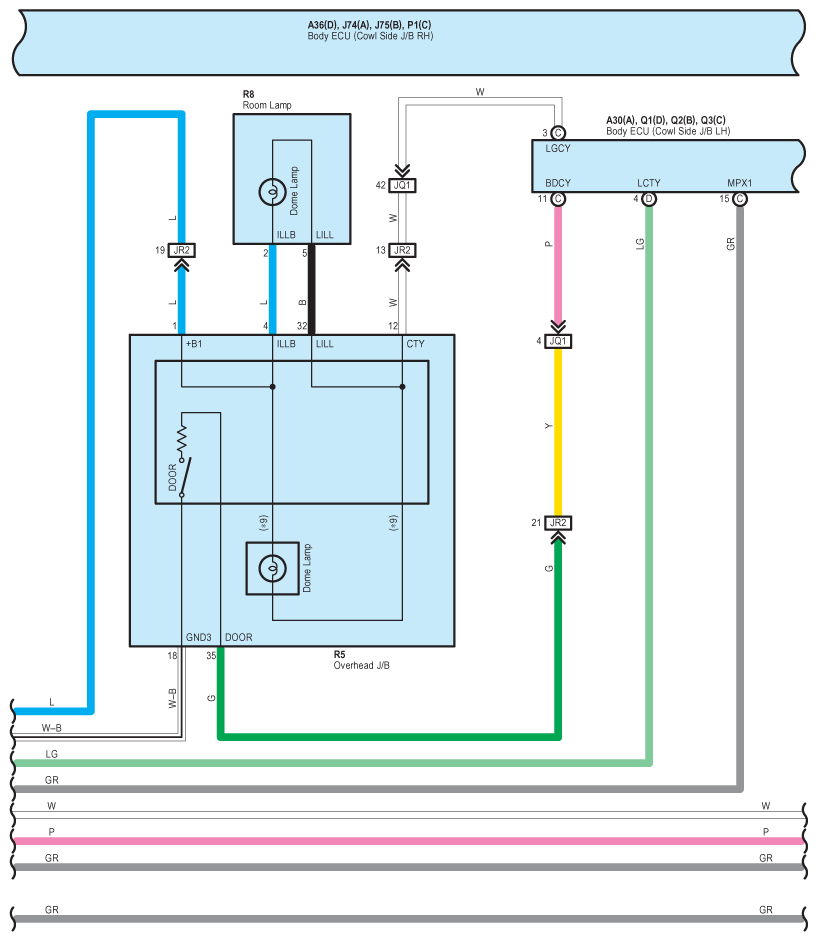

Fig 4: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (4 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

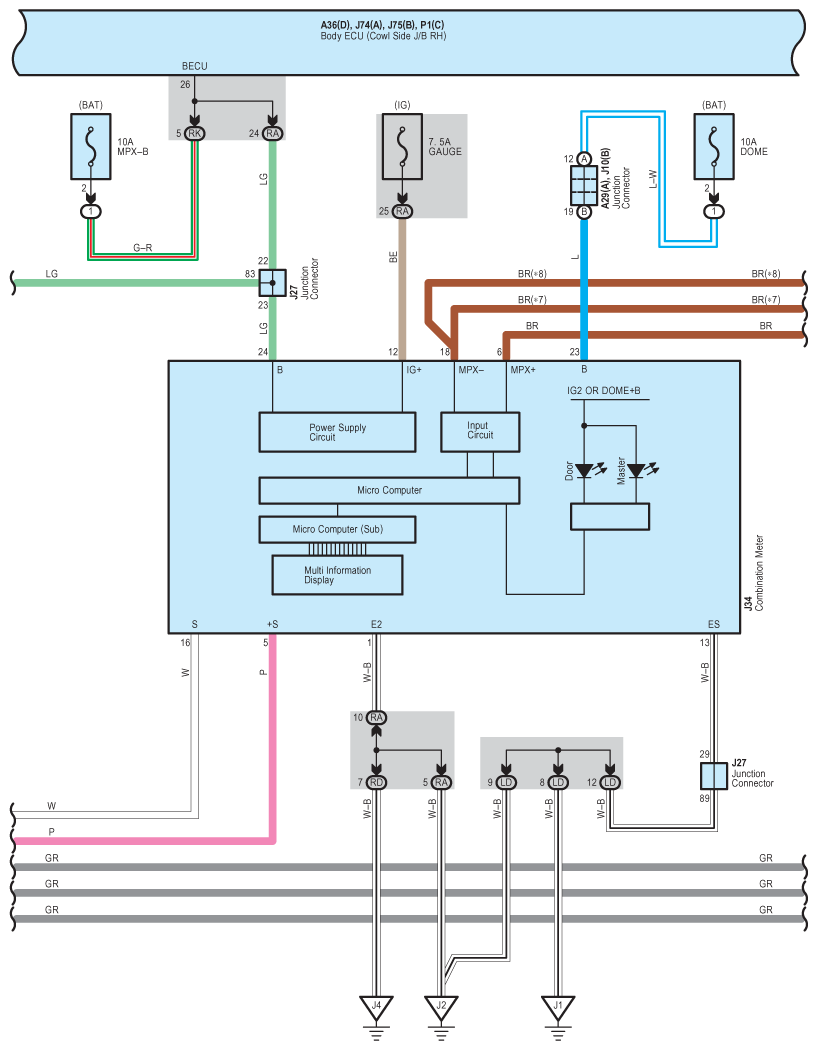

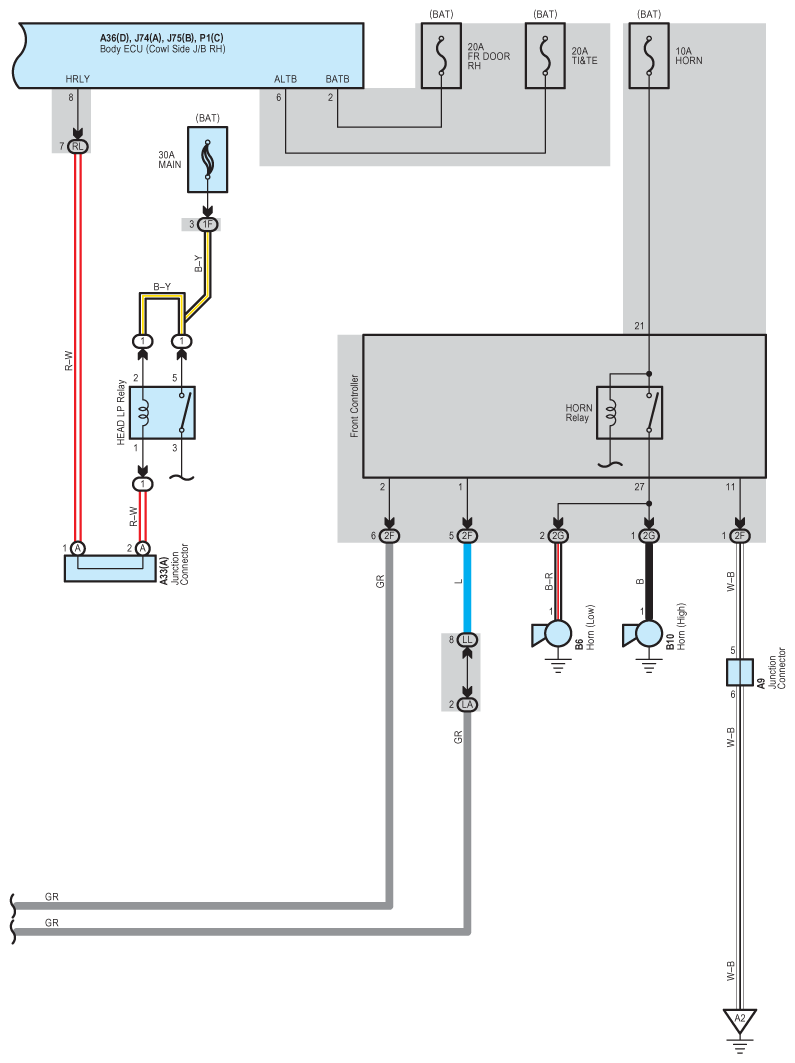

Fig 5: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (5 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

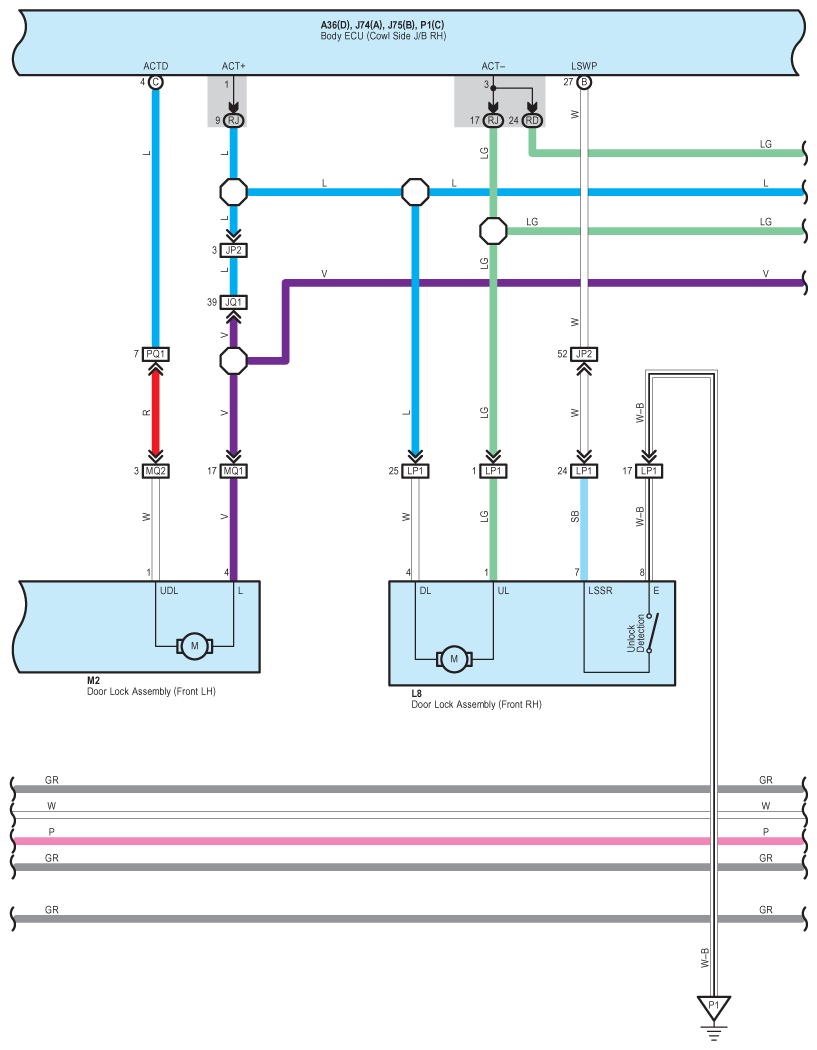

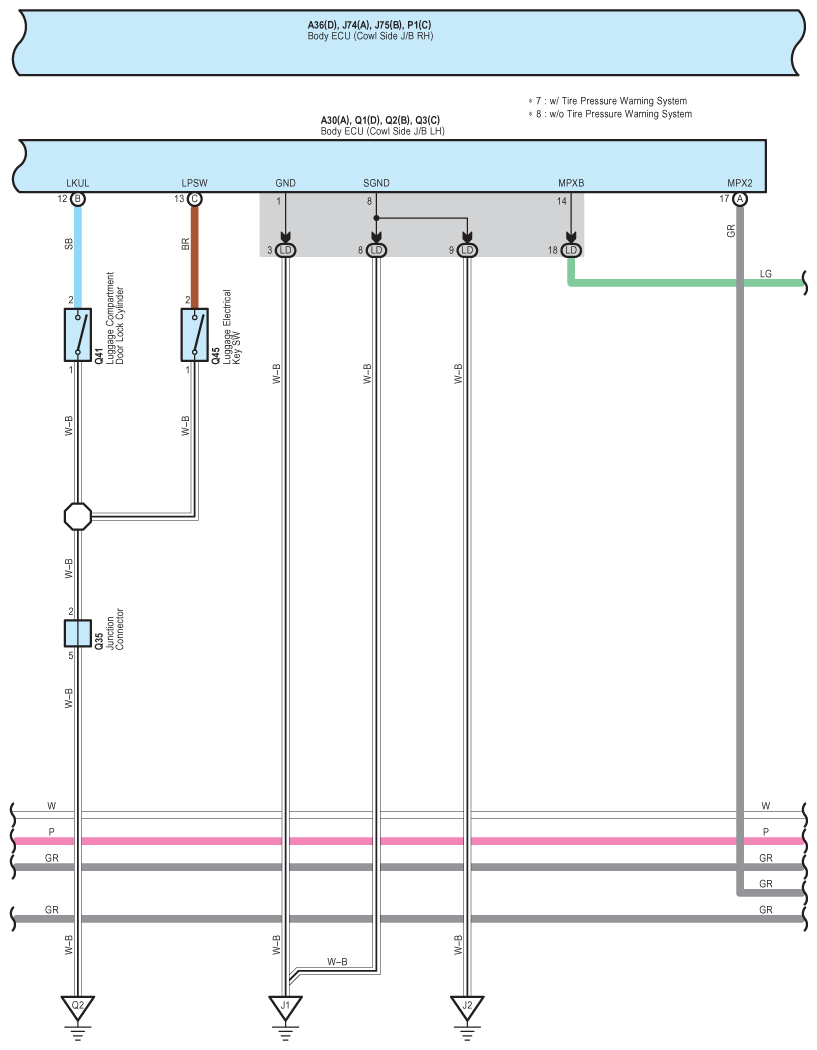

Fig 6: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (6 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

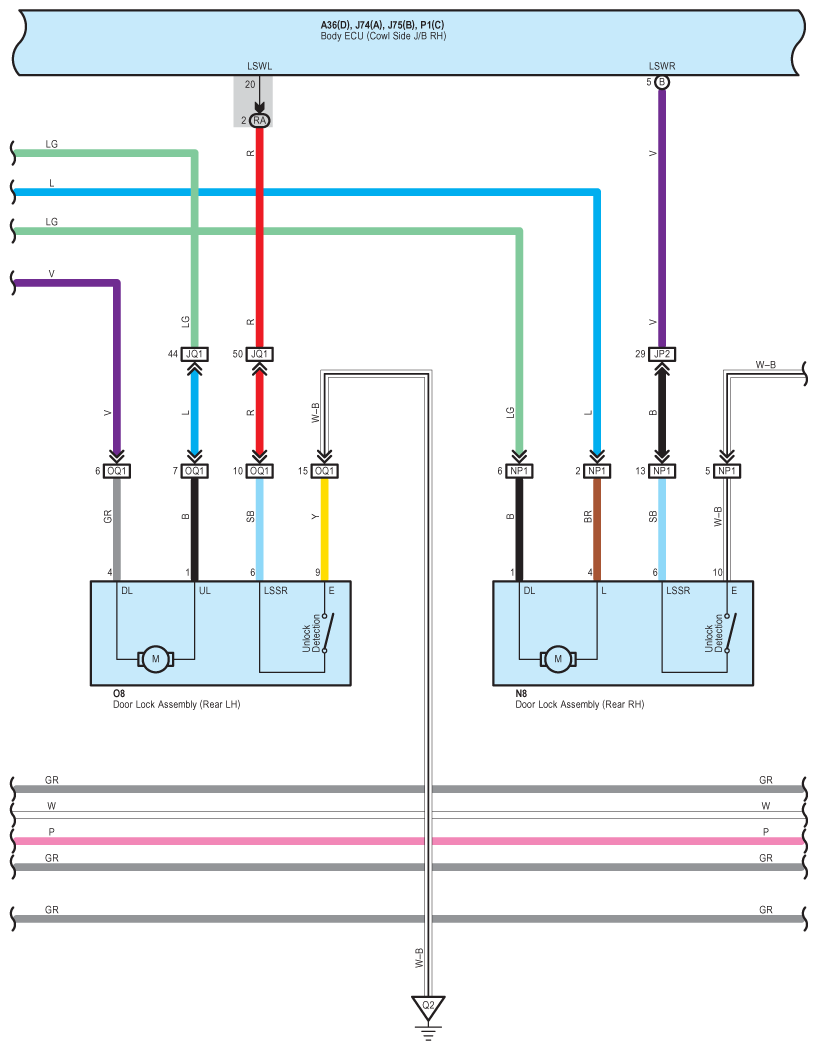

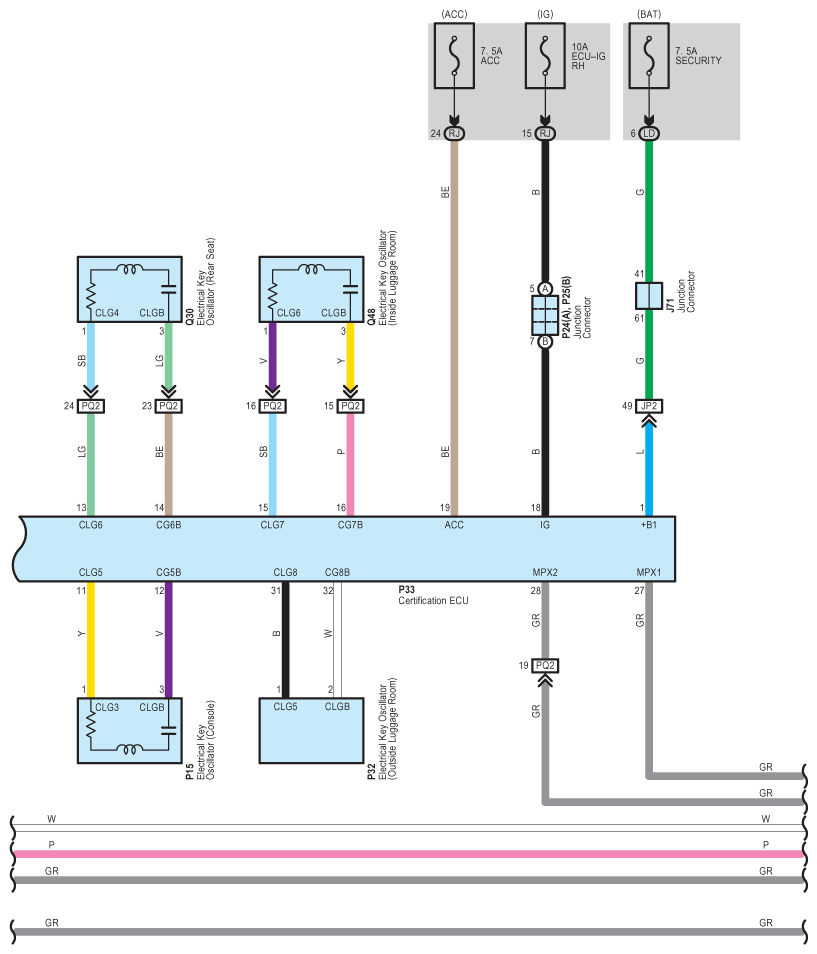

Fig 7: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (7 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

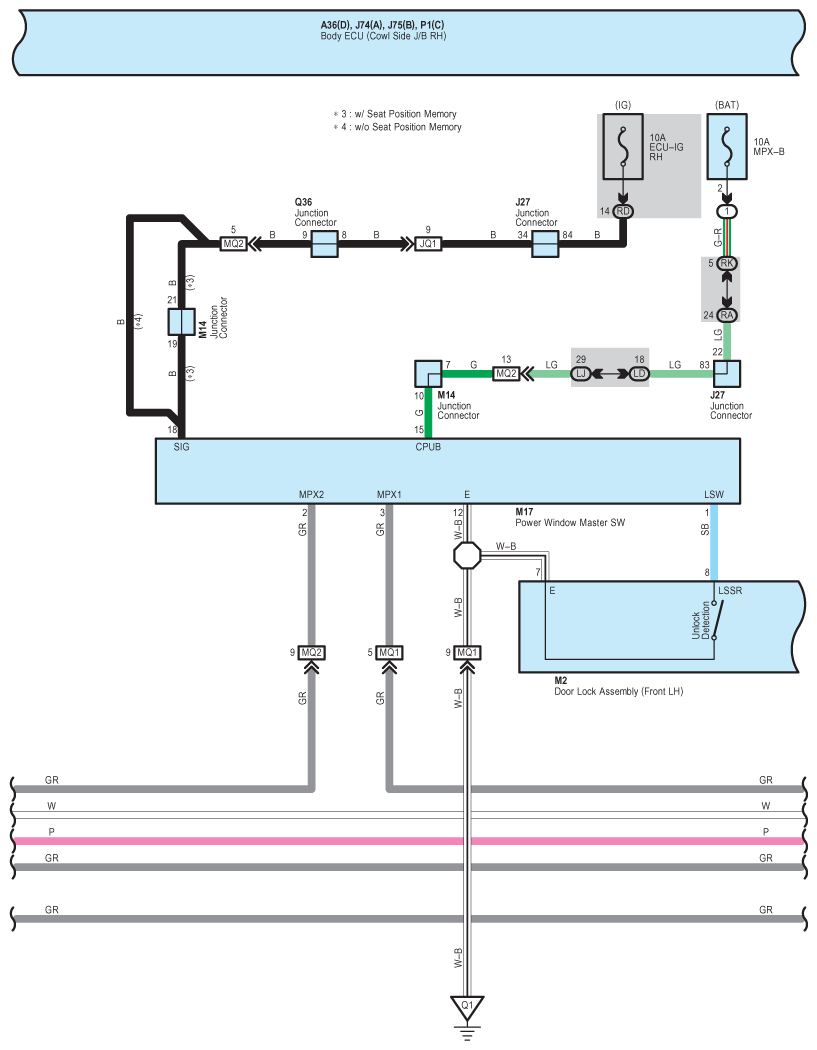

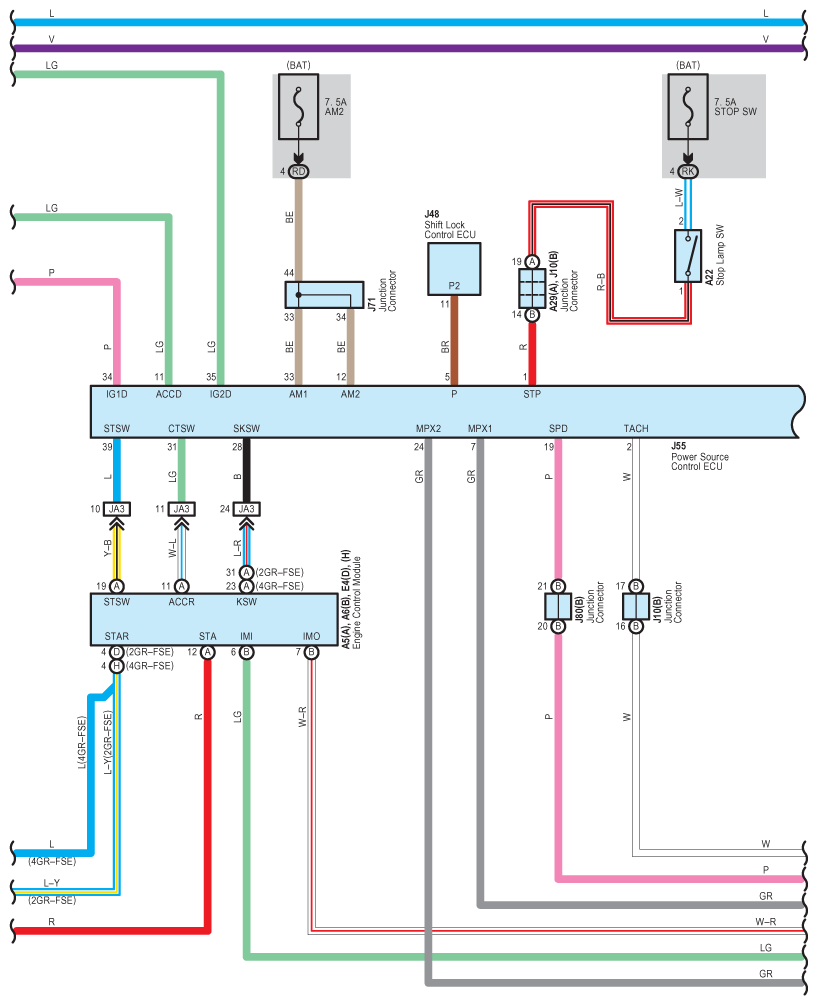

Fig 8: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (8 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (9 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (10 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (11 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (12 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (13 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (14 Of 20)

Fig 15: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (15 Of 20)

Fig 16: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (16 Of 20)

Fig 17: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (17 Of 20)

Fig 18: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (18 Of 20)

Fig 19: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (19 Of 20)

Fig 20: Engine Immobilizer, Smart Access (With Push-Button), Starting, Steering Lock And Wireless Door Lock System Wiring Diagram (20 Of 20)
