Tire Pressure Warning Antenna: Notes

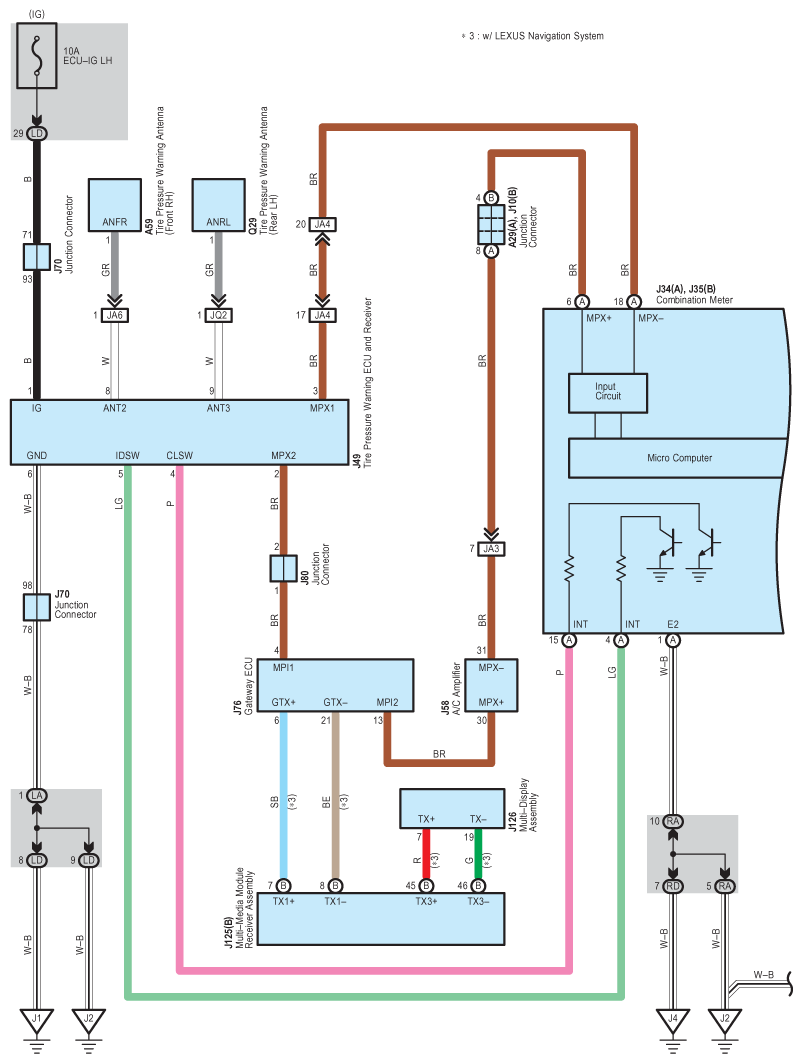

Fig 1: Tire Pressure Warning Antenna System Wiring Diagram (1 Of 2)
G09119168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

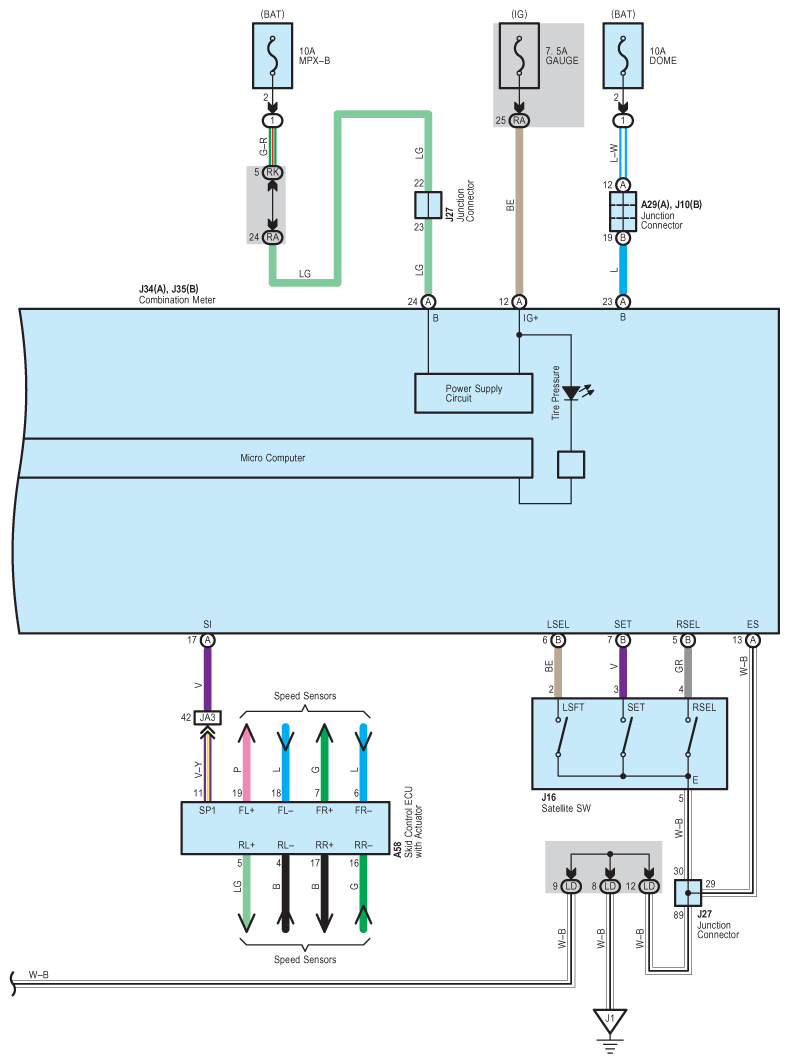

Fig 2: Tire Pressure Warning Antenna System Wiring Diagram (2 Of 2)
G09119169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
