Pre-Collision System: Notes

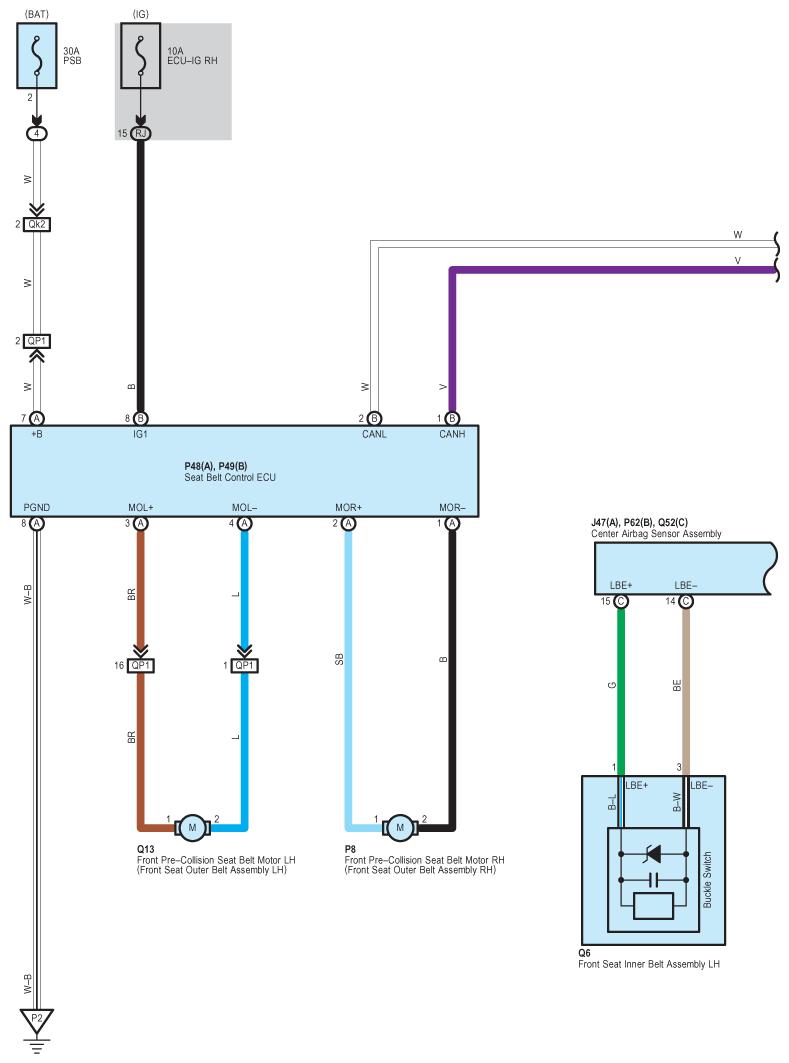

Fig 1: Pre-Collision System Wiring Diagram (1 Of 4)
G09121342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

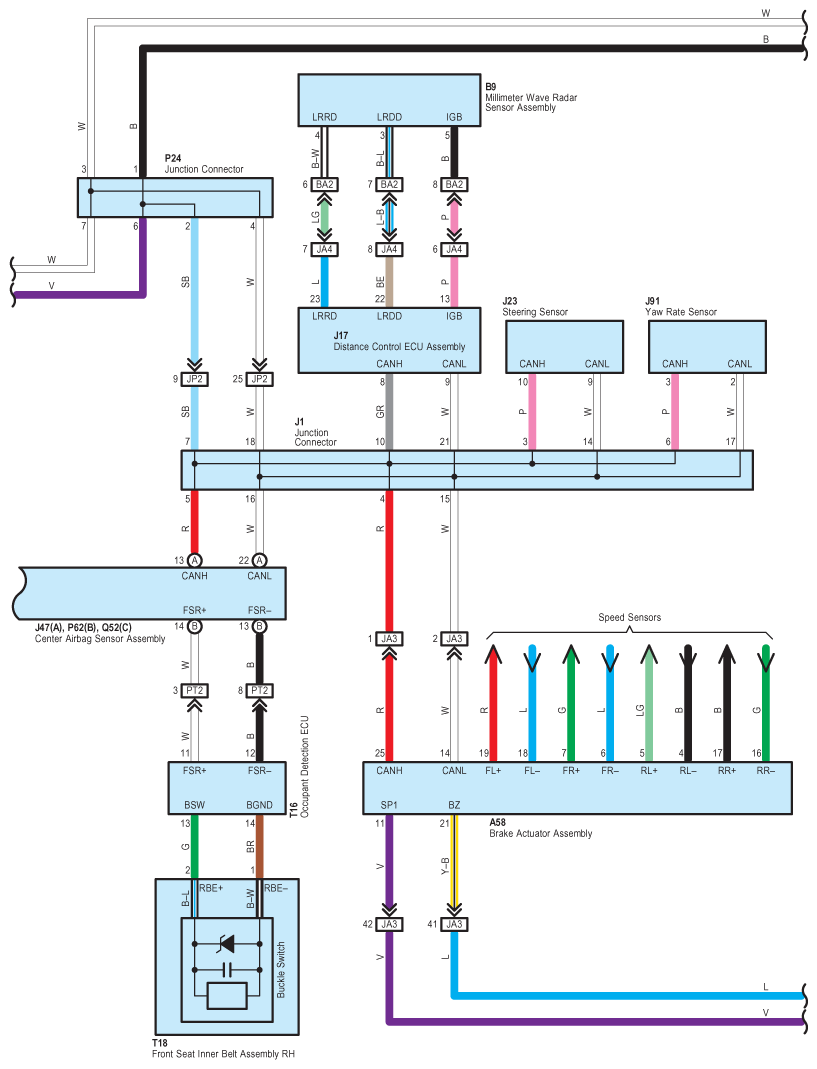

Fig 2: Pre-Collision System Wiring Diagram (2 Of 4)
G09121343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

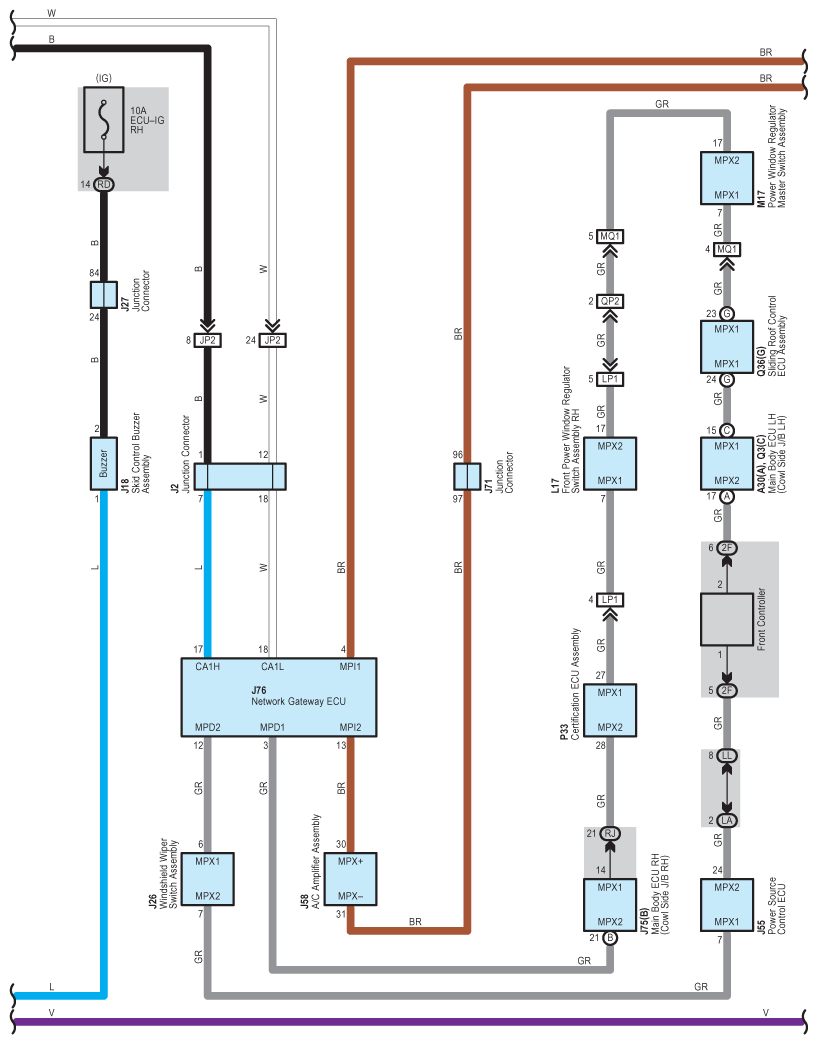

Fig 3: Pre-Collision System Wiring Diagram (3 Of 4)
G09121344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

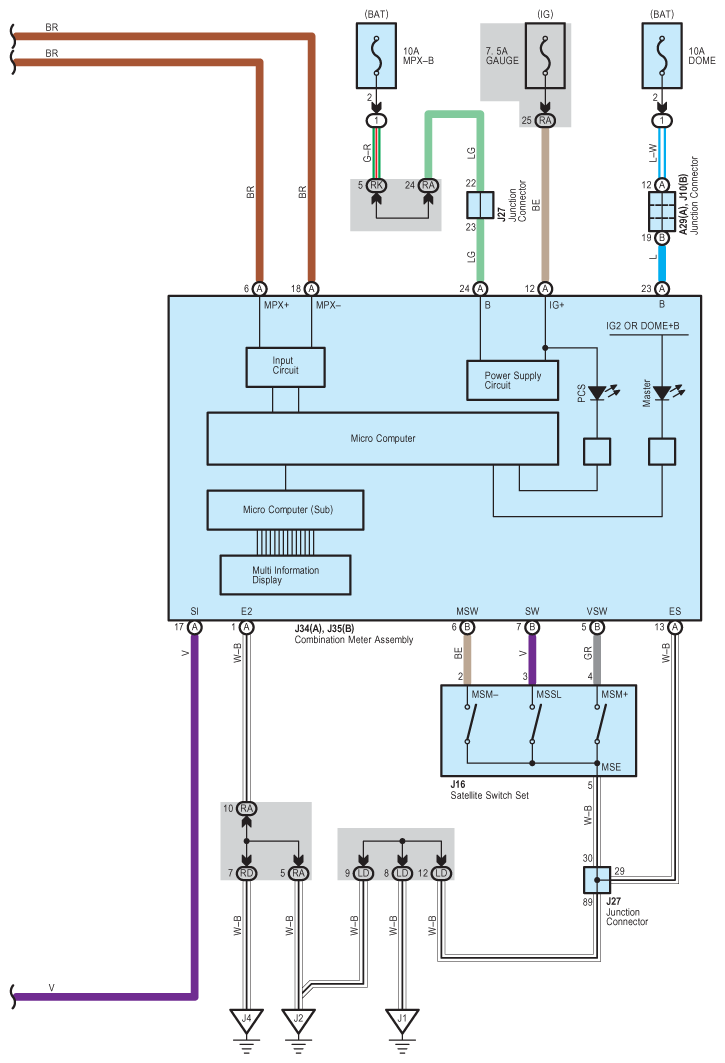

Fig 4: Pre-Collision System Wiring Diagram (4 Of 4)
G09121345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
