Audio System (w/o LEXUS Navigation System): Notes

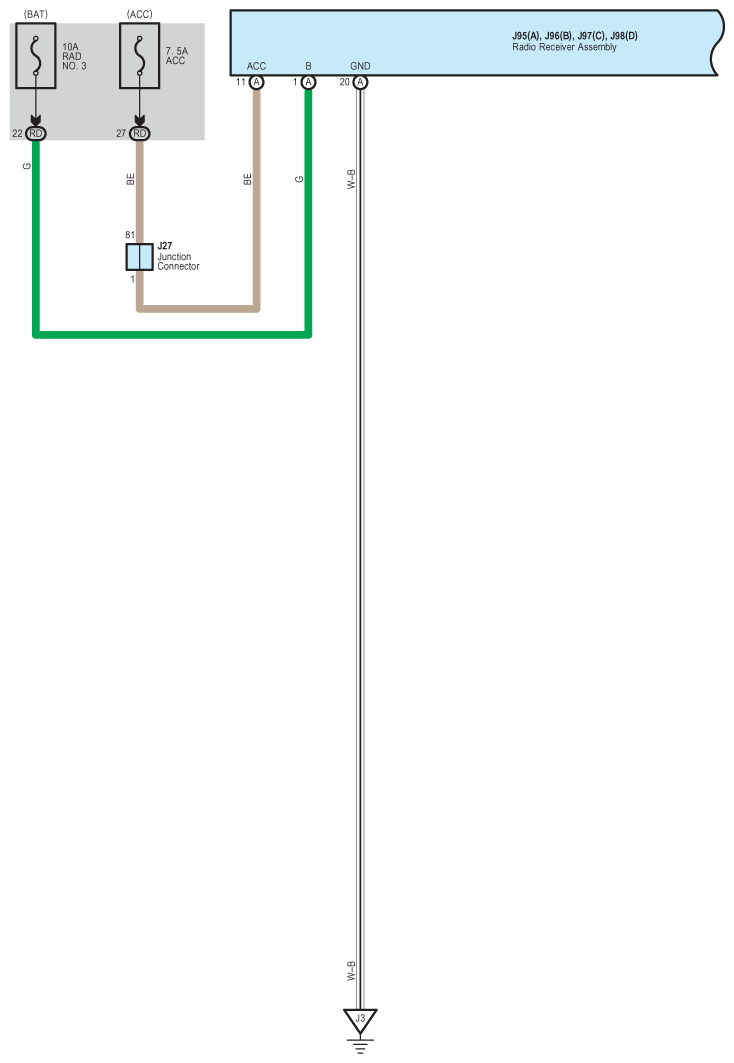

Fig 1: Audio (W/O LEXUS Navigation System) System Wiring Diagram (1 Of 10)
G09121450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

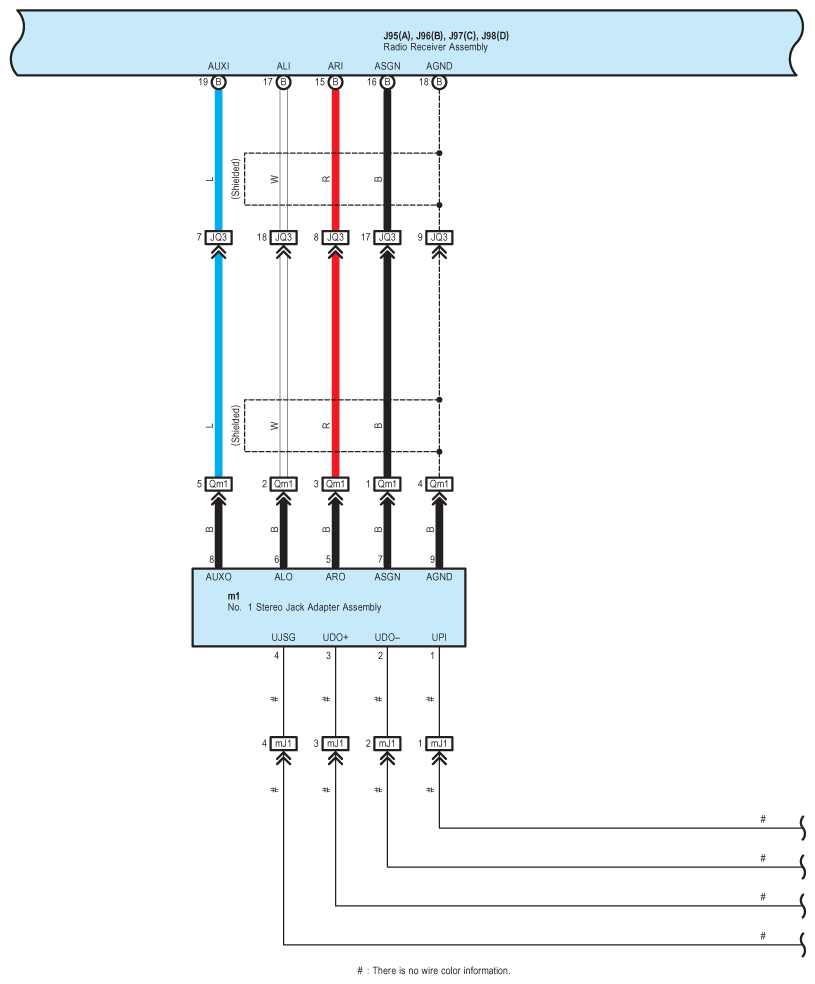

Fig 2: Audio (W/O LEXUS Navigation System) System Wiring Diagram (2 Of 10)
G09121451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

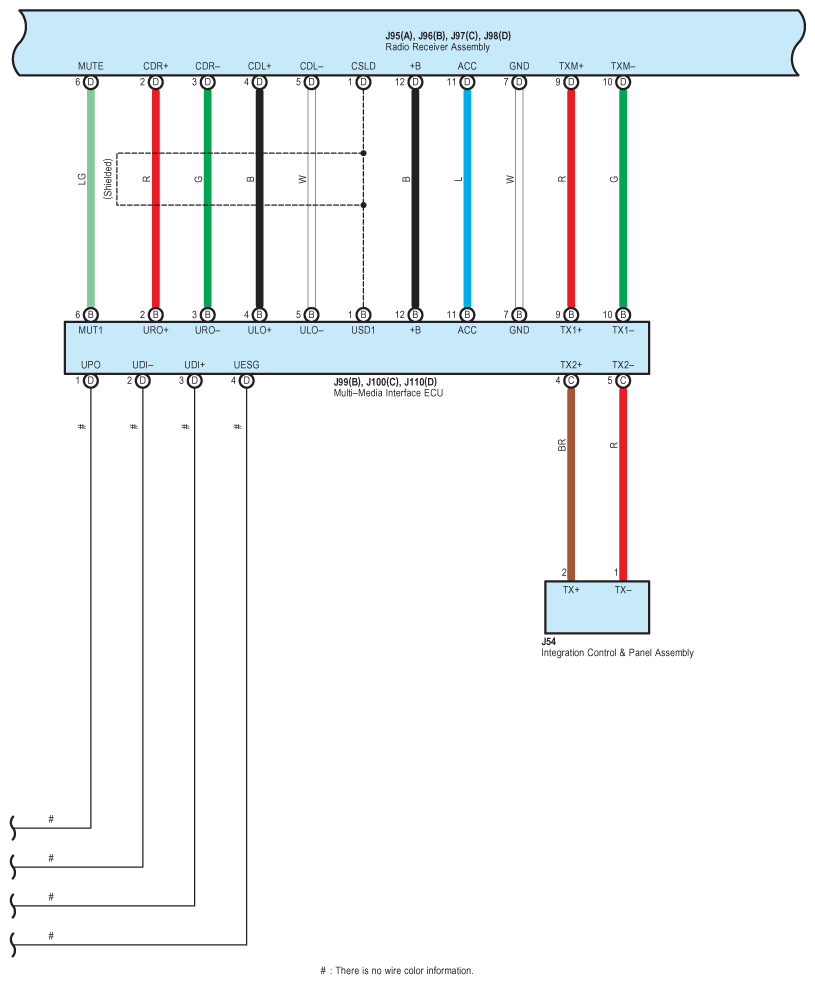

Fig 3: Audio (W/O LEXUS Navigation System) System Wiring Diagram (3 Of 10)
G09121452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

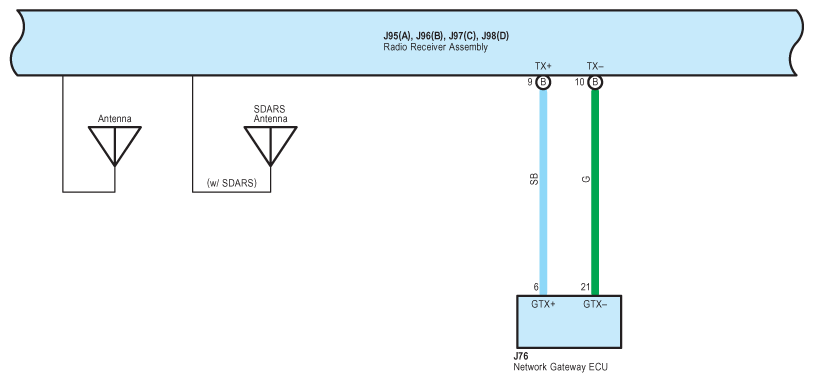

Fig 4: Audio (W/O LEXUS Navigation System) System Wiring Diagram (4 Of 10)
G09121453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

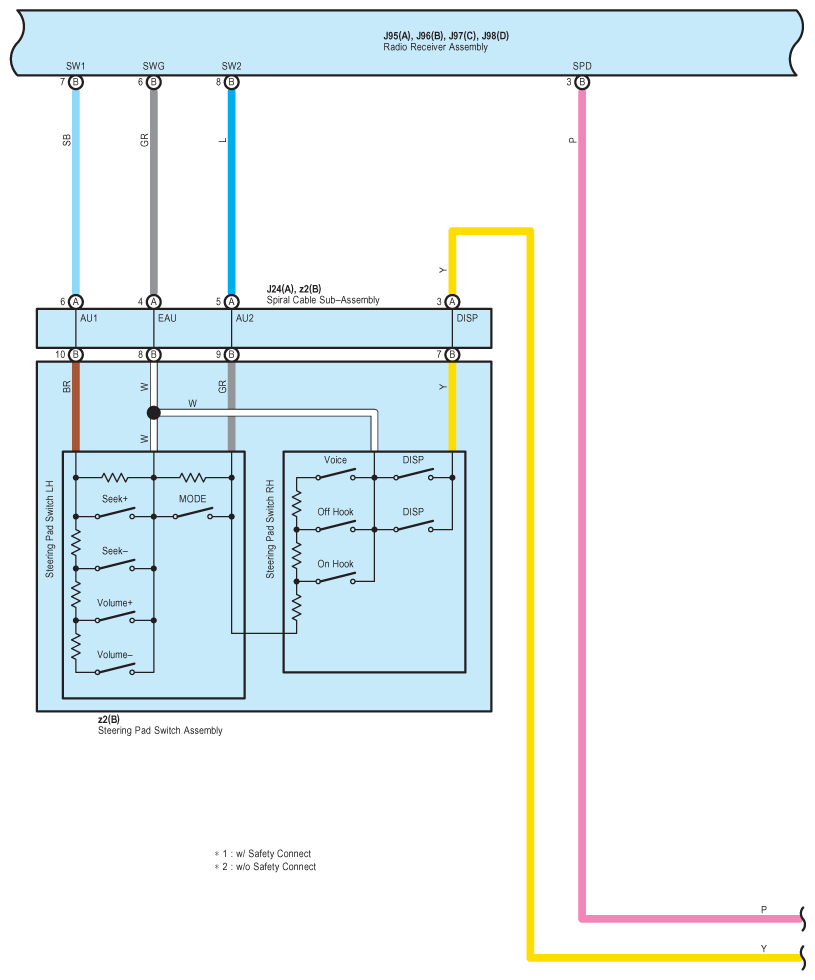

Fig 5: Audio (W/O LEXUS Navigation System) System Wiring Diagram (5 Of 10)
G09121454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

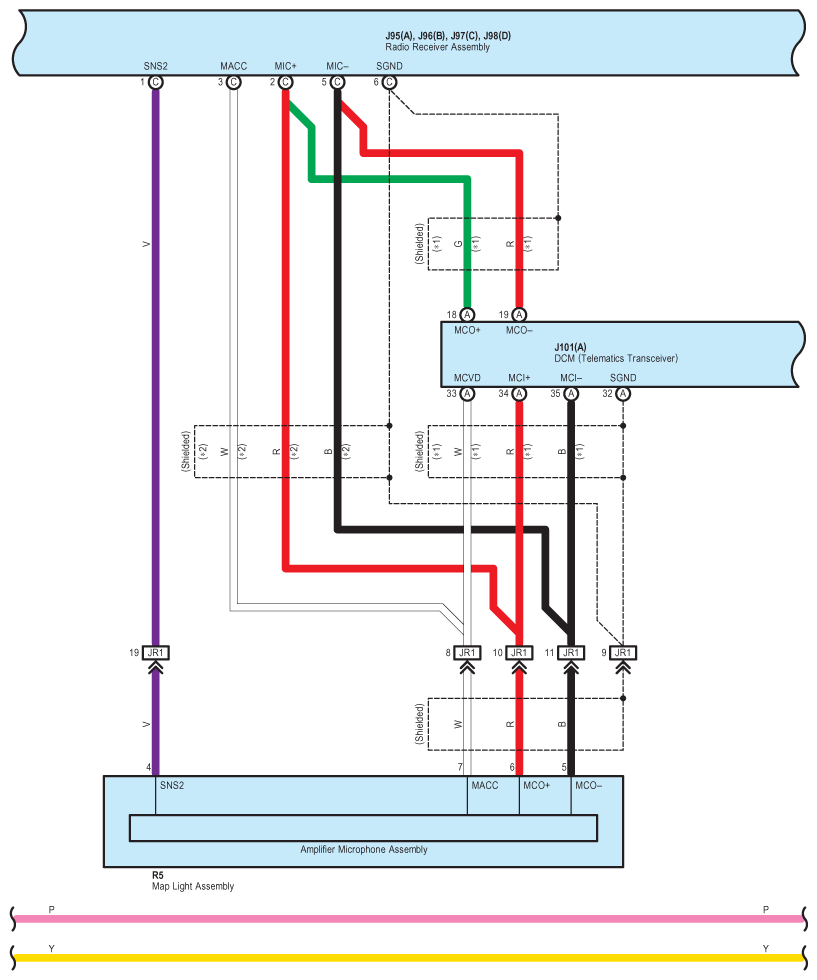

Fig 6: Audio (W/O LEXUS Navigation System) System Wiring Diagram (6 Of 10)
G09121455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

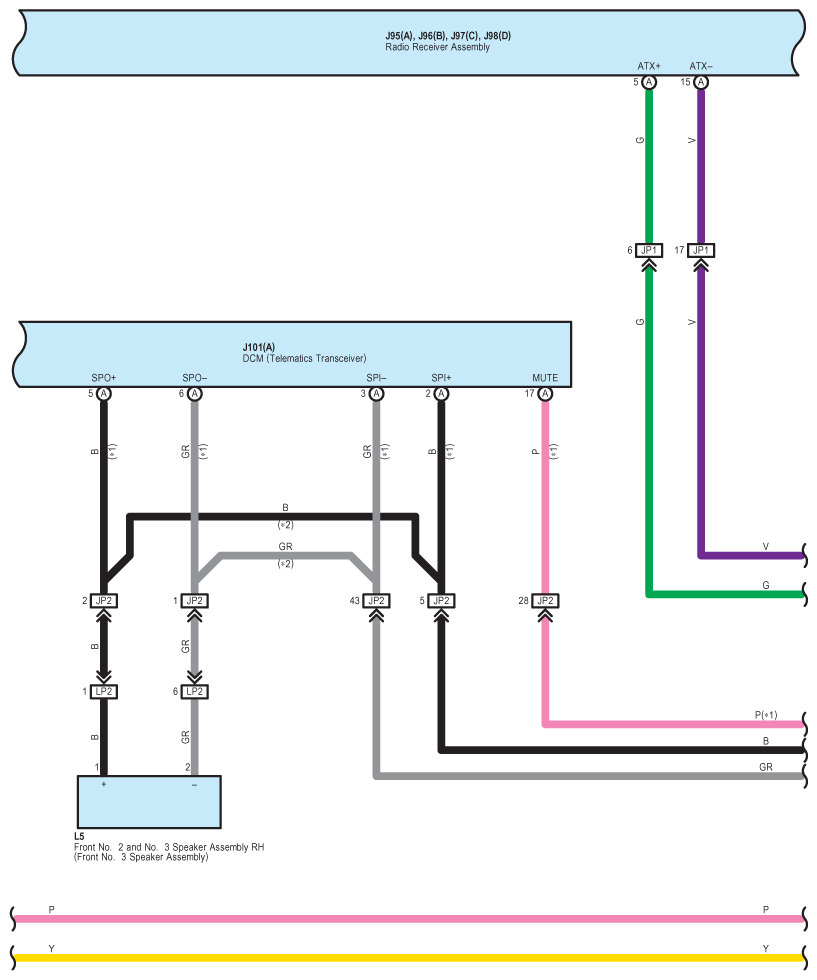

Fig 7: Audio (W/O LEXUS Navigation System) System Wiring Diagram (7 Of 10)
G09121456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

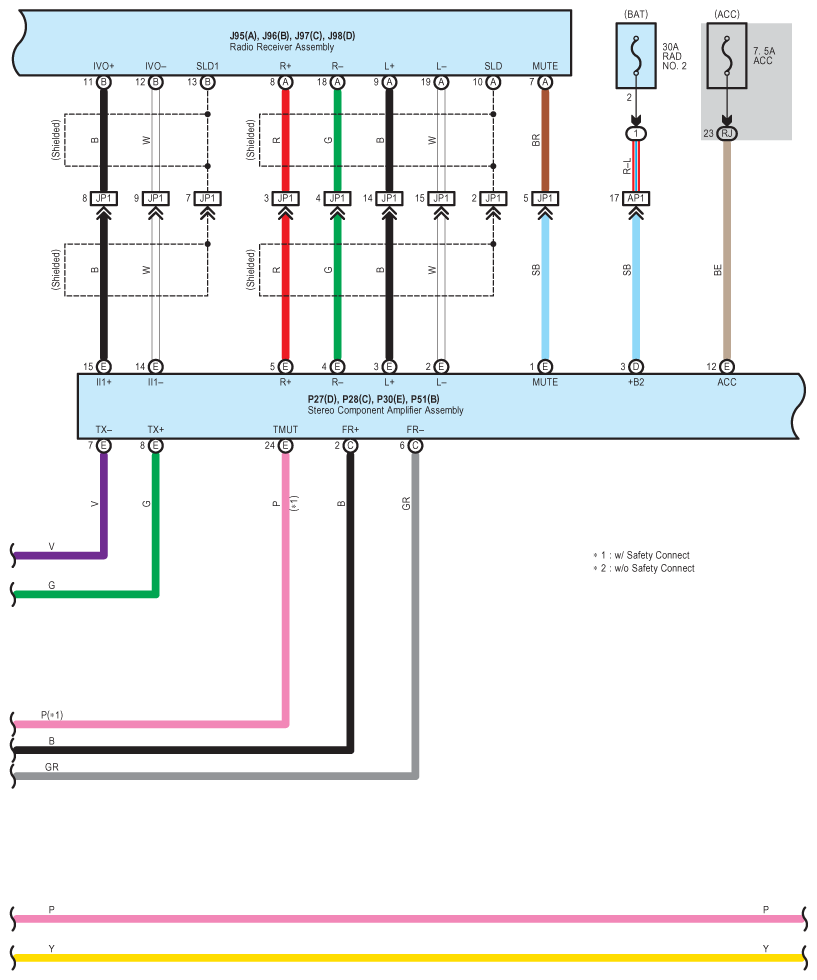

Fig 8: Audio (W/O LEXUS Navigation System) System Wiring Diagram (8 Of 10)
G09121457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

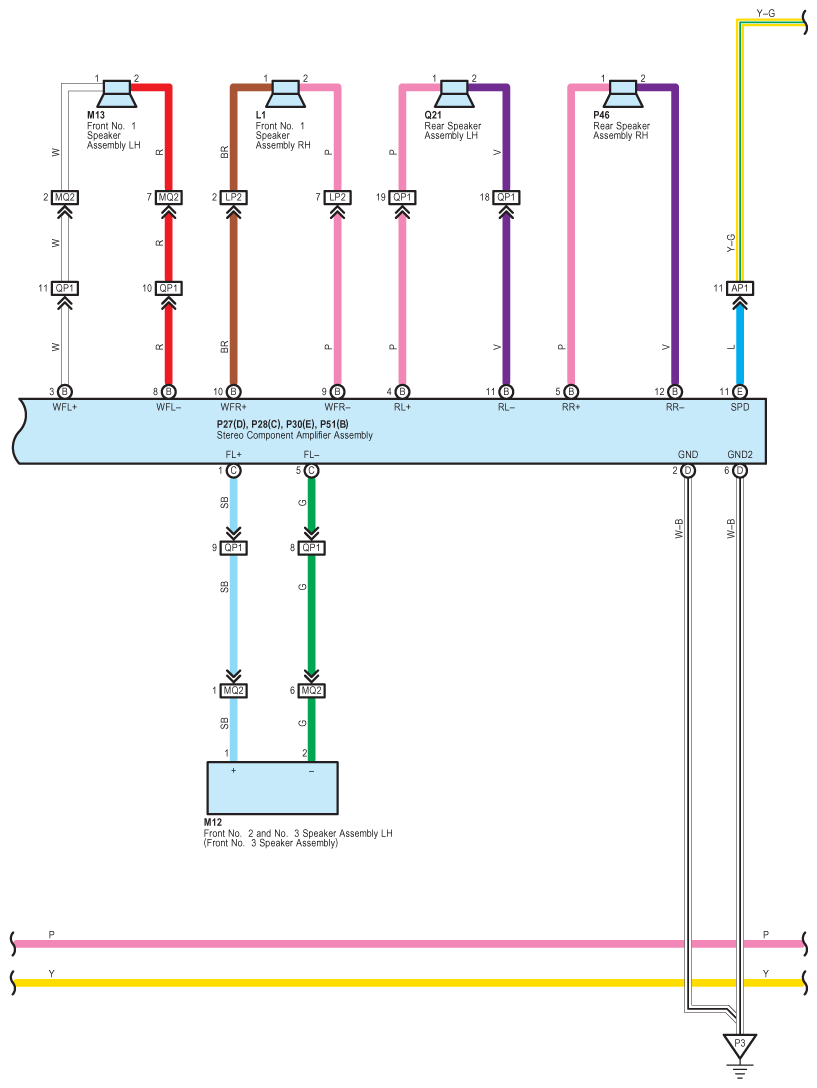

Fig 9: Audio (W/O LEXUS Navigation System) System Wiring Diagram (9 Of 10)
G09121458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

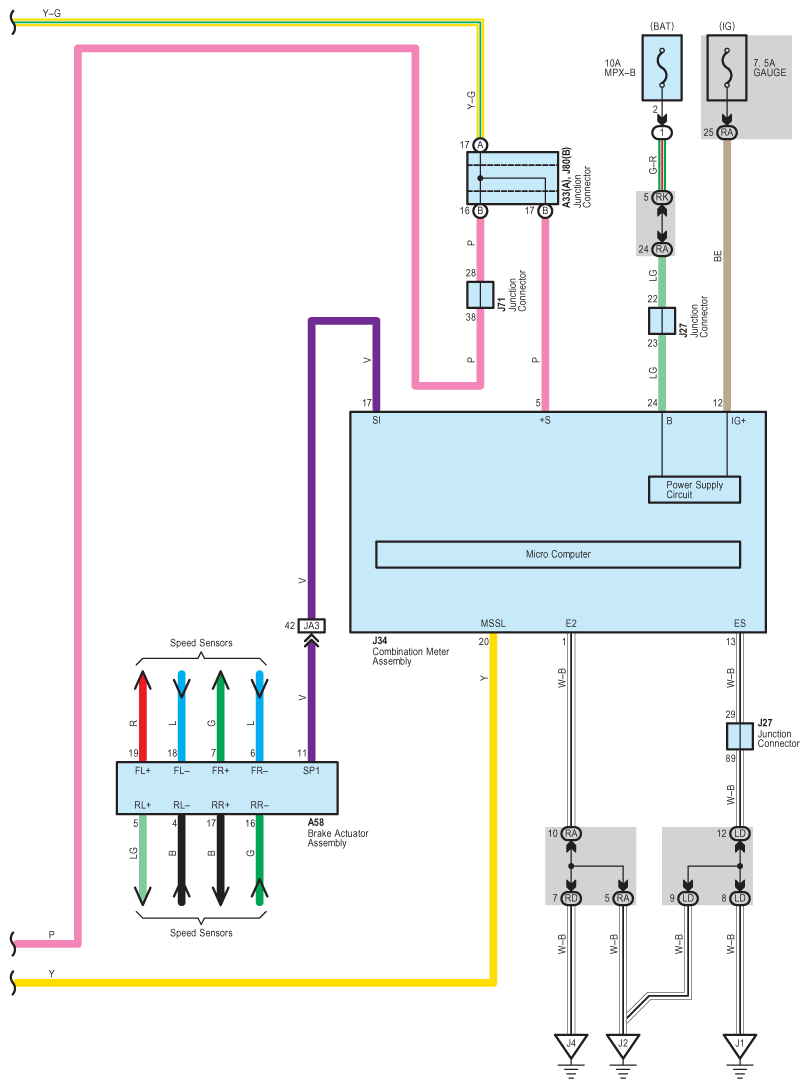

Fig 10: Audio (W/O LEXUS Navigation System) System Wiring Diagram (10 Of 10)
G09121459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
