Climate Control Seat and Seat Heater: Notes

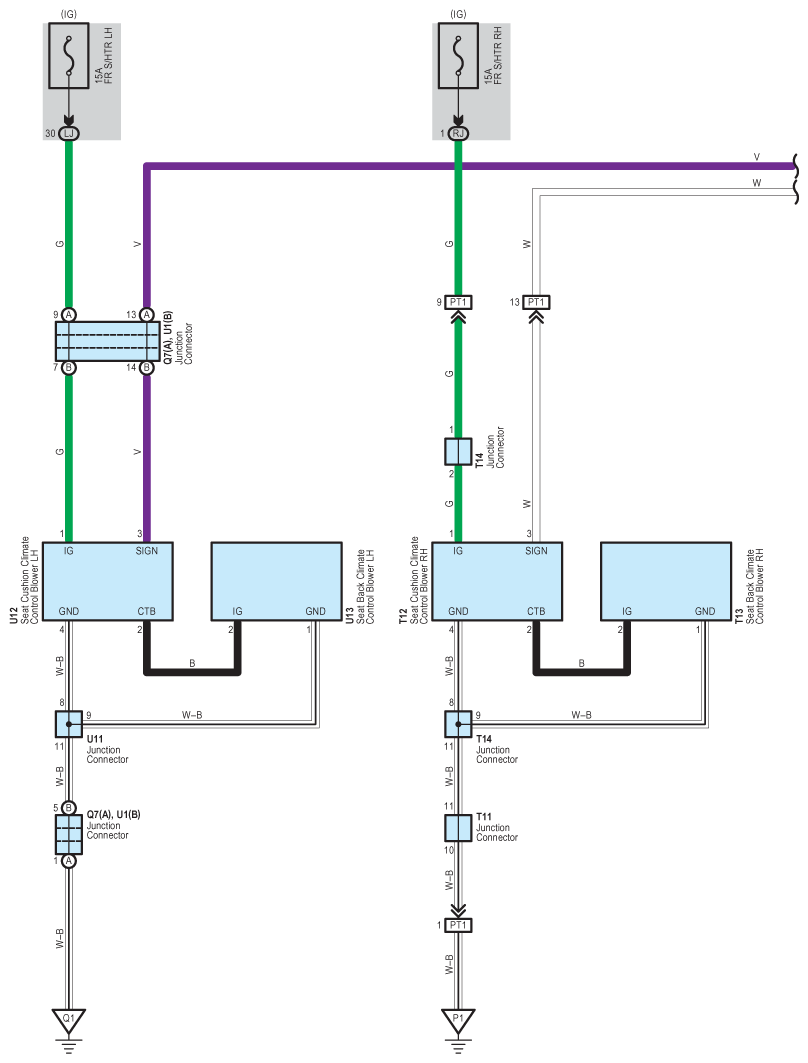

Fig 1: Climate Control Seat And Seat Heater Wiring Diagram (1 Of 4)
G09121403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

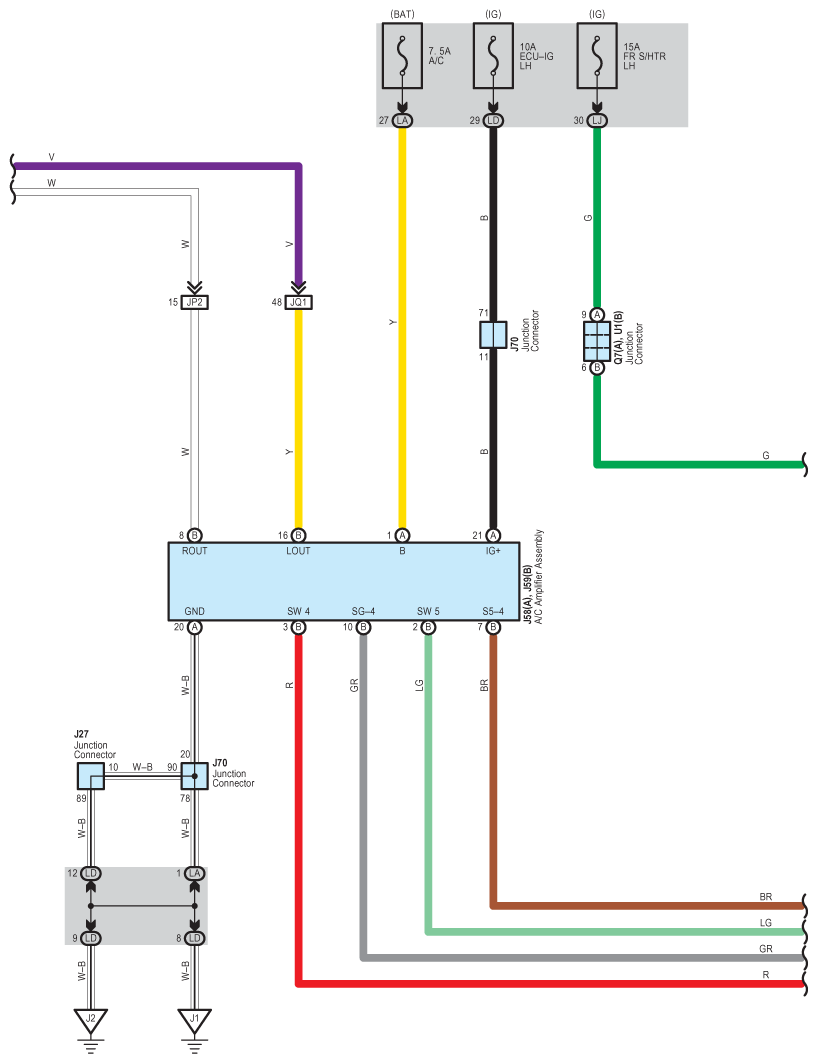

Fig 2: Climate Control Seat And Seat Heater Wiring Diagram (2 Of 4)
G09121404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

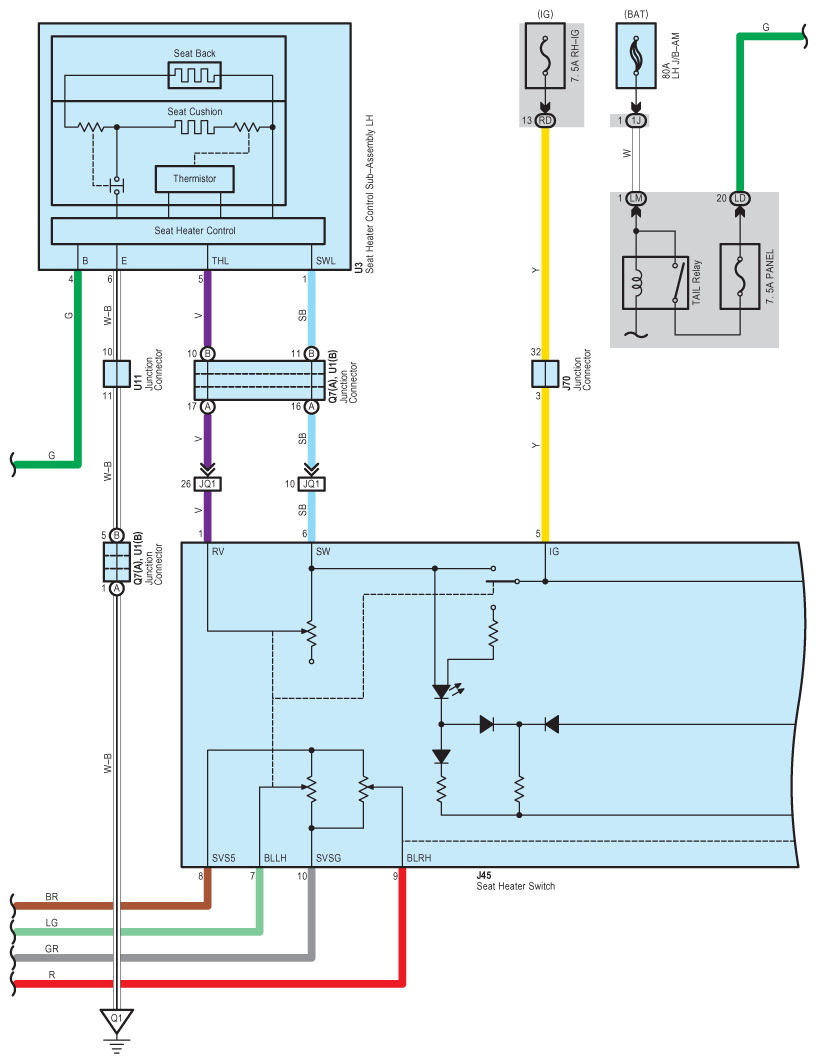

Fig 3: Climate Control Seat And Seat Heater Wiring Diagram (3 Of 4)
G09121405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

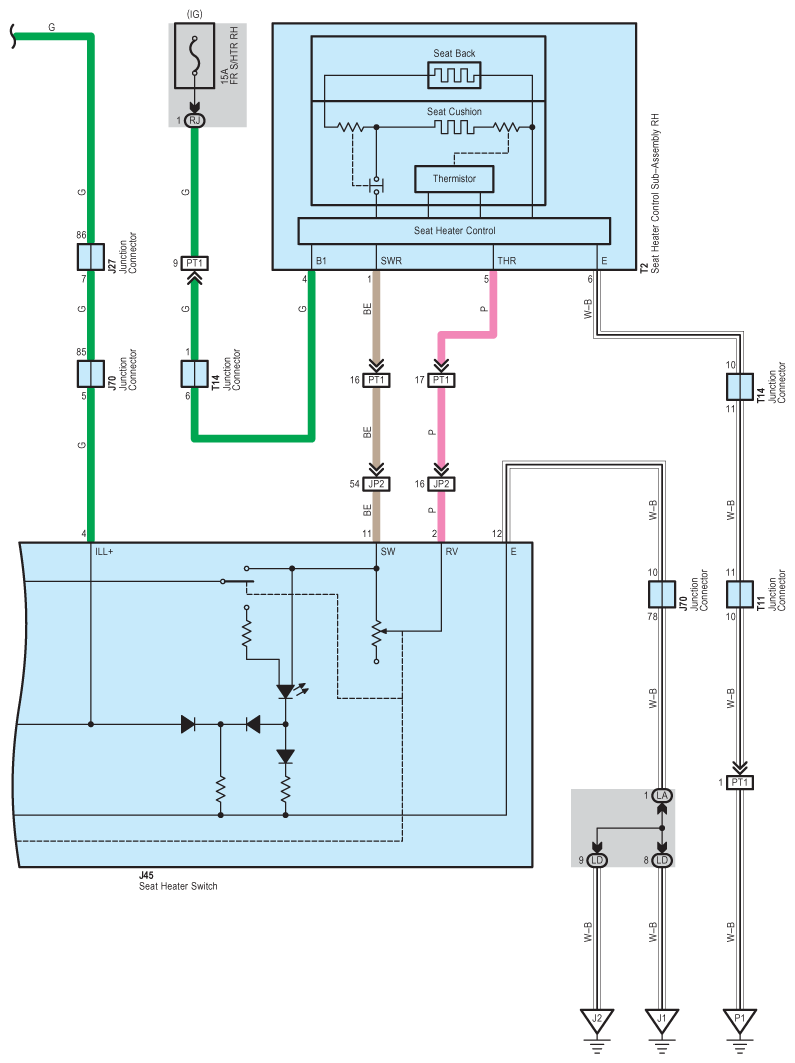

Fig 4: Climate Control Seat And Seat Heater Wiring Diagram (4 Of 4)
G09121406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
