Combination Meter: Notes

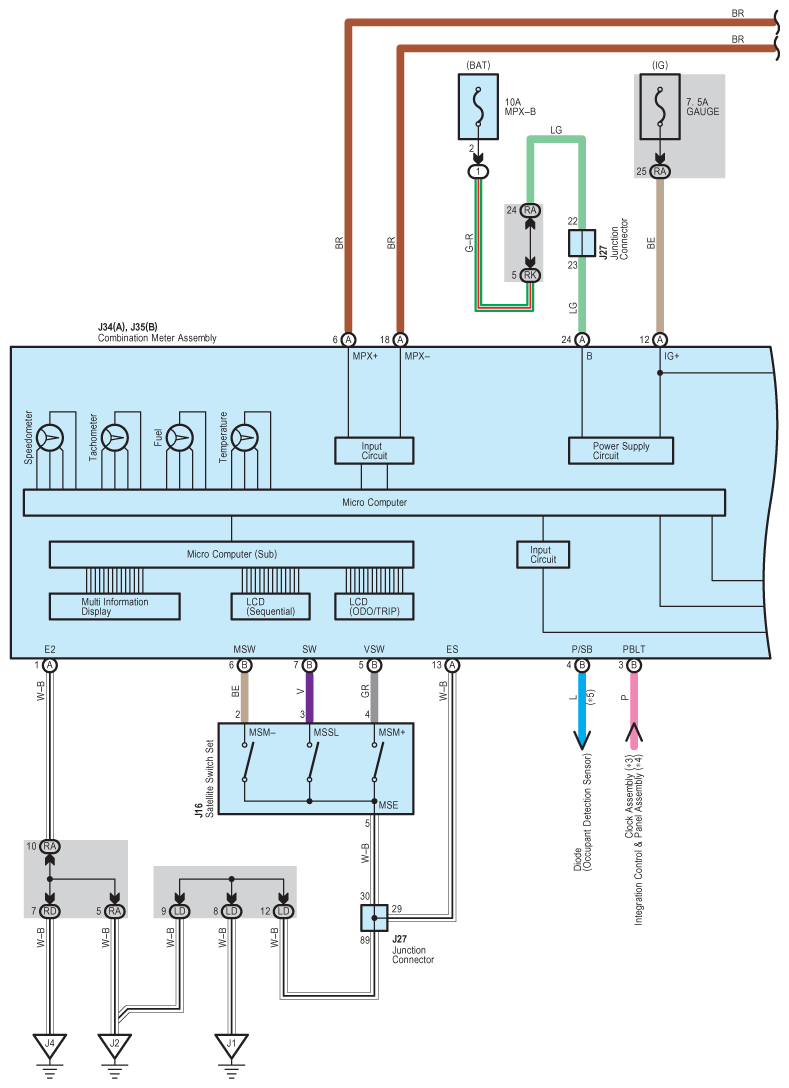

Fig 1: Combination Meter Wiring Diagram (1 Of 7)

G09121460

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

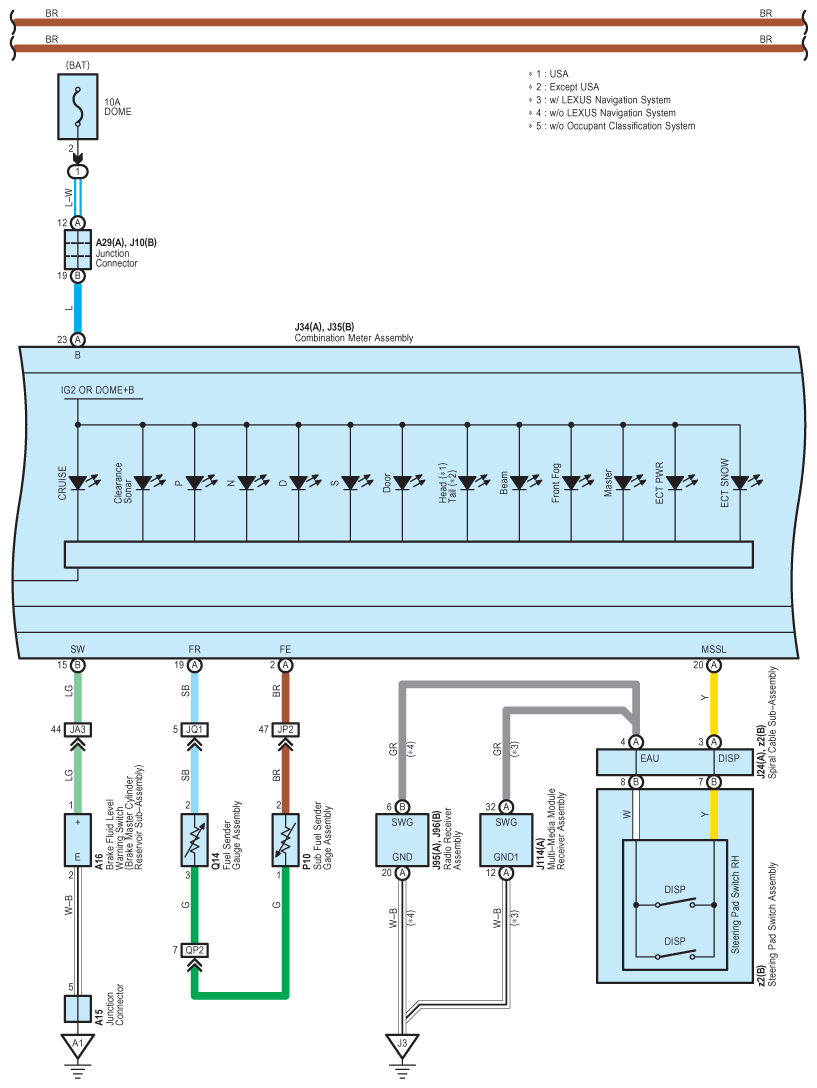

Fig 2: Combination Meter Wiring Diagram (2 Of 7)

G09121461

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

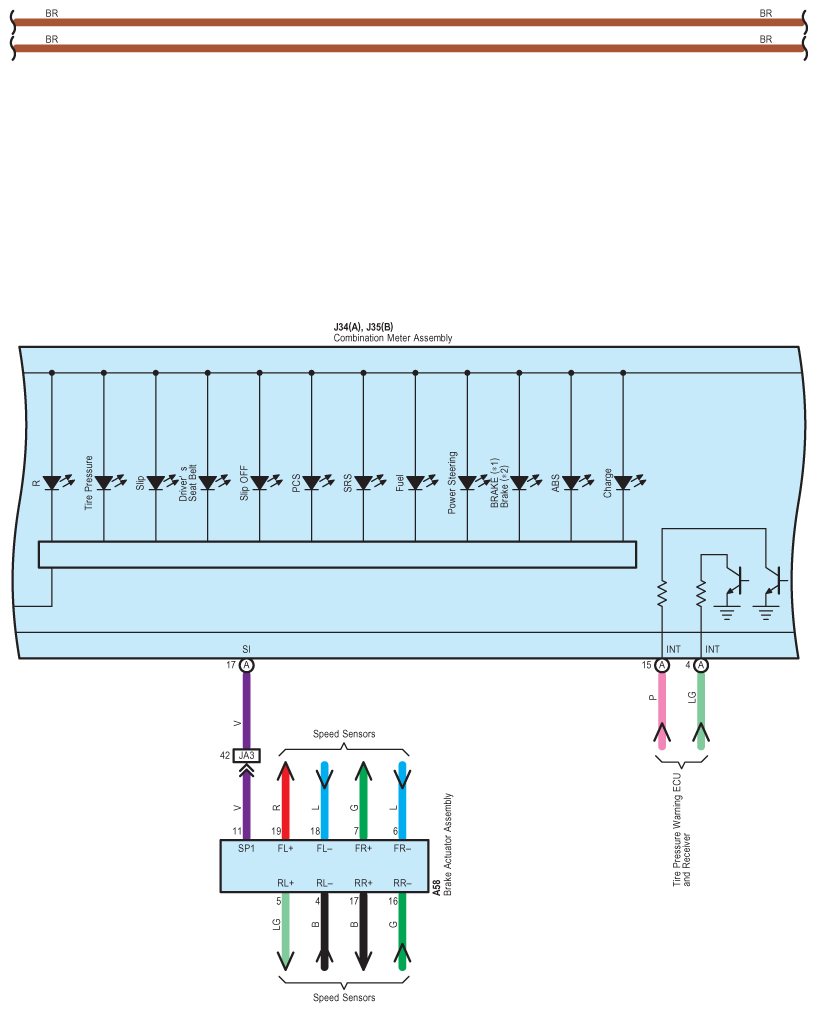

Fig 3: Combination Meter Wiring Diagram (3 Of 7)

G09121462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

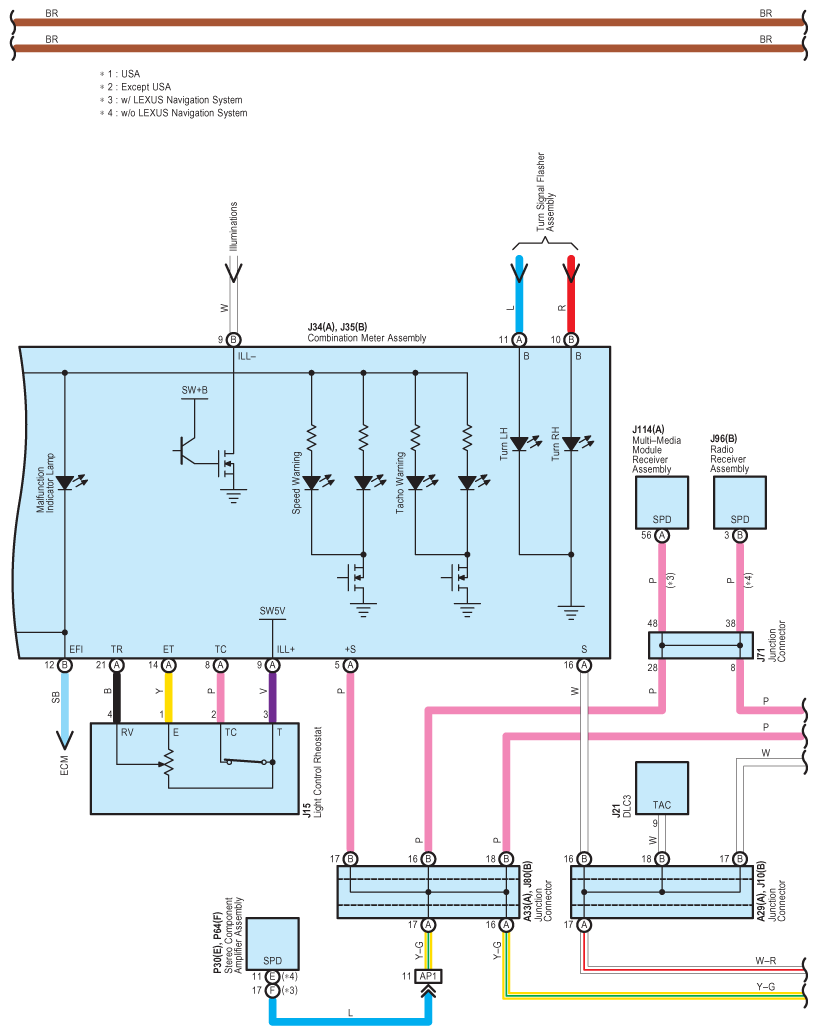

Fig 4: Combination Meter Wiring Diagram (4 Of 7)

G09121463

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

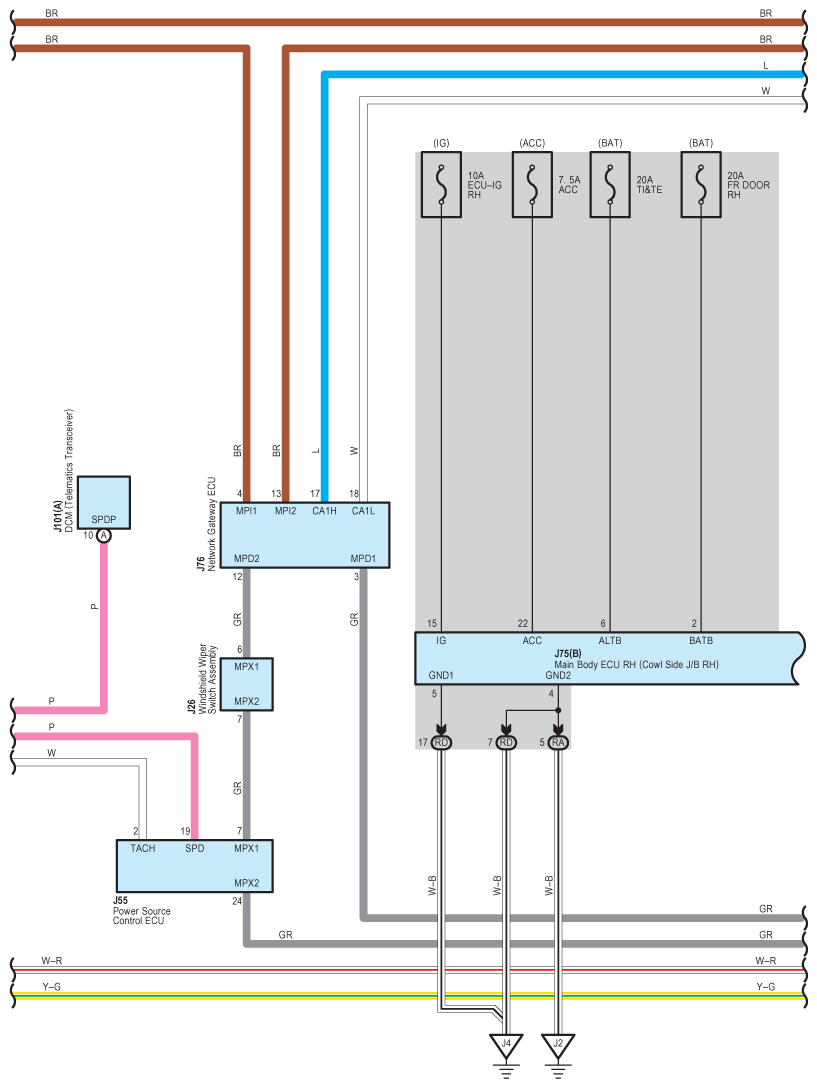

Fig 5: Combination Meter Wiring Diagram (5 Of 7)

G09121464

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

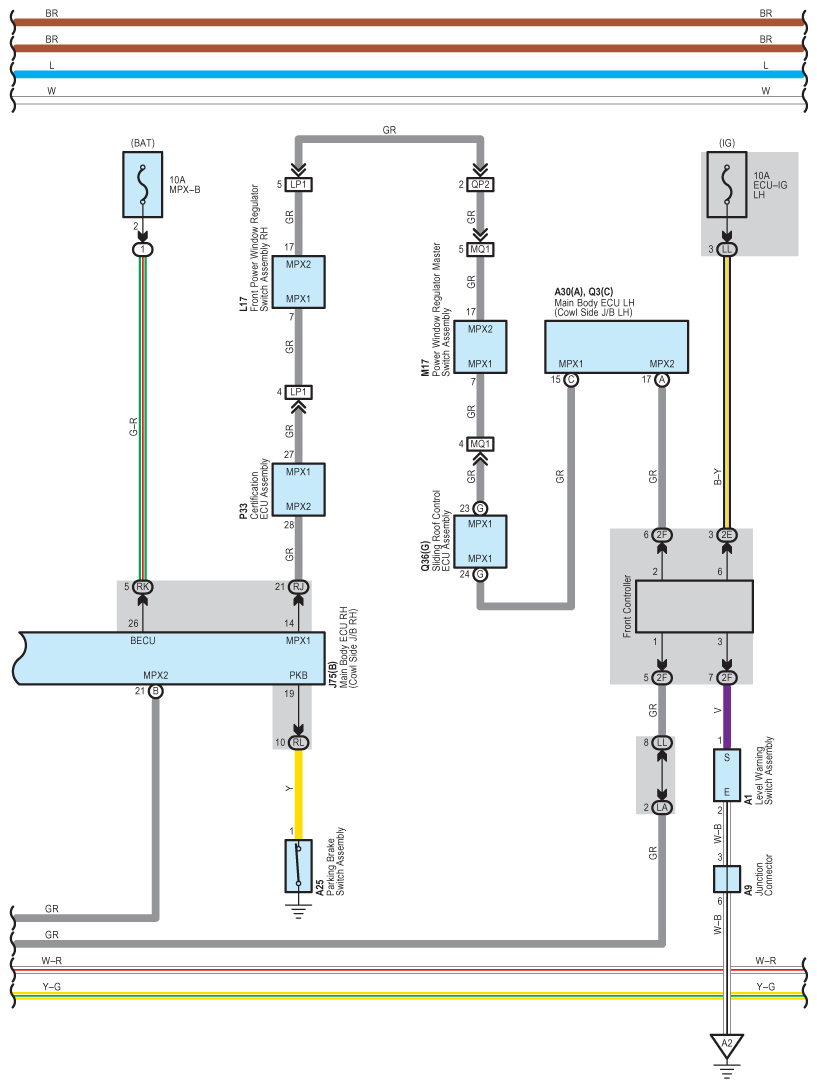

Fig 6: Combination Meter Wiring Diagram (6 Of 7)

G09121465

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

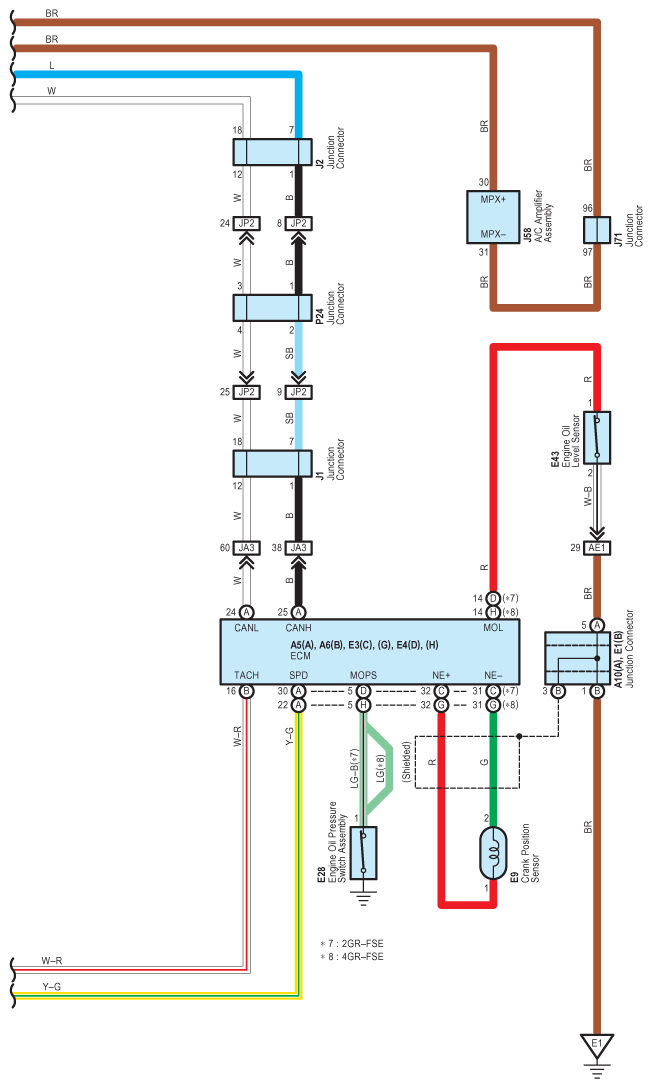

Fig 7: Combination Meter Wiring Diagram (7 Of 7)

G09121466

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
