Cruise Control (4GR-FSE): Notes

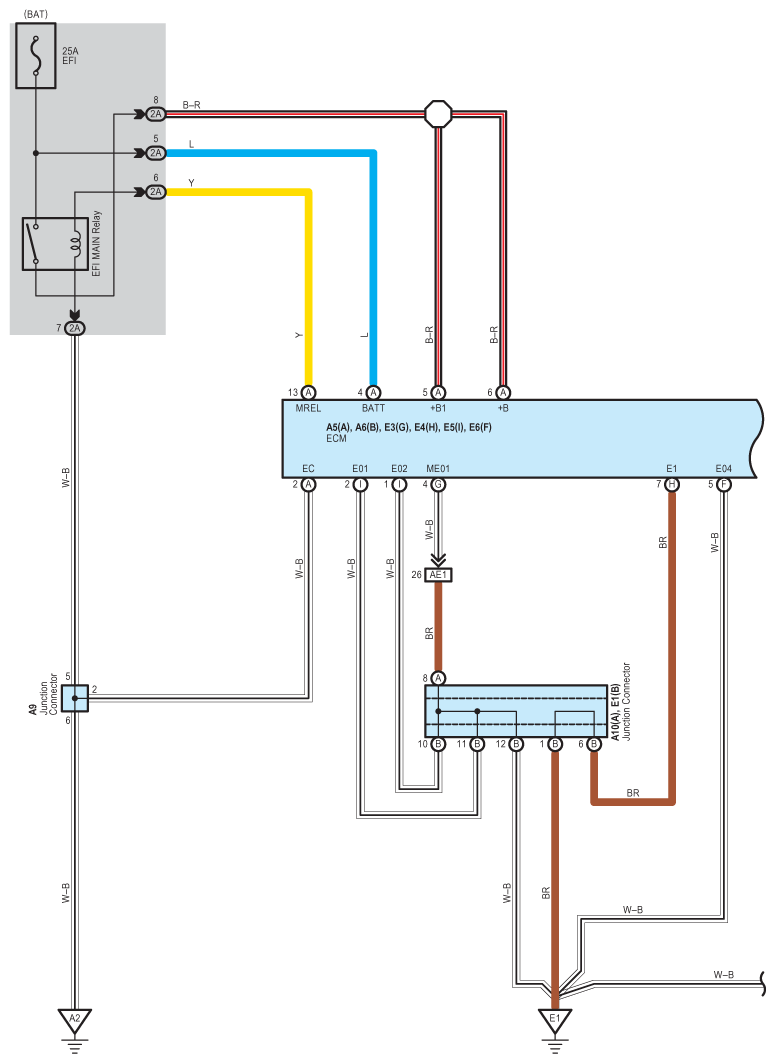

Fig 1: Cruise Control (4GR-FSE) Wiring Diagram (1 Of 7)
G09121316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

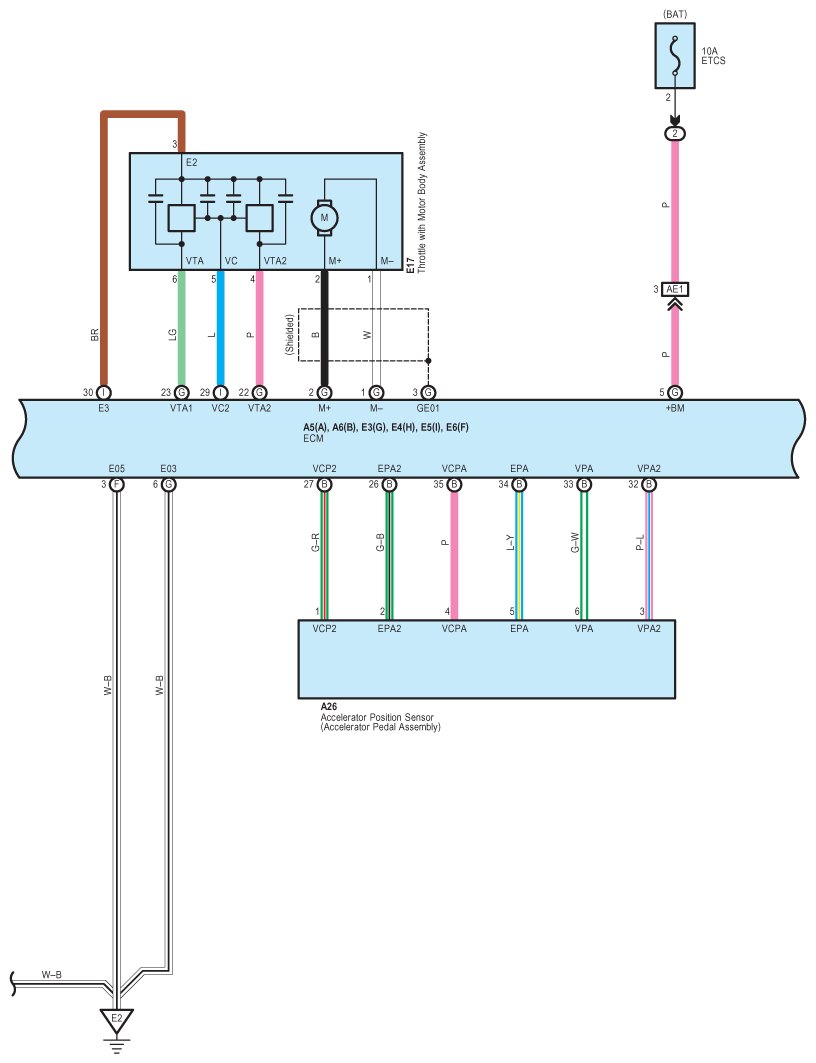

Fig 2: Cruise Control (4GR-FSE) Wiring Diagram (2 Of 7)
G09121317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

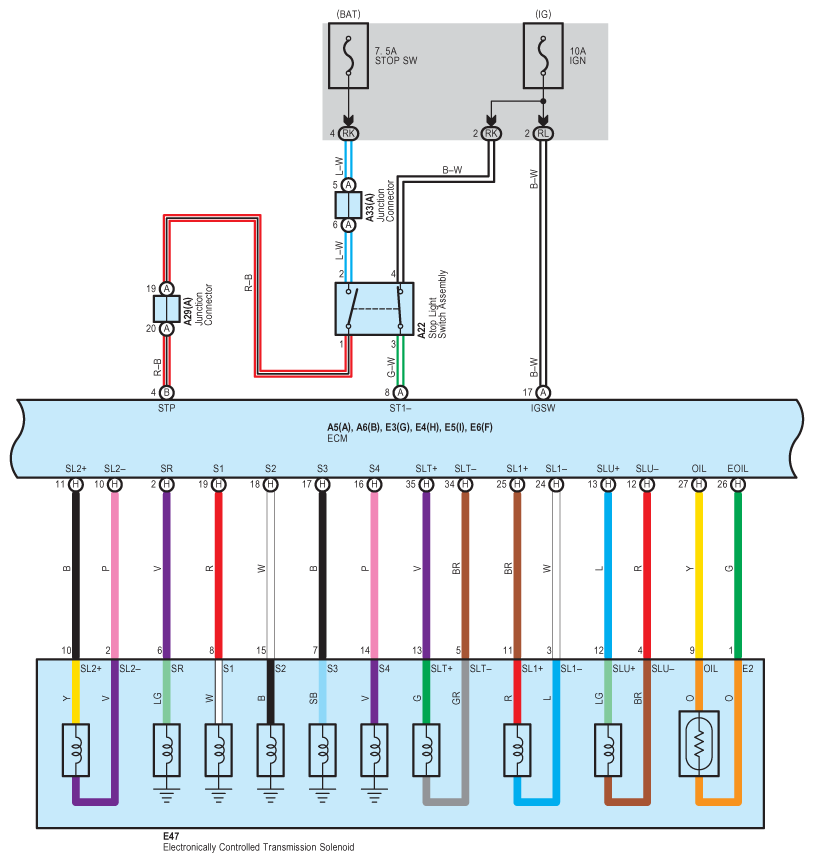

Fig 3: Cruise Control (4GR-FSE) Wiring Diagram (3 Of 7)
G09121318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

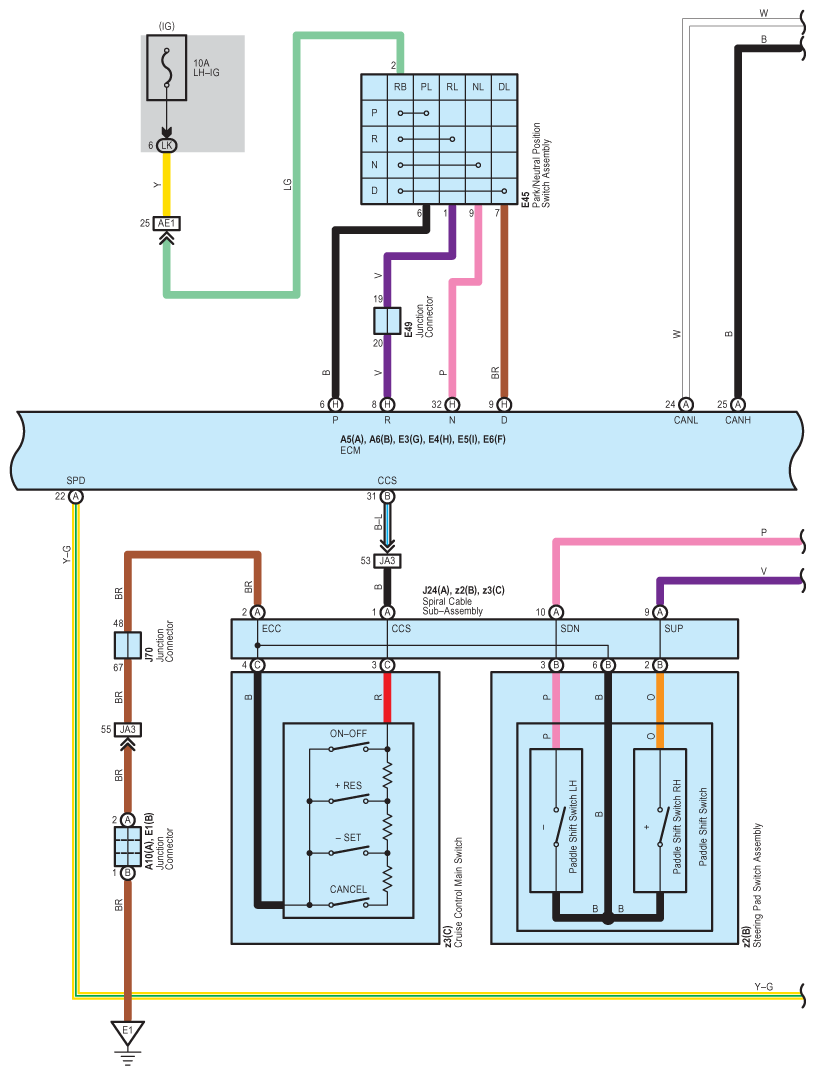

Fig 4: Cruise Control (4GR-FSE) Wiring Diagram (4 Of 7)
G09121319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Cruise Control (4GR-FSE) Wiring Diagram (5 Of 7)
G09121320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

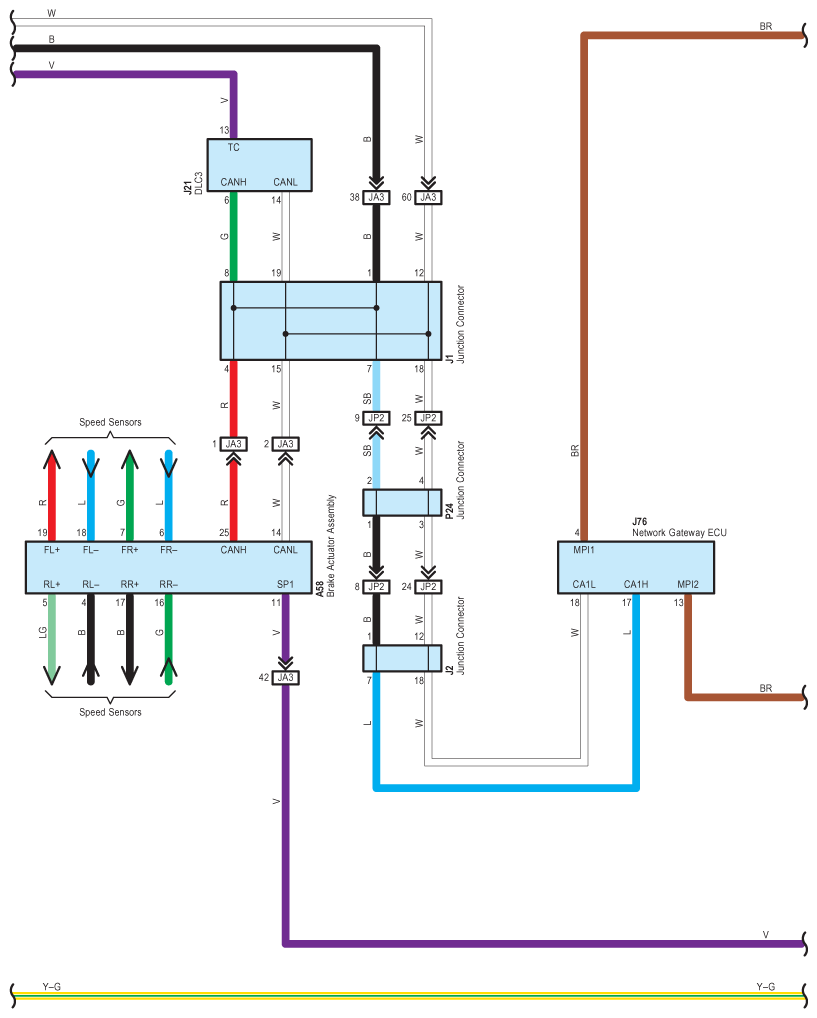

Fig 6: Cruise Control (4GR-FSE) Wiring Diagram (6 Of 7)
G09121321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

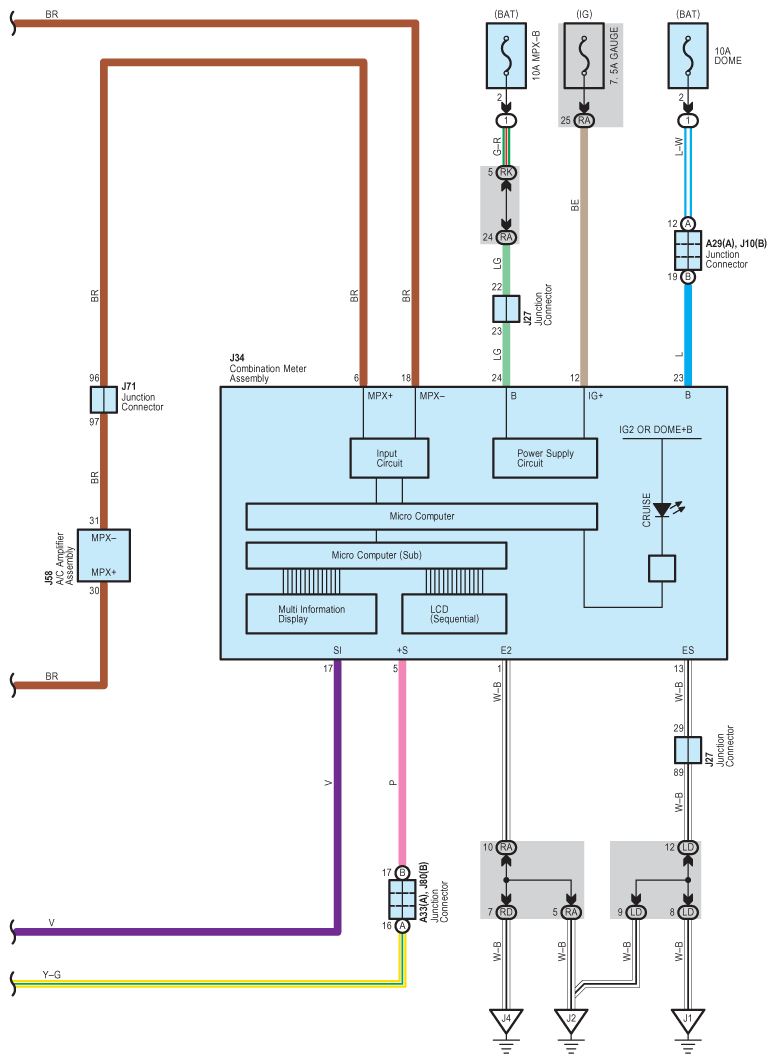

Fig 7: Cruise Control (4GR-FSE) Wiring Diagram (7 Of 7)
G09121322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
