Engine Control (4GR-FSE): Notes

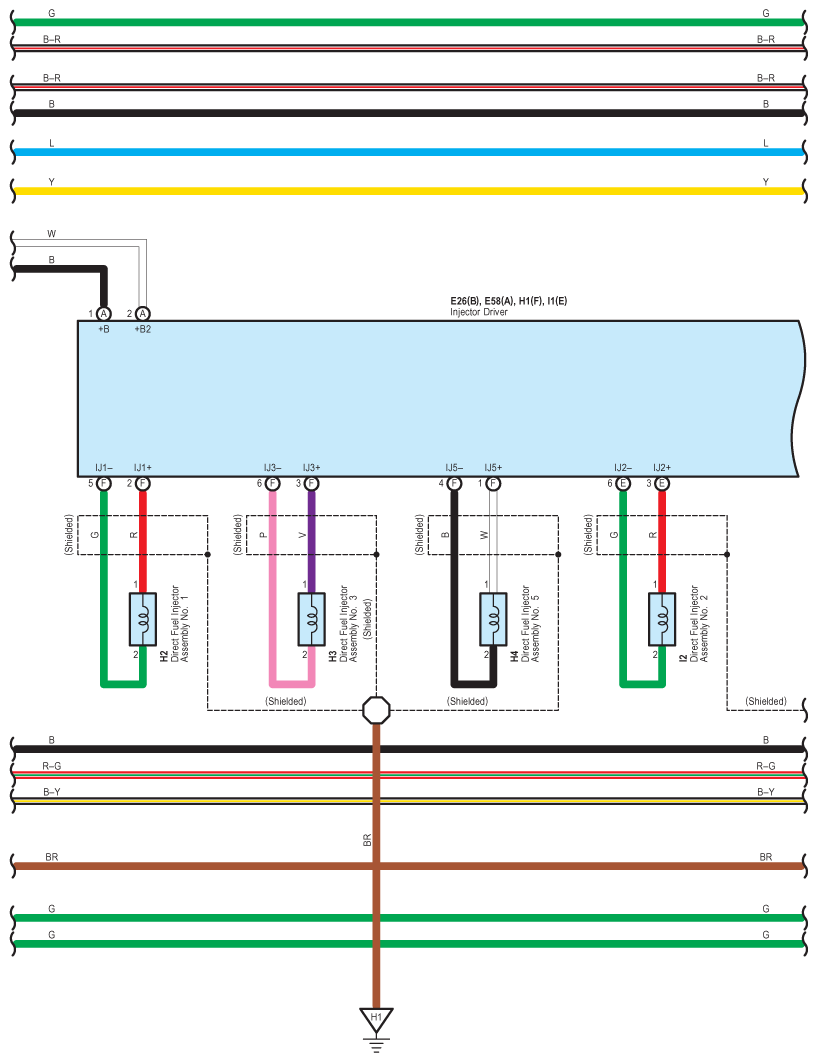

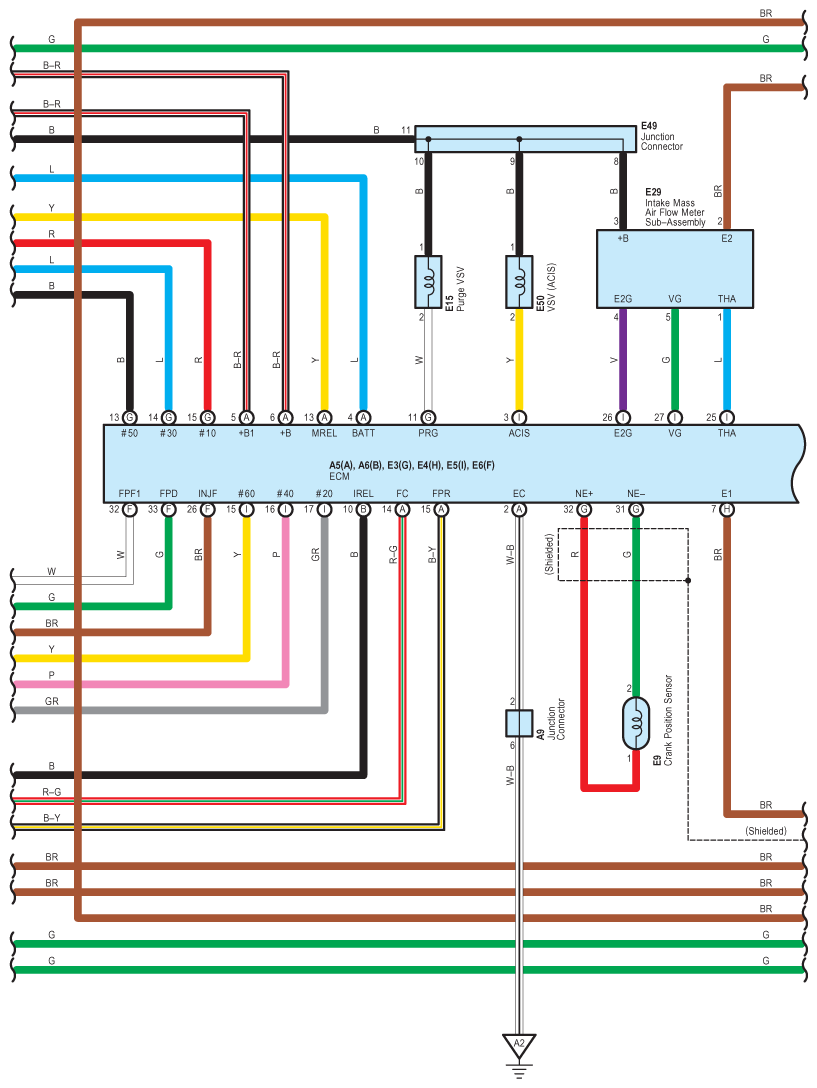

Fig 1: Engine Control (4GR-FSE) Wiring Diagram (1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

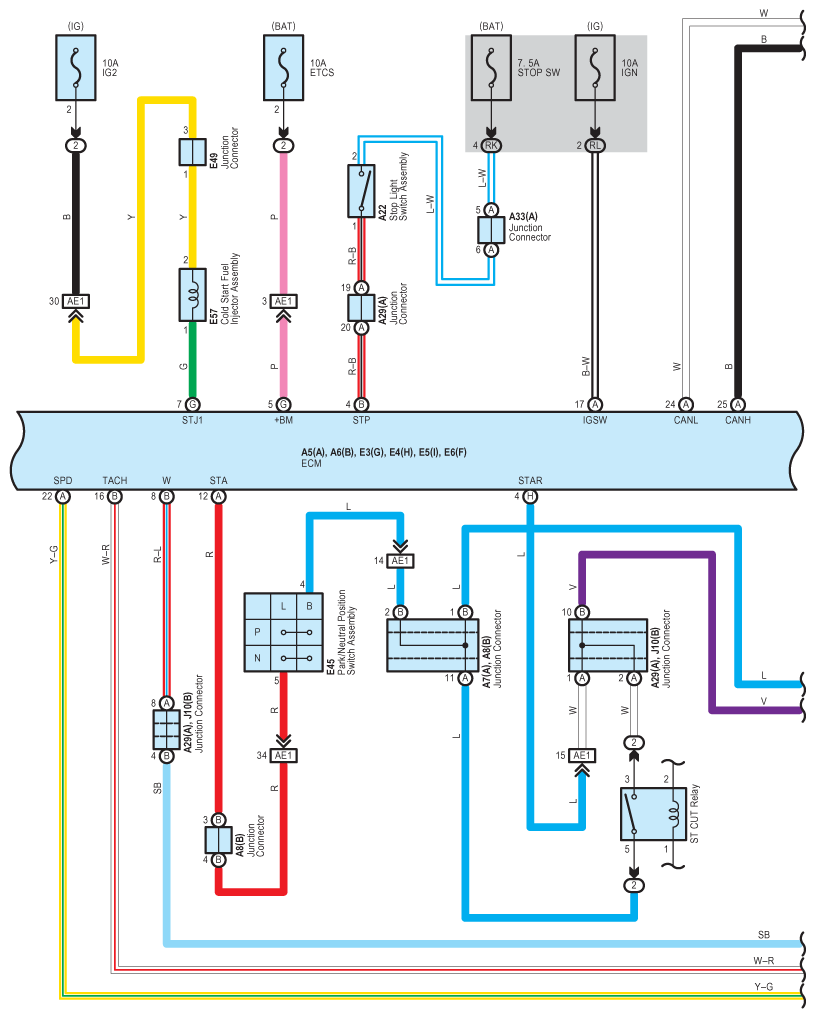

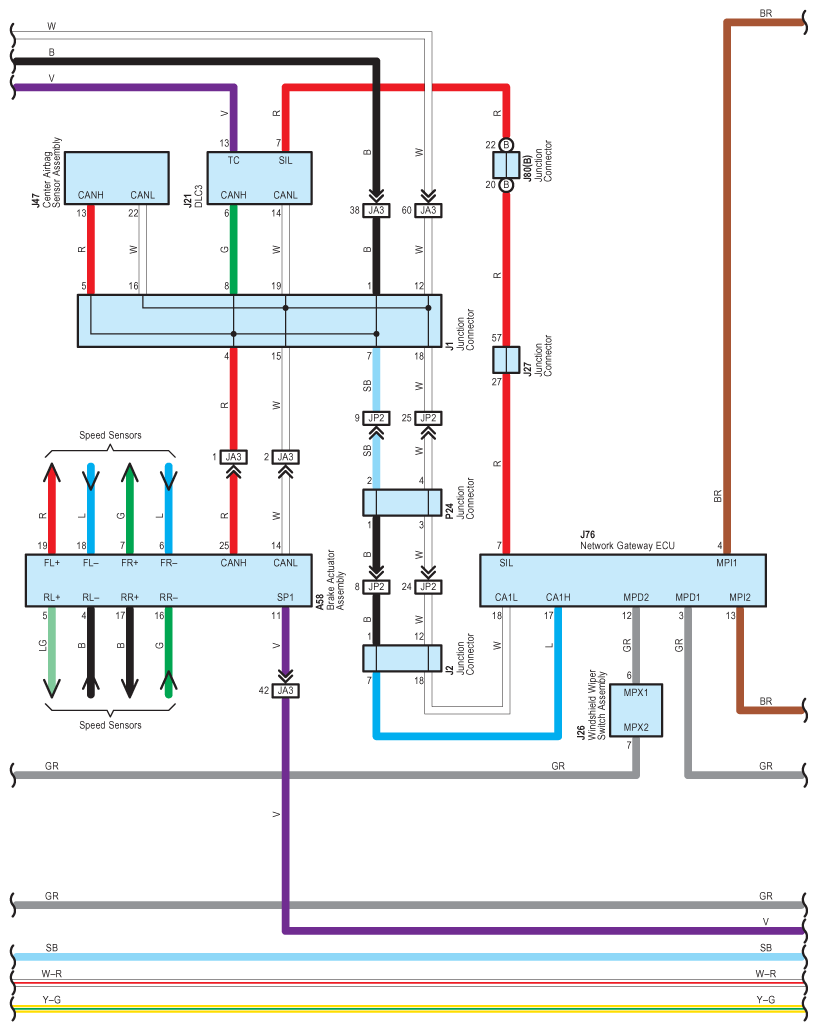

Fig 2: Engine Control (4GR-FSE) Wiring Diagram (2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

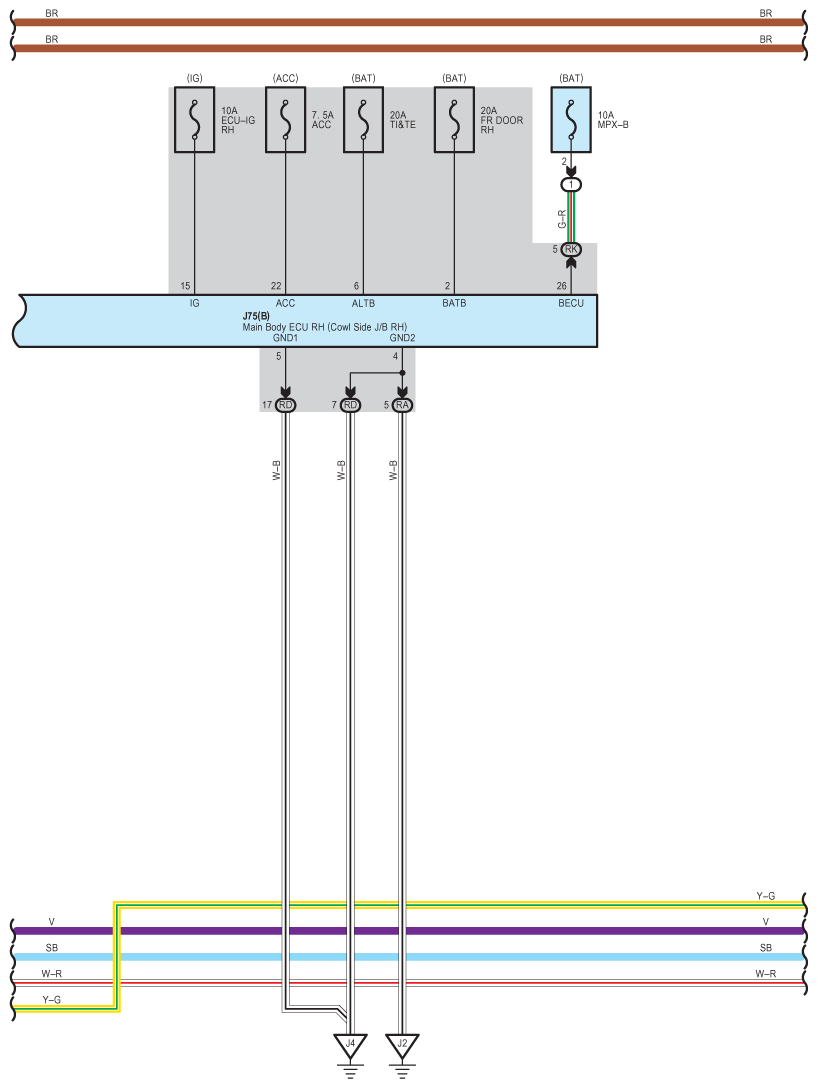

Fig 3: Engine Control (4GR-FSE) Wiring Diagram (3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

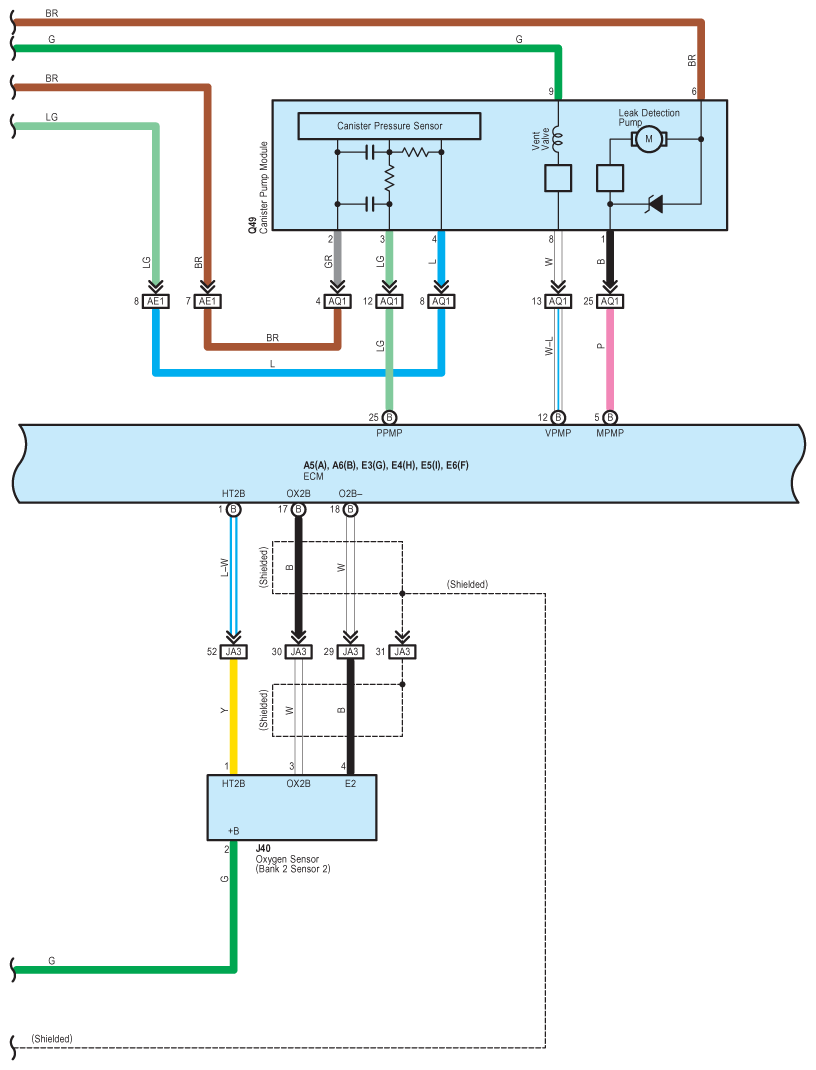

Fig 4: Engine Control (4GR-FSE) Wiring Diagram (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

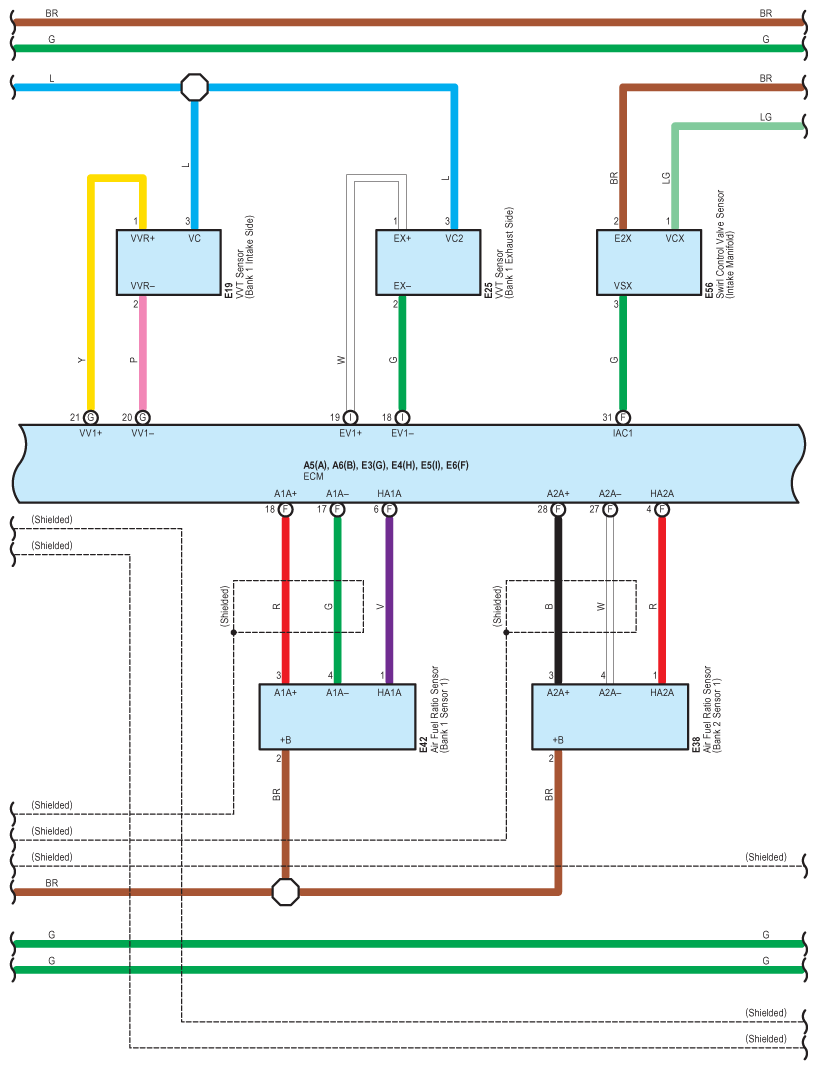

Fig 5: Engine Control (4GR-FSE) Wiring Diagram (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

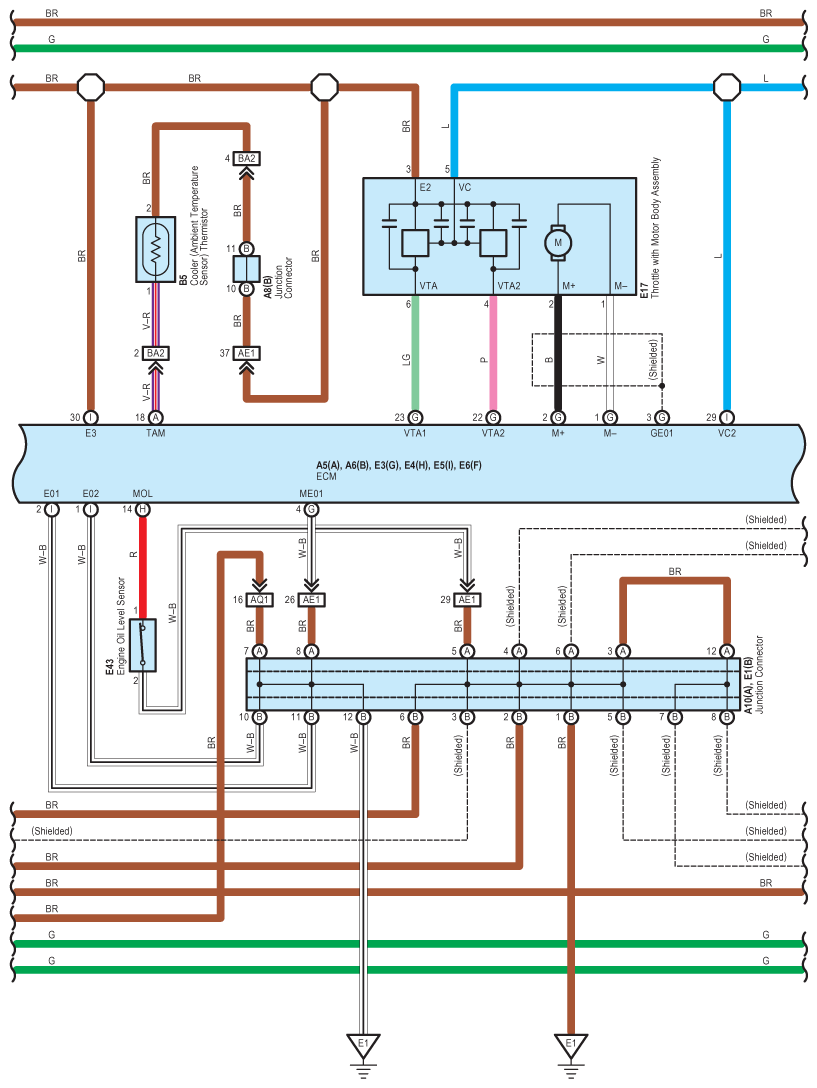

Fig 6: Engine Control (4GR-FSE) Wiring Diagram (6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

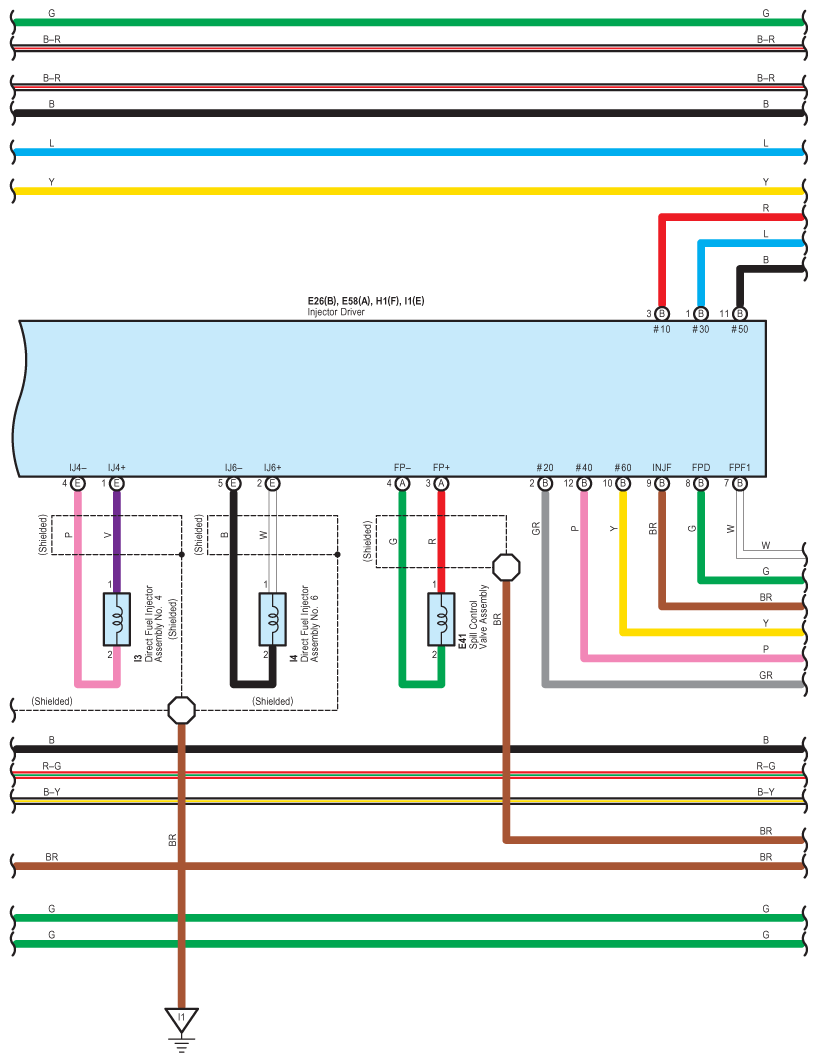

Fig 7: Engine Control (4GR-FSE) Wiring Diagram (7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

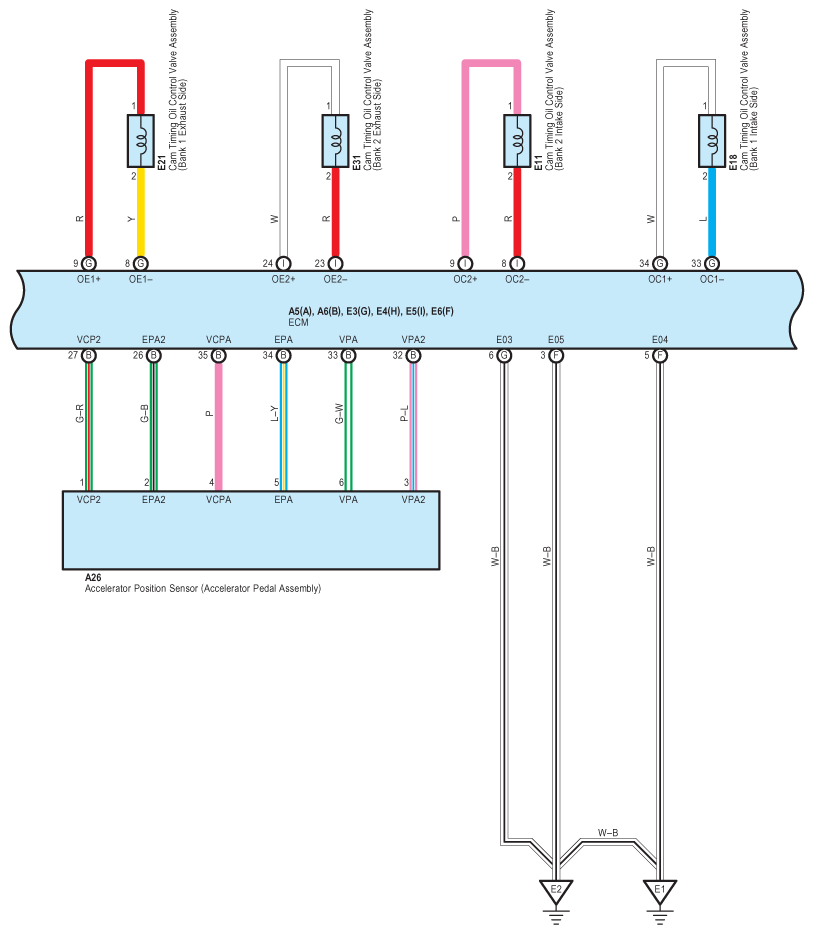

Fig 8: Engine Control (4GR-FSE) Wiring Diagram (8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control (4GR-FSE) Wiring Diagram (9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Control (4GR-FSE) Wiring Diagram (10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

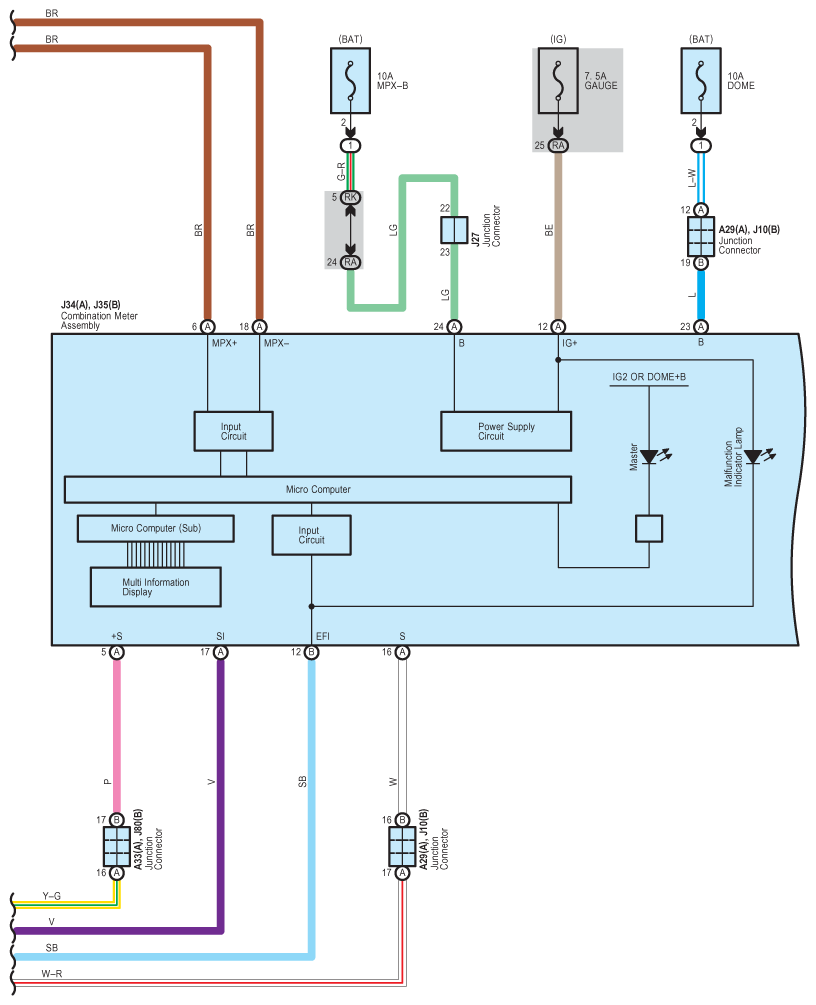

Fig 11: Engine Control (4GR-FSE) Wiring Diagram (11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

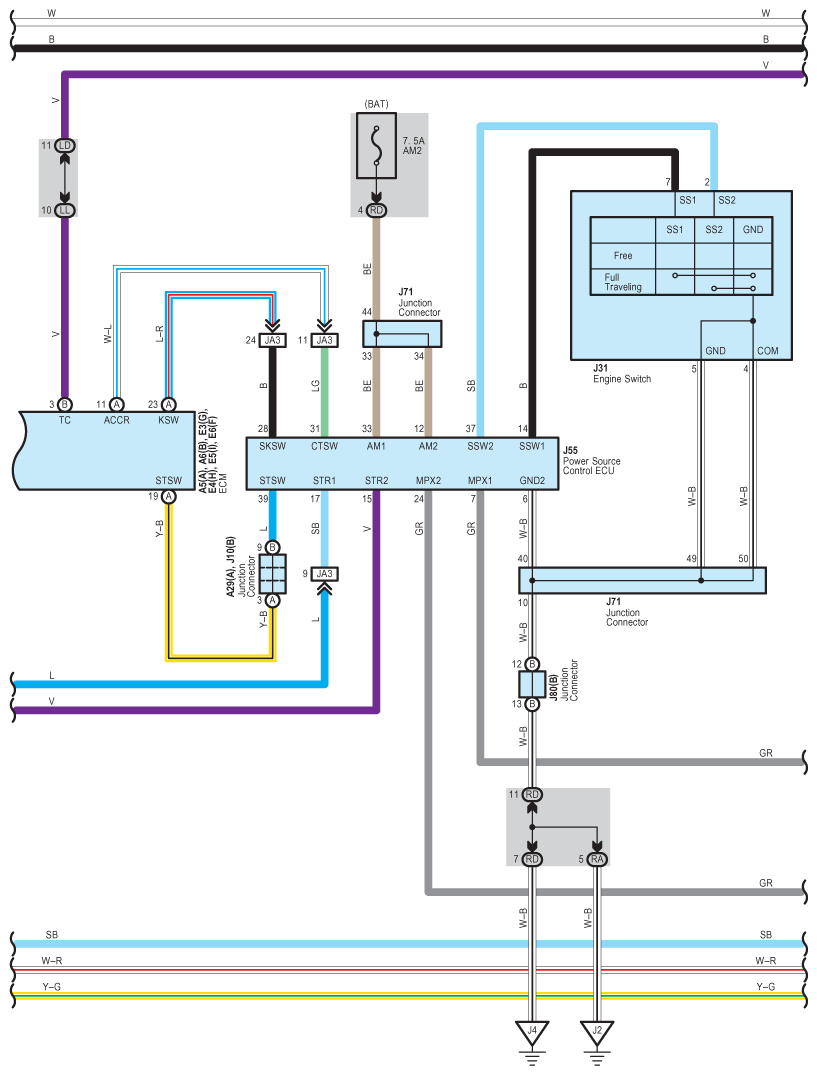

Fig 12: Engine Control (4GR-FSE) Wiring Diagram (12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

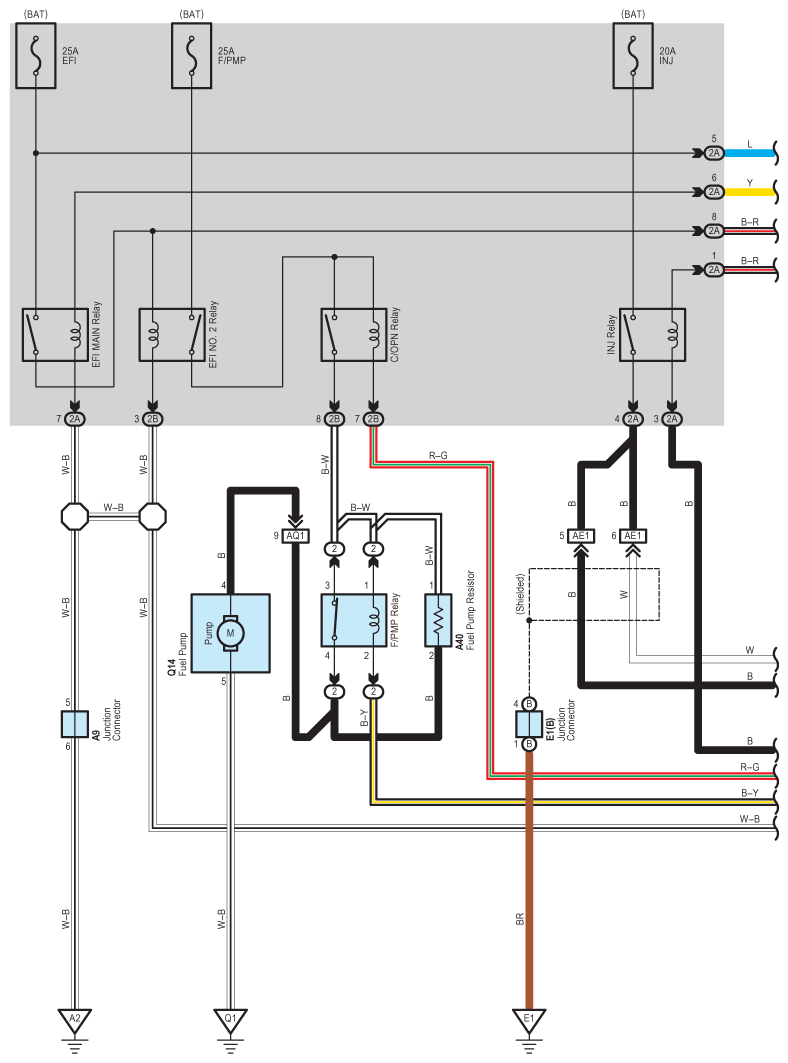

Fig 13: Engine Control (4GR-FSE) Wiring Diagram (13 Of 18)

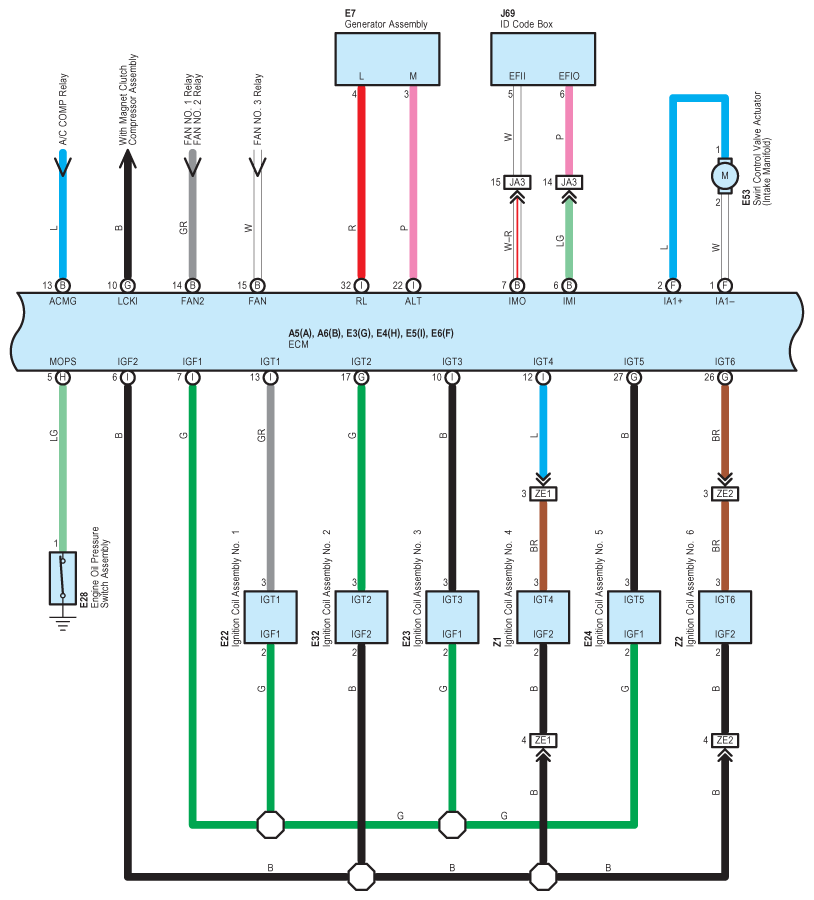

Fig 14: Engine Control (4GR-FSE) Wiring Diagram (14 Of 18)

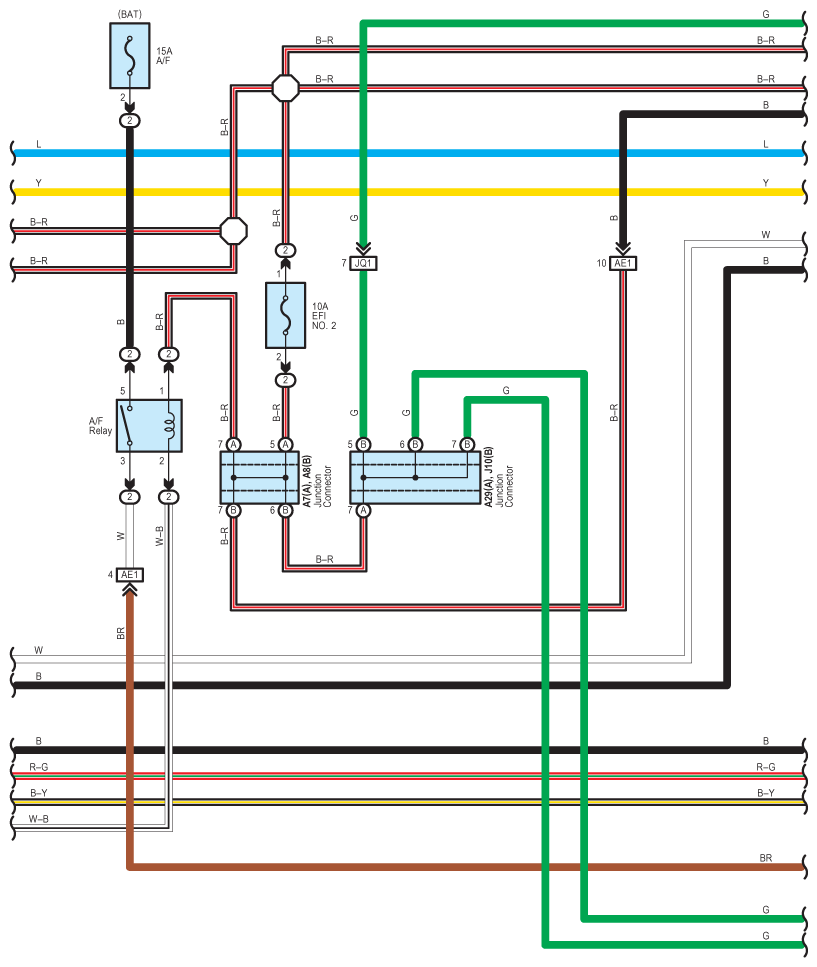

Fig 15: Engine Control (4GR-FSE) Wiring Diagram (15 Of 18)

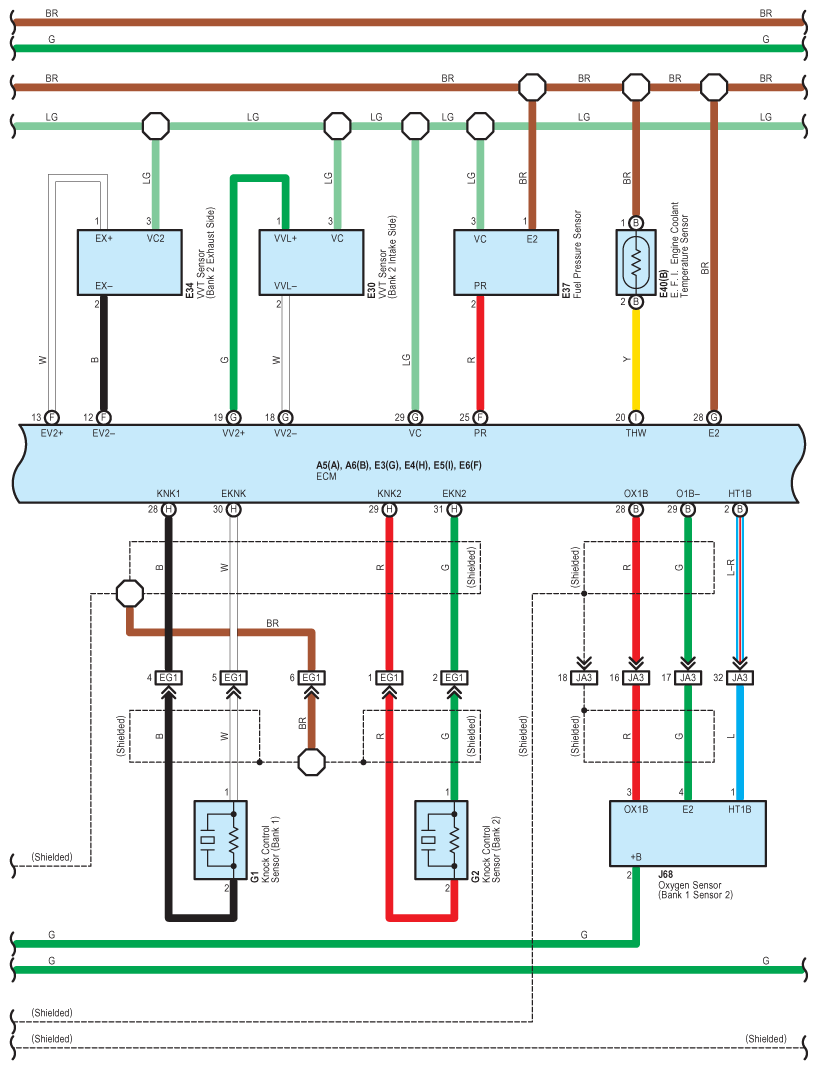

Fig 16: Engine Control (4GR-FSE) Wiring Diagram (16 Of 18)

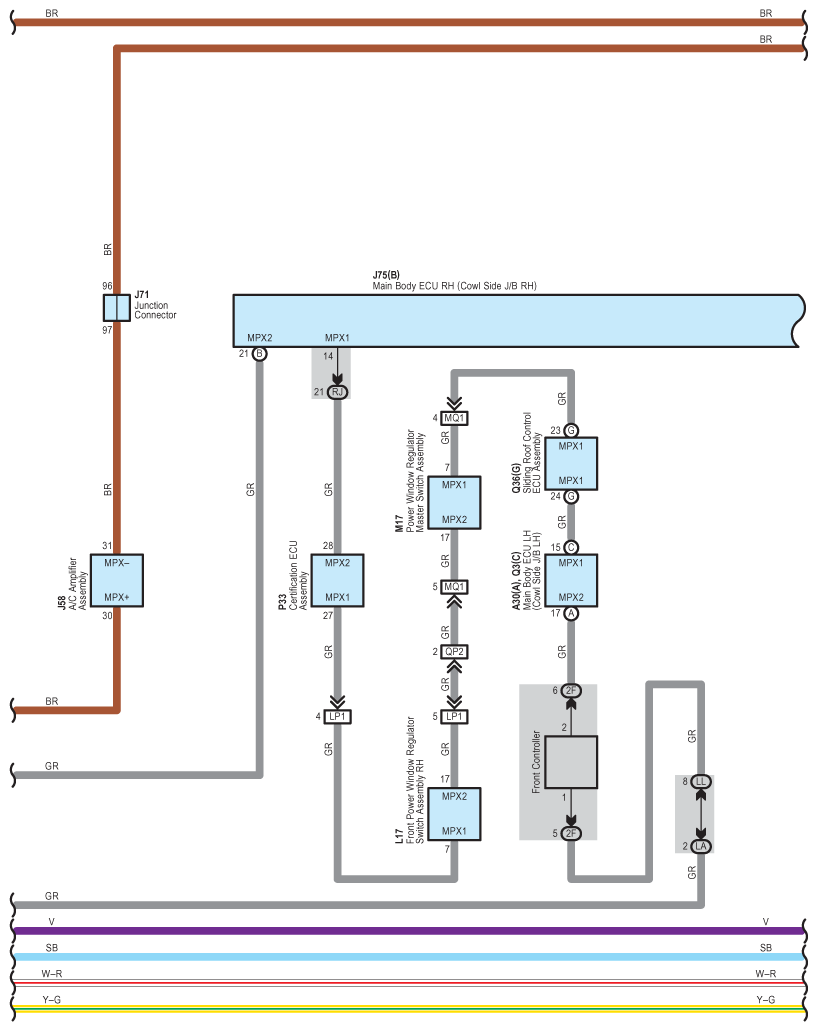

Fig 17: Engine Control (4GR-FSE) Wiring Diagram (17 Of 18)

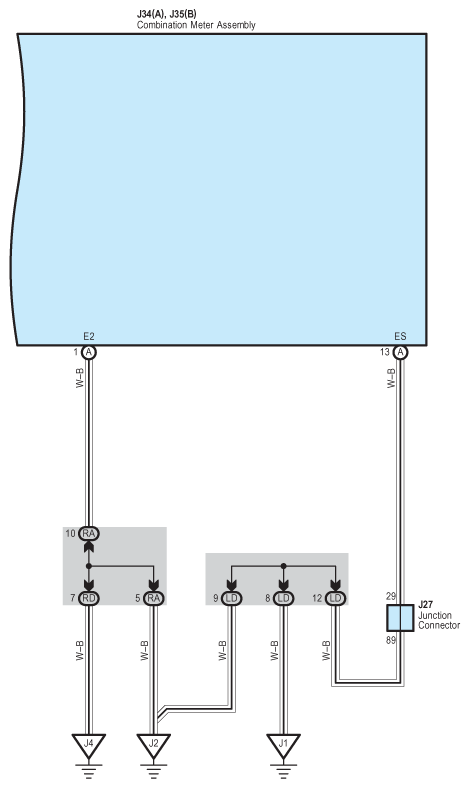

Fig 18: Engine Control (4GR-FSE) Wiring Diagram (18 Of 18)
