Headlight Cleaner: Notes

Fig 1: Headlight Cleaner Wiring Diagram (1 Of 3)
G09121228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

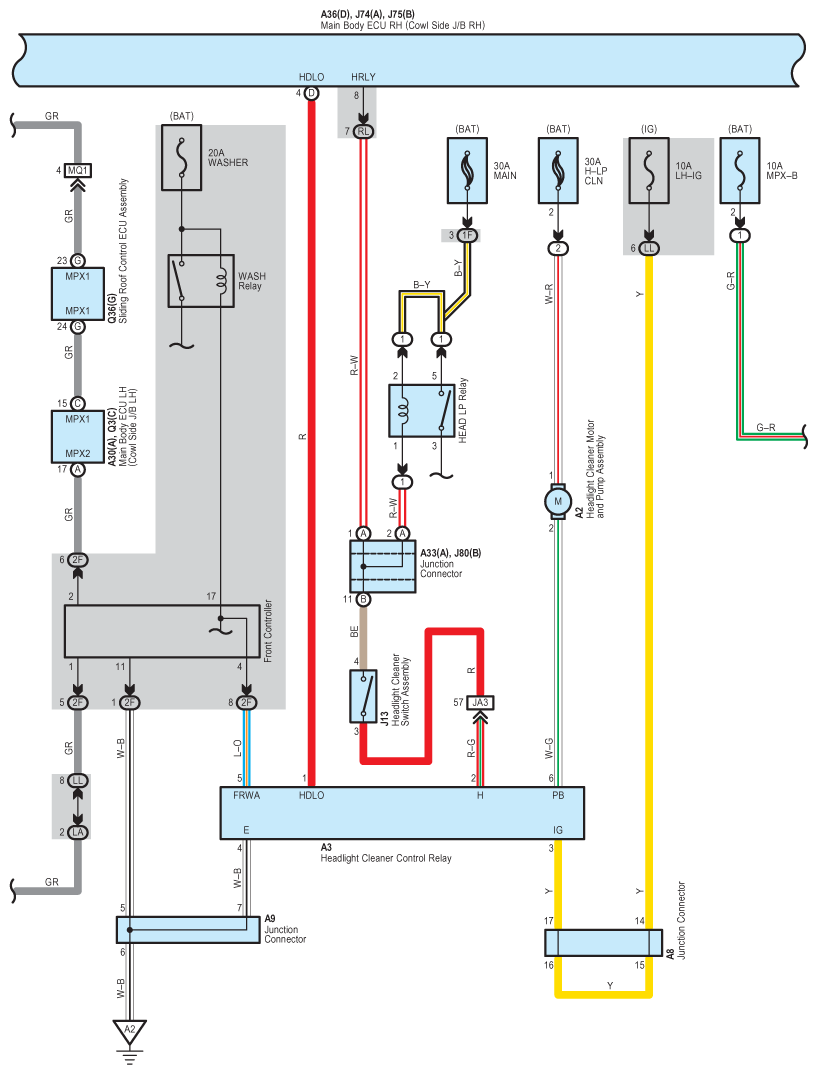

Fig 2: Headlight Cleaner Wiring Diagram (2 Of 3)
G09121229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

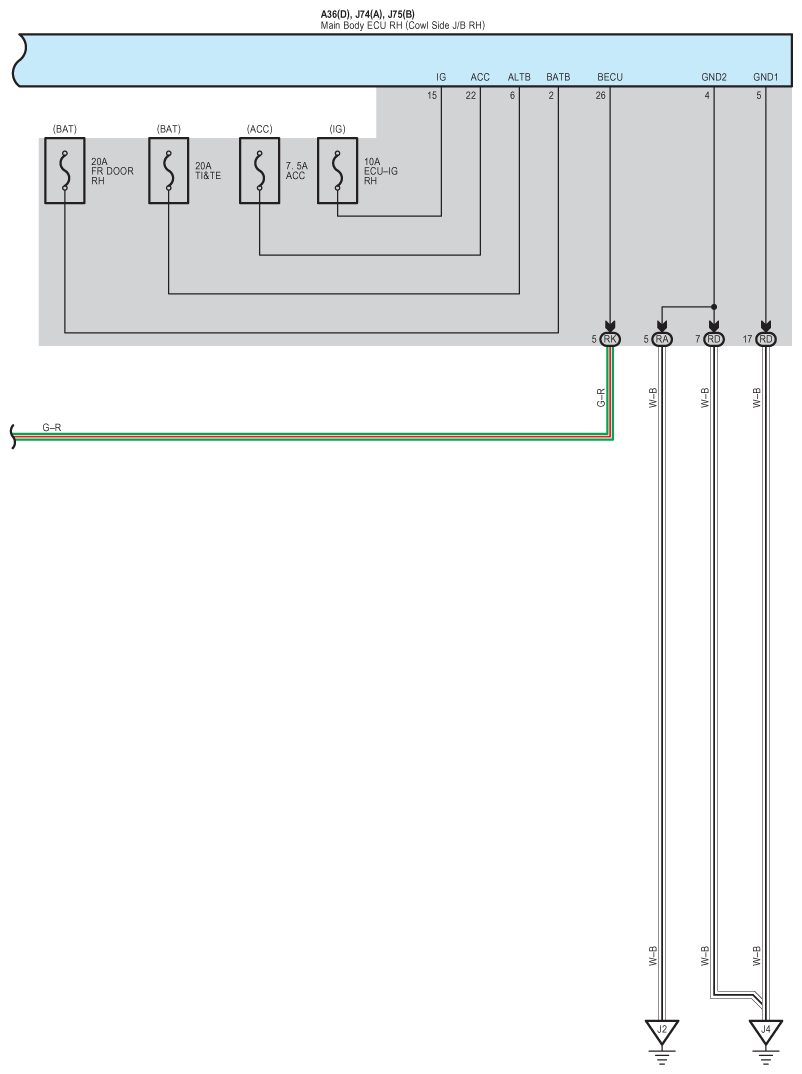

Fig 3: Headlight Cleaner Wiring Diagram (3 Of 3)
G09121230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
