Ignition (4GR-FSE): Notes

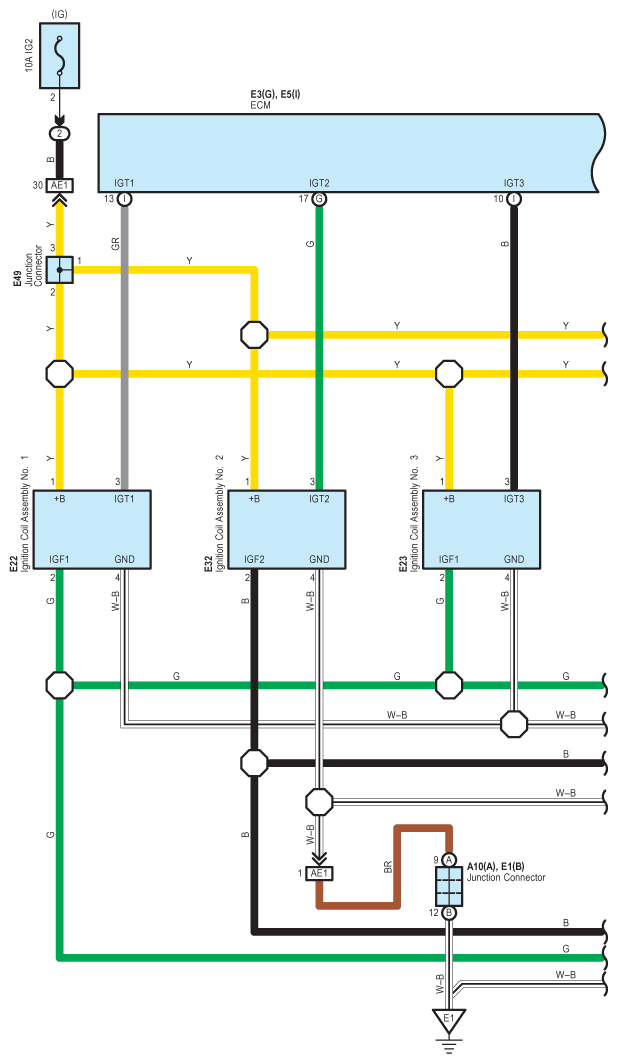

Fig 1: Ignition (4GR-FSE) Wiring Diagram (1 Of 2)
G09121117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

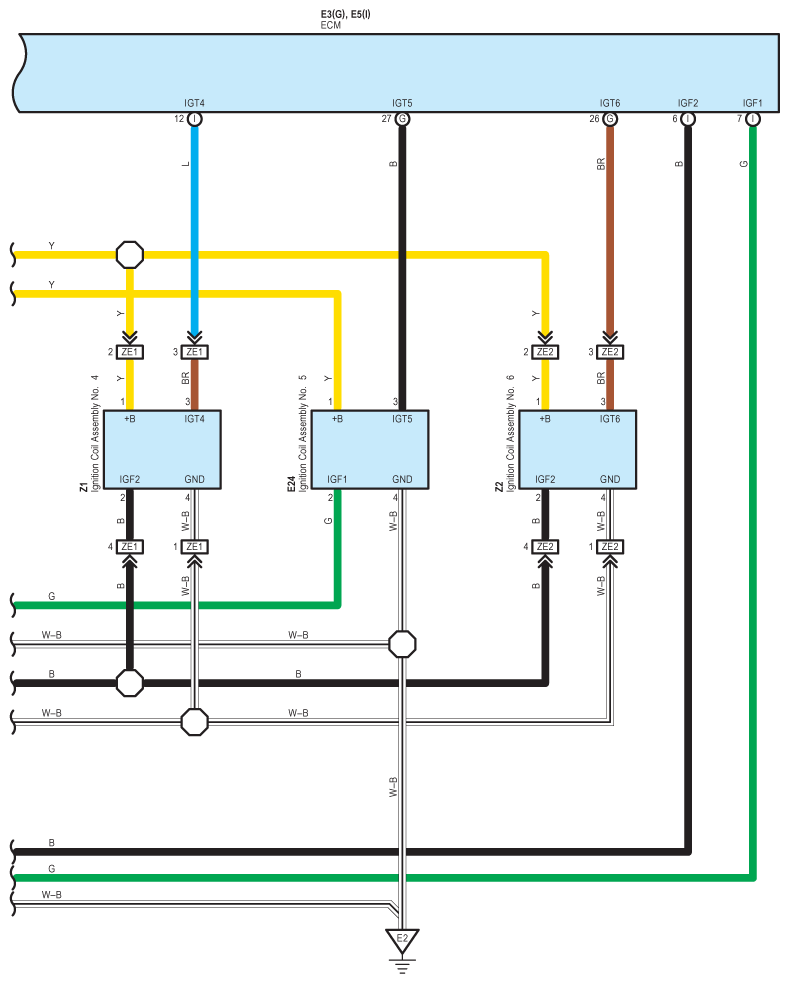

Fig 2: Ignition (4GR-FSE) Wiring Diagram (2 Of 2)
G09121118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
