OEM System Circuits: Illumination: Notes

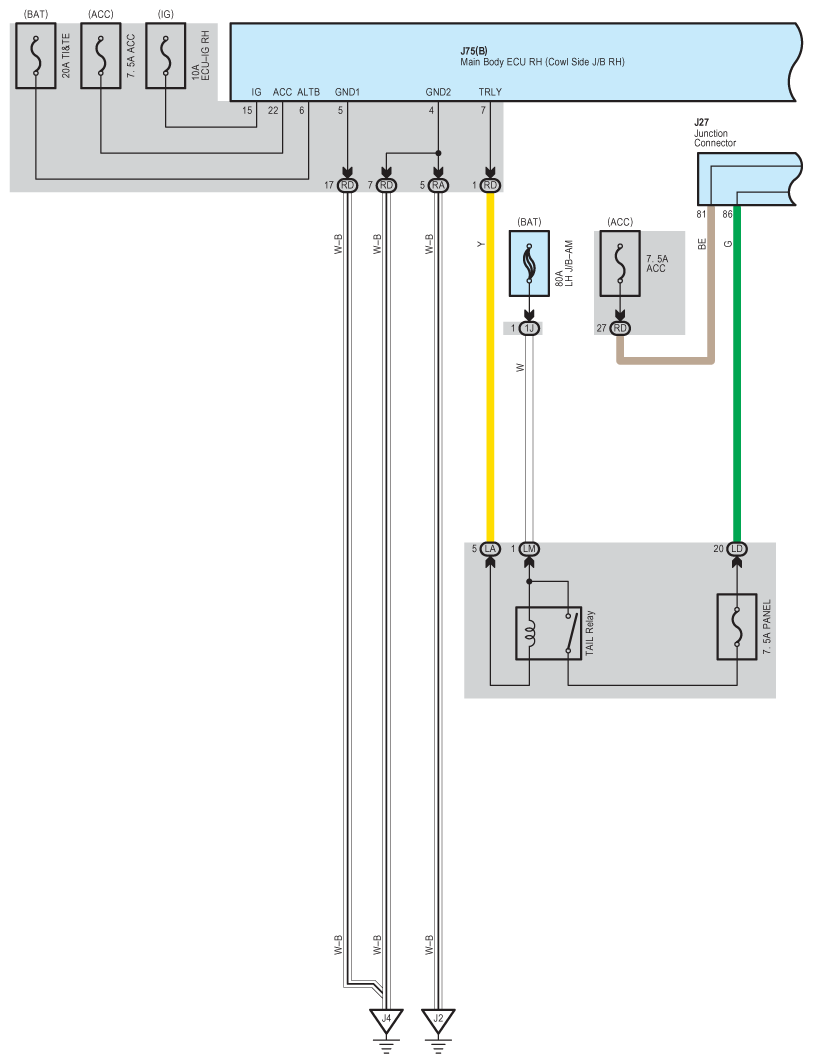

Fig 1: Illumination Wiring Diagram (1 Of 8)

G09121187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

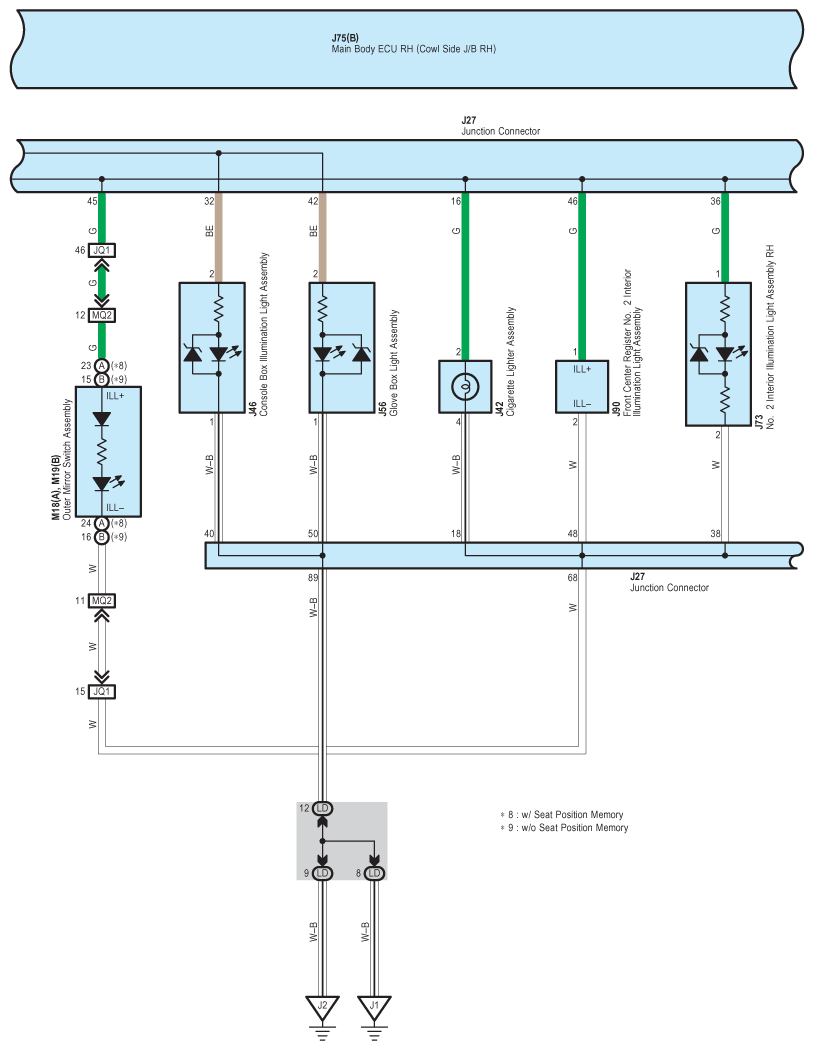

Fig 2: Illumination Wiring Diagram (2 Of 8)

G09121188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

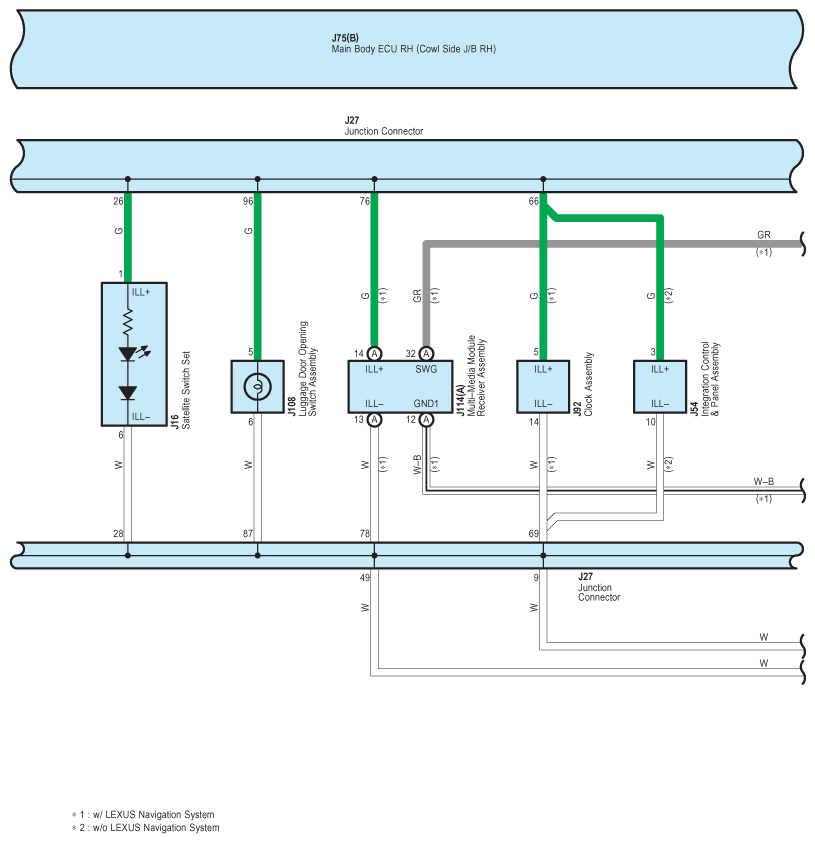

Fig 3: Illumination Wiring Diagram (3 Of 8)

G09121189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

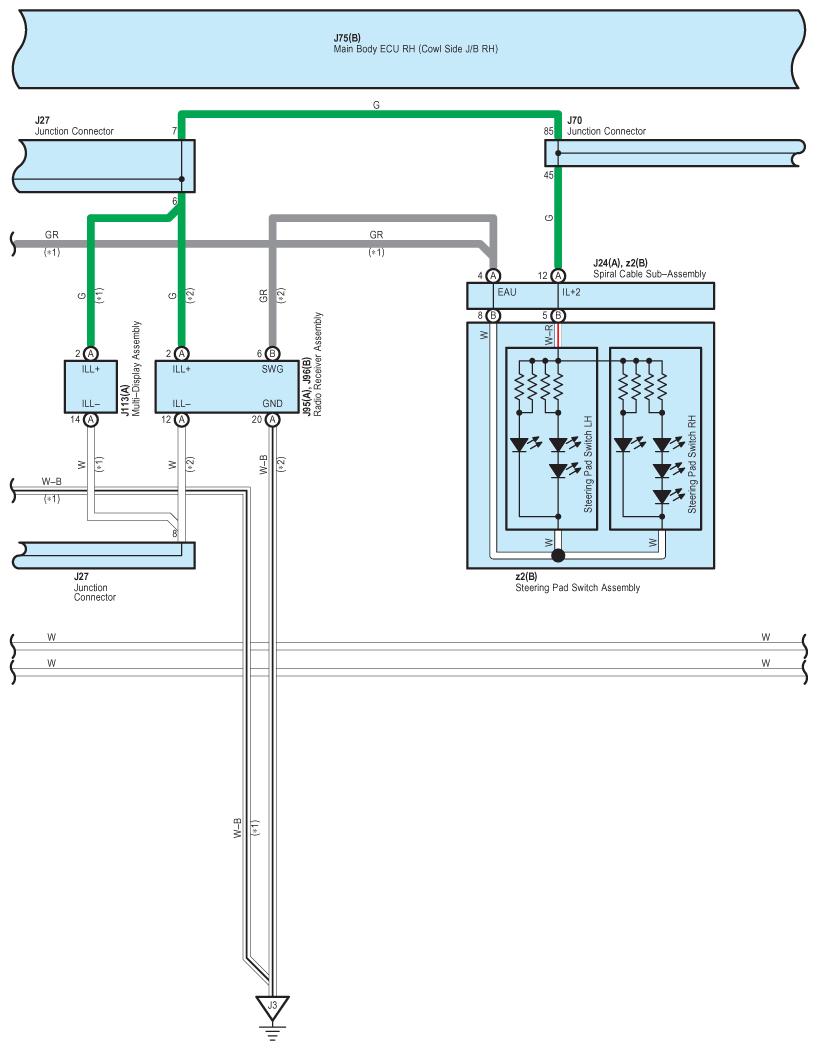

Fig 4: Illumination Wiring Diagram (4 Of 8)

G09121190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

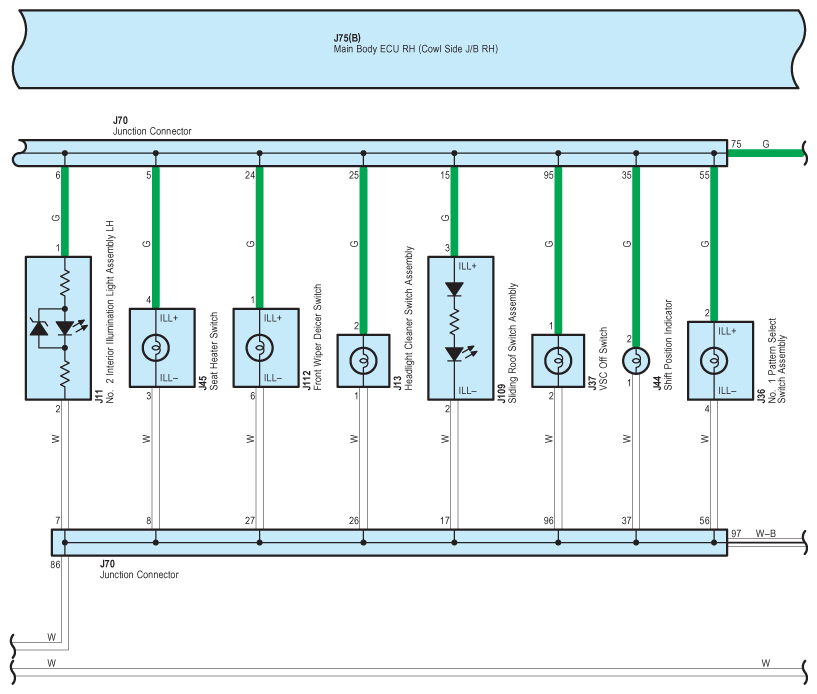

Fig 5: Illumination Wiring Diagram (5 Of 8)

G09121191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

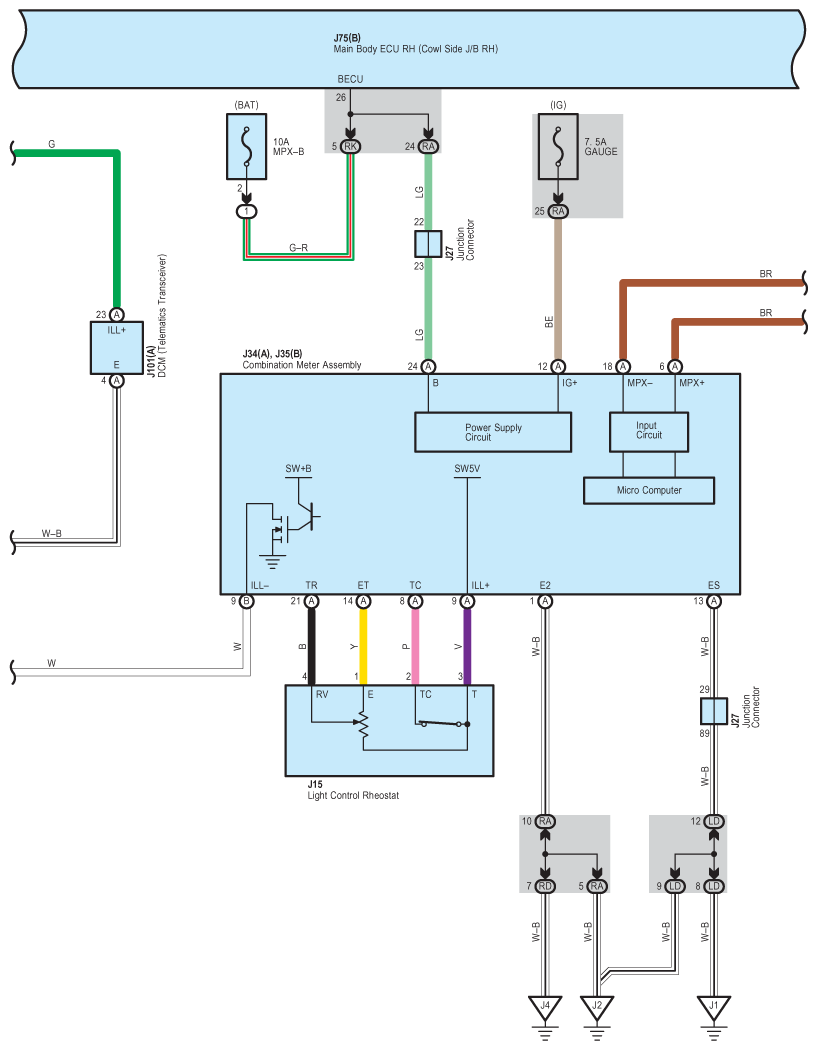

Fig 6: Illumination Wiring Diagram (6 Of 8)

G09121192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

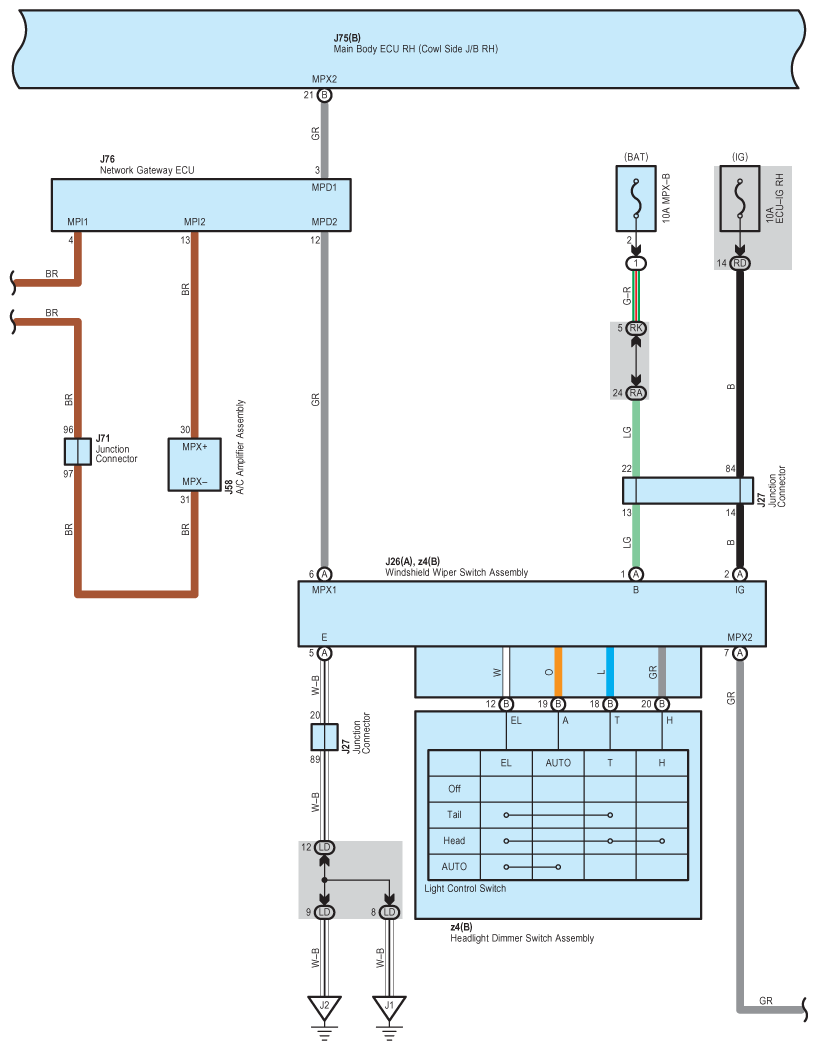

Fig 7: Illumination Wiring Diagram (7 Of 8)

G09121193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

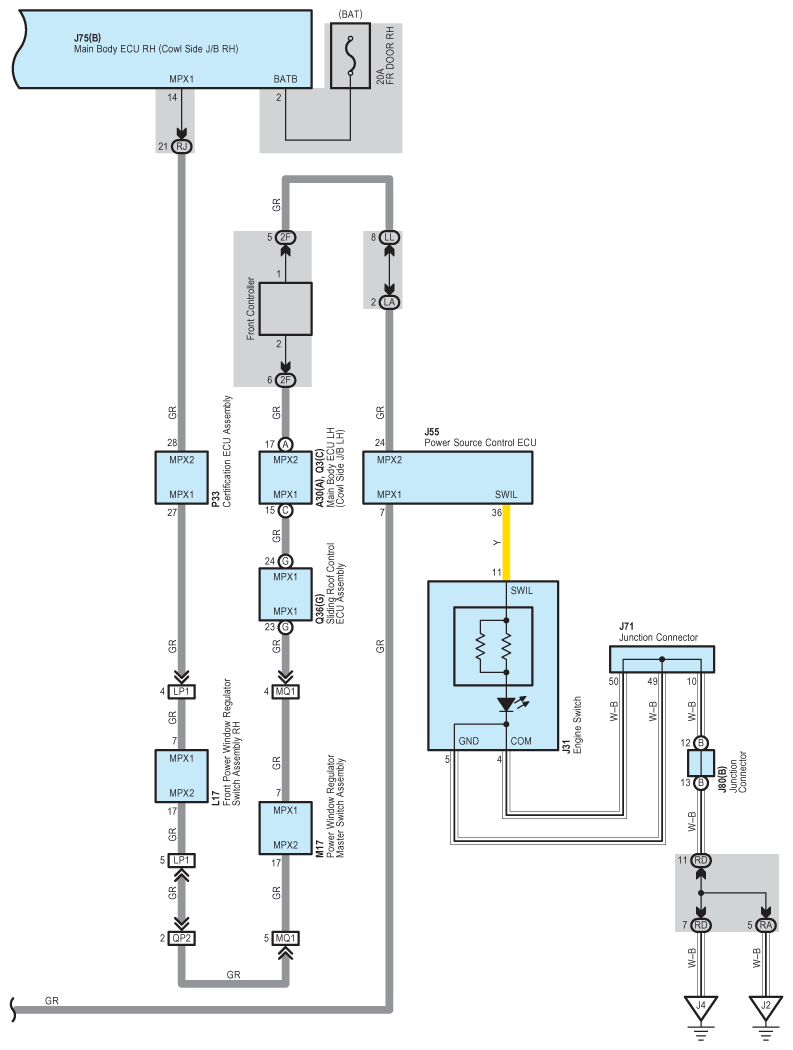

Fig 8: Illumination Wiring Diagram (8 Of 8)

G09121194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
