Vehicle Dynamics Integrated Management: Notes

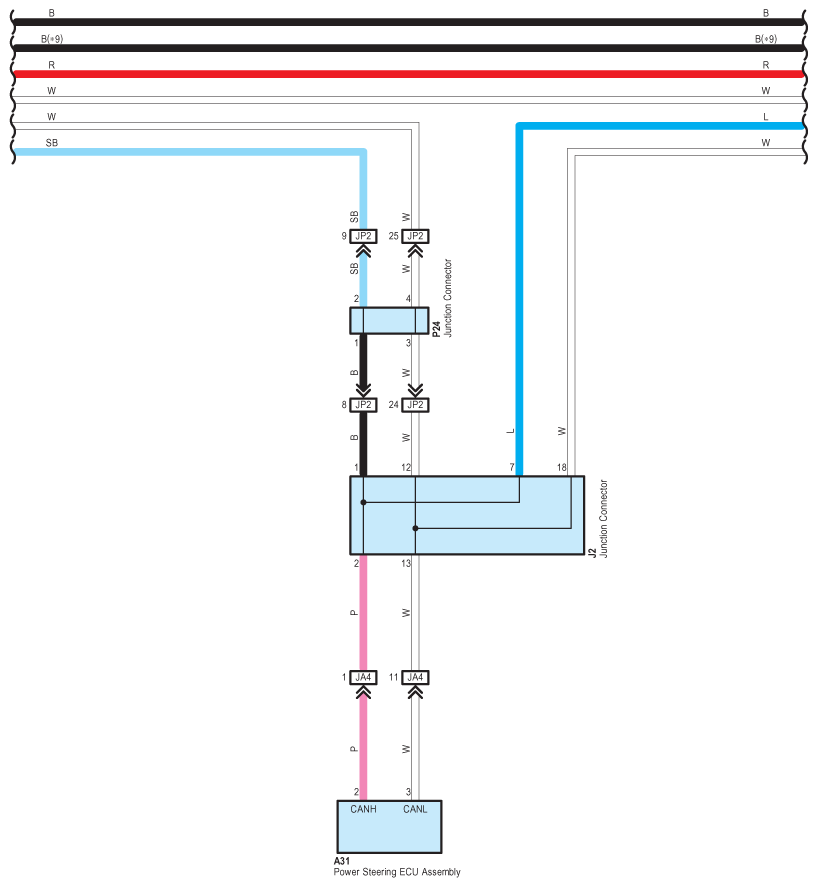

Fig 1: Vehicle Dynamics Integrated Management Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

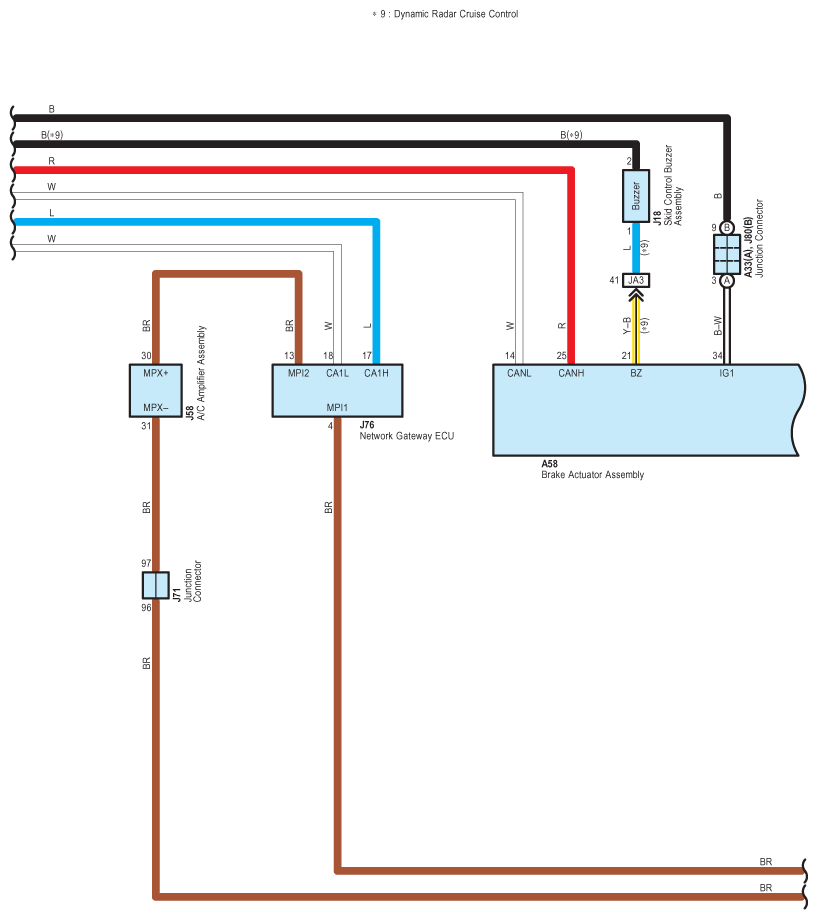

Fig 2: Vehicle Dynamics Integrated Management Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

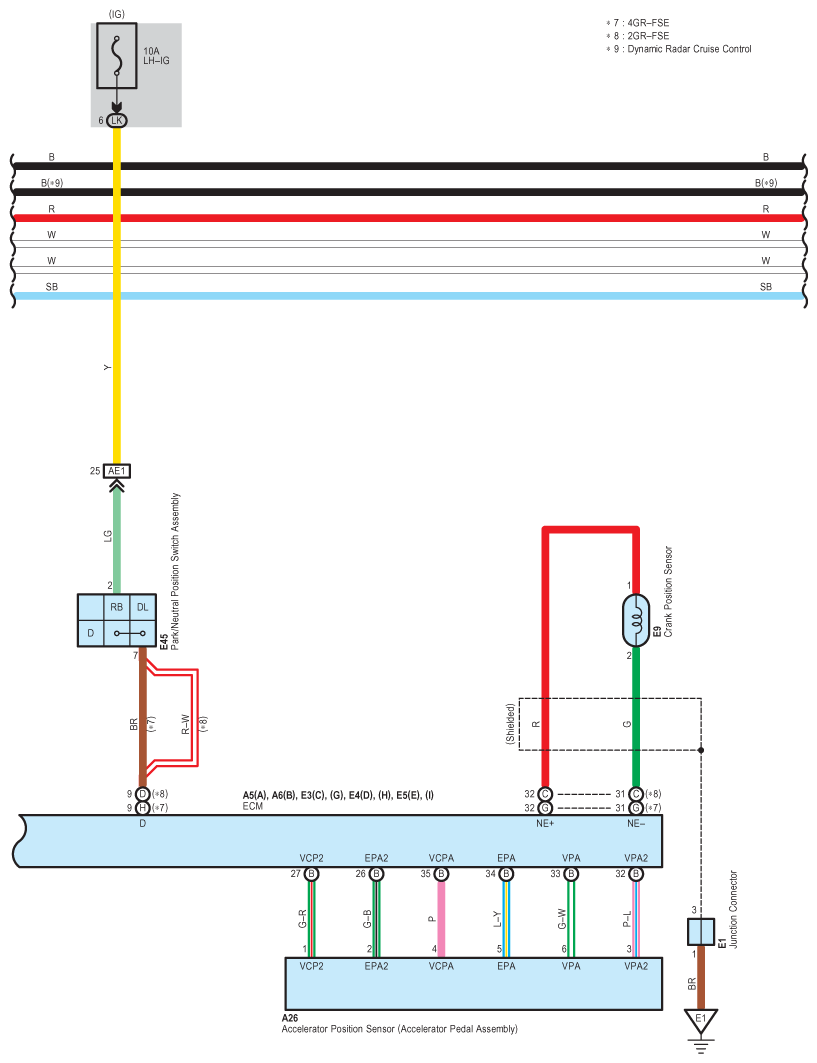

Fig 3: Vehicle Dynamics Integrated Management Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

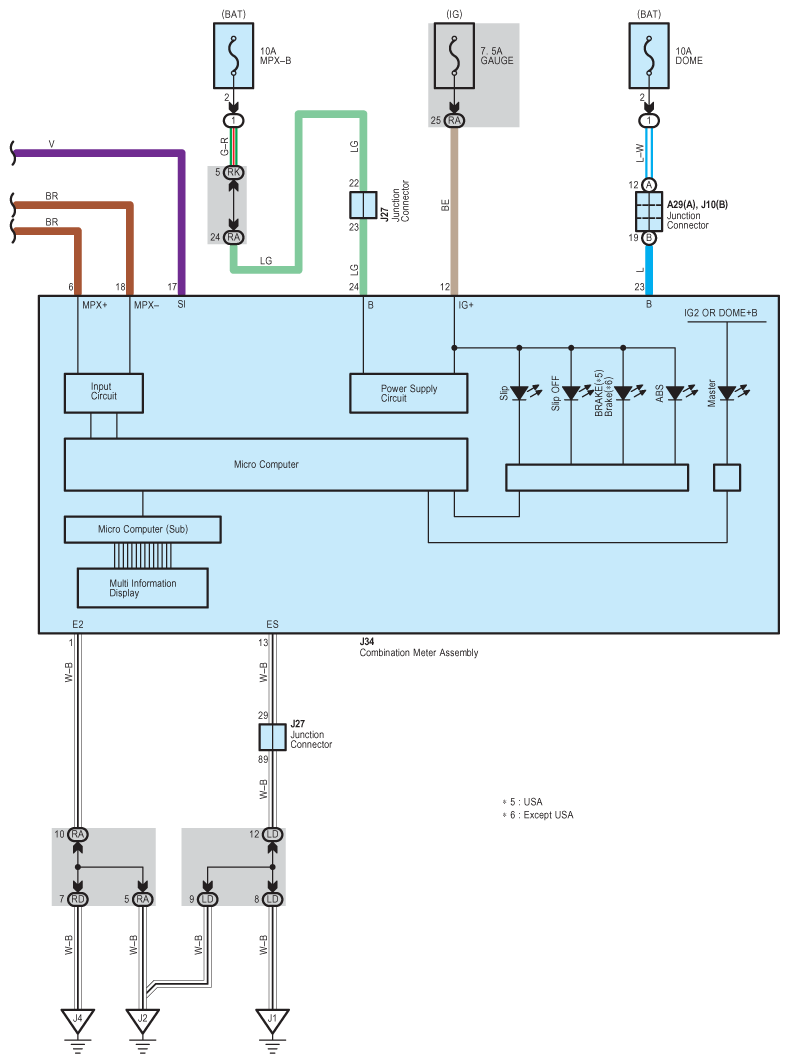

Fig 4: Vehicle Dynamics Integrated Management Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

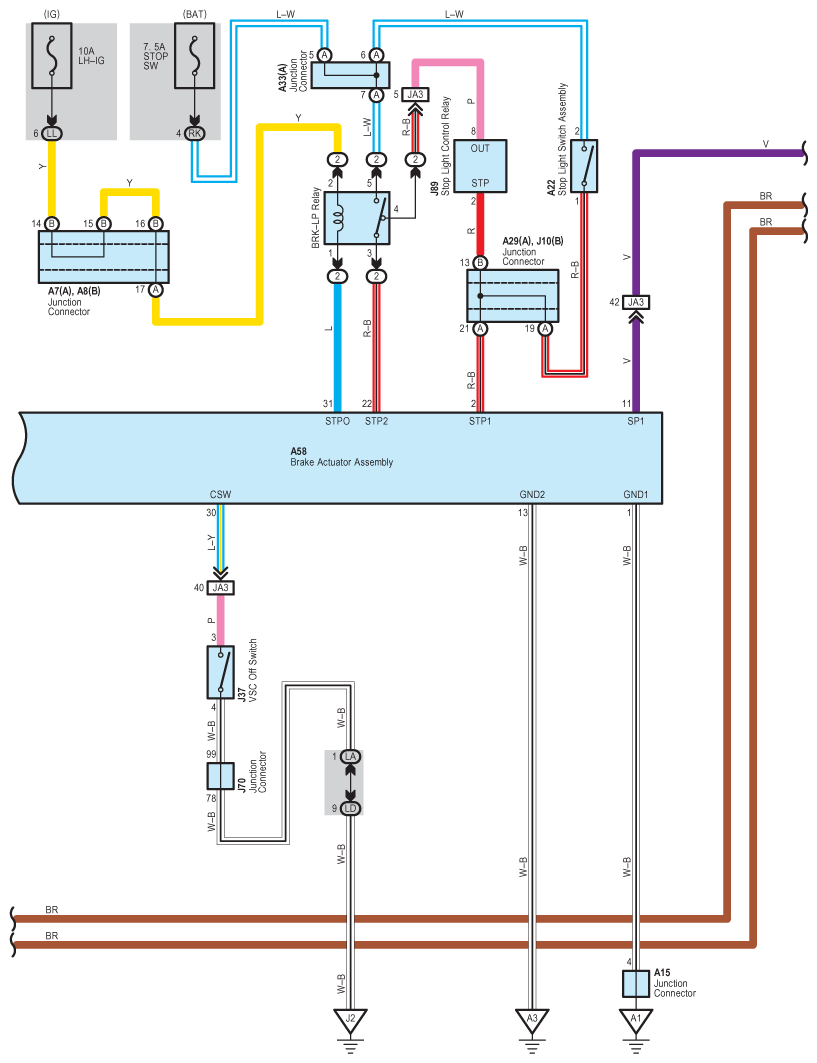

Fig 5: Vehicle Dynamics Integrated Management Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

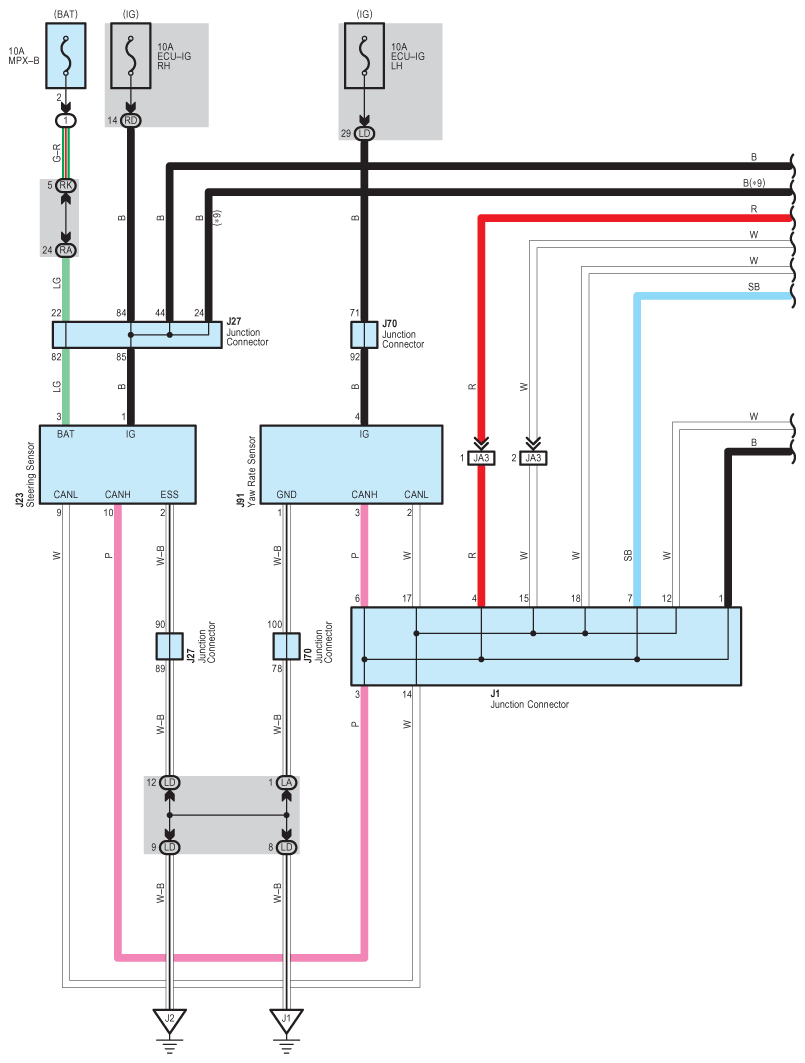

Fig 6: Vehicle Dynamics Integrated Management Wiring Diagram (6 Of 8)

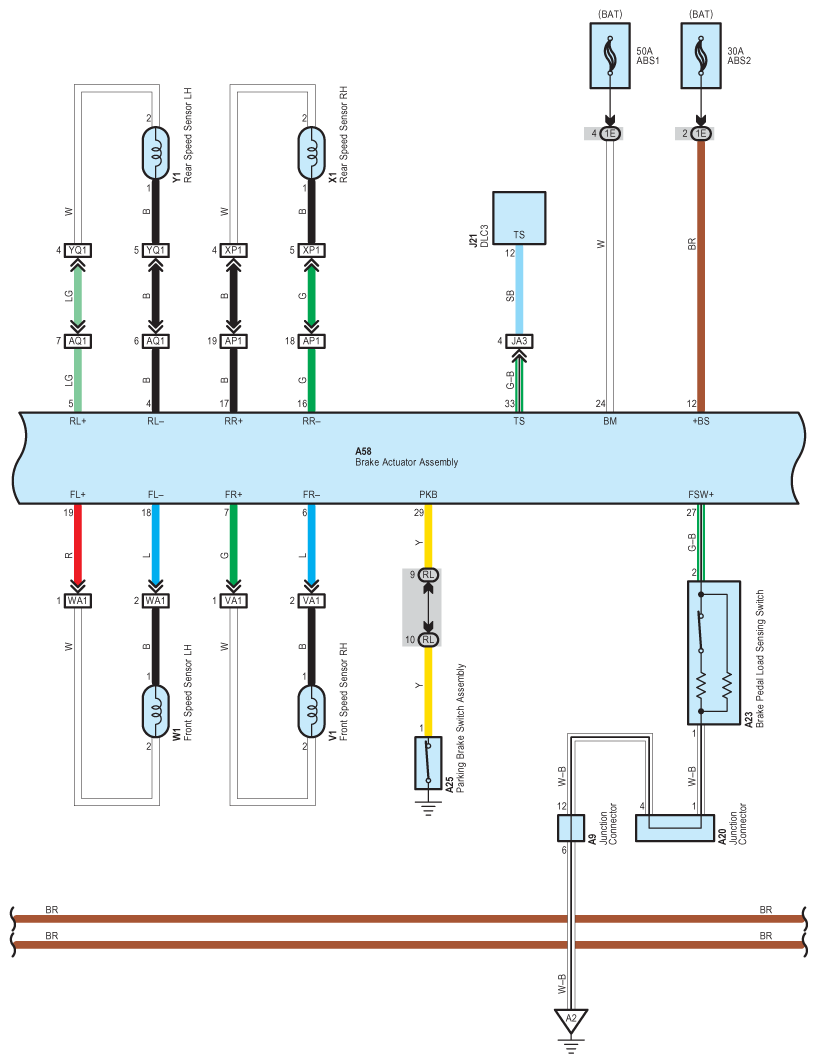

Fig 7: Vehicle Dynamics Integrated Management Wiring Diagram (7 Of 8)

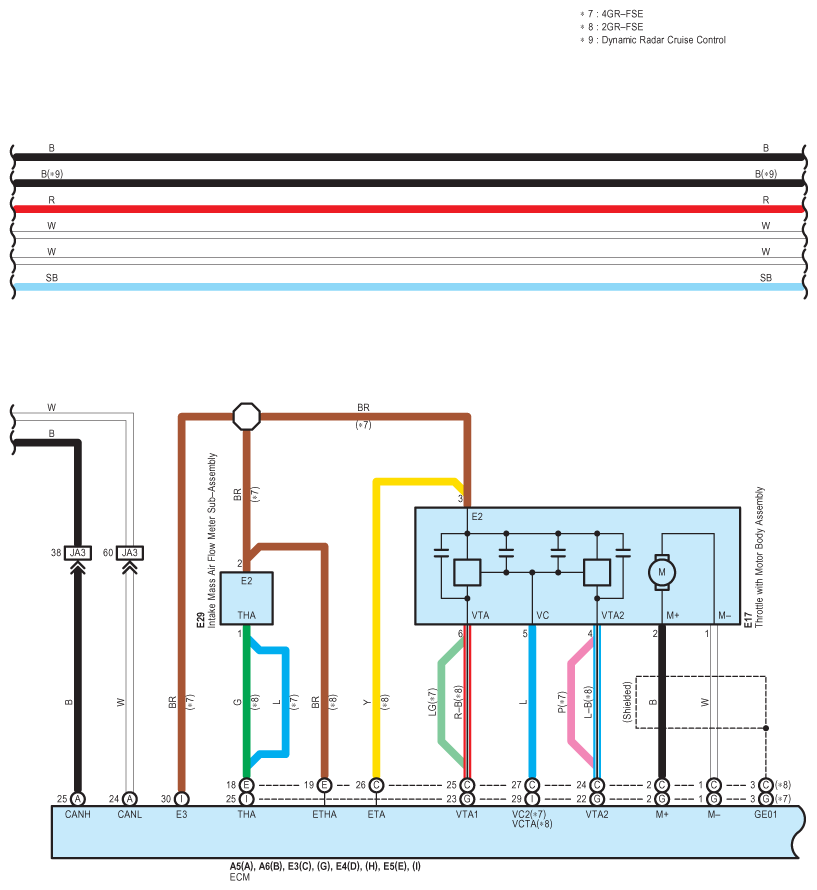

Fig 8: Vehicle Dynamics Integrated Management Wiring Diagram (8 Of 8)
